2AOWK3095Mobile Phone

FCC compliance statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Important: Changes or modifications to this product not authorized by Shenzhen Gotron Electronic CO.,LTD. could void the electromagnetic compatibility (EMC) and wireless compliance and negate your authority to operate the product. This product has demonstrated EMC compliance under conditions that included the use of compliant peripheral devices and shielded cables between system components. It is important that you use compliant peripheral devices and shielded cables between system components to reduce the possibility of causing interference to radios, televisions, and other electronic devices. SAR Statement: This Mobile Phone meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: GQ3095 (FCC ID: 2AOWK3095) has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the handset kept 10mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain a 10mm separation distance between the user's body and the back of the handset. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

Shenzhen Gotron Electronic CO.,LTD. Agent Authorization Letter (2021-01-22) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, tangyongbin / Manager Date/City: 2021-01-22/Shenzhen Phone: 0755-83895989 Fax: 0755-83895909 E-mail: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Family models difference declaration Mobile Phone Model: GQ3095, Note 11P, Note 11, Note 11T, Note 11E, Note 11S, Note 11X, Note 11 Pro, Note 11 Lite, Note 11 Plus Difference declaration: All the model are the same circuit and RF module, except the Model names. Regards, Signature Name: tangyongbin Date: 2021-01-22

Shenzhen Gotron Electronic CO.,LTD. Long Term Confidentiality Request Letter (2021-01-22) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: GQ3095, Note 11P, Note 11, Note 11T, Note 11E, Note 11S, Note 11X, Note 11 Pro, Note 11 Lite, Note 11 Plus FCC ID: 2AOWK3095 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Part List / BOM List / PCB Layout  Operational Description  Tune-up Procedure  FCC Software Security Requirements for UNII devices Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, tangyongbin / Manager Date/City: 2021-01-22/Shenzhen Phone: 0755-83895989 Fax: 0755-83895909 E-mail: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Short Term Confidentiality Request Letter (2021-01-22) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: Mobile Phone Model No.: GQ3095, Note 11P, Note 11, Note 11T, Note 11E, Note 11S, Note 11X, Note 11 Pro, Note 11 Lite, Note 11 Plus FCC ID: 2AOWK3095 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Shenzhen Gotron Electronic CO.,LTD. >. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Shenzhen Gotron Electronic CO.,LTD. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Shenzhen Gotron Electronic CO.,LTD. > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, tangyongbin / Manager Date/City: 2021-01-22/Shenzhen Phone: 0755-83895989 Fax: 0755-83895909 E-mail: [email protected]

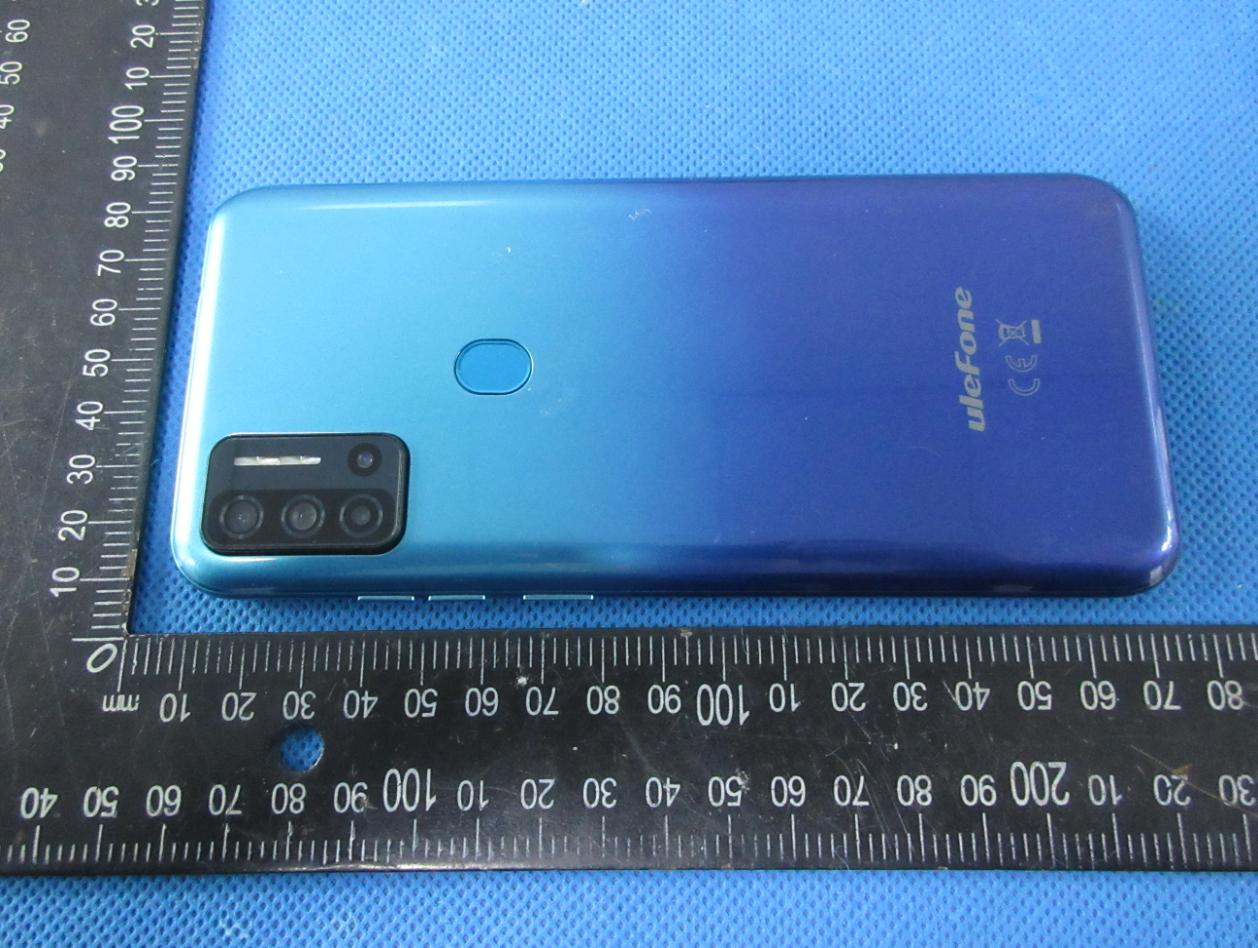

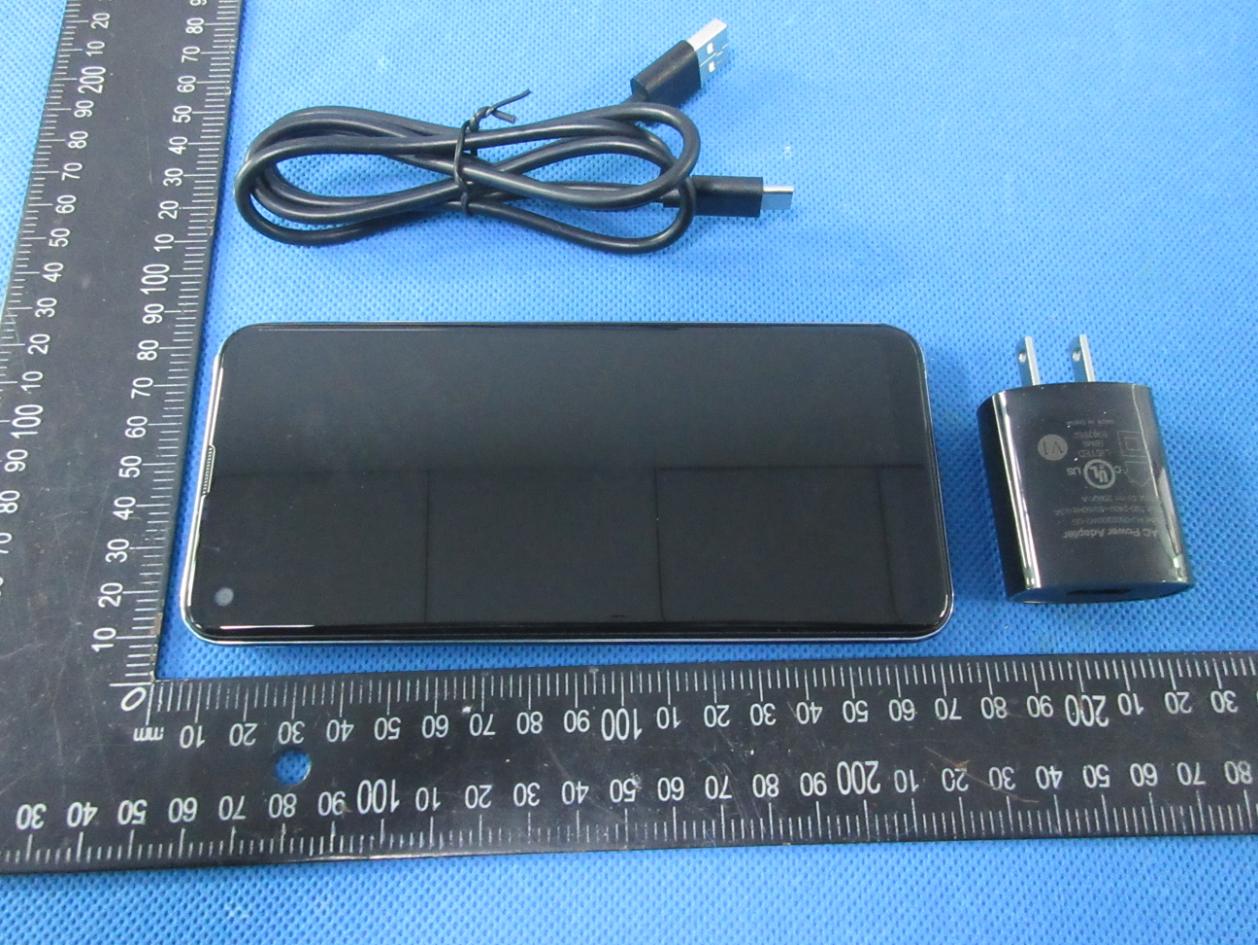

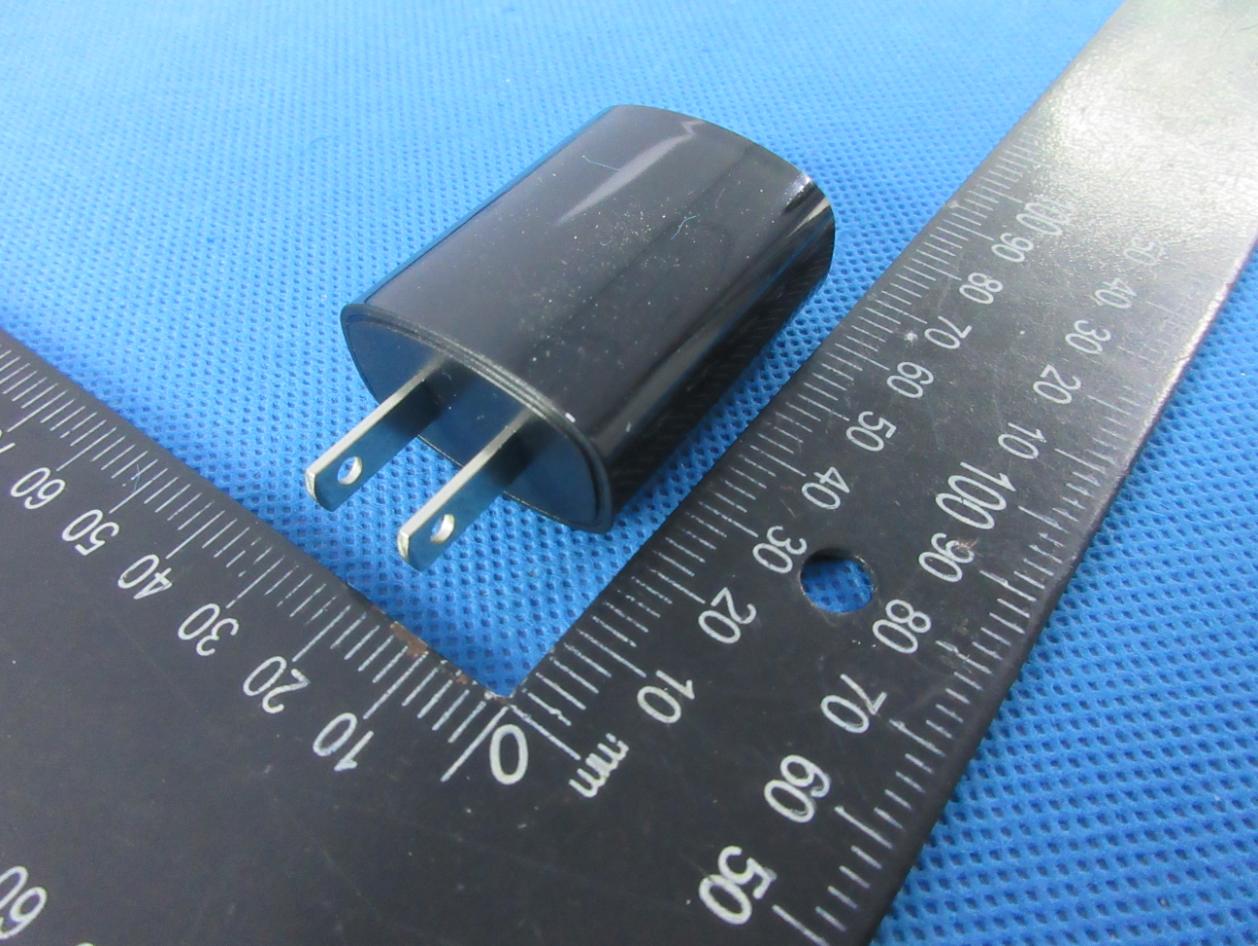

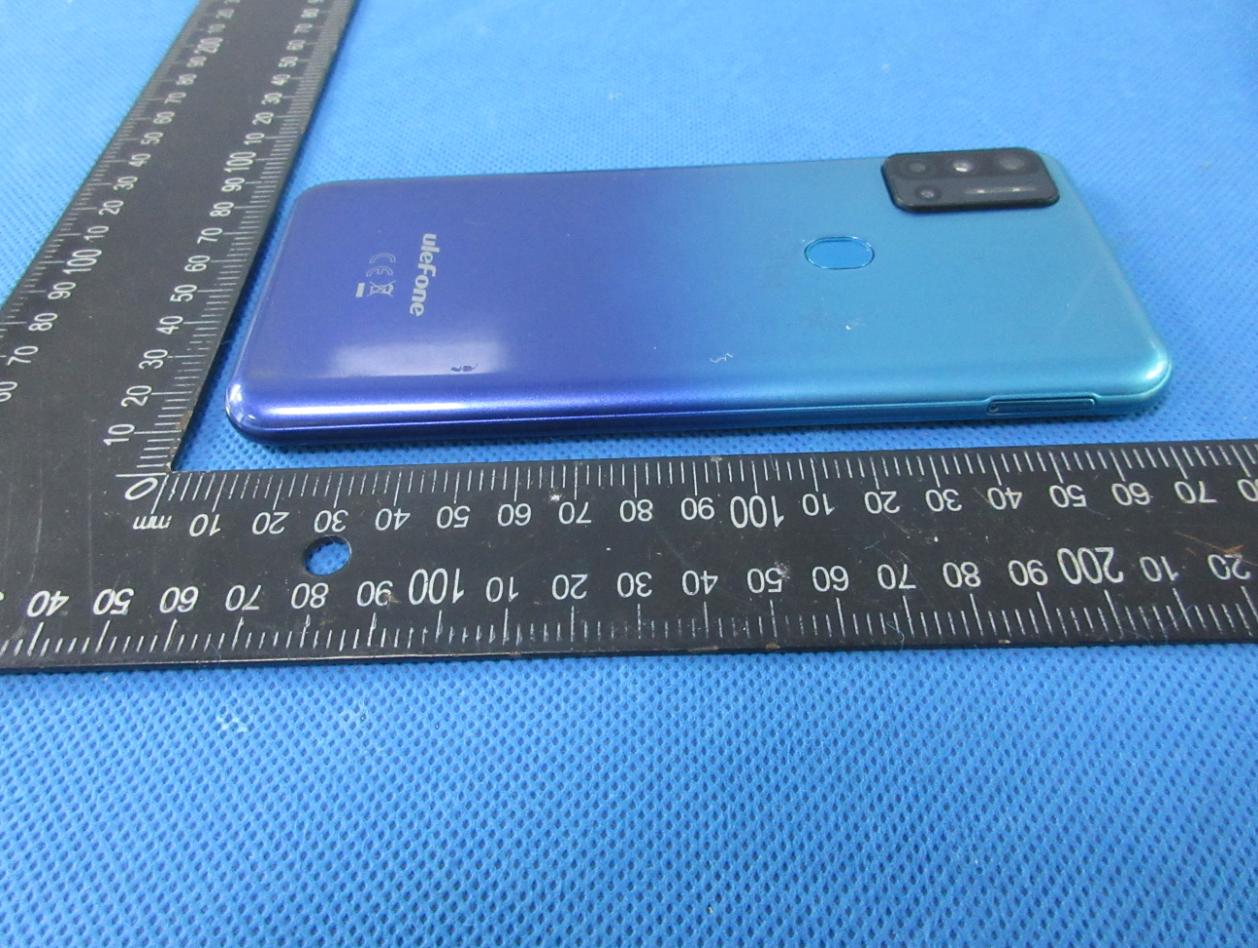

STR201207002001E Model Name: GQ3095 External Photographs Photo1 Photo2 STR201207002001E Model Name: GQ3095 Photo3 Photo4 STR201207002001E Model Name: GQ3095 Photo5 Photo6 STR201207002001E Model Name: GQ3095 Photo7 Photo8 STR201207002001E Model Name: GQ3095 Photo9 Photo10

Label Sample and Label Location

STR201207002001E Model Name: GQ3095 Internal Photographs Photo1 Photo2 STR201207002001E Model Name: GQ3095 Photo3 Photo4 STR201207002001E Model Name: GQ3095 Photo5 Photo6 STR201207002001E Model Name: GQ3095 Photo7 Photo8 Use Earphone as FM ANT STR201207002001E Model Name: GQ3095 Photo9 Photo10 STR201207002001E Model Name: GQ3095 Photo11 Photo12 STR201207002001E Model Name: GQ3095 Photo13 Photo14 STR201207002001E Model Name: GQ3095 Photo15 Photo16 STR201207002001E Model Name: GQ3095 Photo17 Photo18 GSM / WCDMA / LTE Main ANT STR201207002001E Model Name: GQ3095 Photo19 Photo20 LTE Div ANT Wi-Fi / BT / GPS ANT

Report No.: STR201207002006E Version.1.2 Page 1 of 19 FCC Test Report FCC ID: 2AOWK3095 Product: Mobile Phone Trade Mark: ulefone Model Number: GQ3095 Family Model: Note 11P, Note 11, Note 11T, Note 11E, Note 11S, Note 11X, Note 11 Pro, Note 11 Lite, Note 11 Plus Report No.: STR201207002006E Prepared for Shenzhen Gotron Electronic CO.,LTD. 518, 5F, R&D building, Tsinghua Hi-Tech park, Nanshan district, Shenzhen 518057 P.R.China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China Tel:400-800-6106 , 0755-3699-5508 Website:http://www.ntek.org.cn Report No.: STR201207002006E Version.1.2 Page 2 of 19 TEST RESULT CERTIFICATION Applicant’s name ................. : Shenzhen Gotron Electronic CO.,LTD. Address .................................. : 518, 5F, R&D building, Tsinghua Hi-Tech park, Nanshan district, Shenzhen 518057 P.R.China Manufacturer's Name .......... : Shenzhen Gotron Electronic CO.,LTD. Address .................................. : 518, 5F, R&D building, Tsinghua Hi-Tech park, Nanshan district, Shenzhen 518057 P.R.China Product description Product name ........................... : Mobile Phone Model and/or type reference : GQ3095 Family Model .............................. Note 11P, Note 11, Note 11T, Note 11E, Note 11S, Note 11X, Note 11 Pro, Note 11 Lite, Note 11 Plus Standards ............................. : FCC Part15B ANSI C63.4:2014 This device described above has been tested by NTEK, and the test results show that the equipment under test (EUT) is in compliance with Part 15 of FCC Rules. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of NTEK, this document may be altered or revised by NTEK, personnel only, and shall be noted in the revision of the document. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec 07. 2020 ~ Jan 07. 2021 Date of Issue ........................................... : Jan 07. 2021 Test Result ............................................... : Pass Testing Engineer : (Cheng Jiawen) Technical Manager : (Jason Chen) Authorized Signatory : (Alex Li) Report No.: STR201207002006E Version.1.2 Page 3 of 19 Table of Contents Page 1 . TEST SUMMARY 4 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2 . GENERAL INFORMATION 6 2.1 GENERAL DESCRIPTION OF EUT 6 2.2 DESCRIPTION OF TEST SETUP 8 2.3 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 9 2.4 MEASUREMENT INSTRUMENTS LIST 10 3 . EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.1.1 POWER LINE CONDUCTED EMISSION 11 3.1.2 TEST PROCEDURE 12 3.1.3 TEST SETUP 12 3.1.4 EUT OPERATING CONDITIONS 12 3.1.5 TEST RESULTS 13 3.2 RADIATED EMISSION MEASUREMENT 15 3.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT 15 3.2.2 TEST PROCEDURE 15 3.2.3 TEST SETUP 16 3.2.4 TEST RESULTS 17 3.2.5 TEST RESULTS(1000~18000MHz) 19 Report No.: STR201207002006E Version.1.2 Page 4 of 19 1. TEST SUMMARY Test procedures according to the technical standards: EMC Emission Standard Test Item Limit Judgment Remark FCC Part15B ANSI C63.4: 2014 Conducted Emission Class B PASS Radiated Emission Class B PASS NOTE: (1) ’N/A’ denotes test is not applicable in this Test Report (2) For client’s request and manual description, the test will not be executed. Report No.: STR201207002006E Version.1.2 Page 5 of 19 1.1 TEST FACILITY Shenzhen NTEK Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen 518126 P.R. China. FCC Registration Number:463705; IC Registration Number:9270A-1 CNAS Registration Number:L5516 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. Test Item Measurement Frequency Range K U(dB) AC Mains Conducted Emission 0.009kHz ~ 0.15MHz 2 2.66 AC Mains Conducted Emission 0.15MHz ~ 30MHz 2 2.80 Telecom Conducted Emission (Cat 3) 0.15MHz ~ 30MHz 2 2.40 Telecom Conducted Emission (Cat 5) 0.15MHz ~ 30MHz 2 2.58 Radiated Emission 30MHz ~ 1000MHz 2 2.64 Radiated Emission 1000MHz ~ 6000MHz 2 5.10 Radiated Emission 6000MHz ~ 18000MHz 2 2.52 Power Clamp 30MHz ~ 300MHz 2 2.20 Report No.: STR201207002006E Version.1.2 Page 6 of 19 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Mobile Phone Trade Mark ulefone Model Name GQ3095 Family Model Note 11P, Note 11, Note 11T, Note 11E, Note 11S, Note 11X, Note 11 Pro, Note 11 Lite, Note 11 Plus Model Difference All the model are the same circuit and RF module, except the Model names. Product Description The EUT is a Mobile Phone . Connecting I/O port: Micro USB, Earphone Operation Frequency: 5.825GHz Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual. Power Source DC 3.85V/4400mAh from battery or DC 5V from Adapter Adapter Model:HJ-0502000W2-US Input: 100-240V~50/60Hz 0.3A Output: 5V2000mA HW Version G2062U-PT-V1.0 SW Version Note 11P_RH1_V01 Report No.: STR201207002006E Version.1.2 Page 7 of 19 2.1.1 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. Pretest Mode Description Mode 1 USB Data Transmission Mode 2 TF card Playing Mode 3 REC Mode 4 FM Mode 5 GPS For Conducted Test Final Test Mode Description Mode 1 USB Data Transmission For Radiated Test Final Test Mode Description Mode …

Text truncated - open the document above for the full version.

Radiated Measurement Photos AC Conducted Measurement Photos
