2AOWKGQ3087Mobile Phone

1 GQ3087 User Guide 2 Contents I. CAUTIONS ON MOBILE PHONE USE ............................................................................................................... 4 1.1 INTERFERENCE ......................................................................................................................................... 4 1.2 REASONABLE USE .................................................................................................................................... 4 1.3 QUALIFIED MAINTENANCE SERVICE .......................................................................................................... 4 1.4 WATER-RESISTANCE ................................................................................................................................. 4 1.5 EMERGENCY CALLS .................................................................................................................................. 4 2 PRECAUTIONS FOR USE OF BATTERY ........................................................................................................... 4 3 CAUTIONS FOR CHILDREN ............................................................................................................................ 4 II. KEYS AND PARTS ........................................................................................................................................ 5 III. START TO USE ........................................................................................................................................... 6 3.1 TO INSERT SIM CARD(S): ......................................................................................................................... 6 3.2 CHARGE THE BATTERY ............................................................................................................................. 8 IV. BASIC FUNCTIONS ..................................................................................................................................... 8 1. LOCK AND UNLOCK THE SCREEN ................................................................................................................ 8 2. MAKE IT YOURS ........................................................................................................................................ 10 3. SWITCH TO RECENTLY USED APPLICATION .............................................................................................. 16 4. MAKE A CALL ........................................................................................................................................... 17 5. CALL LOG ................................................................................................................................................. 18 3 6. ANSWERING PHONE CALLS AND REJECTION ............................................................................................. 19 7. ADD A CONTACT ....................................................................................................................................... 20 8. SEND AND RECEIVE MESSAGE(S) ............................................................................................................. 21 9. BROWSER THE WEB ................................................................................................................................. 23 10. ENJOY MUSIC ......................................................................................................................................... 23 11. DOWNLOAD APPLICATIONS FROM PLAY STORE ...................................................................................... 24 12. MANAGE APPLICATIONS ......................................................................................................................... 25 13. APPLICATIONS & UTILITIES ............................................................................................................ 26 14. SETTINGS ............................................................................................................................................... 26 4 I. Cautions on mobile phone use 1.1 Interference All phones may be interfered, which affect phone calls. 1.2 Reasonable use Use only in the normal position. Do not touch the antenna area unnecessarily. 1.3 Qualified maintenance service Only qualified personnel may install or repair this product. 1.4 Water-resistance Your device is non water-resistant. Keep it dry. 1.5 Emergency calls Ensure the phone is switched on and in service. Enter the emergency number and press the Dialer icon. 2 Precautions for use of battery 2.1 Do not dispose of batteries near or in a fire to avoid dangers. 2.2 Do not dispose of batteries in the garbage. Dispose of batteries to assigned battery recycling center. 3 Cautions for children Keep your device out the reach of children in case of accidental injury caused by incorrect use of the device as toys. 5 II. Keys and parts 6  1. Audio jack  2. USB Connector  3. Front Camera  4. Receiver  5. Light sensor / Proximity sensor  6. LCD  7. Mic  8. Adjust volume key  9. Power key  10. Rear Camera  11. Flashlight  12. Speaker III. Start to use 3.1 To insert SIM card(S): Insert the SIM card correctly in the card slot(s) (See figure below), suggest switch off the phone when you insert SIM card. Insert the Micro SD card into the slot with the correct direction (See figure below), suggest switch off the phone when you insert SIM card. Note: Use only compatible memory cards with this device. Incompatible memory cards may damage the card or the device and corrupt the data stored in the card. 7 8 3.2 Charge the battery During charging, the battery indicator on the phone is a thunder icon. If the device is switched off during charging, there will still be a charging indication on the screen that shows the phone is being charged. If the device is overused when the battery is low, the charging icon might take some time to appear. When the battery indic…

Text truncated - open the document above for the full version.

Shenzhen Gotron Electronic CO.,LTD. Agent Authorization Letter (2020-03-28) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, tangyongbin / Manager Date/City: 2020-03-28/Shenzhen Phone: 0755-83895989 Fax: 0755-83895909 E-mail: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Family models difference declaration Mobile Phone Model: GQ3087, Armor X7, Armor X7S, Armor X7E, Armor X7P, Armor X7A, Armor X7T, Armor X7 Pro, Armor X7 lite, Armor X7 Plus Difference declaration: All models are the same circuit and RF module, except the model name. Regards, Signature Name: tangyongbin Date: 2020-03-28

Shenzhen Gotron Electronic CO.,LTD. Long Term Confidentiality Request Letter (2020-03-28) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: GQ3087, Armor X7, Armor X7S, Armor X7E, Armor X7P, Armor X7A, Armor X7T, Armor X7 Pro, Armor X7 lite, Armor X7 Plus FCC ID: 2AOWKGQ3087 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Part List / BOM  Operational Description  Tune-up Procedure  FCC Software Configuration Control Declaration  FCC Software Security Requirements for UNII devices Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, tangyongbin / Manager Date/City: 2020-03-28/Shenzhen Phone: 0755-83895989 Fax: 0755-83895909 E-mail: [email protected]

Shenzhen Gotron Electronic CO.,LTD. Short Term Confidentiality Request Letter (2020-03-28) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For Product: Mobile Phone Model No.: GQ3087, Armor X7, Armor X7S, Armor X7E, Armor X7P, Armor X7A, Armor X7T, Armor X7 Pro, Armor X7 lite, Armor X7 Plus FCC ID: 2AOWKGQ3087 To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < Shenzhen Gotron Electronic CO.,LTD. >. requests short-term Confidentiality of following sections of this application for a period of 45 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < Shenzhen Gotron Electronic CO.,LTD. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < Shenzhen Gotron Electronic CO.,LTD. > feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, tangyongbin / Manager Date/City: 2020-03-28/Shenzhen Phone: 0755-83895989 Fax: 0755-83895909 E-mail: [email protected]

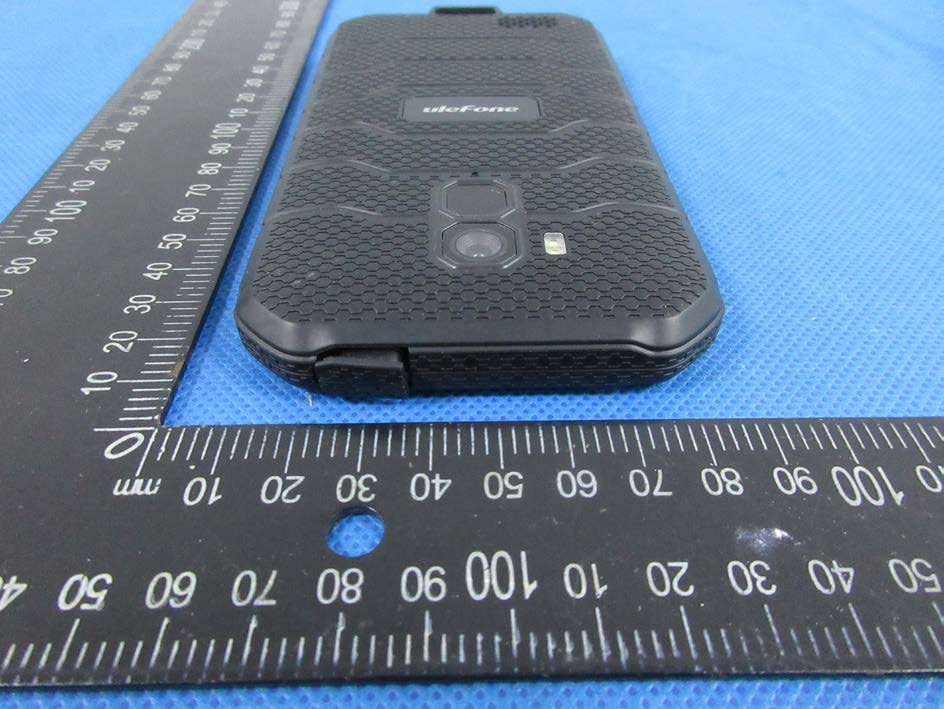

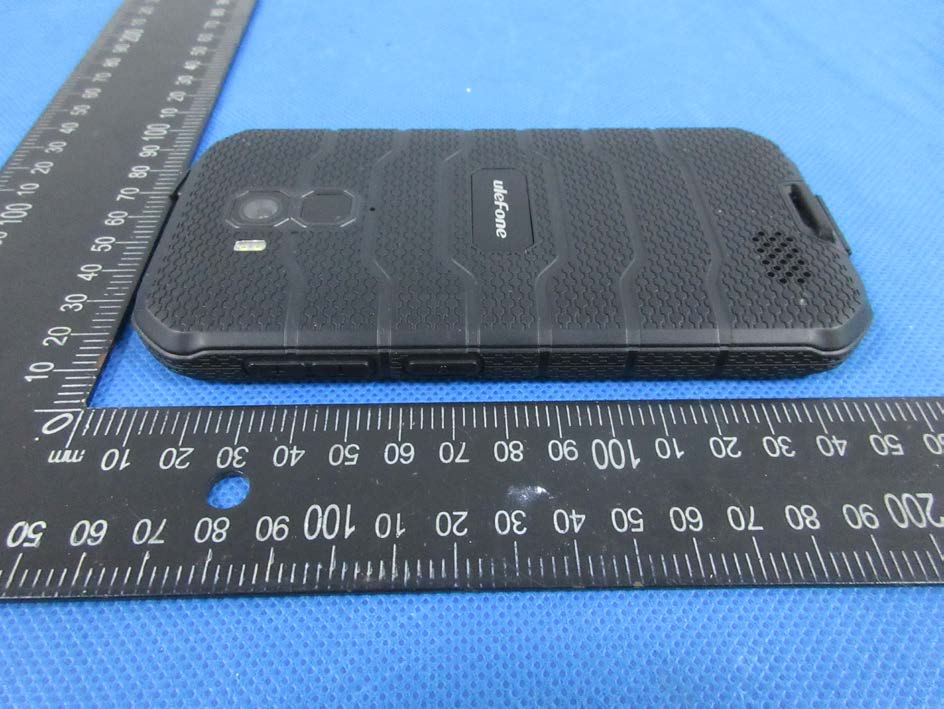

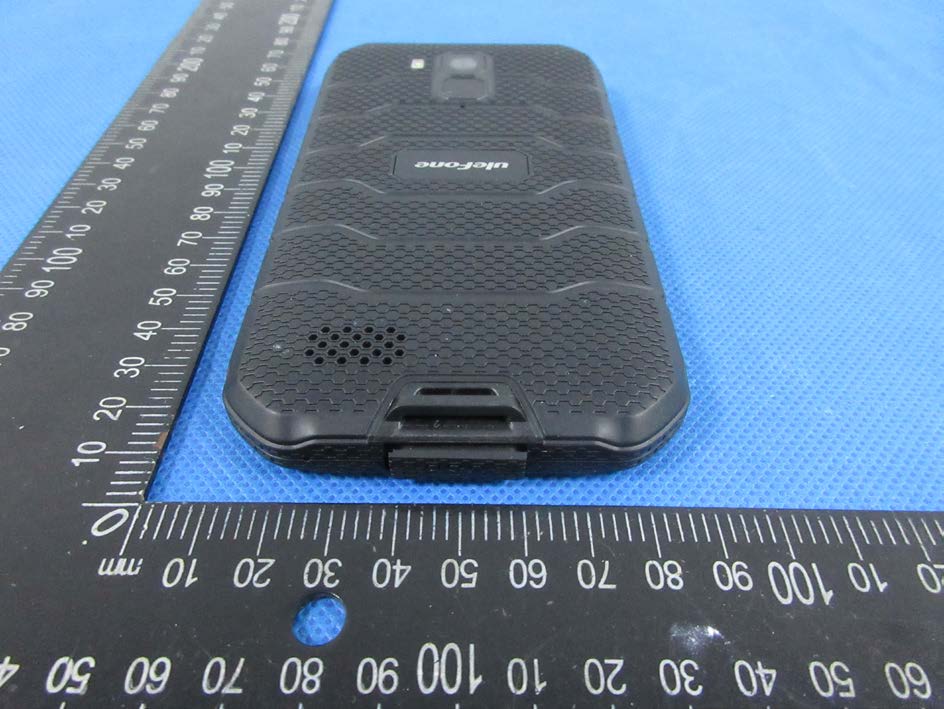

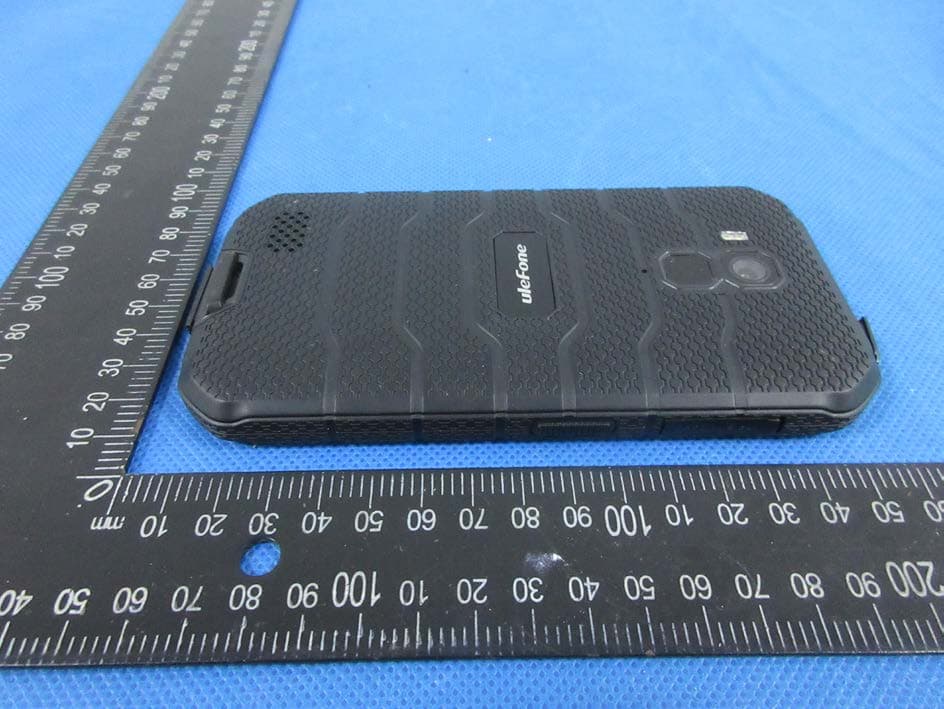

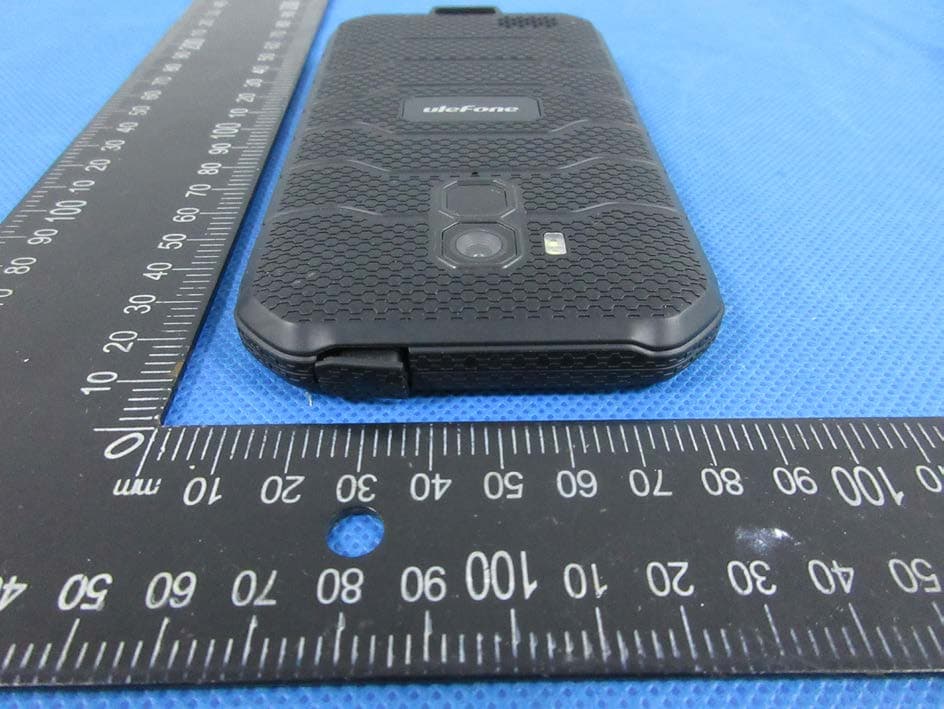

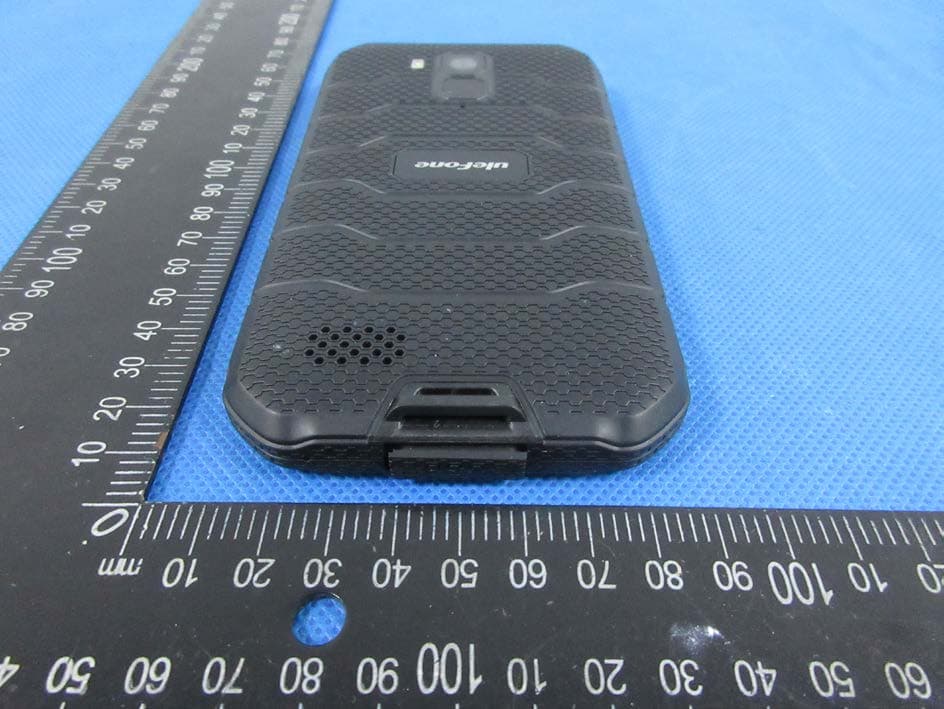

FCC ID: 2AOWKGQ3087 Model Name: GQ3087 External Photographs Photo1 Photo2 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo3 Photo4 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo5 Photo6 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo7 Photo8 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo9 Photo10

Label Sample and Label Location

FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Internal Photographs Photo1 Photo2 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo3 Photo4 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo5 Photo6 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo7 Photo8 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo9 Photo10 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo11 Photo12 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo13 Photo14 Use Earphone as FM ANT FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo15 Photo16 FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo17 Photo18 LTE Div ANT Wi-Fi / BT / GPS ANT FCC ID: 2AOWKGQ3087 Model Name: GQ3087 Photo19 Photo20 NFC ANT GSM / WCDMA / LTE Main ANT

Report No.: STR191125001002E Version.1.3 Page 1 of 84 RADIO TEST REPORT FCC ID: 2AOWKGQ3087 Product: Mobile Phone Trade Mark: ulefone Model No.: GQ3087 Family Model: Armor X7, Armor X7S, Armor X7E, Armor X7P, Armor X7A, Armor X7T, Armor X7 Pro, Armor X7 lite, Armor X7 Plus Report No.: STR191125001002E Issue Date: 23 Mar. 2020 Prepared for Shenzhen Gotron Electronic CO.,LTD. 518, 5F, R&D building, Tsinghua Hi-Tech park, Nanshan district, Shenzhen 518057 P.R.China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel.: +86-755-6115 6588 Fax.: +86-755-6115 6599 Website:http://www.ntek.org.cn Report No.: STR191125001002E Version.1.3 Page 2 of 84 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 19 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 28 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 29 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 30 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 31 7.7 PEAK OUTPUT POWER .............................................................................................................................. 32 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 33 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 34 7.10 ANTENNA APPLICATION .......................................................................................................................... 35 8 TEST RESULTS ................................................................................................................................................... 36 8.1 DWELL TIME ............................................................................................................................................... 36 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................................... 41 8.3 OCCUPIED CHANNEL BANDWIDTH ....................................................................................................... 46 8.4 CARRIER FREQUENCIES SEPARATION .................................................................................................. 56 8.5 NUMBER OF HOPPING CHANNEL ........................................................................................................... 61 8.6 BAND EDGE ................................................................................................................................................. 62 8.7 CONDUCTED RF SPURIOUS EMISSION .................................................................................................. 75 Report No.: STR191125001002E Version.1.3 Page 3 of 84 1 TEST RESULT CERTIFICATION Applicant’s name ......................... : Shenzhen Gotron Electronic CO.,LTD. Address ....................................... : 518, 5F, R&D building, Tsinghua Hi-Tech park, Nanshan district, Shenzhen 518057 P.R.China Manufacturer's Name .................. : Shenzhen Gotron Electronic CO.,LTD. Address ....................................... : 518, 5F, R&D building, Tsinghua Hi-Tech park, Nanshan district, Shenzhen 518057 P.R.China Product description Product name .............................. : Mobile Phone Model and/or type reference ..... : GQ3087 Family Model ............................... : Armor X7, Armor X7S, Armor X7E, Armor X7P, Armor X7A, Armor X7T, Armor X7 Pr…

Text truncated - open the document above for the full version.

Report No.: STR191125001002E Version.1.3 Page 61 of 84 8.5 NUMBER OF HOPPING CHANNEL Condition Mode Hopping Number Limit Verdict NVNT 1-DH5 79 15 Pass Hopping No. NVNT 1-DH5 2402MHz Report No.: STR191125001002E Version.1.3 Page 62 of 84 8.6 BAND EDGE Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 No-Hopping -47.72 -20 Pass NVNT 1-DH5 2402 Ant 1 Hopping -48.12 -20 Pass NVNT 1-DH5 2480 Ant 1 No-Hopping -48.75 -20 Pass NVNT 1-DH5 2480 Ant 1 Hopping -47.79 -20 Pass NVNT 2-DH5 2402 Ant 1 No-Hopping -47.83 -20 Pass NVNT 2-DH5 2402 Ant 1 Hopping -47.88 -20 Pass NVNT 2-DH5 2480 Ant 1 No-Hopping -47.76 -20 Pass NVNT 2-DH5 2480 Ant 1 Hopping -47.12 -20 Pass NVNT 3-DH5 2402 Ant 1 No-Hopping -45.71 -20 Pass NVNT 3-DH5 2402 Ant 1 Hopping -47.37 -20 Pass NVNT 3-DH5 2480 Ant 1 No-Hopping -47.5 -20 Pass NVNT 3-DH5 2480 Ant 1 Hopping -47.08 -20 Pass Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Ref Report No.: STR191125001002E Version.1.3 Page 63 of 84 Band Edge NVNT 1-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Report No.: STR191125001002E Version.1.3 Page 64 of 84 Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Ref Report No.: STR191125001002E Version.1.3 Page 65 of 84 Band Edge NVNT 1-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Report No.: STR191125001002E Version.1.3 Page 66 of 84 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Ref Report No.: STR191125001002E Version.1.3 Page 67 of 84 Band Edge NVNT 2-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Report No.: STR191125001002E Version.1.3 Page 68 of 84 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Report No.: STR191125001002E Version.1.3 Page 69 of 84 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Report No.: STR191125001002E Version.1.3 Page 70 of 84 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Report No.: STR191125001002E Version.1.3 Page 71 of 84 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Report No.: STR191125001002E Version.1.3 Page 72 of 84 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Report No.: STR191125001002E Version.1.3 Page 73 of 84 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Report No.: STR191125001002E Version.1.3 Page 74 of 84 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: STR191125001002E Version.1.3 Page 75 of 84 8.7 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant 1 -60.3 -20 Pass NVNT 1-DH5 2441 Ant 1 -60.76 -20 Pass NVNT 1-DH5 2480 Ant 1 -56.46 -20 Pass NVNT 2-DH5 2402 Ant 1 -60.01 -20 Pass NVNT 2-DH5 2441 Ant 1 -60.48 -20 Pass NVNT 2-DH5 2480 Ant 1 -58.89 -20 Pass NVNT 3-DH5 2402 Ant 1 -60.22 -20 Pass NVNT 3-DH5 2441 Ant 1 -59.6 -20 Pass NVNT 3-DH5 2480 Ant 1 -58.6 -20 Pass Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 76 of 84 Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 77 of 84 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 78 of 84 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 79 of 84 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 80 of 84 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 81 of 84 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 82 of 84 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 83 of 84 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Report No.: STR191125001002E Version.1.3 Page 84 of 84 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission END OF REPORT

FCC ID: 2AOWKGQ3087 Radiated Measurement Photos FCC ID: 2AOWKGQ3087 Conducted Measurement Photos
