2AP3Q-FG2009BSmart Scale

Electronic Body Fat Scale Instruction Manual Scan the corresponding QR Code to download APP Thanks for choosing smart body scale. This fully body composition scale can help you conveniently measure body weight, BMI, body fat rate, Fat-free body weight, subcutaneous fat, visceral fat,body water, skeletal muscle rate, muscle mass, bone mass, protein, BMR, body age and etc; IMPORTANT: Please read these instructions in this manual carefully before using the device. Failure to comply with the instructions given in the manual or using this scale in ways other than the ones mentioned in this manual may result in injury to yourself or damage to the scale. (Fitdays APP functions) Weight BMI Body fat rate Fat-free body weight Subcutaneous fat Visceral fat Body water Skeletal muscle rate Muscle mass Bone mass Protein BMR Body age Height record (<16 years old) INDICATION SYMBOLS LO Low battery Err Overload C An error has accorded during measurement. Step off the scales and step onto it again to repeat the measuring process. WARNING DO NOT use with medical implants such as pacemakers. DO NOT stand on the edge of the scale or jump on it; DO NOT overload the scale(Max.180kg) DO NOT drop scale or droop an objects on it as this may damage the sensors. DO NOT immerse the scale in water or use chemical cleaning agents. Clean the scale with slightly damp cloth. Not recommended for pregnant women. Not recommended for infants, toddlers, and children under 10 years of age. Any obtained measurement results from this device are for reference only and should not be considered as a medical opinion. Consult your primary care doctor or physician before making changes to your diet, exercise plan or physical activities. Always place the scale on a hard, dry and flat surface before measurement. Make sure your feet are dry before stepping on the scale. SPECIFICATION LED display:62x26mm Weight unit:Kg/Lb Weight limit: 6kg-180kg Power Supply: 3XAAA batteries Account number: No limitation (each account can add 24 persons) Baby mode: Allow you to scale the weight of baby Height record: Allow you to record the height info under 16 years old Operating temperature: 10-40 0 C Operation humidity: 20%-90% Support Devices: iOS 8.0 or higher Android 6.0 or higher Install Fitdays App 1. Search “Fitdays” in Apple Store or Google Play or scan the QR Code below: 2. Download and install the App on your device. 3. The App icon will appear on your phone or tablet after the installation is completed. HOW TO USE FITDAYS APP 1. Place the scale on a hard, flat ground. 3 X √ 2. Turn on Bluetooth on your smart phone or tablet. 3. Register your own ID by email or social media account. 4. Add personal data and click Confirm; Note: Enter the wrong info like gender, age, height, etc. may result in measurement inaccurate. 5. Pair the scale via Bluetooth. Click Mine ----> Device---> + to find and pair the scale ID. Note: When successfully connection, a Bluetooth icon will show on scale and the word Connected will show on the circle of homepage. 6. Tap your foot on the scale to activate the display. Wait until the display shows “0.0”kg. 7. Stay Fitdays at the homepage and step on the scale with BARE feet to star measuring. Note: Leave at the homepage, the data cannot sync on phone; Step on the scale with socks, the scale only measures weight and BMI. Light indication: 1) If the weight is lower than the last time, green light shines for 4 times 2) If the weight is same as the last time, yellow light shines for 4 times X √ X X 3) If the weight is higher than the last time, red light shines for 4 times 4) Weight difference in 2kg will auto identify the users 8. The number on display is flashing when the scale is weighing and analyzing. 9. Stay on the scale until the circle shows ‘Finished’, all data sync on scale and phone. 10. Click More data to find details for Body Weight, BMI, BMR, Muscle, Bone Mass etc. And check data difference on Chart by week, moth and year in vertical or horizon version with icon up right. 11. Add or switch user: click photo profile on homepage, or Mine--> Add user. The Smart Scale can recognize the user by weight difference and remind to change the correct one. Each account can support 24 users; 12. Baby weight checking: click + --> Baby Mode. Adult steps on scale to weight first; after scale gets the weight, please step off the scale and hold the baby to weigh again; Fitdays will automatically calculate the baby’s weight. TROUBLE SHOOTING GUIDE 1. Bluetooth failed to connection  Make sure the scale and the Bluetooth on your phone are on  Check the IOS version of your smart phone, it must be iOS 8.0 or higher/Android 6.0 higher.  For successfully connection, there has a Bluetooth icon on the display and the word Connected will show on the circle of the homepage on phone  If fail to connect via Bluetooth, please click Mine--->Device to find the scale ID. 2. No body fat data after weighting  User must step onto the scale with bare feet.  Make sure your feet and the scale are both dry.  Step off the scale when measurement does not finish (Please keep standing on the scale around 10 second until the number on the display stops flashing).  Bluetooth is not turned on.  Bluetooth is paired with a difference scale. 3. Incorrect weight data occurs.  Check whether the scale is on a hard, flat surface.  Check each sensor foot on the back to make sure nothing is stuck to the bottom of it.  Press the button on the edge of scale; 4. Incorrect fat-muscle ratio shows on App  The body parameter settings are incorrect, check to make sure you entered the correct gender, height, and age. 5. How do I re-calibrate the scale after remove?  Step on the scale to turn it on. Let it automatically drop to 0.0kg to calibrate. 6. The scale does not turn on  Check if the battery has run out of power and change it if needed. 7. How to exchange the unit  Click Mine--->Setting--->Switch unit to change the unit on your phone. Battery Advice  Pla…

Text truncated - open the document above for the full version.

Guangdong Welland Technology Co., Ltd. Feb. 01, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AP3Q-FG2009B Model Number: FG2009B, FI2009B To Whom It May Concern: We, The Guangdong Welland Technology Co., Ltd hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Guangdong Welland Technology Co., Ltd. Contact person: Hillary Chan

Guangdong Welland Technology Co., Ltd. Agent Authorization Company: Guangdong Welland Technology Co., Ltd Address: No.85 MinKe East Road, MinYing Science and Technology Park, ShiQi District, Zhongshan, China Product Name: Smart Scale Model Number(s): FG2009B, FI2009B Product Description: Smart Scale We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-02-01 Name: Hillary Chan Company: Guangdong Welland Technology Co., Ltd.

Guangdong Welland Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-01-20 Subject; Request for Confidentiality FCC ID: 2AP3Q-FG2009B To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Guangdong Welland Technology Co., Ltd. Contact person: Hillary Chan

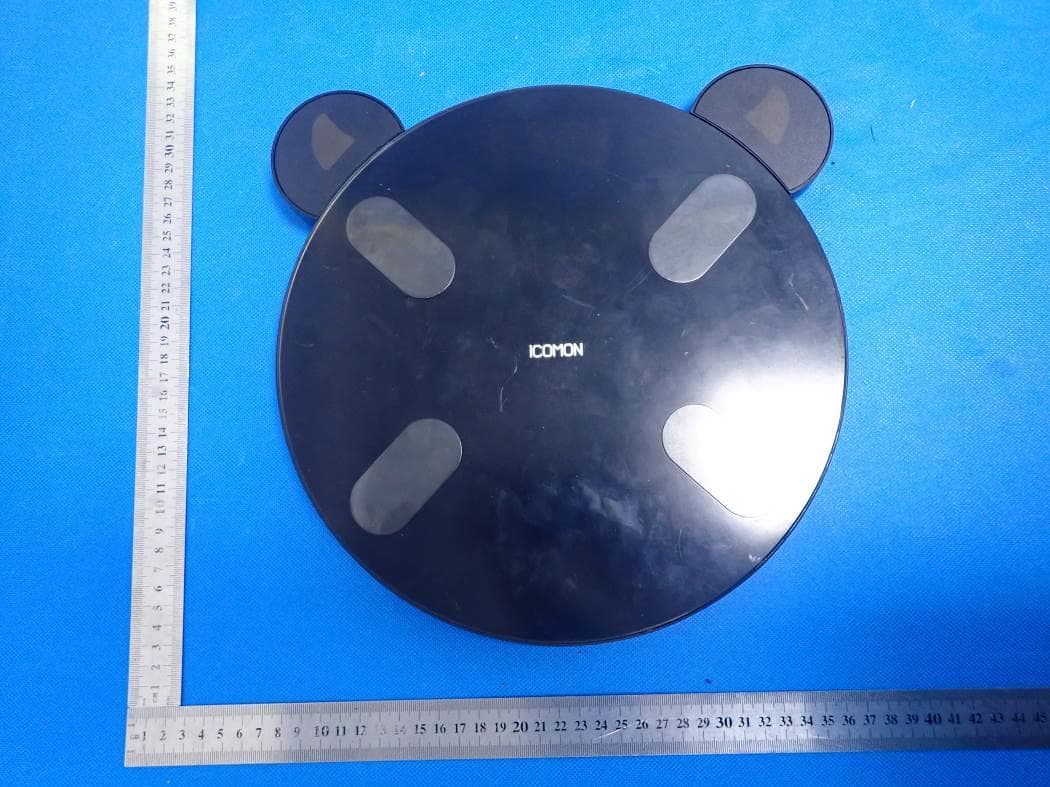

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID: 2AP3Q-FG2009B

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-3 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Smart Scale Model Name FG2009B, FI2009B FCC ID 2AP3Q-FG2009B 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION BEL P t =-4.274dBm=0.37mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.37mW /5mm) .[√2.402GHz)]= 0.12<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 46 FCC Test Report Report No.: AGC06164210101FE02 FCC ID : 2AP3Q-FG2009B APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Scale BRAND NAME : N/A MODEL NAME : FG2009B, FI2009B APPLICANT : Guangdong Welland Technology Co, Ltd DATE OF ISSUE : Jan. 20, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC06164210101FE02 Page 2 of 46 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jan. 20, 2021 Valid Initial Release Report No.: AGC06164210101FE02 Page 3 of 46 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE ............................................................................................................... 4 2. GENERAL INFORMATION ............................................................................................................................ 5 2.1. PRODUCT DESCRIPTION ...................................................................................................................... 5 2.2. TABLE OF CARRIER FREQUENCYS ..................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) .................................................................................................... 6 2.4. TEST METHODOLOGY ........................................................................................................................... 6 2.5. SPECIAL ACCESSORIES ....................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS .............................................................................................................. 6 2.7. ANTENNA REQUIREMENT ..................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................. 7 4. DESCRIPTION OF TEST MODES ................................................................................................................. 8 5. SYSTEM TEST CONFIGURATION ............................................................................................................... 9 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 9 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 9 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 9 6. TEST FACILITY ........................................................................................................................................... 10 7. PEAK OUTPUT POWER ............................................................................................................................. 11 7.1. MEASUREMENT PROCEDURE ............................................................................................................ 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 12 8. 6 DB BANDWIDTH ...................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE ........................................................................................................... 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................. 14 9. CONDUCTED SPURIOUS EMISSION ........................................................................................................ 16 9.1. MEASUREMENT PROCEDURE ........................................................................................................... 16 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 16 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 16 9.4. LIMITS AND MEASUREMENT RESULT ............................................................................................... 16 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ....................................................... 24 10.1. MEASUREMENT PROCEDURE ......................................................................................................... 24 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 24 10.3. MEASUREMENT EQUIPMENT USED ................................................................................................ 24 10.4. LIMITS AND MEASUREMENT RESULT ............................................................................................. 24 11. RADIATED EMISSION ............................................................................................................................... 26 11.1. MEASUREMENT PROCEDURE ......................................................................................................... 26 11.2. TEST SETUP ....................................................................................................................................... 27 11.3. LIMITS AND MEASUREMENT RESULT ............................................................................................. 28 11.4. TEST RESULT ..................................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC06164210101FE02 Page 39 of 46 CONDUCTED TEST SETUP Report No.: AGC06164210101FE02 Page 40 of 46 APPENDIX B: PHOTOGRAPHS OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC06164210101FE02 Page 41 of 46 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC06164210101FE02 Page 42 of 46 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC06164210101FE02 Page 43 of 46 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-3 Report No.: AGC06164210101FE02 Page 44 of 46 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC06164210101FE02 Page 45 of 46 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC06164210101FE02 Page 46 of 46 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
