2AP3Q-FI2016BFSmart Body Fat Scale

Smart Body fat scale Instruction Manual Scan the corresponding QR Code to download APP Thanks for choosing Smart body Scale. This fully body composition scale can help you conveniently measure body weight, BMI, Body fat rate, V isceral fat, Body water, Skeletal muscle rate, Muscle mass, bone mass, Protein, BMR, Body age and etc; IMPORTANT: Please read these instructions in this manual carefully before using the device. Failure to comply with the instructions given in the manual or using this scale in ways other than the ones mentioned in this manual may result in injury to yourself or damage to the scale. (Onfit APP functions) ● Weight ● BMI ● Body fat rate ● Visceral fat ● Body water ● Skeletal muscle rate ● Muscle mass ● Bone mass ● Protein ● BMR ● Body age ● Height record (<16 years old) INDICATION SYMBOLS LO Low battery - please change the batteries (3x1.5V AAA battery). Err Overload C An error has accorded during measurement. Step off the scales and step onto them again to repeat the measuring process. WHAT’S IN THE PACKAGE 1 X Smart body fat scale 1 X User manual 4XAAA batteries WARNING DO NOT use with medical implants such as pacemakers. DO NOT stand on the edge of the scale or jump on it; DO NOT overload the scale(Max.180kg) DO NOT drop scale or droop and objects on it as this may damage the sensors. DO NOT immerse the scale in water or use chemical cleaning agents. Clean the scale with slightly damp cloth. Not recommended for pregnant women. Not recommended for infants, toddlers, and children under 10 years of age. Any measurement obtained using this device is for reference only and should not be considered as a medical opinion. Consult your primary care doctor or physician before making changes to your diet, exercise plan or physical activities. Always place the scale on a hard, dry and flat surface before measurement. Make sure your feet are dry before stepping on the scale. Connect the batteries in accordance with the correct polarities indicated. Remove batteries if the scale is not be use for a prolonged period of time. SPECIFICATION Product size:278x278x27mm LCD display:63x27mm Weight unit:Kg/Lb/St (exchange by the unit button under the battery case) Weight limit: 6kg-180kg Power Supply: 4xAAA batteries(Not included) Account number: No limitation (each account can add 24 persons) Baby mode: Allow you to scale the weight of baby Height record: Allow you to record the height info under 16 years old Operating temperature: 10-40 0 C Operation humidity: 20%-90% Special functions: This model is bluetooth & Wifi connection model, for first time, you need to pair APP and scale device via bluetooth & Wifi password. After first time connection, data will auto sync to your APP via Wifi. App allow off line storage. And please note that you need to sort the data to correct users after finishing off line measurement. Support Devices: iOS 8.0 or higher Android 6.0 or higher Wifi Support: 2.4G only (Not support 5G) Install Onfit App 1. Search “Onfit” in Apple Store or Google Play or scan the QR Code below: 2. Download and install the App on your device. 3. The App icon will appear on your phone or tablet after the installation is completed. HOW TO USE ONFIT APP 1. Insert 4xAAA batteries which included in the package to the battery holder on the back at the back of the scale. Place the scale on the hard, flat ground. 2. Turn on the Bluetooth on your smart phone or tablet. Also make sure WIFI mode is working for network. Note: WIFI need to be 2.4G type, cannot be 5.0G. 3. Register your own ID by email or social media account. 3 X √ 4. Add personal data and confirm OK; Note: Enter the wrong gender, age, height, or corporeity level may result in measurement being inaccurate. 5. Pair the scale through Bluetooth. Click Mine ----> My device----> click + at the right corner (Searching bluetooth for pairing.) 6. Tap your foot on the scales to activate the display. Wait until the display shows “0.0”kg. 7. Step on the scale with BARE feet to turn the scale on. X √ X X 5.Input Wifi password of your office or home 6.Gree√for Wifi connected successfully. 4.Make sure the scale is on during the connection 1.Click device 3.Searching Bluetooth for pairing 2.Press + Note: If stepping on the scale with socks, only weight and BMI will be measured and displayed on the main page. To get complete data, please step on the scale with bare feet. 8. Continue to stand on the scale until the circle is stable and shows ‘Test Done’, your phone has received all the data from the scale. 9. You can find the analyzing report on Body Weight, BMI, BFR, Muscle, Bone Mass etc. (see full details on page 1 RECORDED PARAMETERS). When you click Record, you can see your long-term track chat form. 10. Add, switch user by click , or click Me--> Manage users, then add personal data. The Smart Scale can recognize which user is step on it and remind user to switch the correct user. Each account can support 24users; 11. Weighing baby: click -->Baby Mode. Step on the scale by you own, after the scale gets your weight, and then hold the baby to get the weight of baby. TROUBLE SHOOTING GUIDE 1. Bluetooth not connected The scale and smart phone must be both have Bluetooth on. Check the OS version of your smart phone, it must be iOS 8.0 or higher/Android 6.0 higher. Click Me--->My device find the scale ID. 2. No body fat data measured when weighing User must be bare foot to measure the body fat. Make sure your feet and the scale are both dry. Scale not finishing weighing when the number display is flashing (Keep standing on the scale around 10 second until the number on the display stops flashing). Bluetooth is not turned on. Bluetooth is paired with a difference scale. 3. The scale is producing inconsistent weight. Check whether the scale is on a hard, flat surface. Check each sensor foot on the back to make sure nothing is stuck to the bottom of it. Remove the batteries to restart the scale; 4. The App is display the incorrect fat-muscle rat…

Text truncated - open the document above for the full version.

Guangdong Welland Technology Co., Ltd. Jun.22, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AP3Q-FI2016BF Model Number: FI2016BF, FG2016BF, BG2016BF, FI300BF, FG300BF To Whom It May Concern: We, The Guangdong Welland Technology Co., Ltd hereby declare that the models are identical except the model name and color. Except for the different above, no other modification is performed. Sincerely, Signature: Guangdong Welland Technology Co., Ltd. Contact person: Hillary Chan

Guangdong Welland Technology Co., Ltd. Agent Authorization Company: Guangdong Welland Technology Co., Ltd Address: No.85 MinKe East Road, MinYing Science and Technology Park, ShiQi District, Zhongshan, China Product Name: Smart Body Fat Scale Model Number(s): FI2016BF, FG2016BF, BG2016BF, FI300BF, FG300BF Product Description: Smart Body Fat Scale We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-06-22 Name: Hillary Chan Company: Guangdong Welland Technology Co., Ltd.

Guangdong Welland Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-06-22 Subject; Request for Confidentiality FCC ID: 2AP3Q-FI2016BF To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely Guangdong Welland Technology Co., Ltd. Contact person: Hillary Chan

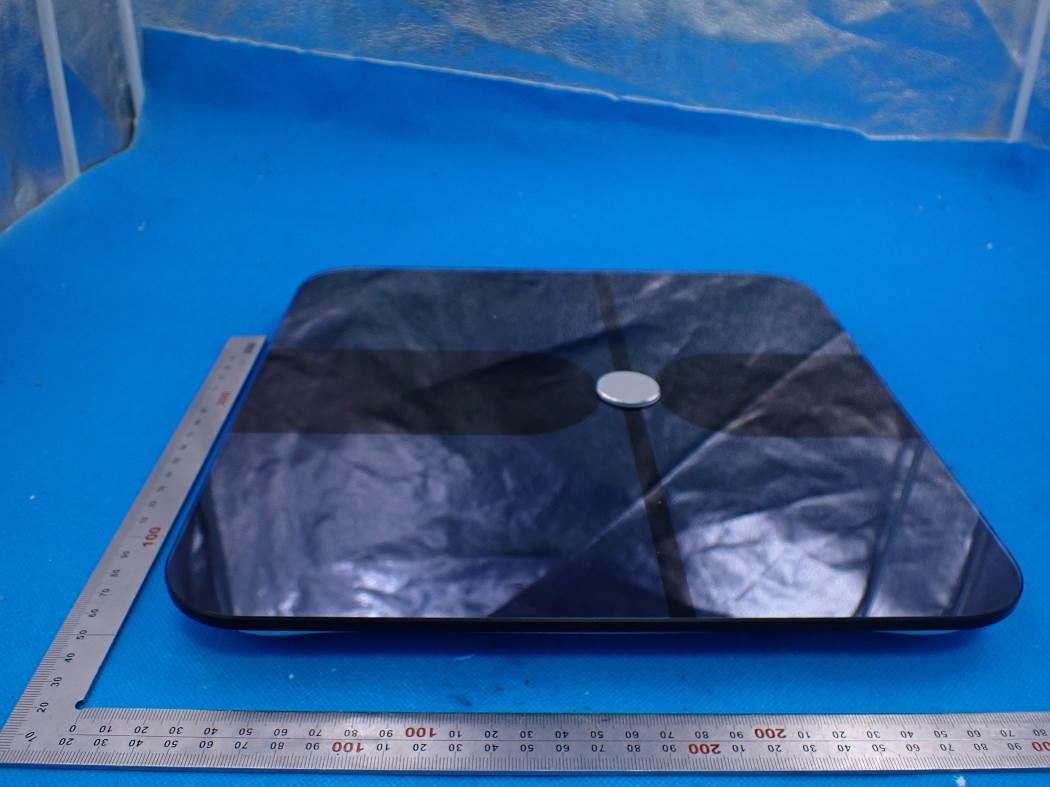

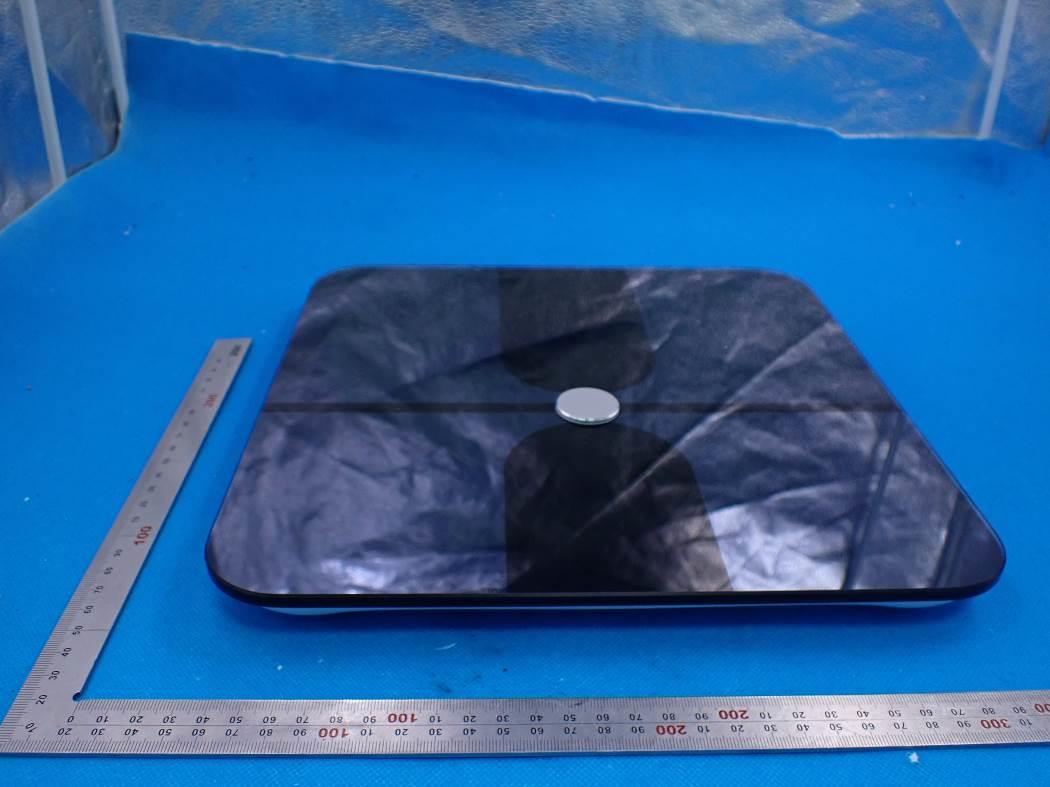

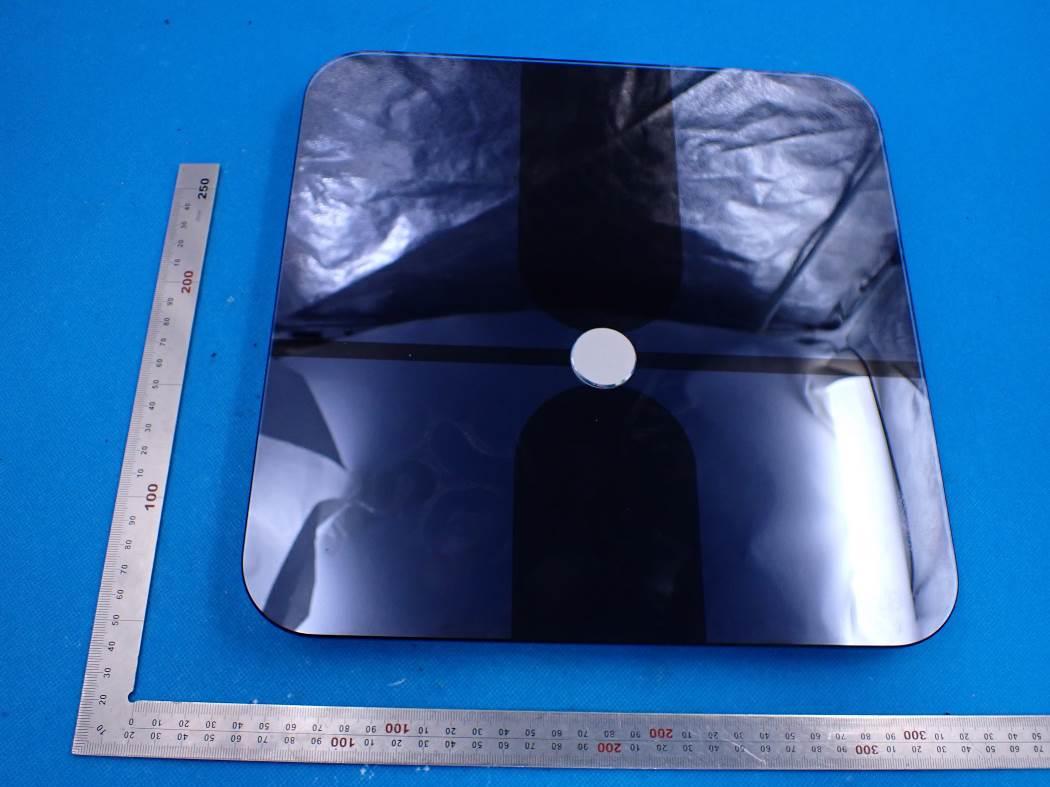

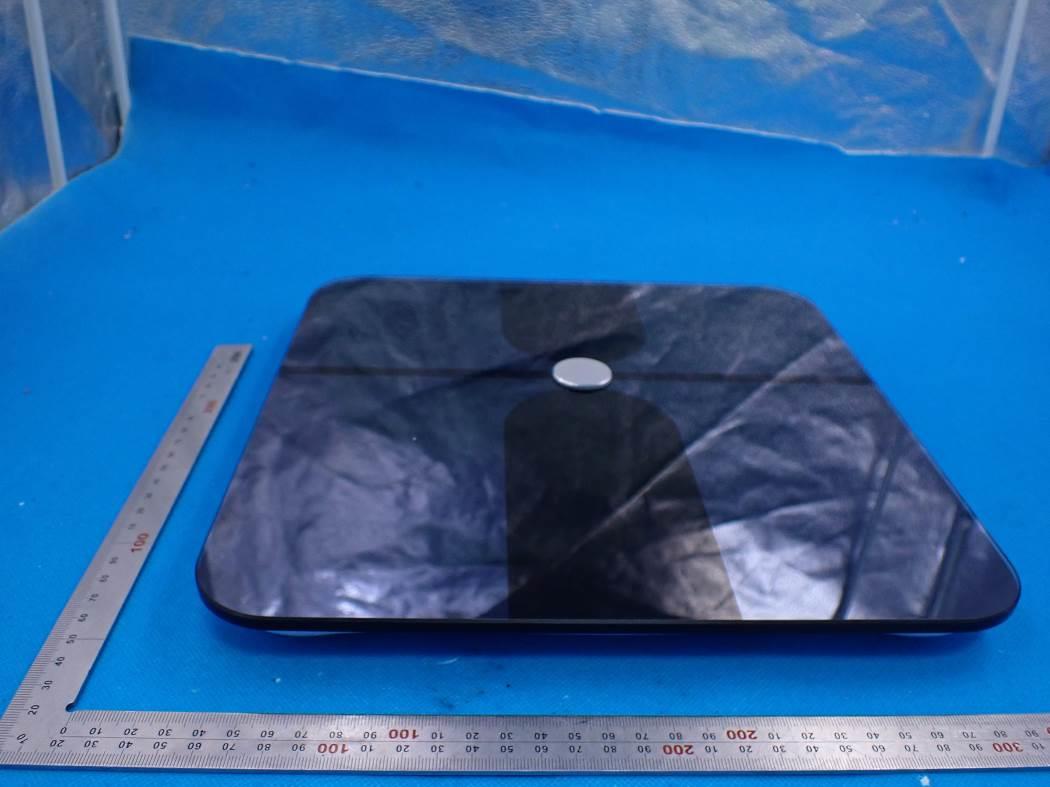

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 50mm&50mm FCC ID: 2AP3Q-FI2016BF

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Smart Body Fat Scale Model Name FI2016BF, FG2016BF, BG2016BF, FI300BF, FG300BF FCC ID 2AP3Q-FI2016BF 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION 2.4G WIFI: P t =8.11dBm=6.47mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(6.47mW /5mm) .[√2.412(GHz)]=2.01<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. BLE GFSK 1Mbps: P t =1.454dBm=1.40mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(1.40mW /5mm) .[√2.402GHz)]= 0.43<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Note: The 2.4GHz WIFI band and BT band cannot transmit simultaneously. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 47 FCC Test Report Report No.: AGC06164210602FE02 FCC ID : 2AP3Q-FI2016BF APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Body Fat Scale BRAND NAME : NA MODEL NAME : FI2016BF, FG2016BF, BG2016BF, FI300BF, FG300BF APPLICANT : Guangdong Welland Technology Co., Ltd. DATE OF ISSUE : Jun. 11, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC06164210602FE02 Page 2 of 47 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 11, 2021 Valid Initial Release Report No.: AGC06164210602FE02 Page 3 of 47 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.4. TEST METHODOLOGY ............................................................................................................................. 6 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 6 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 5.1. CONFIGURATION OF TESTED SYSTEM ................................................................................................. 9 5.2. EQUIPMENT USED IN TESTED SYSTEM ................................................................................................ 9 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 9 6. TEST FACILITY .............................................................................................................................................. 10 7. PEAK OUTPUT POWER ................................................................................................................................ 11 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 12 8. BANDWIDTH .................................................................................................................................................. 14 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 14 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 18 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 18 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 18 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 18 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 18 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 25 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 25 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 25 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 25 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 25 11. RADIATED EMISSION ................................................................................................................................. 27 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 27 11.2. TEST SETUP .......................................................................................................................................... 28 11.3. LIMITS AND MEASUREMENT RESULT..................................................................................…

Text truncated - open the document above for the full version.

Report No.: AGC06164210602FE02 Page 40 of 47 CONDUCTED TEST SETUP Report No.: AGC06164210602FE02 Page 41 of 47 APPENDIX B: PHOTOGRAPHS OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC06164210602FE02 Page 42 of 47 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC06164210602FE02 Page 43 of 47 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC06164210602FE02 Page 44 of 47 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Report No.: AGC06164210602FE02 Page 45 of 47 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC06164210602FE02 Page 46 of 47 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC06164210602FE02 Page 47 of 47 INTERNAL VIEW OF EUT-5 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Page 1 of 48 Report No.: AGC06164210602FE05 FCC ID : 2AP3Q-FI2016BF APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Body Fat Scale BRAND NAME : NA MODEL NAME : FI2016BF, FG2016BF, BG2016BF, FI300BF, FG300BF APPLICANT : Guangdong Welland Technology Co., Ltd. DATE OF ISSUE : Jun. 11, 2021 STANDARD(S) TEST PROCEDURE(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd FCC Test Report Report No.: AGC06164210602FE05 Page 2 of 48 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 11, 2021 Valid Initial Release Report No.: AGC06164210602FE05 Page 3 of 48 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES ......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF EUT SYSTEM ...................................................................................................... 10 5.2. EQUIPMENT USED IN EUT SYSTEM ..................................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. OUTPUT POWER ........................................................................................................................................... 12 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. BANDWIDTH .................................................................................................................................................. 14 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 20 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 20 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 20 9.3. MEASUREMENT EQUIPMENT USEDJN ................................................................................................ 20 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 20 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 25 Report No.: AGC06164210602FE05 Page 4 of 48 10.1 MEASUREMENT PROCEDURE ............................................................................................................ 25 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 25 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 25 10.4 LIMITS AND MEASUREMENT RESULT ................................................................................................. 25 11. RADIATED EMISSION ................................................................................................................................. 28 11.1. MEASUREMENT PROCEDURE............................................................................................................ 28 11.2. TEST SETUP .......................................................................................................................................... 29 11.3. LIMITS AND MEASUREMENT RESULT .................…

Text truncated - open the document above for the full version.

Report No.: AGC06164210602FE05 Page 44 of 48 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC06164210602FE05 Page 45 of 48 OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 Report No.: AGC06164210602FE05 Page 46 of 48 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC06164210602FE05 Page 47 of 48 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC06164210602FE05 Page 48 of 48 INTERNAL VIEW OF EUT-5 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the ori…
