2AP3Q-FI2016WBSmart Scale

Model:FI2016WB UNIT UNIT:kg/lb/st This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment gener- ates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help Changes or modifications not expressly approved by the party respon- sible for compliance could void the user's authority to operate the equipment.

Guangdong Welland Technology Co., Ltd. May.20, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AP3Q-FI2016WB Model Number: FI2016WB, FG2016WB, FI2016RB, FG2016RB, FI2016B, FG2016B, Aero I pro, FI290WB, FI290RB, FG290WB, FG290RB, FI270RB, FI270WB, FG270RB, FG270WB, FG300WB, FG300RB, FI300WB, FI300RB To Whom It May Concern: We, The Guangdong Welland Technology Co., Ltd hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Guangdong Welland Technology Co., Ltd. Contact person: Hillary Chan

Guangdong Welland Technology Co., Ltd. Agent Authorization Company: Guangdong Welland Technology Co., Ltd Address: No.85 MinKe East Road, MinYing Science and Technology Park, ShiQi District, Zhongshan, China Product Name: Smart Scale Model Number(s): FI2016WB, FG2016WB, FI2016RB, FG2016RB, FI2016B, FG2016B, Aero I pro, FI290WB, FI290RB, FG290WB, FG290RB, FI270RB, FI270WB, FG270RB, FG270WB, FG300WB, FG300RB, FI300WB, FI300RB Product Description: Smart Scale We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-20 Name: Hillary Chan Company: Guangdong Welland Technology Co., Ltd.

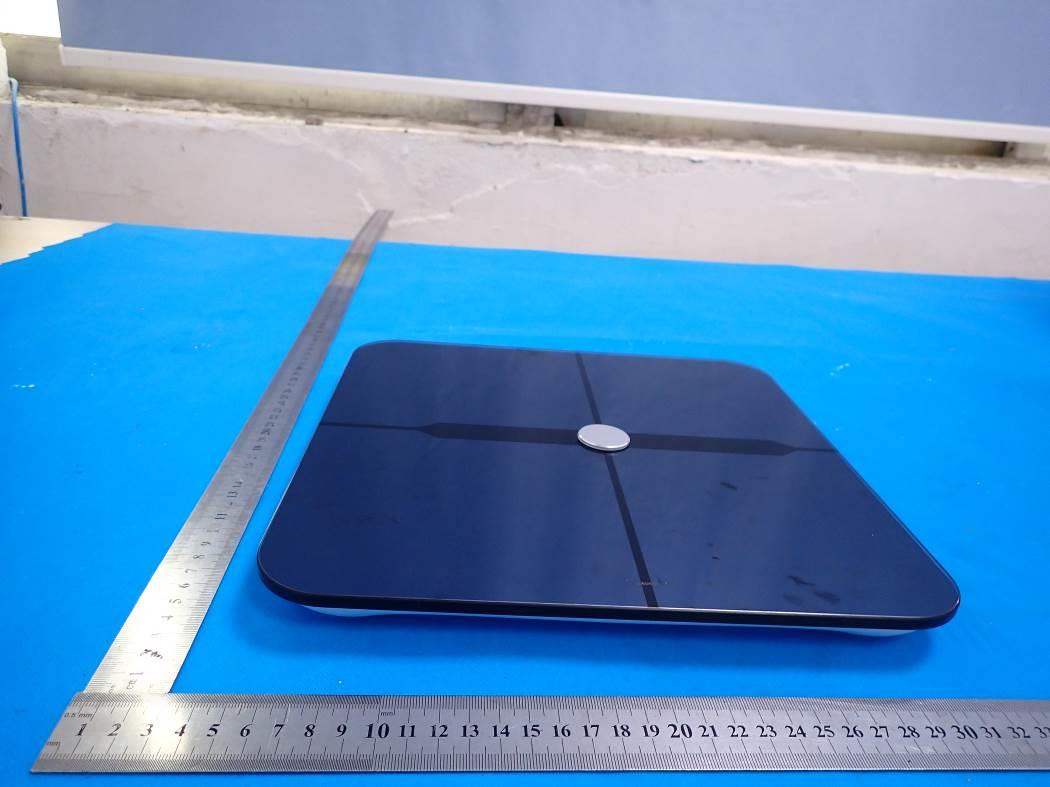

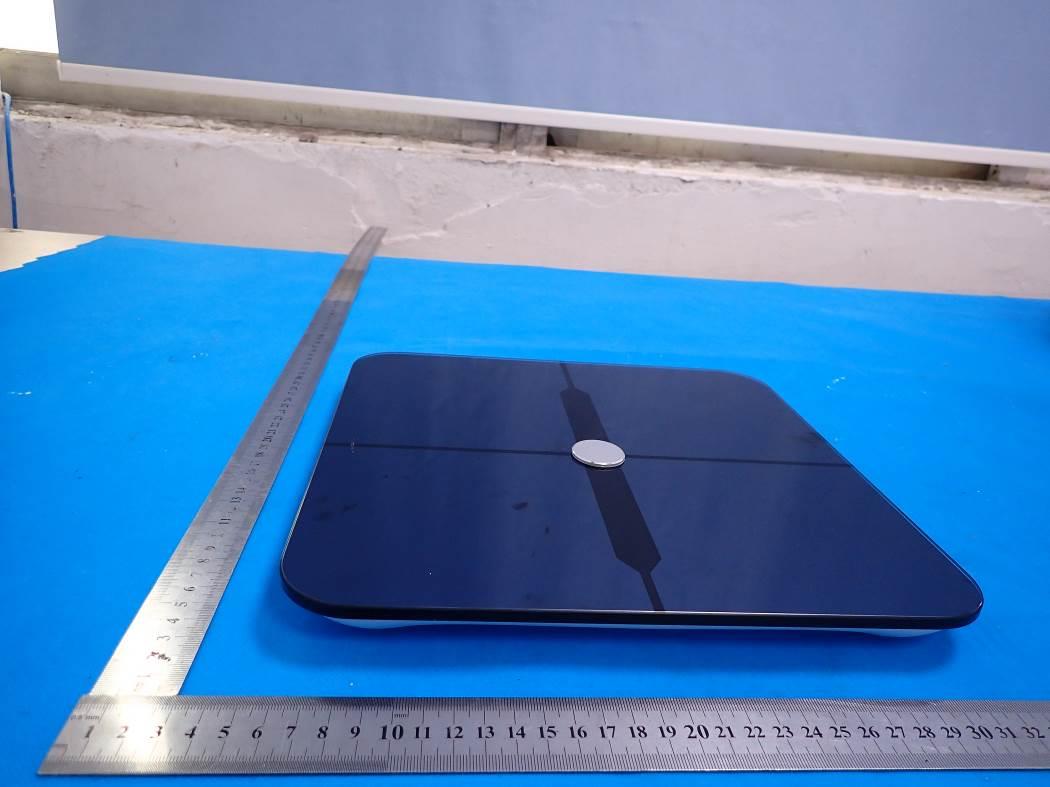

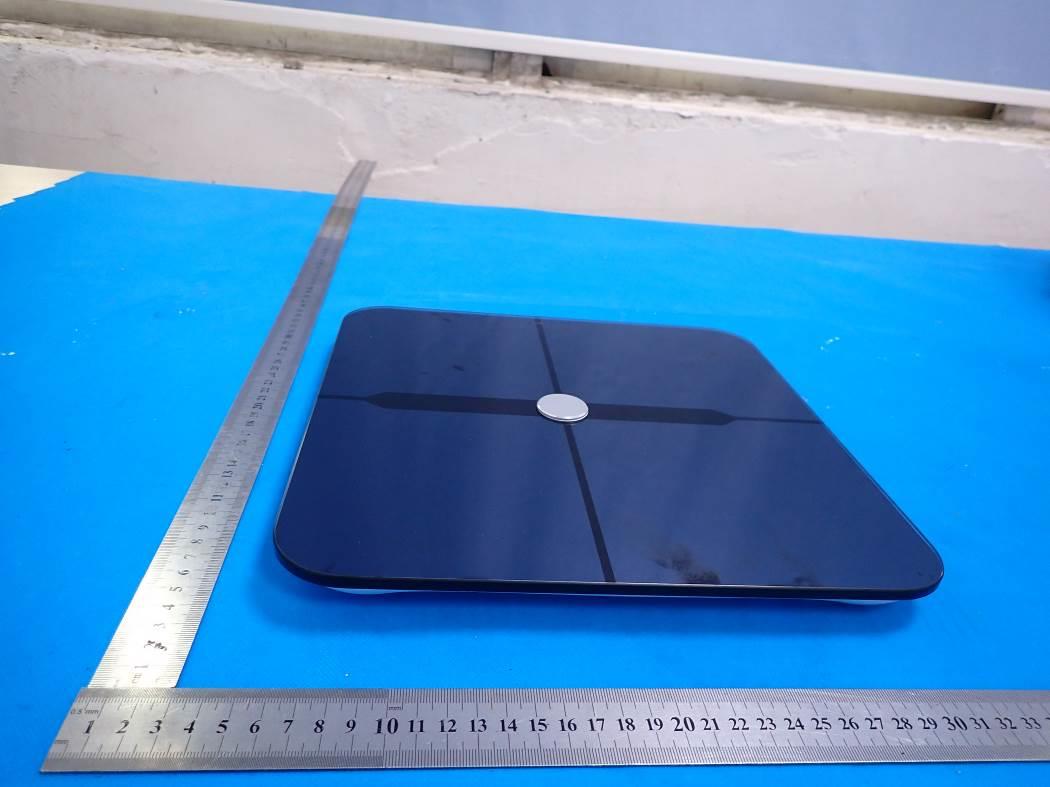

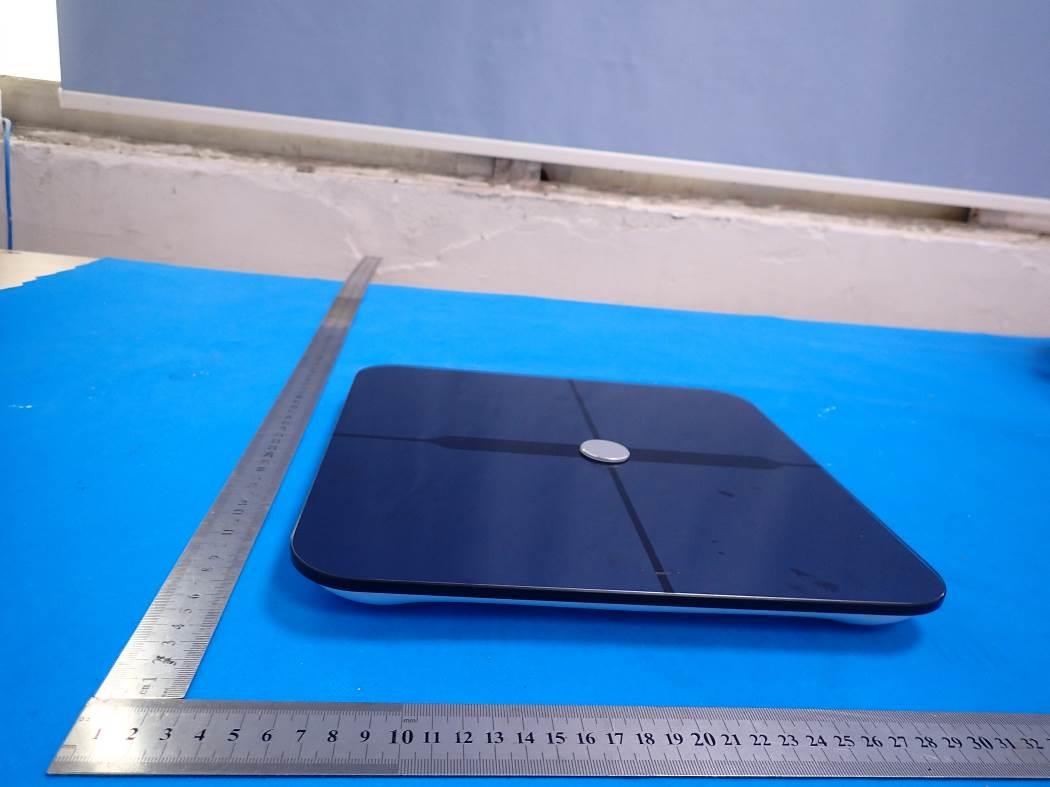

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 50mm&50mm FCC ID: 2AP3Q-FI2016WB

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Smart Scale Model Name FI2016WB, FG2016WB, FI2016RB, FG2016RB, FI2016B, FG2016B, Aero I pro, FI290WB, FI290RB, FG290WB, FG290RB, FI270RB, FI270WB, FG270RB, FG270WB, FG300WB, FG300RB, FI300WB, FI300RB FCC ID 2AP3Q-FI2016WB 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-1.746dBm=0.67mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.67mW /5mm) .[√2.402GHz)]= 0.21<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 46 FCC Test Report Report No.: AGC06164210403FE02 FCC ID : 2AP3Q-FI2016WB APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Scale BRAND NAME : N/A MODEL NAME : FI2016WB, FG2016WB, FI2016RB, FG2016RB, FI2016B, FG2016B, Aero I pro, FI290WB, FI290RB, FG290WB, FG290RB, FI270RB, FI270WB, FG270RB, FG270WB, FG300WB, FG300RB, FI300WB, FI300RB APPLICANT : Guangdong Welland Technology Co., Ltd. DATE OF ISSUE : May 11, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC06164210403FE02 Page 2 of 46 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 11, 2021 Valid Initial Release Report No.: AGC06164210403FE02 Page 3 of 46 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 4 2. GENERAL INFORMATION .............................................................................................................................. 5 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 5 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 5 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 6 2.4. TEST METHODOLOGY ............................................................................................................................. 6 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 6 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 6 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 6 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 7 4. DESCRIPTION OF TEST MODES ................................................................................................................... 8 5. SYSTEM TEST CONFIGURATION .................................................................................................................. 9 5.1. CONFIGURATION OF TESTED SYSTEM ................................................................................................. 9 5.2. EQUIPMENT USED IN TESTED SYSTEM ................................................................................................ 9 5.3. SUMMARY OF TEST RESULTS ................................................................................................................ 9 6. TEST FACILITY .............................................................................................................................................. 10 7. PEAK OUTPUT POWER ................................................................................................................................ 11 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 11 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 11 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 12 8. 6 DB BANDWIDTH ......................................................................................................................................... 14 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 14 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 14 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 14 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 16 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 16 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 16 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 16 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 24 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 24 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 24 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 24 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 24 11. RADIATED EMISSION ................................................................................................................................. 26 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 11.2. TEST SETUP .......................................................................................................................................... 27 1…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
