1 USER MANUAL Smart body fat scale Scan the corresponding QR Code to download APP Thanks for choosing smart body fat scale. This fully body composition scale can help you conveniently measure body weight, BMI, body fat rate, visceral fat, body water, skeletal muscle rate, muscle mass, bone mass, protein, BMR Fat-free body weight, subcutaneous fat and body age. IMPORTANT: Please read these instructions in this manual carefully before using the device. Failure to comply with the instructions given in the manual or using this scale in ways other than the ones mentioned in this manual may result in injury to yourself or damage to the scale. 2 RECORDED PARAMETERS ●Weight ●BMI ●Body fat rate ●Visceral fat ●Body water ●Skeletal Muscle rate ●Muscle mass ●Bone mass ●Protein ●BMR ●Body age ●Height record (<16 years old) ●Fat-free body weight ●Subcutaneous fat INDICATION SYMBOLS Lo Low battery – please change the batteries Err Overload C An error has occurred during measurement. Step off the scales and step on them again to repeat the measuring process. WHAT IS IN THE PACKAGE ⚫ 1 x Smart Scale ⚫ 1 x User Manual ! WARNING ⚫ DO NOT use with medical implants such as pacemakers. ⚫ DO NOT stand on the edge of the scale or jump on it. ⚫ DO NOT overload the scale (MAX. 180kg / 396lb). ⚫ DO NOT drop scale or droop and objects on it as this may damage the sensors. ⚫ DO NOT immerse the scale in water or use chemical cleaning agents. Clean the scale 3 with slightly damp cloth. ⚫ NOT recommended for pregnant women. ⚫ NOT recommended for infants, toddlers, and children under 10 years of age. ⚫ Any measurement obtained using this devise is for reference only and should not be considered as a medical opinion. ⚫ Consult your primary care doctor or physician before making changes to your diet, exercise plan or physical activities. ⚫ Always place the scale on a hard, dry and flat surface before measurement. ⚫ Make sure your feet are dry before stepping on the scale. ⚫ Connect the batteries in accordance with the correct polarities indicated. ⚫ Remove batteries if the scale is not be used for a prolonged period of time. ⚫ The user under 6 years old, only weight function, no BMI and body fat, etc. data. ⚫ The user under 10 years old, only weight & BMI function, no body fat, etc. data. SPECIFICATION LCD display Weight unit: kg/lb (switch the units in the bottom of the scale body) Weight Limit: 6kg – 180kg (13.2lb – 396lb) Account number: No limitation (each account can add 24 persons) Baby mode: Allow you to scale the weight of baby SUPPORT DEVICES: 4 IOS 8.0 or Higher Android 5.0 or Higher INSTALL FITDAYS 1. Search “Fitdays” in Apple Store or Google Play or scan the QR code below: 2. Download and install the App on your device. 3. The App icon will appear on your phone or tablet after the installation is completed HOW TO USE APP 1. Install the batteries from the package or pull out the insulator if batteries have been inside already. Place the scale on the hard and flat ground. 2. Turn on the Bluetooth on your smart phone or tablet. 3. Resister your own ID by email or social media account. 5 4. Add personal data and confirm OK Note: Enter the wrong gender, age, height, or corporeity level may result in measurements being inaccurate. 6 5. Tap your foot on the scale to activate the display. Wait until the display shows “0.0”(kg/lb) 6. Step on the scale with BARE feet to turn the scale on. 7 NOTE: If stepping on the scale with socks, only weight and BMI will be measured and displayed on the main page. To get complete data, please step on the scale with bare feet. 7. The number on the display is flashing when the scale is weighing and analyzing. Continue to stand on the scale until the circle is stable and shows, your phone has received all the data from the scale. 8 8. You can find the analyzing report on Body Weight, BMI, BMR, Muscle, Bone Mass etc. (see full details on More data >>). When you click Record, you can see your long-term track chat form. Fitdays supports you to Zoom + the record for every functions via the right icon; Fitdays also supports record for recently, week, month and year; 9. Add, switch user by click , or click Me -- > Manage users, then add personal data. The Smart scale can recognize which user is step on it and remind user to switch the correct user. Each account can support 24 users. 9 10. Weighing baby: click + --> Baby Mode. Step on the scale by your own, after scale gets your weight, and then hold the baby to get the weight of baby. 10 TROUBLESHOOTING GUIDE 1. Bluetooth not connected ⚫ The scale and smart phone must be both have Bluetooth on. ⚫ Check the IOS version of your smart phone; it must be IOS 8.0 or higher / Andorid 5.0 or higher. ⚫ Click Me -- > device find the scale 2. No body fat data measured when weighing ⚫ User must be barefoot to measure the body fat. ⚫ Make sure your feet and the scale are both dry. ⚫ Scale not finishing weighing when the number display is flashing (Keep standing on 11 the scale around 10 second until the number on the display stops flashing). ⚫ Bluetooth is not turned on. ⚫ Bluetooth is paired with a difference scale. 3. The scale is producing inconsistent weights. ⚫ Check whether the scale is on a hard, flat surface. ⚫ Check each sensor foot on the back to make sure nothing is stuck to the bottom of it. ⚫ Remove the batteries to restart the scale. 4. The App is display the incorrect flat-muscle ratio The body parameter setting is incorrect, check to make sure that you enter the correct gender, height, and age. 5. How do I recalibrate the scale after moving it or change the batteries? Step on the scale to turn it on. Let is automatically drop to 0.0kg/lb to calibrate. 6. The scale does not turn on. Remove the batteries and put it back. Make sure to insert the batteries in the correct direction. 7. How to change unit? You need to change the scale unit by the backside button. Then APP will show the same unit with the scale. 12 Battery Advice * If the scale i…

Text truncated - open the document above for the full version.

Agent Authorization Company: Guangdong Welland Technology Co., Ltd Address: NO. 85 Minke East Road, Min Ying Science Technology Park, Shiqi District , Zhongshan, Guangdong, China Product Name: smart scale Model Number(s): FG1921, FI320, FG320, FG300, FI300, FG290, FI290, FG270. FI270B, FG850LB, FG1921, FG1912, FG412, FG430, FG440, FG460, FG265, FG266, FG260, FG220LB, FG315LB, FG223LB, FG370, FG830LBFG263LB, FG266RB-B, FG1921B Product Description: smart scale We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-06-17 Name: Hillary Chan Company: Guangdong Welland Technology Co., Ltd

Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-06-11 Subject; Request for Confidentiality FCC ID: 2AP3QFG1921 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Guangdong Welland Technology Co., Ltd Contact person: Hillary Chan

June 18, 2020 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AP3QFG1921 Model Number: FG1921(LB), FG263LB, FG1912RB, FG1921LB, FG1921RB, FG220LB, FG223LB, FG850LB, FG830LB, FG315LB, FG400RB, FG370RB, FB371UB, FG430RB, FG260RB, FG260WB, FG266RB, FG266WB, FG460RB, FG460WB, FG210RB, FG270RB, FG270WB, FI270RB, FI270WB, FG290RB, FG290WB, FI290RB, FI290WB, FG300RB, FG300WB, FI300RB, FI300WB, FG320LB, FI320LB, FG266RB-A, FG1921, FG265, FG266, FG430, FG1921B, FG1921WB To Whom It May Concern: We, The Guangdong Welland Technology Co., Ltd hereby declare that the model : FG263LB, FG1912RB, FG1921LB, FG1921RB, FG220LB, FG223LB, FG850LB, FG830LB, FG315LB, FG400RB, FG370RB, FB371UB, FG430RB, FG260RB, FG260WB, FG266RB, FG266WB, FG460RB, FG460WB, FG210RB, FG270RB, FG270WB, FI270RB, FI270WB, FG290RB, FG290WB, FI290RB, FI290WB, FG300RB, FG300WB, FI300RB, FI300WB, FG320LB, FI320LB, FG266RB-A, FG1921, FG265, FG266, FG430, FG1921B, FG1921WB is identical with the model : FG1921(LB), except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: Guangdong Welland Technology Co., Ltd Contact person: Hillary Chan

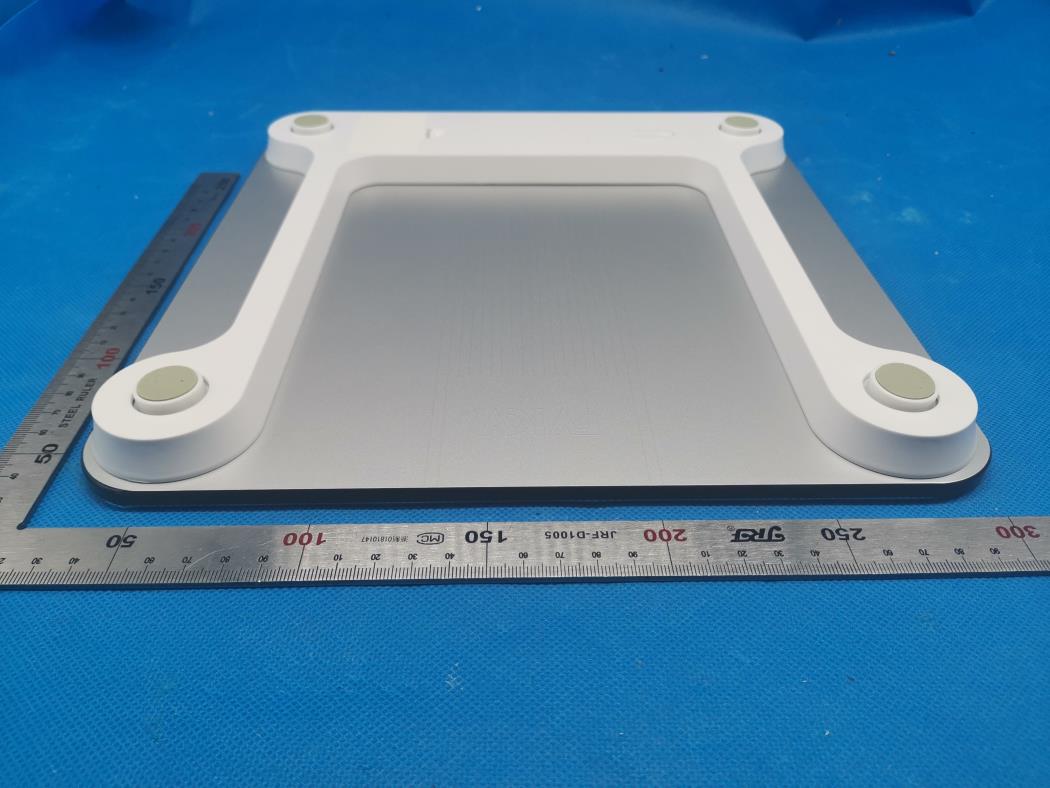

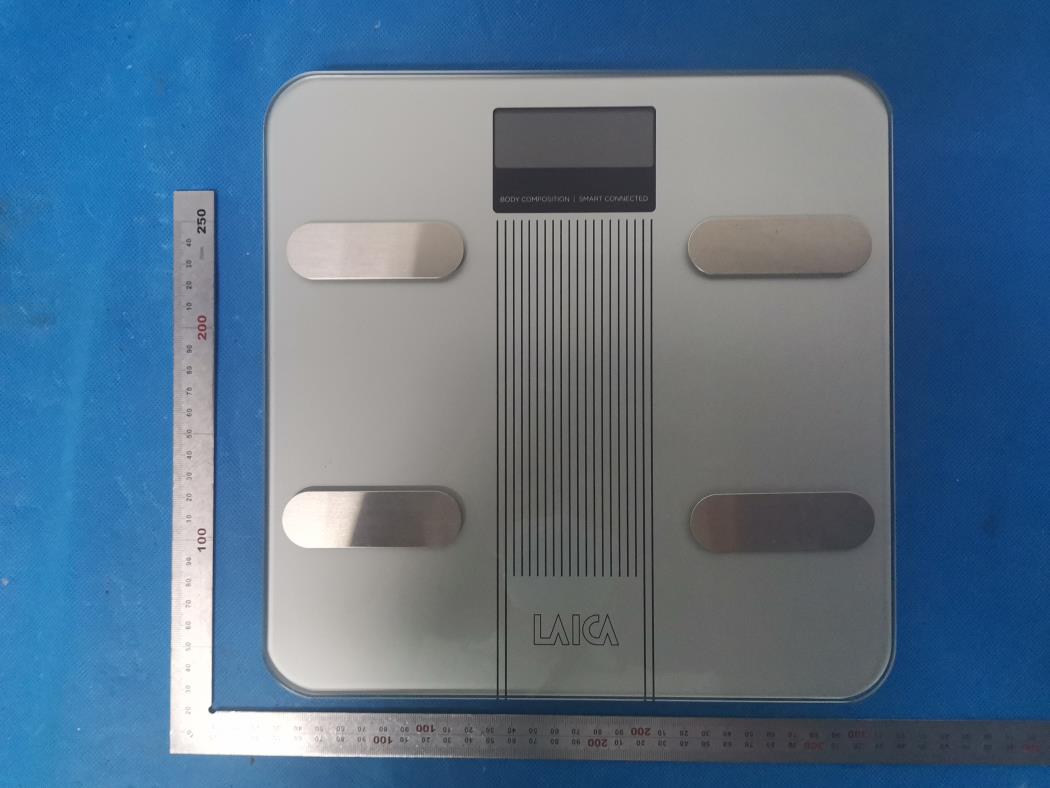

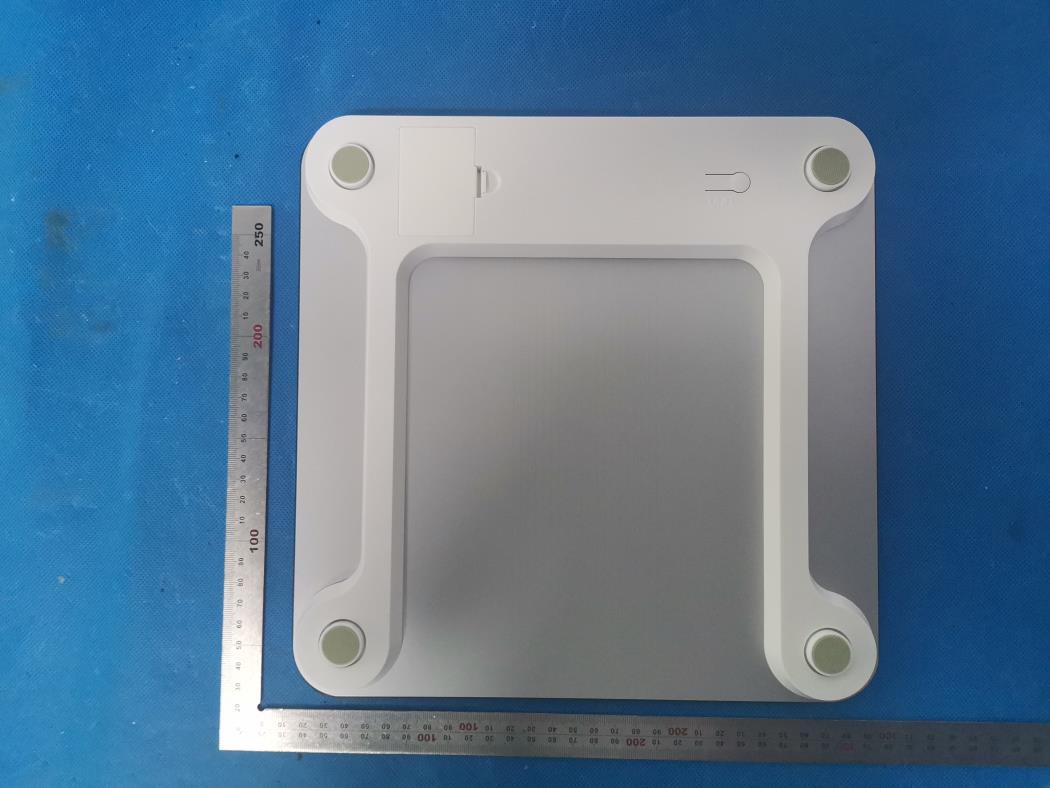

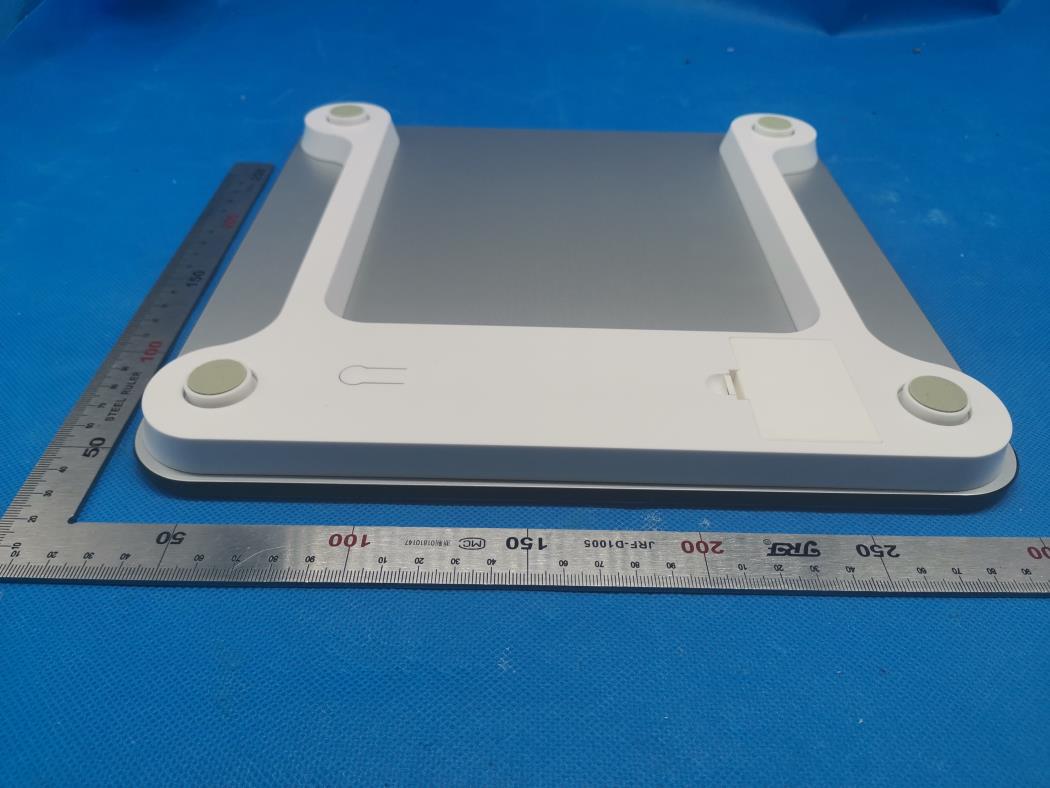

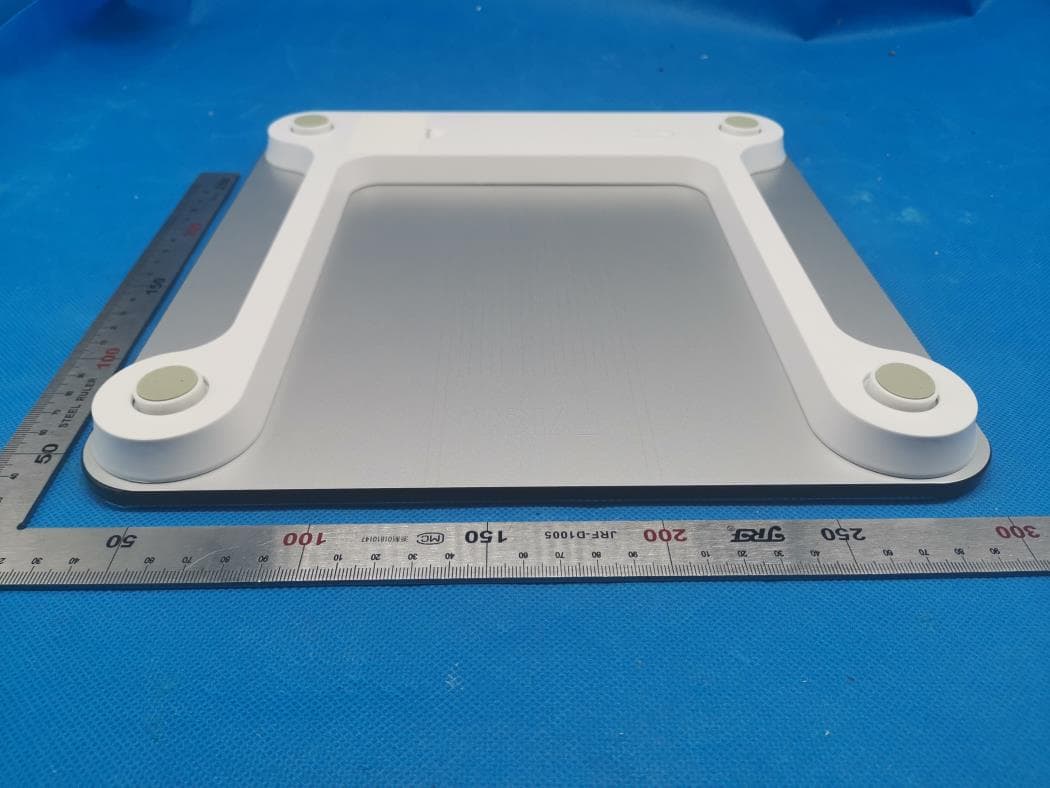

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location FCC ID:2AP3QFG1921 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 OPEN VIEW OF EUT-3 INTERNAL VIEW-1 OF EUT INTERNAL VIEW-2 OF EUT INTERNAL VIEW-3 OF EUT INTERNAL VIEW-4 OF EUT INTERNAL VIEW-5 OF EUT Antenna INTERNAL VIEW-6 OF EUT

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description smart scale Model Name FG1921(LB), FG263LB, FG1912RB, FG1921LB, FG1921RB, FG220LB, FG223LB, FG850LB, FG830LB, FG315LB, FG400RB, FG370RB, FB371UB, FG430RB, FG260RB, FG260WB, FG266RB, FG266WB, FG460RB, FG460WB, FG210RB, FG270RB, FG270WB, FI270RB, FI270WB, FG290RB, FG290WB, FI290RB, FI290WB, FG300RB, FG300WB, FI300RB, FI300WB, FG320LB, FI320LB, FG266RB-A, FG1921, FG265, FG266, FG430, FG1921B, FG1921WB. FCC ID 2AP3QFG1921 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-2.201dBm=0.60mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.60mW /5mm) .[√2.402(GHz)]= 0.19<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 44 FCC Test Report Report No.: AGC06164200504FE02 FCC ID : 2AP3QFG1921 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : smart scale BRAND NAME : N/A MODEL NAME : FG1921(LB), FG263LB, FG1912RB, FG1921LB, FG1921RB, FG220LB, FG223LB, FG850LB, FG830LB, FG315LB, FG400RB, FG370RB, FB371UB, FG430RB, FG260RB, FG260WB, FG266RB, FG266WB, FG460RB, FG460WB, FG210RB, FG270RB, FG270WB, FI270RB, FI270WB, FG290RB, FG290WB, FI290RB, FI290WB, FG300RB, FG300WB, FI300RB, FI300WB, FG320LB, FI320LB, FG266RB-A, FG1921, FG265, FG266, FG430, FG1921B, FG1921WB. APPLICANT : Guangdong Welland Technology Co, Ltd DATE OF ISSUE : Jun. 19, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC06164200504FE02 Page 2 of 44 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / Jun. 19, 2020 Valid Initial Release Report No.: AGC06164200504FE02 Page 3 of 44 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2.GENERAL INFORMATION................................................................................................................................ 6 2.1PRODUCT DESCRIPTION .......................................................................................................................... 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3 RELATED SUBMITTAL(S)/GRANT(S) ........................................................................................................ 7 2.4TEST METHODOLOGY ............................................................................................................................... 7 2.5 SPECIAL ACCESSORIES ........................................................................................................................... 7 2.6 EQUIPMENT MODIFICATIONS .................................................................................................................. 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1 CONFIGURATION OF TESTED SYSTEM ................................................................................................ 10 5.2 EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. 6 DB BANDWIDTH ......................................................................................................................................... 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 17 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 17 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 17 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 17 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 17 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 22 Report No.: AGC06164200504FE02 Page 4 of 44 10.1 MEASUREMENT PROCEDURE ............................................................................................................. 22 10.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................... 22 10.3 MEASUREMENT EQUIPMENT USED ................................................................................................... 22 10.4 LIMITS AND MEASUREMENT RESULT ................................................................................................. 22 11. RADIATED EMISSION ................................................................................................................................. 24 11.1. MEASUREMENT PROCEDURE ........................…

Text truncated - open the document above for the full version.

Report No.: AGC06164200504FE02 Page 26 of 44 11.3. LIMITS AND MEASUREMENT RESULT 15.209 Limit in the below table has to be followed Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 Note: All modes were tested For restricted band radiated emission, the test records reported below are the worst result compared to other modes. 11.4. TEST RESULT RADIATED EMISSION BELOW 30MHZ No emission found between lowest internal used/generated frequencies to 30MHz. Report No.: AGC06164200504FE02 Page 27 of 44 RADIATED EMISSION BELOW 1GHZ EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 48.4000 29.29 14.71 40.00 10.71 100 101 Horizontal 2 52.3000 29.47 14.50 40.00 10.53 200 46 Horizontal 3 82.5250 26.54 10.18 40.00 13.46 200 282 Horizontal 4 124.4500 27.22 13.77 43.50 16.28 100 1 Horizontal 5 288.2500 22.72 16.16 46.00 23.28 100 61 Horizontal 6 731.8750 34.15 26.76 46.00 11.85 100 308 Horizontal RESULT: PASS Report No.: AGC06164200504FE02 Page 28 of 44 EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical NO. Freq. [MHz] Level [dBμV/m] Factor [dB] Limit [dBμV/m] Margin [dB] Height [cm] Angle [°] Polarity 1 40.6000 31.78 14.92 40.00 8.22 100 331 Vertical 2 52.3000 33.15 14.50 40.00 6.85 100 276 Vertical 3 95.2000 26.33 10.84 43.50 17.17 100 170 Vertical 4 124.4500 28.04 13.77 43.50 15.46 100 178 Vertical 5 314.5750 27.20 16.46 46.00 18.80 100 204 Vertical 6 720.1750 33.33 26.46 46.00 12.67 100 45 Vertical RESULT: PASS Note: 1. Factor=Antenna Factor + Cable loss, Margin=Measurement-Limit. 2. All test modes had been tested. The mode 1 is the worst case and recorded in the report. Report No.: AGC06164200504FE02 Page 29 of 44 RADIATED EMISSION ABOVE 1GHZ EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 45.8774-28.13 peak 4804.000 39.254-14.8 AVG 7206.000 43.0874-30.92 peak 7206.000 37.4554-16.55 AVG 45.790.08 39.120.08 40.872.21 35.242.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4804.000 44.7974-29.21 peak 4804.000 38.6954-15.31 AVG 7206.000 40.674-33.4 peak 7206.000 34.6254-19.38 AVG 44.710.08 38.610.08 38.392.21 32.412.21 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC06164200504FE02 Page 30 of 44 EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4852.000 45.3974-28.61 peak 4852.000 39.8954-14.11 AVG 7278.000 42.374-31.7 peak 7278.000 35.5854-18.42 AVG 45.250.14 39.750.14 39.942.36 33.222.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4852.000 44.0274-29.98 peak 4852.000 37.5654-16.44 AVG 7278.000 41.3974-32.61 peak 7278.000 34.7954-19.21 AVG 43.880.14 37.420.14 39.032.36 32.432.36 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Report No.: AGC06164200504FE02 Page 31 of 44 EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 44.6474-29.36 peak 4960.000 38.9354-15.07 AVG 7440.000 42.3474-31.66 peak 7440.000 36.2154-17.79 AVG 44.420.22 38.710.22 39.72.64 33.572.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactor Emission LevelLimitsMargin (MHz)(dBμV) (dB)(dBμV/m)(dBμV/m)(dB) Value Type 4960.000 42.8874-31.12 peak 4960.000 37.354-16.7 AVG 7440.000 40.5574-33.45 peak 7440.000 33.8854-20.12 AVG 42.660.22 37.080.22 37.912.64 31.242.64 Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. Report No.: AGC06164200504FE02 Page 32 of 44 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC06164200504FE02 Page 33 of 44 EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC06164200504FE02 Page 34 of 44 EUT smart scale Model Name FG1921(LB) Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage …

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ
