2AP7FRMCUM5RMCU

RMCU M5 Manual Product features description Install to Worldwide Excavator Wheel loader equipment Real-time monitoring and diagnosis of equipment Support integrated maintenance function for equipment Support for setting function restrict operation Connecting server using 4G networks Location information collecting as using GPS function About User’s guide The contents of the user manual are subject to change depending on the manufacturer's service policy, etc. There may be technical and editing errors or missing content. Copyright All contents and rights of the instruction manual are in TAEHA MECHTRONICS Co., Ltd. and are protected under copyright law. Where a manual is reproduced, modified, produced, or distributed without prior written consent, it shall be subject to criminal punishment in accordance with the Copyright Act. FCC RF Radiation Exposure Statement This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. Main Case LTE, GPS Antenna Antenna Cable (Length = Approx. 305cm) Package Contents Product Overview Screw hole Screw hole Power connector It is connected with excavator and wheel loader heavy equipment. LTE Antenna Active GPS Antenna It is possible to fix it on the equipment. Connect with external LTE antenna Connect with external GPS antenna LTE Antenna Active GPS Antenna Intergrated Antenna Module Product Overview Device Installation Tighten the screws as shown in the picture Connect from 12V/24V Power supply to this Crocodile clip ACC BATTERY Make connect main connector To booting operation for the first time, it need to input the Battery power and ACC signal. A switch is provided for the development cable. For testing, use it in a pushed state. Device Installation Product spec ItemsUnitDescription Note Basic Spec. Operating temperature [°C]-30 ~85 Size[mm]160 x 120 x 40(WxDxH) Normal Input Voltage [V]12 / 24 (Freevoltage) Input VoltageRange[V]9 ~ 32 Location information GNSS-50-Channel GPS Wireless Communication Cellular- LTE/WCDMAWorldwide band support Network operator ()

V02072023 Manufacturers Letterhead Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 02-02-2024 Ref: Attestation Statement Part 2.911(d)(7) Filing FCC ID:2AP7FRMCUM5 TAEHA MECHATRONICS Co., Ltd. certifies that, as of the dates of this application, Americas Compliance Consulting LLC dba iCertifi “iCertifi” is our designated U.S. agent for service of process for the above referenced FCC ID. TAEHA MECHATRONICS Co., Ltd. accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission-related proceeding involving the equipment. iCertifi accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Americas Compliance consulting, LLC dba iCertifi FCC FRN: 0033399411 Address: 1001 SW Disk Drive, Suite 250, Bend, Oregon 97702 Contact Person: Paul Preston Tel: 866-885-4575 Email: [email protected] Sincerely, Applicant : TAEHA MECHATRONICS Co., Ltd. FRN : 0033804360 Americas Compliance Consulting LLC dba iCertifi Contact name : KANG IL LEE Paul Preston Signature

Applicant Declaration QSF27-14-04 Rev 1.1 Jan 17, 2024 Page 1 of 1 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name TAEHA MECHATRONICS Co., Ltd. Address 421, Bakdal-ro, Manan-gu, Anyang-si, Gyeonggi-do, Republic of Korea FRN 0033804360 Grantee Code 2AP7F FCC ID 2AP7FRMCUM5 Authorized Contact Name Kangil Lee Contact Email [email protected] Contact Phone 82+31-463-7921 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List TAEHA MECHATRONICS Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. TAEHA MECHATRONICS Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: February 2, 2024 Print Name: Kangil Lee Title: Senior Researcher *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

TAEHA MECHATRONICS Co., Ltd. 421, Bakdal-ro, Manan-gu, Anyang-si, Gyeonggi-do, 13978, Republic of Korea Date : February 1, 2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 LETTER FOR AUTHORIZATION FCC ID: 2AP7FRMCUM5 To whom it may concern: I, the undersigned, hereby authorize SGS Korea Co., Ltd. and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; TAEHA MECHATRONICS Co., Ltd. 421, Bakdal-ro, Manan-gu, Anyang-si, Gyeonggi-do, 13978, Republic of Korea f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours Name : Kangil Lee Title : Senior Researcher Company Name : TAEHA MECHATRONICS CO., LTD.

TAEHA MECHATRONICS Co., Ltd. 421, Bakdal-ro, Manan-gu, Anyang-si, Gyeonggi-do, 13978, Republic of Korea Date : 2024-02-02 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 REQUEST FOR CONFIDENTIALITY FCC ID: 2AP7FRMCUM5 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, (Applicant Name) hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give , (Applicant Name) temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST Permanent Block Diagram Operational Descriptions Schematics Tune-up Part List Short-Term External Photos Internal Photos Test-Setup Photos User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours Name : Kangil Lee Title : Senior Researcher Company Name : TAEHA MECHATRONICS CO., LTD.

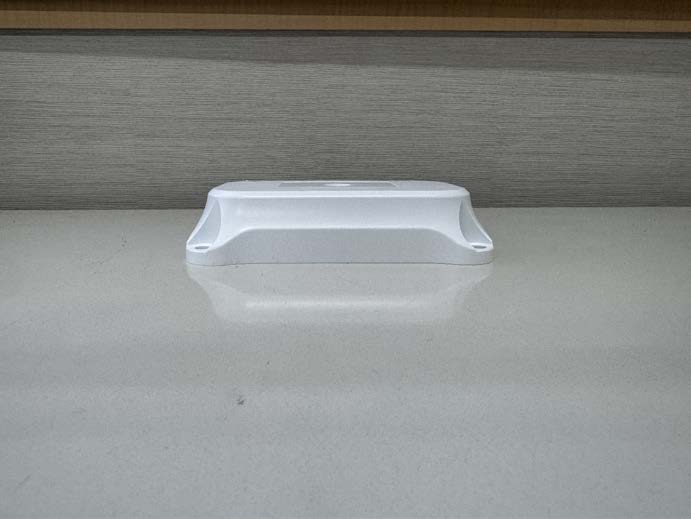

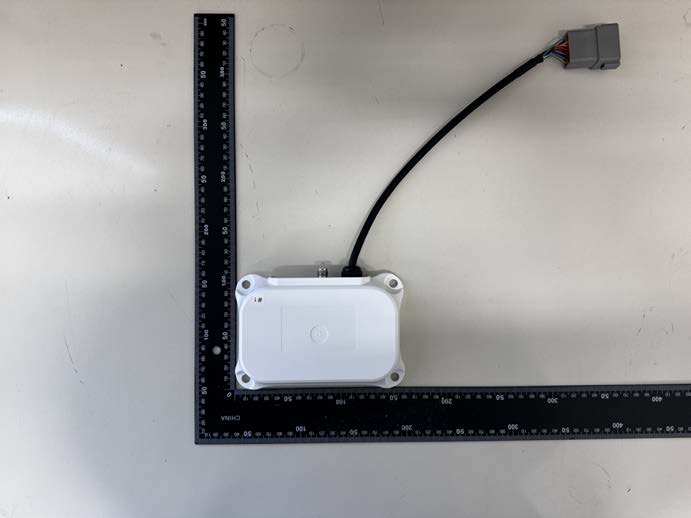

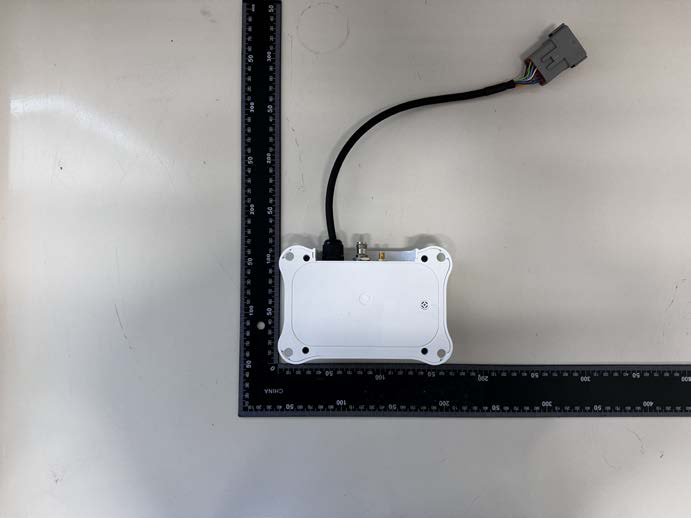

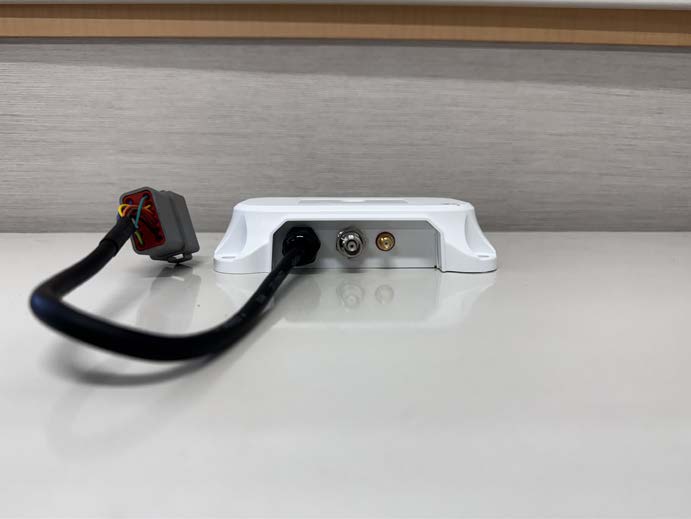

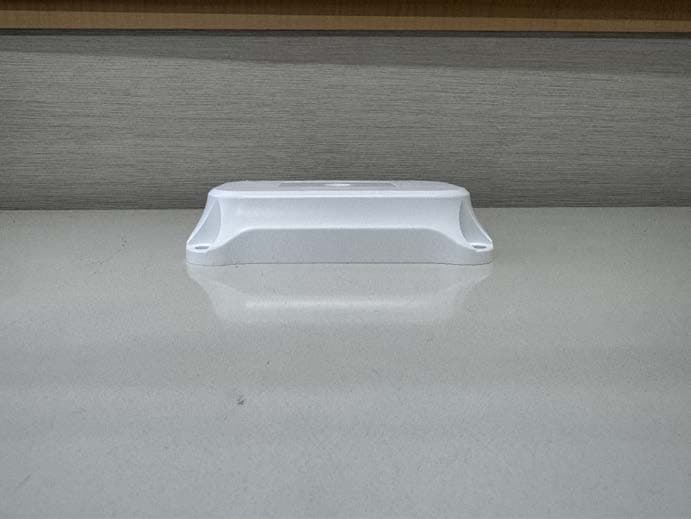

Model Name: RMCU M5 External photos of EUT Model Name: RMCU M5 Top view of EUT Bottom view of EUT Model Name: RMCU M5 Side view of EUT Model Name: RMCU M5

Label Information -Top view of EUT

Model Name: RMCU M5 Internal photos of EUT Model Name: RMCU M5 Internal view of EUT Model Name: RMCU M5 Top view of Main PCB Bottom view of Main PCB Model Name: RMCU M5 View of Antenna

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004793 Page: 2 of 8 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information -------------------------------------------------------------------------------- 3 2. RF Exposure Evaluation -------------------------------------------------------------------------- 5 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004793 Page: 3 of 8 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 688 0901 FAX : +82 31 688 0921 1.2. Details of Applicant Applicant : TAEHA MECHATRONICS Co., Ltd. Address : 421, Bakdal-ro, Manan-gu, Anyang-si, Gyeonggi-do, Republic of Korea, 13798 Contact Person : Lee, Kang-il Phone No. : +82 31 463 7291 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product RMCU Model Name RMCU M5 Approved Module FCC ID: XMR202212EG25GL Serial Number 001 Serial Number 005 Power Supply DC 12 ~ 24 V Frequency Range WCDMA II: 1 850 ㎒ ~ 1 910 ㎒ WCDMA V: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 13: 777 ㎒ ~ 787 ㎒ LTE Band 26(Part 90): 814 ㎒ ~ 824 ㎒ LTE Band 26(Part 22): 824 ㎒ ~ 849 ㎒ LTE Band 41: 2 496 ㎒ ~ 2 690 ㎒ Modulation Technique QPSK, 16QAM Antenna Type Shark Antenna Antenna Gain ※ 699 ㎒ ~ 716 ㎒: 4.28 ㏈i 777 ㎒ ~ 787 ㎒: 3.63 ㏈i 814 ㎒ ~ 849 ㎒: 3.17 ㏈i 1 710 ㎒ ~ 1 755 ㎒: 2.35 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 2.75 ㏈i 2 496 ㎒ ~ 2 690 ㎒: 5.80 ㏈ H/W Version REV.A.02 S/W Version V1.0.0.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004793 Page: 4 of 8 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 1 Section Test Item(s) Result 1.1307(b)(3) RF Exposure Evaluation Complied 1.6. Test Report Revision Revision Report Number Date of Issue Description 0 F690501-RF-RTL004793 2024.01.31 Initial SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004793 Page: 5 of 8 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2. RF Exposure Evaluation Test exemptions apply for devices used in general population/uncontrolled exposure environments, according to the SAR-based, or MPE-based exemption thresholds. 2.1. Blanket 1 ㎽ Blanket Exemption The 1 ㎽ Blanket Exemption of § 1.1307(b)(3)(i)(A) applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power of no more than 1 ㎽, regardless of separation distance. The 1 ㎽ blanket exemption applies at separation distances less than 0.5 ㎝, including where there is no separation. This exemption shall not be used in conjunction with other exemption criteria other than those for multiple RF sources in paragraph § 1.1307(b)(3)(ii)(A). The 1 ㎽ exemption is independent of service type and covers the full range of 100 ㎑ to 100 ㎓, but it shall not be used in conjunction with other exemption criteria or in devices with higher-power transmitters operating in the same time-averaging period. Exposure from such higher-power transmitters would invalidate the underlying assumption that exposure from the lower-power transmitter is the only contributor to SAR in the relevant volume of tissue. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004793 Page: 6 of 8 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 2.2. MPE-based Exemption General frequency and separation-distance dependent MPE-based effective radiated power (ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] to support an exemption from further evaluation from 300 ㎑ through 100 ㎓. Table 1: THRESHOLDS FOR SINGLE RF SOURCES SUBJECT TO ROUTINE ENVIRONMENTAL EVALUATION RF Source Frequency Minimum Distance Threshold ERP f L (㎒) f H (㎒) λ L / 2π λ H / 2π W 0.3 - 1.34 159 m - 35.6 m 1 920 R2 1.34 - 30 35.6 m - 1.6 m 3 450 R 2 /f 2 30 - 300 1.6 m - 159 mm 3.83 R 2 300 - 1 500 159 mm - 31.8 mm 0.012 8 R 2 f 1 500 - 100 000 31.8 mm - 0.5 mm 19.2 R 2 Subscripts L and H are low and high; λ is wavelength. From § 1.1307(b)(3)(i)(C), modified by adding Minimum Distance columns. The table applies to any RF source (i.e., single fixed, mobile, and portable transmitters) and specifies power and distance criteria for each of the five frequency ranges used for the MPE limits. These criteria apply at separation distances from any part of the radiating structure of at least λ/2π. The thresholds are based on the general population MPE limits with a single perfect reflection, outside of the reactive near-field, and in the main beam of the radiator. For mobile devices that are not exempt per Table B.1 [Table 1 of § 1.1307(b)(1)(i)(C)] at distances from 20 ㎝ to 40 ㎝ and in 0.3 ㎓ to 6 ㎓, evaluation of compliance with the exposure limits in § 1.1310 is necessary if the ERP of the device is greater than ERP 20 ㎝ in Formula (B.1) [repeated from § 2.1091(c)(1) and § 1.1307(b)(1)(i)(B)]. If the ERP is not …

Text truncated - open the document above for the full version.

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004792 Page: 2 of 43 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) INDEX Table of Contents Page 1. General Information ---------------------------------------------------------------------------------------- 3 2. E.R.P. / E.I.R.P. & Radiated Spurious Emission --------------------------------------------------- 11 3. Conducted Output Power --------------------------------------------------------------------------------- 30 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004792 Page: 3 of 43 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 10-2, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 - Designation number: KR0150 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Phone No. : +82 31 688 0901 Fax No. : +82 31 688 0921 1.2. Details of Applicant Applicant : TAEHA MECHATRONICS Co., Ltd. Address : 421, Bakdal-ro, Manan-gu, Anyang-si, Gyeonggi-do, Republic of Korea, 13798 Contact Person : Lee, Kang-il Phone No. : +82 31 463 7291 1.3. Details of Manufacturer Company : Same as applicant Address : Same as applicant 1.4. Description of EUT Kind of Product RMCU Model Name RMCU M5 Approved Module FCC ID: XMR202212EG25GL Serial Number 005 Power Supply DC 12 ~ 24 V Rated Power WCDMA II,V: 23 ㏈m LTE Band 2, 4, 5, 7, 12, 13, 26, 41: 23 ㏈m Frequency Range WCDMA II: 1 850 ㎒ ~ 1 910 ㎒ WCDMA V: 824 ㎒ ~ 849 ㎒ LTE Band 2: 1 850 ㎒ ~ 1 910 ㎒ LTE Band 4: 1 710 ㎒ ~ 1 755 ㎒ LTE Band 5: 824 ㎒ ~ 849 ㎒ LTE Band 7: 2 500 ㎒ ~ 2 570 ㎒ LTE Band 12: 699 ㎒ ~ 716 ㎒ LTE Band 13: 777 ㎒ ~ 787 ㎒ LTE Band 26(Part 90): 814 ㎒ ~ 824 ㎒ LTE Band 26(Part 22): 824 ㎒ ~ 849 ㎒ LTE Band 41: 2 496 ㎒ ~ 2 690 ㎒ Modulation Technique QPSK, 16QAM Antenna Type Shark Antenna Antenna Gain ※ 699 ㎒ ~ 716 ㎒: 4.28 ㏈i 777 ㎒ ~ 787 ㎒: 3.63 ㏈i 814 ㎒ ~ 849 ㎒: 3.17 ㏈i 1 710 ㎒ ~ 1 755 ㎒: 2.35 ㏈i 1 850 ㎒ ~ 1 910 ㎒: 2.75 ㏈i 2 496 ㎒ ~ 2 690 ㎒: 5.80 ㏈ H/W Version REV.A.02 S/W Version V1.0.0.0 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004792 Page: 4 of 43 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal. Date Cal. Interval Cal. Due Signal Generator R&S SMA100B 106887 Oct. 06, 2023 Annual Oct. 06, 2024 Mobile Test Unit R&S CMW500 144034 Feb. 17, 2023 Annual Feb. 17, 2024 Mobile Test Unit Anritsu MT8821C 6262116711 Apr. 04, 2023 Annual Apr. 04, 2024 Power Meter Anritsu ML2495A 1223004 May 30, 2023 Annual May 30, 2024 Power Sensor Anritsu MA2411B 1207272 May 30, 2023 Annual May 30, 2024 High Pass Filter Wainwright Instrument GmbH WHKX10-900-1000-18000 -40SS 7 Mar. 02, 2023 Annual Mar. 02, 2024 High Pass Filter Wainwright Instrument GmbH WHK3.0/18G-10SS 344 May 16, 2023 Annual May 16, 2024 High Pass Filter Wainwright Instrument GmbH WHNX7.5/26.5G-6SS 15 Jun. 02, 2023 Annual Jun. 02, 2024 High Pass Filter Wainwright Instrument GmbH WLKX10-3555-4500-2650 0-40CD 1 Nov. 03, 2023 Annual Nov. 03, 2024 Directional Coupler KRYTAR 152613 122660 Jul. 13, 2023 Annual Jul. 13, 2024 DC Power Supply Agilent U8002A MY50060028 Mar. 09, 2023 Annual Mar. 09, 2024 Preamplifier H.P. 8447F 2944A03909 Aug. 04, 2023 Annual Aug. 04, 2024 Preamplifier R&S SCU 18F 101058 Dec. 07, 2023 Annual Dec. 07, 2024 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Oct. 06, 2023 Annual Oct. 06, 2024 Test Receiver R&S ESU26 100109 May 17, 2023 Annual May 17, 2024 Loop Antenna Schwarzbeck Mess-Elektronik FMZB 1519 1519-039 Aug. 21, 2013 Biennial Aug. 21, 2025 Bilog Antenna Schwarzbeck Mess-Elektronik VULB9163 01126 Feb. 09, 2023 Annual Feb. 09, 2024 Horn Antenna R&S HF906 100326 Feb. 28, 2023 Annual Feb. 28, 2024 Horn Antenna Schwarzbeck Mess-Elektronik BBHA 9170 BBHA9170223 Oct. 10, 2023 Annual Oct. 10, 2024 Antenna Master Innco systems GmbH MA4640-XP-ET MA4640/536/3 8330516/L N.C.R. N/A N.C.R. Turn Table Innco systems GmbH DS 1200S N/A N.C.R. N/A N.C.R. Controller Innco systems GmbH CONTROLLER CO3000-4P CO3000/963/3 8330516/L N.C.R. N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N.C.R. N/A N.C.R. Coaxial Cable RFONE MWX221-NMSNMS (4 m) J1023142 Oct. 04, 2023 Semi- Annual Apr. 04, 2024 Coaxial Cable Qualwave Inc. QA500-18-NN-10 (10 m) 22200114 Oct. 04, 2023 Semi- Annual Apr. 04, 2024 Coaxial Cable RADIALL TESTPRO 3 182287 Oct. 14, 2023 Semi- Annual Apr. 14, 2024 Coaxial Cable RADIALL TESTPRO 3 182288 Oct. 14, 2023 Semi- Annual Apr. 14, 2024 Coaxial Cable RADIALL TESTPRO 3 182291 Oct. 14, 2023 Semi- Annual Apr. 14, 2024 Note; - For equipment listed above that has a calibration date or calibration due date that falls within the test date range, care was taken to ensure that this equipment was used after the calibration date and before the calibration due date. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 15807 Tel. +82 31 428 5700 / Fax. +82 31 427 2370 http://www.sgsgroup.kr Report Number: F690501-RF-RTL004792 Page: 5 of 43 RTT7081-02(2020.10.05)(0) A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 2, 22, 24, 27 and 90 Section(s) Test Item(s) Result §2.1046 §22.913(a)(5) §24.232(c) §27.50(b)(9) §27.50(c)(9) §27.50(d)(4) §27.50(h)(2) §90.635(b) E.R.P. / E.I.R.P. Complied §22.917(a) §24.238(a) §27.53(c)(2) §27.53(f) §27.53(g) §27.53(h)(1) §27.53(m)(4) §90.691(a) Spurious Radiated Emission Complied §2.10…

Text truncated - open the document above for the full version.

Model Name: RMCU M5 Test setup photos of EUT Model Name: RMCU M5 1. Orthogonal plane of EUT - The testing was set in the three orthogonal planes and measured for each position (X, Y, Z). X-axis Y-axis Model Name: RMCU M5 Z-axis Model Name: RMCU M5 2. Photos of Radiated Spurious Emission Test (Below 1㎓) Model Name: RMCU M5 3. Photo of Radiated Spurious Emission Test (Above 1㎓) 4. Photo of Conducted test
