2AP8SK301MRLaser range finder

OWNERS MANUAL KILO ® KILO3000BDX™ 10x42 mm RANGEFINDING BINOCULAR WITH BALLISTIC DATA XCHANGE™ 2 TABLE OF CONTENTS This manual is available in the following languages: French, Spanish, German, Italian, Portuguese, Russian, Afrikaans, Swedish, and Norwegian. Please visit sigsauer.com for Owners Manual downloads , or download to your Smart device with the SIG BDX App. Introduction ..............................................3 Contents ................................................4 Key Features .............................................5 Product Identification ......................................6 Operation ..............................................18 Display Information .......................................24 Changing Modes of Operation ..............................25 Programming Sequence ...................................26 Frequently Asked Questions (FAQs) ..........................43 Specifications ...........................................46 SIG SAUER ® Electro-Optics Infinite Guarantee™ ................53 3 sigsauer.com INTRODUCTION Congratulations on the purchase of your SIG SAUER ® Laser Rangefinder. The KILO3000BDX™ is part of a new, advanced family of rangefinders from SIG SAUER that feature Low Energy Bluetooth, embedded Applied Ballistics Ultralight and supports Applied Ballistics External with the free downloadable SIG™ BDX App as part of SIG SAUER’s new Ballistic Data Xchange™ technology. Scan mode refreshes at ultra-fast 4x/second Twist eyecups for individualized, custom fit Compact form factor 4 CONTENTS: • KILO3000BDX™ Rangefinding Binocular • CR2 Battery (1) • Premium Binocular Harness / Carry Pouch • Quick Start Guide 5 sigsauer.com KEY FEATURES: • SIG SAUER’S Patent Pending Ballistic Data Xchange™ Technology utilizes low energy Bluetooth with embedded Applied Ballistics Ultralight (ABU), supports Applied Ballistics External (ABE/ABX) and works with the free BDX™ App to sync custom gun profiles and environmental conditions to your KILO® and pair your KILO to any BDX enabled riflescope. ABU provides ballistic solutions out to 800 yards while ABE/ABX supports any distance and works with external devices with AB Elite. • 10x42 mm monocular with SpectraCoat™ anti-reflection coatings for superior light transmission and optical clarity. • Revolutionary Lightwave™ DSP Technology for the fastest and longest distance rangefinder engine. • HyperScan provides 4 range updates per second in scan mode while RangeLock reports the last range result when ranging distant targets. • Features line of sight or angle modified range. Units in yards or meters to tenth Y/M resolution. • Projected, segmented OLED display for daytime and low light use. • Lumatic TM Display automatically calibrates display brightness to changing ambient light condtions. • Compact, aluminum housing and eyecups with dual diopter adjustement. • Rangefinder configuration can now be done through the free SIG BDX™ App. • Displays windage and elevation within KILO HUD for every target that is scanned 6 PRODUCT IDENTIFICATION: A - Power/Range Button B - Eyecup / Diopter Focus Adjustment C - Mode Button D - Harness Attachment Point E - Battery Compartment C A B D E D 7 sigsauer.com LIGHTWAVE TM DSP TECHNOLOGY SIG SAUER’s proprietary Lightwave DSP engine leverages HyperScan – an advanced power management technique that provides the fastest refresh rate in scan mode (4 times per second) even at distances up to a mile. Our DSP engine uses the latest generation field programmable gate array (FPGA) running sophisticated signal processing algorithms to reduce false positives while finding weak or distant targets. RANGING ACCURACY, RESOLUTION AND MAXIMUM RANGES The KILO3000BDX™ provides line of sight or angle modified range information accurate to ±0.5 yards or meters out to 500 yards; ±1 yard from 500 - 1000 yards and ±2 yards beyond 1000 yards. Range is displayed in 0.1 yard or meter resolution. RANGING PERFORMANCE IN HYPERSCAN MODE ReflectiveTreesDeer KILO3000BDX™Up to 5,000 ydsUp to 2,000 ydsUp to 1,500 yds 8 SIG SAUER BALLISTIC DATA XCHANGE (BDX) SIG SAUER’s Patent Pending BDX system takes the guesswork out of determining the proper range and ballistics solution for hitting your target with the first round. Low Energy Bluetooth combined with an embedded ballistic calculator (Applied Ballistics Ultralight) allows the user to configure up to 25 bullet profiles on the free BDX App and sync to your KILO. Line of sight range, elevation and wind hold information is calculated instantly and displayed based on the active profile. When combined with one of SIG SAUER’s BDX enabled riflescopes, the user ranges a target and the firing solution is instantly shared with the BDX riflescope where the holdover dot is selectively illuminated. BDX also works with external devices such as the Kestrel 5700 and Garmin Foretrex with AB Elite on board. When the KILO is paired with a Kestrel or Foretrex, complete ballistic solutions will be transmitted back to the KILO and linked to any BDX enabled riflescope for holdover solutions out to any distance. 9 sigsauer.com GENERAL OPERATION Your rangefinder provides 4 modes of operation: AMR, LOS, ABU and ABE/ABX. AMR and LOS will be explained on the next page. When ABU is selected the user can pair the KILO with a nearby smartphone where the BDX App should already be installed. The user configures a bullet profile in the app, which is actively synced with a paired rangefinder. For example, the user downloads and installs the BDX App, selects a 0.308 caliber bullet and chooses a Barnes LRXBT 200 gr bullet – this profile is selected and saved in real-time. The user will then configure the muzzle velocity, zero range, temperature and altitude within the BDX App. Applied Ballistics External (ABE/ABX) allows the KILO to be paired with an external Kestrel Elite or Garmin Foretrex for more precise ballistic solutions beyond 800 yds. AB Elite includes support for Coriolis, spin drift and other f…

Text truncated - open the document above for the full version.

DATE: 2021-03-17 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint DONGGUAN SHUOXIN ELECTRONIC TECHNOLOGY CO., LTD. Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Sig Sauer, Inc. 27100 SW Parkway Avenue, Wilsonville, Oregon 97070, USA (Applicant Name and address) <Signature>: Name: Scott Gregory Smith Title: Manager Applicant Company: Sig Sauer, Inc.

DATE : 2021-03-17 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AP8SK301MR Product Name: Laser range finder Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature>: Name: Scott Gregory Smith Title: Manager Applicant Company: Sig Sauer, Inc.

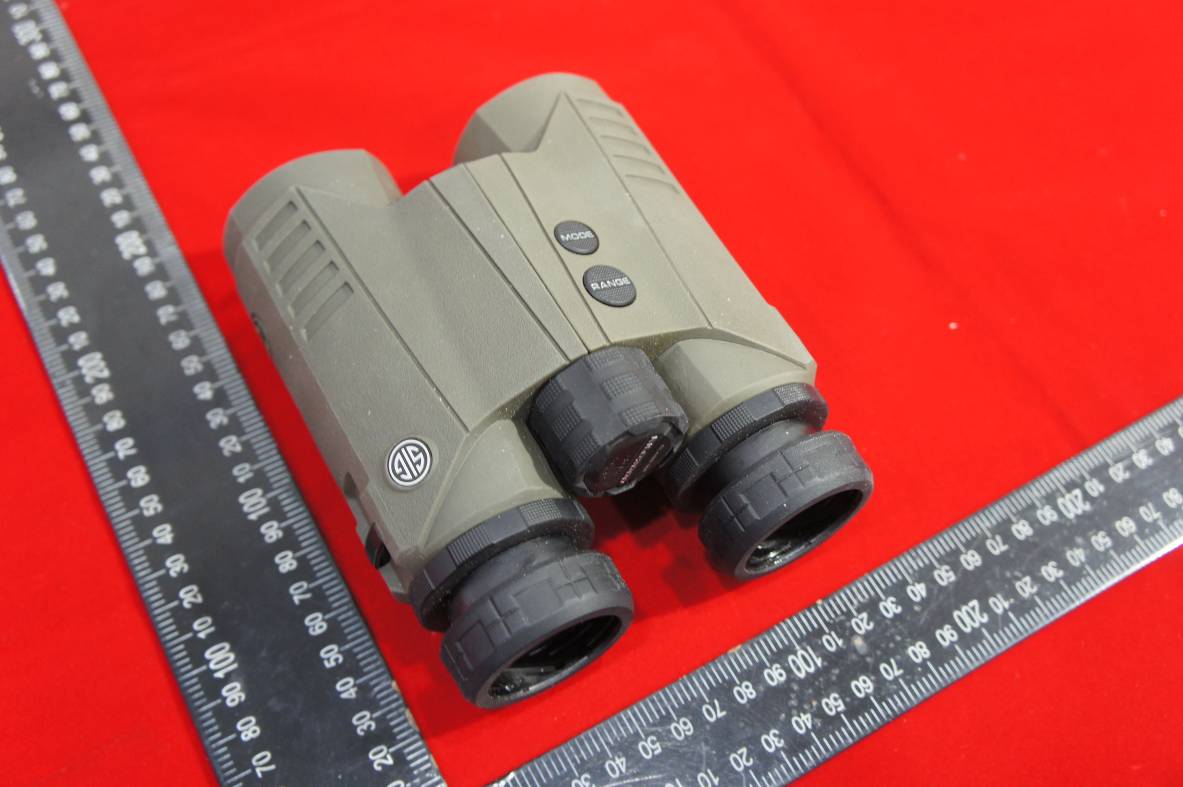

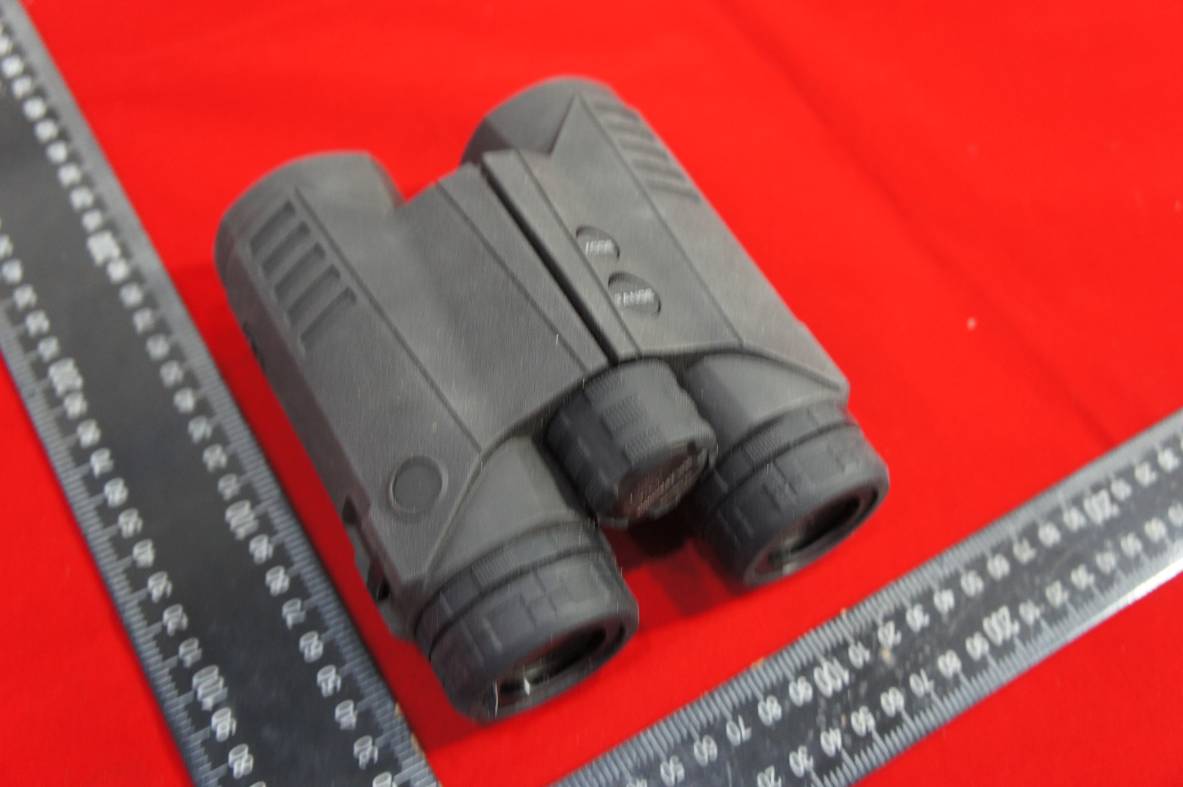

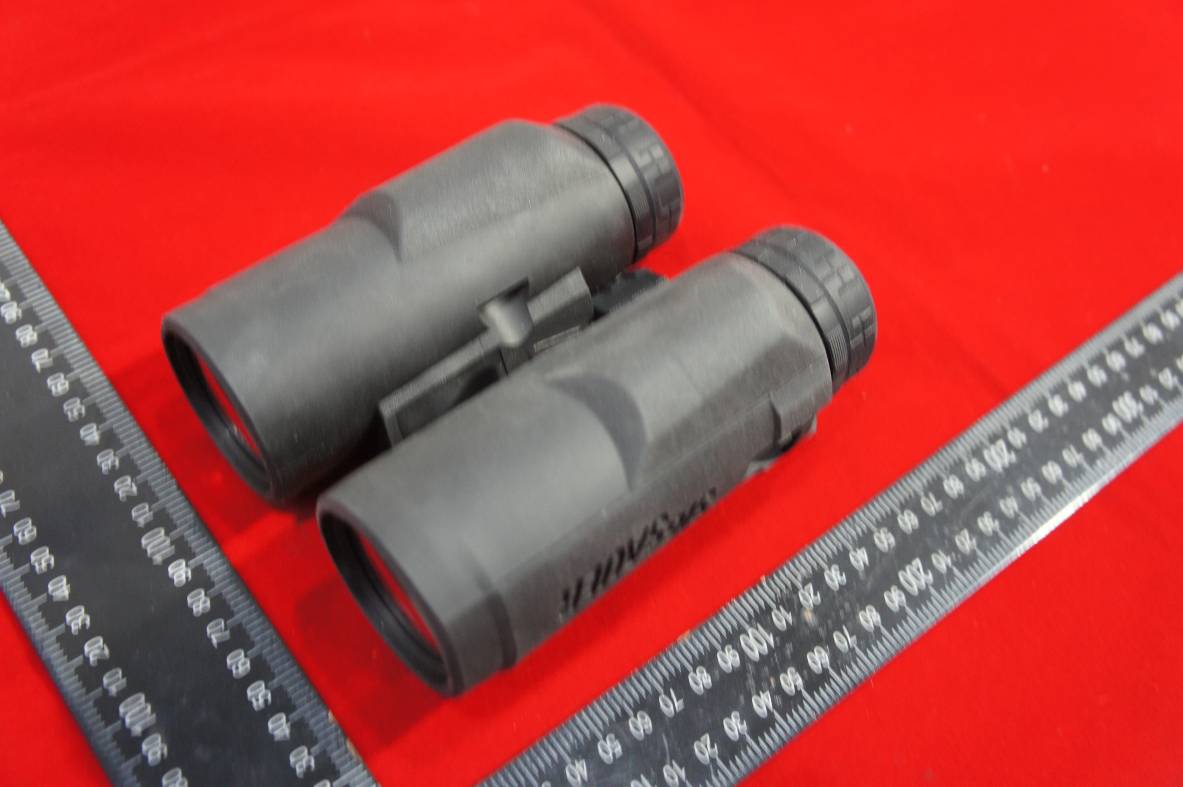

External photo

55 06 . FCC ID:2AP8SK301MR IC:24032-K301MR 33 45 .  :1,  2,  3,  # ! "$%&' 50 3M9448 PET 4, ()*+-./ , 67;' , <= 5, 6> ? <0. mm 3 PANTONE Process Yellow U PR M PET 2：1 FG 3 HII HII HII HII HII JKLQ RSVWXZ[ J\RS RSZ[ 208 -R . SIG SAUER Inc.27100SW Parkway Avenue Wilsonville,Oregon 97070 CLASS 3R LASER PRODUCT INVISIBLE LASER RADIATION AVOID DIRECT EYE EXPOSURE 0 2018/11/5 2018/11/30 2019 1 5 // 2020 12 16 // RSSAX0271 _K`a RX027171899 18 8.65 HVIN:KILO3000BDX-R KILO3000BDX 56, dated May 8, 2019.

Label Location Length x High:33.45mm x 8.65mm Label Location

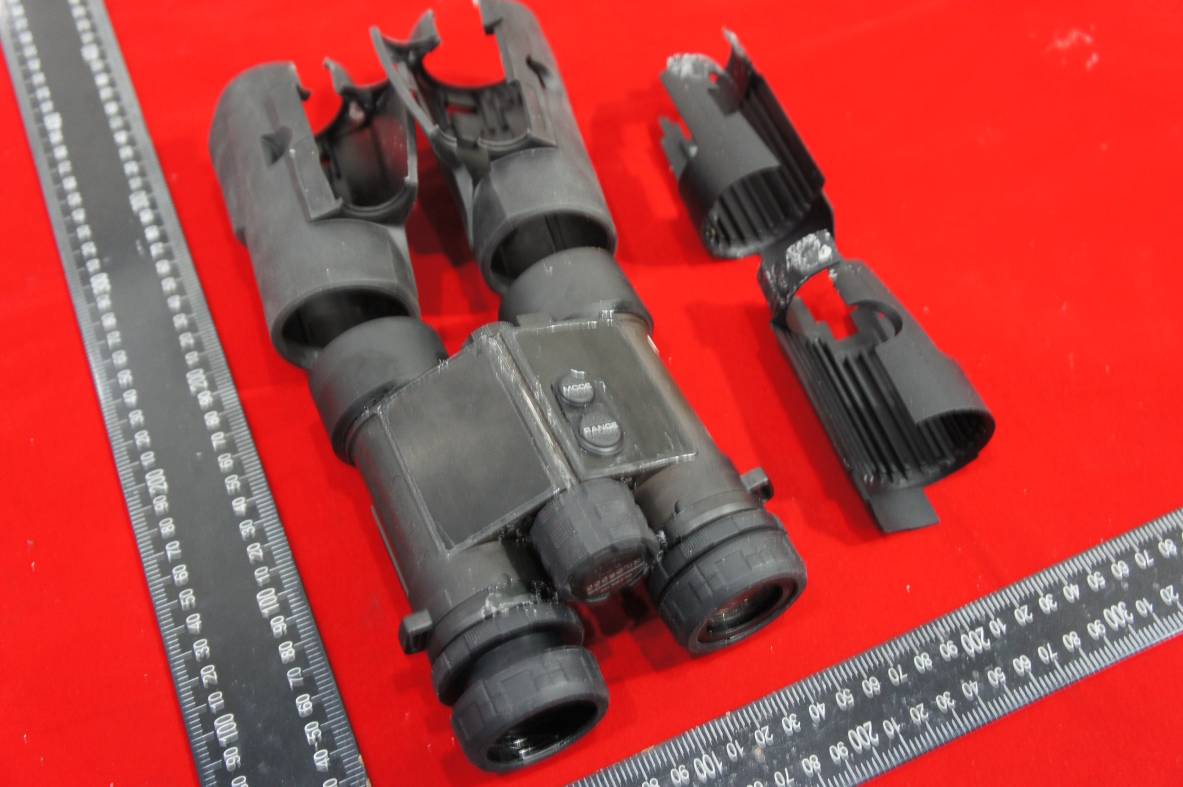

Internal photo

FCC ID: 2AP8SK301MR RF EXPOSURE EVALUATION METHOD FCC ID: 2AP8SK301MR SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Maximum measured transmitter power. BT BLE 1M Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 2.936 1.966 CH39 2440 3.172 2.076 CH78 2480 2.951 1.973 BLE 2M Test Channel Frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) CH00 2402 2.562 1.804 CH39 2440 2.843 1.924 CH78 2480 2.597 1.818 Remark: The best case gain of the antenna is 0dBi. 0 dBi logarithmic terms convert to numeric result is nearly 1.00 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)] FCC ID: 2AP8SK301MR BT Te s t Channel max power (dBm) [(max. power of channel, including tune-up tolerance, mW) (min. test separation distance,mm)] [f(GHz)] Result Limit BLE 1M CH00 2.936 1.966 5 2.402 0.609 3 CH19 3.172 2.076 5 2.440 0.649 3 CH39 2.951 1.973 5 2.480 0.621 3 BLE 2M CH00 2.562 1.804 5 2.402 0.559 3 CH19 2.843 1.924 5 2.440 0.601 3 CH39 2.597 1.818 5 2.480 0.573 3 The test Result is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Conclusion: No SAR is required.

Report No.: 20EFAS11132 1451 Page 1 of 48 FCC & ISED Radio Test Report FCC ID: 2AP8SK301MR IC: 24032-K301MR The report concerns: Original Grant Report Reference No. ................. : 20EFAS11132 1451 Date Sample(s) Received ........... : 2020-11-28 Date of Tested ............................. : From 2020-11-28 to 2021-03-15 Date of issue ............................... : 2021-03-15 Testing Laboratory ...................... : DongGuan ShuoXin Electronic Technology Co., Ltd. Address ...................................... : Zone A, 1F, No. 6, XinGang Road YuanGang Street, XinAn District, ChangAn Town, DongGuan City, GuangDong, China Applicant’s name ........................ : SIG SAUER INC. Address ...................................... : 27100 SW Parkway Avenue, Wilsonville, Oregon 97070, USA. Manufacturer............................... : SIG SAUER INC. Equipment................................... : Laser range finder Trade Mark ................................. : Model ........................................ : KILO3000BDX Ratings ....................................... : I/P: DC 3V Test Engineer: Blue Qiu Responsible Engineer : Smile W ang Authorized Signatory: King W ang HVIN .......................................... : KILO3000BDX-R Report No.: 20EFAS11132 1451 Page 2 of 48 Table of Contents Page 1 TEST REPORT DECLARE 4 2 SUMMARY OF TEST RESULTS 5 2.1 MEASUREMENT UNCERTAINTY 6 3 GENERAL INFORMATION 7 3.1 GENERAL DESCRIPTION OF EUT 7 3.2 DESCRIPTION OF TEST MODES 9 3.3 PARAMETERS OF TEST SOFTWARE 9 3.4 BLOCK DIAGRAM SHOWINGTHECONFIGURATIONOFSYSTEM TESTED 10 3.5 SUPPORT UNITS 10 3.6 TEST ENVIRONMENT CONDITIONS 10 4 RADIATED EMISSION TEST 11 4.1 LIMIT 11 4.2 TEST PROCEDURE 12 4.3 MEASUREMENT INSTRUMENTS LIST 13 4.4 TESTSETUP 13 4.5 EUT OPERATING CONDITIONS 14 4.6 TEST RESULT- 9KHZ TO 30MHZ 15 4.7 TEST RESULT- 30MHZ TO 1000MHZ 16 4.8 TEST RESULT- ABOVE 1000MHZ(BAND EDGE) 18 4.9 TEST RESULTS - ABOVE 1000MHZ(HARMONIC) 26 5 BANDWIDTH TEST 38 5.1 LIMIT 38 5.2 TEST PROCEDURE AND SETTING 38 5.3 MEASUREMENT INSTRUMENTS LIST 38 5.4 TEST SETUP 38 5.5 EUT OPERATION CONDITIONS 38 5.6 TESTRESULTS 39 6 MAXIMUM OUTPUT POWER 41 6.1 LIMIT 41 6.2 TEST PROCEDURE 41 6.3 MEASUREMENT INSTRUMENTS LIST 41 6.4 TEST SETUP 41 6.5 EUT OPERATION CONDITIONS 41 Report No.: 20EFAS11132 1451 Page 3 of 48 Table of Contents Page 6.6 TESTRESULTS 42 7 CONDUCTED SPURIOUS EMISSION 43 7.1 LIMIT 43 7.2 TEST PROCEDURE 43 7.3 MEASUREMENT INSTRUMENTS LIST 43 7.4 TEST SETUP 43 7.5 EUT OPERATION CONDITIONS 43 7.6 TEST RESULTS 44 8 POWER SPECTRAL DENSITY TEST 45 8.1 LIMIT 45 8.2 TEST PROCEDURE 45 8.3 MEASUREMENT INSTRUMENTS LIST 45 8.4 TEST SETUP 45 8.5 EUT OPERATION CONDITIONS 45 8.6 TEST RESULTS 46 9 FREQUENCY STABILITY MEASUREMENT 47 9.1 LIMIT 47 9.2 TEST PROCEDURE 47 9.3 MEASUREMENT INSTRUMENTS LIST 47 9.4 TEST SETUP 47 9.5 EUT OPERATION CONDITIONS 47 9.6 TEST RESULTS 48 Report No.: 20EFAS11132 1451 Page 4 of 48 1 TEST REPORT DECLARE Applicant SIG SAUER INC. Address 27100 SW Parkway Avenue, Wilsonville, Oregon 97070, USA. Manufacturer SIG SAUER INC. Address 27100 SW Parkway Avenue, Wilsonville, Oregon 97070, USA. Factory BURST TRANSMISSION CO., LTD Address Mandalay - Lashio Road, Yatanarpon Myothit, Plot No. 3,4,11, Pyin Oo Lwin Township, Mandalay Region, Myanmar. Equipment Laser range finder Model No. KILO3000BDX Trade Mark Standard FCC Part15, Subpart C (15.247) RSS-247 Issue 2, Feb. 2017 RSS-Gen Issue 5, Mar. 2019 ANSI C63.10-2013 We Declare: The equipment described above is tested by DongGuan ShuoXin Electronic Technology Co., Ltd(ATT). and in the configuration tested the equipment complied with the standards specified above. The test results are contained in this test report and DongGuan ShuoXin Electronic Technology Co., Ltd.(ATT) is assumed of full responsibility for the accuracy and completeness of these tests. ATT is not responsible for the sampling stage, so the results only apply to the sample as received. ATT's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. ATT shall have no liability for any declarations, inferences or generalizations drawn by the client or others from ATT issued reports. Report No.: 20EFAS11132 1451 Page 5 of 48 2 SUMMARY OF TEST RESULTS The EUT have been tested accordin g to the applicable standards as referenced below: Standard(s) Section Test Item Judgment Remark FCC ISED 15.207 RSS-Gen8.8 AC Power Line Conducted Emissions N/A------ 15.247(d) 15.205(a) 15.209(a) RSS-247 5.5 RSS-Gen8.9 RSS-Gen8.10 Radiated Emissions PASS ------ 15.247(a)(2) RSS-247 5.2 (a) RSS-Gen6.7 BandwidthPASS ------ 15.247(b)(3) RSS-247 5.4 (d) Maximum Output Power PASS ------ 15.247(d) RSS-247 5.5 ConductedSpurious Emission PASS ------ 15.247(e) RSS-247 5.2 (b) Power Spectral Density PASS ------ -RSS-Gen 6.11 Frequency Stability PASS ------ 15.203-Antenna Requirement PASS Note(2) Note: (1) “N/A” de notes test is not applicable to this de vice. (2) The device what use a permanently attached antenna were considered sufficient tocomply with the provisions of 15.20 3. Report No.: 20EFAS11132 1451 Page 6 of 48 2.1 MEASUREMENT UNCERTAINTY Test Item Uncertainty Uncertainty for Conduction emission test (9kHz-150kHz) 3.7 dB Uncertainty for Conduction emission test (150kHz-30MHz) 3.3 dB Uncertainty for Radiation Emission test (30MHz-200MHz) 4.60 dB (Polarize: V) 4.60 dB (Polarize: H) Uncertainty for Radiation Emission test (200MHz-1GHz) 6.10 dB (Polarize: V) 5.08 dB (Polarize: H) Uncertainty for Radiation Emission test (1GHz-6GHz) 5.01 dB (Polarize: V) 5.01 dB (Polarize: H) Uncertainty for Radiation Emission test (6GHz-18GHz) 5.26 dB (Polarize: V) 5.26 dB (Polarize: H) Uncertainty for Radiation Emission test (18GHz-40GHz) 5.06 dB (Polarize: V) 5.06 dB (Polarize: H) Uncertainty for radio frequency ±0.048kHz Uncertainty for conducted RF Power ±0.32dB N…
