2AP9Z-SOP10Water Timer

Congratulations on the purchase of your Diivoo Smart Hose Faucet Timer! Faucet watering has never been faster, easier or more convenient with the ability to control it from your phone. You can schedule, manually operate without climbing through your shrubs to access the timer. You can connect to your timer with the push of a button via the home screen in the app. It also allows you to water down to minutes, which is great for gardening, hydroponics, filling pet dishes or even bird baths. Whatever your connected outdoor watering needs, Diivoo provides best-in-class smart products to help you more effectively manage and control your watering. Thanks for your purchase, and welcome to Diivoo. Meet the Diivoo Hose Faucet TimerMeet the Diivoo App Home Screen Hose Faucet Connection Filter ON/OFF Button Fitting NH3/4 ” Range: 50ft without interference Pressure operating range: 2.9-116 psi Temperature operating range: 40.1 ȯ-113ȯ4.5°C-45 °C For outdoor use with cold water only Not for use with appliances Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel cadmium) batteries. Used up or dead batteries must be removed from the timer and disposed of properly. If you don’t already have the Smart Life App on your smart device, search for “Smart Life” and download the free Android or IOS app Create an account or login with an existing account to begin timer setup 4)Add a Device Initial Water Timer Setup 1) Insert Two AA Batteries Batteries are not included and you will need two alkaline AA batteries to power your timer. Remove the battery tray and install the batteries according to the drawings located in the tray. Firmly reinstall the battery tray back into the timer. 3) 2) Install the Timer Connect the timer to an outdoor hose faucet. Your timer is now ready to be used with any product that can be attached to a standard hose faucet. Do not place the timer in an underground valve box or anywhere your Bluetooth signal will be obstructed. 3) Turn on Your Water The water must remain on for the timer to work properly. Additional Water Timer Features Manual Watering Your timer has the ability to allow you to manually water without disturbing the programmed schedule. Manual is used to test equipment, run an extra watering cycle in an area, or to use the hose faucet without removing the timer. Press the ON/OFF button to activate manual watering. Using the app you can set how long you want the preset manual cycle to run for. Stop Watering You can stop the flow of water at any time whether it is during manual watering, or during a programmed time. Press the ON/OFF button once to stop watering. Setting Weather Battery Life Next Schedule Last Irrigation Time Running Status Rain DelayTiming Irrigation Remote Control Record Enter configuration Mode Long press the On/OFF button for 6s until the green light flashes quickly, and then enter the pairing mode. Tap "Add device" or "+" to add the smart device in app. Select "Industry&Agriculture" > "Water valve controller(BLE)". Initial Smart Life App Setup 123 4 5678 Water Timer Waiting for connecting to be 100%. Edit the name of your water timer completed. LED Light Outlet Warm Tips When expecting freezing temperatures, timer should be removed from the faucet and stored indoors to avoid potential freeze damage. Please remember to clean the filter regularly and replace it if worn. Troubleshooting Q: Why the bluetooth water timer didn't turn on/off at preset time ? A 1.Programming is incorrect 2.Water pressure is too low 3.Particles of dirt or debris stuck in valve 4.More than one start time is programmed with overlapping schedules 5.Manual watering is on 6.Faulty valve 7.The faucet is off Support If you have any questions about our product, please feel free to contact us via [email protected]. We will follow up and respond within 24 hours. 2)Open the Smart Life App 1)Download the Smart Life App Setting Weather Next Schedule e Running Status Rain DelayTiming Irrigation Record the abili You can climbing You can button v allows y great fo or even Whateve Diivoo p help you watering to Diivoo Initial Initial Smart Life App Setup 1 Water Timer FCCWarningStatement Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould voidtheuser’sauthoritytooperatetheequipment.Thisequipmenthasbeentestedandfoundto complywiththelimitsforaClassBdigitaldevice,pursuanttoPart15oftheFCCRules.These  limitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidential installation.Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnot installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio communications.However,thereisnoguaranteethatinterferencewill notoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception, whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto correcttheinterferencebyoneormoreofthefollowingmeasures: ϋϋReorientorrelocate thereceivingantenna. ϋϋIncreasetheseparationbetweentheequipmentandreceiver. ϋϋConnecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris connected. ϋϋConsultthedealeroranexperiencedradio/TVtechnicianforhelp. Thisdevicecomplieswithpart15oftheFCC Rules.Operationissubjecttothefollowing twoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Z&džƉŽƐƵƌĞ^ƚĂƚĞŵĞŶƚ dŽŵĂŝŶƚĂŝŶĐŽŵƉůŝĂŶĐĞǁŝƚŚ&ΖƐZ&džƉŽƐƵƌĞŐƵŝĚĞůŝŶĞƐ͕dŚŝƐĞƋƵŝƉŵĞŶƚƐŚŽƵůĚďĞŝŶƐƚĂůůĞĚ ĂŶĚŽƉĞƌĂƚĞĚǁŝƚŚŵŝŶŝŵƵŵĚŝƐƚĂŶĐĞŽĨϮϬĐŵƚŚĞƌĂĚŝĂƚŽƌLJŽƵƌďŽĚLJ͘dŚŝƐĚĞǀŝĐĞĂŶĚŝƚƐ ĂŶƚĞŶŶĂ;ƐͿŵƵƐƚŶŽƚďĞĐŽͲůŽĐĂƚĞĚŽƌŽƉĞƌĂƚŝŽŶŝŶĐŽŶũƵŶĐƚŝŽŶǁŝƚŚĂŶLJŽƚŚĞƌĂ…

Text truncated - open the document above for the full version.

Dongguan E-Chief Electronic Technologies Co., Ltd. Agent Authorization Company: Dongguan E-Chief Electronic Technologies Co., Ltd. Address: F5, NO.687, Fumin Road, Dalang Town, Dongguan City, Guangdong Province, PRC Product Name: Water Timer Model Number(s): SOP10, SOP10S, SOP11, SOP11S, SOP12, SOP12S, SOP13, SOP13S, SOP14, SOP14S, SOP15, SOP15S, SOP16, SOP16S, SOP17, SOP17S, SOP18, SOP18S, SOP19, SOP19S, EOP10, EOP10S, EOP11, EOP11S, EOP12, EOP12S, EOP13, EOP13S, EOP14, EOP14S, EOP15, EOP15S, EOP16, EOP16S, EOP17, EOP17S, EOP18, EOP18S, EOP19, EOP19S, TD-SH01, TD-SH01W, SOP10W Product Description: Water Timer We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Apr. 14, 2021 Name: YEFENG YU Title: General manager Company: Dongguan E-Chief Electronic Technologies Co., Ltd.

Dongguan E-Chief Electronic Technologies Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Apr. 14, 2021 Subject; Request for Confidentiality FCC ID: 2AP9Z-SOP10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: YEFENG YU Title: General manager

Model Difference Declaration To Whom It May Concern, We, Dongguan E-Chief Electronic Technologies Co., Ltd.(Water Timer ) Trademark:N/A; Model Number:SOP10, SOP10S, SOP11, SOP11S, SOP12, SOP12S, SOP13, SOP13S, SOP14, SOP14S, SOP15, SOP15S, SOP16, SOP16S, SOP17, SOP17S, SOP18, SOP18S, SOP19, SOP19S, EOP10, EOP10S, EOP11, EOP11S, EOP12, EOP12S, EOP13, EOP13S, EOP14, EOP14S, EOP15, EOP15S, EOP16, EOP16S, EOP17, EOP17S, EOP18, EOP18S, EOP19, EOP19S, TD-SH01, TD-SH01W, SOP10W;All model’s the function, software and electric circuit are the same, only with a product color, appearance and model named different for commercial purpose. Test s ample model:SOP10. Please contact me if you have any question. Name: YEFENG YU Date: Apr. 14, 2021 Title: General manager Signature of applicant:

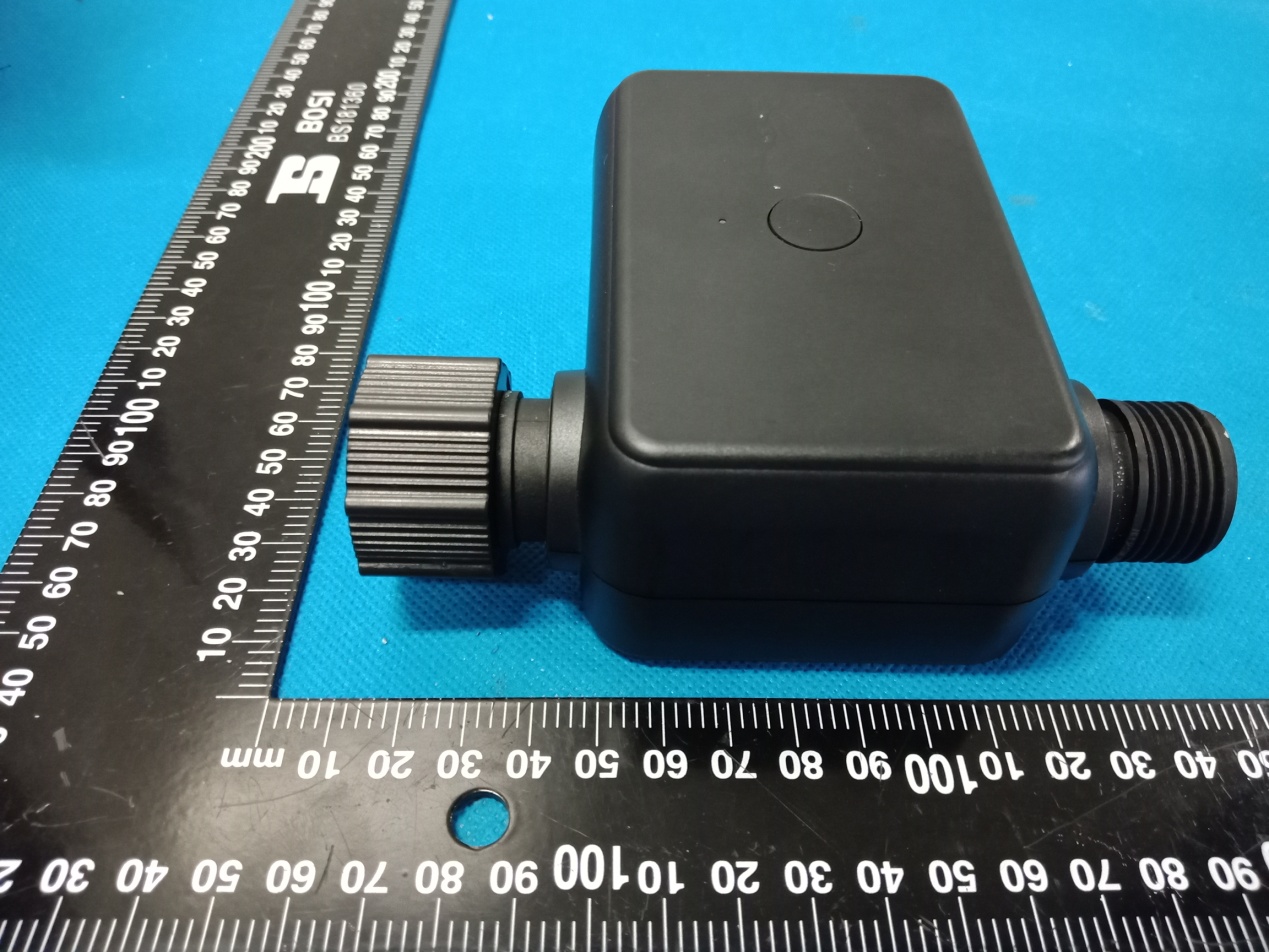

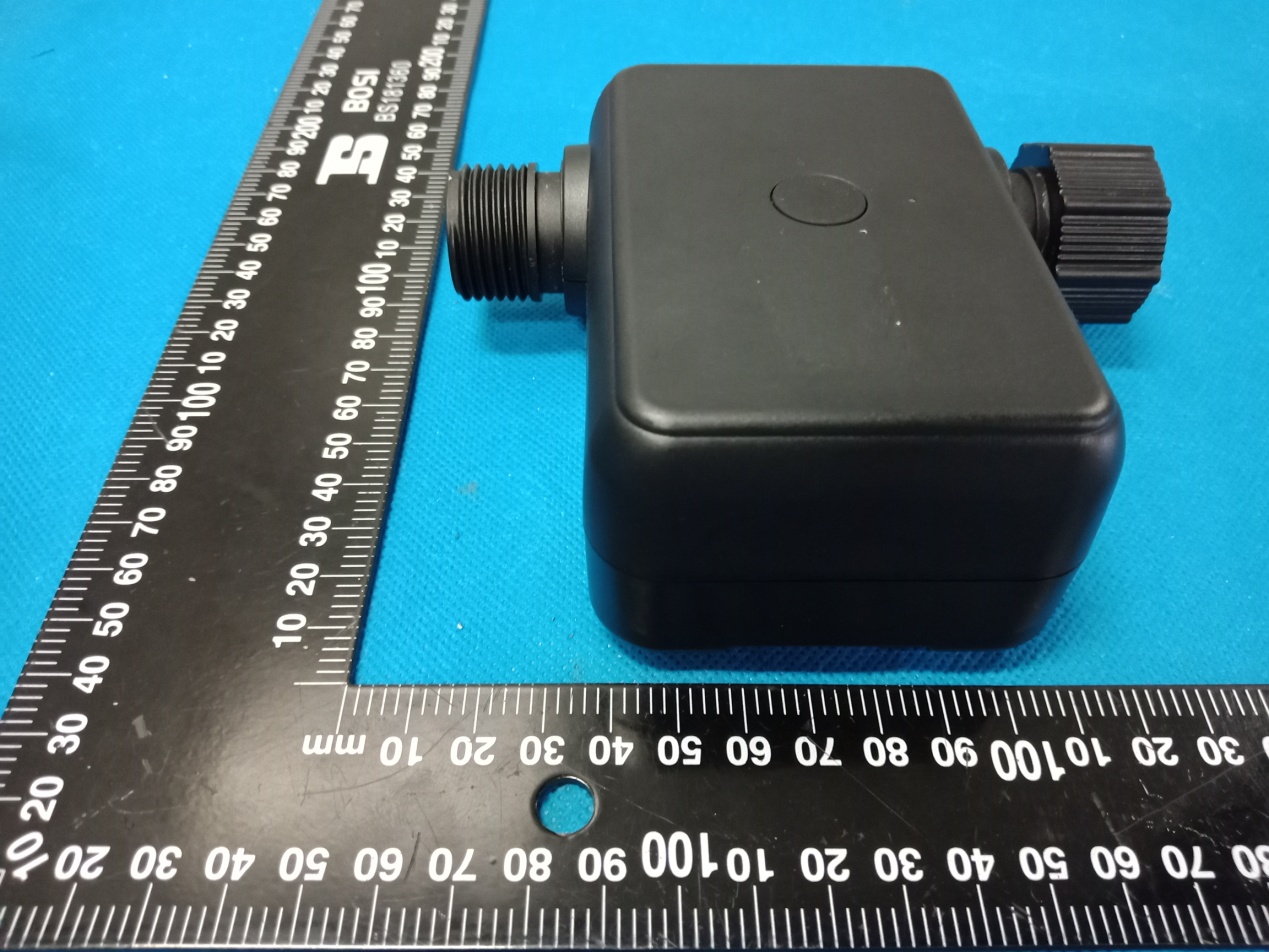

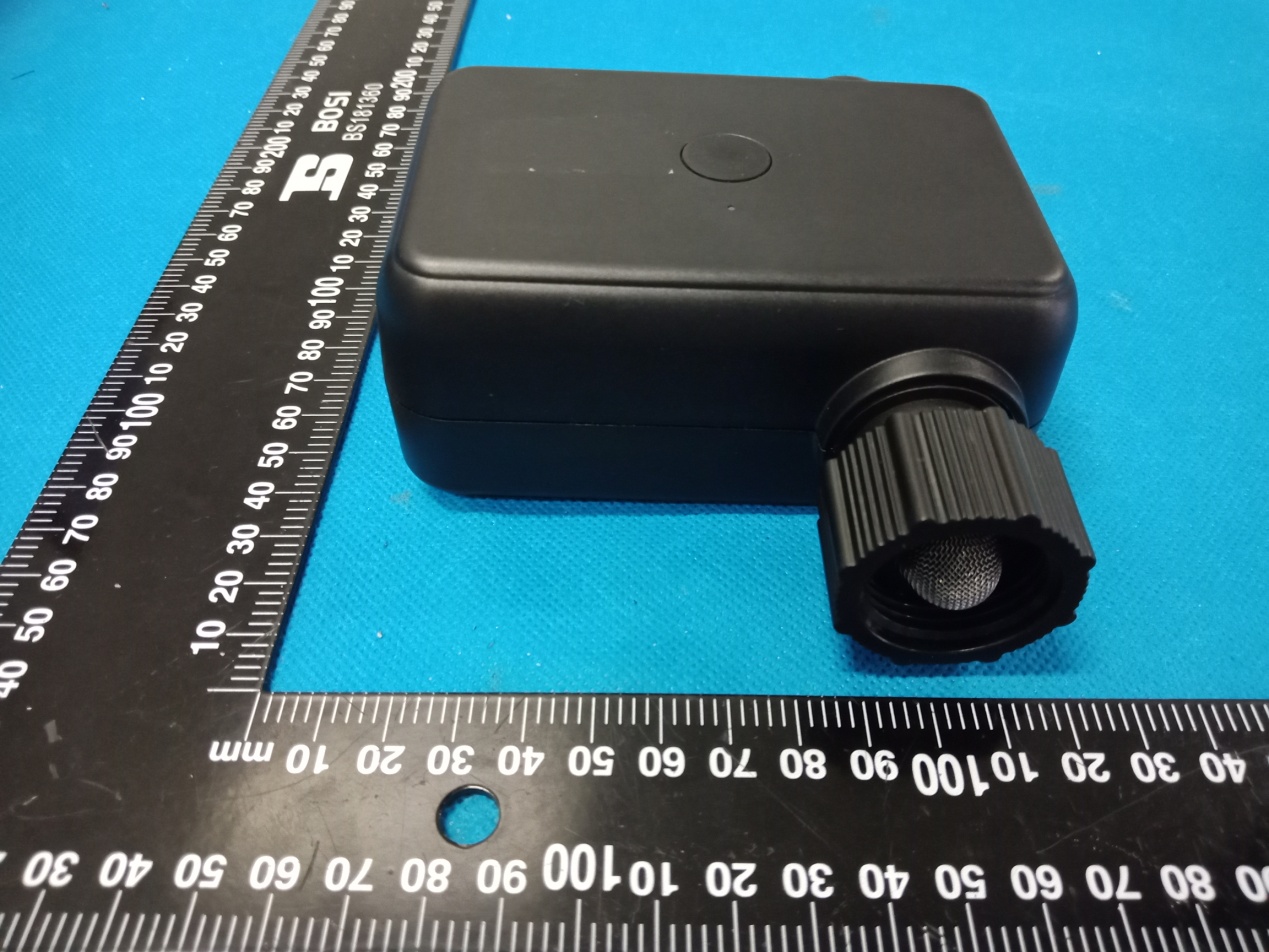

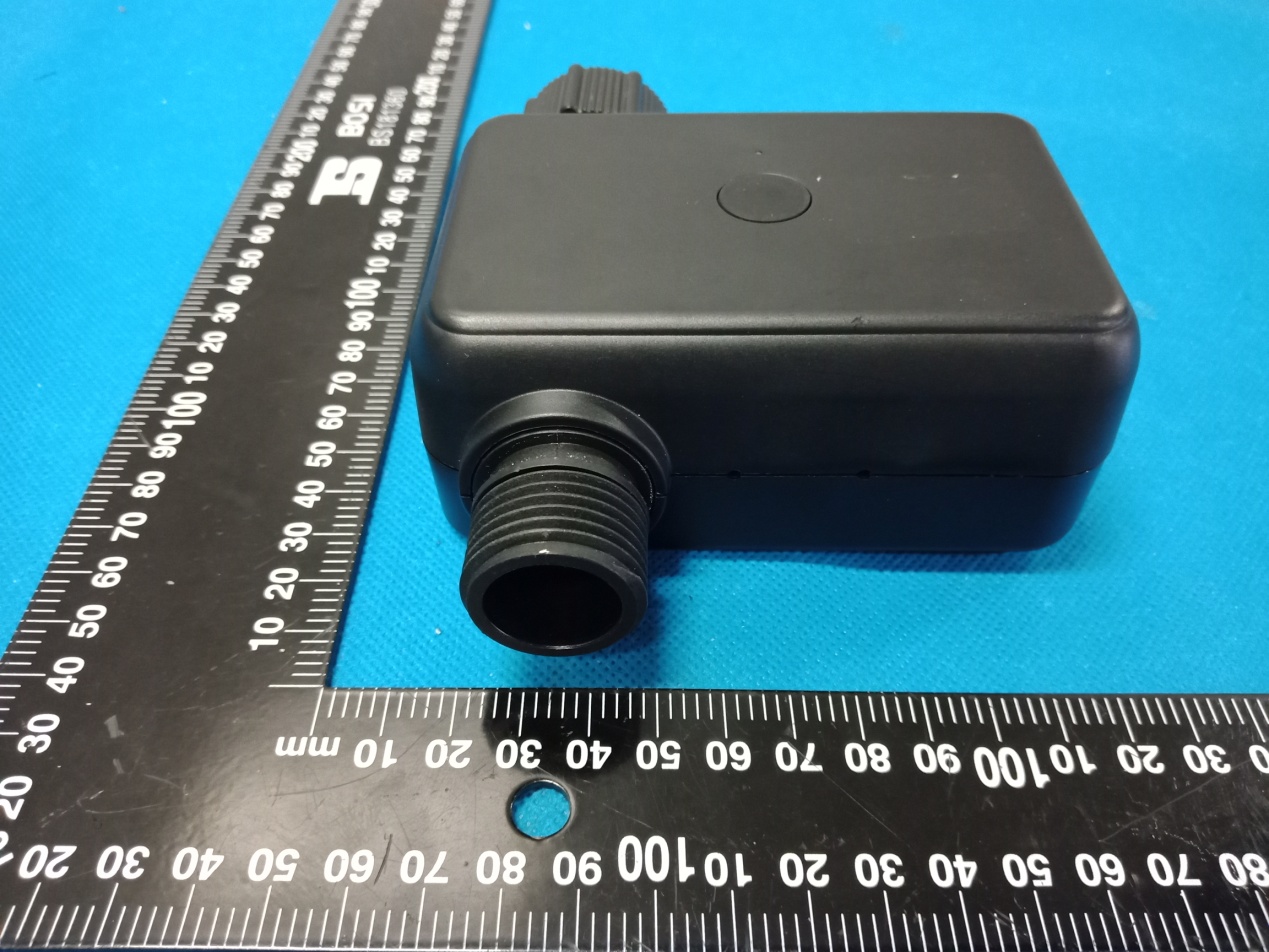

Annex A External Photos Report No.: HK2103160728‐E Page 1 of 3 Report No.: HK2103160728‐E Page 2 of 3 Report No.: HK2103160728‐E Page 3 of 3

FCC ID LABEL: Label Location FCC ID: 2AP9Z-SOP10

Annex B Internal Photo Report No.:HK2103160728-E Page 1 of 3 Report No.:HK2103160728-E Page 2 of 3 Antenna Report No.:HK2103160728-E Page 3 of 3

MPE ESTIMATION FCC ID: 2AP9Z-SOP10 1, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (numerical) MPE ( mW/cm²) EDR 3.36 2.5±1(3.5)2.239 0 1 0.00045 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2103160728-E, antenna gain=0dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00045 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Page 1 of 41 Report No.: HK2103160728-E TEST REPORT FCC PART 15 SUBPART C 15.247 Test report On Behalf of Dongguan E-Chief Electronic Technologies Co., Ltd. For Water Timer Model No.: SOP10, SOP10S, SOP11, SOP11S, SOP12, SOP12S, SOP13, SOP13S, SOP14, SOP14S, SOP15, SOP15S, SOP16, SOP16S, SOP17, SOP17S, SOP18, SOP18S, SOP19, SOP19S, EOP10, EOP10S, EOP11, EOP11S, EOP12, EOP12S, EOP13, EOP13S, EOP14, EOP14S, EOP15, EOP15S, EOP16, EOP16S, EOP17, EOP17S, EOP18, EOP18S, EOP19, EOP19S, TD-SH01, TD-SH01W, SOP10W FCC ID: 2AP9Z-SOP10 Prepared for : Dongguan E-Chief Electronic Technologies Co., Ltd. F5, NO.687, Fumin Road, Dalang Town, Dongguan City, Guangdong Province, PRC Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen, China Date of Test: Mar. 16, 2021 ~Apr. 09, 2021 Date of Report: Apr. 09, 2021 Report Number: HK2103160728-E Page 2 of 41 Report No.: HK2103160728-E TEST RESULT CERTIFICATION Applicant’ s name ................... : Dongguan E-Chief Electronic Technologies Co., Ltd. Address .................................... : F5, NO.687, Fumin Road, Dalang Town,Dongguan City, Guangdong Province, PRC Manufacture's Name .............. : Dongguan E-Chief Electronic Technologies Co., Ltd. Address .................................... : F5, NO.687, Fumin Road, Dalang Town,Dongguan City, Guangdong Province, PRC Product description Trade Mark: N/A Product name ............................. : Water Timer Model and/or type reference .. : SOP10, SOP10S, SOP11, SOP11S, SOP12, SOP12S, SOP13, SOP13S, SOP14, SOP14S, SOP15, SOP15S, SOP16, SOP16S, SOP17, SOP17S, SOP18, SOP18S, SOP19, SOP19S, EOP10, EOP10S, EOP11, EOP11S, EOP12, EOP12S, EOP13, EOP13S, EOP14, EOP14S, EOP15, EOP15S, EOP16, EOP16S, EOP17, EOP17S, EOP18, EOP18S, EOP19, EOP19S, TD-SH01, TD-SH01W, SOP10W Standards ................................ : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .............................................. : Date (s) of performance of tests ................ : Mar. 16, 2021 ~Apr. 09, 2021 Date of Issue ............................................. : Apr. 09, 2021 Test Result ................................................. : Pass Pr epared by: Project Engineer Reviewed by: Project Supervisor Ap proved by: Technical Director Page 3 of 41 Report No.: HK2103160728-E Contents Page 1 TEST SUMMARY ............................................................................................................................................ 6 1.1 TEST DESCRIPTION ................................................................................................................................ 6 1.2 MEASUREMENT UNCERTAINTY ............................................................................................................ 7 2 TEST FACILITY ............................................................................................................................................... 8 3 GENERAL INFORMATION ............................................................................................................................. 8 3.1 GENERAL DESCRIPTION OF EUT .......................................................................................................... 8 3.2 DESCRIPTION OF TEST CONDITIONS ................................................................................................. 10 3.3 DESCRIPTION OF TEST SETUP ........................................................................................................... 10 4 EQUIPMENTS LIST FOR ALL TEST ITEMS ............................................................................................... 11 5 TEST RESULT .............................................................................................................................................. 13 5.1 ANTENNA REQUIREMENT .................................................................................................................... 13 5.1.1 Standard requirement ...................................................................................................................... 13 5.1.2 EUT Antenna ................................................................................................................................... 13 5.2 CONDUCTION EMISSIONS MEASUREMENT ...................................................................................... 14 5.2.1 Applied procedures / Limit ............................................................................................................... 14 5.2.2 Test procedure ................................................................................................................................. 14 5.2.3 Test setup ........................................................................................................................................ 15 5.2.4 Test results ...................................................................................................................................... 16 5.3 RADIATED EMISSIONS MEASUREMENT............................................................................................. 17 5.3.1 Applied procedures / Limit ............................................................................................................... 17 5.3.2 Test setup ........................................................................................................................................ 17 5.3.3 Test result ................................................................…

Text truncated - open the document above for the full version.

Radiated Emissions
