2AP9ZECF-SOP20Temperature controller

FAQ Getting to know "Smart Life" APP 1. If you cannot add your Smart Device , please check:1) Whether the Smart Device is powered on.2) Whether the phone is connected with 2.4GHz Wi-Fi network.3) Whether the Smart Device is ready for configuration. To get it ready before configuration, normally you can manually press and hold the power button for 3-5 seconds. If the WIFI icon on Screen flash 3 times per second,it means that it is ready for configuration.4) Please check routers or related: if your router is dual-band, please select 2.4GHz Wi-Fi network to connect your phone and Smart Plug. 5) Setting up Wi-Fi router: setting encryption method as WPA2-PSK and authorization type as AES, or set both as auto. Wireless mode cannot be 11n only. 6) Please use English and numbers to name your Wi-Fi router. Otherwise our Smart Plug may not recognize it when you try to add it into Smart Life. 7) To stay strong Wi-Fi connection, please keep smart device close to router. 8) Whether connected devices have reached the maximum number of router’s connections. If so, please turn off some devices connected to the router and try again. 2. If you cannot add the device in Quick Connection, please choose “Adding device in AP Mode”.3. If you would like to reset the device, please press and hold the power button for 3-5 seconds. Once you have reset the smart device, you will find that the WIFI icon on Screen will flash 3 times per second.4. If you cannot add the device after choosing 2.4G Wi-Fi network, please make sure that your Wi-Fi password is correct. 5. Router’s wireless MAC filtering function is enabled. Remove the device from the filter list and make sure that router is not prohibiting device from connection. 6. If you cannot log in the app, please make sure that your password and ID are correct. 67 8 9 5 10 11 12 4 How to Download Smart Life App1. Scan the QR code to download and install Smart Life app for iOS or Android phone. 2. If you cannot download Smart Life app, please search “Smart Life” on Google Play (for Android phone) or Apple Store (for iOS phone) to download. STEP 2How to Sign Up an Account You will need to sign up for an account after downloading the app. There are two ways to sign up for an account, using your cell phone number or your email address. Select the country you living in, and enter your cell phone number or email whichever makes you feel comfortable. 1. If cell phone number is entered, you will receive a text message with registration code. Type the code, your password and confirm. 2. If you enter email, you will be asked to create a password and then Confirm. Tap “Next” to continue. Product Description 1 3 2 Power Plug US Standard Socket Panel: AC Socket in accordance with US Standard Power Button: can be used as a wifi pairing button 1.Check your home routers or related: please use 2.4G Wi-Fi network. Recommend set your 2.4G network and 5G network different names. 2. Your phone is connected with your home 2.4G Wi-Fi network. 3. To stay strong Wi-Fi connection, please keep smart device close to router. 4. Whether connected devices have reached the maximum number of router connections, If so, remove the device from the filter list and make sure that router is not prohibiting device from connection. 5. Please use English and numbers to name your Wi-Fi router. Otherwise the Smart Device may not recognize it when you try to add it into Smart Life. Power Plug x Plug and play design, easy to use - two steps to complete x Control Your Device From Anywhere - Control your device from wherever you are with the free smart life app. x x x Group Control Create a group to control different home devices at the same time. x x Share devices You can share the devices with your family, and then different people can control it without setting up again. 13 4. Once you enter your Wi-Fi password, the system will take a moment to connect. STEP 3How to Add a Device via Quick Connection 1. Open the Smart Life app and click the button “+” at the top right corner to add device. 2. Plug your Smart Temperature Controller into an electrical outlet. Make sure your smart phone is connected with your home 2.4G Wi-Fi network. the WIFI icon on Screen will flash 3 times per second when it is ready to pair. please press and hold the power button for 3-5 seconds to reset the device. Then, select “Socket Wi-Fi ” and “Confirm indicator rapidly blink” to add your device 3.You will be asked to enter your Wi-Fi password after step 3. (Note: our Smart Device supports 2.4GHz Wi-Fi network only. Please confirm your home network before connecting it), choose 2.4GHz Wi-Fi network to connect your phone and the Smart Device. 5. After successfully connecting, you can modify the Smart Device’s name. STEP 1 At a Glance Thank you for purchasing your smart home product.Ready to get started? Download the Smart Life app to manage your smart home products (and all other smart devices) straight from your phone or tablet. Easily connect to your home Wi-Fi and control multiple devices with the touch of your fingertips. Introduction žœŸ SOP20 is an easy-to-use, safe and reliable dual relay output temperature controller.
It can be used as overtemperature protection and automatic temperature control system for various electric appliances such as equipment for home-brew, pet breeding,incubation, seedling heat mats, terrestrial heat control, constant temperature cycle of heating pump, culture fermentation, accelerating germination, electric radiator, electric oven, etc. Dual relay output - Be able to connect with refrigeration and heating equipment at the same timeLED Display - Be able to show measured temperature and set temperature at the same timeTemperature Unit - Supports Centigrade or FahrenheitHigh and low temperature alarms are available x x Delay protection for cooling Temperature Senor Current temperature High temperatureLow Temperature Power Button Setting Button Increase Button Decrease Button Heating output Socket Cooling Ou…

Text truncated - open the document above for the full version.

Dongguan E-Chief Electronic Technologies Co., Ltd. Agent Authorization Company: Dongguan E-Chief Electronic Technologies Co., Ltd. Address: F5, NO.687, Fumin Road,Dalang Town,Dongguan City, Guangdong Province,PRC Product Name: Temperature controller Model Number(s ): ECF-SOP20, ECF-SOP21, ECF-SOP22, ECF-SOP23, ECF-SOP24, ECF-SOP25, ECF-SOP26, ECF-SOP27, ECF-SOP28, ECF-SOP29, ECF-SOP20S, ECF- SOP21S, ECF-SOP22S, ECF-SOP23S, ECF-SOP24S, ECF-SOP25S, ECF-SOP26S, ECF- SOP27S, ECF-SOP28S, ECF-SOP29S, SOP20, SOP21, SOP22, SOP23, SOP24, SOP25, SOP26, SOP27, SOP28, SOP29, SOP20S, SOP21S, SOP22S, SOP23S, SOP24S, SOP25S, SOP26S, SOP27S, SOP28S, SOP29S Product Description: Temperature controller We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec. 21, 2020 Name: YEFENG YU Title: General manager Company: Dongguan E-Chief Electronic Technologies Co., Ltd.

Dongguan E-Chief Electronic Technologies Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Dec. 21, 2020 Subject; Request for Confidentiality FCC ID: 2AP9ZECF-SOP20 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: YEFENG YU Title: General manager

Model Difference Declaration To Whom It May Concern, We, Dongguan E-Chief Electronic Technologies Co., Ltd.（Temperature controller) Trademar k:N/A; Model Number: ECF-SOP20, ECF-SOP21, ECF- SOP22, ECF-SOP23, ECF-SOP24, ECF-SOP25, ECF-SOP26, ECF- SOP27, ECF-SOP28, ECF-SOP29, ECF-SOP20S, ECF-SOP21S, ECF- SOP22S, ECF-SOP23S, ECF-SOP24S, ECF-SOP25S, ECF-SOP26S, ECF- SOP27S, ECF-SOP28S, ECF-SOP29S, SOP20, SOP21, SOP22, SOP23, SOP24, SOP25, SOP26, SOP27, SOP28, SOP29, SOP20S, SOP21S, SOP22S, SOP23S, SOP24S, SOP25S, SOP26S, SOP27S, SOP28S, SOP29S; All model’s the function, software and electric circuit are the same, only with a product model named different.Test sample model: ECF-SOP20 for commercial purpose. Please contact me if you have any question. Name: YEFENG YU Date: Dec. 21, 2020 Title: General manager Signature of applicant:

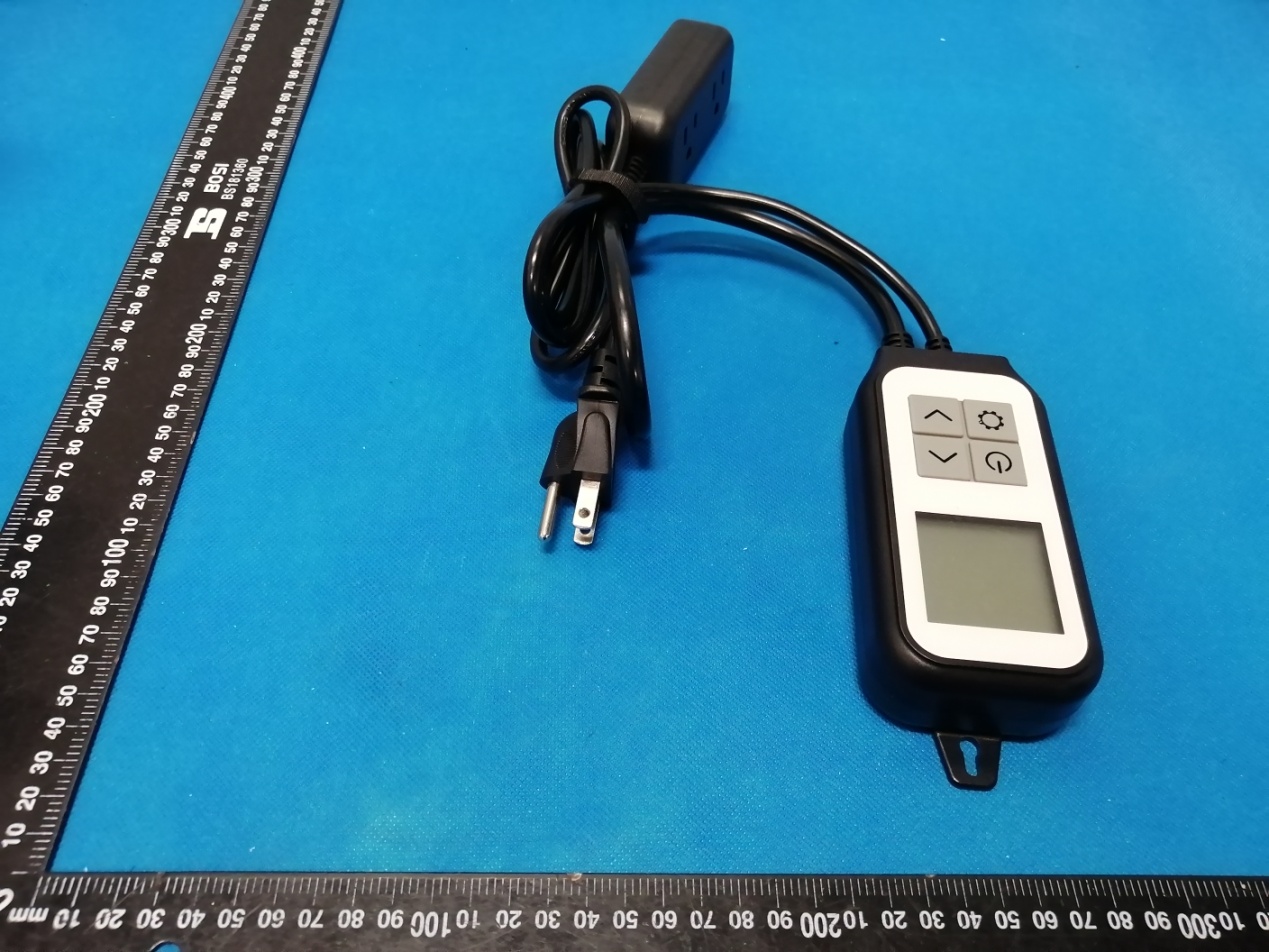

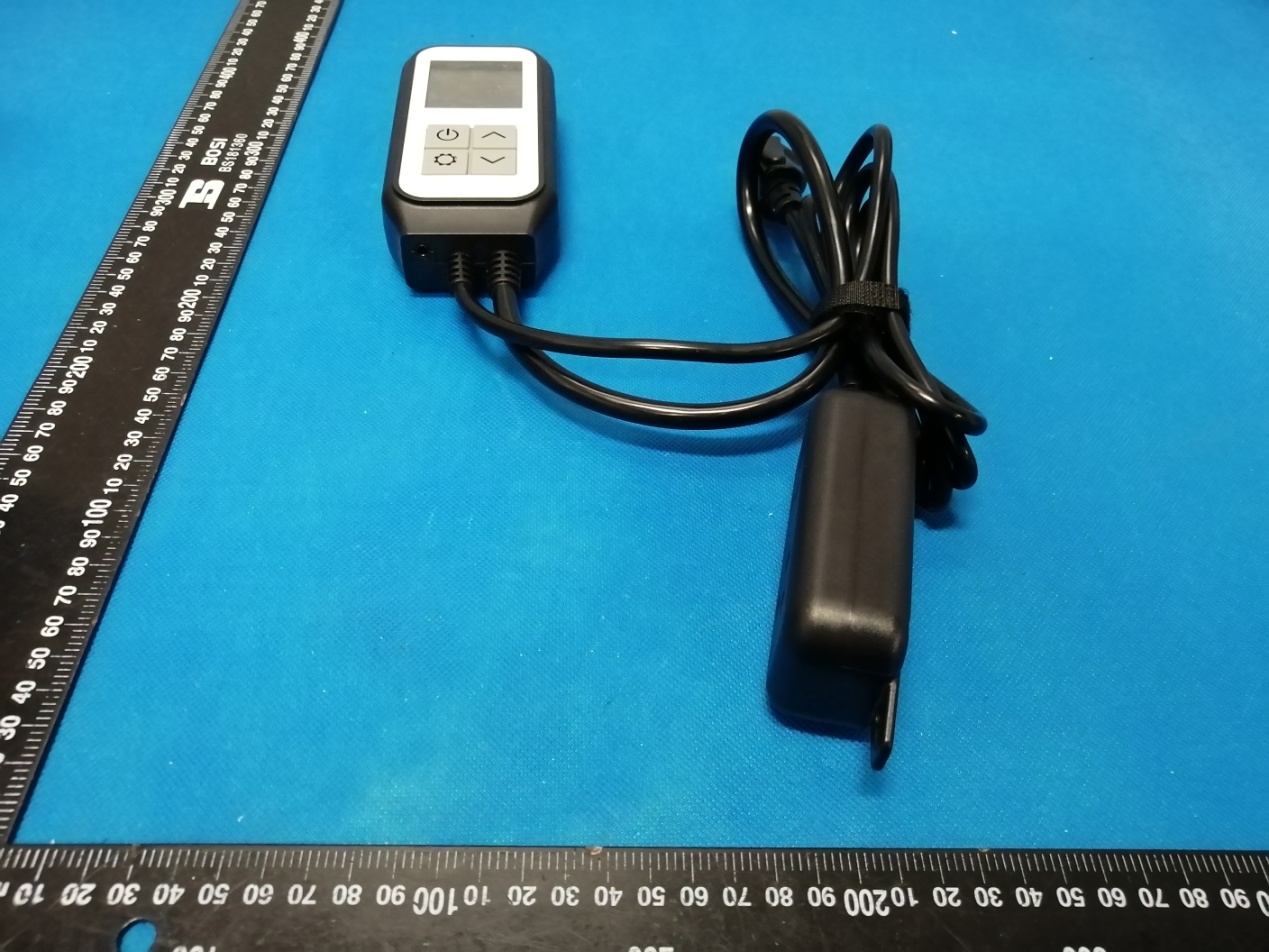

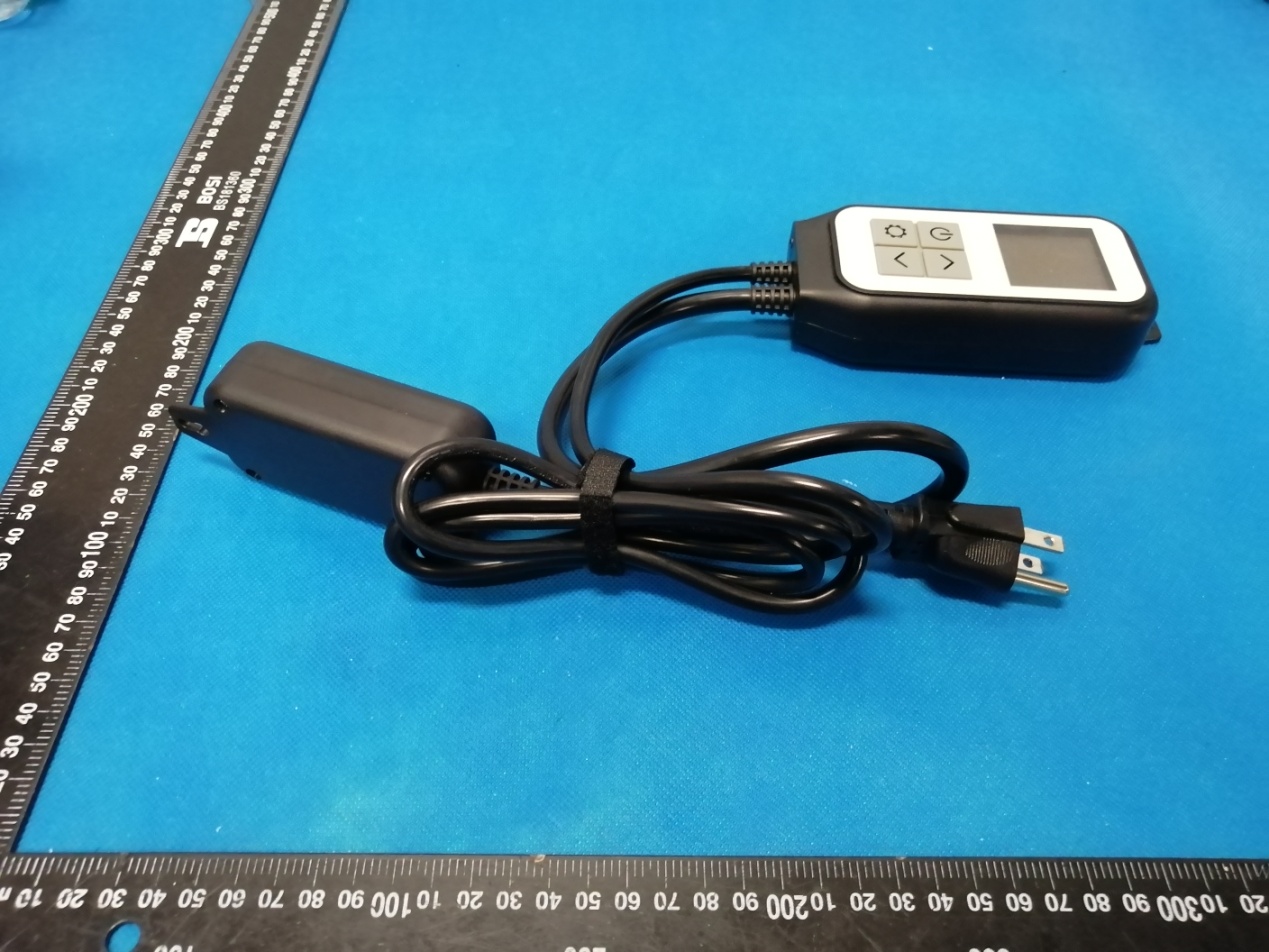

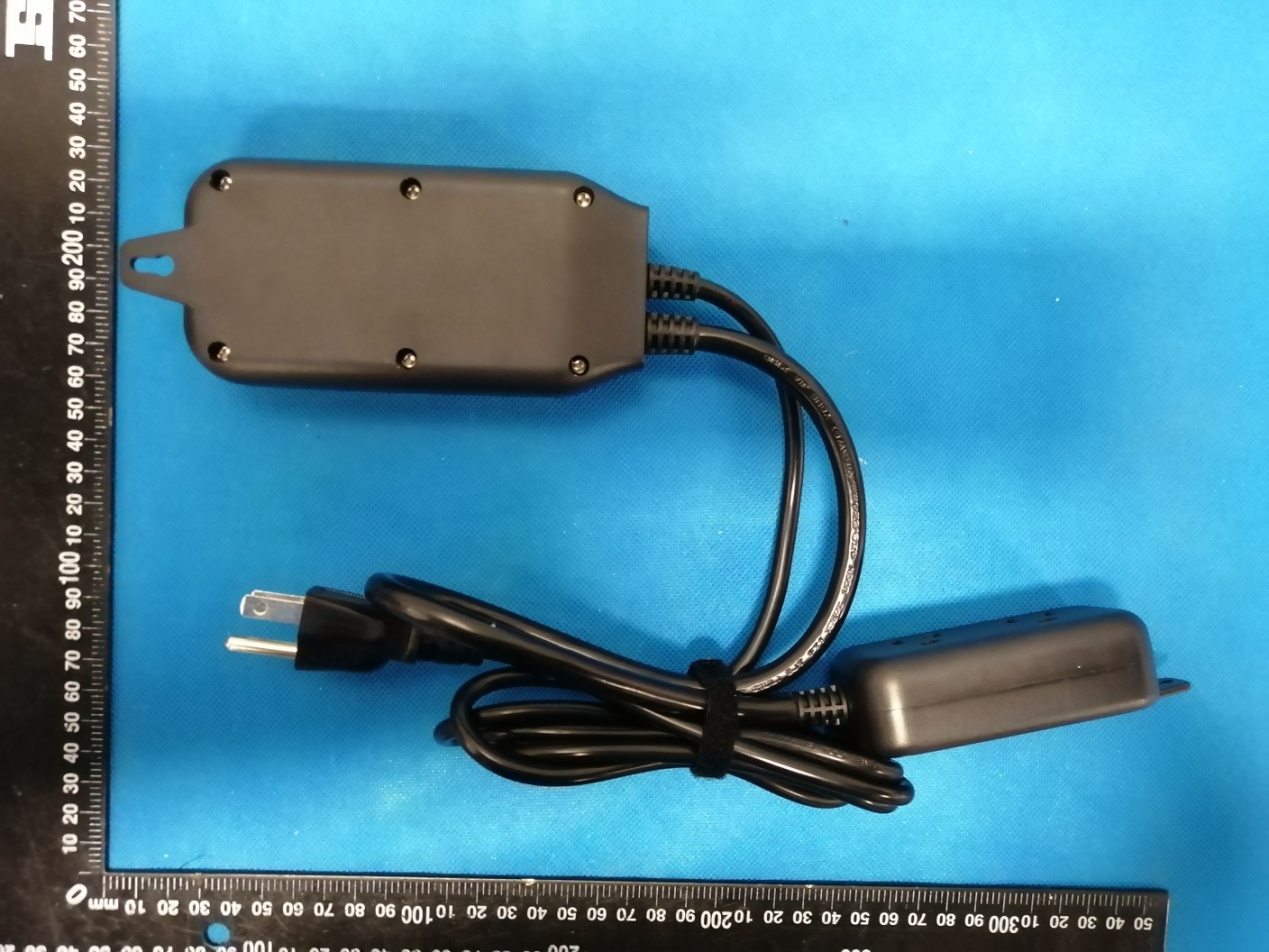

Annex A External Photos Report No.: HK2011233531-E Page 1 of 3 Report No.: HK2011233531-E Page 2 of 3 Report No.: HK2011233531-E Page 3 of 3

FCC ID LABEL: Ca. 5mm x 10mm Include in manual: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location FCC ID: 2AP9ZECF-SOP20

Annex B Internal Photos Report No.: HK2011233531-E Page 1 of 5 Report No.: HK2011233531-E Page 2 of 5 Report No.: HK2011233531-E Page 3 of 5 Report No.: HK2011233531-E Page 4 of 5 Report No.: HK2011233531-E Page 5 of 5 2.4G WIFI Antenna

MPE ESTIMATION FCC ID: 2AP9ZECF-SOP20 1,Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result 2.4G WIFI Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) WiFi 2412 14.83 14±1(15) 31.62 0 1.0000 0.00629 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2011233531-E, antenna gain=0dBi when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.00629 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

Report No.: HK2011233531-E FCC TEST REPORT Test report On Behalf of Dongguan E-Chief Electronic Technologies Co., Ltd. For Temperature controller Model No.: ECF-SOP20, Please refer to page 7 for series models FCC ID: 2AP9ZECF-SOP20 Prepared for : Dongguan E-Chief Electronic Technologies Co., Ltd. F5, NO.687, Fumin Road,Dalang Town,Dongguan City,Guangdong Province,PRC Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, JunfengZhongchengZhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Dec. 01, 2020 ~ Dec. 08, 2020 Date of Report: Dec. 08, 2020 Report Number: HK2011233531-E Report No.: HK2011233531-E Page 2 of 60 TEST RESULT CERTIFICATION Applicant’s name .................. : Dongguan E-Chief Electronic Technologies Co., Ltd. Address .................................. : F5, NO.687, Fumin Road,Dalang Town,Dongguan City, Guangdong Province,PRC Manufacture's Name ............ : Dongguan E-Chief Electronic Technologies Co., Ltd. Address .................................. : F5, NO.687, Fumin Road,Dalang Town,Dongguan City, Guangdong Province,PRC Product description Trade Mark: N/A Product name ............................ : Temperature controller Model and/or type reference : ECF-SOP20, Please refer to page 7 for series models Standards .............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Dec. 01, 2020 ~ Dec. 08, 2020 Date of Issue .......................................... : Dec. 08, 2020 Test Result .............................................. : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK2011233531-E Page 3 of 60 TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS ..................................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. Genera Information ................................................................................. 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 11 4. Test Results and Measurement Data .................................................... 12 4.1. CONDUCTED EMISSION ........................................................................................................................ 12 4.2. TEST RESULT ...................................................................................................................................... 14 4.3. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 16 4.4. EMISSION BANDWIDTH ......................................................................................................................... 18 4.5. POWER SPECTRAL DENSITY ................................................................................................................ 23 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 28 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 36 4.8. PHOTOGRAPH OF TEST ................................................................................................................. 58 4.9. PHOTOS OF THE EUT ..................................................................................................................... 60 Report No.: HK2011233531-E Page 4 of 60 ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release 2020/12/08 Jason Zhou Report No.: HK2011233531-E Page 5 of 60 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit o…
