2APBP-CM30Smart POS Payment Terminal

Smart POS Payment Terminal CM30 Specifications Basic Characteristics OS Safedroid OS CPU Quad-Core ARM Cortex-A53 2.0GHz ROM 32GB ROM EMMC RAM 2G RAM LPDDR Display 5.0 inch TFT IPS LCD, resolution 1280*720 Panel capacitive touch screen Dimensions 152*93*39mm Weight 450g Keys 2xPhysical keys Input Chinese/English, and supports handwriting and soft keyboard Radio Communicatio n WIFI IEEE 802.11 a/b/g/n/ac ,support 2.4GHz and 5GHz Bluetooth BT 5.0 and earlier Satellite Positioning Support GPS(A-GPS)/ Bei-Dou/ Glonass 4G European version: FDD-LTE: B1/B3/B7/B8/B20/B28 TDD- LTE : B38/B40 America version: FDD-LTE: B2/B4/B5/B7/B12/ B17/B38/B41 3G European version: WCDMA: B1/B8 America version: WCDMA: B2/B4/B5 2G European version: GSM/GPRS/EDGE: 900/1800MHZ America version: GSM/GPRS/EDGE: 850/1900MHz Payment Contactless Card reader Supports 14443A /14443B Expansion and peripherals Camera front 2MP Audio Speaker，Mic, Buzzer Interfaces Micro SD Card Slot 1 Pcs SIM Card Slot 2 Pcs Micro SIM PSAM Card Slot 4 Pcs Conforms to ISO7816 standard Peripheral Ports 2×RS232 1×LAN ,100Mbps 1×USB Type A, USB2.0 HOST 1×USB Type C ,USB2.0 1×MDB Slave，1×MDB Master,1×DIGITAL/IO 3×SMA Power DC 24V DC Environment Operating Temperature -20°C to 60°C Storage Temperature -30°C to 70°C FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RF Exposure Information This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

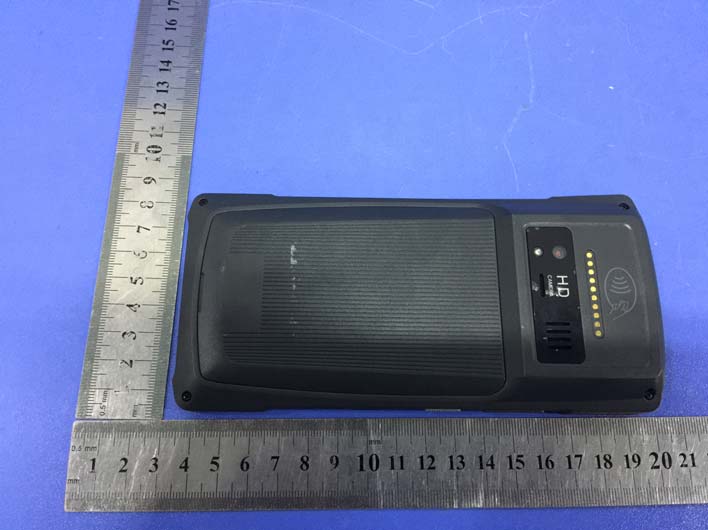

FCC ID: 2APBP-CM30 TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT External Antenna FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 9 Appearance of EUT Photo 10 Appearance of EUT FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 11 Appearance of EUT Photo 12 Appearance of EUT

FCC ID: 2APBP-CM30 TB-RF-074-1.0 Appendix IID Label FCC ID: 2APBP-CM30 TB-RF-074-1.0 Appendix II ID Label Location

FCC ID: 2APBP-CM30 TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 13 Internal of EUT Photo 14 Internal of EUT FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 15 Internal of EUT Photo 16 Internal of EUT 2G/3G/4G Internal Antenna FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 17 Internal of EUT Photo 18 Internal of EUT FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 19 Internal of EUT Photo 20 Internal of EUT GPS RX Antenna BT/WIFI Internal Antenna NFC Internal Antenna FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 21 Appearance of PCB Photo 22 Appearance of PCB FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 23 Appearance of PCB Photo 24 Appearance of PCB FCC ID: 2APBP-CM30 TB-RF-074-1.0 Photo 25 Appearance of PCB Photo 26 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202311-0170-9 Page: 1 of 13 TB-RF-075-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2APBP-CM30 1. Client Information Applicant : Ciontek Technology Corp. Address : B501, Chanxueyan Building Wuhan University, No.6 Of Yuexing 2nd Road, Yuehai Street, Nanshan District, Shenzhen, China Manufacturer : Ciontek Technology Corp. Address : B501, Chanxueyan Building Wuhan University, No.6 Of Yuexing 2nd Road, Yuehai Street, Nanshan District, Shenzhen, China 2. General Description of EUT EUT Name : Smart POS Payment Terminal Model(s) No. : CM30, CM30P, CM30L, CM30S, CM30M, CM30C, CM30A, CM30V, CM30X, CM30G Model Difference : All PCB boards and circuit diagrams are the same, the only difference is that colors. Product Description : Operation Frequency: Bluetooth: 2402MHz~2480MHz 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz U-NII-1: 5180MHz~5240MHz U-NII-3: 5745MHz~5825MHz NFC: 13.56MHz GSM 850: 824.20MHz-848.80MHz PCS1900: 1850.20MHz-1909.80MHz UMTS Band II: 1852.40MHz-1907.60MHz UMTS Band IV: TX:1712.4MHz-1752.6MHz UMTS Band V:826.40MHz-846.60MHz LTE Band 2/4/5/7/12/17/38/41 Power Supply : Input: AC 100-240V Output: DC 24V, 1A Software Version : a62_v0.08_20231110g Hardware Version : CM30HWV2.0 Remark: The antenna gain and the adapter provided by the applicant, verified for the RF conduction test and adapter provided by TOBY test lab. Note: More test information about the EUT please refer the RF Test Report. Report No.: TBR-C-202311-0170-9 Page: 2 of 13 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Band Antenna Type Antenna Gain(dBi) Internal antenna External antenna Bluetooth PIFA/Probe 1.55 0.98 2.4G Wi-Fi PIFA/Probe 1.55 0.98 U-NII-1 1.71 0.16 U-NII-3 -0.97 -1.51 NFC PIFA 0.5 / GSM 850 PIFA/Probe 0.49 0.91 PCS1900 PIFA/Probe 1.07 1.72 UMTS Band II PIFA/Probe 1.07 0.99 UMTS Band IV PIFA/Probe 2.33 1.6 UMTS Band V PIFA/Probe 0.49 1.72 LTE Band 2 PIFA/Probe 1.07 1.72 LTE Band 4 PIFA/Probe 2.33 1.6 LTE Band 5 PIFA/Probe 0.49 0.91 LTE Band 7 PIFA/Probe -0.98 0.78 LTE Band 12 PIFA/Probe -3.03 0.73 LTE Band 17 PIFA/Probe -3.03 0.73 LTE Band 38 PIFA/Probe -1.37 1.26 LTE Band 41 PIFA/Probe 0.13 1.26 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna Report No.: TBR-C-202311-0170-9 Page: 3 of 13 TB-RF-075-1.0 4. Test Result: Internal antenna Bluetooth MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] limit (mW/cm2) GFSK 1 2402 5.603 6±1 7 1.55 20 0.0014 1 2441 6.294 6±1 7 1.55 20 0.0014 1 2480 8.324 8±1 9 1.55 20 0.0023 1 π /4-DQPSK 1 2402 5.246 5±1 6 1.55 20 0.0011 1 2441 5.208 5±1 6 1.55 20 0.0011 1 2480 7.433 7±1 8 1.55 20 0.0018 1 8-DPSK 1 2402 5.297 5±1 6 1.55 20 0.0011 1 2441 5.221 5±1 6 1.55 20 0.0011 1 2480 7.339 7±1 8 1.55 20 0.0018 1 Note: N TX = Number of Transmit Antennas RF Output power specifies that Maximum Conducted Peak Output Power. BLE MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] limit (mW/cm2) BLE (1Mbps) 1 2402 -6.987 -7±1 -6 1.55 20 0.00007 1 2440 -4.639 -5±1 -4 1.55 20 0.00011 1 2480 -4.493 -4±1 -3 1.55 20 0.00014 1 BLE (2Mbps) 1 2402 -6.939 -7±1 -6 1.55 20 0.00007 1 2440 -4.654 -5±1 -4 1.55 20 0.00011 1 2480 -4.464 -4±1 -3 1.55 20 0.00014 1 Note: N TX = Number of Transmit Antennas RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TBR-C-202311-0170-9 Page: 4 of 13 TB-RF-075-1.0 2.4G Wi-Fi MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] limit (mW/cm2) 802.11b 1 2412 17.34 17±1 18 1.55 20 0.0179 1 2437 17.01 17±1 18 1.55 20 0.0179 1 2462 16.03 16±1 17 1.55 20 0.0142 1 802.11g 1 2412 15.3 15±1 16 1.55 20 0.0113 1 2437 15.26 15±1 16 1.55 20 0.0113 1 2462 13.52 14±1 15 1.55 20 0.0090 1 802.11n20 1 2412 14.15 14±1 15 1.55 20 0.0090 1 2437 14.05 14±1 15 1.55 20 0.0090 1 2462 13.46 13±1 14 1.55 20 0.0071 1 802.11n40 1 2422 14.61 15±1 16 1.55 20 0.0113 1 1 2437 13.88 14±1 15 1.55 20 0.0090 1 1 2452 11.13 11±1 12 1.55 20 0.0045 1 Note: N TX = Number of Transmit Antennas RF Output power specifies that Maximum Conducted Peak Output Power. Report No.: TBR-C-202311-0170-9 Page: 5 of 13 TB-RF-075-1.0 5.2G Wi-Fi MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] limit (mW/cm2) 802.11a 1 5180 14.17 14±1 15 1.71 20 0.0093 1 5200 14.32 14±1 15 1.71 20 0.0093 1 5240 14.43 14±1 15 1.71 20 0.0093 1 802.11n20 1 5180 14.27 14±1 15 1.71 20 0.0093 1 5200 14.05 14±1 15 1.71 20 0.0093 1 5240 14.11 14±1 15 1.71 20 0.0093 1 802.11n40 1 5190 14.13 14±1 15 1.71 20 0.0093 1 5230 14.14 14±1 15 1.71 20 0.0093 1 802.11ac20 1 5180 14.16 14±1 15 1.71 20 0.0093 1 5200 14.23 14±1 15 1.71 20 0.0093 1 5240 14.14 14±1 15 1.71 20 0.0093 1 802.11ac40 1 5190 14.17 14±1 15 1.71 20 0.0093 1 5230 14.21 14±1 15 1.71 20 0.0093 1 Note: N TX = Number of Transmit Antennas RF Output power specifies that Maximum Conducted average Output Power. Report No.: TBR-C-202311-0170-9 Page: 6 of 13 TB-RF-075-1.0 5.8G Wi-Fi MPE Result Mode N TX Freq. (MHz) Conducted Power(max) (dBm) Turn-up Power (dB) Max tu…

Text truncated - open the document above for the full version.

深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 Antenna Test Report Costomer name Ciontek Technology Corp Project name CM30 Band 2G/3G/4G MD Type FPC RF Chen Shiyang MD Du Qiang Antenna Type PIFA Date 2023-12-28 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 、 原装进口法国SATIMO公司StarLab 3D实验 室,能精确快速的测试手机、平板电脑和笔 记本等通信终端产品的TRP、TIS、效率、 增益、苹果图、方向图等参数数据。 Imported from France SATIMO company StarLab 3d laboratory, can accurate、rapid test communications terminal products .such as mobile phones, PC of TRP, TIS, efficiency, gain, apple figure, directional diagram 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 Main antenna matching circuit Our company has made changes to the main antenna matching circuit！ Element E1 E2 E3 E4 Value 0.5PF 2.7 NH 18 NH 串2.7NH电感 并18NH电感 0欧电阻连接开关 并0.5PF电容 RF3：27NH电感 RF3：1.0NH电感 RF3：4.3NH电感 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 Diversity antenna matching circuit Our company has made changes to the diversity matching circuit GPS/WIFI antenna matching circuit Our company has not made any changes to the GPS/WIFI antenna matching circuit！ Element E1 E2 E3 E4 Value Element E1 E2 E3 E4 Value 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 Antenna manufacturer：AFT tech Electronic Co., Ltd. (Shenzhen) Antenna model：CM30 Antenna size and image: Main antenna: 36.76*22.47*0.12mm WIFI antenna: 27.80*21.57*0.12mm 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 GPS antenna: FPC：53.80*17.10*0.12mm，coaxial line Total length：45mm Diversity antenna: 39.70*21.17*0.12mm 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 External antenna(LTE/GPS/WIFI) size: sucker base:30*28mm, Antenna pole length:289mm cable length: 1000mm(RG174) 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 RF1, paste a 1.0NH resistor here, antenna debugging frequency band GSM: 900, 1800, 1900 W: B1, B2, B4, B8 4G: B1, B2, B3, B4, B7, B8, B38, B39, B40, B41 RF2, paste a 4.3NH inductor here, antenna debugging frequency band GSM: 850 W: B5 4G: B5, B20 RF3, paste a 27NH inductor here, antenna debugging frequency band 4G: B12, B17, 28B 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 Antenna FS OTA： Band Channel TRP(dBm) TIS(dBm) Band Channel TRP(dBm) TIS(dBm) GSM 850 L 26.2 GSM 900 L 26.9 M 26.6 M 26.7 H 26.7 -92.5 H 26.6 -91.3 DCS 1800 L 25.8 PCS 1900 L 25.3 M 25.9 M 25.6 H 25.1 -102.5 H 25.2 -102.6 WCDMA 850 L 18.5 WCDMA 900 L 18.9 M 17.3 M 18.9 H 17.5 -91.5 H 18.7 -85.1 WCDMA 1700 L 18.9 WCDMA 1900 L 17.6 M 18.9 M 18.2 H 18.4 -102.2 H 18.6 -105.2 WCDMA 2100 L 18.4 LTE-B1 (10M) L 18.6 M 18.2 M 18.3 H 18.0 -104.4 H 17.5 -91.7 LTE-B2 （10M） L 18.8 LTE-B3 （10M） L 17.3 M 18.6 M 17.4 H 18.1 -94.4 H 16.8 -91.2 LTE-B4 （10M） L 17.4 LTE-B5 （10M） L 17.0 M 17.5 M 17.3 H 17.5 -91.8 H 16.7 -90.5 LTE-B7 （10M） L 16.9 LTE-B8 （10M） L 17.5 M 17.1 M 16.8 H 16.7 -95.1 H 16.5 -88.1 LTE-B12 （10M） L 15.4 LTE-B17 （10M） L 14.7 M 15.5 M 15.5 H 15.3 -82.8 H 15.2 -81.4 LTE-B20 （10M） L 16.3 LTE-B28A （10M） L 15.3 M 16.7 M 15.3 H 16.9 -88.2 H 15.5 -83.5 LTE-B28B （10M） L 15.2 LTE-B38 （20M） L 17.2 M 15.3 M 17.1 H 15.1 -85.8 H 16.9 -90.7 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 LTE-B40 （20M） L 19.2 LTE-B41 （20M） L 18.1 M 18.0 M 17.7 H 18.5 -89.5 H 16.7 -88.3 WIFI antenna Fs OTA： Band Channel TRP(dBm) TIS(dBm) 2.4G-B(11M) 1 9.7 -75.9 6 9.5 -76.8 13 9.6 -76.9 Band Channel TRP(dBm) TIS(dBm) 5G-A(54M) 36 9.4 -71.0 64 9.4 -71.0 165 8.9 -69.5 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 GPS test： 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 Passive Test Main antenna : frequency 频率(MHz) efficiency 效率(%) gain 增益(dBi) frequency 频率(MHz) efficiency 效率(%) gain 增益(dBi) 700 28.44 -3.03 1700 37.37 2.33 710 30.74 -3.05 1720 37.7 2.13 720 29.47 -3.14 1740 37.55 1.86 730 23.41 -3.86 1760 35.07 1.63 740 18.05 -4.51 1780 37.12 2 750 15.4 -4.11 1800 33.9 1.5 760 15.35 -3.7 1820 31.48 1.09 770 16.14 -2.44 1840 30.95 1.07 780 14.73 -2.98 1860 27.69 1.02 790 15.87 -3.12 1880 24.17 0.54 800 13.98 -4.22 1900 28.45 1.02 810 36.15 -0.1 1920 22.97 -0.38 820 35.41 0.49 1940 24.55 -0.26 830 36.04 0.44 1960 25.21 -0.05 840 35.47 0.37 1980 25.14 0.17 850 35.52 -0.25 2000 31.01 1 860 34.99 -0.11 2020 30.03 0.77 870 31.63 -0.35 2040 25 -0.01 880 30.58 -0.16 2060 26 0.15 890 41.79 -0.08 2080 21.05 -1.32 900 44.62 0.48 2100 22.38 -1.69 910 43.59 0.51 2120 27.2 -0.97 920 38.9 -0.11 2140 30.16 -0.99 930 32.87 -0.68 2160 28.15 -1.64 940 25.57 -1.25 2180 30.36 -1.57 950 24.78 -1.77 2200 31.06 -1.07 960 20.44 -2.42 2220 28.06 -1.19 2240 29.58 -0.64 2260 28.3 -0.6 2280 25.75 -0.74 2300 27.29 -0.31 2320 28.69 -0.09 2340 29.46 -0.02 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888450 2360 31.89 0.38 2380 30.54 0.24 2400 31.13 0.08 2420 35.58 0.3 2440 36.93 -0.05 2460 37.81 -0.12 2480 39.95 0.13 2500 35.05 -0.98 2520 29.32 -1.55 2540 29.4 -1.25 2560 23.99 -1.69 2580 25.5 -1.37 2600 26.21 -1.55 2620 24.28 -1.59 2640 26.76 -0.9 2660 27.1 -0.54 2680 24.84 -0.61 2700 25.72 -0.25 3D radiation pattern diagram XY-plane XZ-plane YZ-plane 深圳市安弗特电子有限公司 AFT tech Electronic Co., Ltd. (Shenzhen) 地址：深圳市龙华区大浪街道华宁路40号港深创新园B栋3楼 302室 电话：0755-27888203 传真：0755-27888…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 1 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Smart POS Payment Terminal Test Model: CM30 Sample ID: 202311-0170-7-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 24V Test Engineer: Yan zhen ming Note: For a more detailed features description, please refer to the report TBR-C-202311-0170-8 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 2 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Contents 1. Duty Cycle ........................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ................................................................................................................................................. 7 3. -6dB Bandwidth ................................................................................................................................................................................ 11 4. Occupied Channel Bandwidth ......................................................................................................................................................... 15 5. Maximum Power Spectral Density Level ......................................................................................................................................... 19 6. Band Edge ........................................................................................................................................................................................ 23 7. Conducted RF Spurious Emission .................................................................................................................................................. 28 8. Restrict Band .................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 3 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 85.2 0.7 0.47 NVNT BLE 1Mbps 2440 Ant1 85.2 0.7 0.47 NVNT BLE 1Mbps 2480 Ant1 84.8 0.72 0.47 NVNT BLE 2Mbps 2402 Ant1 57.22 2.42 0.93 NVNT BLE 2Mbps 2440 Ant1 57.45 2.41 0.93 NVNT BLE 2Mbps 2480 Ant1 57.22 2.42 0.93 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 4 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 5 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 6 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 7 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -8.917 30 Pass NVNT BLE 1Mbps 2440 Ant1 -5.666 30 Pass NVNT BLE 1Mbps 2480 Ant1 -5.852 30 Pass NVNT BLE 2Mbps 2402 Ant1 -9.139 30 Pass NVNT BLE 2Mbps 2440 Ant1 -5.702 30 Pass NVNT BLE 2Mbps 2480 Ant1 -5.796 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 8 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 9 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 10 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 11 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 24…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 1 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Smart POS Payment Terminal Test Model: CM30 Sample ID: 202311-0170-7-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 24V Test Engineer: Yan zhen ming Note: For a more detailed features description, please refer to the report TBR-C-202311-0170-8 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 2 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Contents 1. Duty Cycle ........................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ................................................................................................................................................. 7 3. -6dB Bandwidth ................................................................................................................................................................................ 11 4. Occupied Channel Bandwidth ......................................................................................................................................................... 15 5. Maximum Power Spectral Density Level ......................................................................................................................................... 19 6. Band Edge ........................................................................................................................................................................................ 23 7. Conducted RF Spurious Emission .................................................................................................................................................. 28 8. Restrict Band .................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 3 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 85.2 0.7 0.47 NVNT BLE 1Mbps 2440 Ant1 85.2 0.7 0.47 NVNT BLE 1Mbps 2480 Ant1 85.2 0.7 0.47 NVNT BLE 2Mbps 2402 Ant1 57.45 2.41 0.93 NVNT BLE 2Mbps 2440 Ant1 57.22 2.42 0.93 NVNT BLE 2Mbps 2480 Ant1 56.91 2.45 0.93 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 4 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 5 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 6 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 7 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -6.987 30 Pass NVNT BLE 1Mbps 2440 Ant1 -4.639 30 Pass NVNT BLE 1Mbps 2480 Ant1 -4.493 30 Pass NVNT BLE 2Mbps 2402 Ant1 -6.939 30 Pass NVNT BLE 2Mbps 2440 Ant1 -4.654 30 Pass NVNT BLE 2Mbps 2480 Ant1 -4.464 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 8 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 9 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 10 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-8 Page: 11 of 39 FCC ID:2APBP-CM30 TB-RF-074-1.0 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT BLE 1Mbps 240…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-82 Page: 1 of 63 FCC ID: 2APBP-CM30 TB-RF-074-1.0 RF Test Data for 2.4G WiFi (Conducted Measurements) General Description of EUT Product Name: Smart POS Payment Terminal Test Model: CM30 Sample ID: 202311-0170-7-2# Environmental Conditions Temperature: 25°C Relative Humidity: 55% Test Voltage: DC 24V Test Engineer: Yan zhen ming Note: For a more detailed features description, please refer to the report TBR-C-202311-0170-82 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202311-0170-82 Page: 2 of 63 FCC ID: 2APBP-CM30 TB-RF-074-1.0 Contents 1. Duty Cycle ........................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ............................................................................................................................................... 10 3. -6dB Bandwidth ................................................................................................................................................................................ 11 4. Occupied Channel Bandwidth .....................................................................................................................................................…
