2APC6-CATBTCLIPSPKWireless Speaker

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:-- Reorient or relocate the receiving antenna.-- Increase the separation between the equipment and receiver.-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.-- Consult the dealer or an experienced radio/TV technician for help.This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter.Radiation Exposure StatementThe device has been evaluated to meet general RF exposure requirement in portable exposure condition without restriction.

Aries Manufacturing A division of Boss Tech Products Inc. Covered Equipment Certification Attestation Letter 5/29/2026 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2APC6-CATBTCLIPSPK Aries Manufacturing A division of Boss Tech Products Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Aries Manufacturing A division of Boss Tech Products Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Aries Manufacturing A division of Boss Tech Products Inc. (“the applicant”) certifies that the equipment for which authorization is sought does not include cybersecurity or anti- virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Jimmy Zhao Title: Purchasing Manager Company Name: Aries Manufacturing A division of Boss Tech Products Inc. Date: 5/29/2026

Aries Manufacturing A division of Boss Tech Products Inc. DATE: May 29, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen Tongzhou Testing Co.,Ltd. (1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Aries Manufacturing A division of Boss Tech Products Inc. (1580 S. Milwaukee Ave. Suite 103, Libertyville, Illinois, 60048 United States) <Signature> Name: Jimmy Zhao Title: Purchasing Manager Applicant Company: Aries Manufacturing A division of Boss Tech Products Inc.

Date: May 29, 2026 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, <Signature> Name: Jimmy Zhao Title: Purchasing Manager Company: Aries Manufacturing A division of Boss Tech Products Inc.

DATE: May 29, 2026 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2APC6-CATBTCLIPSPK Product Name: Wireless Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name: Jimmy Zhao Title: Purchasing Manager Company: Aries Manufacturing A division of Boss Tech Products Inc.

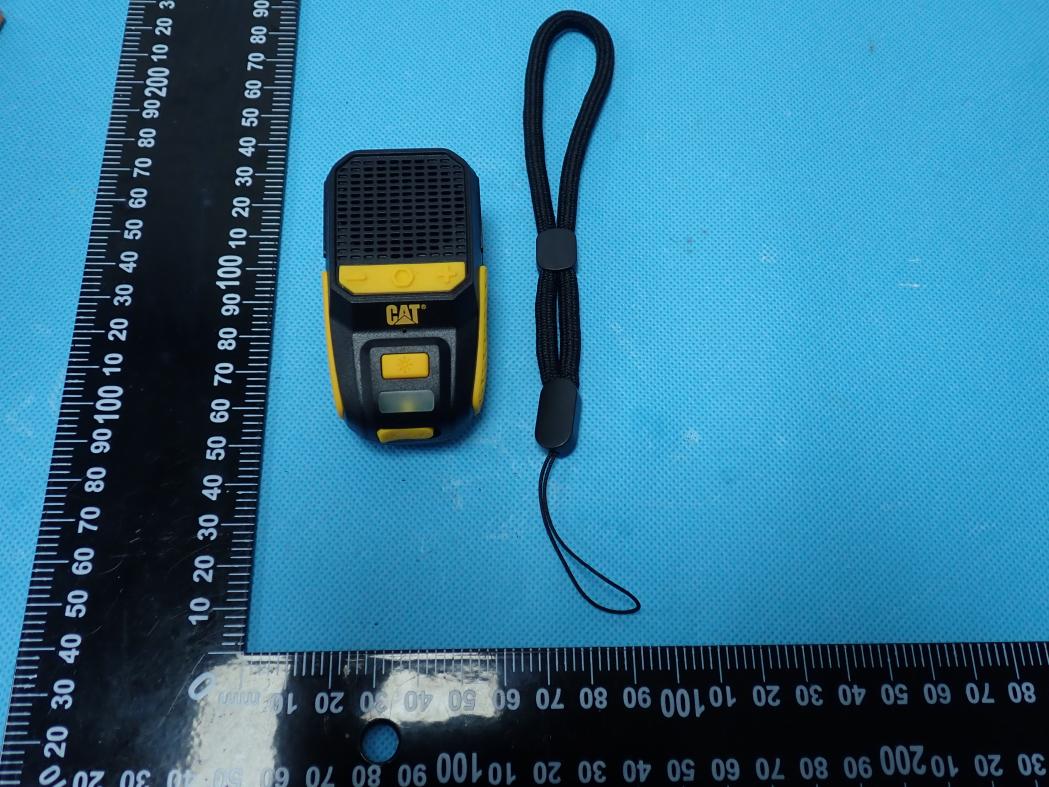

Report No.: TZ0028260413PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0028260413PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0028260413PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0028260413PH02 Page 4 of 4 External Photo 7 External Photo 8

The size of the label is 15mm*10mm with White forecolor. The size of the logo is 5mm*5mm. FCC ID: 2APC6-CATBTCLIPSPK

Report No.: TZ0028260413PH03 Page 1 of 3 Internal Photographs of EUT Internal Photo 1 Internal Photo 2 Report No.: TZ0028260413PH03 Page 2 of 3 Internal Photo 3 Internal Photo 4 Bluetooth antanne Report No.: TZ0028260413PH03 Page 3 of 3 Internal Photo 5 Internal Photo 6

FCC ID: 2APC6-CATBTCLIPSPK Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2APC6-CATBTCLIPSPK Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] DH5 Ant1 2402 2.36 2 1 1.87 3 2.00 2.79 DH5 Ant1 2441 2.88 2.5 1 1.87 3.5 2.24 2.75 DH5 Ant1 2480 3.52 3 1 1.87 4 2.51 2.72 2DH5 Ant1 2402 2.16 1.5 1 1.87 2.5 1.78 2.79 2DH5 Ant1 2441 2.81 2.5 1 1.87 3.5 2.24 2.75 2DH5 Ant1 2480 3.42 3 1 1.87 4 2.51 2.72 3DH5 Ant1 2402 2.52 2 1 1.87 3 2.00 2.79 3DH5 Ant1 2441 3.09 2.5 1 1.87 3.5 2.24 2.75 3DH5 Ant1 2480 3.7 3 1 1.87 4 2.51 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Report No.: TZ0028260413FRF01 Page 1 of 35 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0028260413FRF01 Product Name : Wireless Speaker Model/Type reference : CAT-BT-CLIPSPK FCC ID : 2APC6-CATBTCLIPSPK Prepared for : Aries Manufacturing A division of Boss Tech Products Inc. 1580 S. Milwaukee Ave. Suite 103, Libertyville, Illinois, 60048 United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor. 1-2023 Date of Test : 2026-04-27 ~ 2026-05-07 Date of Issue : 2026-05-08 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0028260413FRF01 Page 2 of 35 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-05-08 Valid Initial release Report No.: TZ0028260413FRF01 Page 3 of 35 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ....................................................... 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 5 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample ............................................................................................................................. 8 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 9 3.1. Justification ............................................................................................................................. 9 3.2. EUT Exercise Software ........................................................................................................... 9 3.3. Special Accessories ............................................................................................................... 9 3.4. Block Diagram/Schematics .................................................................................................... 9 3.5. Equipment Modifications ....................................................................................................... 9 3.6. Test Setup ................................................................................................................................ 9 4. S U M M A R Y O F T E S T R E S U L T S ............................................... 10 5. M E A S U R E M E N T R E S U L T S .................................................... 11 5.1. Maximum Peak Conducted Output Power ......................................................................... 11 5.2. Frequency Separation and 20 dB Bandwidth .................................................................... 12 5.3. Number of Hopping Frequency ........................................................................................... 13 5.4. Time of Occupancy (Dwell Time) ......................................................................................... 14 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 16 5.6. Restricted Band Emission Limit .......................................................................................... 17 5.7. AC Power line conducted emissions .................................................................................. 26 5.8. Band-edge measurements for radiated emissions ........................................................... 29 5.9. Pseudorandom frequency hopping sequence ................................................................... 32 5.10. Antenna requirement ............................................................................................................ 33 6. S U M M A R Y O F T E S T E Q U I P M E N T ........................................... 34 7. T E S T S E T U P P H O T O G R A P H S ................................................ 35 8. E X T E R N A L P H O T O S O F T H E E U T ............................…

Text truncated - open the document above for the full version.

AntennaTestReport Customer博微威 ProjectS1 AntennaRevisionA0 Preparedby15993920520 Checkedby17279710721 Date2024.06.24 Purpose Thisreportistomeasuretheperformanceofantennafor S1 Theantenna operatingfrequencyat2400-2500MHz,Alltestdataareshowedasbelow. Content 1.Testsystem 2.ProductOverview&Dimension 3.TestResultVSWR&LogMag&Smith(Ω) 4.TestResult 5.OTAData 1.TestSystem SequenceNumber TestItem equipment Sparameter VSWR Agilent5071C&Agilent5071B OTATestTRP&TIS Agilent8960&CMW500STIMO Gain&Efficiency Gain&Efficiency SATIMO Agilent5071C 2.ProductOverview&Dimension 3.TestResultVSWR&LogMag&Smith(Ω) Frequency(MHz) 2400245024802500 LogMag -13.30-27.92-15.70-11.86 VSWR 1.551.081.391.68 Smith(Ω) 42.0653.7645.9237.48 4.τestResuıt Frequency(MHz)Efficiency(%)MaxGAIN(dBi) 2400 31.101.03 2410 31.411.13 2420 32.24 1.24 2430 32.311.65 2440 32.351.57 2450 33.421.87 2460 32.361.62 2470 31.271.30 2480 32.421.54 2490 33.261.83 2500 32.161.49 4.TestResult 4.12DPattern——BTANT 4.TestResult 4.12DPattern——BTANT 4.TestResult 4.12DPattern——BTANT 5.OTAData TestEquipment ： R&SCMW500 TestCondition ： 3Dchamber BandChannelTRP(dBm)TIS(dBm) BT 0 4.01-90.17 39 3.76-90.75 78 2.24-90.49 5.1τestResuıt TRP 5.1τestResuıt TIS

Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 1 of 56 Appendix Test Data for BT(BDR/EDR) (Conducted Measurement) Product Name: Wireless Speaker Trade Mark: CAT Test Model: CAT-BT-CLIPSPK FCC ID: 2APC6-CATBTCLIPSPK Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: 20dB Emission Bandwidth Test Result Test Mode Antenna Frequency [MHz] 20db EBW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.933 2401.538 2402.471 --- --- DH5 Ant1 2441 0.951 2440.538 2441.489 --- --- DH5 Ant1 2480 1.044 2479.460 2480.504 --- --- 2DH5 Ant1 2402 1.338 2401.322 2402.660 --- --- 2DH5 Ant1 2441 1.230 2440.373 2441.603 --- --- 2DH5 Ant1 2480 1.290 2479.361 2480.651 --- --- 3DH5 Ant1 2402 1.203 2401.406 2402.609 --- --- 3DH5 Ant1 2441 1.209 2440.400 2441.609 --- --- 3DH5 Ant1 2480 1.254 2479.364 2480.618 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 2 of 56 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 3 of 56 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 4 of 56 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 5 of 56 3DH5-Ant1-2402 3DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 6 of 56 3DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 7 of 56 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict DH5 Ant1 2402 0.89404 2401.5555 2402.4495 --- --- DH5 Ant1 2441 0.87948 2440.5602 2441.4397 --- --- DH5 Ant1 2480 0.90902 2479.5505 2480.4596 --- --- 2DH5 Ant1 2402 1.1571 2401.4159 2402.5730 --- --- 2DH5 Ant1 2441 1.1713 2440.4092 2441.5805 --- --- 2DH5 Ant1 2480 1.1602 2479.4156 2480.5758 --- --- 3DH5 Ant1 2402 1.1740 2401.4099 2402.5839 --- --- 3DH5 Ant1 2441 1.1671 2440.4151 2441.5822 --- --- 3DH5 Ant1 2480 1.1474 2479.4264 2480.5738 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 8 of 56 Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 9 of 56 DH5-Ant1-2480 2DH5-Ant1-2402 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 10 of 56 2DH5-Ant1-2441 2DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 11 of 56 3DH5-Ant1-2402 3DH5-Ant1-2441 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 12 of 56 3DH5-Ant1-2480 Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 13 of 56 Appendix C: Maximum peak conducted output power Test Result Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict DH5 Ant1 2402 2.36 ≤30 PASS DH5 Ant1 2441 2.88 ≤30 PASS DH5 Ant1 2480 3.52 ≤30 PASS 2DH5 Ant1 2402 2.16 ≤20.97 PASS 2DH5 Ant1 2441 2.81 ≤20.97 PASS 2DH5 Ant1 2480 3.42 ≤20.97 PASS 3DH5 Ant1 2402 2.52 ≤20.97 PASS 3DH5 Ant1 2441 3.09 ≤20.97 PASS 3DH5 Ant1 2480 3.70 ≤20.97 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 14 of 56 Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 15 of 56 DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 16 of 56 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 17 of 56 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 18 of 56 3DH5-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 19 of 56 Appendix D: Carrier frequency separation Test Result Test Mode Antenna Frequency [MHz] Result [MHz] Limit [MHz] Verdict DH5 Ant1 Hop 1.338 ≥1.044 PASS 2DH5 Ant1 Hop 1.014 ≥0.892 PASS 3DH5 Ant1 Hop 1.032 ≥0.836 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 20 of 56 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 21 of 56 3DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 22 of 56 Appendix E: Time of occupancy Test Result Test Mode Antenna Frequency [MHz] Burst Width [ms] TotalHops [Num] Result [s] Limit [s] Verdict DH5 Ant1 Hop 2.866 110 0.315 ≤0.4 PASS 2DH5 Ant1 Hop 2.879 110 0.317 ≤0.4 PASS 3DH5 Ant1 Hop 2.880 110 0.317 ≤0.4 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 23 of 56 Test Graphs DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 24 of 56 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 25 of 56 3DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 26 of 56 Appendix F: Number of hopping channels Test Result Test Mode Antenna Frequency [MHz] Result [Num] Limit [Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 27 of 56 Test Graphs DH5-Ant1-Hop-PASS 2DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 28 of 56 3DH5-Ant1-Hop-PASS Appendix Test Data of the Report No.: TZ0028260413FRF01 Page 29 of 56 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch.Name Frequency [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 1.65 -47.63 ≤-18.35 PASS DH5 Ant1 High 2480 3.09 -47.48 ≤-16.91 PASS DH5 Ant1 Low Hop_2402 0.98 -49.45 ≤-19.02 PASS DH5 Ant1 High Hop_2480 2.67 -48.22 ≤-17.33 PASS 2DH5 Ant1 Low 2402 0.83 -49.4 ≤-19.17 PASS 2DH5 Ant1 High 2480 2.71 -47.46 ≤-17.29 PASS …

Text truncated - open the document above for the full version.

Report No.: TZ0028260413PH01 Page 1 of 2 Test Setup Photos of the EUT Conducted Emission Radiated Emission Below 1GHz Report No.: TZ0028260413PH01 Page 2 of 2 Radiated Emission Above 1GHz RF Conducted Test
