2APDTA02BTAQUARIUS-02BT

B Quick Start Guide A C D E F PACKAGE CONTENT AQUARIUS-02BT Headphone USB Charging Cable Audio Cable Headphone Jack Adapter Quick Start Guide SYSTEM REQUIREMENTS PC System with Built-in at Least (1)*USB,(1)*Audio Jack Windows 7 / 8 / 10 FEATURES A. Headset (40mm Hi-Resolution Dynamic Drivers) B. Self-adjusting Headband C. Protein Ear Cushion D. 1.2 Meter USB Charging Cable E. 1.8 Meter 3.5mm Audio Cable F. Airplane 3.5mm Headphone Jack Adapter G. Power/Pairing Button H. Play/Pause Button I. Normal/ANC/Ambient Mode Button J. Volume Up Button K. Volume Down Button L. Microphone M. Audio Jack (AUX cannot be used at the same time while charging) N. USB Type C Jack START USING Use the LISTEN App for setup, product customization and music enhancing features. IOSAndroid Wireless Hi-Resolution Active Noise Canceling Headphones AQUARIUS-02BT A02BT H I L J K N G M RECHARGE Plug the [D. USB Charging Cable] (TYPE C) into the earphone and the other end (TYPE A) into the computer USB port to start charging. Let the battery is fully charged before its first use. Low battery: Red light Blinking once for 2 seconds Charging: Light will turn solid Red Charging completed: Light will turn solid green BLUETOOTH Turn on Bluetooth pairing mode (mobile phone): Press [G. Power Button] for 3.5 seconds, the red and green lights will switch blink twice in 1 seconds Pairing is complete: The green light will blink sixth POWER ON/OFF Power on: Press [G. Power Button] for 2 seconds, the green light will blink twice Power off: Press [G. Power Button] for 2 seconds, the red light will blink twice PLAY Play/Pause: Press the [H. Play/Pause Button] once Volume +/-: Press [J. Volume Up Button] once / Press [K. Volume Down Button] once Previous song: Press and hold the [J. Volume Up Button] for 1 second Next song: Press and hold the [K. Volume Down Button] for 1 second MODE Normal→ANC: In normal mode, press [I. Mode Button] once, the blue light will turn on for 5 seconds to enter the ANC mode ANC→Ambient: In ANC mode, press [I. Mode Button] once, the white light will turn on for 5 seconds to enter the Ambient mode Ambient→Normal: In the ambient mode, press the [I. Mode Button] once to enter the normal mode FCC Federal Communications Commission (FCC) Statement You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: The product comply with the FCC portable RF exposure limit set forth for an uncontrolled environment and are safe for intended operation as described in this manual. The further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such function is available. WARNING To avoid hearing damage and damage to the earphones, use the earphone at a comfortable, moderate volume level. Turn the volume up gradually until you reach a comfortable level. Earphones should keep away from fire, or in the situation with high temperature or high pressure. Do not immerse the earphones into the water or place the earphones in high humidity situation for long time. Stop using the earphones if you find liquid leakage, overheating or other unusual conditions. Do not try to disassemble or short circuit the earphones. SRRC 不得擅自更改发射频率，增大发射功率（包括额外加装射频功率放大器），不得擅自自分割天 线或改用其他发射天线。 使用时不得对各种合法的无线电通信业务产生有害干扰；一旦发现有干扰现象时，应立即停 止使用，并采取措施消除干扰后方可继续使用。 使用微功率无线电设备，必须忍受各种无线电业务的干扰或工业，科学及医疗应用设备的辐 射干扰。 不得在飞机和机场附近使用。 NCC 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使 用者均不得擅自變更頻率、加大 功率或變更原設計之特性及功能。低功率射 頻器材之使用不得影響飛航安全及干擾合法通 信；經發現有干擾現象時，應 立即停用，並改善至無干擾時方得繼續使用。前述合法通信，指 依電信管理 法規定作業之無線電通信。低功率射頻器材須忍受合法通信或工業、科學及 醫療 用電波輻射性電機設備之干擾。 WIRELESS MODE Plug [E. 3.5mm Audio Cable] into the headphone and the other end into the device to start using the earphone In wired mode, you can turn on the power to choose ANC or ambient mode but need to control play and volume by using your device (such as a computer) WIRED MODE IONE ELECTRONIC TECHNOLOGY CO., LTD. TAIWAN BRANCH www.ione.com.tw / ione@ ione.com.tw www.ione-europe.com / info@ ione-europe.com www.ione-usa.com / support@ ione-usa.com www.ione-cn.com / [email protected] www.ione-th.com / [email protected] © 2020 ione® .All rights reserved. ione®, the ione logo, and product names referred to herein are the registered trademarks of Ione Technology Inc. All other trademarks are the property of their respective owners. PHONE CALL Receiving a call: Press the [H. Play Button] once Ending the call: Press and hold the [H. Play Button] for 1 second Reject the call: Press and hold the [H. Play B…

Text truncated - open the document above for the full version.

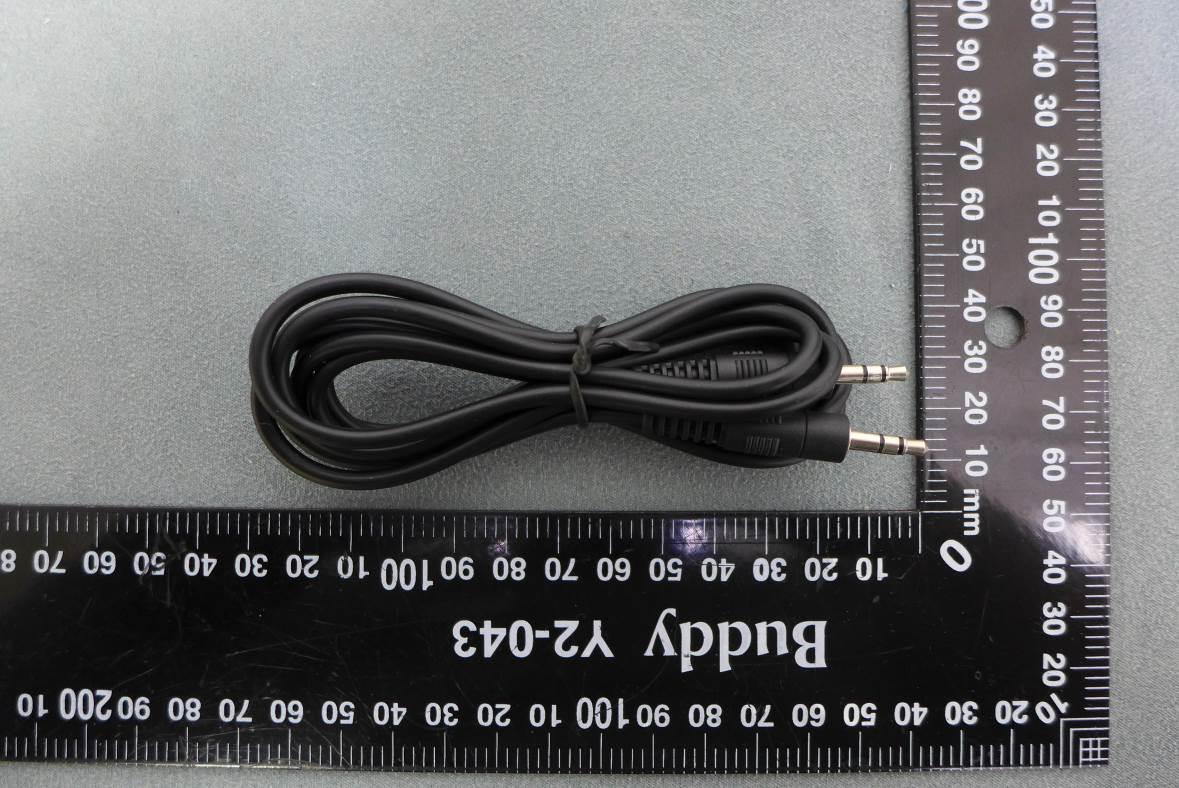

Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 1 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 2 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 3 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 4 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 5 of 19 USB Cable Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 6 of 19 Audio Cable Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 7 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 8 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 9 of 19

AQUARIUS-02BT Input Rating: 5V+-10% Input Current: 400mA Manufacturer: IONE ELECTRONIC TECHNOLOGY CO., LTD. TAIWAN BRANCH Country of Manufacturing: Made in China FCC ID: 2APDTA02BT CMIIT ID: Manufactured Date: 20201101 S/N: CCXXxxYYyyyZzW A02_Model_Label_Tesoro Size: W104mm x H16mm 公差: + / - 0.5mm 材質: 白色合成紙 、 單色印刷 、 啞膠 黏性: 可移膠(不殘膠) 料號: 1階 自制件 / 2階 采購件 78-100-0152-000S 裁切線折線 Label左邊切於面板左側 貼紙位置(L面板) 對折黏上 黏在產品上 20mm42mm42mm 10mm 16mm 請依實際內容印製 Arial 4.5pt A02BTBJ1100001 序號 “年份” 代碼 2019 → AI 2020 → BJ 數字 1 2 3 4 5 6 7 8 9 0 代碼 A B C D E F G H I J 請忽略貼紙上的內容

Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 10 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 11 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 12 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 13 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 14 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 15 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 16 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 17 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 18 of 19 Appendix No.: EP-2011T130-1 APPENDIX-EUT PHOTOS Project No.: 2011T130 Page 19 of 19

Report No.: BTL-FCCP-2-2011T130 Project No.: 2011T130 Page 1 of 3 Report Version: R03 FCC SAR Exclusion Report FCC ID: 2APDTA02BT Report No. : BTL-FCCP-2-2011T130 Equipment : Aquarius - 02 over ear for music ANC Earphone Model Name : A02BT Brand Name : IONE Applicant : IONE ELECTRONIC TECHNOLOGY CO.,LTD. TAIWAN BRANCH Address : 8F-2, #75, Sec. 1, Hsin Tai Wu Rd. Hsichih, Taipei Hsien, Taiwan, R.O.C. FCC Rule Part(s) : FCC Part 2, Subpart J (§2.1093) KDB 447498 D01 General RF Exposure Guidance v06 Date of Receipt : 2020/11/25 Date of Test : 2020/11/25 ~ 2020/12/23 Issued Date : 2021/1/29 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-2-2011T130 Project No.: 2011T130 Page 2 of 3 Report Version: R03 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. 2021/1/7 R01 Revised Typo. 2021/1/11 R02 Revised report to address TCB’s comments. 2021/1/15 R03 Revised report to address TCB’s comments. 2021/1/29 Report No.: BTL-FCCP-2-2011T130 Project No.: 2011T130 Page 3 of 3 Report Version: R03 According to KDB 447498 section 4.3.1 a), the 1-g SAR test exclusion thresholds at test separation distance ≤ 50 mm are determined by: { [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] *·[√f(GHz)] ≤ 3.0 The maximum tune up power is 0 dBm +/- 2dB, therefore the highest tune-up powers is 2.0 dBm (1.58 mW) @ 2402 MHz When the minimum test separation distance is < 50 mm, a distance of 5 mm according to e) in section 4.1 is applied to determine SAR test exclusion. So, ( 2mW / 5mm ) * ( 2.402GHz ^0.5 )= 0.5 [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] = 0.5 < 3.0 Therefore, standalone SAR measurements are not required for both head and body. End of Test Report

Report No.: BTL-FCCP-1-2011T130 Project No.: 2011T130 Page 1 of 70 Report Version: R03 FCC Radio Test Report FCC ID: 2APDTA02BT Report No. : BTL-FCCP-1-2011T130 Equipment : Aquarius - 02 over ear for music ANC Earphone Model Name : A02BT Brand Name : IONE Applicant : IONE ELECTRONIC TECHNOLOGY CO.,LTD. TAIWAN BRANCH Address : 8F-2, #75, Sec. 1, Hsin Tai Wu Rd. Hsichih, Taipei Hsien, Taiwan, R.O.C. Radio Function : Bluetooth EDR FCC Rule Part(s) : FCC Part15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2020/11/25 Date of Test : 2020/11/25 ~ 2020/12/23 Issued Date : 2021/1/22 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Peter Chen, Engineer Approved by : Scott Hsu , Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Report No.: BTL-FCCP-1-2011T130 Project No.: 2011T130 Page 2 of 70 Report Version: R03 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2011T130 Project No.: 2011T130 Page 3 of 70 Report Version: R03 CONTENTS REPORT ISSUED HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 8 1.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 8 1.5 DUTY CYCLE 9 2 GENERAL INFORMATION 10 2.1 DESCRIPTION OF EUT 10 2.2 TEST MODES 12 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 13 2.4 SUPPORT UNITS 14 3 AC POWER LINE CONDUCTED EMISSIONS TEST 15 3.1 LIMIT 15 3.2 TEST PROCEDURE 15 3.3 DEVIATION FROM TEST STANDARD 15 3.4 TEST SETUP 16 3.5 TEST RESULT 16 4 RADIATED EMISSIONS TEST 17 4.1 LIMIT 17 4.2 TEST PROCEDURE 18 4.3 DEVIATION FROM TEST STANDARD 18 4.4 TEST SETUP 18 4.5 EUT OPERATING CONDITIONS 19 4.6 TEST RESULT – 30 MHZ TO 1 GHZ 20 4.7 TEST RESULT – ABOVE 1 GHZ 20 5 NUMBER OF HOPPING CHANNEL 21 5.1 APPLIED PROCEDURES 21 5.2 TEST PROCEDURE 21 5.3 DEVIATION FROM STANDARD 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 21 6 AVERAGE TIME OF OCCUPANCY 22 6.1 APPLIED PROCEDURES / LIMIT 22 6.2 TEST PROCEDURE 22 6.3 DEVIATION FROM STANDARD 22 6.4 TEST SETUP 22 6.5 EUT OPERATION CONDITIONS 22 6.6 TEST RESULTS 22 7 HOPPING CHANNEL SEPARATION MEASUREMENT 23 7.1 APPLIED PROCEDURES / LIMIT 23 7.2 TEST PROCEDURE 23 7.3 DEVIATION FROM STANDARD 23 7.4 TEST SETUP 23 7.5 TEST RESULTS 23 8 BANDWIDTH TEST 24 Report No.: BTL-FCCP-1-2011T130 Project No.: 2011T130 Page 4 of 70 Report Version: R03 8.1 APPLIED PROCEDURES 24 8.2 TEST PROCEDURE 24 8.3 DEVIATION FROM STANDARD 24 8.4 TEST SETUP 24 8.5 EUT OPERATION CONDITIONS 24 8.6 TEST RESULTS 24 9 OUTPUT POWER TEST 25 9.1 APPLIED PROCEDURES / LIMIT 25 9.2 TEST PROCEDURE 25 9.3 DEVIATION FROM STANDARD 25 9.4 TEST SETUP 25 9.5 EUT OPERATION CONDITIONS 25 9.6 TEST RESULTS 25 10 ANTENNA CONDUCTED SPURIOUS EMISSION 26 10.1 APPLIED PROCEDURES / LIMIT 26 10.2 TEST PROCEDURE 26 10.3 DEVIATION FROM STANDARD 26 10.4 TEST SETUP 26 10.5 EUT OPERATION CONDITIONS 26 10.6 TEST RESULTS 26 11 LIST OF MEASURING EQUIPMENTS 27 12 EUT TEST PHOTO 29 13 EUT PHOTOS 29 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 30 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 35 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 38 APPENDIX D NUMBER OF HOPPING CHANNEL 55 APPENDIX E AVERAGE TIME OF OCCUPANCY 57 APPENDIX F HOPPING CHANNEL SEPARATION MEASUREMENT 60 APPENDIX G BANDWIDTH 62 APPENDIX H OUTPUT POWER 64 APPENDIX I ANTENNA CONDUCTED SPURIOUS EMISSION 66 Report No.: BTL-FCCP-1-2011T130 Project No.: 2011T130 Page 5 of 70 Report Version: R03 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. 2021/1/7 R01 Revised Typo. 2021/1/11 R02 Revised report to address TCB’s comments. 2021/1/15 R03 Revised report to address TCB’s comments. 2021/1/22 Report No.: BTL-FCCP-1-2011T130 Project No.: 2011T130 Page 6 of 70 Report Version: R03 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. FCC Part 15, Subpart C (15.247) Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.247(d) Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.247 …
