2APEW-2C502ESR HaloLock Magnetic Wireless Car Charger
Electronic Silk Road (Shenzhen) Tech Co., Ltd
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- Dec 22, 2020
- Application Purpose
- Original Equipment
- Date of Application
- Dec 22, 2020
- Equipment Note
- ESR HaloLock Magnetic Wireless Car Charger
- Frequency Range
- 0.11010000 - 0.20500000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

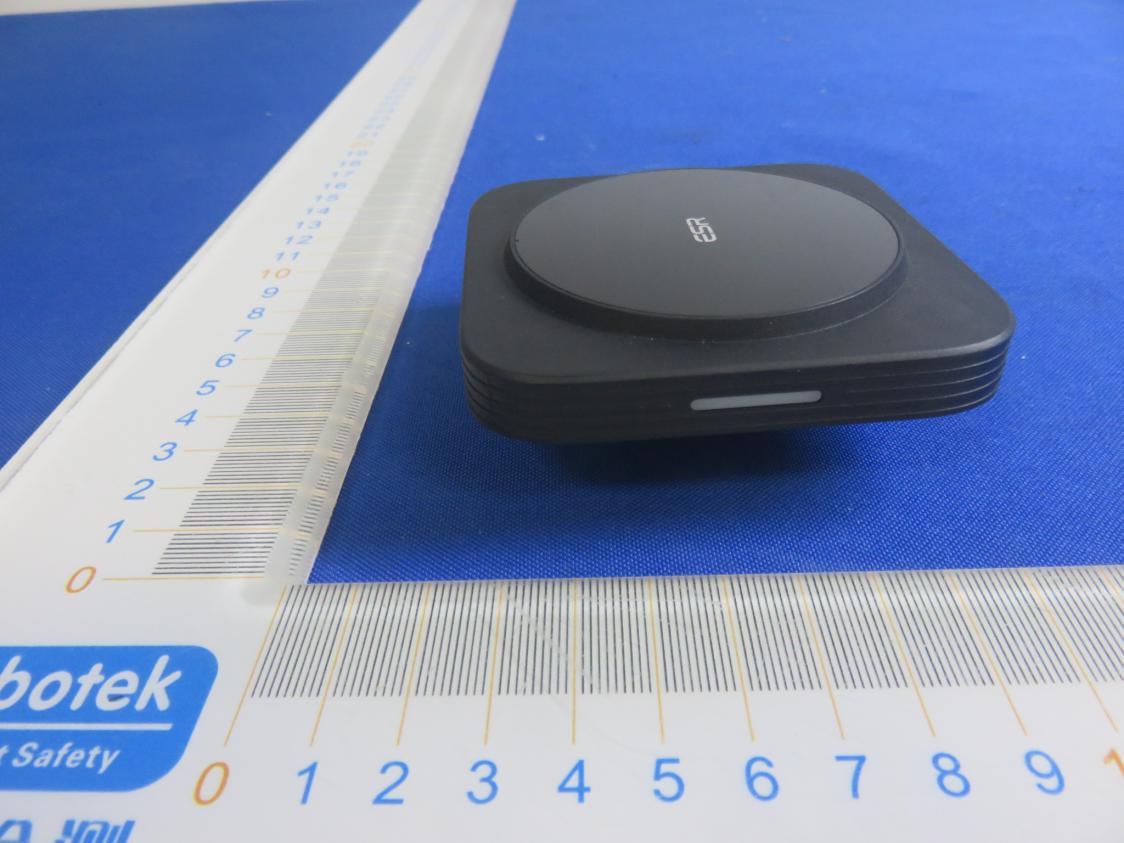

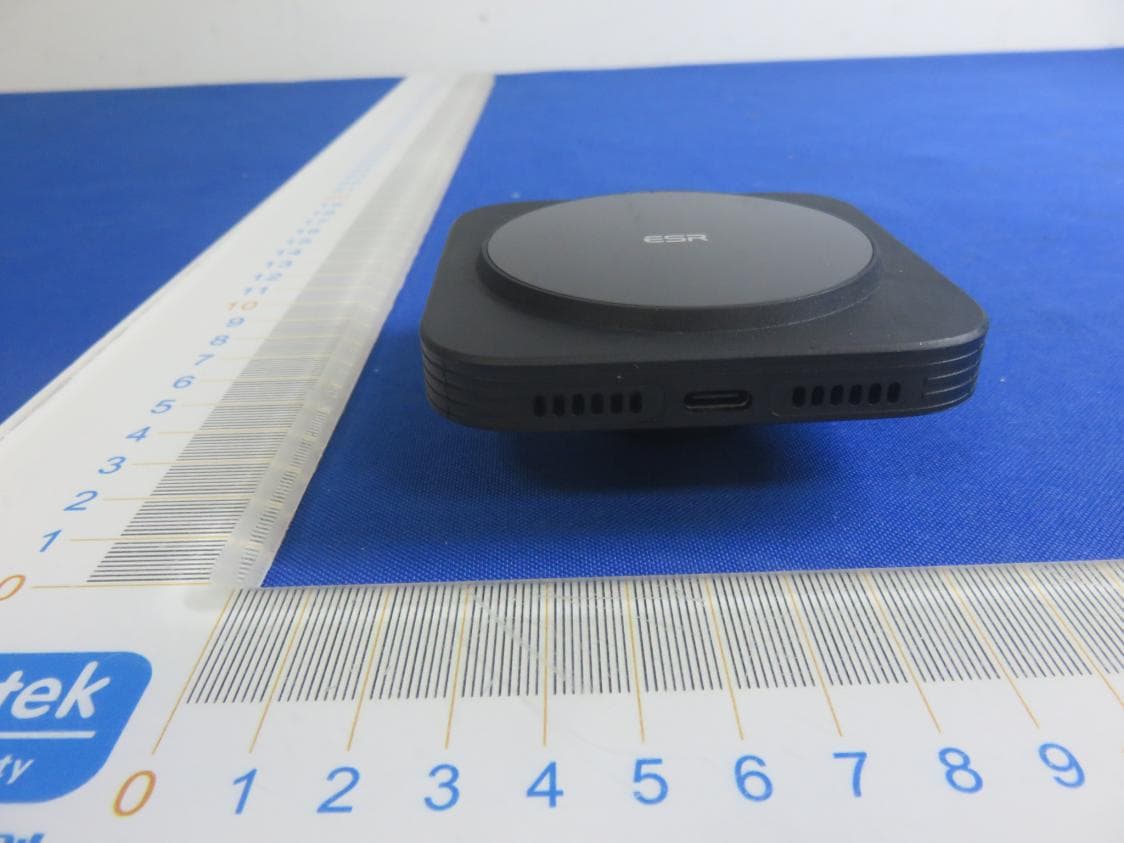

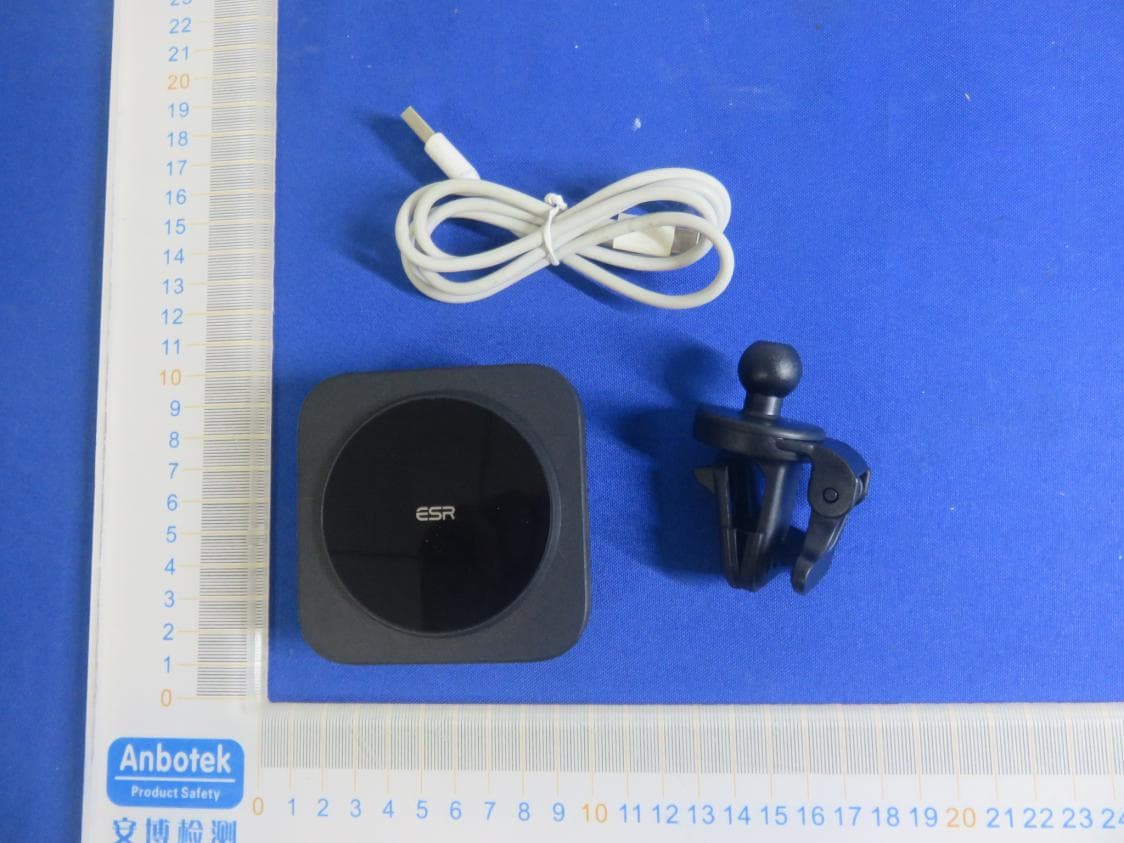

External Photos
FCCID:2APEW-2C502

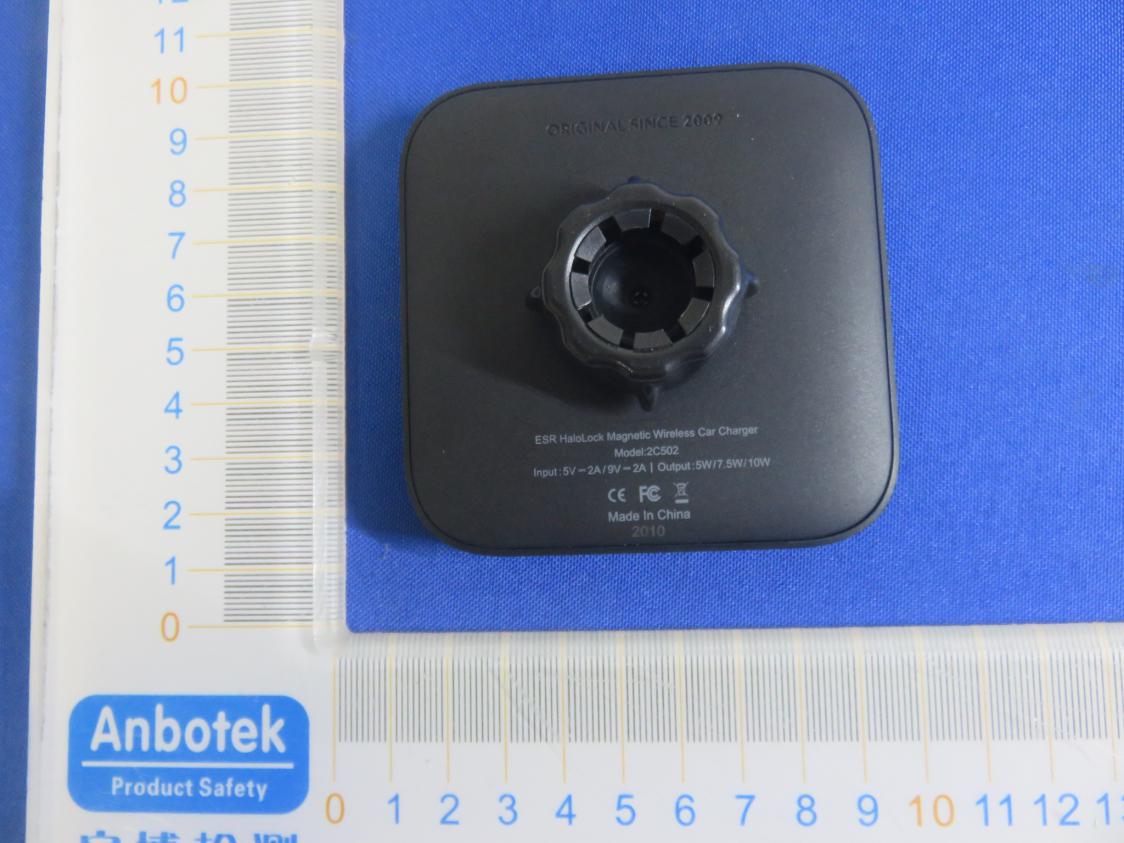

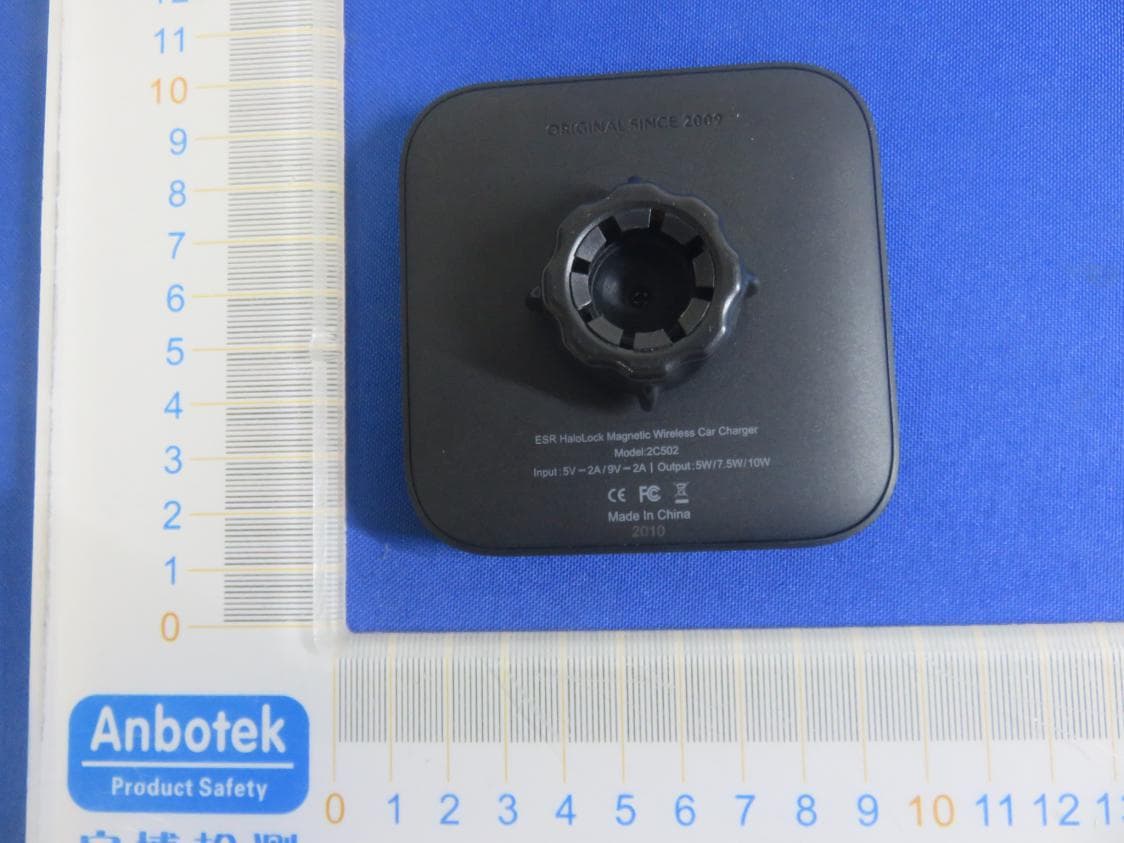

ID Label/Location Info
LabelLocationOnEUT Label ProductName:ESRHaloLockMagneticWirelessCarCharger ModelNo.:2C502 FCCID:2APEW-2C502
Internal Photos
FCCID:2APEW-2C502 ANT
Operational Description
version01 ElectronicSilkRoad(Shenzhen)TechCo.,Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:2C502 FCCID:2APEW-2C502 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna: N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address:7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China City:Shenzhen ZIP/Postalcode:/ Country:China Place:ShenzhenDate:12/15/2020 Signature:
RF Exposure Info
ReportNo.:18220WC00164602FCCID:2APEW-2C502Page1of12 Code:AB-RF-05-a FCCTESTREPORT ClientName:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,Gushu DevelopmentZones,XixiangStreet,Bao'anArea, Shenzhen,China ProductName:ESRHaloLockMagneticWirelessCarCharger Date:Dec.15,2020 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00164602FCCID:2APEW-2C502Page2of12 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 5 1.4.TestEquipmentList .................................................................................................................................... 5 1.5.MeasurementUncertainty ......................................................................................................................... 5 1.6.DescriptionofTestFacility ........................................................................................................................ 6 2.MeasurementandResult ..................................................................................................................................... 7 2.1.Requirements .............................................................................................................................................. 7 2.2.TestSetup .................................................................................................................................................... 8 2.3.TestProcedure ............................................................................................................................................ 8 2.4.TestResult ................................................................................................................................................... 8 2.4.1.EquipmentApprovalConsiderationsitem5.bofKDB680106D01v03. ...................................... 8 2.4.2.EnvironmentalevaluationandexposurelimitaccordingtoFCCCFR47part1,1.1307(b), 1.1310 ................................................................................................................................................................ 10 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................... 12 ReportNo.:18220WC00164602FCCID:2APEW-2C502Page3of12 Code:AB-RF-05-a TESTREPORT Applicant: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Manufacturer: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd ProductName:ESRHaloLockMagneticWirelessCarCharger ModelNo.:2C502 TradeMark: ESR Rating(s): Input:5V/2A,9V/1.7A WirelessOutput:5W/7.5W/10W TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Nov.09,2020 DateofTest Nov.09~Dec.08,2020 PreparedBy (Engineer/YiliaZhong) Reviewer (Supervisor/BiboZhang) Approved&AuthorizedSigner (Manager/KingkongJin) ReportNo.:18220WC00164602FCCID:2APEW-2C502Page4of12 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China Manufacturer: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address : 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China Factory:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China 1.2.DescriptionofDevice(EUT) ProductName:ESRHaloLockMagneticWirelessCarCharger ModelNo.:2C502 TradeMark:ESR TestPowerSupply:DC12V TestSampleNo.: 1-2-1(NormalSample),1-2-2(EngineeringSample) Product Description : OperationFrequency:110.1-205KHz ModulationType:FSK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC00164602FCCID:2APEW-2C502Page5of12 Code:AB-RF-05-a 1.3.AuxiliaryEquipmentUsedDuringTest Carcharger:M/N:R5115 Input:12-24V3AMAX USB-AOutput:5V2.4A;USB-COutput:5V3A,9V2A Mobilephone:iPhone12 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1MagneticfieldmeterNARDAELT-400423623Dec.24,20183Year 2E-FieldProbeNardaEF0391Q15221Nov.17,20203Year 3H-FieldProbeNardaHF3061Q15835Nov.17,20203Year 1.5.MeasurementUncertainty RadiationUncertainty: Ur=3.9dB(Horizontal) Ur=3.8dB(Vertical) ConductionUncertainty: Uc=3.4dB ReportNo.:18220WC00164602FCCID:2APEW-2C502Page6of12 Code:AB-RF-05-a 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregistedandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theac…
Text truncated - open the document above for the full version.
Test Setup Photos
FCCID:2APEW-2C502 PhotoofRadiationEmissionTest PhotoofMPEMeasurement
Contact Information
Applicant
Serena Jiang
Test Firm
Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.1101 MHz - 0.205 MHz | - |
