2APEW-ECW5-1ESR HaloLock Magnetic Wireless Charger
Electronic Silk Road (Shenzhen) Tech Co., Ltd
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- Nov 12, 2020
- Application Purpose
- Original Equipment
- Date of Application
- Nov 12, 2020
- Equipment Note
- ESR HaloLock Magnetic Wireless Charger
- Frequency Range
- 0.11010000 - 0.20500000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

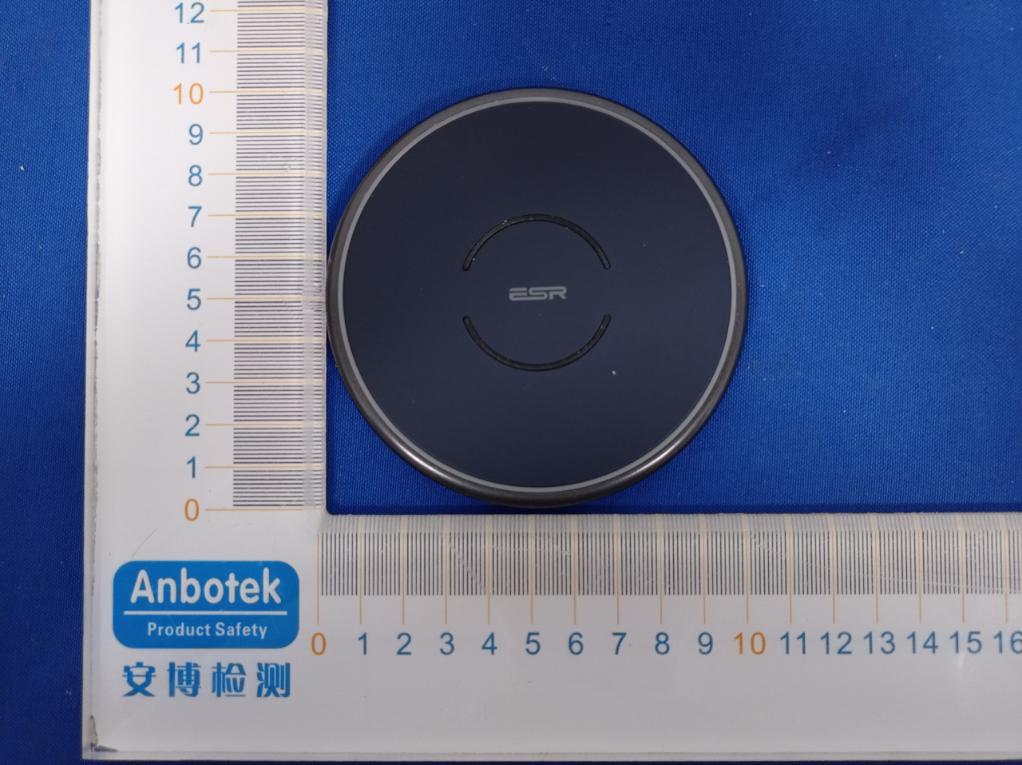

External Photos
FCCID:2APEW-ECW5-1
ID Label/Location Info
LabelLocationOnEUT Label ProductName:ESRHaloLockMagneticWirelessCharger ModelNo.:ECW5-1 FCCID:2APEW-ECW5-1 ThisdevicecomplieswithPart15oftheFCCRules.Operation issubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including interferencethatmaycauseundesiredoperation.
Internal Photos
FCCID:2APEW-ECW5-1
Operational Description
version01 ElectronicSilkRoad(Shenzhen)TechCo.,Ltd DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.:ECW5-1 FCCID:2APEW-ECW5-1 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna: N/A Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address:7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China City:Shenzhen ZIP/Postalcode:/ Country:China Place:ShenzhenDate:11/12/2020 Signature:
RF Exposure Info
ReportNo.:18220WC00150102FCCID:2APEW-ECW5-1Page1of12 Code:AB-RF-05-a FCCTESTREPORT ClientName:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,Gushu DevelopmentZones,XixiangStreet,Bao'anArea, Shenzhen,China ProductName:ESRHaloLockMagneticWirelessCharger Date:Nov.12,2020 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00150102FCCID:2APEW-ECW5-1Page2of12 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 5 1.4.TestEquipmentList .................................................................................................................................... 5 1.5.MeasurementUncertainty ......................................................................................................................... 5 1.6.DescriptionofTestFacility ........................................................................................................................ 6 2.MeasurementandResult ..................................................................................................................................... 7 2.1.Requirements .............................................................................................................................................. 7 2.2.TestSetup .................................................................................................................................................... 8 2.3.TestProcedure ............................................................................................................................................ 8 2.4.TestResult ................................................................................................................................................... 8 2.4.1.EquipmentApprovalConsiderationsitem5.bofKDB680106D01v03. ...................................... 8 2.4.2.EnvironmentalevaluationandexposurelimitaccordingtoFCCCFR47part1,1.1307(b), 1.1310 ................................................................................................................................................................ 10 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................... 12 ReportNo.:18220WC00150102FCCID:2APEW-ECW5-1Page3of12 Code:AB-RF-05-a TESTREPORT Applicant: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Manufacturer: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd ProductName: ESRHaloLockMagneticWirelessCharger ModelNo.:ECW5-1 TradeMark: ESR Rating(s): Input:5V/2A,9V/1.7A WirelessOutput:5W/7.5W/10W TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Oct.19,2020 DateofTest Oct.19~Nov.10,2020 PreparedBy (Engineer/YiliaZhong) Reviewer (Supervisor/BiboZhang) Approved&AuthorizedSigner (Manager/KingkongJin) ReportNo.:18220WC00150102FCCID:2APEW-ECW5-1Page4of12 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China Manufacturer: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address : 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China Factory:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China 1.2.DescriptionofDevice(EUT) ProductName: ESRHaloLockMagneticWirelessCharger ModelNo.: ECW5-1 TradeMark: ESR TestPowerSupply: AC120V,60Hzforadapter TestSampleNo.: 1-2-1(NormalSample),1-2-2(EngineeringSample) Product Description : OperationFrequency:110.1-205KHz ModulationType:FSK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC00150102FCCID:2APEW-ECW5-1Page5of12 Code:AB-RF-05-a 1.3.AuxiliaryEquipmentUsedDuringTest Adapter: Manufacturer:HUAWEI M/N:HW-100400C00 Input:100-240V/50-60Hz,1.2A Output:5V2A/9V2A/10V4A Mobilephone:Manufacturer:SAMSUNG M/N: S9 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1MagneticfieldmeterNARDAELT-400423623Dec.24,20183Year 2E-FieldProbeNardaEF0391Q15221Nov.17,20173Year 3H-FieldProbeNardaHF3061Q15835Nov.17,20173Year 1.5.MeasurementUncertainty RadiationUncertainty: Ur=3.9dB(Horizontal) Ur=3.8dB(Vertical) ConductionUncertainty: Uc=3.4dB ReportNo.:18220WC00150102FCCID:2APEW-ECW5-1Page6of12 Code:AB-RF-05-a 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregistedandfully describedinarep…
Text truncated - open the document above for the full version.
Test Report
ReportNo.:18220WC00150101FCCID:2APEW-ECW5-1Page1of23 Code:AB-RF-05-a FCCTESTREPORT ClientName:ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,Gushu DevelopmentZones,XixiangStreet,Bao'anArea, Shenzhen,China ProductName:ESRHaloLockMagneticWirelessCharger Date:Nov.12,2020 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC00150101FCCID:2APEW-ECW5-1Page2of23 Code:AB-RF-05-a Contents 1.GeneralInformation ............................................................................................................................................... 4 1.1.ClientInformation ....................................................................................................................................... 4 1.2.DescriptionofDevice(EUT) ..................................................................................................................... 4 1.3.AuxiliaryEquipmentUsedDuringTest ................................................................................................... 5 1.4.DescriptionofTestModes ........................................................................................................................ 5 1.5.DescriptionOfTestSetup ......................................................................................................................... 6 1.6.TestEquipmentList .................................................................................................................................... 7 1.7.MeasurementUncertainty ......................................................................................................................... 8 1.8.DescriptionofTestFacility ........................................................................................................................ 8 2.SummaryofTestResults ..................................................................................................................................... 9 3.ConductedEmissionTest ................................................................................................................................... 10 3.1.TestStandardandLimit .......................................................................................................................... 10 3.2.TestSetup .................................................................................................................................................. 10 3.3.TestProcedure .......................................................................................................................................... 10 3.4.TestData .................................................................................................................................................... 10 4.RadiationSpuriousEmissionandBandEdge ................................................................................................ 15 4.1.TestStandardandLimit .......................................................................................................................... 15 4.2.TestSetup .................................................................................................................................................. 15 4.3.TestProcedure .......................................................................................................................................... 16 4.4.TestData .................................................................................................................................................... 17 5.AntennaRequirement ......................................................................................................................................... 22 5.1.TestStandardandRequirement ............................................................................................................ 22 5.2.AntennaConnectedConstruction .......................................................................................................... 22 APPENDIXI--TESTSETUPPHOTOGRAPH ................................................................................................... 23 APPENDIXII--EXTERNALPHOTOGRAPH ..................................................................................................... 23 APPENDIXIII--INTERNALPHOTOGRAPH ..................................................................................................... 23 ReportNo.:18220WC00150101FCCID:2APEW-ECW5-1Page3of23 Code:AB-RF-05-a TESTREPORT Applicant: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Manufacturer: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd ProductName: ESRHaloLockMagneticWirelessCharger ModelNo.:ECW5-1 TradeMark: ESR Rating(s): Input:5V/2A,9V/1.7A WirelessOutput:5W/7.5W/10W TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2013 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceiptOct.19,2020 DateofTestOct.19~Nov.10,2020 PreparedBy (Engineer/YiliaZhong) Reviewer (Supervisor/BiboZhang) Approved&AuthorizedSigner (Manager/KingkongJin) ReportNo.:18220WC00150101FCCID:2APEW-ECW5-1Page4of23 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address: 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopment Zones,XixiangStreet,Bao'anArea,Shenzhen,China Manufacturer: ElectronicSilkRoad(Shenzhen)TechCo.,Ltd Address : 7thF,Building10B,TaihuaWutongIndustrialPark,GushuDevelopmen…
Text truncated - open the document above for the full version.
Test Setup Photos
FCCID:2APEW-ECW5-1 PhotoofMPEMeasurement
Test Setup Photos
FCCID:2APEW-ECW5-1 PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest
Contact Information
Applicant
Serena Jiang
Test Firm
Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.1101 MHz - 0.205 MHz | - |
