2APJN-3513DASH CAMERA

Makethegoodlifesaferandsmarter! 3513InstructionManual(V1) Pleasereadthismanualcarefullybeforeusingtheproductandkeepitina safeplace. Catalog I.Products...........................................................................................................1 Appearance................................................................................................1 KeyDescription.........................................................................................2 Indicatorlightdescription....................................................................2 II.InstallationTutorial......................................................................................3 III.Instructions.................................................................................................4 UseofAPP................................................................................................5 VideoRecording.......................................................................................6 UseofMemoryCard............................................................................7 1 I.ProductsIntroduction AppearanceDescription 1.Recordbutton 2.Hightemperatureresistantadhesivepaper 3.Camera 4.Powerconnector 5.Indicatorlight 6.Powerbutton 7.SDcardslot 8.Brackets 9.Speakers,Microphones 2 KeyDescription Tapthepowerbuttondifferenttimesandtimetoachievedifferent functions. stateofaffairsrigfunctionality Switchoff(under powersupply) Pressthepower buttonfor1second Switchonthecarrecorder. Poweron Pressandholdthe powerbuttonfor3 seconds Switchoffthecarrecorder Pressthepower button SwitchWi-Fion/off PresstheRecord button Enable/disablerecording Pressthepower button3times FormattingaMicroSD memorycard Pressthepower button5timesina row RestoreFactorySettings Pressandholdthe powerbuttonfor10 seconds Resetandrestartthe machine Indicatorlightdescription Carrecorderonstate.Indicatorlightdifferentstate,prompting differentfunctions. stateofaffairsfunctionality 3 GreenAlwaysOnNormalRecording BlueAlwaysOn Non-recordingmode(e.g.when enteringthealbum) RedAlwaysOnAbnormalrecording/noSDcard GreenFlashRecordemergencyvideo BlueFlash Processingstagetasks(e.g.,incard upgrades) Breathing （Fadefromlighttodark,or fromdarktolight） Wi-Fiison. II.InstallationTutorial 1.Installationofelectrostaticpatches Installtheelectrostaticstickeronthewindscreeninthedotted areaasshown.Avoidtheedgesoftheglassandselectasmooth cleanareaontheglassforinstallation. Pleasewipetheglasscleanbeforeinstallation,andsqueezetheair bubblesbetweentheelectrostaticstickerandtheglasswhen installing. 2.InstallationofMicroSDcard Insertthememorycardintothecardslot. 4 3.AffixDashcam Removetheprotectivestickerfromtheheat-resistantadhesiveon thebaseofthebracketandsticktheloggerintothedottedframe oftheelectrostaticsticker. Pleasepressthebaseofthebracketbyhandtoensurethatthe hightemperatureresistantadhesivefitstightlywiththe electrostaticsticker. 4.Wiringandconnectingpower Arrangethepowercablealongthetopofthewindscreen,the A-pillar,thepassengerseatstoragebox,nearthecigarettelighter asshowninthediagram,connectthecarchargerheadandthen plugitintothecigarettelighter. Attention: *Pleaseuseatyrelevertohidethepowercordundertheroofupholsteryand alongtheA-pillarsealingrubberring. *Dependingonthevehiclemodel,thelocationofthecigarettelightersocket maybedifferent,andtheaboveillustrationsareforreferenceonly. 5 III.Instructionsforuse APPUse Step1DownloadAPP ScantheQRcodebelowtodownloadandinstallDashCamAssist APP. Step2Addadevice 1.OpenWiFisettingsonyourmobilephone>>>Connecttothe device'sWiFihotspot>>>EntertheinitialWiFipassword: 12345678>>>Successfullyconnected 2.OpenDashCamAssistAPP:IfthedeviceandAPPare successfullyconnected,theAPPwilldisplaytherecordingscreen ofthedevice.(Pleasenote:IftheAPPdoesnotdisplaythe recordingscreenofthedevice,pleasereconnect) 3513Wi-FiHotspotInformation Name:M3513 Initialpassword:12345678(Thepasswaordcanbechangedafter connectingtotheAPP) 6 Videorecording I.Howtorecordanemergencyvideo? Automaticcollisionrecording:Whenavehiclecollides,the recorderwillautomaticallyrecordemergencyvideo. II.Whatisparkingmodeandtime-lapserecording? 1.Bothparkingmodeandtime-lapserecordingneedtobeused withahardwirekit,whichcanbeturnedon/offintheAPPsettings. 2.Parkingmode:Itmeansthatifacollisionoccurswhenthe vehicleisturnedoff,thedevicecanrecordinrealtimeandsaveit tothememorycard. 3.Time-lapserecording:Itmeansthatwhenthevehicleisturned off,itcontinuestorecordatasamplingfrequencyofoneframe persecond,andthenthesynthesizedvideoissavedtothe memorycard. III.Howisthevideosaved? Allvideosarestoredusingacycleerasestoragemode.Whenthe storagespacereachestheupperlimit,everytimeanewvideois recorded,theoldestvideointhememorycardwillbe automaticallyerased.Topreventimportantvideosfrombeing erased,pleasepromptlyexportimportantvideostootherdevices suchasmobilephonesorcomputersforbackup. 7 Memorycarduse 1.ThedeviceonlysupportsstandardMicroSDmemorycards. PleaseuseaMicroSDmemorycardwithacapacitybetween 16GB-128GBandaratedspeedofClass10orabove. 2.WheninsertingaMicroSDmemorycardforthefirsttime, pleaseformatitinthedevicebeforeusingit.Formattinga MicroSDmemorycardwilldeleteallfilesonthecard.Please backupimportantdatatootherdevicesbeforehand. 3.Pleaseuseareputable,high-qualityMicroSDmemorycard. 4.DonotinsertorremovetheMicroSDmemorycardwhenthe drivingrecorderisturnedon,otherwiseitmaycausedamage tothesavedvideoandtheMicroSDmemorycard. 8 FCCStatement: Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwo conditions: (1)Thisdevicemaynotcauseharmfulinterference,and (2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause undesiredoperation. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovide reasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.This equipmentgenerates,usesandcanradiateradiofrequencyenergyand,ifnotinstalledand usedinaccordancewiththeinst…

Text truncated - open the document above for the full version.

ShenzhenApicalTechnologyCo.,Ltd 08-13-2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor2APJN-3513 [ShenzhenApicalTechnologyCo.,Ltd](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, Melissaxu ShenzhenApicalTechnologyCo.,Ltd 08-13-2024 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor2APJN-3513 [ShenzhenApicalTechnologyCo.,Ltd](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Sincerely, Melissaxu

Sh enzhen Apical Technology Co.,Ltd 9F,Bu ilding B, Tsinghua Unis Infoport ,Langshan Road, Hi-t ech Industri al Pa rk ,Nanshan Distri ct, Sh enzhen, China U.S. Ag ent Designation for Se rv ic e of Pro cess - Certif icatio n At testatio n Letter 08/13/2024 Federa l Communications Commission Au thori zation and Ev aluation Division 1435 Oakland Mills Road Columbia, MD 21046 AT TN.: Reviewing En gineer FCC ID: 2A PJN -3513 Federa l Registra tion Number (F RN) 0027427442 Per se ct ion 2.911(d)(7) of the FCC rules,Sh enzhen Apical Technology Co.,Ltd (“the applica nt”) ce rtifies that the equipment for which authoriza tion is so ught is desi gnated to thefollowing U.S. agent* for service of process: Federa l Registra tion Number (FRN): 0033701590 Company Name: UUX GROUP INC Physical U.S. Company Address: 36 South 18th Avenue, Suite A Brighto n, CO USA 80601 County : Adams Agent nam e: Jac k Fu Agent Email Address: uuxforever@ outl ook. com The above co ntact p erso n acce pts the obligation for se rvice of process . The applicant accepts to maintain an agent for no less than one year after the gra ntee has terminated all mark eting and import ation or the conclusion of any Commission-re lated pro ceeding involving the equipment. This Agreement is valid unti l: Ete rnally. Applicant Signed: Signed: Printed name: Melissa xu Title: Manager: CompanyName: Shenzhen Apical Technology Co.,Ltd Date :13/08/2024 AgentSigned(ifdifferenttoApplicant): Signed: Printedname:JackFu Title:Manager CompanyName:UUXGROUPINC Date:13/08/2024 * the appl icant mus t des ignat e a cont ac t loc at ed in the Uni ted Stat es for pur pos es of ac ting as the appl icant ’s agentfor ser vice of pr oc es s, regar dl es s of whet her the appl icant is a dom es tic or for ei gn ent ity. An appl icant loc at ed in the Uni ted Stat es may des ignat e itsel f as the agentfor ser vice of pr oc es s.

ShenzhenApicalTechnologyCo.,Ltd AgentAuthorizationLetter 2024-08-13 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenMostTechnologyServiceCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Name:Melissaxu Position:GeneralManager CompanyName: ShenzhenApicalTechnologyCo.,Ltd Address:9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Tel/Fax86-755-61613201/0755-61613206 E-Mail:[email protected]

ShenzhenApicalTechnologyCo.,Ltd LongTermConfidentialityRequestLetter 2024-08-13 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2APJN-3513) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name:Melissaxu Position:GeneralManager CompanyName: ShenzhenApicalTechnologyCo.,Ltd Address:9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Tel/Fax86-755-61613201/0755-61613206 E-Mail:[email protected]

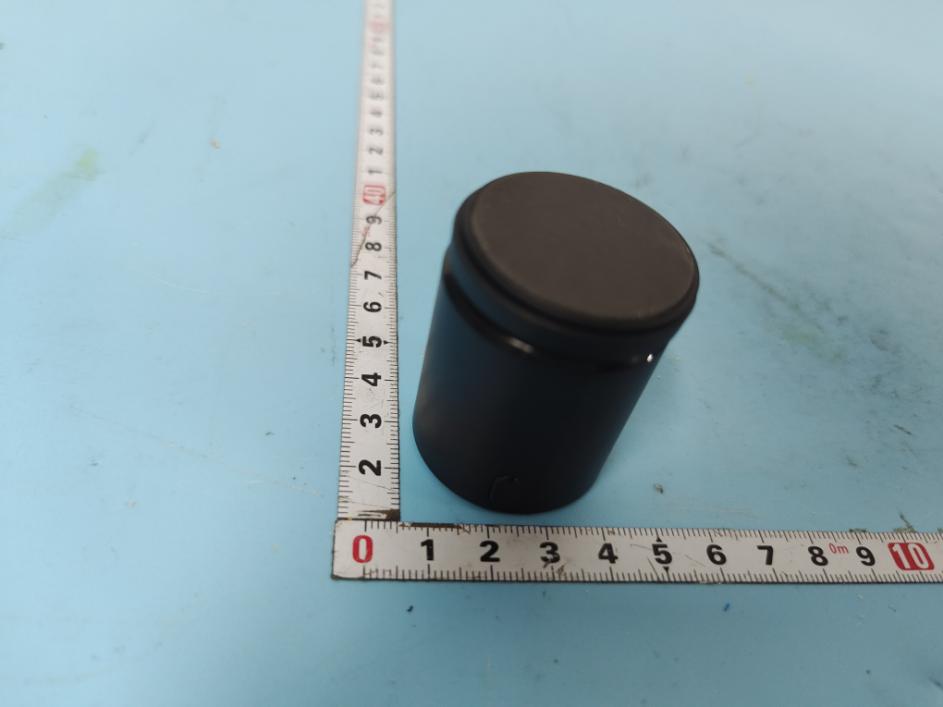

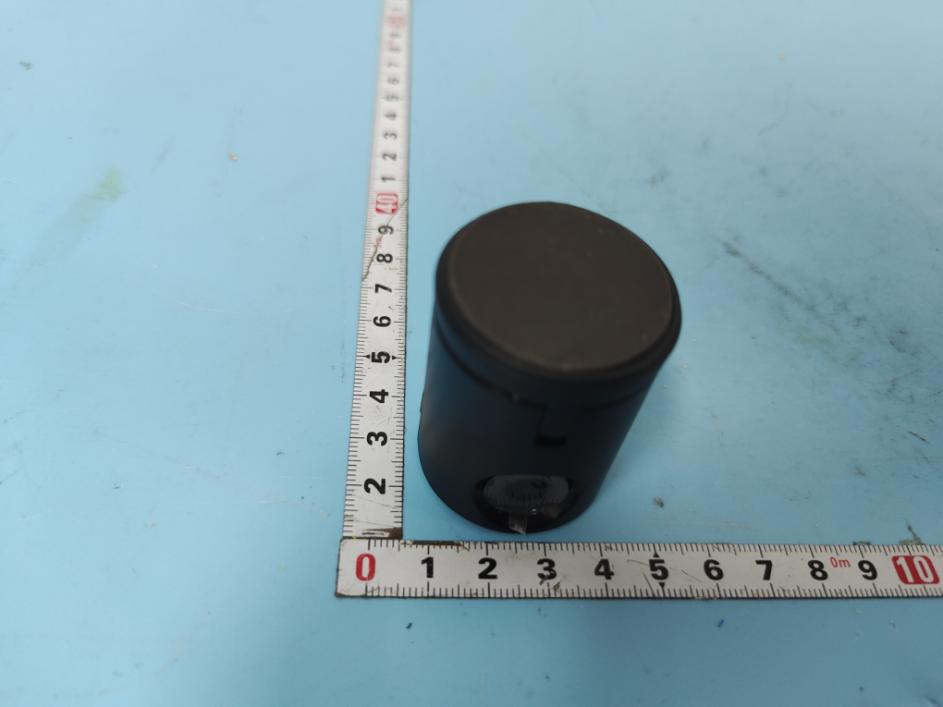

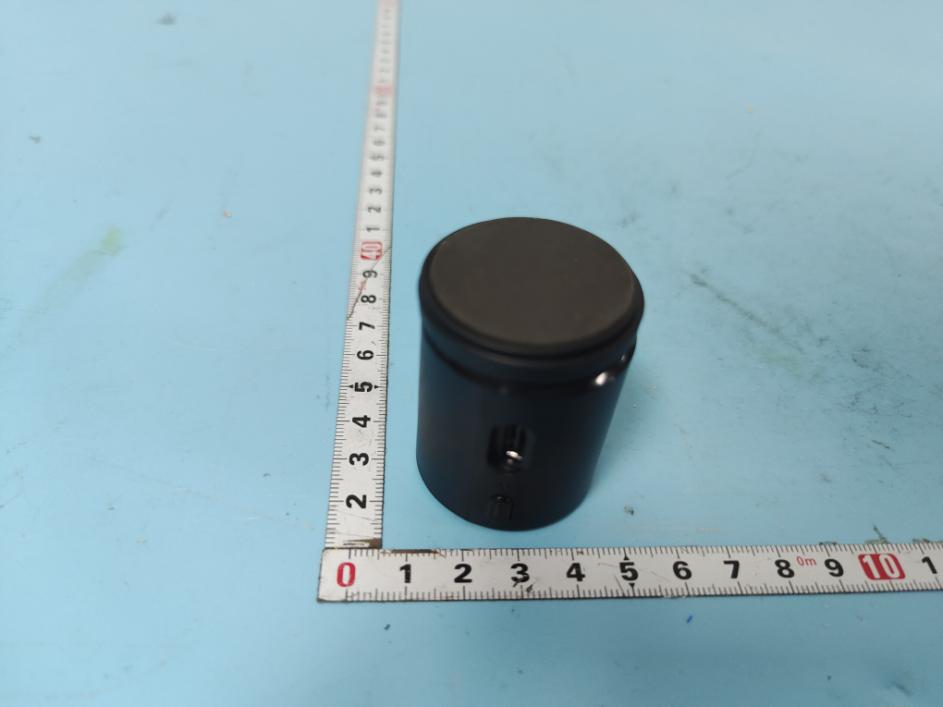

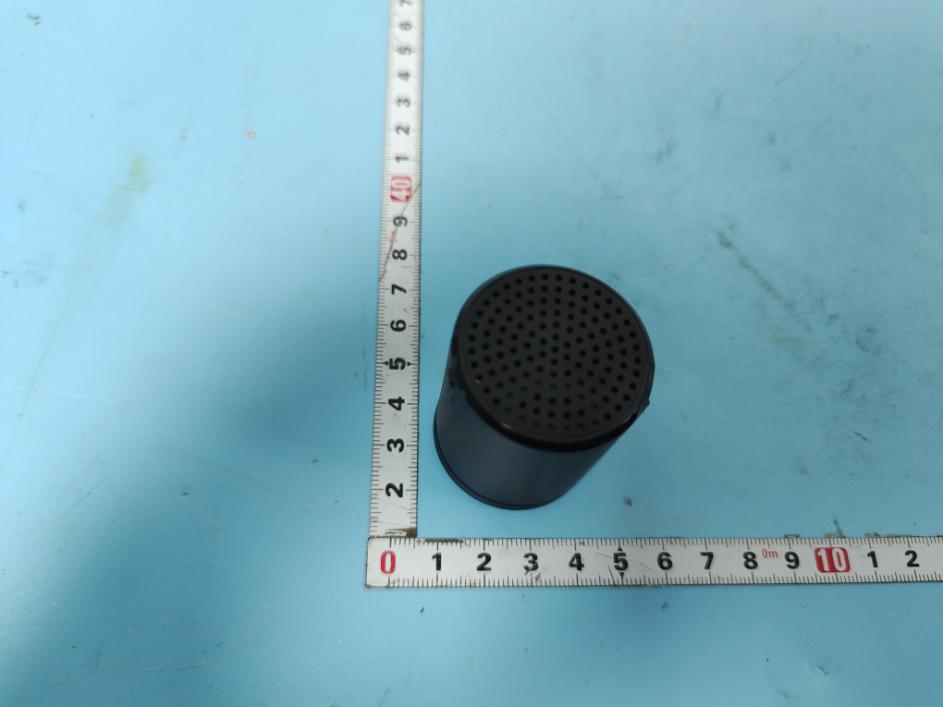

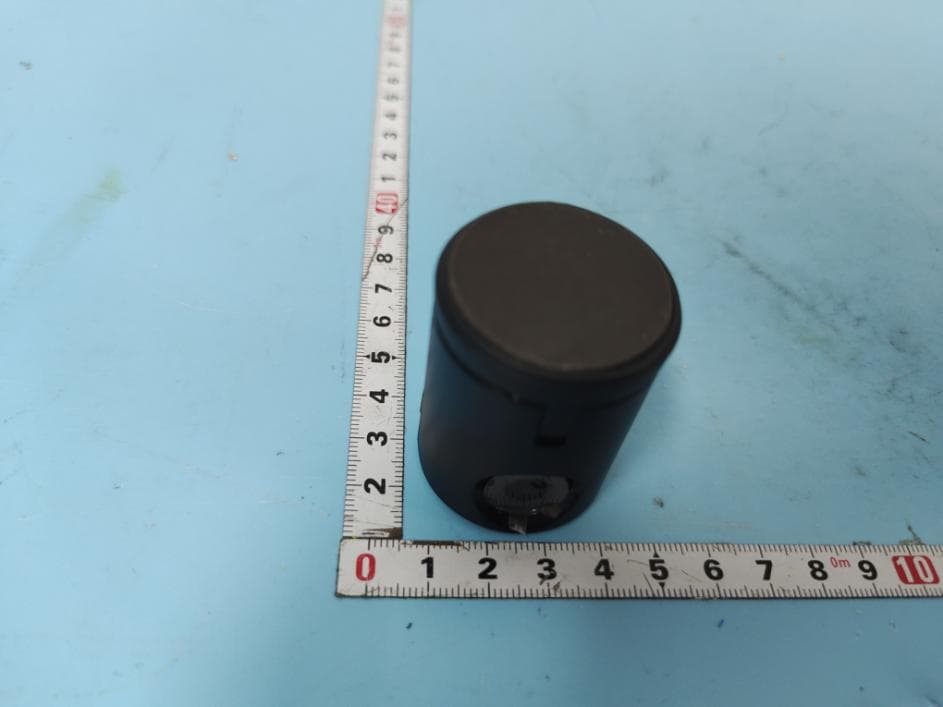

Model No.: 3513 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: 3513 LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: 3513 TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: 3513

FCCID:2APJN-3513

Model No.: 3513 Page 1 of 4 INTERNAL PHOTO OF SAMPLE INTERNAL PHOTO OF SAMPLE WIFI antenna Model No.: 3513 Page 2 of 4 INTERNAL PHOTO OF SAMPLE PCB Model No.: 3513 Page 3 of 4 Model No.: 3513 Page 4 of 4

ShenzhenMostTechnologyServiceCo.,Ltd. EastA,1floorofNewAolinFactorybuiding,LangshanErlu,NorthDistrict, Hi-techIndustryPark,Nanshan,Shenzhen,Guangdong,China RFExposureEvaluationReport ReportReferenceNo. ....................... : FCCID.. ............................................... : MTEB24070434-H 2APJN-3513 Compiledby (position+printedname+signature)..:FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :July30,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname ............................... : ShenzhenApicalTechnologyCo.,Ltd Address ................................................. : 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Testspecification/Standard ............ : 47CFRPart1.1307;47CFRPart1.1310 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenMostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenMostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription ........................ : DASHCAMERA TradeMark ............................................ : N/A Model/Typereference ......................... : 3513 ListedModels......................................:N/A ModulationType..................................:802.11b:DSSS 802.11g/802.11n(H20)/802.11n(H40):OFDM OperationFrequency..........................:From2412MHz~2462MHz HardwareVersion.................................3513-MAIN-01A SoftwareVersion................................... 0.0.20 Rating ..................................................... :DC5VbyCarCharger Result.....................................................:PASS ReportNo.:MTEB24070434-HPage 2 of 6 TESTREPORT EquipmentunderTest:DASHCAMERA Model/Type:3513 ListedModels:N/A RemarkN/A Applicant:ShenzhenApicalTechnologyCo.,Ltd Address: 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Manufacturer:ShenzhenApicalTechnologyCo.,Ltd Address :9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24070434-HPage 3 of 6 1.RevisionHistory RevisionIssueDateRevisionsRevisedBy 00 2024.07.30 InitialIssueAlisaLuo ReportNo.:MTEB24070434-HPage 4 of 6 2.SAREvaluation 2.1RFExposureComplianceRequirement 2.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 4.3.1.StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. 2.1.2Limits AccordingtoFCCPart1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluatethe environmentimpactofhumanexposuretoradiofrequency(RF)radiationasspecifiedinpart1.1307(b) F=FrequencyinMHz FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R2)Where Pd=powerdensityinmW/cm2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaandthetotalpower inputtotheantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. ReportNo.:MTEB24070434-HPage 5 of 6 2.1.3EUTRFExposure WIFI2.4G 802.11b Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz)10.6810.68±111.68 Middle(2437MHz)12.2012.20±113.2 Highest(2462MHz)11.9411.94±112.94 802.11g Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz)12.6412.64±113.64 Middle(2437MHz)12.8412.84±113.84 Highest(2462MHz)12.7712.77±113.77 802.11n(H20) Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz)13.3713.37±114.37 Middle(2437MHz)13.7813.78±114.78 Highest(2462MHz)13.5213.52±114.52 802.11n(H40) Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2422MHz)13.2913.29±114.29 Middle(2437MHz)13.8713.87±114.87 Highest(2452MHz)13.9713.97±114.97 ReportNo.:MTEB24070434-HPage 6 of 6 WIFI2.4G Worstcase:802.11n(H40) Channel Maximum tune-upPower (dBm) Maximumtune-up Power (MW) AntennaGain (dBi) Power Density atR=20 cm (mW/cm2) LimitResult Highest(2452MHz)14.9731.414.96 0.0196 1.0Pass Note:1)RefertoreportMTEB24070434-RforEUTtestMaxConductedaverageOutputPowervalue. Note:2)Pd=(Pout*G)/(4*Pi*R2)=(31.41*3.13)/(4*3.1416*20 2 )=0.0196 .......................THEENDOFREPORT.........................

ShenzhenMostTechnologyServiceCo.,Ltd. No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark,Nanshan, Shenzhen,Guangdong,China. FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: MTEB24070434-R 2APJN-3513 Compiledby (position+printedname+signature) .. :FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :July30,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname...............................: ShenzhenApicalTechnologyCo.,Ltd Address ................................................. : 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Testspecification .............................. : Standard ................................................ :FCCPart15.247 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen MostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen MostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................: DASHCAMERA TradeMark ............................................ : N/A Model/Typereference ......................... : 3513 ListedModels ...................................... :N/A ModulationType..................................:802.11b:DSSS 802.11g/802.11n(H20)/802.11n(H40):OFDM OperationFrequency .......................... :From2412MHz~2462MHz Rating.....................................................:DC5VbyCarCharger Hardwareversion.................................:3513-MAIN-01A Softwareversion.................................: 0.0.20 Result.....................................................:PASS ReportNo.:MTEB24070434-RPage 2 of 46 TESTREPORT EquipmentunderTest:DASHCAMERA Model/Type:3513 ListedModels:N/A RemarkN/A Applicant:ShenzhenApicalTechnologyCo.,Ltd Address: 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Manufacturer:ShenzhenApicalTechnologyCo.,Ltd Address :9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24070434-RPage 3 of 46 Contents 1REVISIONHISTORY...........................................................................................................................4 2TESTSTANDARDS..............................................................................................................................5 3SUMMARY.................................................................................................................................................6 3.1GeneralRemarks..........................................................................................................................................6 3.2ProductDescription.....................................................................................................................................6 3.3EquipmentUnderTest.................................................................................................................................6 3.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 3.5EUToperationmode.....................................................................................................................................6 3.6BlockDiagramofTestSetup.......................................................................................................................7 3.7TestItem(EquipmentUnderTest)Description*........................................................................................7 3.8AuxiliaryEquipment(AE)Description........................................................................................................7 3.9AntennaInformation*...................................................................................................................................7 3.10RelatedSubmittal(s)/Grant(s).................................................................................................................7 3.11Modifications...............................................................................................................................................7 3.12EUTconfiguration.......................................................................................................................................8 4TESTENVIRONMENT........................................................................................................................9 4.1Addressofthetestlaboratory....................................................................................................................9 4.2TestFacility...................................................................................................................................................9 4.3Environmentalconditions............................................................................................................................9 4.4TestDescription..........................................................................................................................................10 4.5Statementofthemeasurementuncertainty................…

Text truncated - open the document above for the full version.

ReportNo.:MTEB24070434-RPage 37 of 46 APPENDIXIII.ConductedPeakOutputPower TestResult ConductedOutputPower ModeChannel Ant.0 (dBm) Total (dBm) Limit (dBm) Result IEEE 802.11b 110.68N/A≤30PASS 612.20N/A≤30PASS 1111.94N/A≤30PASS IEEE 802.11g 112.64N/A≤30PASS 612.84N/A≤30PASS 1112.77N/A≤30PASS IEEE 802.11n_20 113.37N/A≤30PASS 613.78N/A≤30PASS 1113.52N/A≤30PASS IEEE 802.11n_40 313.29N/A≤30PASS 613.87N/A≤30PASS 913.97N/A≤30PASS ReportNo.:MTEB24070434-RPage 38 of 46 APPENDIXIV.99%Bandwidth TestResult ModeChannelAnt. CenterFrequency (MHz) 99%BW(MHz) IEEE802.11b 1 0 241213.239 6243711.207 11246211.260 IEEE802.11g 1241216.548 6243716.524 11246216.534 IEEE802.11n_20 1241217.780 6243717.734 11246217.771 IEEE802.11n_40 3242236.160 6243736.231 9245236.132 TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24070434-RPage 39 of 46 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0IEEE802.11n_Channel3_40MHz_Antenna0 IEEE802.11n_Channel6_40MHz_Antenna0IEEE802.11n_Channel9_40MHz_Antenna0 ReportNo.:MTEB24070434-RPage 40 of 46 APPENDIXV.6dBBandwidth TestResult ModeChannelAnt. Center Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result IEEE802.11b 1 0 24127.213 ≥0.5 PASS 624377.422PASS 1124627.626PASS IEEE802.11g 1241215.81PASS 6243715.41PASS 11246216.26PASS IEEE 802.11n_20 1241217.25PASS 6243716.33PASS 11246217.61PASS IEEE 802.11n_40 3242235.00PASS 6243735.89PASS 9245235.68PASS TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24070434-RPage 41 of 46 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0IEEE802.11n_Channel3_40MHz_Antenna0 IEEE802.11n_Channel6_40MHz_Antenna0IEEE802.11n_Channel9_40MHz_Antenna0

ReportNo.:MTEB24070434-RPage 42 of 46 APPENDIXVI.ConductedOutOfBandEmission TestResult ModeChannelAnt. OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) OverLimit (dB) Result IEEE 802.11b 1 0 2398.14-31.890-10.49-21.400PASS 2400.00-40.820-10.49-30.330PASS 4831.90-51.666-10.49-41.176PASS 7233.40-46.557-10.49-36.067PASS 9658.00-51.936-10.49-41.446PASS 24892.0-35.255-10.49-24.765PASS 6 4874.30-46.492-20.58-25.912PASS 7305.19-50.618-20.58-30.038PASS 9764.80-51.993-20.58-31.413PASS 24893.3-35.560-20.58-14.980PASS 11 2483.50-41.011-21.01-20.001PASS 4924.24-48.051-21.01-27.041PASS 7371.36-51.515-21.01-30.505PASS 9845.95-51.211-21.01-30.201PASS 24930.1-34.720-21.01-13.710PASS IEEE 802.11g 1 2400.00-35.323-24.24-11.083PASS 4806.26-52.060-24.24-27.820PASS 7229.66-51.254-24.24-27.014PASS 9634.33-50.829-24.24-26.589PASS 24925.1-35.911-24.24-11.671PASS 6 4868.68-51.610-23.06-28.550PASS 7320.80-51.741-23.06-28.681PASS 9732.34-51.883-23.06-28.823PASS 24940.1-35.614-23.06-12.554PASS 11 2483.50-41.123-23.49-17.633PASS 4930.49-50.239-23.49-26.749PASS 7370.74-51.820-23.49-28.330PASS 9858.44-51.795-23.49-28.305PASS 24913.9-35.174-23.49-11.684PASS IEEE 802.11n_20 1 2400.00-33.079-23.6-9.479PASS 4824.36-52.441-23.6-28.841PASS 7231.53-51.279-23.6-27.679PASS 9641.19-51.697-23.6-28.097PASS 24984.4-35.382-23.6-11.782PASS 6 4874.93-49.940-23.06-26.880PASS 7329.54-50.550-23.06-27.491PASS 9764.17-51.759-23.06-28.699PASS 24893.3-35.372-23.06-12.312PASS 11 2483.50-40.511-23.48-17.031PASS 4929.86-50.450-23.48-26.970PASS 7405.70-50.244-23.48-26.764PASS 9864.68-51.208-23.48-27.728PASS 24954.4-35.852-23.48-12.372PASS IEEE 802.11n_40 3 2398.79-37.382-26.89-10.492PASS 2400.00-37.692-26.89-10.802PASS 4857.40-51.598-26.89-24.708PASS 7243.40-50.309-26.89-23.419PASS 9714.20-50.930-26.89-24.040PASS 24910.1-36.584-26.89-9.694PASS 6 4857.45-51.797-26.21-25.587PASS 7318.30-50.889-26.21-24.679PASS 9729.84-50.610-26.21-24.400PASS 24902.6-35.313-26.21-9.103PASS 9 2483.50-41.234-26.15-15.084PASS 4930.49-51.016-26.15-24.866PASS 7317.05-51.108-26.15-24.958PASS 9834.72-50.993-26.15-24.843PASS 24917.0-35.866-26.15-9.716PASS TestGraphs ReportNo.:MTEB24070434-RPage 43 of 46 In-BandReferenceLevel IEEE802.11b_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel11_20MHz_Antenna0 ReportNo.:MTEB24070434-RPage 44 of 46 In-BandReferenceLevel IEEE802.11g_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24070434-RPage 45 of 46 In-BandReferenceLevel IEEE802.11n_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel11_20MHz_Antenna0 ReportNo.:MTEB24070434-RPage 46 of 46 In-BandReferenceLevel IEEE802.11n_Channel3_40MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel3_40MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel3_40MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel6_40MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel6_40MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel9_40MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel9_40MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel9_40MHz_Antenna0 **********************EndofReport**********************

Antenna Testing Report Customer：Apical Project Name：3513 Report Number: Manufacturer: Sunnyway Technology(CHINA) Address: Floor 6, Building 5, Nam Tai Inno Park, Guangming District, Shenzhen Report version：February01, 2024 Author：Wen long sun 1 Record VersionReport dateRemark A02024.02.01Active Testing Report A1 A2 A3 A4 A5 A6 A7 A8 A9 2 /18 Contents 1. Record.............................................................................................2 2. Project Overview .................................................................................4 3. Equipment List....................................................................................5 4. Project pictures and Passive fixturs............................................................6 5. Version Information ..............................................................................7 6. Matching Circuit .................................................................................7 7. Passive parameters ..............................................................................12 8. Passive efficiency ..............................................................................16 9. Active data .......................................................................................19 10. Directional pattern ..............................................................................24 11. Summary ......................…

Text truncated - open the document above for the full version.
