2APJN-3837BDASH CAMERA

Makeyourlifesaferandsmarter 3837BDashCamUserManual(V1) Pleasereadthismanualcarefullybeforeusingtheproductandkeepitfor futurereference. Contents ProductIntroduction..........................................................................................1 AppearanceDescription.............................................................................1 Specifications.............................................................................................2 ButtonDescriptions...................................................................................2 IconDescriptions........................................................................................3 InstallationInstructions......................................................................................4 UsageInstructions..............................................................................................6 UsingtheApp.............................................................................................6 VideoRecording.........................................................................................7 MemoryCardUsage..................................................................................8 1 ProductIntroduction AppearanceDescription 1.BracketSlot 2.PowerButton 3.LensSwitchButton ① 4.MemoryCardSlot 5.IndicatorLight 6.DisplayScreen 7.FunctionButtons(fromlefttoright:MenuButton,RecordingButton, EmergencyVideoButton,AlbumButton) 2 8.PowerInterface 9.RearCameraInterface ① 10.ResetButton 11.Lens 12.Speaker 13.Microphone (Note:①Single-channeldevicesdonothaveaLensSwitchButton andaRearCameraInterface) Specifications ProductModel:3837B ScreenSize:2inches Resolution:1080P ButtonDescriptions ButtonOperationFunction PowerButton Longpressfor3 seconds Turnon/off SingleclickTurnscreenon/off Longpressfor7 secondswhenon Resetandrestartthedevice LensSwitchButton (CH) Singleclick Switchbetweenfrontand rearcameraviews Note:Otherfunctionbuttonsperformtheirrespectiveoperationsasindicatedbythe maininterfaceiconswhenshort-pressed. 3 IconDescriptions Themeaningsofthemaininterfaceiconsareasfollows: ：Displayedduringrecording,withareddotflashingontheleft. ：DisplayedaftersuccessfulGPSpositioning. ：DisplayedwhentheWiFihotspotisturnedon. ：Displayedwhentherearcameraisconnected. ：Displayedwhenparkingmonitoringisenabled.Iftime-lapse photographyisenabled,"T"isdisplayed.Ifbothparkingmonitoringand time-lapsephotographyareenabled,"PT"isdisplayed.Ifparking auto-offisenabled,"AO"isdisplayed. ：DisplayedaftersuccessfulADAScalibration.Ifcalibrationfails,is displayed;ifcalibrationisinprogress,isdisplayed. ：Shortpressthefunctionbuttonbelowtoturnrecordingon/off. ：Shortpressthefunctionbuttonbelowtorecordanemergency video. 4 ：Shortpressthefunctionbuttonbelowtoenterthealbum. ：Shortpressthefunctionbuttonbelowtoenterthesettingsmenu, whereyoucanadjustvarioussettingsofthedashcam. InstallationInstructions 1.ConnecttheDashCamtotheBracket Insertthebracketintothebracketslotonthetopofthedashcam,then pushittotheleft.Theconnectioniscompletewhenyouheara“click” sound. 2.MounttheDashCam First,cleantheglassthoroughly.Then,securethesuctioncupbracket ontotheglass.Pressdownonthebracketwithyourhandtoensureit adheresfirmlytothewindshield. 5 3.WireandConnectthePowerSupply Asshowninthediagram,routethepowersupplycablealongthetopof thewindshield,throughtheA-pillar,andaroundthepassenger-side storagecompartment.Connectthecabletothechargerandthenplugit intothecigarettelightersocket. Note: Useaprytooltohidethepowercablebeneaththecar'srooftrimand alongtheA-pillarrubberseal. Thelocationofthecigarettelightersocketmayvarydependingonthe vehiclemodel.Thediagramprovidedisforreferenceonly. 4.AdjusttheDashCamAngle Afterconnectingthepowerandturningonthedevice,adjustthedash cam'sanglebymovingittoensurethecameraisfacingstraightahead,as seeninthepreviewonthemainscreen.。 6 5.InstalltheRearCamera Usedouble-sidedtapetoattachtherearcameratothecenterofthe upperpartoftherearwindow.Ensurethecameraisfacingoutward. 6.ConnecttheRearCameraPowerSupply Beforeinstalling,useadatacabletoconnecttherearcameratothefront camera.Therearetwomethodsforthis: UsageInstructions UsingtheApp Step1:DownloadtheApp ScantheQRcodebelowtodownloadandinstalltheDashCamAssistapp. 7 Step2:AddDevice 1.Openyourphone'sWiFisettingsandfindthedevice'sWiFihotspot namedDashCam_3837B_XXXX.ConnecttoitandentertheinitialWiFi password:12345678.TheWiFiconnectionwillbeestablishedsuccessfully. 2.OpentheDashCamAssistapp.Oncetheappconnectstothedevice'sWiFi, itwilldisplaythecamera'slivefeed. Note:Iftheappdoesnotdisplaythecurrentrecordingscreen,pleasereconnectto thedevice'sWiFihotspot. DashCamHotspotInformation Youcanviewthehotspotnameandpasswordinthedashcamsettings byselectingSystemSettings>Wi-FiHotspot.(Afterconnectingtheapp, youcanchangethedashcampasswordthroughtheapp.) VideoRecording 1.HowtoRecordEmergencyVideos? Therearethreewaystorecordemergencyvideos: ButtonRecording:Shortpresstheemergencyvideobuttononthemain interfacetomanuallyrecordanemergencyvideo. CollisionAutoRecording:Duringvehicleignition,ifacollisionoccurs, thedashcamwillautomaticallyrecordanemergencyvideo.(Sensitivity canbeadjustedviathedashcamorapp.) 2.WhatisParkingMonitoringandTime-LapsePhotography? 8 Parkingmonitoringandtime-lapsephotographyrequireaparking monitoringcabletofunctionandcanbeenabled/disabledinthe dashcamsettingsorappsettings. ParkingMonitoring:Whenthevehicleisturnedoff,ifacollisionoccurs, thedashcamwillcapturereal-timefootageandsavethevideotothe album. Time-LapsePhotography:Whenthevehicleisturnedoff,thedashcam willcontinuouslycaptureframesatarateofoneframepersecondand thencompilethemintoatime-lapsevideofile. 3.HowisVideoStored? Allvideosarestoredusingalooprecordingmethod.Whenthestoragespace isfull,eachnewvideorecordedwillautomaticallyoverwritetheoldestvideo onthememorycard.Topreventimportantvideosfrombeingoverwritten, pleasepromptlyexportimportantvideostootherdevicessuchasaphoneor computerforbackup. MemoryCardUsage ThedashcamsupportsstandardMicroS…

Text truncated - open the document above for the full version.

ShenzhenApicalTechnologyCo.,Ltd (2024.09.04) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2APJN-3837B) [ShenzhenApicalTechnologyCo.,Ltd](“theapplicant”)certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceivingan equipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)Melissaxu ShenzhenApicalTechnologyCo.,Ltd (2024.09.04) EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(ii)requestfor(FCCID:2APJN-3837B) [ShenzhenApicalTechnologyCo.,Ltd](“theapplicant”)certifiesthat,asofthedateof thefilingoftheapplication,theapplicantisnotidentifiedontheCoveredListasan entityproducing“covered”equipment. Sincerely, (Applicantsignature) (Applicantprintedname)Melissaxu

ShenzhenApicalTechnologyCo.,Ltd AgentAuthorizationLetter 2024-09-04 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorizeShenzhenMostTechnologyServiceCo.,Ltd.toact onourbehalfinallmattersrelatingtoapplicationforequipmentauthorization,includingthe signingofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuse Actof1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Name:Melissaxu Position:Manager CompanyName:ShenzhenApicalTechnologyCo.,Ltd Address:9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad,Hi-tech IndustrialPark,NanshanDistrict,Shenzhen,China Tel/Fax86-755-61613201/0755-61613206 E-Mail:[email protected]

ShenzhenApicalTechnologyCo.,Ltd LongTermConfidentialityRequestLetter 2024-09-04 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 USA RE:CONFIDENTIALITYREQUESTFOR(FCCID:2APJN-3837B) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459of CFR47.Wehaverequestedthatthe -e.g.Blockdiagram -e.g.SCH -e.g.OperationalDescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublicreview. Theabovedocumentsarecompanyproprietaryinformationthatcouldnevergetinto thepossessionofyourcompetition. Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Name:Melissaxu Position:Manager CompanyName:ShenzhenApicalTechnologyCo.,Ltd Address:9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad,Hi-tech IndustrialPark,NanshanDistrict,Shenzhen,China Tel/Fax86-755-61613201/0755-61613206 E-Mail:[email protected]

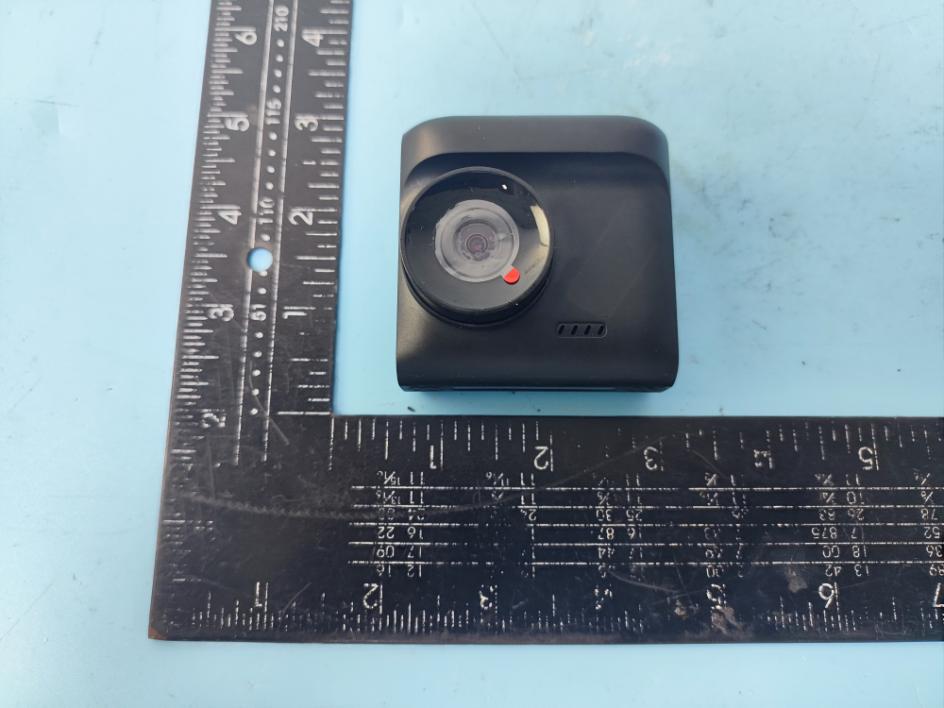

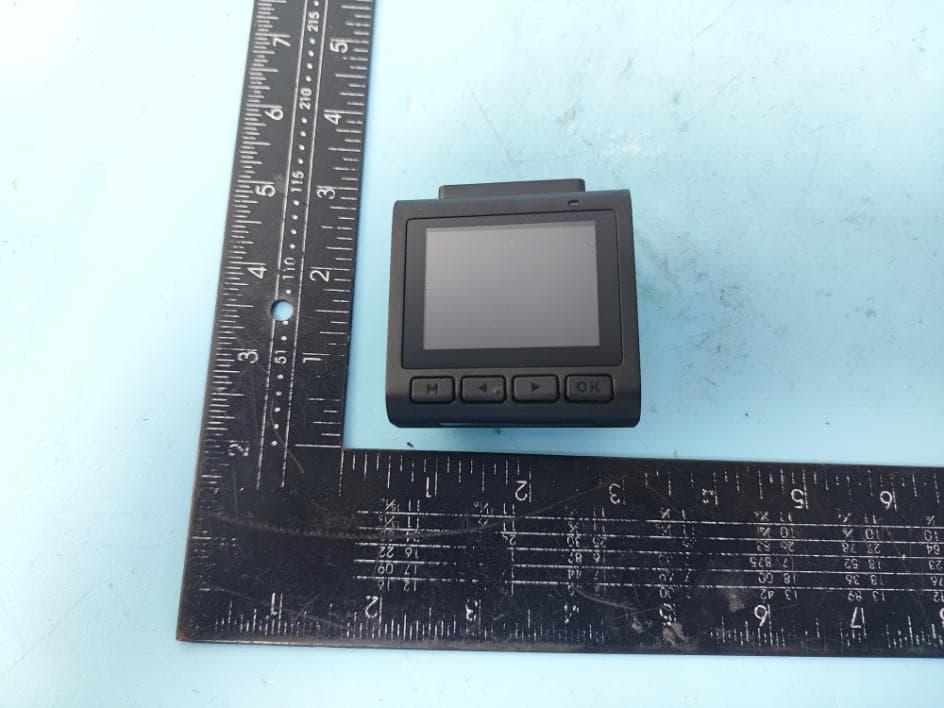

Model No.: 3837B FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: 3837B LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: 3837B TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: 3837B

Labelsize:20*10mm DASHCAMERA Model:3837B FCCID:2APJN-3837B Labellocation

ModelNo.:3837B Page1of5 INTERNALPHOTOOFSAMPLE INTERNALPHOTOOFSAMPLE WIFIantenna ModelNo.:3837B Page2of5 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:3837B Page3of5 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:3837B Page4of5 INTERNALPHOTOOFSAMPLEPCB INTERNALPHOTOOFSAMPLEPCB ModelNo.:3837B Page5of5 INTERNALPHOTOOFSAMPLE

ShenzhenMostTechnologyServiceCo.,Ltd. EastA,1floorofNewAolinFactorybuiding,LangshanErlu,NorthDistrict, Hi-techIndustryPark,Nanshan,Shenzhen,Guangdong,China RFExposureEvaluationReport ReportReferenceNo. ....................... : FCCID.. ............................................... : MTEB24080094-H 2APJN-3837B Compiledby (position+printedname+signature)..:FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :Aug.07,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname ............................... : ShenzhenApicalTechnologyCo.,Ltd Address ................................................. : 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Testspecification/Standard ............ : 47CFRPart1.1307;47CFRPart1.1310 KDB447498D01GeneralRFExposureGuidancev06 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenMostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenMostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassume liabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. Testitemdescription ........................ : DASHCAMERA TradeMark ............................................ : N/A Model/Typereference ......................... : 3837B ListedModels......................................:N/A ModulationType..................................:b:DSSS g/n:OFDM OperationFrequency..........................:From2412MHz~2462MHz HardwareVersion................................. 3837BC-MAIN-01A-03 SoftwareVersion................................... 0.0.3 Rating.....................................................:DC5VbyCarCharger Result ..................................................... :PASS ReportNo.:MTEB24080094-HPage 2 of 6 TESTREPORT EquipmentunderTest:DASHCAMERA Model/Type:3837B ListedModels:N/A RemarkN/A Applicant:ShenzhenApicalTechnologyCo.,Ltd Address: 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Manufacturer:ShenzhenApicalTechnologyCo.,Ltd Address :9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China TestResult:PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24080094-HPage 3 of 6 1.RevisionHistory RevisionIssueDateRevisionsRevisedBy 00 2024.08.07 InitialIssueAlisaLuo ReportNo.:MTEB24080094-HPage 4 of 6 2.SAREvaluation 2.1RFExposureComplianceRequirement 2.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 4.3.1.StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheador bodyand10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. 2.1.2Limits AccordingtoFCCPart1.1310:Thecriterialistedinthefollowingtableshallbeusedtoevaluatethe environmentimpactofhumanexposuretoradiofrequency(RF)radiationasspecifiedinpart1.1307(b) F=FrequencyinMHz FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R 2 )Where Pd=powerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaandthetotalpower inputtotheantenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. ReportNo.:MTEB24080094-HPage 5 of 6 2.1.3EUTRFExposure WIFI2.4G 802.11b Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz) 12.54 12.54±113.54 Middle(2437MHz) 12.51 12.51±113.51 Highest(2462MHz) 13.12 13.12±114.12 802.11g Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz) 14.4814.48±115.48 Middle(2437MHz) 14.6414.64±115.64 Highest(2462MHz) 15.0815.08±116.08 802.11n(H20) Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2412MHz) 13.8513.85±114.85 Middle(2437MHz) 13.9013.90±114.9 Highest(2462MHz) 15.1415.14±116.14 802.11n(H40) Testchannel PeakOutputPower (dBm) Tuneuptolerance (dBm) Maximumtune-upPower (dBm) Lowest(2422MHz) 12.7212.72±113.72 Middle(2437MHz) 12.8512.85±113.85 Highest(2452MHz) 13.1313.13±114.13 ReportNo.:MTEB24080094-HPage 6 of 6 WIFI2.4G Worstcase:802.11n(H20) Channel Maximum tune-upPower (dBm) Maximumtune-up Power (MW) AntennaGain (dBi) Power Density atR=20 cm (mW/cm2) LimitResult Highest(2462MHz)16.1441.114.230.02171.0Pass Note:1)RefertoreportMTEB24080094-RforEUTtestMaxConductedaverageOutputPowervalue. Note:2)Pd=(Pout*G)/(4*Pi*R 2 )=(41.11*2.65)/(4*3.1416*20 2 )=0.0217 .......................THEENDOFREPORT.........................

ShenzhenMostTechnologyServiceCo.,Ltd. No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark,Nanshan, Shenzhen,Guangdong,China. FCCPART15SUBPARTCTESTREPORT FCCPART15.247 ReportReferenceNo........................: FCCID.................................................: MTEB24080094-R 2APJN-3837B Compiledby (position+printedname+signature) .. :FileadministratorsAlisaLuo Supervisedby (position+printedname+signature)..:TestEngineerSunnyDeng Approvedby (position+printedname+signature) .. : ManagerYvetteZhou Dateofissue ......................................... :Aug.07,2024 RepresentativeLaboratoryName . :ShenzhenMostTechnologyServiceCo.,Ltd. Address.................................................: No.5,2ndLangshanRoad,NorthDistrict,Hi-techIndustrialPark, Nanshan,Shenzhen,Guangdong,China. Applicant’sname...............................: ShenzhenApicalTechnologyCo.,Ltd Address ................................................. : 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Testspecification .............................. : Standard ................................................ :FCCPart15.247 TRFOriginator......................................:ShenzhenMostTechnologyServiceCo.,Ltd. ShenzhenMostTechnologyServiceCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongastheShenzhen MostTechnologyServiceCo.,Ltd.isacknowledgedascopyrightownerandsourceofthematerial.Shenzhen MostTechnologyServiceCo.,Ltd.takesnoresponsibilityforandwillnotassumeliabilityfordamages resultingfromthereader'sinterpretationofthereproducedmaterialduetoitsplacementandcontext. Testitemdescription........................: DASHCAMERA TradeMark ............................................ : N/A Model/Typereference ......................... : 3837B ListedModels ...................................... :N/A ModulationType..................................:b:DSSS g/n:OFDM OperationFrequency .......................... :From2412MHz~2462MHz Rating.....................................................: DC5VbyCarCharger Hardwareversion.................................: 3837BC-MAIN-01A-03 Softwareversion.................................: 0.0.3 Result ..................................................... : PASS ReportNo.:MTEB24080094-RPage 2 of 46 TESTREPORT EquipmentunderTest:DASHCAMERA Model/Type:3837B ListedModels:N/A RemarkN/A Applicant:ShenzhenApicalTechnologyCo.,Ltd Address: 9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China Manufacturer:ShenzhenApicalTechnologyCo.,Ltd Address :9F,BuildingB,TsinghuaUnisInfoport,LangshanRoad, Hi-techIndustrialPark,NanshanDistrict,Shenzhen,China TestResult : PASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetest laboratory. ReportNo.:MTEB24080094-RPage 3 of 46 Contents 1REVISIONHISTORY...........................................................................................................................4 2TESTSTANDARDS..............................................................................................................................5 3SUMMARY.................................................................................................................................................6 3.1GeneralRemarks..........................................................................................................................................6 3.2ProductDescription.....................................................................................................................................6 3.3EquipmentUnderTest.................................................................................................................................6 3.4ShortdescriptionoftheEquipmentunderTest(EUT).............................................................................6 3.5EUToperationmode.....................................................................................................................................6 3.6BlockDiagramofTestSetup.......................................................................................................................7 3.7TestItem(EquipmentUnderTest)Description*........................................................................................7 3.8AuxiliaryEquipment(AE)Description........................................................................................................7 3.9AntennaInformation*...................................................................................................................................7 3.10RelatedSubmittal(s)/Grant(s).................................................................................................................7 3.11Modifications...............................................................................................................................................7 3.12EUTconfiguration.......................................................................................................................................8 4TESTENVIRONMENT........................................................................................................................9 4.1Addressofthetestlaboratory....................................................................................................................9 4.2TestFacility...................................................................................................................................................9 4.3Environmentalconditions............................................................................................................................9 4.4TestDescription..........................................................................................................................................10 4.5Statementofthemeasurementuncertainty........................................…

Text truncated - open the document above for the full version.

ReportNo.:MTEB24080094-RPage 38 of 46 APPENDIXIV.99%Bandwidth TestResult ModeChannelAnt. CenterFrequency (MHz) 99%BW(MHz) IEEE802.11b 1 0 241213.318 6243713.170 11246213.266 IEEE802.11g 1241216.564 6243716.487 11246216.490 IEEE802.11n_20 1241217.639 6243717.612 11246217.640 IEEE802.11n_40 3242236.005 6243735.869 9245235.970 TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080094-RPage 39 of 46 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0IEEE802.11n_Channel3_40MHz_Antenna0 IEEE802.11n_Channel6_40MHz_Antenna0IEEE802.11n_Channel9_40MHz_Antenna0 ReportNo.:MTEB24080094-RPage 40 of 46 APPENDIXV.6dBBandwidth TestResult ModeChannelAnt. Center Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Result IEEE802.11b 1 0 24127.919 ≥0.5 PASS 624377.362PASS 1124627.675PASS IEEE802.11g 1241216.10PASS 6243716.04PASS 11246215.75PASS IEEE 802.11n_20 1241216.28PASS 6243716.00PASS 11246215.38PASS IEEE 802.11n_40 3242235.35PASS 6243735.08PASS 9245235.12PASS TestGraphs IEEE802.11b_Channel1_20MHz_Antenna0IEEE802.11b_Channel6_20MHz_Antenna0 IEEE802.11b_Channel11_20MHz_Antenna0IEEE802.11g_Channel1_20MHz_Antenna0 IEEE802.11g_Channel6_20MHz_Antenna0IEEE802.11g_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080094-RPage 41 of 46 IEEE802.11n_Channel1_20MHz_Antenna0IEEE802.11n_Channel6_20MHz_Antenna0 IEEE802.11n_Channel11_20MHz_Antenna0IEEE802.11n_Channel3_40MHz_Antenna0 IEEE802.11n_Channel6_40MHz_Antenna0IEEE802.11n_Channel9_40MHz_Antenna0 ReportNo.:MTEB24080094-RPage 42 of 46 APPENDIXVI.ConductedOutOfBandEmission TestResult ModeChannelAnt. OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) OverLimit (dB) Result IEEE 802.11b 1 0 2349.52-39.324-19.98-19.344PASS 2400.00-41.182-19.98-21.202PASS 4818.70-51.058-19.98-31.078PASS 7251.50-50.521-19.98-30.541PASS 9660.50-51.893-19.98-31.913PASS 24965.7-35.498-19.98-15.518PASS 6 4872.43-52.195-19.79-32.405PASS 7310.19-51.363-19.79-31.573PASS 9749.82-51.302-19.79-31.512PASS 24907.6-35.623-19.79-15.833PASS 11 2483.50-40.956-19.26-21.696PASS 4915.50-52.103-19.26-32.843PASS 7375.73-51.287-19.26-32.027PASS 9852.20-51.999-19.26-32.739PASS 24974.4-35.902-19.26-16.642PASS IEEE 802.11g 1 2400.00-38.998-22.61-16.388PASS 4820.61-52.432-22.61-29.822PASS 7225.29-51.217-22.61-28.607PASS 9663.04-50.879-22.61-28.269PASS 24918.2-35.859-22.61-13.249PASS 6 4883.67-51.986-22.31-29.676PASS 7294.58-49.891-22.31-27.581PASS 9756.06-51.932-22.31-29.622PASS 24931.3-35.574-22.31-13.264PASS 11 2483.50-42.005-21.69-20.315PASS 4909.26-51.877-21.69-30.187PASS 7394.46-51.758-21.69-30.068PASS 9844.08-51.237-21.69-29.547PASS 24905.1-34.801-21.69-13.111PASS IEEE 802.11n_20 1 2355.76-39.488-22.77-16.718PASS 2400.00-41.401-22.77-18.631PASS 4823.70-51.838-22.77-29.068PASS 7240.90-51.309-22.77-28.539PASS 9654.90-51.676-22.77-28.906PASS 24922.6-35.891-22.77-13.121PASS 6 4872.43-51.924-22.45-29.474PASS 7305.82-50.983-22.45-28.533PASS 9763.55-51.174-22.45-28.724PASS 24911.4-35.428-22.45-12.979PASS 11 2483.50-41.959-21.16-20.799PASS 4934.85-51.922-21.16-30.762PASS 7391.96-50.762-21.16-29.602PASS 9846.58-50.949-21.16-29.789PASS 24922.0-35.178-21.16-14.018PASS IEEE 802.11n_40 3 2395.80-39.615-26.38-13.235PASS 2400.00-43.068-26.38-16.688PASS 4863.70-51.810-26.38-25.430PASS 7249.00-50.307-26.38-23.927PASS 9656.80-51.347-26.38-24.967PASS 24912.0-35.858-26.38-9.478PASS 6 4859.32-51.480-26.25-25.230PASS 7292.71-49.697-26.25-23.447PASS 9767.29-50.408-26.25-24.158PASS 24978.8-35.033-26.25-8.783PASS 9 2483.50-39.585-26.11-13.475PASS 4879.30-51.057-26.11-24.947PASS 7323.92-50.367-26.11-24.257PASS 9797.88-50.974-26.11-24.864PASS 24868.3-36.415-26.11-10.305PASS TestGraphs ReportNo.:MTEB24080094-RPage 43 of 46 In-BandReferenceLevel IEEE802.11b_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11b_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11b_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11b_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080094-RPage 44 of 46 In-BandReferenceLevel IEEE802.11g_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11g_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11g_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11g_Channel11_20MHz_Antenna0

ReportNo.:MTEB24080094-RPage 45 of 46 In-BandReferenceLevel IEEE802.11n_Channel1_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel1_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel1_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel6_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel6_20MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel11_20MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel11_20MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel11_20MHz_Antenna0 ReportNo.:MTEB24080094-RPage 46 of 46 In-BandReferenceLevel IEEE802.11n_Channel3_40MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel3_40MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel3_40MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel6_40MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel6_40MHz_Antenna0 In-BandReferenceLevel IEEE802.11n_Channel9_40MHz_Antenna0 OutOfBandEmission IEEE802.11n_Channel9_40MHz_Antenna0 30.0MHz-25000.0MHz IEEE802.11n_Channel9_40MHz_Antenna0 **********************EndofReport**********************

wirelessconnectioncreatsunlimitedpossibilities AntennaTestingReport Customer：apicalTechnology ProjectName：3837 ReportNumber:SZ24081IB77/SZ24081IA57 Manufacturer:SunnywayTechnology(CHINA) Address:Floor6,Building5,NamTaiInnoPark,GuangmingDistrict,Shenzhen Reportversion：July.30,2024 Author：YangJie 1 Record Version Reportdate Remark A02024.7.30 Latesttestdata A1 A2 A3 A4 A5 A6 A7 A8 A9 2/18 Contents 1.Record ......................................................................................................................................................... 2 2.ProjectOverview ..................................................................................................................................... 4 3.EquipmentList .......................................................................................................................................... 5 4.ProjectpicturesandPassivefixturs .................................................................................................. 6 5.VersionInformation................................................................................................................................ 7 6.MatchingCircuit ..................................................................................................................................... 7 7.Passiveparameters................................................................................................................................ 12 8.Passiveefficiency ................................................................................................................................ 16 9.Activedata ............................................................................................................................................... 19 10.EnvironmentSpecification ................................................................................................................. 23 11.Directionalpattern ................................................................................................................................ 24 12.Summary ............................................................................................................................................... 28 3/18 ProjectOverview PrototypestatusDebuggingmachine Devicetype carrecorder NumberofantennasWIFIantenna Frequencyband 802.11B/G/N Structuralstyle FPC+Ceramic Environmentadjustment Nochange Matchingmodification Nochange 4/18 EquipmentList Theindustry'stop64sensorsOTAchamber Frequencyrange:400MHz-11GHz DeviceLlimitation:2M Load-bearinglimitation:100KG 5/18 EquipmentsItems Total Quantity Quantityfor Shanghai R&D Quantityfor Shenzhen R&D Quantityfor ChongQing R&D OTAchamber 10451 5GTester（SP9500-CTS） 3111 R&STester（highconfiguration CMW500） 6321 JapanAnritsuTester（Dual Channel8820） 422 -- NB-IoTTester(SP8315) 3111 AgilentTester（8960） 944 -- AgilentNetworkAnalyzer （E5062A） 7331 AgilentNetworkAnalyzer （E5071C8.5GHZ) 11551 AgilentNetworkAnalyzer （E5071B8.5GHZ) 7331 R&SNetworkAnalyzer（ZND） 9441 R&SNetworkAnalyzer（ZVB） 3111 OTAheadhand/earhand/arm hand 5221 GPS/WIFIactivetestequipment 5221 ProjectpicturesandPassivefixturs WIFIantenna/Antennasize WIFIAntennatype:FPCantenna WIFIAntennamodel: SZ24081IB77 6/18 GPSAntennatype:Ceramicantenna GPSAntennamodel: SZ24081IA57 GPSantenna/Antennasize MatchingCircuit 7/18 WIFIPassivedata S11-VSWR 8/18 WIFIPassivedata Machinepl…
