2APMD-LL-CL30RFRemote Control

USER MANUAL SOLAR LANDSCAPE 30 LED LIGHT Water Proof Heat Resistance Frost Resistance INTRODUCTION PACKING LIST The solar Landscape light can automatically detect surrounding brightness: it enters charging mode to convert sunlight to electricity that is stored in the built-in battery in daytime; it automatically lights up at night. It has 10 modes, and you can adjust to a desired mode by pressing the back button of the product or by remote control. 1.Solar Landscape Light 2.Extension stick 3.Ground Stake 4.Screwvv 5.Wall Plug 6.Remote Control 7.User Manual 6 7 WHITE WARM ON/OFF BRIGHT MODE 01 Low-power indicatorrol 0203 First step Second step (Turn on the product) (Remote control) OPERATION GUIDE Back 1.The default mode of the product is OFF mode. When using it for the first time, you must short press the back button of the product to turn on the product before using the remote control! 2.In addition, it should be noted that if the product is turned off through the back button of the product, it is also necessary to turn on the product through the back button of the product before using the remote control. As long as it is not turned off by the back button of the product during later use, it can be directly operated by the remote control, and there is no need to turn on the product by pressing the back button of the product first. WHITE WARM ON/OFF BRIGHT MODE Short press the power button for once, the landscape light will enter a low white light mode.It will charge but not light up in the day, and it will automatically light up dim white light in darkness or at night. Under low white light mode, short press the back button of the product again. The landscape light will enter a low warm light mode. It will charge but not light up in the day, and it will automatically light up dim warm light in darkness or at night. Under low warm light mode, short press the back button of the product again. The landscape light will enter a medium-low white light mode. It will charge but not light up in the day, and it will automatically light up medium- low white light in darkness or at night. Under medium-low white light mode, short press the back button of the product again. The landscape light will enter a medium-low warm light mode. It will charge but not light up in the day, and it will automatically light up medium-low warm light in darkness or at night. darkness or at night. Under medium-low warm light mode, short press the back button of the product again. The landscape light will enter a medium white light mode. It will charge but not light up in the day, and it will automatically light up medium white light in darkness or at night. THE OPERATION METHOD OF PRODUCT BACK BUTTON Mode 1: Low Light Mode 2: Medium-Low Light Mode 3: Medium Light 0405 Under medium warm light mode, short press the back button of the product again. The landscape light will enter a high white light mode. It will charge but not light up in the day, and it will automatically light up high white light in darkness or at night. Under high white light mode, short press the back button of the product again. The landscape light will enter a high warm light mode. It will charge but not light up in the day, and it will automatically light up high warm light in darkness or at night.darkness or at night. Under high warm light mode, short press the back button of the product again. The landscape light will enter a breathing white light mode. It will charge but not light up in the day, and it will automatically light up breathing white light in darkness or at night. Under breathing white light mode, short press the back button of the product again. The landscape light will enter a breathing warm light mode. It will charge but not light up in the day, and it will automatically light up breathing warm light in darkness or at night. Under medium white light mode, short press the back button of the product again. The landscape light will enter a medium warm light mode. It will charge but not light up in the day, and it will automatically light up medium warm light in darkness or at night. Mode 4: High Light Mode 5: Breathing Light OFF : In any mode, long press the back button of the product for about 2 seconds to turn off the light. Low-power Indicator : When the low-power indicator flashes red, it indicates that the battery is in low-power state.light. ON : Short press the button to turn on the light or switch to low white light mode; OFF : Long press the button to turn off the light. Color temperature : White light/ warm light Brightness : Low light, medium- low light, medium light, high light Mode : Breathing light REMOTE CONTROL OPERATION INSTRUCTIONS WHITE WARM ON/OFF BRIGHT MODE 0607 3. When the battery power is very low, the changes of the brightness mode might not be obvious. 1. It is recommended to turn off the light and charge it under direct sunlight for 1-2 days before the first use. Make sure the product has enough power. 2. If you want to check whether the product can work normally or not, please turn it on by pressing the back button, then cover the solar panel with your hands in the daytime or put it in a dark environment. NOTE: INSTALLATION Press the back button and select a desired mode. Then choose a place that can get enough sunshine to install the light, the longer it gets sunshine, the longer it can illuminate. Method 1: Ground Inserted Connect the extension stick, ground stake and the light together. Then adjust the angle of solar panel and light head through loosening or tightening the knob screw to get enough sunlight during the day. Insert the whole light into the ground vertically. 0809 40mm Wall plugs Knob screw Screws Holder Method 2: Wall Mounted Punch two holes on the wall with a drill and insert the attached wall plugs into the holes. Then, twist the screws through the screw holes of holder into the wall plugs. Adjust the angle, then tighten the holder and the light through the knob screw. FAQ The built-in ba…

Text truncated - open the document above for the full version.

FCC ID:2APMD- Shenzhen Xintuo Supply Chain LTD ADD: F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China TEL:18566621145 Email:[email protected] DECLARATION OF SIMILARITY Date: 2020-12-3 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Shenzhen Xintuo Supply Chain LTD, hereby declare that the product: 8KSUZKIUTZXUR ,  LL-CL30RF. model: CD295A is electrically identical with the model: LL-CL30RF which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Derric Bai Manager

QA-FR-170-B Shenzhen Xintuo Supply Chain LTD ADD: F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China TEL: 18566621145 E-mail: [email protected] FCC Authorization Date:2020-12-3 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen Xintuo Supply Chain LTD, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Derric Bai Manager

FCC ID:2APMD-LL-CL30RF QA-FR-171-A Shenzhen Xintuo Supply Chain LTD ADD: F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China TEL:18566621145 Email:[email protected] FCC Confidential Authorization Date: 2020-12-3 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen Xintuo Supply Chain LTD) hereby requests long-term confidential treatment of information accompanying this application as outlined below: xBlock Diagram xSchematics xOperation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Derric Bai Manager

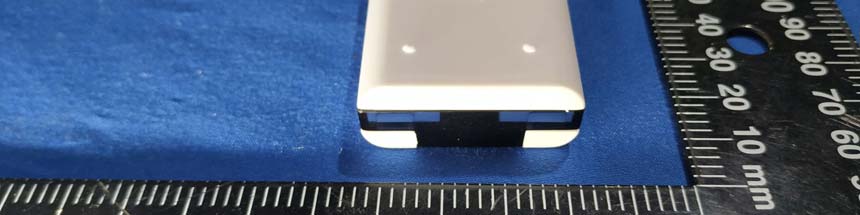

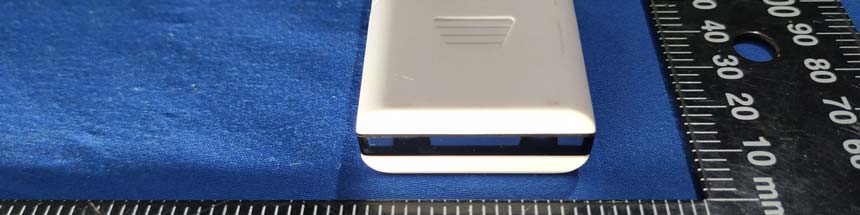

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

MODEL:LL-CL30RF FCC ID:2APMD-LL-CL30RF

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS ANT Chip

FCC PART 15.249 TEST REPORT For Shenzhen Xintuo Supply Chain LTD F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen,Guangdong China FCC ID: 2APMD-LL-CL30RF Report Type: Original Report Product Type: Remote control Report Number: RDG201111004-00 Report Date: 2020-12-04 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201111004-00 Page 2 of 17 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC§15.205, §15.209&§15.249- RADIATED EMISSIONS ...................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 EUT SETUP .................................................................................................................................................................. 8 TEST EQUIPMENT SETUP .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 10 FCC §15.215(C) – 20 DB BANDWIDTH TESTING ................................................................................................ 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201111004-00 Page 3 of 17 GENERAL INFORMATION Product Description for Equipment under Test (EUT) EUT Name: Remote control EUT Model: LL-CL30RF Multiple Model: CD295A Operation Frequency: 2420MHz Modulation Type: GFSK Rated Input Voltage: DC 12V from Battery Serial Number: RDG201111004-RF-S1 EUT Received Date: 2020.11.13 EUT Received Status: Good Note: The series product, models LL-CL30RF, CD295A are electrically identical. Model LL-CL30RF was fu…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View
