2APMD-PA200A2-IN-1 WIRELESS CHARGER PAD

Shenzhen Xintuo Supply Chain LTD ADD: F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China TEL:18566621145 Email:[email protected] DECLARATION OF SIMILARITY Date: 2020-10-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Shenzhen Xintuo Supply Chain LTD, hereby declare that the product: 2-IN-1 WIRELESS CHARGER PAD, FCC ID: 2APMD-PA200A. model: PA200B is electrically identical with the model: PA200A which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: They are the same product, and just the different model name, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Derric Bai Manager

QA-FR-170-B Shenzhen Xintuo Supply Chain LTD ADD: F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China TEL: 18566621145 E-mail: [email protected] FCC Authorization Date:2020-10-14 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Shenzhen Xintuo Supply Chain LTD, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Derric Bai Manager

QA-FR-171-A Shenzhen Xintuo Supply Chain LTD ADD: F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China TEL:18566621145 Email:[email protected] FCC Confidential Authorization Date: 2020-10-14 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2APMD-PA200A In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (Shenzhen Xintuo Supply Chain LTD) hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Derric Bai Manager

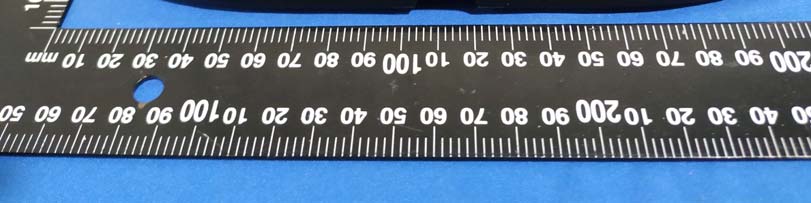

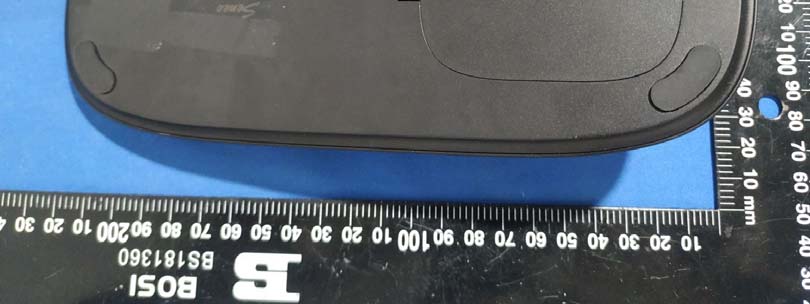

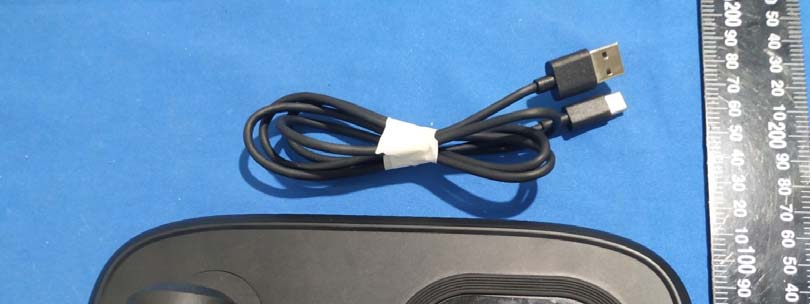

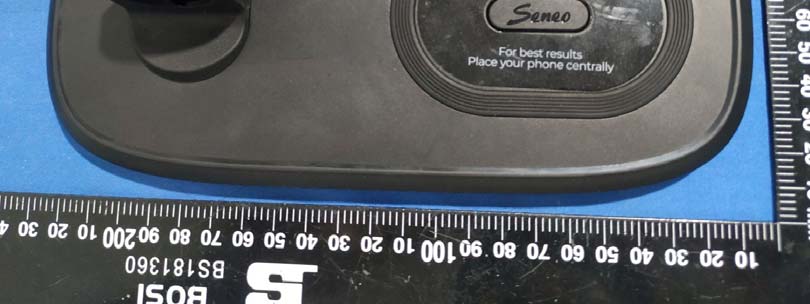

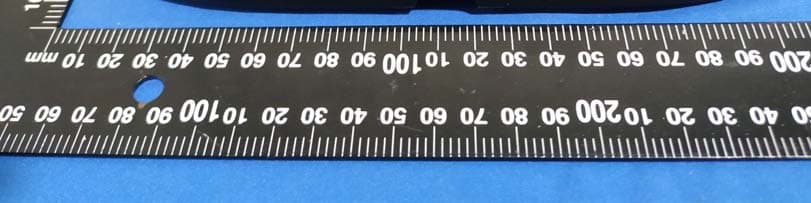

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS

3 9 . 4 1 m m 29.96 mm

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS

Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200914011-00 Page 8 of 30 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1500 / / f/1500 30 1500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According with KDB 680106 D01 RF Exposure Wireless Charging Apps v03 clause 3 c) According to 680106 D01 RF Exposure Wireless Charging App v03 clause 5 b) Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200914011-00 Page 9 of 30 Block Diagram of Test Setup Note: 20 cm for Top test. Test Equipment List and Details Manufacturer Description Model Serial Number Calibration Date Calibration Due Date Narda Exposure Level TesterELT-400 N-0229 2019-11-15 2022-11-15 Narda B Field Probe ELT Probe 100cm2 M-0666 2019-11-15 2022-11-15 Amplifier Research Isotropic Field ProbeFP5000 301825 2018-11-22 2021-11-22 * Statement of Traceability: Bay Area Compliance Laboratories Corp. (Dongguan) attests that all calibrations have been performed, traceable to National Primary Standards and International System of Units (SI). Test Data Environmental Conditions Temperature: 26.4°C Relative Humidity: 46 % ATM Pressure: 100.9 kPa Test Engineer: Joker Chen Test Date 2020-10-17 15cm Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200914011-00 Page 10 of 30 Test Mode 1:Wireless Charging and USB Type A Charging H-field Strength: Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit Te s t (A/m) 110-215 0.210 0.190 0.206 0.209 0.208 0.815 1.63 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top(Position E) test. E-field Strength: Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit Te s t (V/m) 110-215 2.218 1.967 2.216 2.236 2.224 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top(Position E) test. Test Mode 2:Wireless Charging and USB Type C Charging H-field Strength: Frequency Range (kHz) Position A (A/m) Position B (A/m) Position C (A/m) Position D (A/m) Position E (A/m) 50% Limit (A/m) Limit Te s t (A/m) 110-215 0.204 0.193 0.210 0.221 0.214 0.815 1.63 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top(Position E) test. E-field Strength: Frequency Range (kHz) Position A (V/m) Position B (V/m) Position C (V/m) Position D (V/m) Position E (V/m) 50% Limit (V/m) Limit Te s t (V/m) 110-215 2.221 2.039 2.224 2.231 2.219 307 614 Note: Test with 15cm distance from the center of the probe(s) to the edge of the device, 20 cm for top(Position E) test. Result: Compliance Considerations of compliance 680106 D01 RF Exposure Wireless Charging App v03 clause 5 b: (1) Power transfer frequency is less than 1 MHz. Yes, the operation frequency is 110-215 kHz. (2) Output power from each primary coil is less than or equal to 15 watts. Yes, the maximum output power of primary coil is 10 Watts, less than 15 watts. Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200914011-00 Page 11 of 30 (3) The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The transfer system includes only single primary coil, and system detect and allow coupling only between individual pairs of coils. (4) Client device is placed directly in contact with the transmitter. Yes, client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Yes, mobile exposure conditions only (6) The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Yes, the test result for H and E-field strength less than 50% of the MPE limit.

FCC PART 15C TEST REPORT For Shenzhen Xintuo Supply Chain LTD F1 Building 2 Snow Industrial Park SnowElephant Community, Bantian Street Longgang, Shenzhen, Guangdong China FCC ID: 2APMD-PA200A Report Type: Original Report Product Name: 2-IN-1 WIRELESS CHARGER PAD Re port Number: RDG200914011-00 Re port Date: 2020-10-26 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG200914011-00 Page 2 of 30 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 5 SUPPORT CABLE LIST AND DETAILS ............................................................................................................................ 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1310, §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 TEST EQUIPMENT LIST AND DETAILS ........................................................................................................................... 9 TEST DATA .................................................................................................................................................................. 9 FCC§15.203 - ANTENNA REQUIREMENT ............................................................................................................ 12 APPLICABLE STANDARD ............................................................................................................................................ 12 ANTENNA CONNECTED CONSTRUCTION .................................................................................................................... 12 FCC §15.207 – AC LINE CONDUCTED EMISSION ............................................................................................. 13 EUT SETUP ................................................................................................................................................................ 13 EMI TEST RECEIVER SETUP ....................................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 14 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 14 TEST RESULTS SUMMARY .......................................................................................................................................... 15 TEST DATA ................................................................................................................................................................ 15 FCC §15.205 & §15.209 - RADIATED EMISSIONS TEST .................................................................................... 20 APPLICABLE STANDARD ............................................................................................................................................ 20 EUT SETUP .................................................................................…
