Mini FM Radio.BT Player Operational Thank you for your purchase, please read the operation instructions before use, and please keep it safe for future reference. 1：Product overview ☞This product is a radio programmed by DSP software, with high sensitivity and stable signal. ☞The Bluetooth connection of version 5.0 can be used for short-distance music transmission (receiving distance ≦10 meters) to achieve wireless music transmission。 ☞This product supports the conversion of FM signals into Bluetooth signals to be transmitted to Bluetooth earphones for listening. Create more convenience for users. ☞Use high-quality speakers, sound comfortable. You can plug in Earphones to listen. ☞COG module Display，The display content is abundant: FM frequency point, working mode, storage station, take station indication, volume level, time, date and other related content, to give the user a clear operation instruction. ☞Radio search station mode: automatic search station, automatic search station, manual search station. ☞Radio storage mode: manual storage, automatic scanning storage radio. ☞Radio chip capacity is larget, storage stations can be stored 30, and has the shutdown memory function. ☞Support for lock，Adjustable alarm clock， Backlight,The product function is very humanized. ☞The use of steel tie rod antenna is not easy to bend and break, and the received signal is more stable. ☞Charge using the Type-C charging jack. 2：introduction to COG module Display Welcome to Digital Radio Displays content when powered on Standby Enter standby mode Set time Set time Set 12/24 hour 24h Set the 12 hour /24 hour format Time Saved update adjust time successful Time Not Saved update adjust time not successful Enable alarm symbol indicator Alarm off Stop the alarm Alarm Setup Enter alarm Settings Alarm Wizard On time xx:xx Alarm time setting Alarm Wizard Duration 90-60-45-30-15 The alarm lasts 90-60-45-30-15 minutes Alarm Wizard Source FM The alarm tone is a radio broadcast Alarm Wizard Last listened The alarm clock is the last radio broadcast to be heard before switching off Once Ring the alarm once Daily Ring the alarm every day Week days An alarm goes off during the workday Week ends Ring the alarm weekends Alarm Not Saved Alarm clock not saved Preset Store Preset storage Preset **Stored The storage station is saved successfully Preset Store <x(Empty) > The store address number is empty P** Storage/recall address number NO Radio text No radio information Preset Recall Recall station Bluetooth Connected Bluetooth connected Bluetooth Not Connected Bluetooth not connected Auto Scanning Fully automatic search and storage stations TX+ TX Blinking indicates searching for Bluetooth devices； TX The constant state indicates that the connected device is connected。 Volume Volume level indicator symbol FM unit FM FM receiver mode AM 12 hour format in the morning symbol PM 12 hour format in the afternoon symbol Charge indication symbol Battery capacity symbol Lock symbol 3：Description of each key function： 【】 Power on/off button [see Operation Description 5.1 for details] 【+.-】 Adjust the volume [See Operation 5.2 for details] 【BAND】 1: Set alarm function [see operation introduction point 9 for details] 2：Working mode. Tap to switch Bluetooth/Radio working mode 3：Working mode, enter to the full automatic scan and storage station [details see operation description 5.3.1] 【∧】 1：Select station/music song/adjust time/adjust alarm clock to increase 2：FM mode,long press to automatically search for stations 【∨】 1：Select station/Select music song/Adjust time/Adjust alarm clock decrease 2：FM mode,long press to automatically search for stations MEM 1：Enter the time setting [see operation introduction point 8 for details]. 2：Radio working mode: long press start manual storage mode; Tap to enter recall station mode. 3：Confirm button when you finish Manually store the station, Recall the station. 4: Bluetooth playback mode: Pause/switch between playback; Hold down to disconnect the Bluetooth connection. 1：Long press enter“”Lock state；long press again cancel the Lock state. [see operation introduction point 11 for details]. 2：Radio working mode: Tap to turn on/off the radio signal into Bluetooth signal transmission mode. DC 5V Charge status display“”symbol Full charge status display“” symbol earphone 3.5mm earphone jack 4： Radio charging introduction When using the Radio for the first time, it is recommended to charging before using it. The recommended charging adapter parameters are：DC5V/1A-3 A。 5：Function Introduction： 5.1.Power ON/OFF： Turn on the radio：long press the【】button 2 second，LCD display the time state Tap again【】button，Turn on the radio。 Turn off the radio：Tap the 【】button to turn off the radio. Tip: After turn off the radio,Time is displayed, and long press [ ] key again for 2 seconds to close the time display, enter the power saving mode. In the time display state, stop any operation, 10 seconds later, the backlight will automatically turn off and display the clock, and 10 minutes later, the clock will automatically turn off and enter the power saving mode. 5.2：Value Adjustment： Volume can be adjusted within "" 16 levels Powder-on state, tap any key to turn on the backlight, tap the volume [+.-] key to increase or decrease the volume, and long press the volume [+.-] button to adjust the volume rapidly. 5.3：There are three ways to search for radio stations: -Full automatic scan and storage station -Automatic search for radio stations -Manual search for radio stations FM frequency receiving range :87.5-108.0MHZ, tuning step value: 0.05MHZ, 5.3.1：Full automatic scan and storage station： On the Radio working mode, tap any key to turn on the backlight, and long press [BAND] key for 2 seconds to enter “Full automatic scan and storage station”function, the frequency is from the lowest end to the highest end, automatic scan and search radio stations, and automatically store radio stations with signals. 5.3.2：Automatic search for …

Text truncated - open the document above for the full version.

Shenzhen Hanrongda Electronic Co., Ltd. No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-25 To whom it may concern: We, Shenzhen Hanrongda Electronic Co., Ltd., hereby certify that the equipment for which authorization is sought (FCC ID: 2APU9-HRD-205) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Dan Ling Manager Shenzhen Hanrongda Electronic Co., Ltd. 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

Shenzhen Hanrongda Electronic Co., Ltd. No.21, LiYuanxia, Xin Li Road, Ping Hu Town, Long Gang District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/07/20 U.S. Agent Designation Shenzhen Hanrongda Electronic Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2APU9-HRD-205): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of Shenzhen Hanrongda Electronic Co., Ltd. Shenzhen Hanrongda Electronic Co., Ltd. with the FRN [0027534858] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Dan Ling Manager Shenzhen Hanrongda Electronic Co., Ltd. Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-7-25> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2APU9-HRD-205 HRD-205 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Dan Ling/Manager Company: Shenzhen Hanrongda Electronic Co., Ltd. Address: No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Phone: +86 75528498283 Fax: N/A E-Mail: [email protected]

Shenzhen Hanrongda Electronic Co., Ltd. No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-25 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2APU9-HRD-205 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Dan Ling/Manager Company: Shenzhen Hanrongda Electronic Co., Ltd. Address: No.21, LiYuanxia,Xin Li Road, Ping Hu Town, Long Gang District,Shenzhen China Phone: +86 75528498283 Fax: N/A E-Mail: [email protected]

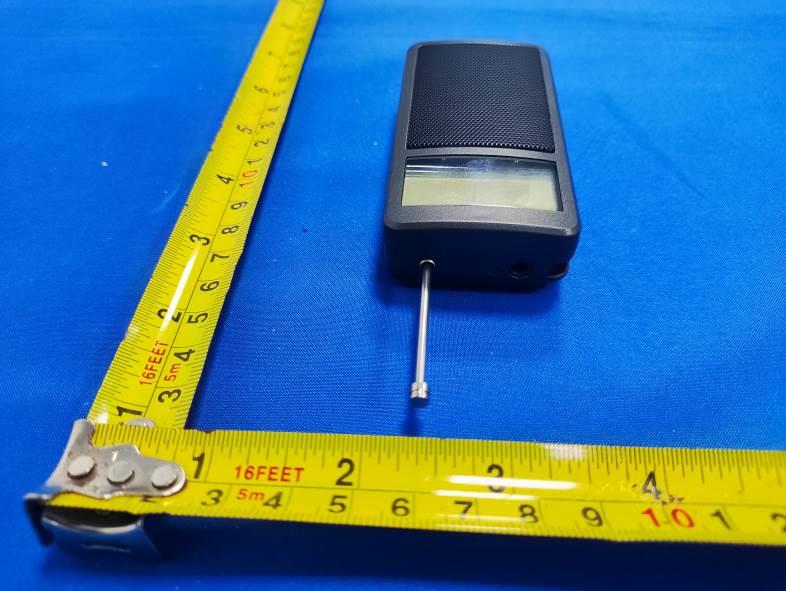

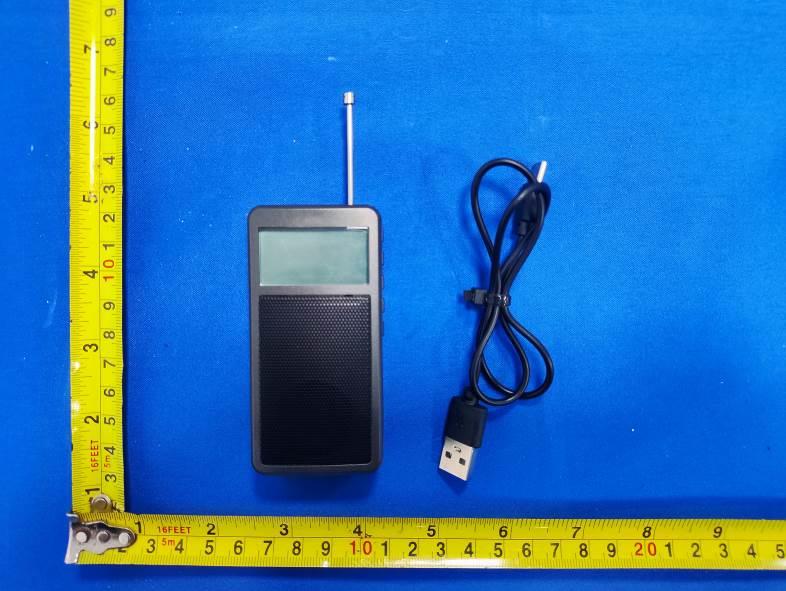

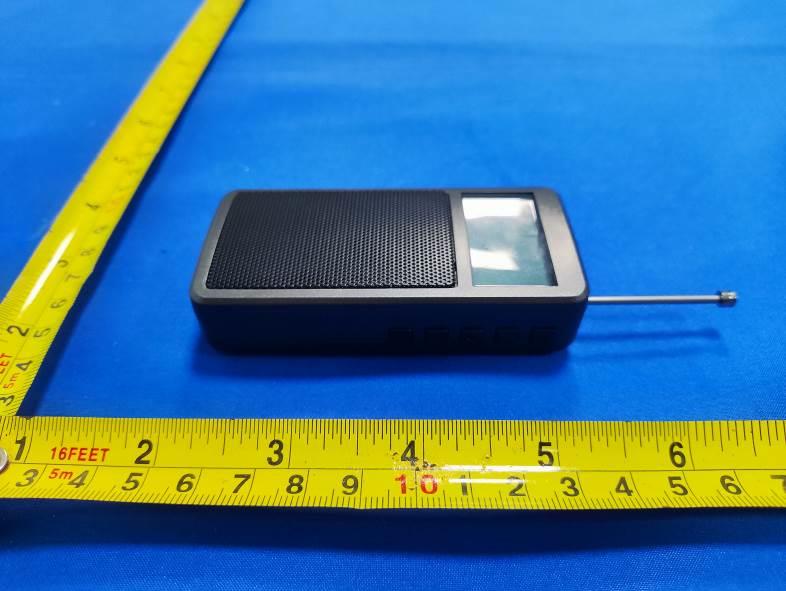

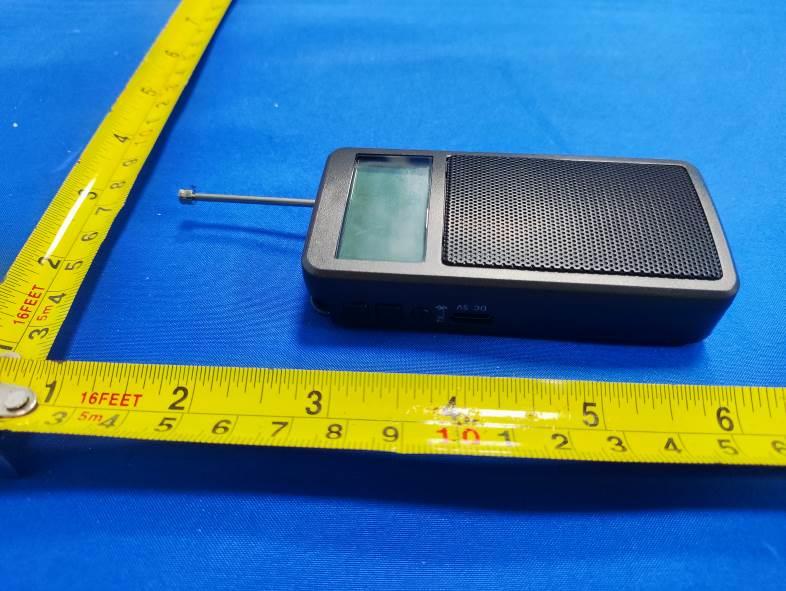

FCC ID: 2APU9-HRD-205 External Photos of the EUT FCC ID: 2APU9-HRD-205 FCC ID: 2APU9-HRD-205

Label and Location Size: L: 3.0cm*W: 2.0cm Label and Location FCC ID : 2APU9-HRD-205

FCC ID: 2APU9-HRD-205 Internal Photos of the EUT FCC ID: 2APU9-HRD-205 FCC ID: 2APU9-HRD-205 FCC ID: 2APU9-HRD-205 ANT

RF Exposure evaluation FCC ID: 2A4AA-SK-380 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 0.0 Tolerance ±(dB) 1.0 1.0 1.0 8-DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0.0 0.0 2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 3.0 1.9953 0.6246<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

1. Antenna Description: Antenna type Mini FM Radio.Bluetooth Player Model HRD-205 Frequency range 2400-2500MHz Manufacturer Shenzhen Hanrongda Electronic Co.,Ltd ANT Peak Gain 1.00 dBi 2. Antenna Photo: Length :9.66mm Width:3.58mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz
