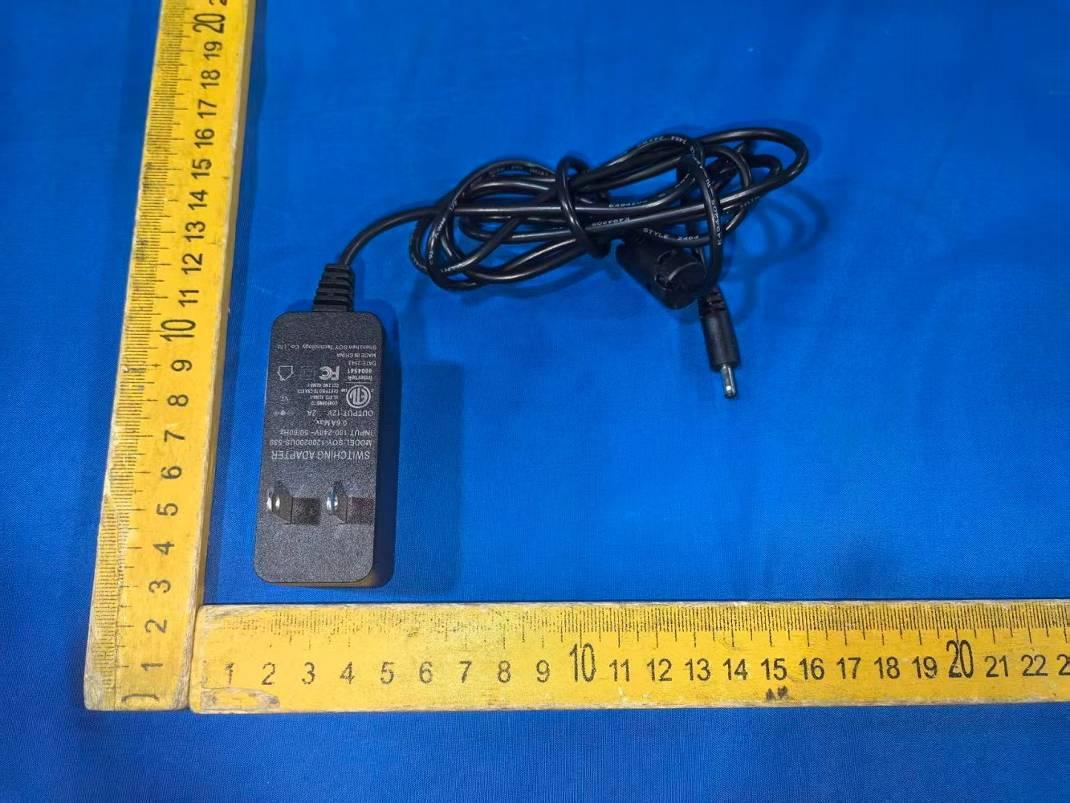

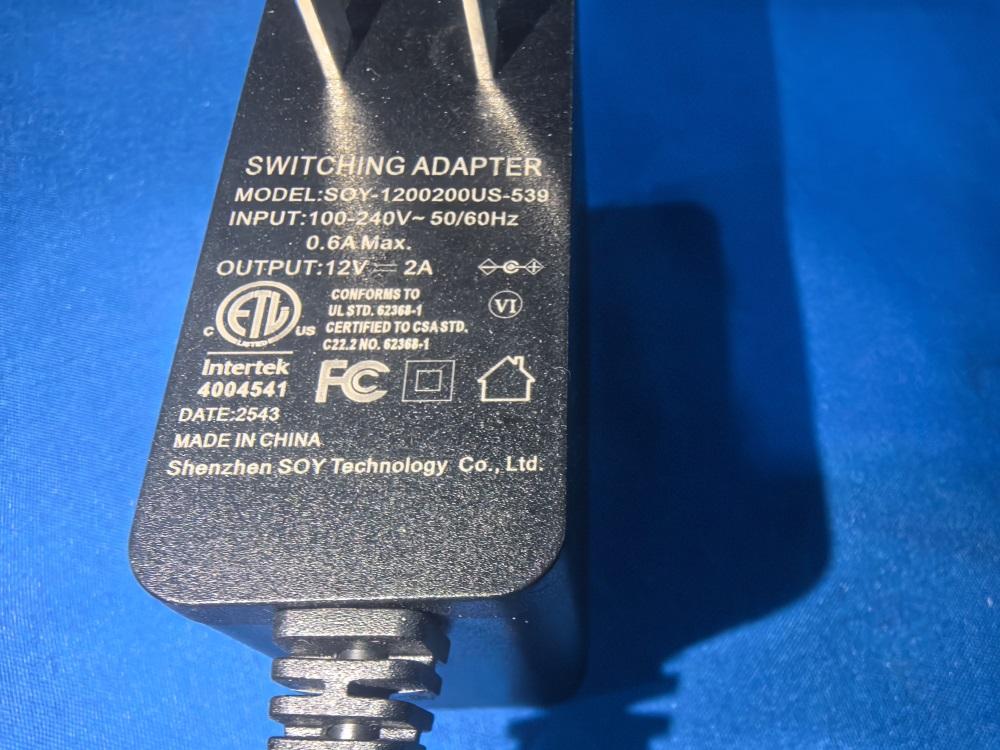

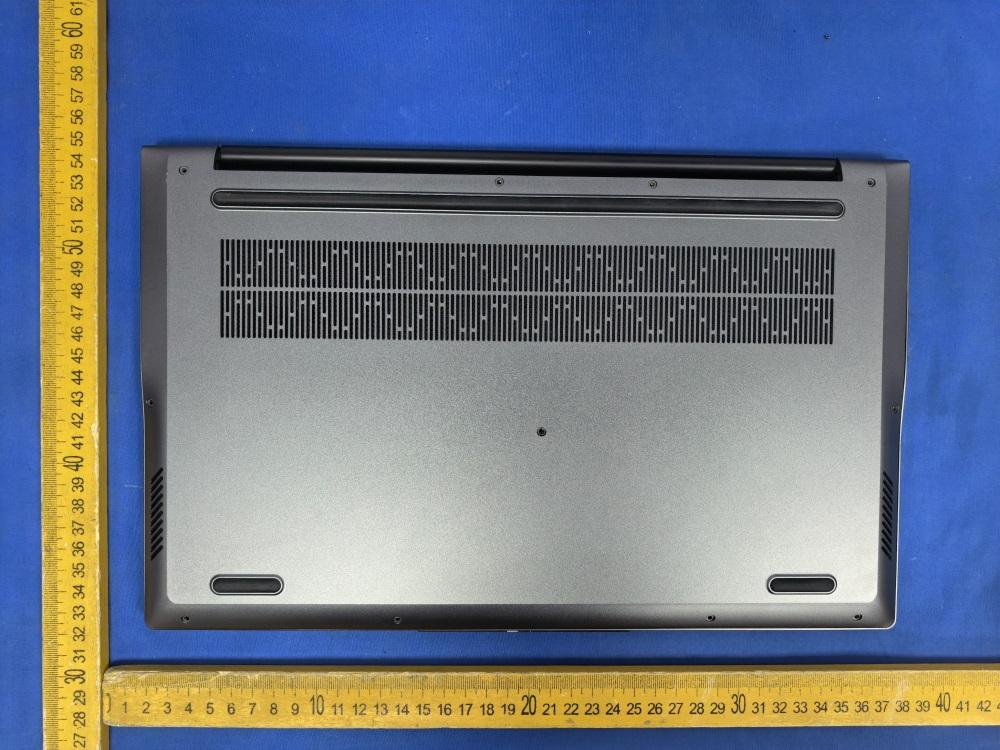

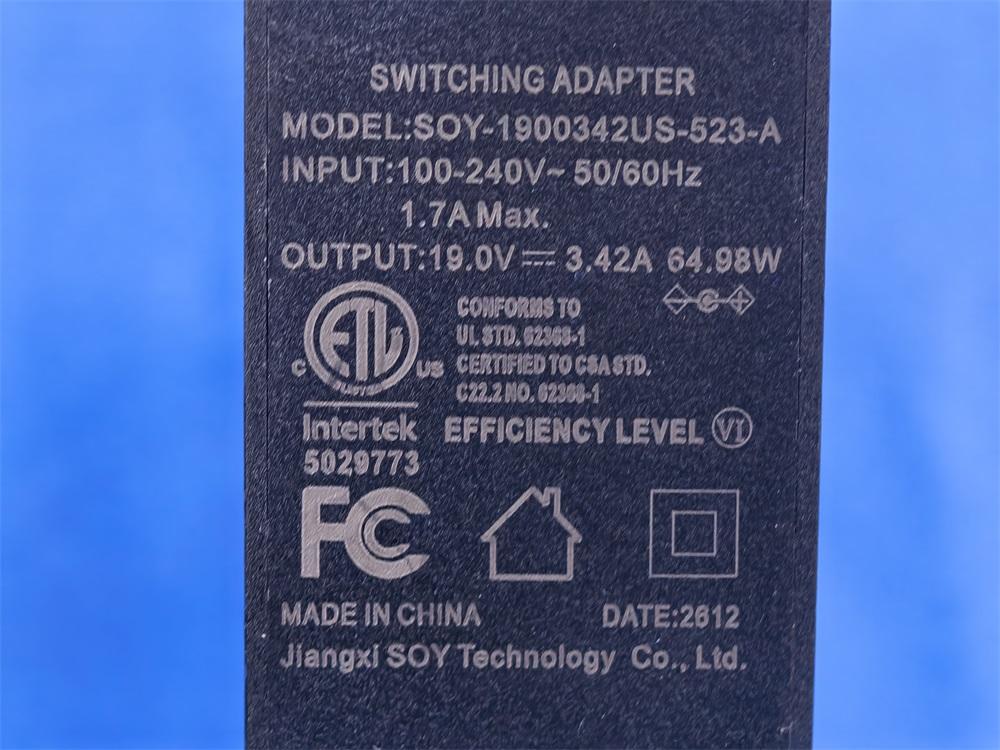

2APUQ-W1523Laptop

Laptop QUICK GUIDE computadora portátil.Si necesita respuestas a preguntas técnicas o necesita información más especializada ingrese al siguiente link: https://www.damascovzla.com/. Laptop QUICK GUIDE Laptop QUICK GUIDE Laptop QUICK GUIDE LP-N45-8-128S, LP-N45-8-256P no tiene esta interfaz FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specific Absorption Rate (SAR) information: This Laptop meets the government's requirements for exposure to radio waves. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons regardless of age or health. FCC RF Exposure Information and Statement the SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types: Laptop has also been tested against this SAR limit. This device was tested for typical body-worn operations with the back of the Laptop kept 0mm from the body. To maintain compliance with FCC RF exposure requirements, use accessories that maintain an 0 mm separation distance between the user's body and the back of the Laptop. The use of belt clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.

FCCID:2APUQ-W1523 1 Case No. : GTS20260617003-1-04 Ambient Condition: 23 °C, 52 %RH According Standard: ■Part15E Test Date:2026.6.22-2026.7.20Test Engineer: Evan ouyang Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 28.600 5167.720 5196.320 --- --- 5200 28.040 5185.320 5213.360 --- --- 5240 29.920 5225.160 5255.080 --- --- 11N20SISO Ant2 5180 28.600 5168.960 5197.560 --- --- 5200 28.800 5187.480 5216.280 --- --- 5240 26.560 5228.840 5255.400 --- --- 11N40SISO Ant2 5190 57.680 5168.640 5226.320 --- --- 5230 65.200 5200.880 5266.080 --- --- 11AC20SISO Ant2 5180 27.840 5169.040 5196.880 --- --- 5200 21.080 5189.560 5210.640 --- --- 5240 30.440 5226.480 5256.920 --- --- 11AC40SISO Ant2 5190 64.880 5161.440 5226.320 --- --- 5230 72.480 5194.000 5266.480 --- --- 11AC80SISO Ant2 5210 120.800 5168.880 5289.680 --- --- FCCID:2APUQ-W1523 2 Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 FCCID:2APUQ-W1523 3 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 FCCID:2APUQ-W1523 4 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 FCCID:2APUQ-W1523 5 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 FCCID:2APUQ-W1523 6 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 FCCID:2APUQ-W1523 7 11AC80SISO_Ant2_5210 FCCID:2APUQ-W1523 8 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 17.481 5171.2954 5188.7764 --- --- 5200 17.480 5191.2590 5208.7390 --- --- 5240 17.670 5231.0999 5248.7699 --- --- 11N20SISO Ant2 5180 18.205 5170.9290 5189.1340 --- --- 5200 18.297 5190.8821 5209.1791 --- --- 5240 18.303 5230.8437 5249.1467 --- --- 11N40SISO Ant2 5190 36.944 5171.8146 5208.7586 --- --- 5230 37.171 5211.6213 5248.7923 --- --- 11AC20SISO Ant2 5180 18.157 5170.9489 5189.1059 --- --- 5200 17.962 5190.9896 5208.9516 --- --- 5240 18.359 5230.8062 5249.1652 --- --- 11AC40SISO Ant2 5190 37.087 5171.7482 5208.8352 --- --- 5230 37.242 5211.5758 5248.8178 --- --- 11AC80SISO Ant2 5210 76.549 5172.3746 5248.9236 --- --- FCCID:2APUQ-W1523 9 Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 FCCID:2APUQ-W1523 10 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 FCCID:2APUQ-W1523 11 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 FCCID:2APUQ-W1523 12 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 FCCID:2APUQ-W1523 13 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 FCCID:2APUQ-W1523 14 11AC80SISO_Ant2_5210 FCCID:2APUQ-W1523 15 AppendixD.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant2 5180 30.00 30.00 100.00 0.00 0.03 5200 30.00 30.00 100.00 0.00 0.03 5240 30.00 30.00 100.00 0.00 0.03 11N20SISO Ant2 5180 30.00 30.00 100.00 0.00 0.03 5200 30.00 30.00 100.00 0.00 0.03 5240 30.00 30.00 100.00 0.00 0.03 11N40SISO Ant2 5190 30.00 30.00 100.00 0.00 0.03 5230 30.00 30.00 100.00 0.00 0.03 11AC20SISO Ant2 5180 30.00 30.00 100.00 0.00 0.03 5200 30.00 30.00 100.00 0.00 0.03 5240 30.00 30.00 100.00 0.00 0.03 11AC40SISO Ant2 5190 30.00 30.00 100.00 0.00 0.03 5230 30.00 30.00 100.00 0.00 0.03 11AC80SISO Ant2 5210 30.00 30.00 100.00 0.00 0.03 FCCID:2APUQ-W1523 16 Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 FCCID:2APUQ-W1523 17 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 FCCID:2APUQ-W1523 18 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 FCCID:2APUQ-W1523 19 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 FCCID:2APUQ-W1523 20 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 FCCID:2APUQ-W1523 21 11AC80SISO_Ant2_5210 FCCID:2APUQ-W1523 22 Appendix D.4: Maximum conducted output power Test Result Channel Power DC 11.4V by battery Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5180 10.60 100.00 0.00 10.60 ≤23.98 PASS 5200 11.42 100.00 0.00 11.42 ≤23.98 PASS 5240 12.18 100.00 0.00 12.18 ≤23.98 PASS 11N20SISO Ant2 5180 10.41 100.00 0.00 10.41 ≤23.98 PASS 5200 11.64 100.00 0.00 11.64 ≤23.98 PASS 5240 12.25 100.00 0.00 12.25 ≤23.98 PASS 11N40SISO Ant2 5190 11.21 100.00 0.00 11.21 ≤23.98 PASS 5230 11.96 100.00 0.00 11.96 ≤23.98 PASS 11AC20SISO Ant2 5180 10.48 100.00 0.00 10.48 ≤23.98 PASS 5200 9.35 100.00 0.00 9.35 ≤23.98 PASS 5240 12.17 100.00 0.00 12.17 ≤23.98 PASS 11AC40SISO Ant2 5190 11.05 100.00 0.00 11.05 ≤23.98 PASS 5230 12.06 100.00 0.00 12.06 ≤23.98 PASS 11AC80SISO Ant2 5210 11.38 100.00 0.00 11.38 ≤23.98 PASS DC 7.6V by battery Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5180 10.42 100.00 0.00 10.42 ≤23.98 PASS 5200 11.03 100.00 0.00 11.03 ≤23.98 PASS 5240 11.89 100.00 0.00 11.89 ≤23.98 PASS 11N20SISO Ant2 5180 10.12 100.00 0.00 10.12 ≤23.98 PASS 5200 11.33 100.00 0.00 11.33 ≤23.98 PASS 5240 11.87 100.00 0.00 11.87 ≤23.98 PASS 11N40SISO Ant2 5190 10.69 100.00 0.00 10.69 ≤23.98 PASS 5230 11.57 100.00 0.00 11.57 ≤23.98 PASS 11AC20SISO Ant2 5180 10.14 100.00 0.00 10.14 ≤23.98 PASS 5200 9.03 100.00 0.00 9.03 ≤23.98 PASS 5240 11.85 100.00 0.00 11.85 ≤23.98 PASS 11AC40SISO Ant2 5190 10.69 100.00 0.00 10.69 ≤23.98 PASS 5230 11.35 100.00 0.00 11.35 ≤23.98 PASS 11AC80SISO Ant2 5210 10.89 100.00 0.00 10.89 ≤23.98 PASS FCCID:2APUQ-W1523 23 Appendix D.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant2 5180 -0.80 ≤11.00 PASS 5200 -0.05 ≤11.00 PASS 5240 0.68 ≤11.00 PASS 11N20SISO Ant2 5180 -1.16 ≤11.00 PASS 5200 -0.09 ≤11.00 PASS 5240 0.47 ≤11.00 PASS 11N40SISO Ant2 5190 -3.21 ≤11.00 PASS 5230 -2.68 ≤11.00 PASS 11AC20SISO Ant2 5180 -1.12 ≤11.00 PASS 5200 -2.23 ≤11.00 PASS 5240 0.46 ≤11.00 PASS 11AC40SISO Ant2 5190 -3.33 ≤11.00 PASS 5230 -2.58 ≤11.00 PASS 11AC80SISO Ant2 5210 -4.72 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factorand RBW…

Text truncated - open the document above for the full version.

FCC ID: 2APUQ-W1523 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2APUQ-W1523 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

FCCID:2APUQ-W1523ReportNumber:BTF260710R00101 ANNEXDSARTestSetupPhotos ReferencePhoto:simulationliquiddepth15cm ReferencePhotos Back(dist.0mm)

Shenzhen Global Test Service Co.,Ltd. Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community, Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. .................... : FCC ID. ........................................... : GTS20260617003-1-05 2APUQ-W1523 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue ................................... : Jul.20, 2026 Representative Laboratory Name : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community,Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China Applicant’s name ........................... : Hunan Greatwall Computer System Co.,Ltd Address ............................................ : Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China Test specification........................... : Standard .......................................... : FCC Part 15.407: UNLICENSED NATIONAL INFORMATION INFRASTRUCTURE DEVICES TRF Originator ................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Laptop Trade Mark ....................................... : DAMASCO, Great Wall Manufacturer .................................... : Hunan Greatwall Computer System Co.,Ltd Model/Type reference ...................... : W1523LS-ED Listed Models .................................. : W1523JP-WD, W1523AP-WD, W1523AP-PD, W1523LP-ED, W1523ABP-WD, LP-N45-8-128S, LP-N45-8-256P, LP-R3-8-256P, LP-R3-8-512S, LP-R5-8-512S, LP-R5-16-512S, LP-I5-8-512S, LP-I5-16-512S Operation Frequency ....................... : From 5260MHz to 5320MHz, 5500MHz to 5700MHz Rating ............................................... : DC 11.4V by battery, Recharged by DC 19.0V or DC 7.6V by battery, Recharged by DC 12.0V Result ............................................... : PASS Report No.: GTS20260617003-1-05 Page 2 of 28 T E S T R E P O R T Test Report No. : GTS20260617003-1-05 Jul.20, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : Laptop Model /Type : W1523LS-ED Listed Models : W1523JP-WD, W1523AP-WD, W1523AP-PD, W1523LP-ED, W1523ABP-WD, LP-N45-8-128S, LP-N45-8-256P, LP-R3-8-256P, LP-R3-8-512S, LP-R5-8-512S, LP-R5-16-512S, LP-I5-8-512S, LP-I5-16-512S Applicant : Hunan Greatwall Computer System Co.,Ltd Address : Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China Manufacturer : Hunan Greatwall Computer System Co.,Ltd Address : Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20260617003-1-05 Page 3 of 28 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 5 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 7 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. Special Accessories ............................................................................................................................... 8 2.9. Modifications .......................................................................................................................................... 8 2.10. Conduted Output Power and EIRP ...................................................................................................... 9 2.11. TEST METHODOLOGY ....................................................................................................................... 9 2.12. SYSTEM TEST CONFIGURATION ..................................................................................................... 9 2.12.1. Justification ............…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community, Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20260617003-1-04 2APUQ-W1523 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jul.20, 2026 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community,Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China Applicant’s name ............................ : Hunan Greatwall Computer System Co.,Ltd Address ............................................ : Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Laptop Trade Mark ....................................... : DAMASCO, Great Wall Manufacturer .................................... : Hunan Greatwall Computer System Co.,Ltd Model/Type reference ...................... : W1523LS-ED Listed Models .................................. : W1523JP-WD, W1523AP-WD, W1523AP-PD, W1523LP-ED, W1523ABP-WD, LP-N45-8-128S, LP-N45-8-256P, LP-R3-8-256P, LP-R3-8-512S, LP-R5-8-512S, LP-R5-16-512S, LP-I5-8-512S, LP-I5-16-512S Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5260MHz to 5320MHz/ 5500MHz to 5700MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : DC 11.4V by battery, Recharged by DC 19.0V or DC 7.6V by battery, Recharged by DC 12.0V Result ............................................... : PASS Report No.: GTS20260617003-1-04 Page 2 of 42 T E S T R E P O R T Test Report No. : GTS20260617003-1-04 Jul.20, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : Laptop Model /Type : W1523LS-ED Listed model : W1523JP-WD, W1523AP-WD, W1523AP-PD, W1523LP-ED, W1523ABP-WD, LP-N45-8-128S, LP-N45-8-256P, LP-R3-8-256P, LP-R3-8-512S, LP-R5-8-512S, LP-R5-16-512S, LP-I5-8-512S, LP-I5-16-512S Applicant : Hunan Greatwall Computer System Co.,Ltd Address : Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China Manufacturer : Hunan Greatwall Computer System Co.,Ltd Address : Hunan GreatWall Industrial Park, Xiangyun Middle Road, Tianyuan District, Zhuzhou, Hunan Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20260617003-1-04 Page 3 of 42 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 7 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 8 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. EUT Exercise Software .......................................................................................................................... 8 2.9. Special Accessories ............................................................................................................................... 8 2.10. External I/O Cable ................................................................................................................................ 8 2.11. Modifications ........................................................................................................................................ 8 3. TEST ENVIRONMENT …

Text truncated - open the document above for the full version.

FCCID:2APUQ-W1523 1 Case No. : GTS20260617003-1-04 Ambient Condition: 23 °C, 52 %RH According Standard: ■Part15E Test Date:2026.6.22-2026.7.20Test Engineer: Evan ouyang Appendix G.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 18.096 5735.9287 5754.0247 --- --- 5785 17.918 5775.9000 5793.8180 --- --- 5825 19.680 5815.5003 5835.1803 --- --- 11N20SISO Ant2 5745 18.693 5735.6543 5754.3473 --- --- 5785 18.614 5775.6323 5794.2463 --- --- 5825 20.175 5815.0923 5835.2673 --- --- 11N40SISO Ant2 5755 37.727 5736.2104 5773.9374 --- --- 5795 38.159 5776.1654 5814.3244 --- --- 11AC20SISO Ant2 5745 18.693 5735.6808 5754.3738 --- --- 5785 18.606 5775.6536 5794.2596 --- --- 5825 20.472 5815.0014 5835.4734 --- --- 11AC40SISO Ant2 5755 37.415 5736.3730 5773.7880 --- --- 5795 37.682 5776.3321 5814.0141 --- --- 11AC80SISO Ant2 5775 76.787 5736.7640 5813.5510 --- --- FCCID:2APUQ-W1523 2 Test Graphs 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2APUQ-W1523 3 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2APUQ-W1523 4 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2APUQ-W1523 5 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2APUQ-W1523 6 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2APUQ-W1523 7 11AC80SISO_Ant2_5775 FCCID:2APUQ-W1523 8 Appendix G.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5745 16.560 5736.680 5753.240 0.5 PASS 5785 16.560 5776.680 5793.240 0.5 PASS 5825 16.520 5816.680 5833.200 0.5 PASS 11N20SISO Ant2 5745 17.680 5736.120 5753.800 0.5 PASS 5785 17.640 5776.120 5793.760 0.5 PASS 5825 17.680 5816.120 5833.800 0.5 PASS 11N40SISO Ant2 5755 36.400 5736.760 5773.160 0.5 PASS 5795 36.400 5776.760 5813.160 0.5 PASS 11AC20SISO Ant2 5745 17.680 5736.120 5753.800 0.5 PASS 5785 17.640 5776.120 5793.760 0.5 PASS 5825 17.720 5816.080 5833.800 0.5 PASS 11AC40SISO Ant2 5755 36.400 5736.760 5773.160 0.5 PASS 5795 36.400 5776.760 5813.160 0.5 PASS 11AC80SISO Ant2 5775 76.320 5736.760 5813.080 0.5 PASS FCCID:2APUQ-W1523 9 Test Graphs B4 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2APUQ-W1523 10 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2APUQ-W1523 11 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2APUQ-W1523 12 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2APUQ-W1523 13 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2APUQ-W1523 14 11AC80SISO_Ant2_5775 FCCID:2APUQ-W1523 15 Appendix G.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant2 5745 30.00 30.00 100.00 0.00 0.03 5785 30.00 30.00 100.00 0.00 0.03 5825 30.00 30.00 100.00 0.00 0.03 11N20SISO Ant2 5745 30.00 30.00 100.00 0.00 0.03 5785 30.00 30.00 100.00 0.00 0.03 5825 30.00 30.00 100.00 0.00 0.03 11N40SISO Ant2 5755 30.00 30.00 100.00 0.00 0.03 5795 30.00 30.00 100.00 0.00 0.03 11AC20SISO Ant2 5745 30.00 30.00 100.00 0.00 0.03 5785 30.00 30.00 100.00 0.00 0.03 5825 30.00 30.00 100.00 0.00 0.03 11AC40SISO Ant2 5755 30.00 30.00 100.00 0.00 0.03 5795 30.00 30.00 100.00 0.00 0.03 11AC80SISO Ant2 5775 30.00 30.00 100.00 0.00 0.03 FCCID:2APUQ-W1523 16 Test Graphs 11A_Ant2_5745 11A_Ant2_5785 11A_Ant2_5825 FCCID:2APUQ-W1523 17 11N20SISO_Ant2_5745 11N20SISO_Ant2_5785 FCCID:2APUQ-W1523 18 11N20SISO_Ant2_5825 11N40SISO_Ant2_5755 11N40SISO_Ant2_5795 FCCID:2APUQ-W1523 19 11AC20SISO_Ant2_5745 11AC20SISO_Ant2_5785 FCCID:2APUQ-W1523 20 11AC20SISO_Ant2_5825 11AC40SISO_Ant2_5755 11AC40SISO_Ant2_5795 FCCID:2APUQ-W1523 21 11AC80SISO_Ant2_5775 FCCID:2APUQ-W1523 22 Appendix G.4: Maximum conducted output power Test Result Channel Power DC 11.4V by battery Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5745 11.45 100.00 0.00 11.45 ≤30.00 PASS 5785 11.79 100.00 0.00 11.79 ≤30.00 PASS 5825 12.23 100.00 0.00 12.23 ≤30.00 PASS 11N20SISO Ant2 5745 11.32 100.00 0.00 11.32 ≤30.00 PASS 5785 11.73 100.00 0.00 11.73 ≤30.00 PASS 5825 12.15 100.00 0.00 12.15 ≤30.00 PASS 11N40SISO Ant2 5755 11.42 100.00 0.00 11.42 ≤30.00 PASS 5795 11.60 100.00 0.00 11.60 ≤30.00 PASS 11AC20SISO Ant2 5745 11.39 100.00 0.00 11.39 ≤30.00 PASS 5785 11.71 100.00 0.00 11.71 ≤30.00 PASS 5825 12.19 100.00 0.00 12.19 ≤30.00 PASS 11AC40SISO Ant2 5755 11.01 100.00 0.00 11.01 ≤30.00 PASS 5795 11.14 100.00 0.00 11.14 ≤30.00 PASS 11AC80SISO Ant2 5775 10.97 100.00 0.00 10.97 ≤30.00 PASS DC 7.6V by battery Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5745 11.12 100.00 0.00 11.12 ≤30.00 PASS 5785 11.56 100.00 0.00 11.56 ≤30.00 PASS 5825 12.02 100.00 0.00 12.02 ≤30.00 PASS 11N20SISO Ant2 5745 11.18 100.00 0.00 11.18 ≤30.00 PASS 5785 11.58 100.00 0.00 11.58 ≤30.00 PASS 5825 11.98 100.00 0.00 11.98 ≤30.00 PASS 11N40SISO Ant2 5755 11.17 100.00 0.00 11.17 ≤30.00 PASS 5795 11.48 100.00 0.00 11.48 ≤30.00 PASS 11AC20SISO Ant2 5745 11.13 100.00 0.00 11.13 ≤30.00 PASS 5785 11.56 100.00 0.00 11.56 ≤30.00 PASS 5825 12 100.00 0.00 12 ≤30.00 PASS 11AC40SISO Ant2 5755 10.78 100.00 0.00 10.78 ≤30.00 PASS 5795 10.89 100.00 0.00 10.89 ≤30.00 PASS 11AC80SISO Ant2 5775 10.69 100.00 0.00 10.69 ≤30.00 PASS FCCID:2APUQ-W1523 23 Appendix G.5: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant2 5745 -3.09 ≤30.00 PASS 5785 -2.54 ≤30.00 PASS 5825 -2.28 ≤30.00 PASS 11N20SISO Ant2 5745 -3.25 ≤30.00 PASS 5785 -2.83 ≤30.00 PASS 5825 -2.39 ≤30.00 PASS 11N40SISO Ant2 5755 -6.25 ≤30.00 PASS 5795 -6.01 ≤30.00 PASS 11AC20SISO Ant2 5745 -3.21 ≤30.00 PASS 5785 -2.81 ≤30.00 PASS 5825 -2.33 ≤30.00 PASS 11AC40SISO Ant2 5755 -6.70 ≤30.00 PASS 5795 -6.42 ≤30.00 PASS 11AC80SISO Ant2 5775 -8.87 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The …

Text truncated - open the document above for the full version.

FCCID:2APUQ-W1523 1 Case No. : GTS20260617003-1-04 Ambient Condition: 23 °C, 56 %RH According Standard: ■Part15E Test Date:2026.6.22-2026.7.20Test Engineer: Evan ouyang Appendix G.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 19.615 5735.2840 5754.8990 --- --- 5785 17.547 5776.1161 5793.6631 --- --- 5825 17.325 5816.2063 5833.5313 --- --- 11N20SISO Ant1 5745 20.424 5734.9078 5755.3318 --- --- 5785 18.367 5775.7828 5794.1498 --- --- 5825 18.122 5815.8647 5833.9867 --- --- 11N40SISO Ant1 5755 38.351 5735.8261 5774.1771 --- --- 5795 37.265 5776.4653 5813.7303 --- --- 11AC20SISO Ant1 5745 19.850 5735.0949 5754.9449 --- --- 5785 18.454 5775.7403 5794.1943 --- --- 5825 18.157 5815.8586 5834.0156 --- --- 11AC40SISO Ant1 5755 38.409 5735.8658 5774.2748 --- --- 5795 37.258 5776.4940 5813.7520 --- --- 11AC80SISO Ant1 5775 77.545 5736.4048 5813.9498 --- --- FCCID:2APUQ-W1523 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2APUQ-W1523 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2APUQ-W1523 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2APUQ-W1523 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2APUQ-W1523 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2APUQ-W1523 7 11AC80SISO_Ant1_5775 FCCID:2APUQ-W1523 8 Appendix G.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.520 5736.720 5753.240 0.5 PASS 5785 16.560 5776.680 5793.240 0.5 PASS 5825 16.520 5816.680 5833.200 0.5 PASS 11N20SISO Ant1 5745 17.720 5736.080 5753.800 0.5 PASS 5785 17.680 5776.120 5793.800 0.5 PASS 5825 17.640 5816.120 5833.760 0.5 PASS 11N40SISO Ant1 5755 36.400 5736.760 5773.160 0.5 PASS 5795 36.400 5776.760 5813.160 0.5 PASS 11AC20SISO Ant1 5745 17.680 5736.120 5753.800 0.5 PASS 5785 17.680 5776.120 5793.800 0.5 PASS 5825 17.640 5816.120 5833.760 0.5 PASS 11AC40SISO Ant1 5755 36.400 5736.760 5773.160 0.5 PASS 5795 36.400 5776.760 5813.160 0.5 PASS 11AC80SISO Ant1 5775 76.320 5736.760 5813.080 0.5 PASS FCCID:2APUQ-W1523 9 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2APUQ-W1523 10 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2APUQ-W1523 11 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2APUQ-W1523 12 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2APUQ-W1523 13 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2APUQ-W1523 14 11AC80SISO_Ant1_5775 FCCID:2APUQ-W1523 15 Appe…

Text truncated - open the document above for the full version.
