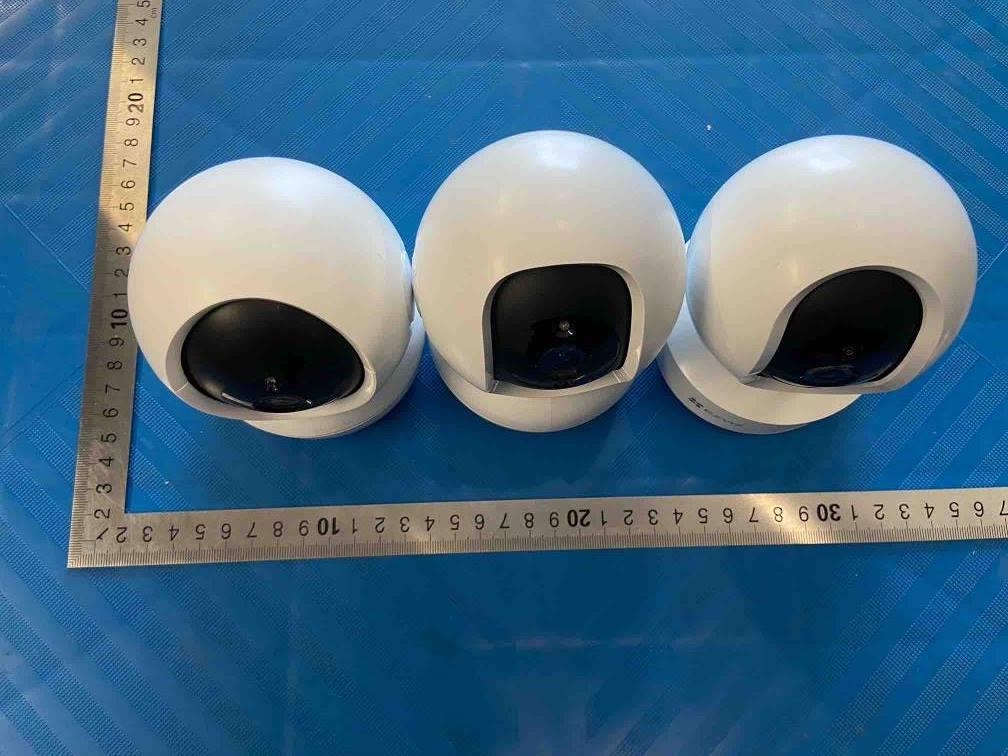

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 4 External Photos for SHCR2204000850AT Test Model No.: CS-C6N (1080P) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 4 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 4 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 4

Remark:It’s hard to put FCC statement on the product due to device’s irregular appearance. FCC statement will be placed in the user manual which the device is marketed. Label location1

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 7 Internal Photos for SHCR2204000850AT Test Model No.: CS-C6N (1080P) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 7 EUT Constructional Details (EUT Photos) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 7 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 7

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085002 Page: 1 of 10 Parlam Zhan Laboratory Manager 1 Cover Page RF Exposure Evaluation Report Application No.: SHCR2204000850AT FCC ID: 2APV2-CSC6N1G2WF Applicant: Hangzhou Ezviz Software Co., Ltd. Address of Applicant: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Manufacturer: Hangzhou Ezviz Software Co., Ltd. Address of Manufacturer: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Equipment Under Test (EUT): EUT Name: Smart Home Camera Model No.: CS-C6N (1080P),CS-C6N,CS-CP1,CS-TY1,CS-TY2,CS-CP1 (1080P), CS-TY1 (2WF,4mm),CS-TY2 (2WF,4mm),CS-TY1 (1080P), CS-TY2 (1080P),CS-CP1-R101-1G2WF,CS-C6N-R101-1G2WF, CS-TY1-R101-1G2WF,CS-TY2-R101-1G2WF,CS-H6c, CS-H6c (1080P),CS-H6c-R101-1G2WF Trade mark: EZVIZ Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2022-04-27 Date of Test: 2022-05-17 to 2022-06-16 Date of Issue: 2022-06-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085002 Page: 2 of 10 Revision Record Version Chapter Date Modifier Remark 01 2022-06-17 Original Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085002 Page: 3 of 10 2 Contents Page 1 COVER PAGE .................................................................................................................................... 1 2 CONTENTS ........................................................................................................................................ 3 3 GENERAL INFORMATION ................................................................................................................ 4 3.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................ 4 3.2 DETAILS OF E.U.T. ....................................................................................................................... 4 3.3 TEST LOCATION ............................................................................................................................ 5 3.4 TEST FACILITY .............................................................................................................................. 5 4 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS .......................................................... 6 4.1 BLANKET 1 MW BLANKET EXEMPTION ........................................................................................... 6 4.2 MPE-BASED EXEMPTION .............................................................................................................. 6 4.3 SAR-BASED EXEMPTION ............................................................................................................... 7 5 MEASUREMENT AND CALCULATION .......................................................................................... 10 5.1 MAXIMUM TRANSMIT POWER ....................................................................................................... 10 5.2 RF EXPOSURE CALCULATION ...................................................................................................... 10 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085002 Page: 4 of 10 3 General Information 3.1 General Description of E.U.T. Power supply: DC 5V ,1A, 5W 3.2 Details of E.U.T. Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK);802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20) Channel Spacing: 5MHz Antenna Type: PCB Antenna Antenna Gain: 1.83dBi(Provided by the manufacturer) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085002 Page: 5 of 10 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1.SGS is not responsible for wrong test results due to incorrect information (e.g. max. clock frequency, highest internal frequency, antenna gain, cable loss, etc ) is provided by the applicant. (if applicable). 2.SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (if applicable). 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC (Designation Number: CN1172) Compliance Certification Services (Kunshan) Inc. has been recognized as an accredited testing laboratory. Designation Number: CN1172. • ISED (CAB identifier: CN0072) Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. Company Number: 2324E • VCCI (Member No.: 1938) The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-20134, R-11600, C-11707, T-11499, G-10216 respectively. SGS-CSTC…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 1 of 45 Appendix A for SHCR220400085001 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 4.311 4.407 97.82 0.10 0.07 2437 4.310 4.407 97.80 0.10 0.07 2462 4.310 4.407 97.80 0.10 0.07 802.11g SISO 2412 0.706 0.745 94.77 0.23 0.04 2437 0.706 0.744 94.89 0.23 0.04 2462 0.706 0.745 94.77 0.23 0.03 802.11n (HT20) SISO 2412 0.671 0.709 94.64 0.24 0.03 2437 0.671 0.709 94.64 0.24 0.03 2462 0.670 0.709 94.50 0.25 0.03 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 2 of 45 1.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 3 of 45 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 4 of 45 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 5 of 45 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 6 of 45 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 7 of 45 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 802.11b SISO 2412 1 13.091 Pass 2437 1 13.105 Pass 2462 1 13.121 Pass 802.11g SISO 2412 1 17.278 Pass 2437 1 17.294 Pass 2462 1 17.264 Pass 802.11n (HT20) SISO 2412 1 17.956 Pass 2437 1 17.934 Pass 2462 1 17.908 Pass SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 8 of 45 2.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 9 of 45 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 10 of 45 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 11 of 45 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 12 of 45 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 13 of 45 2.2 6dB BW 2.2.1 Test Result Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 10.087 >=0.5 Pass 2437 1 10.091 >=0.5 Pass 2462 1 10.092 >=0.5 Pass 802.11g SISO 2412 1 16.378 >=0.5 Pass 2437 1 16.384 >=0.5 Pass 2462 1 16.385 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.158 >=0.5 Pass 2437 1 17.137 >=0.5 Pass 2462 1 17.156 >=0.5 Pass SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 14 of 45 2.2.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 15 of 45 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 16 of 45 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 17 of 45 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 18 of 45 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 19 of 45 3. Maximum Conducted Output Power 3.1 Power 3.1.1 Test Result Mode TX Type Frequency (MHz) Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 14.33 <=30 Pass 2437 14.26 <=30 Pass 2462 14.01 <=30 Pass 802.11g SISO 2412 14.07 <=30 Pass 2437 13.86 <=30 Pass 2462 13.79 <=30 Pass 802.11n (HT20) SISO 2412 13.95 <=30 Pass 2437 13.79 <=30 Pass 2462 13.48 <=30 Pass Note1: Antenna Gain: Ant1: 1.83dBi; SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 20 of 45 3.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 21 of 45 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 22 of 45 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 23 of 45 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 24 of 45 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 25 of 45 4. Maximum Power Spectral Density 4.1 PSD 4.1.1 Test Result Mode TX Type Frequency (MHz) Maximum PSD (dBm/3kHz) Verdict ANT1 Limit 802.11b SISO 2412 -6.03 <=8 Pass 2437 -6.12 <=8 Pass 2462 -6.01 <=8 Pass 802.11g SISO 2412 -10.92 <=8 Pass 2437 -11.30 <=8 Pass 2462 -11.07 <=8 Pass 802.11n (HT20) SISO 2412 -12.26 <=8 Pass 2437 -11.92 <=8 Pass 2462 -12.00 <=8 Pass Note1: Antenna Gain: Ant1: 1.83dBi; SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 26 of 45 4.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 27 of 45 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 28 of 45 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page: 29 of 45 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SI…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085001 Page: 1 of 75 Parlam Zhan Laboratory Manager TEST REPORT Application No.: SHCR2204000850AT FCC ID: 2APV2-CSC6N1G2WF Applicant: Hangzhou Ezviz Software Co., Ltd. Address of Applicant: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Manufacturer: Hangzhou Ezviz Software Co., Ltd. Address of Manufacturer: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Equipment Under Test (EUT): EUT Name: Smart Home Camera Model No.: CS-C6N (1080P),CS-C6N,CS-CP1,CS-TY1,CS-TY2,CS-CP1 (1080P), CS-TY1 (2WF,4mm),CS-TY2 (2WF,4mm),CS-TY1 (1080P), CS-TY2 (1080P),CS-CP1-R101-1G2WF,CS-C6N-R101-1G2WF, CS-TY1-R101-1G2WF,CS-TY2-R101-1G2WF,CS-H6c, CS-H6c (1080P),CS-H6c-R101-1G2WF  Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Trade Mark: EZVIZ Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2022-04-27 Date of Test: 2022-05-17 to 2022-06-16 Date of Issue: 2022-06-17 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085001 Page: 2 of 75 Revision Record Version Chapter Date Modifier Remark 01 2022-06-17 Original Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085001 Page: 3 of 75 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Customer Declaration Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Average Output Power ANSI C63.10 (2013) Section 11.9.2 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2013) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2013) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Model No.: CS-C6N (1080P),CS-C6N,CS-CP1,CS-TY1,CS-TY2,CS-CP1 (1080P), CS-TY1 (2WF,4mm),CS-TY2 (2WF,4mm),CS-TY1 (1080P),CS-TY2 (1080P), CS-CP1-R101-1G2WF,CS-C6N-R101-1G2WF,CS-TY1-R101-1G2WF,CS-TY2-R101-1G2WF, CS-H6c,CS-H6c (1080P),CS-H6c-R101-1G2WF Only the model CS-C6N (1080P) was tested. There are series models mentioned in this report and they are identical on circuitry design, PCB layout, electrical components used, internal wiring and functions. Only the model CS-C6N (1080P) was tested since their differences are model number and product appearance. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHCR220400085001 Page: 4 of 75 3 Contents Page 1 COVER PAGE .........................…
