2APV2-CSC8CSmart Home Camera

COPYRIGHT © Hangzhou EZVIZ Software Co., Ltd.. ALL RIGHTS RESERVED. Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou EZVIZ Software Co., Ltd. (hereinafter referred to as “EZVIZ”). This user manual (hereinafter referred to as “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of EZVIZ. Unless otherwise stipulated, EZVIZ does not make any warranties, guarantees or representations, express or implied, regarding to the Manual. About this Manual The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the ™ website (http://www.ezvizlife.com). Revision Record New release – January, 2019 Trademarks Acknowledgement ™, ™, and other EZVIZ’s trademarks and logos are the properties of EZVIZ in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners. Legal Disclaimer TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND EZVIZ MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL EZVIZ, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF EZVIZ HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL EZVIZ’S TOTAL LIABILITY FOR ALL DAMAGES EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT. EZVIZ DOES NOT UNDERTAKE ANY LIABILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE AS THE RESULT OF PRODUCT INTERRUPTION OR SERVICE TERMINATION CAUSED BY: A) IMPROPER INSTALLATION OR USAGE OTHER THAN AS REQUESTED; B) THE PROTECTION OF NATIONAL OR PUBLIC INTERESTS; C) FORCE MAJEURE; D) YOURSELF OR THE THIRD PARTY, INCLUDING WITHOUT LIMITATION, USING ANY THIRD PARTY’S PRODUCTS, SOFTWARE, APPLICATIONS, AND AMONG OTHERS. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. EZVIZ SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, EZVIZ WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.SURVEILLANCE LAWS AND DATA PROTECTION LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS TO THE APPLICABLE LAW. EZVIZ SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THE ABOVE AND THE APPLICABLE LAW, THE LATTER PREVAILS. 1 Package Contents Camera (x1)Power Adapter (x1) Screw Kit (x1)Waterproof Kit (x1) Drill Template (x1)Regulatory Information (x1)Quick Start Guide (x1) Basics Antenna LED Indicator Lens Spotlight Power Port Ethernet Port Antenna MIC NameDescription LED Indicator• Solid Red: Camera starting up. • Slow-flashing Red: Wi-Fi connection failed. • Fast-flashing Red: Camera exception (e.g. Micro SD card error). • Solid Blue: Video being live viewed in the EZVIZ app. • Slow-flashing Blue: Camera running properly. • Fast-flashing Blue: Camera ready for Wi-Fi connection. Micro SD Card Slot (Behind the cover) Reset Button NameDescription Reset Button Hold for 5 seconds to restart and reset all parameters to default. 2 Setup 1. Power-on Plug the power cable into the camera, and then plug the power adapter into an outlet as shown in the figure below. Power Outlet Power Adapter The LED indicator turning fast-flashing blue indicates that the camera is powered on and ready for Wi-Fi configuration. 2. Connect to the Internet 1. Get the EZVIZ app -Connect your mobile phone to Wi-Fi. -Download and install the EZVIZ app by searching “EZVIZ” in the App Store or Google Play Store TM . -Launch the app and register an EZVIZ user account. 2. Add camera to EZVIZ Option 1: Wireless Connection -Log in to your account using the EZVIZ app. -On the Home screen, tap “+” on the upper-right corner to go to the Scan QR Code interface. -Scan the QR code on the Quick Start Guide cover or on the body of the camera. -Follow the EZVIZ app wizard to finish Wi-Fi configuration. Option 2: Wired Connection -Connect the camera to the LAN port of your router with the Ethernet cable (not included in the package). 3 Ethernet Cable -Log in to your account using the EZVIZ app. -On the Home screen, tap “+” on the upper-right corner to go to the Scan QR Code interface. -Scan the QR code on the Quick Start Guide cover or on the body of the camera. -Follow the wizard to add the camera to the EZVIZ app. Installation 1. Install the Micro SD Card (Optional) -Rotate the camera counterclockwise. -Remove the cover on the camera. -Insert the micro SD card (sold separately) into the card slot as shown in the figure below. -Place the cover back on. -In the EZVIZ app, tap the Storage Status in the Device Settings interface to check the SD card status. -If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal and it can store videos. 4 2. Install the Camera • Make sure the wall is strong enough to withstand three times the weight of the camera. • The camera can be mounted on the wall, ceiling or pole. Wall/Ceiling Mounting -Place drill template ont…

Text truncated - open the document above for the full version.

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name Hangzhou Ezviz Sofeware Co., Ltd. Address Room 302,Unit B,Building 2,No. 399,Danfeng Road Binjiang District China Grantee Code 2APV2 FCC ID 2APV2-CSC8C Authorized Contact Name Weiliang Bu Contact Email [email protected] Contact Phone 0571-88075988 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date:2020-11-05 Print Name: Weiliang Bu Title: Global Certification Team Lead *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

Hangzhou Ezviz Sofeware Co., Ltd. Date: 2020-11-05 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: FCC ID: 2APV2-CSC8C To whom it may concern: We, the undersigned, hereby authorize Parlam Zhan to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with Hangzhou Ezviz Sofeware Co., Ltd. This authorization is valid until further written notice from the applicant. Name (Printed):Weiliang Bu Title: Global Certification Team Lead Signature: On behalf of Company: Hangzhou Ezviz Sofeware Co., Ltd. Telephone: +86-0571-88075998-62460

Hangzhou Ezviz Sofeware Co., Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: Hangzhou Ezviz Sofeware Co., Ltd. 2-1-10,No.700 Dongliu Road,Binjiang District Hangzhou,China Regarding: Confidentiality Request regarding application for FCC ID: 2APV2-CSC8C LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Weiliang Bu Title: Global Certification Team Lead Company Name: Hangzhou Ezviz Sofeware Co., Ltd.

Hangzhou Ezviz Software Co., Ltd. Current Date : 2020-11-05 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE (Hangzhou Ezviz Software Co., Ltd..) HEREBY DECLARED THAT Product Description Smart Home Camera Model No. CS-C8C (1080P, 4mm), CS-C8C (1080P, 6mm) Manufacturer’s Name Hangzhou Ezviz Software Co., Ltd. Manufacturer’s Address Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang *Except that the model number and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical. Model No. (型号): CS-C8C Manufacturer’s Name (生产商名称): Hangzhou Ezviz Software Co., Ltd. Manufacturer’s Address（生产商商地址): Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Sincerely, Signature (签字): Printed Name (姓名): Weiliang Bu Position/Title (职位): Global Certification Team Lead Contact Number (联系电话): +86-0571-88075998-62460

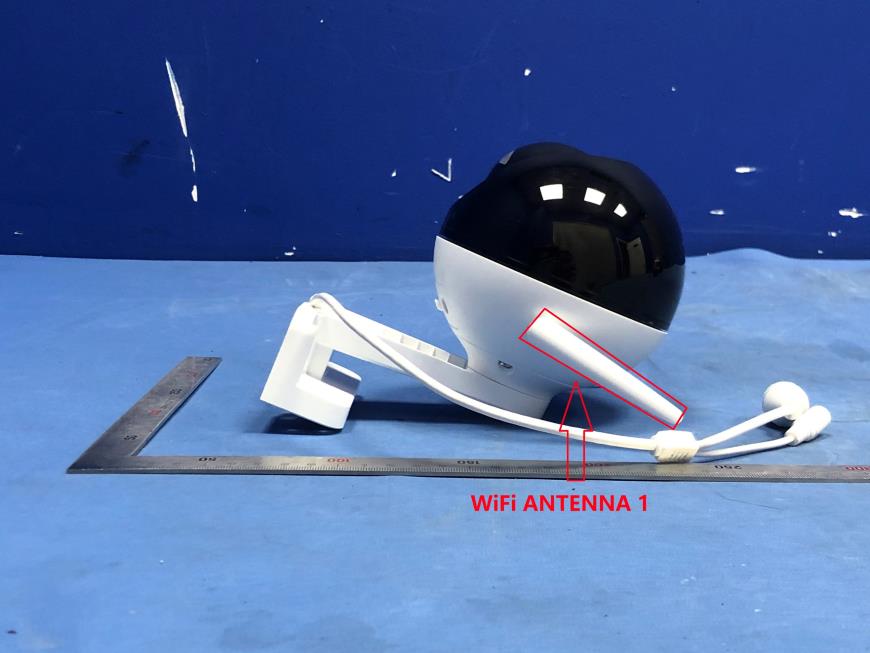

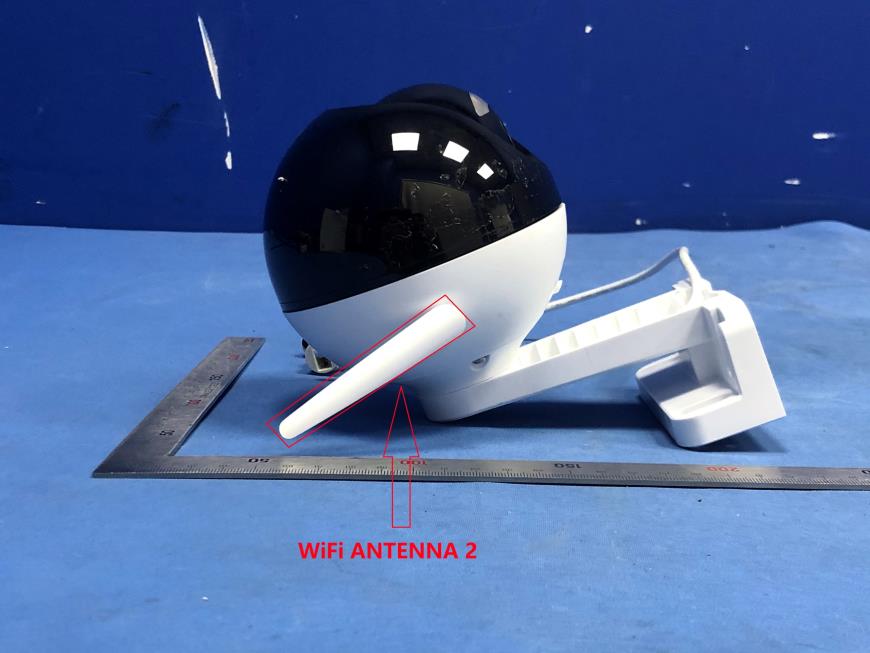

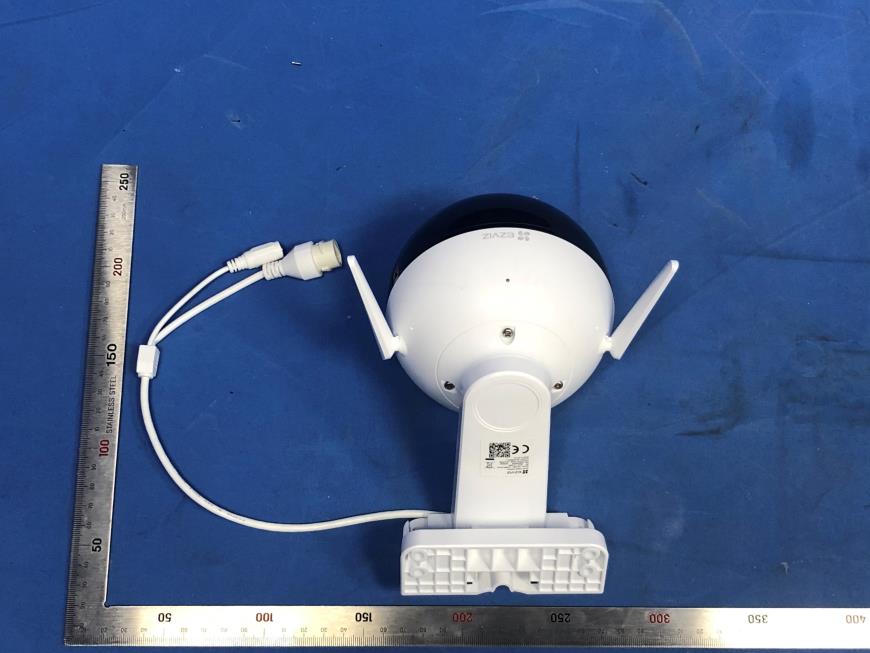

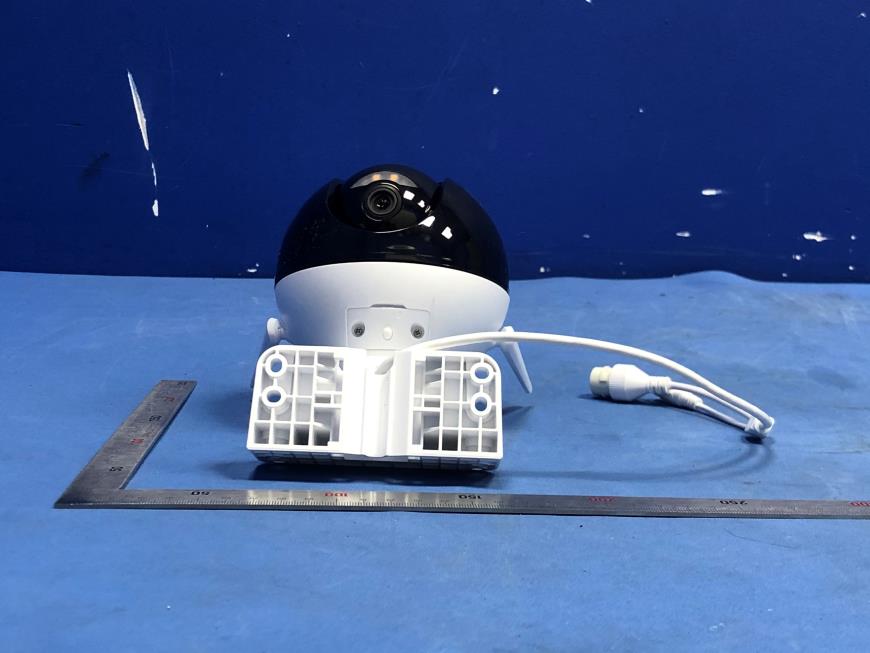

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 5 Page 1 of 5 External Photos Applicant: Hangzhou Ezviz Software Co., Ltd. Address of Applicant: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Equipment Under Test (EUT): Product Name: Smart Home Camera Model No.: CS-C8C SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 5 Page 2 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 5 Page 3 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 5 Page 4 of 5 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 5 Page 5 of 5 End

Product Label location FCC Label location

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 1 of 9 Page 1 of 9 Internal Photos Applicant: Hangzhou Ezviz Software Co., Ltd. Address of Applicant: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Equipment Under Test (EUT): Product Name: Smart Home Camera Model No.: CS-C8C SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 2 of 9 Page 2 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 3 of 9 Page 3 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 4 of 9 Page 4 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 5 of 9 Page 5 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 6 of 9 Page 6 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 7 of 9 Page 7 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 8 of 9 Page 8 of 9 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Page: 9 of 9 Page 9 of 9 End

SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM2010008849002 Page: 1 of 8 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. 1 Cover Page RF MPE REPORT Application No.: SHEM2010008849CR FCC ID: 2APV2-CSC8C Applicant: Hangzhou Ezviz Software Co., Ltd. Address of Applicant: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Manufacturer: Hangzhou Ezviz Software Co., Ltd. Address of Manufacturer: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Equipment Under Test (EUT): EUT Name: Smart Home Camera Model No.: CS-C8C Add Model No.: CS-C8C (1080P, 4mm), CS-C8C (1080P, 6mm) Standard(s) : FCC Rules 47 CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt: 2020-10-22 Date of Test: 2020-10-25 to 2020-10-27 Date of Issue: 2020-10-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201000884902 Page: 2 of 8 Revision Record Version Description Date Remark 00 Original 2020-10-28 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201000884902 Page: 3 of 8 2 Contents Page 1 COVER PAGE................................................................................................................................................. 1 2 CONTENTS ..................................................................................................................................................... 3 3 GENERAL INFORMATION .......................................................................................................................... 4 3.1 GENERAL DESCRIPTION OF E.U.T. ......................................................................................................... 4 3.2 TECHNICAL SPECIFICATIONS ................................................................................................................... 4 3.3 TEST LOCATION ....................................................................................................................................... 5 3.4 TEST FACILITY .......................................................................................................................................... 5 4 TEST STANDARDS AND LIMITS ............................................................................................................... 6 4.1 FCC RADIOFREQUENCY RADIATION EXPOSURE LIMITS: ......................................................................... 6 5 MEASUREMENT AND CALCULATION .................................................................................................... 7 5.1 MAXIMUM TRANSMIT POWER ................................................................................................................... 7 5.2 MPE CALCULATION ................................................................................................................................. 8 SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201000884902 Page: 4 of 8 3 General Information 3.1 General Description of E.U.T. Power supply: DC 12V by Adapter 3.2 Technical Specifications 2.4GHz Antenna Gain: Antenna 1:2.4dBi Antenna 2:2.4dBi Directional gain:5.41 dBi Antenna Type: Antenna 1:Dipole Antenna Antenna 2:Dipole Antenna Channel Spacing: 5MHz Modulation Type: 802.11b: DSSS (CCK, DQPSK, DBPSK) 802.11g/n: OFDM (64QAM, 16QAM, QPSK, BPSK) Number of Channels: 802.11b/g/n(HT20):11 Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM201000884902 Page: 5 of 8 3.3 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L4354) CNAS has accredited Compliance Certification Services (Kunshan) Inc. to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc. is accredited by the American Association for Laboratory Accreditation (A2LA). Certificate No. 2541.01. • FCC (Designation Number: CN1172) Compliance Certification Services Inc. has been recognized as an accredited testing laboratory. Designation Number: CN1172. • ISED (CAB identifier: CN0072) Compliance Certification Services (Kunshan) Inc. has been recognized by Innovation, Science and Economic Development Canada (ISED) as an accredited testing laboratory. CAB Identifier: CN0072. • VCCI (Member No.: 1938) The 3m and 10m Semi-anechoic chamber and Shielded Room of Compliance Certification Services (Kunshan) Inc. has been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: R-1600, C-1707, T-1499, G-10216 respectively. SGS-CSTC Standards Technical Services Co., Ltd. Shanghai Branch Report No.: SHEM20100…

Text truncated - open the document above for the full version.

Appendix A for SHEM201000884901 1. Duty Cycle 1.1 Test Result Test Mode Channel Frequency(M Hz) TX Type ANT No. T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) 802.11b 2412 SISO 1 8.420 8.590 98.02 0.09 2 8.420 8.590 98.02 0.09 2437 SISO 1 8.410 8.590 97.90 0.09 2 8.420 8.580 98.14 0.08 2462 SISO 1 8.410 8.570 98.13 0.08 2 8.420 8.570 98.25 0.08 802.11g 2412 SISO 1 1.397 1.557 89.72 0.47 2 1.365 1.540 88.64 0.52 2437 SISO 1 1.366 1.532 89.16 0.50 2 1.368 1.535 89.12 0.50 2462 SISO 1 1.395 1.556 89.65 0.47 2 1.369 1.544 88.67 0.52 802.11n(HT20) 2412 MIMO 1 1.284 1.459 88.01 0.55 2 1.309 1.434 91.28 0.40 2437 MIMO 1 1.307 1.476 88.55 0.53 2 1.308 1.468 89.10 0.50 2462 MIMO 1 1.307 1.460 89.52 0.48 2 1.308 1.487 87.96 0.56 1.2 Test Graph 2. Bandwidth 2.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) Limits (MHz) 802.11b 2412 SISO 1 10.049 ≥0.5 PASS 2 9.101 ≥0.5 PASS 2437 SISO 1 9.111 ≥0.5 PASS 2 9.106 ≥0.5 PASS 2462 SISO 1 10.054 ≥0.5 PASS 2 9.100 ≥0.5 PASS 802.11g 2412 SISO 1 15.089 ≥0.5 PASS 2 14.496 ≥0.5 PASS 2437 SISO 1 15.084 ≥0.5 PASS 2 15.146 ≥0.5 PASS 2462 SISO 1 15.123 ≥0.5 PASS 2 15.337 ≥0.5 PASS 802.11n(HT20) 2412 MIMO 1 15.110 ≥0.5 PASS 2 15.105 ≥0.5 PASS 2437 MIMO 1 15.130 ≥0.5 PASS 2 15.137 ≥0.5 PASS 2462 MIMO 1 15.128 ≥0.5 PASS 2 15.131 ≥0.5 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 14.214 Only for Report Use 2 14.073 Only for Report Use 2437 SISO 1 14.292 Only for Report Use 2 14.189 Only for Report Use 2462 SISO 1 14.232 Only for Report Use 2 14.142 Only for Report Use 802.11g 2412 SISO 1 16.637 Only for Report Use 2 16.391 Only for Report Use 2437 SISO 1 16.703 Only for Report Use 2 16.442 Only for Report Use 2462 SISO 1 16.662 Only for Report Use 2 16.424 Only for Report Use 802.11n(HT20) 2412 MIMO 1 17.528 Only for Report Use 2 17.468 Only for Report Use 2437 MIMO 1 17.563 Only for Report Use 2 17.503 Only for Report Use 2462 MIMO 1 17.582 Only for Report Use 2 17.517 Only for Report Use 2.2 Test Graph - 6dB Bandwidth 2.3 Test Graph - 99% Occupied Bandwidth 3. Maximum Conducted Output Power 3.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 Ant 2 Total 802.11b 2412 SISO 17.58 17.34 / 30 PASS 2437 SISO 17.91 17.07 / 30 PASS 2462 SISO 18.01 16.94 / 30 PASS 802.11g 2412 SISO 18.62 18.43 / 30 PASS 2437 SISO 18.61 18.17 / 30 PASS 2462 SISO 18.64 18.14 / 30 PASS 802.11n(HT20) 2412 MIMO 15.31 15.28 18.31 30 PASS 2437 MIMO 15.35 15.13 18.25 30 PASS 2462 MIMO 15.46 14.99 18.24 30 PASS 3.2 Test Graph 4. Maximum Power Spectral Density (PSD) 4.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 Ant 2 Total 802.11b 2412 SISO -6.39 -6.15 / ≤8 PASS 2437 SISO -7.10 -6.35 / ≤8 PASS 2462 SISO -6.98 -6.56 / ≤8 PASS 802.11g 2412 SISO -13.57 -14.47 / ≤8 PASS 2437 SISO -13.59 -14.62 / ≤8 PASS 2462 SISO -13.63 -14.45 / ≤8 PASS 802.11n(HT20) 2412 MIMO -15.26 -15.14 -12.58 ≤8 PASS 2437 MIMO -15.03 -15.41 -13.13 ≤8 PASS 2462 MIMO -16.52 -16.06 -13.76 ≤8 PASS 4.2 Test Graph 5. Unwanted Emissions in Non-restricted Frequency Bands 5.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -13.23 PASS 2 Refer to test graph -13.23 PASS 2437 SISO 1 Refer to test graph -13.23 PASS 2 Refer to test graph -13.23 PASS 2462 SISO 1 Refer to test graph -13.23 PASS 2 Refer to test graph -13.23 PASS 802.11g 2412 SISO 1 Refer to test graph -17.76 PASS 2 Refer to test graph -17.76 PASS 2437 SISO 1 Refer to test graph -17.76 PASS 2 Refer to test graph -17.76 PASS 2462 SISO 1 Refer to test graph -17.76 PASS 2 Refer to test graph -17.76 PASS 802.11n(HT20) 2412 MIMO 1 Refer to test graph -19.25 PASS 2 Refer to test graph -19.25 PASS 2437 MIMO 1 Refer to test graph -19.25 PASS 2 Refer to test graph -19.25 PASS 2462 MIMO 1 Refer to test graph -19.25 PASS 2 Refer to test graph -19.25 PASS 5.2 Test Graph

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201000884901 Page: 1 of 61 Parlam Zhan E&E Section Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. TEST REPORT Application No.: SHEM2010008849CR FCC ID: 2APV2-CSC8C Applicant: Hangzhou Ezviz Software Co., Ltd. Address of Applicant: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Manufacturer: Hangzhou Ezviz Software Co., Ltd. Address of Manufacturer: Room 302,Unit B,Building 2,399 Danfeng Road,Binjiang District,Hangzhou,Zhejiang Equipment Under Test (EUT): EUT Name: Smart Home Camera Model No.: CS-C8C, CS-C8C (1080P, 4mm), CS-C8C (1080P, 6mm)¤ ¤ Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2020-10-22 Date of Test: 2020-10-25 to 2020-10-27 Date of Issue: 2020-10-28 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201000884901 Page: 2 of 61 Revision Record Version Description Date Remark 00 Original 2020-10-28 / Authorized for issue by: Micheal Niu / Project Engineer Parlam Zhan / Reviewer SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201000884901 Page: 3 of 61 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Minimum 6dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Power Spectrum Density 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.13.3.2 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.209 & 15.247(d) Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are the similar in electrical and electronic characters. Only the model CS-C8C was tested since their differences were the model number and appearance. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM201000884901 Page: 4 of 61 3 Contents Page 1 COVER PAGE.............................................................................................................................................. 1 2 TEST SUMMARY ......................................................................................................................................... 3 3 CONTENTS .................................................................................................................................................. 4 4 GENERAL INFORMATION ......................................................................................................................... 5 4.1 DETAILS OF E.U.T.................................................................................................................................. 5 4.2 POWER LEVEL SETTING USING IN TEST: ................................................................................................... 5 4.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................... 5 4.4 MEASUREMENT UNCERTAINTY ................................................................................................................ 6 4.5 TEST LOCATION ..................................................................................................................................... 7 4.6 TEST FACILITY ...............................................................................................................................…

Text truncated - open the document above for the full version.
