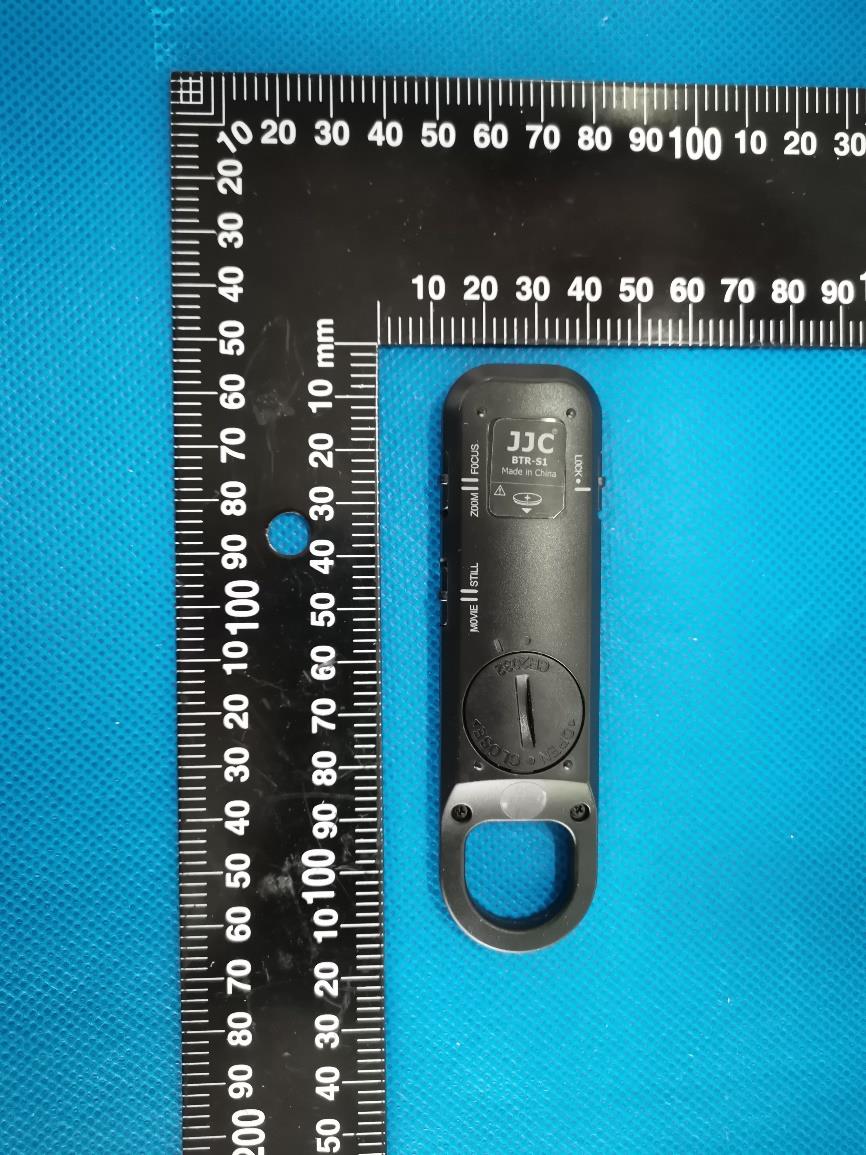

GTS202009000245 Product Name: Wireless Remote Control Test Model No.: BTR-S1 EUT Constructional Details External Photo Fig.1 Fig.2 GTS202009000245 Fig.3 Fig.4 GTS202009000245 Fig.5 Fig.6

GTS202009000245 Product Name: Wireless Remote Control Test Model No.: BTR-S1 EUT Constructional Details Internal Photo Fig.1 Fig.2 GTS202009000245 Fig.3 Fig.4

RF Exposure evaluation FCC ID: 2APWR-BTR 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK(Peak) Channel Channel 00 Channel 19 Channel 39 Target (dBm) -1.5 -1.5 -1.5 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.480 5 -0.50 0.316 0.10<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

Global United Technology Services Co., Ltd. Report No.: GTS202009000245F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 30 TEST REPORT Applicant: Shenzhen JinJiaCheng Photography Equipment Co., Ltd. Address of Applicant: RM1305 East Block, Tian’an High-Tech Plaza Phase II, Tian’an Cyber Park, Futian District, Shenzhen,China Manufacturer: Shenzhen JinJiaCheng Photography Equipment Co., Ltd. Address of Manufacturer: RM1305 East Block, Tian’an High-Tech Plaza Phase II, Tian’an Cyber Park, Futian District, Shenzhen,China Equipment Under Test (EUT) Product Name: Wireless Remote Control Model No.: BTR-S1,BTR-C1,BTR-N1 Trade Mark: JJC FCC ID: 2APWR-BTR Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: Sep.20,2020 Date of Test: Sep.20,2020-Sep.29,2020 Date of report issued: Sep.29,2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202009000245F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 30 2 Version Version No. Date Description 00 Sep.29,2020 Original Tested/Prepared By: Date: Sep.29,2020 Project Engineer Check By: Date: Sep.29,2020 Reviewer Report No.: GTS202009000245F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 30 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................7 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 5.4 DEVIATION FROM STANDARDS ..............................................................................................................7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 5.6 TEST FACILITY ....................................................................................................................................7 5.7 TEST LOCATION ..................................................................................................................................7 5.8 ADDITIONAL INSTRUCTIONS ..................................................................................................................7 6 TEST INSTRUMENTS LIST ......................................................................................................................8 7 TEST RESULTS AND MEASUREMENT DATA .....................................................................................10 7.1 ANTENNA REQUIREMENT ....................................................................................................................10 7.2 CONDUCTED OUTPUT POWER ............................................................................................................11 7.3 CHANNEL BANDWIDTH .......................................................................................................................12 7.4 POWER SPECTRAL DENSITY ..............................................................................................................14 7.5 BAND EDGES .....................................................................................................................................16 7.5.1 Conducted Emission Method ......................................................................................................16 7.5.2 Radiated Emission Method .........................................................................................................17 7.6 SPURIOUS EMISSION .........................................................................................................................20 7.6.1 Conducted Emission Method ......................................................................................................20 7.6.2 Radiated Emission Method .........................................................................................................22 8 TEST SETUP PHOTO .............................................................................................................................30 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................30 Report No.: GTS202009000245F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Buil…

Text truncated - open the document above for the full version.

GTS202009000245 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 1 Product Name: Wireless Remote Control Test Model No.: BTR-S1 Test Setup Photo Radiated Emission ------End------
