2APXH807182078207 Infinity Game Table

QUICK START GUIDE GUIDE DE DÉMARRAGE RAPIDE GUÍA DE INICIO RÁPIDO Thank you for your purchasing the / Merci d'avoir acheté le / Gracias por comprar el INFINITY game table. We hope that you have endless hours of fun playing with your family and friends! Let the games begin ... / Nous espérons que vous passerez des heures de plaisir jouer avec votre famille et vos amis! Que les jeux commencent .../ Esperamos que tengas un sinfín de horas de diversión. jugando con tu familia y amigos! Que empiecen los juegos ... CONTENTS INCLUDED / CONTENU INCLUS / CONTENIDO INCLUIDO Quick Start Guide / Guide de démarrage rapide / Guía de inicio rápido Stickers / Autocollants / Pegatinas Wipe Cloth / Chiffon d'essuyage / Paño de limpieza Power Supply / Source de courant / Fuente de alimentación Extension Cable / Câble d'extension / Cable de extensión Detachable Leg / Jambe détachable / Pierna desmontable Detachable Leg / Jambe détachable / Pierna desmontable Game Table / Table de jeu / Mesa de juego Cardboard Coasters / Sous-verres en carton / Posavasos De Cartón Card Blocker / Bloqueur de cartes / Bloqueador de tarjetas Card Blocker Stand / Support de bloqueur de cartes / Soporte de bloqueador de tarjetas QUICK START GUIDE ON/OFFVOL -/+ PRODUCT FEATURES / CARACTÉRISTIQUES DU PRODUIT / CARACTERÍSTICAS DEL PRODUCTO Micro SD Card Slot / Emplacement pour carte micro SD / Ranura para tarjeta micro SD USB Port / Port USB / Puerto USB USB Port / Port USB / Puerto USB External Battery Holder (Battery Not Included) / Support de batterie externe (batterie non incluse) / Soporte de batería externo (batería no incluida) NOTE: minimum requirement 12 volt 4.0 A Battery / REMARQUE: batterie de 12 volts 4,0 A minimum requise / NOTA: requisito mínimo 12 voltios 4.0 A Batería Power Cord Port / Port du cordon d'alimentation / Puerto para cable de alimentación PRODUCT ASSEMBLY / ASSEMBLAGE DU PRODUIT / MONTAJE DEL PRODUCTO • Insert the legs until you hear a click sound on all 4 legs / Insérez les jambes jusqu'à ce que vous entendiez un clic sur les 4 jambes / Inserte las patas hasta que escuche un clic en las 4 patas. • Plug in the extension power wire and clip to the inside of the leg / Branchez le fil d'alimentation d'extension et attachez-le à l'intérieur de la jambe / Conecte el cable de alimentación de extensión y sujételo al interior de la pierna. • Plug in the power supply to the table / Branchez l'alimentation électrique sur la table / Enchufe la fuente de alimentación a la mesa. CLICK CLICK CLICK CLICK * To remove the legs pinch the 2 buttons on each leg / * Pour retirer les jambes, pincez les 2 boutons sur chaque jambe / * Para quitar las patas aprieta los 2 botones de cada pata. WARNING • Set up Game Table on a level floor. • Never allow children to climb or hang on product. • DON’T sit or stand on the Game Table. • DON’T use as a step. • If liquid spilled on the Game Table, wipe it off immediately. ATTENTION • Installez une table de jeu sur un sol plat. • Ne laissez jamais les enfants grimper ou s'accrocher au produit. • NE PAS vous asseoir ou vous tenir debout sur la table de jeu. • NE PAS utiliser comme étape. • Si du liquide s'est renversé sur la table de jeu, essuyez-la immédiatement. ADVERTENCIA • Coloque la mesa de juego en un piso nivelado. • Nunca permita que los niños se suban o se cuelguen del producto. • NO se siente ni se pare en la mesa de juego. • NO lo use como un paso. • Si se derrama líquido sobre la mesa de juego, límpielo inmediatamente. Make sure to locate your Game Table on a at surface / Assurez-vous de placer votre table de jeu sur une surface plane / Asegúrese de ubicar su mesa de juegos en una supercie plana GAME BLOCKER ASSEMBLY / ASSEMBLAGE DU BLOCAGE DE JEU / MONTAJE DEL BLOQUEADOR DE JUEGOS Please have your Wi-Fi and Password ready! Veuillez préparer votre Wi-Fi et votre mot de passe! ¡Tenga a mano su Wi-Fi y contraseña! Turn ON your Innity Game Table and follow the on-screen instructions / Allumez votre table de jeu Innity et suivez les instructions à l'écran / Encienda su Innity Game Table y siga las instrucciones en pantalla GETTING STARTED COMMENCER EMPEZANDO READ BEFORE USING THE GAME TABLE / LIRE AVANT D'UTILISER LA TABLE DE JEU / LEA ANTES DE USAR LA MESA DE JUEGO SAFETY PRECAUTIONS / MESURES DE SÉCURITÉ / PRECAUCIONE DE SEGURIDAD The following symbols are used in labels on the game to draw attention to potentially hazardous situations: Les symboles suivants sont utilisés sur les étiquettes du jeu afin d’attirer l’attention sur d’éventuelles situations dangereuses: Los siguientes simbolos se usan en etiquetas en el juego parar liamar la atención sobre situaciones potencialmente peligrosas: WARNING / ATTENTION / ADVERTENCIA WARNING : Failure to avoid the risk may result in death or serious injury. ATTENTION : Ne pas éviter ce risque peut entraîner la mort ou de graves blessures. ADVERTENCIA: No evitar el riesgo puede resultar en muerte o en lesiones graves. 1. Please read and comprehend all warnings stated in this manual / Veuillez lire et comprendre tous les avertissements mentionnés dans ce manuel / Lea y comprenda todas las advertencias indicadas en este manual. 2. Do not get Game Table wet when cleaning / Ne mouillez pas la table de jeu lors du nettoyage / No deje que la mesa de juego se moje al limpiar. 3. Parents and guardians: Please read entire manual before allowing gamer to play / Les parents et les tuteurs: S'il vous plaît lire tout le manuel avant d'autoriser joueur de jeu / Padres y tutores: lea el manual completo antes de permitir que el jugador juegue. 4. The AC/DC adapter and apparatus shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on apparatus. The AC/DC adapter is used as disconnect device. The AC/DC adapter of apparatus should not be obstructed OR should be easily accessed during intended used. To be completely disconnect the power input, the AC/DC adapter of apparatus shall be disconnec…

Text truncated - open the document above for the full version.

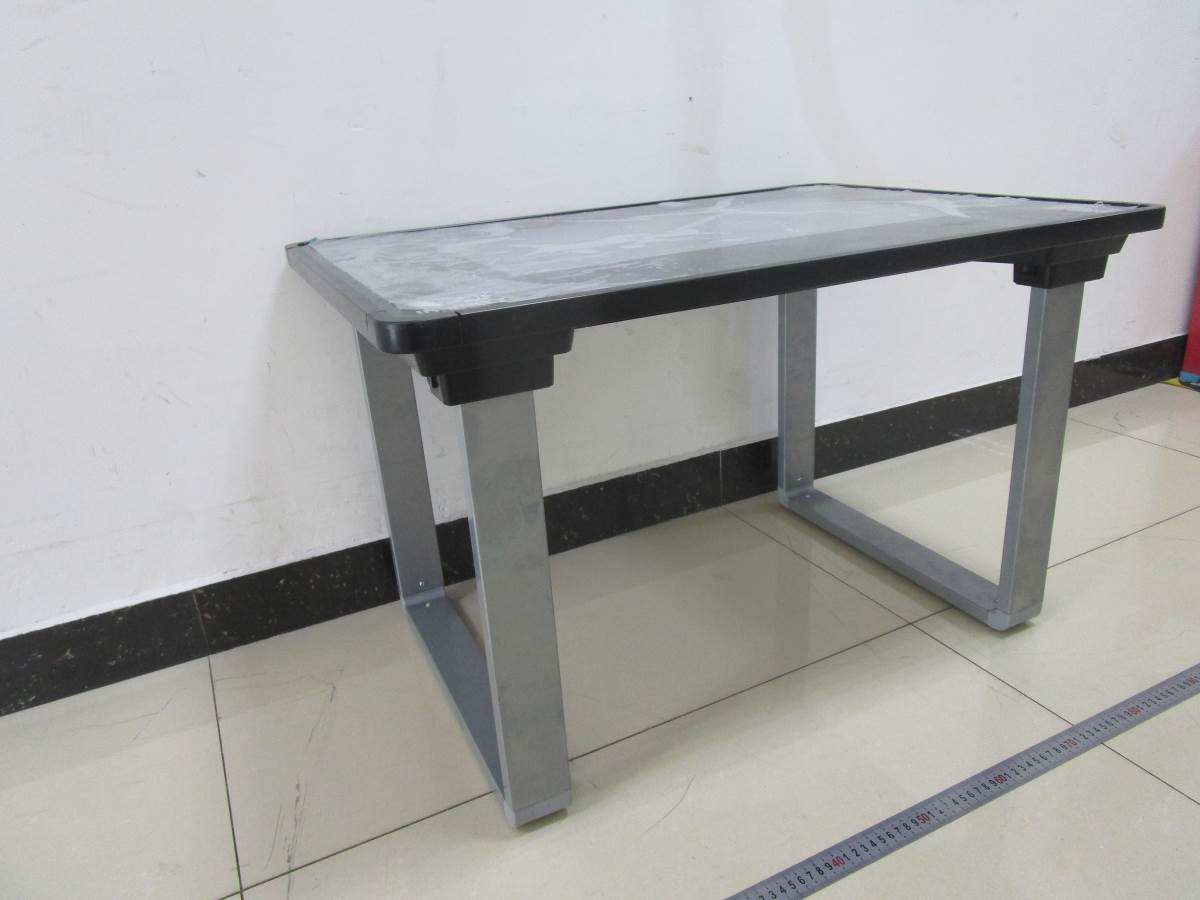

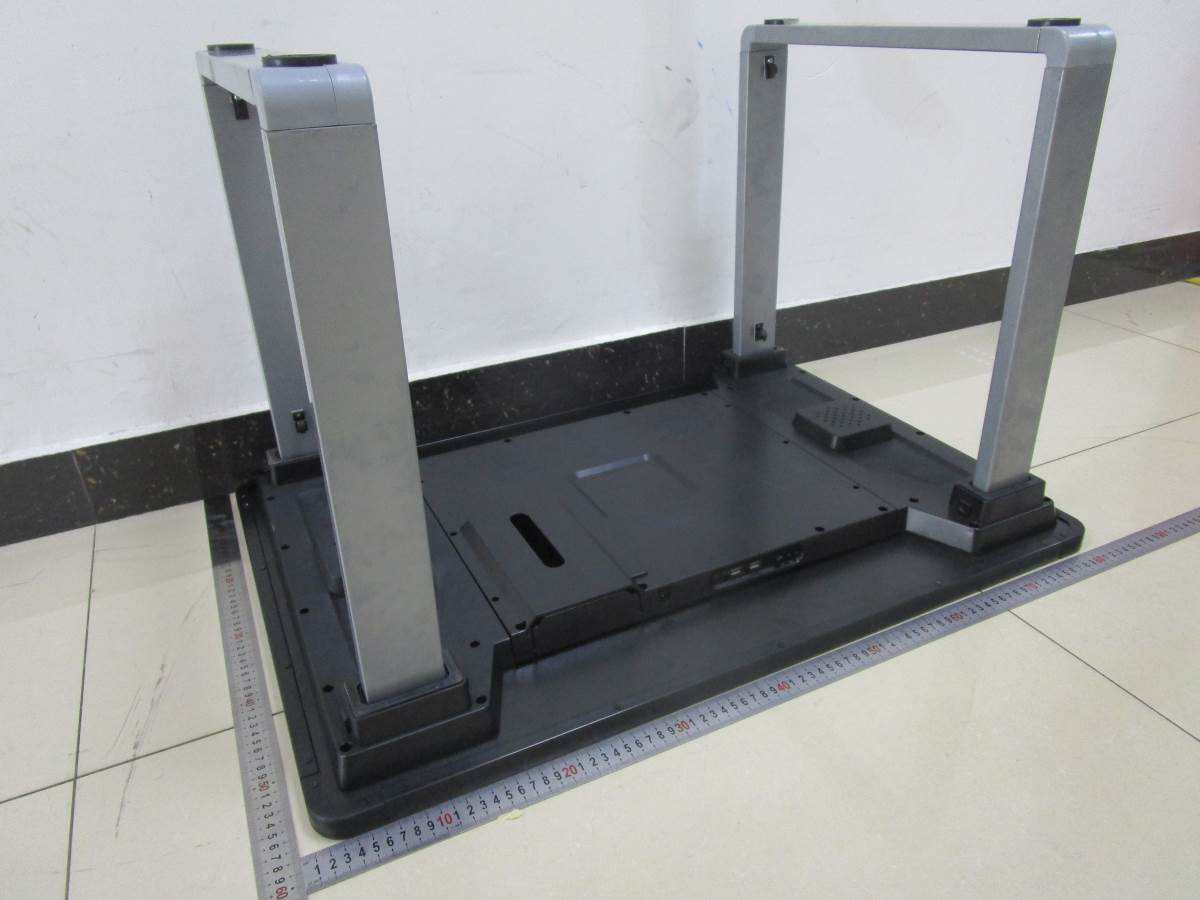

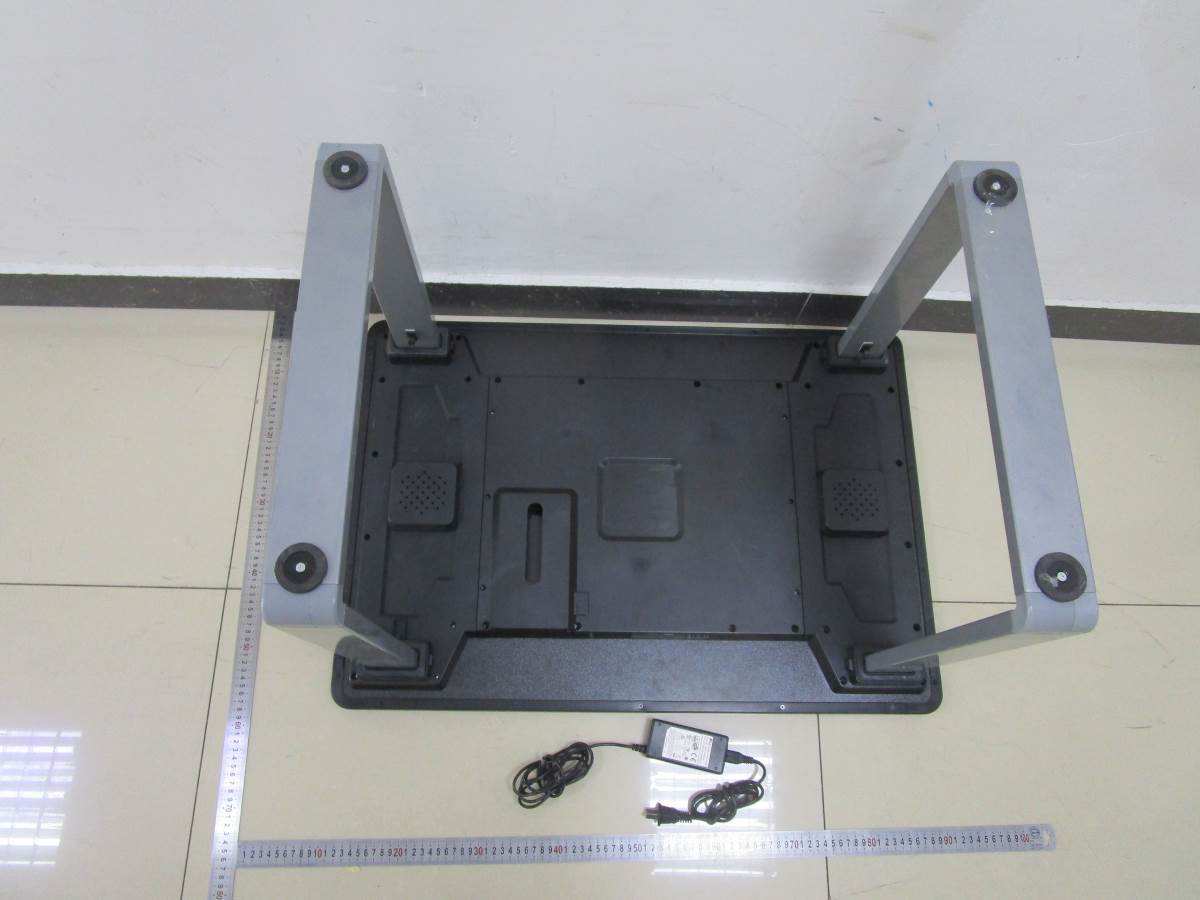

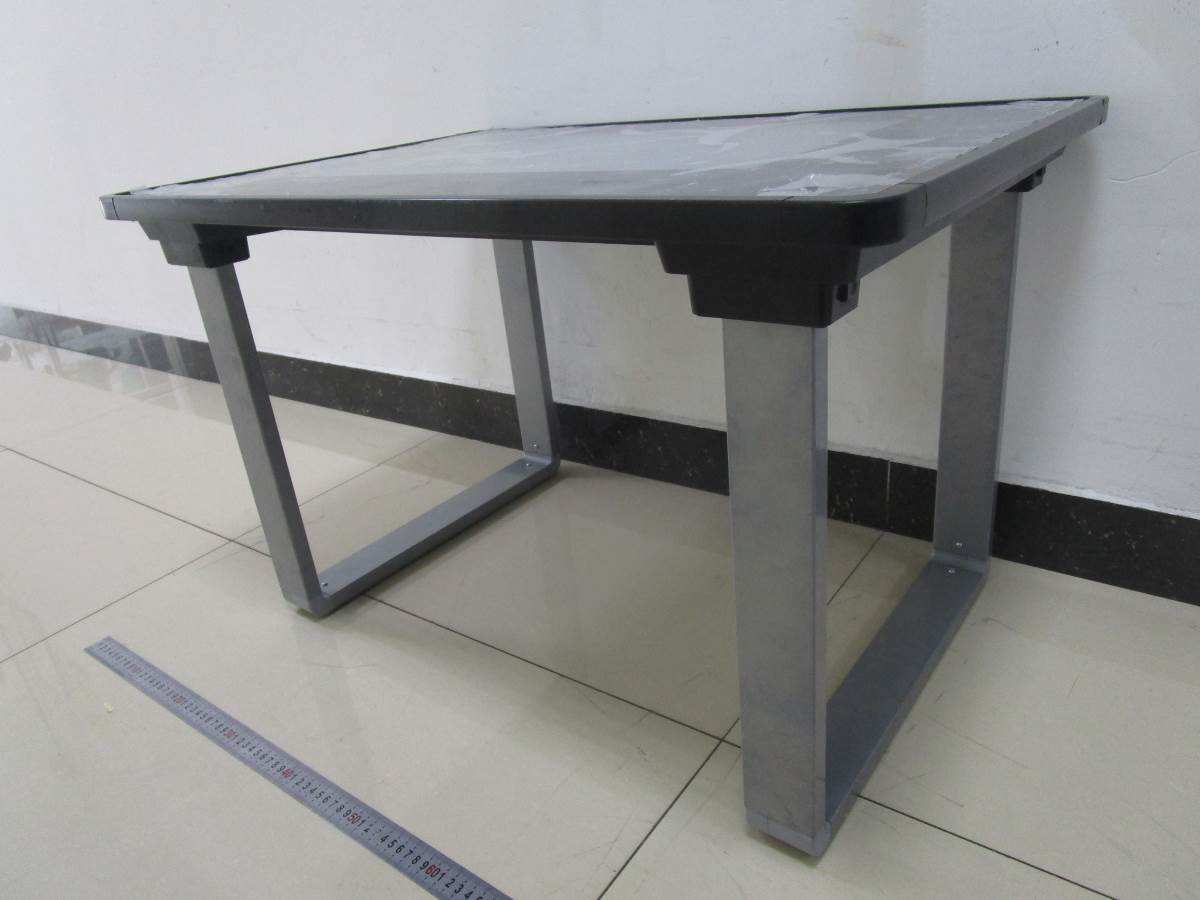

Page 1 of 3 External Photos Page 2 of 3 Page 3 of 3

Page 1 of 1 Label Artwork and Location SIZE: 170mm (W) x 170mm (H)

Page 1 of 8 Internal Photos WiFi ANT Page 2 of 8 Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

1 INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a 8207 Infinity Game Table with Wi-Fi function operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing. The EUT is powered by DC 12V with AC/DC adaptor. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral antenna. Antenna Gain: 1.2dBi. Modulation Type: Type of Modulation: BPSK, QPSK, 16QAM, 64QAM 802.11b: The nominal conducted peak output power specified: 0dBm (Tolerance: +/-3dB) The normal radiated peak output power (e.i.r.p) is: 1.2dBm (tolerance: +/- 3dB). The nominal conducted average output power specified: -2dBm (Tolerance: +/-3dB) The normal radiated average output power (e.i.r.p) is: -0.8dBm (tolerance: +/- 3dB). 802.11g/n-HT20: The nominal conducted peak output power specified: 10.0dBm (Tolerance: +/-3dB ) The normal radiated peak output power (e.i.r.p) is: 11.2dBm (tolerance: +/- 3dB). The nominal conducted average output power specified: -1.0dBm (Tolerance: +/-3dB) The normal radiated average output power (e.i.r.p) is: 0.2dBm (tolerance: +/- 3dB). The test data as below: IEEE 802.11b (Antenna Gain = 1.2 dBi) (16QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2412 1.9 -0.5 Middle Channel: 2437 2.9 0.5 High Channel: 2462 3.0 0.8 IEEE 802.11g (Antenna Gain = 1.2 dBi) (16QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2412 10.2 0.4 Middle Channel: 2437 11.5 1.2 High Channel: 2462 12.2 1.5 2 IEEE 802.11n-HT20 (Antenna Gain = 1.2 dBi) (64QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2412 10.3 0.4 Middle Channel: 2437 11.2 1.1 High Channel: 2462 12.5 1.3 According to the KDB 447498: The maximum conducted average output power specified is 2dBm= 1.585mW The source- based time-averaging conducted output power =0.1585* Duty cycle mW = 0.1585mW(Duty cycle =100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.462) mW = 9.56mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2APXH80718207

WF TASTEMAKERS TRADING LIMITED TEST REPORT SCOPE OF WORK FCC TESTING–8207 REPORT NUMBER SZHH01480147-001 ISSUE DATE [REVISED DATE] DECEMBER 18, 2020 [---------------------] PAGES 60 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: SZHH01480147-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 60 FCC ID 247_b TEST REPORT WF TASTEMAKERS TRADING LIMITED Application For Certification FCC ID: 2APXH80718207 8207 Infinity Game Table Additional name: 8071 Infinity Game Table (Sam’ S Club Edition) Model: 8207 Additional Model: 8071 Brand Name: ARCADE 1 UP 2.4GHz Wi-Fi Transceiver Report No.: SZHH01480147-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-19] Prepared and Checked by: Approved by: Sign on file Terry Tang Kidd Yang Assistant Supervisor Technical Supervisor Date: December 18, 2020 Intertek Report No.: SZHH01480147-001 Version: 01-November-2017 Page: 2 of 60 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT 8207 Infinity Game Table Model: 8207 FCC ID: 2APXH80718207 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10- 01-19] Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Intertek Report No.: SZHH01480147-001 Version: 01-November-2017 Page: 3 of 60 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test results ........................................................................................................... 4 2.0 General Description ................................................................................................................... 5 2.1 Product Description .................................................................................................................. 5 2.2 Related Submittal(s) Grants ..................................................................................................... 5 2.3 Test Methodology ..................................................................................................................... 5 2.4 Test Facility .............................................................................................................................. 5 3.0 System Test Configuration ........................................................................................................ 6 3.1 Justification .............................................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................................... 6 3.3 Special Accessories ................................................................................................................. 7 3.4 Measurement Uncertainty ........................................................................................................ 7 3.5 Equipment Modification ............................................................................................................ 7 3.6 Support Equipment List and Description ................................................................................. 7 4.0 Measurement Results ................................................................................................................ 8 4.1 Maximum Conducted Output Power at Antenna Terminals ......................................................... 8 4.2 Minimum 6 dB RF Bandwidth ................................................................................................... 9 4.3 Maximum Power Density Reading ......................................................................................... 16 4.4 Out of Band Conducted Emissions ......................................................................................... 23 4.5 Out of Band Radiated Emissions ............................................................................................ 39 4.6 Transmitter Radiated Emissions in Restricted Bands ............................................................. 40 4.7 Field Strength Calculation .............................................…

Text truncated - open the document above for the full version.

Page 1 of 1 Radiated Photos

Page 1 of 1 Conducted photos
