2APXH8074Photo Booth

User Manual Manuel de l'Utilisateur Manual de usuario At-Home Instant Photo Booth Photomaton instantané à la maison Fotomatón instantáneo en casa Photo Booth is designed for indoor and personal use only. It must not be installed permanently outdoors. The following conditions must be avoided. 1. Direct exposure to sunlight, high humidity, direct water contact, dust, high heat, or extreme cold. 2. Vibration. Photo Booth must be installed on a level surface. Do not install in an area such that the Photo Booth would present an obstacle in case of an emergency (i.e., near fire equipment or emergency exits). WARNING: Tastemakers Asia Limited assumes no liability for improper installation or excessive loads placed on screws or bracket. This wall anchor is not a substitute for proper adult supervision. IMPORTANT SAFETY INSTRUCTIONS INSTALLATION READ BEFORE USING THE PHOTO BOOTH SAFETY PRECAUTIONS The following symbols are used in labels on the Photo Booth to draw attention to potentially hazardous situations: WARNING : Failure to avoid the risk may result in death or serious injury. Electrical Shock Hazard. Disconnect power before removing cover. Should only be done by a qualified technician. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. FCC STATEMENT WARNING : To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 1. Please read and comprehend all warnings stated in this manual. 2. Do not get product wet when cleaning. 3. The AC/DC adapter and apparatus shall not be exposed to dripping or splashing and that no object filled with liquids, such as vases, shall be placed on apparatus. The AC/DC adapter is used as disconnect device.The AC/DC adapter of apparatus should not be obstructed OR should be easily accessed during intended used. To completely disconnect the power input, the AC/DC adapter of the apparatus shall be disconnected from the main power outlet. 4. If appliance is provided with protective earth terminal, it should be connected to main outlet with a protective earth connection. 5. Minimum distances 10 cm / 3.94 inches around the apparatus for sufficient ventilation. 6. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc. 7. No naked flame sources such as lighted candles should be placed on the apparatus. 8. The apparatus should only be used in moderate climates. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: 1. This device may not cause interference. 2. This device must accept any interference, including interference that may cause undesired operation of the device. 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all Instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Unplug this apparatus during lightning storms or when unused for long periods of time. 13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 14. The equipment shall be used at working ambient temperature 32° - 95°F (0° - 35°C). WARNING To ensure safe operation of the product, be sure to read this User Manual before use. Keep this User Manual in a safe place for easy reference when needed. WAR…

Text truncated - open the document above for the full version.

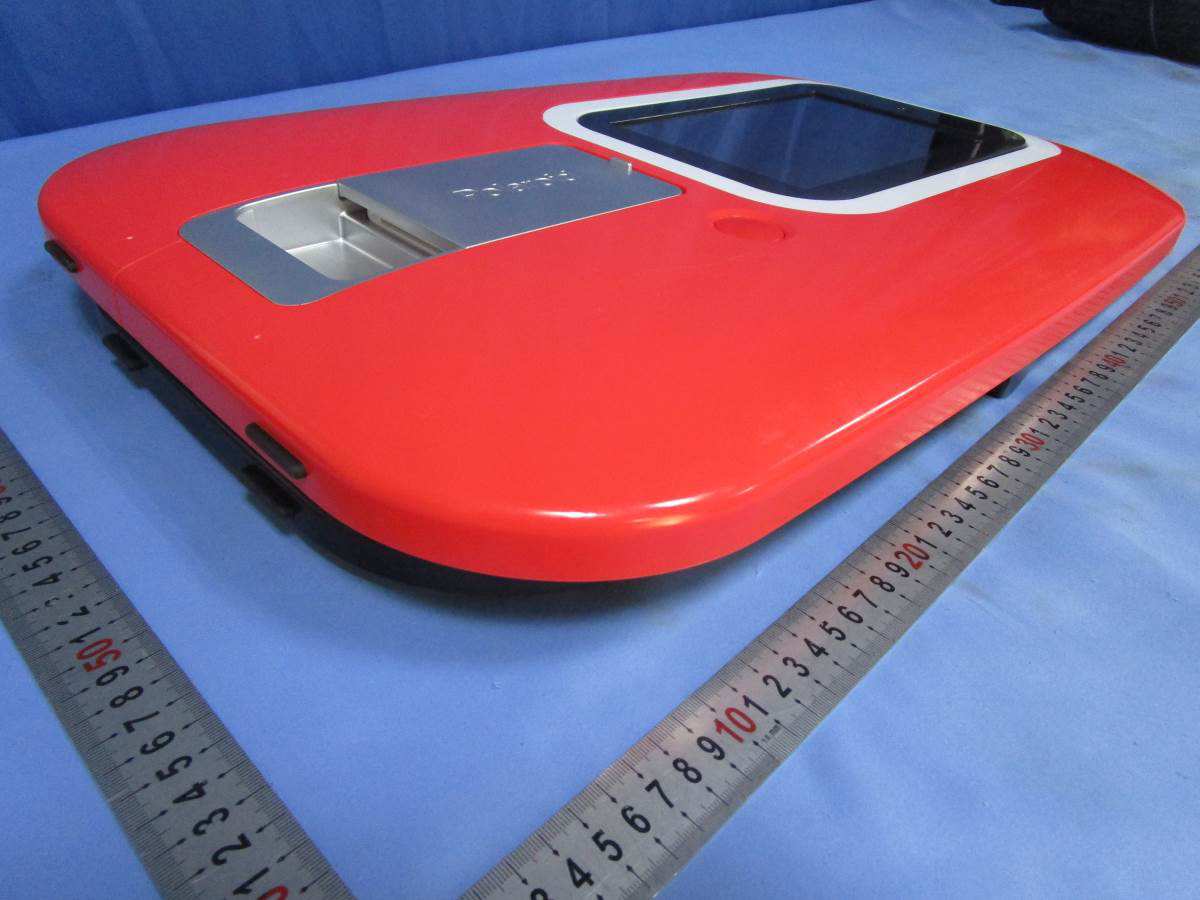

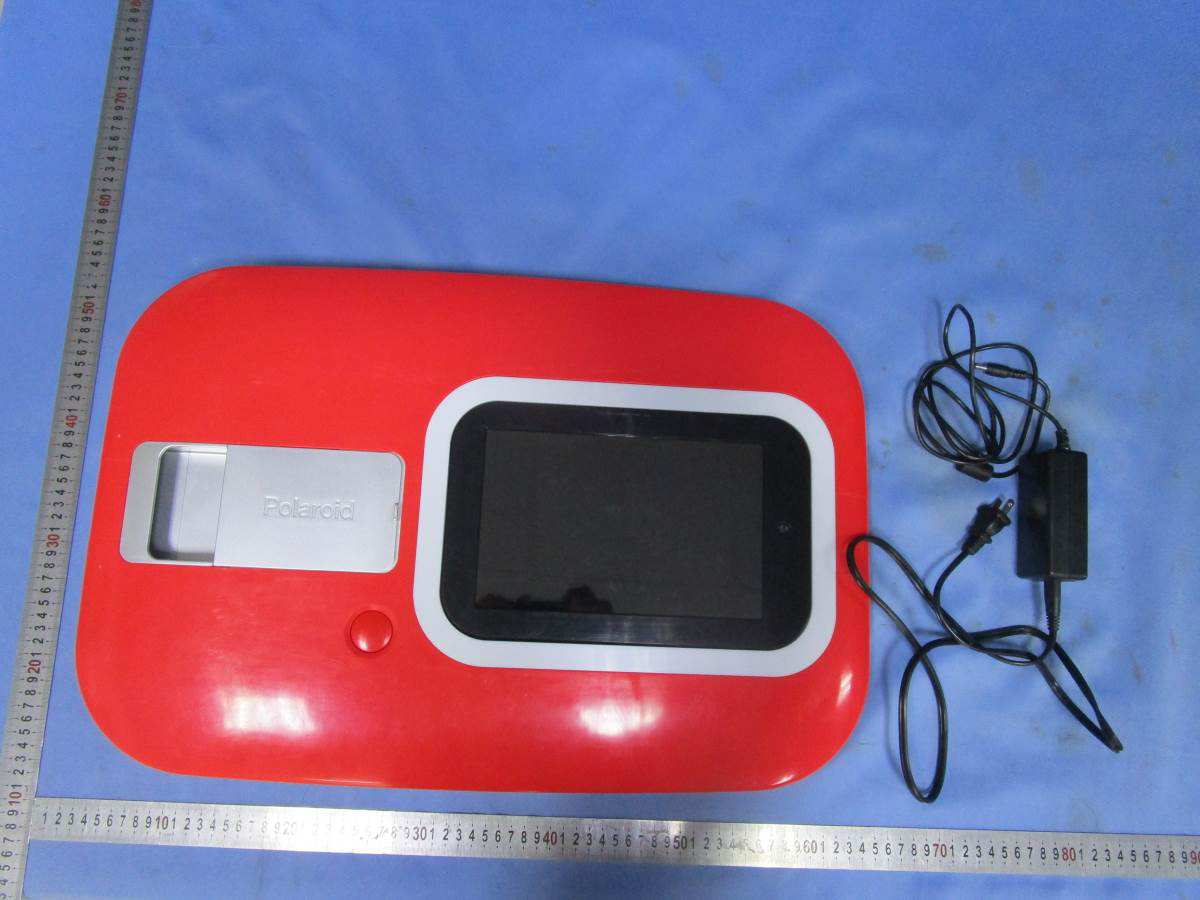

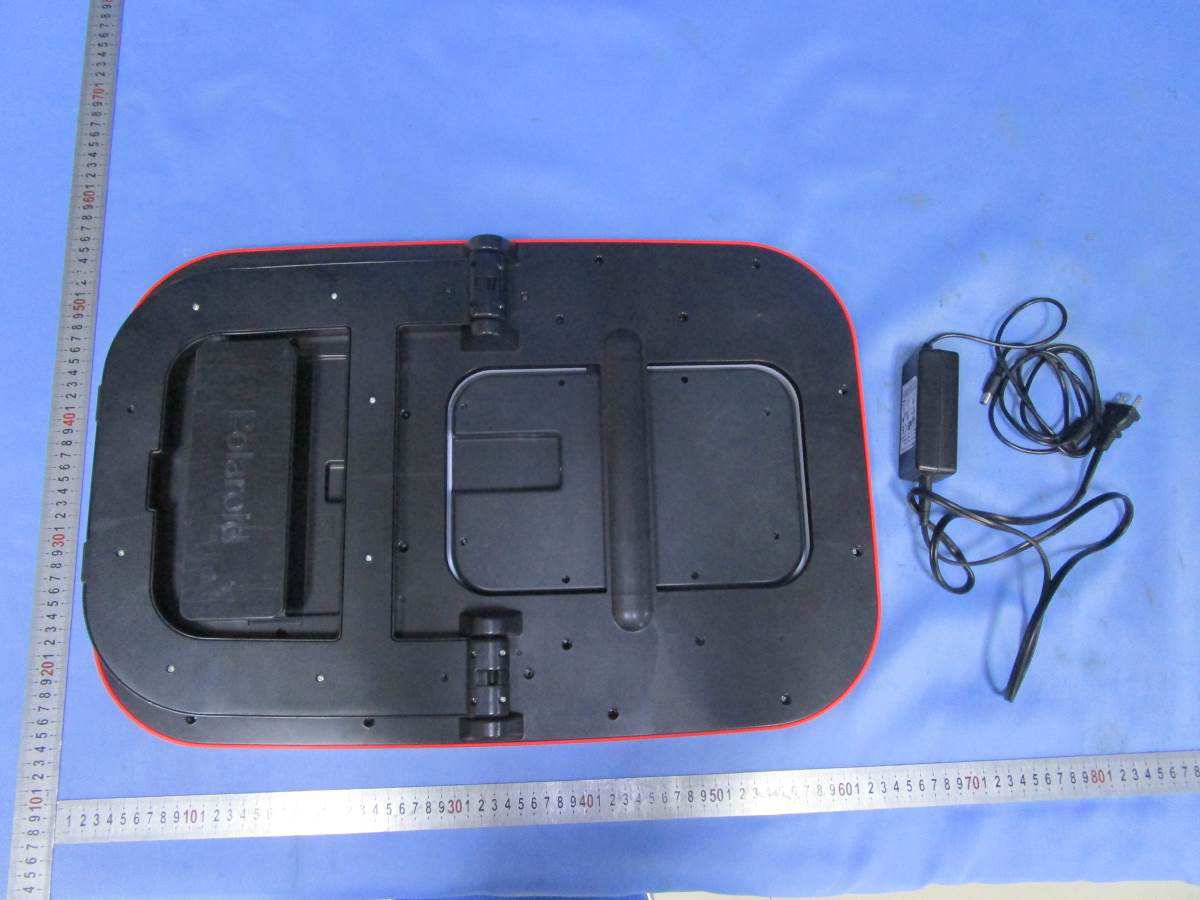

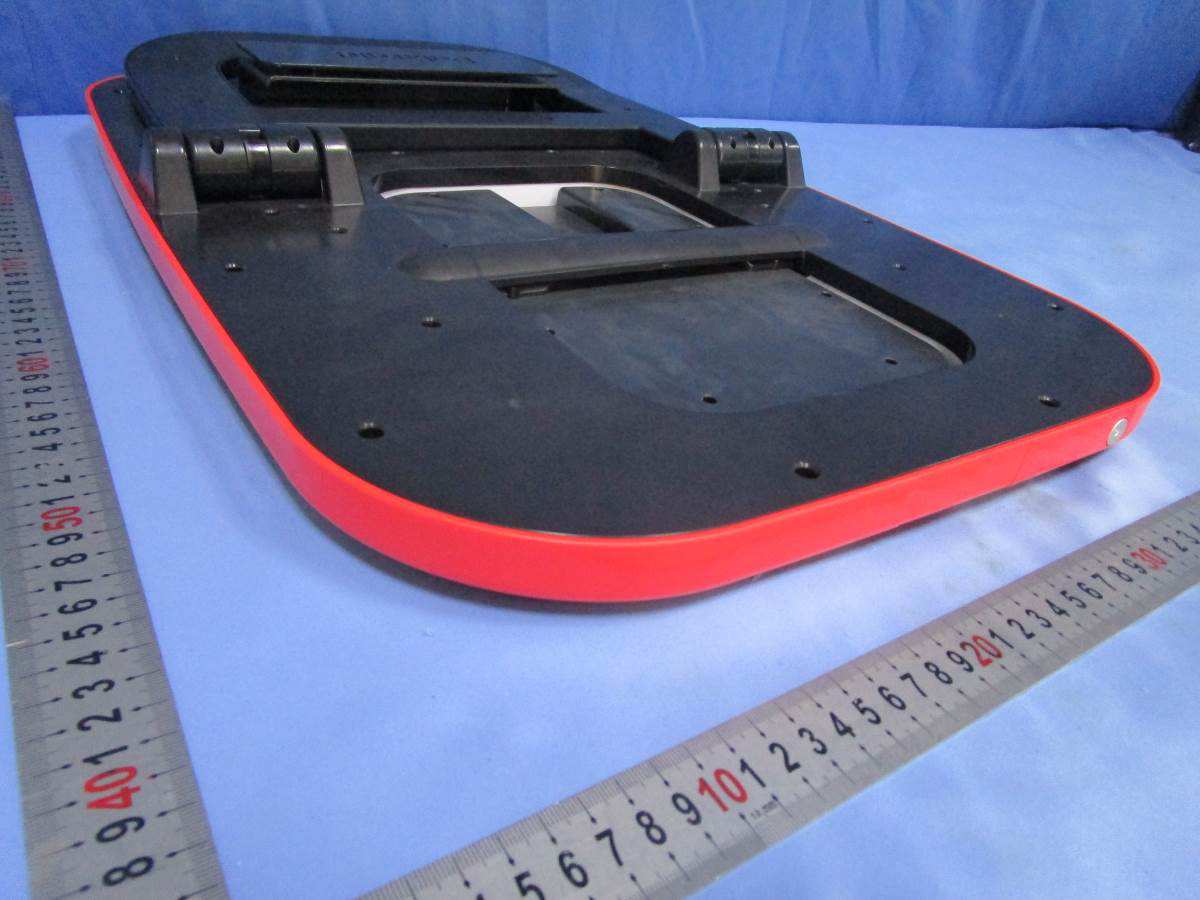

Page 1 of 3 External Photos Page 2 of 3 Page 3 of 3

Page 1 of 1 Label Artwork and Location SIZE: 144mm (W) x 99.5mm (H) SIZE: 140mm (W) x 50mm (H)

Page 1 of 7 Internal Photos WiFi ANT Page 2 of 7 Page 3 of 7 Page 4 of 7 Page 5 of 7 Page 6 of 7 Page 7 of 7

1 INTERTEK TESTING SERVICES RF Exposure The Equipment Under Test (EUT) is a Photo Booth with Wi-Fi function operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing and 2422-2452MHz for 802.11n-HT40, 7 channels with 5MHz channel spacing. The EUT is powered by DC 12V with AC/DC adaptor. For more detailed features description, please refer to the user’s manual. Antenna Type: Integral antenna. Antenna Gain: 2dBi. Modulation Type: Type of Modulation: BPSK, QPSK, 16QAM, 64QAM for OFDM; CCK, DQPSK, DBPSK for DSSS. 802.11b: The nominal conducted output peak power specified: 0dBm (Tolerance: +/-3dB) The normal radiated output peak power (e.i.r.p) is: 2.0dBm (tolerance: +/- 3dB). The nominal conducted output average power specified: -2dBm (Tolerance: +/-3dB) The normal radiated average output power (e.i.r.p) is: 0.0dBm (tolerance: +/- 3dB). 802.11g/n-HT20/n-HT40: The nominal conducted output peak power specified: 8.0dBm (Tolerance: +/-3dB ) The normal radiated output peak power (e.i.r.p) is: 10.0dBm (tolerance: +/- 3dB). The nominal conducted output average power specified: -2.0dBm (Tolerance: +/-3dB) The normal radiated average output power (e.i.r.p) is: 0.0dBm (tolerance: +/- 3dB). The test data as below: IEEE 802.11b (Antenna Gain = 2 dBi) (16QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2412 2.1 -0.5 Middle Channel: 2437 2.7 0.0 High Channel: 2462 2.9 0.3 IEEE 802.11g (Antenna Gain = 2 dBi) (16QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2412 9.4 -0.2 Middle Channel: 2437 9.9 0.3 High Channel: 2462 10.3 0.7 2 IEEE 802.11n-HT20 (Antenna Gain = 2 dBi) (64QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2412 8.8 -0.2 Middle Channel: 2437 9.3 0.3 High Channel: 2462 9.7 0.6 IEEE 802.11n-HT40 (Antenna Gain = 2 dBi) (64QAM, 6Mbps) Frequency (MHz) Output in dBm (Peak Reading) Output in dBm (Average Reading) Low Channel: 2422 9.1 -0.1 Middle Channel: 2437 9.4 0.2 High Channel: 2452 9.8 0.5 The conducted power tested for 2.4GHz transmitter in above column are within the specified power which declared by the applicant. According to the KDB 447498: The maximum conducted output average power specified is 1dBm= 1.259mW The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.462) mW = 9.56mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. FCC ID: 2APXH8074

WF TASTEMAKERS TRADING LIMITED TEST REPORT SCOPE OF WORK FCC TESTING–POL-W-08074 REPORT NUMBER SZHH01495604-001 ISSUE DATE [REVISED DATE] DECEMBER 14, 2020 [---------------------] PAGES 73 DOCUMENT CONTROL NUMBER FCC ID 247_b © 2017 INTERTEK Intertek Report No.: SZHH01495604-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 73 FCC ID 247_b TEST REPORT WF TASTEMAKERS TRADING LIMITED Application For Certification FCC ID: 2APXH8074 Photo Booth Model: POL-W-08074 Additional Model: POL-R-08074 Brand Name: POLAROID 2.4GHz Wi-Fi Transceiver Report No.: SZHH01495604-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [ 10-1-19] Prepared and Checked by: Approved by: Sign on file Terry Tang Kidd Yang Assistant Supervisor Technical Supervisor Date: December 14, 2020 Intertek Report No.: SZHH01495604-001 Version: 01-November-2017 Page: 2 of 73 FCC ID 247_b TEST REPORT MEASUREMENT/TECHNICAL REPORT Photo Booth Model: POL-W-08074 FCC ID: 2APXH8074 This report concerns (check one) Original Grant X Class II Change Equipment Type: DTS - Part 15 Digital Transmission Systems (Wi-Fi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10- 01-19] Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Intertek Report No.: SZHH01495604-001 Version: 01-November-2017 Page: 3 of 73 FCC ID 247_b TEST REPORT Table of Contents 1.0 Summary of Test results ........................................................................................................... 4 2.0 General Description ................................................................................................................... 5 2.1 Product Description .................................................................................................................. 5 2.2 Related Submittal(s) Grants ..................................................................................................... 5 2.3 Test Methodology ..................................................................................................................... 5 2.4 Test Facility .............................................................................................................................. 5 3.0 System Test Configuration ........................................................................................................ 6 3.1 Justification .............................................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................................... 6 3.3 Special Accessories ................................................................................................................. 7 3.4 Measurement Uncertainty ........................................................................................................ 7 3.5 Equipment Modification ............................................................................................................ 7 3.6 Support Equipment List and Description ................................................................................. 7 4.0 Measurement Results ................................................................................................................ 8 4.1 Maximum Conducted Output Power at Antenna Terminals ......................................................... 8 4.2 Minimum 6 dB RF Bandwidth ................................................................................................. 10 4.3 Maximum Power Density Reading ......................................................................................... 19 4.4 Out of Band Conducted Emissions ......................................................................................... 28 4.5 Out of Band Radiated Emissions ............................................................................................ 49 4.6 Transmitter Radiated Emissions in Restricted Bands ............................................................. 50 4.7 Field Strength Calculation ...................................................................................................... 51 4.8 Radiated …
