Lanto Electronic Ltd No.399 baisheng Road, jinxi Town, Kunshan, Jiangsu 215234, China Confidentiality Request Letter Date: January 14, 2021 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: 2APYS-LPS05WBI To whom it may concern: Short-term Confidentiality Pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Lanto Electronic Ltd Address : No.399 baisheng Road, jinxi Town, Kunshan, Jiangsu 215234, China Signature : _______________________________ Name and Job Title. : Teresa Wang, senior engineer E-mail : [email protected] Tel. : +86 512 8269 8999

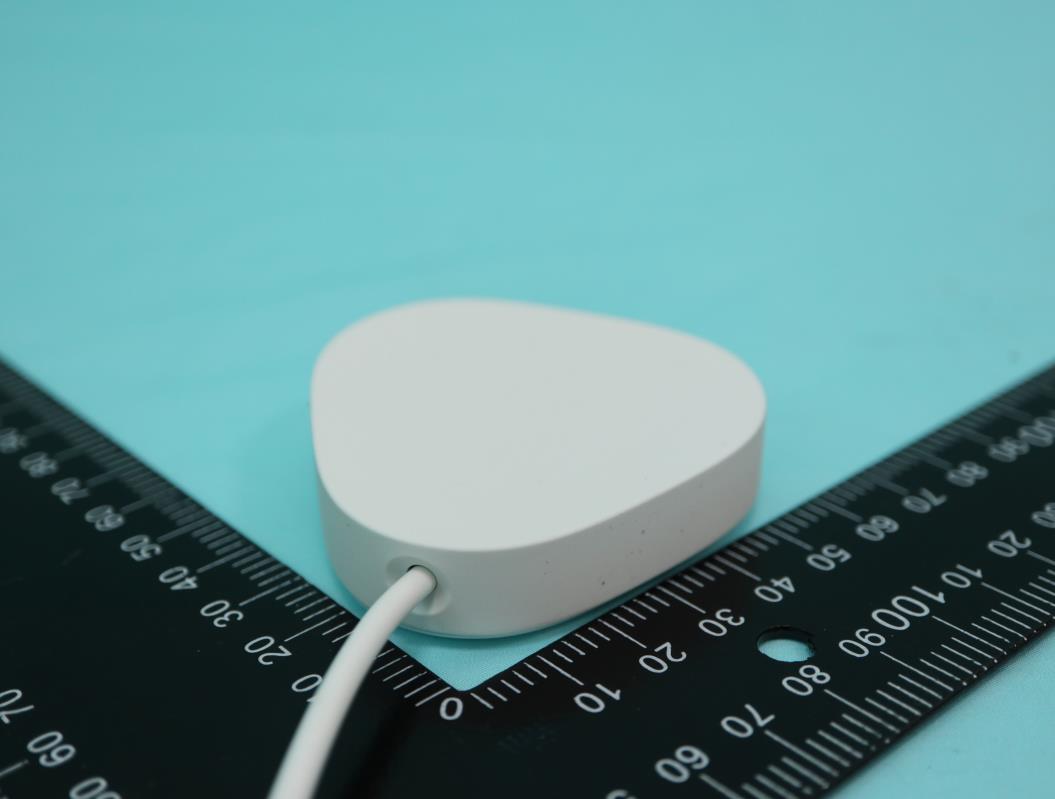

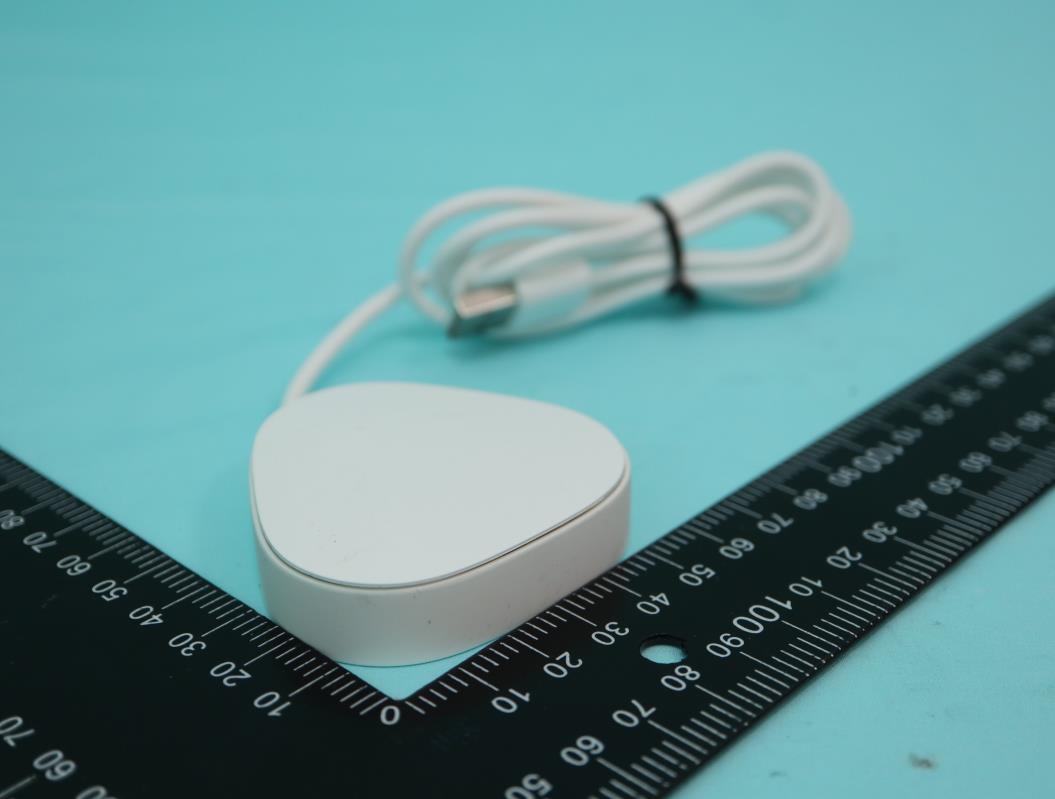

Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 1 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 2 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 3 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020

s o n o s . c o m / i p D e s i g n e d i n t h e U S A A s s e m b l e d i n C h i n a F C C I D : 2 A P Y S - L P S 0 5 W B I I C : 2 3 9 6 5 - L P S 0 5 W B I 5 V 1 . 5 A M o d e l : L P S - 0 5 W B - I Y Y Y Y M M D D Label Location Information EUT(Bottom View)

Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 3 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 4 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 5 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 6 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 7 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 8 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 9 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 Photographs of EUT Report No. : EP0O2323 SPORTON International Inc. Page No. : 10 of 10 TEL : 886-3-327-3456 EP Report Version : Rev. 01 FAX : 886-3-327-0973 Issued Date : Dec. 30, 2020 ─────THE END─────

Radio Exposure Evaluation Report Report No. : FA0O2323 TEL : 886-3-327-3456 Page Number : 1 of 7 FAX : 886-3-327-0973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2APYS-LPS05WBI Radio Exposure Evaluation Report FCC ID : 2APYS-LPS05WBI Equipment : Wireless Charger Brand Name : Sonos Model Name : LPS-05WB-I Applicant : Lanto Electronic Ltd No.399 baisheng Road, jinxi Town, Kunshan City, Jiangsu, 215324, China Manufacturer : Lanto Electronic Ltd No.399 baisheng Road, jinxi Town, Kunshan City, Jiangsu, 215324, China Standard : 47 CFR Part 2.1091 The product was received on Nov. 06, 2020, and testing was started from Nov. 09, 2020 and completed on Nov. 12, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in 47 CFR Part 2.1091 and shown compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of United States government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Radio Exposure Evaluation Report Report No. : FA0O2323 TEL : 886-3-327-3456 Page Number : 2 of 7 FAX : 886-3-327-0973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2APYS-LPS05WBI Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 EUT General Information ....................................................................................................................... 5 1.2 Testing Location ..................................................................................................................................... 5 2 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................... 6 2.1 Limit of Maximum Permissible Exposure ............................................................................................... 6 2.2 MPE Calculation Method ........................................................................................................................ 6 2.3 Calculated Result and Limit .................................................................................................................... 7 Photographs of EUT V01 Radio Exposure Evaluation Report Report No. : FA0O2323 TEL : 886-3-327-3456 Page Number : 3 of 7 FAX : 886-3-327-0973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2APYS-LPS05WBI History of this test report Report No. Version Description Issued Date FA0O2323 01 Initial issue of report Dec. 31, 2020 Radio Exposure Evaluation Report Report No. : FA0O2323 TEL : 886-3-327-3456 Page Number : 4 of 7 FAX : 886-3-327-0973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2APYS-LPS05WBI Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 2 - Exposure evaluation PASS - Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. Reviewed by: Sam Tsai Report Producer: Amber Chiu Radio Exposure Evaluation Report Report No. : FA0O2323 TEL : 886-3-327-3456 Page Number : 5 of 7 FAX : 886-3-327-0973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2APYS-LPS05WBI 1 General Description 1.1 EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type Bluetooth 2400-2483.5 2402-2480 LE: DSSS (GFSK) 1.2 Testing Location Testing Location HWA YA ADD : No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) TEL : 886-3-327-3456 FAX : 886-3-327-0973 Test site Designation No. TW1190 with FCC. JHUBEI ADD : No.8, Ln. 724, Bo'ai St., Zhubei City, Hsinchu County, Taiwan (R.O.C.) TEL : 886-3-656-9065 FAX : 886-3-656-9085 Test site Designation No. TW0006 with FCC. Radio Exposure Evaluation Report Report No. : FA0O2323 TEL : 886-3-327-3456 Page Number : 6 of 7 FAX : 886-3-327-0973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-A1 Ver2.2 Report Version : 01 FCC ID: 2APYS-LPS05WBI 2 Maximum Permissible Exposure 2.1 Limit of Maximum Permissible Exposure (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f 2 )* 6 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Method The MPE was calculated at 20 cm to show compliance with the power density limit. The following formula was used to cal…

Text truncated - open the document above for the full version.

FCC Test Report Report No. : FR0O2323AL TEL : 886-3-3273456 Page Number : 1 of 25 FAX : 886-3-3270973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-C10 Ver3.9 Report Version : 01 FCC ID: 2APYS-LPS05WBI FCC Test Report FCC ID : 2APYS-LPS05WBI Equipment : Wireless Charger Brand Name : Sonos Model Name : LPS-05WB-I Applicant : Lanto Electronic Ltd No.399 baisheng Road, jinxi Town, Kunshan City, Jiangsu, 215324, China Manufacturer : Lanto Electronic Ltd No.399 baisheng Road, jinxi Town, Kunshan City, Jiangsu, 215324, China Standard : 47 CFR FCC Part 15.247 The product was received on Nov. 06, 2020, and testing was started from Nov. 09, 2020 and completed on Nov. 12, 2020. We, SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Allen Lin __________________________________________ SDoC by: XXXXX SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) FCC Test Report Report No. : FR0O2323AL TEL : 886-3-3273456 Page Number : 2 of 25 FAX : 886-3-3270973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-C10 Ver3.9 Report Version : 01 FCC ID: 2APYS-LPS05WBI Table of Contents HISTORY OF THIS TEST REPORT .................................................................................................................. 3 SUMMARY OF TEST RESULT ......................................................................................................................... 4 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 7 1.3 Testing Location Information .................................................................................................................. 7 1.4 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT......................................................................................................... 9 2.1 Test Condition ........................................................................................................................................ 9 2.2 Test Channel Mode ................................................................................................................................ 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Support Equipment ............................................................................................................................... 11 2.5 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 13 3.1 AC Power-line Conducted Emissions .................................................................................................. 13 3.2 DTS Bandwidth..................................................................................................................................... 15 3.3 Maximum Conducted Output Power .................................................................................................... 16 3.4 Power Spectral Density ........................................................................................................................ 18 3.5 Emissions in Non-restricted Frequency Bands .................................................................................... 19 3.6 Emissions in Restricted Frequency Bands ........................................................................................... 20 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 24 APPENDIX A. TEST RESULTS OF AC POWER-LINE CONDUCTED EMISSIONS APPENDIX B. TEST RESULTS OF DTS BANDWIDTH APPENDIX C. TEST RESULTS OF MAXIMUM CONDUCTED OUTPUT POWER APPENDIX D. TEST RESULTS OF POWER SPECTRAL DENSITY APPENDIX E. TEST RESULTS OF EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS APPENDIX F. TEST RESULTS OF EMISSIONS IN RESTRICTED FREQUENCY BANDS APPENDIX G. TEST PHOTOS PHOTOGRAPHS OF EUT V01 FCC Test Report Report No. : FR0O2323AL TEL : 886-3-3273456 Page Number : 3 of 25 FAX : 886-3-3270973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-C10 Ver3.9 Report Version : 01 FCC ID: 2APYS-LPS05WBI History of this test report Report No. Version Description Issued Date FR0O2323AL 01 Initial issue of report Dec. 31, 2020 FCC Test Report Report No. : FR0O2323AL TEL : 886-3-3273456 Page Number : 4 of 25 FAX : 886-3-3270973 Issued Date : Dec. 31, 2020 Report Template No.: HE1-C10 Ver3.9 Report Version : 01 FCC ID: 2APYS-LPS05WBI Summary of Test Result Report Clause Ref.Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - 3.1 15.207 AC Power-line Conducted Emissions PASS - 3.2 15.247(a) DTS Bandwidth PASS - 3.3 15.247(b) Maximum Conducted Output Power PASS - 3.4 15.247(e) Power Spectral Density PASS - 3.5 15.247(d) Emissions in Non-rest…

Text truncated - open the document above for the full version.

Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : G1 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 1. Photographs of Conducted Emissions Test Configuration Front view Side view Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : G2 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Under table view Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : G3 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 2. Photographs of Radiated Emissions Test Configuration For radiated emissions 30MHz~1GHz Front view Rear view Test Photos Appendix G SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory. Page number : G4 of G4 TEL : 886-3-327-3456 FAX : 886-3-327-0973 For radiated emissions above 1GHz Front view Rear view ─────THE END─────
