2AQ2W-T19Bluetooth headset

T19 TWS bluetooth headset Please read the instruction manual before operating the Tws Bluetooth Headset T19 ◇ ◇ ◇ ◇ ◇ ◇ ◇ ◇ ◇ Product Specification ◇ Bluetooth version: V5.0 Bluetooth Protocol: a2dp\avctp\avdtp\avrcp\hfp\spp\smp Transmission Range: 10M (Ideal environment without any giant obstacles) Modes Available: HFP/ HSP/ A2DP/ AVRCP Charging Input: 5V/500mA Battery: 220mah for charging box, 25mah for earphone. Charging Time: around 45minutes for charging the charging box, 50 minutes for charging the earbuds. Times for earbuds to be charged by the box: 3 times for dual earbuds, 6 times for single earbud. Playing Time: 3 hours for calling, 2.5 hours for playing music. Standby Time: Around 80 hours . ◇ ◇ Enable Bluetooth on your phone or other device. For Android, please click "search Bluetooth device" on your phone. For IOS mobile phones or devices, it would automatically search for devices; After searching Bluetooth name “T19”, click it to enter pairing; When the pairing is successful, the main earphone would play tone” connected” which means the connection is successful and the lights in the left and right earphones would all go out. ◇ The two earphones can also be paired with the phone separately. Same operation method as two steps as above. seconds, Charging operation a.) The earphone can be charged automatically by putting it into the charging bin. The indicator light of the earphone will be red when charging, and the indicator light above the charging box will be on. It would be off after full. b.) External USB charging. When charging, the indicator light above the charging box begins to flash. When all four lights are on, it means it is fully charged. When the discharge quantity drops to the corresponding quantity, the corresponding indicator light goes off. Make the earphones power on by taking them out from the charging box or long pressing the multifunction touch button of left and right earphone at the same time for 3 seconds. Warning tone “power on” and the blue light and red light flash alternatively, at the same time, earphones enter searching and paring status. Warning note “Pairing” means entering automatic paring of two earphones. After paired successfully, the main earphone flashes alternatively with red and blue light,the sub earphone flashes with slow blue light, at the same time, playing warning tone “connected”. ◇ Play/pause In the standby mode,click the left and right earphones multi-function touch keys to play music directly.When playing, click the left and right earphones multi-function touch keys to pause playback. ◇ Call answering When the mobile phone calls,click the left and right earphones multifunction touch button to answer the call. ◇ Call hang up When the phone is talking ,click the left and right earphones multi-fuction touch button to hang up the phone. ◇ Call rejection When the mobile phone calls,long press the left and right headphones multi-function touch button for 2 seconds to reject the call. ◇ Redial While on standby or playing music, you can dial the last call you made in your call history by tapping the left headset multifuction touch button. ◇ Low battery prompt When the battery of the bluetooth headset is low,the low battery tone will be played every 30 seconds untill the headset is powered off. Pairing method ◇ Bluetooth name : T19 Precautions a.) Please charge in a safe environment.When charging the charging compartment,please charge the charging compartment separately from the USB charging cable as soon as the charging indicator indicates full power,so as to avoid damage to the charging compartment after a long time of charging. b.) When playing music,please adjust the music to the appropriate volume to avoid hearing damage at high volume for a long time. c.) Try to avoid using the headset in a place with interference sources,otherwise it may affect the headphone signal. d.) Try to avoid using the headset in a corrosive environment to avoid affecting the function of the headset. Special Tips : When you use it for the first time, please tear off the protective film on the earphones. Then connect the power adapter with the attached data cable for half an hour to achieve the best use of the built-in battery. When using the bluetooth headset to listen to music or talk, please pay attention to adjust the volume, so as not to affect your listening! 6 8 . 2 m m 2 5 m m 3 1 . 2 m m 3 8 . 9 m m 17.8mm 5.USB Charging PORT 7. Light indicator 6.Charging thimble 3.Microphone port 4.LED indicator 1.Charging contact 2.Touch location Product schematic diagram Important Notes ◇ Do not disassemble the product by yourself. ◇ Please use the standard charging cable and 5V charger to avoid damage and accidents. ◇ This machine supports left and right ear wear. Packing List ◇ Bluetooth Earphones ◇ Charging box ◇ Micro 5pin charging cable ◇ Operation manual Functional operation instructions ◇ Boot Take the headset out of the charging compartment and automatically turn it on or press and hold the left and right headset multifunction touch button for 3 seconds ◇ Shut down Put the headset into the charging compartment and turn it off automatically.Press and hold the left and right headset multifunction touch button for 5 seconds to shut down. ◇ Boot back When the pairing is successful,the bluetooth headset preferentially enters the connected state when the second time is turned on,and automatically connects back to the connected mobile phone. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a…

Text truncated - open the document above for the full version.

Shenzhen Doageas Technology Co., Ltd. Agent Authorization Company: Shenzhen Doageas Technology Co., Ltd. Address: 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China Product Name: Bluetooth headset Trade Mark: N/A Model Number(s): T19 FCC ID: 2AQ2W-T19 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-26 Name: Denly Zheng Title: / Company: Shenzhen Doageas Technology Co., Ltd.

Shenzhen Doageas Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-05-26 Subject; Request for Confidentiality FCC ID: 2AQ2W-T19 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Denly Zheng Title: /

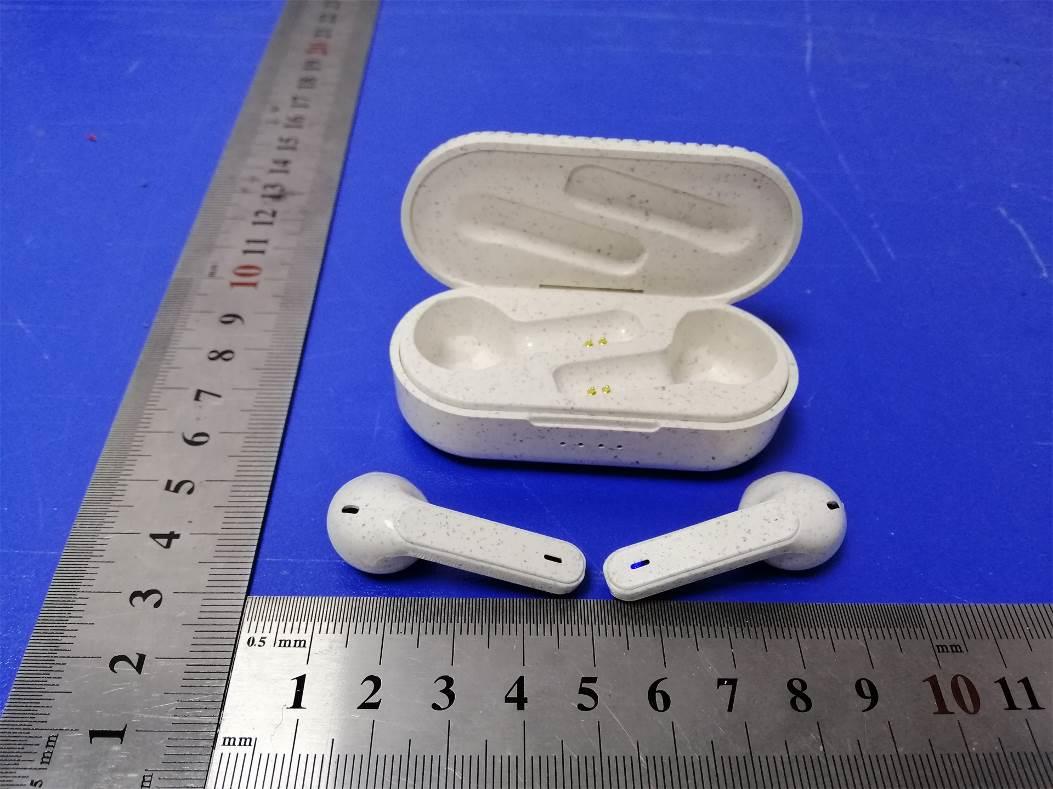

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Bluetooth headset Model No.: T19 FCC ID: 2AQ2W-T19

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 9.INTERIOR PHOTOGRAPHS Fig.2 Fig.1 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AQ2W-T19 Product name : Bluetooth headset Test Model : T19 Power supply : Input:5V300Ma Output:5V120mA DC 3.7V by Battery (220mAh) Operation frequency : 2402MHz-2480MHz Channel Number : 79 Channels for Bluetooth V5.0 (DSS) Channel Spacing : 1MHz for Bluetooth V5.0 (DSS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) Bluetooth Version : V5.0 Antenna Type : Internal Antenna Antenna Gain : 1.2dBi(Max.) Hardware version : V01 Software version : S134 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.517 39 2441 -1.317 78 2480 -1.935 π/4DQPSK 0 2402 0.029 39 2441 0.104 78 2480 -0.473 8DPSK 0 2402 0.102 39 2441 0.243 78 2480 -0.361 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance <BT> GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -1.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 0 0 Tolerance ±(dB) 1.0…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 1 of 47 Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: Bluetooth headset Trade Mark: N/A Test Model: T19 Environmental Conditions Temperature: 25 C Relative Humidity: 50% ATM Pressure: 100.0 kPa Test Engineer: Qu Xin Supervised by: Tom Liu A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -1.517 21 PASS MCH -1.317 21 PASS HCH -1.935 21 PASS π/4DQPSK LCH 0.029 21 PASS MCH 0.104 21 PASS HCH -0.473 21 PASS 8DPSK LCH 0.102 21 PASS MCH 0.243 21 PASS HCH -0.361 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 1.015 Not Specified PASS MCH 0.9629 Not Specified PASS HCH 0.9629 Not Specified PASS π/4DQPSK LCH 1.318 Not Specified PASS MCH 1.317 Not Specified PASS HCH 1.319 Not Specified PASS 8DPSK LCH 1.303 Not Specified PASS MCH 1.303 Not Specified PASS HCH 1.305 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.766 0.677 PASS MCH 0.996 0.677 PASS HCH 0.792 0.677 PASS π/4DQPSK LCH 1.254 0.879 PASS MCH 0.896 0.879 PASS HCH 0.888 0.879 PASS 8DPSK LCH 0.870 0.870 PASS MCH 1.228 0.870 PASS HCH 1.136 0.870 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.87 106.7 0.306 0.4 PASS DH5 MCH 2.87 106.7 0.306 0.4 PASS DH5 HCH 2.87 106.7 0.306 0.4 PASS π/4DQPSK 2DH5 LCH 2.87 106.7 0.307 0.4 PASS 2DH5 MCH 2.87 106.7 0.307 0.4 PASS 2DH5 HCH 2.87 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.87 106.7 0.307 0.4 PASS 3DH5 MCH 2.87 106.7 0.307 0.4 PASS 3DH5 HCH 2.87 106.7 0.307 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 5.306 -38.243 -14.694 PASS MCH 5.405 -38.360 -14.595 PASS HCH -2.755 -37.796 -22.755 PASS π/4DQPSK LCH 5.195 -36.873 -14.805 PASS MCH 5.099 -37.478 -14.901 PASS HCH 4.976 -38.000 -15.024 PASS 8DPSK LCH 5.348 -37.979 -14.652 PASS MCH 6.446 -37.883 -13.554 PASS HCH 6.015 -37.781 -13.985 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA Page 29 of 47 π/4DQPSK_MCH_Graphs P…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT FOR Shenzhen Doageas Technology Co., Ltd. Bluetooth headset Test Model: T19 Prepared for : Shenzhen Doageas Technology Co., Ltd. Address : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 13, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : April 13, 2020 ~ April 25, 2020 Date of Report : April 27, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS200323131AEA Date of Issue ................................... : April 27, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen Doageas Technology Co., Ltd. Address ........................................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China Test Specification Standard .......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Bluetooth headset Trade Mark ...................................... : N/A Test Model ...................................... : T19 Ratings ............................................ : Input:5V300Ma Output:5V120mA DC 3.7V by Battery (220mAh) Result ........................................... : Positive Compiled by: Supervised by: Approved by: Jayden Zhuo/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200323131AEA April 27, 2020 Date of issue Test Model........................... : T19 EUT......................................... : Bluetooth headset Applicant............................... : Shenzhen Doageas Technology Co., Ltd. Address.................................. : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Doageas Technology Co., Ltd. Address................................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Doageas Technology Co., Ltd. Address................................... : 5/F, 4th Bldg, Hedian Industrial Park, Guanlan, Longhua, Shenzhen, Guangdong 518110, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 April 27, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 Report No.: LCS200323131AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) .............................................................................................................. 6 1.2 Support equipment List ....................................................................................................................... 6 1.3 External I/O Cable ................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AQ2W-T19 _______________________________________________________________________________________________ Power Line Conducted Emission Note: The left earphone and the right earphone are the same. The test uses the left earphone.
