2AQ4G-BS5314GMobile phone

User manual Mobile phone Model: BS5314G Phone OverviewGet StartedInstall the USIM/SIM Install the memory card Remove the back cover Mount/Demount the batteryBasic OperationsSwitch onTouch and hold the Power button until the phone switches on.Note: If you have enabled USIM/SIM locking in the Settings menu,enter the correct PIN number upon power-on before you use thephone.Caution: Three consecutive attempts of entering an incorrect PIN willlock the SIM card. If it is locked, use a PUK provided by the operatorto unlock it.Switch offTouch and hold the “ Power button ” until the Phone Options screendisplays.Tap"Poweroff”toswitchoffthephone. UnlockShort press the “Power button” light up the screen, according to theclues of the screen interface can be unlocked. Touchscreen UsageUse your fingers to perform operations directly on icons, buttons,and the on-screen keypad.Tap/Touch/ClickTap the icon of an App to start it.Touch & HoldTouch and hold an item to display a pop-up menu of options. For example, go to Address Book, touch and hold a contact on theAddress Book page, and a menu of options pops up. Drag Tap an item on the screen and drag it to another place.Slide/SweepTo sweep vertically or horizontally across the screen, you can view apps, pictures, and webpages in a convenient manner. ScrollSimilar to sweeping, but faster.PinchPut two fingers on the screen to pinch in or out an item, such as a webpage or picture. Home Screen1. Status bar: allows you to view status icons and notices, such as signal, battery, current time and data service.2. Notification bar: On the Home screen, tap the status bar and drag it down to display the notification bar. Tap this bar. Then you canview the notices. Touch the return button to switch back to theprevious page.3. App icon: Tap an app to open it. 4. Main menu: allows you to enter the app main menu. Phone SettingsTo display the Settings menu, tap the Settings icon directly.1.SIM card: In the Settings menu, choose SIM Card. You can then manage your SIM cards on the pop-up page. 2. Network: In the Settings menu, select WLAN to configure your radio network; or select Traffic usage to configure your mobile dateservices ; or select Mobile Network under More to configure data services of your phone. 3. Sound: In the Settings menu, choose Sound. The allows you to set the volume, enable/disable vibration during ringing, and selectringtones for incoming calls and messages, as well asenable/disable keypad touch sound effect, touch alert tone, andscreen lock tone4. Display: allows you to configure the brightness, wallpaper, automatic device rotation, sleep duration, and font size.5. Security: In the Settings menu, choose Security. The Security page allows you to set the screen locking mode and USIM/SIMlocking mode. App Permission: allows you to configure certain permissions for an App and monitor their usage.6. Anti-theft: allows you to remotely lock the phone or clear all data of it.7. Manage apps: In the Settings menu, choose Apps. Then you can view or manage your apps. Note: Disable or unload certain apps if available space is less than 100MB.8. Message: On the Message page, tap the Menu button and choose Settings. On the Message Settings page, you canenable/disable report sending, create or select a message template,and configure a message alert tone for each short or multimediamessage.9. Call: To display the Call Settings page, choose Settings on the Call page.ShortcutsOn the Home screen, lightly drag down the Status bar. On the screentop, a group of shortcuts are displayed, such as Settings, WLAN,Bluetooth, Brightness, Ringtone Mode, flashlight and Airplane mode.Tap any of them to open it quickly.WidgetAndroid7.0 offers multiple ease-of-use widgets on the Home screen. On this screen,Long press the screen and then the Widget tab, todisplay the widget selection page. Tap and hold a desired widget tobe put on the Home screen, drag it left or right to locate it at a properplace, and complete the Widget settings as prompted.Move/Uninstall apps1. Access the App main menu from the Home screen. On the ALLApp page, tap and hold an app to be put on the Home screen, anddrag it left or right to locate it at a proper place. In this way, a desktopapp is created.2. On the All App page, tap and hold an app, and drag it to Uninstall on the desktop. In this way, the app is removed from the phone. Note: You are not allowed to uninstall basic apps of the phone.3. On the All App page, tap and hold an app, and drag it to APP Info. on the desktop. In this way, details about the app is displayed. CallThis phone allows you to make or answer a call, initiate anemergency call, and launch a multi-party call.On the bottom left of the Home screen, tap the Dial-up icon. TheDial-up page is displayed. Enter a phone number and choosebetween card 1 and card 2 to make the call. When you enter thenumber, the phone will automatically search among all contacts anumber that best matches the entered numerals, to facilitate youroperation.During a call, tap Add a Call, and this call automatically switches to Silent mode. Enter the number of another contact, tap Dial-up, andthe previous call automatically switches to On-hold mode. After thesecond call is answered, tap Join. In this way, a teleconference isestablished to achieve a multi-party talk. Note: You need to subscribe to this service from your carrier before youuse it.You are also allowed to initiate a call by selecting a phone numberfrom the list of contacts or the Message page.Contacts Tap Contacts to open it. The Contacts page offers managementfunctions. It allows you to view the list of contacts and related details,make a call or send an SMS to a certain contact, and share thecontact.Contact import : On the Contacts page, tap the Menu button, and choose Import/Export to select a mode for importing or exporting acontact.Add a contact : On the lower right of the Contacts page, tap the Add button to add a contact to your phone or USIM/SIM. Enter the…

Text truncated - open the document above for the full version.

Shenzhen Link Win Technology Co., Ltd D ate: 2020.05.12 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2AQ4G-BS5314G T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. T hese documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure I t is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. S incerely, S ignature: N ame: Raul Zhang T itle: Sales Manager

Shenzhen Link Win Technology Co., Ltd 9F, Zhengqilong lndustrial Building, 1st Rd Gushu, Xixiang, Bao'an, Shenzhen, China Statement Product: Mobile phone Model: BS5314G Additional Model: MM5114G, SS5214G Trademark: Black Smart, Mint Mist, Soho Style We hereby state that All models above are identical in interior structure, electrical circuits and components, and just model names and trademarks are different for the marketing requirement. Your assistance on this matter is highly appreciated. Yours sincerely, Signature: Date: 2020/05/12 Name: Raul Zhang Company Name : Shenzhen Link Win Technology Co., Ltd Address: 9F, Zhengqilong lndustrial Building, 1st Rd Gushu, Xixiang, Bao'an, Shenzhen, China Tel / Fax: +8613076925358/+86075536853497 E-Mail: [email protected]

Shenzhen Link Win Technology Co., Ltd Agent Authorization Compan y: Shenzhen Link Win Technology Co., Ltd Addr ess: 9F, Zhengqilong lndustrial Building, 1st Rd Gushu, Xixiang, Bao'an, Shenzhen, China Product N ame: Mobile phone Model N umber(s): BS5314G, MM5114G, SS5214G Product Description: Mobile phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-05-12 Name: Raul Zhang Title: Sales Manager Company: Shenzhen Link Win Technology Co., Ltd

Shenzhen Link Win Technology Co., Ltd 2020-05-13 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AQ4G-BS5314G To Whom It May Concern: This letter is to ascertain that Shenzhen Link Win Technology Co., Ltd Product Mobile phone has been the units used for conducting FCC compliance testing, the sDoC part will be tested by FCC recognized test lab. The result shows that the EUT has complied to unintentional Radiators requirements (15.101). Test lab information: FCC-Registration No.: 645098 Shenzhen Tongce Testing Lab. Adress: 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China If you have any question or concerns, pls. contact us. Sincerely, (signed) Name / Title: Raul Zhang /Sales Manager Company: Shenzhen Link Win Technology Co., Ltd Address: 9F, Zhengqilong lndustrial Building, 1st Rd Gushu, Xixiang, Bao'an, Shenzhen, China Phone: +8613076925358 Fax: +86075536853497 Email: [email protected]

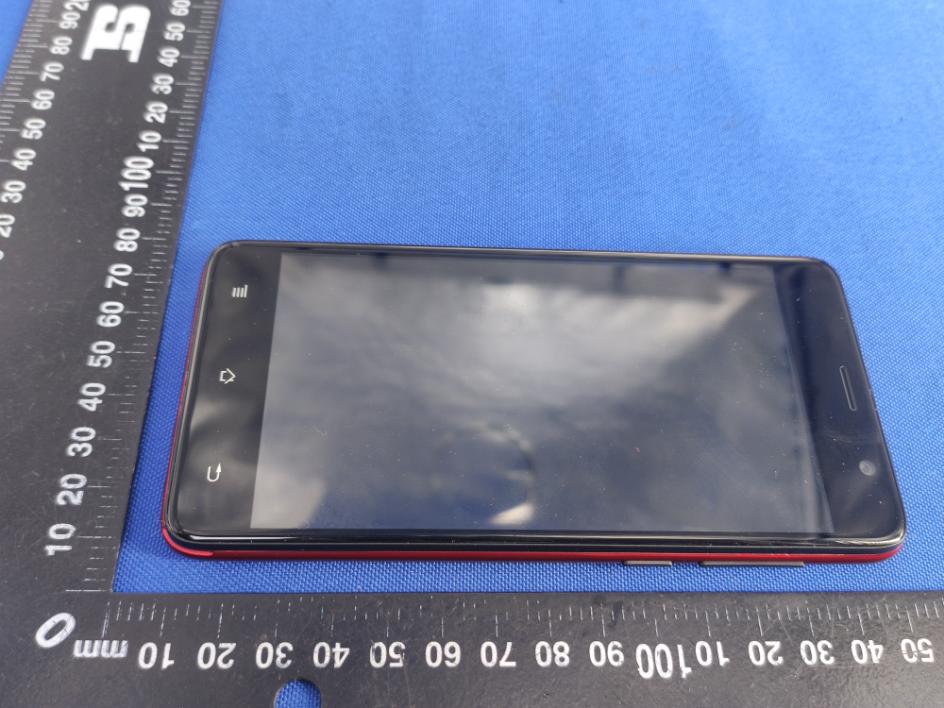

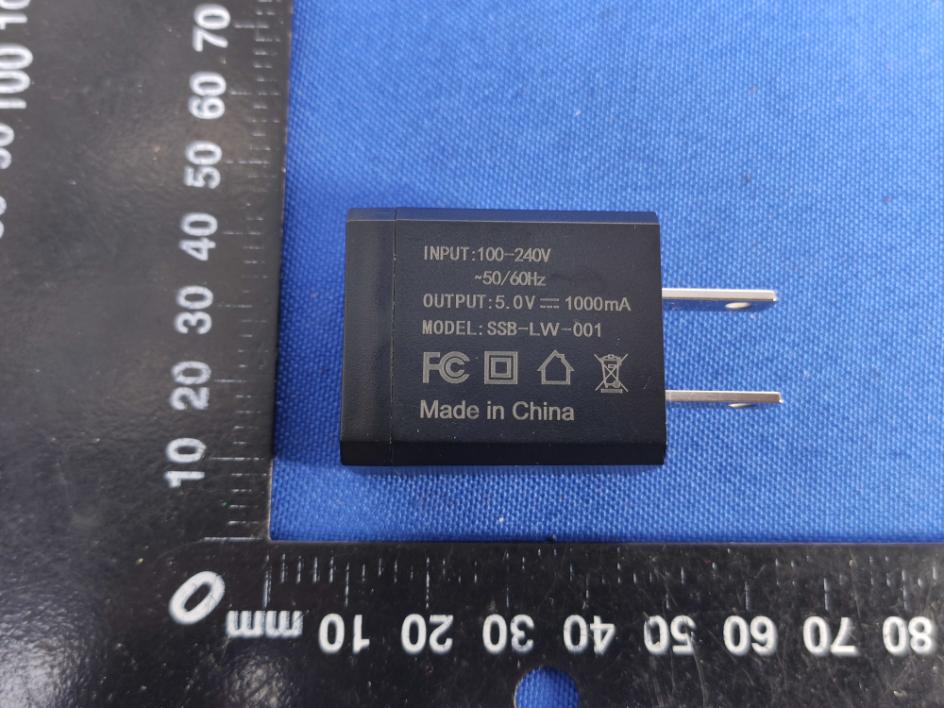

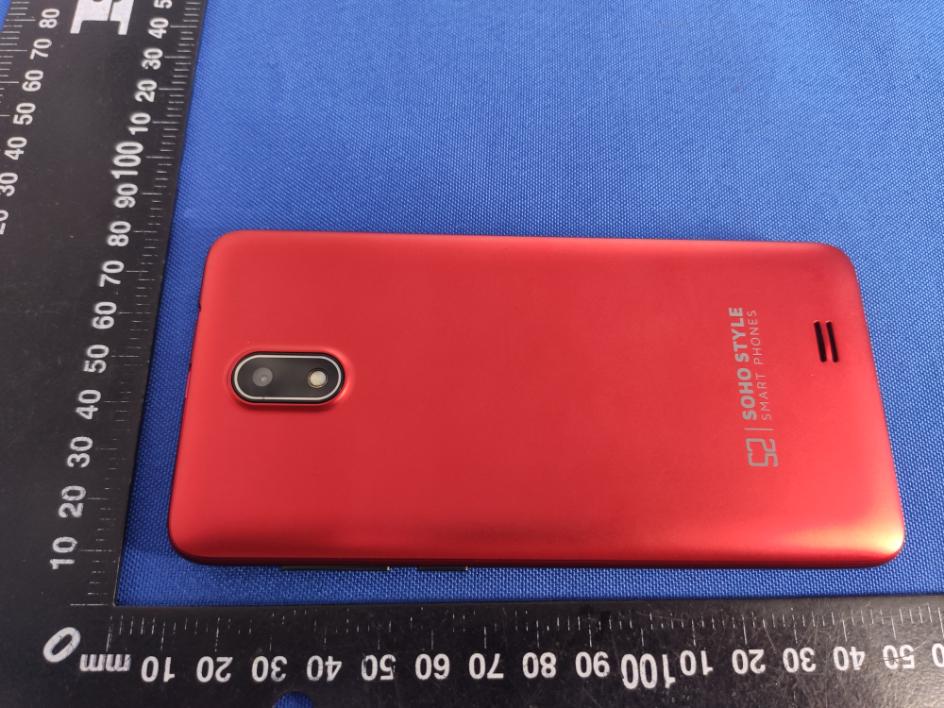

Page 1 of 4 Appendix B: Photographs of EUT Product: Mobile phone Model: BS5314G External Photos Page 2 of 4 Page 3 of 4 Page 4 of 4

Label Artwork and Location Model: BS5314G Label: Size: L*W=59.6*77.7mm Location

Page 1 of 8 Appendix B: Photographs of EUT Product: Mobile phone Model: BS5314G Internal Photos Page 2 of 8 BT/WIFI Antenna 2G/3G/4G Antenna Page 3 of 8 Page 4 of 8 Page 5 of 8 Page 6 of 8 Page 7 of 8 Page 8 of 8

RF exposure evaluation FCC ID: 2AQ4G-BS5314G §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  For EDR+BDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 00 2.402 3.72 3.0±1 4 2.51 5 0.78 3.0 For BLE: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 00 2.402 0.89 0±1 1 1.26 5 0.39 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AQ4G-BS5314G Product: Mobile phone Model No.: BS5314G Additional Model No.: MM5114G, SS5214G Trade Mark: Black Smart, Mint Mist, Soho Style Report No.: TCT200309E009 Issued Date: Apr. 10, 2020 Issued for: Shenzhen Link Win Technology Co., Ltd 9F, Zhengqilong lndustrial Building1st, Rd Gushu, Xixiang, Bao'an, Shenzhen, China Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200309E009 Page 2 of 68 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. 20dB Occupy Bandwidth .................................................................................... 18 6.5. Carrier Frequencies Separation ......................................................................... 23 6.6. Hopping Channel Number .................................................................................. 28 6.7. Dwell Time ............................................................................................................ 31 6.8. Pseudorandom Frequency Hopping Sequence ................................................ 36 6.9. Conducted Band Edge Measurement ................................................................ 37 6.10.Conducted Spurious Emission Measurement .................................................. 41 6.11.Radiated Spurious Emission Measurement ..................................................... 45 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200309E009 Page 3 of 68 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Mobile phone Model No.: BS5314G Additional Model: MM5114G, SS5214G Trade Mark: Black Smart, Mint Mist, Soho Style Applicant: Shenzhen Link Win Technology Co., Ltd Address: 9F, Zhengqilong lndustrial Building1st, Rd Gushu, Xixiang, Bao'an, Shenzhen, China Manufacturer: Shenzhen Link Win Technology Co., Ltd Address: 9F, Zhengqilong lndustrial Building1st, Rd Gushu, Xixiang, Bao'an, Shenzhen, China Date of Test: Mar. 10, 2020 – Apr. 09, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Apr. 09, 2020 Kevin Huang Reviewed By: Date: Apr. 10, 2020 Beryl Zhao Approved By: Date: Apr. 10, 2020 Tomsin Report No.: TCT200309E009 Page 4 of 68 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(1) PASS 20dB Occupied Bandwidth §15.247 (a)(1) PASS Carrier Frequencies Separation §15.247 (a)(1) PASS Hopping Channel Number §15.247 (a)(1) PASS Dwell Time §15.247 (a)(1) PASS Radiated Emission §15.205/§15.209 PASS Band Edge §15.247(d) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200309E009 Page 5 of 68 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product Name: Mobile phone Model : BS5314G Additional Model: MM5114G, SS5214G Trade Mark: Black Smart, Mint Mist, Soho Style Bluetooth version: V4.0 (This report is for BDR+EDR) Operation Frequency: 24…

Text truncated - open the document above for the full version.

Page 1 of 2 Appendix A: Photographs of Test Setup Product: Mobile phone Model: BS5314G Radiated Emission (For DSS) Page 2 of 2 Conducted Emission (For DSS)
