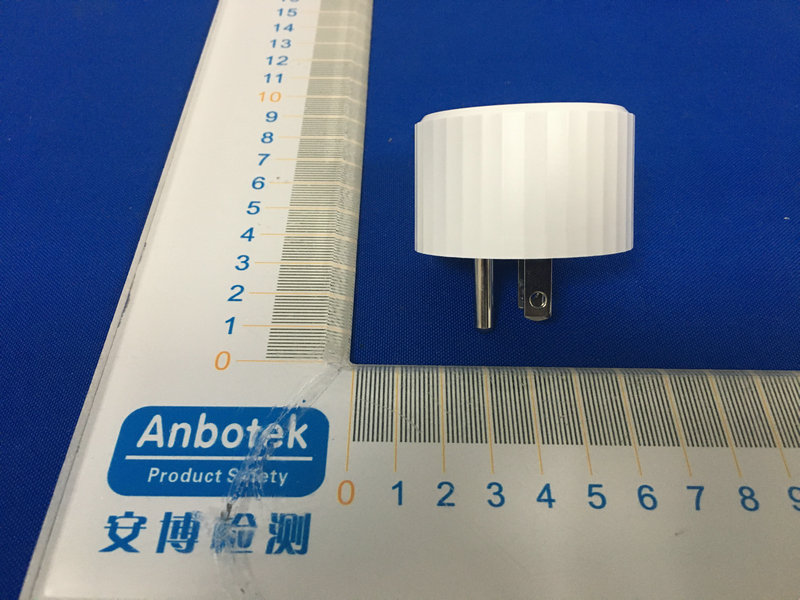

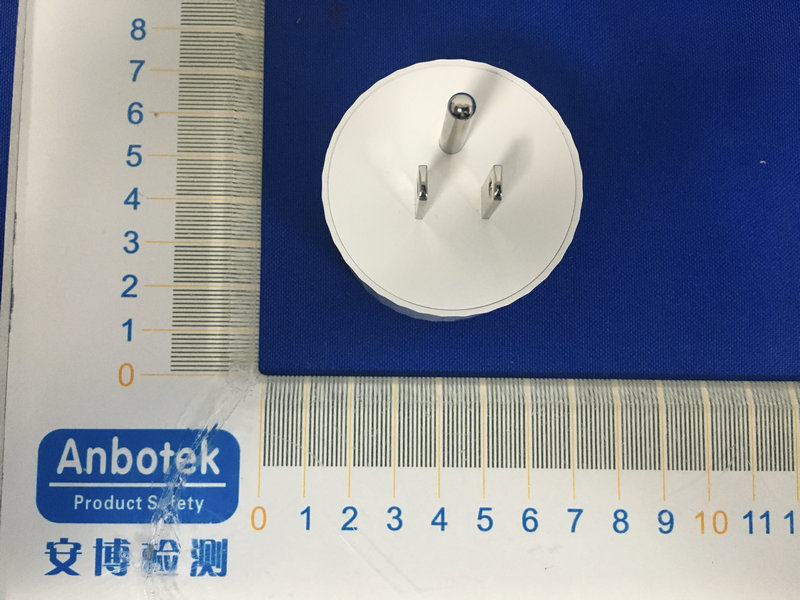

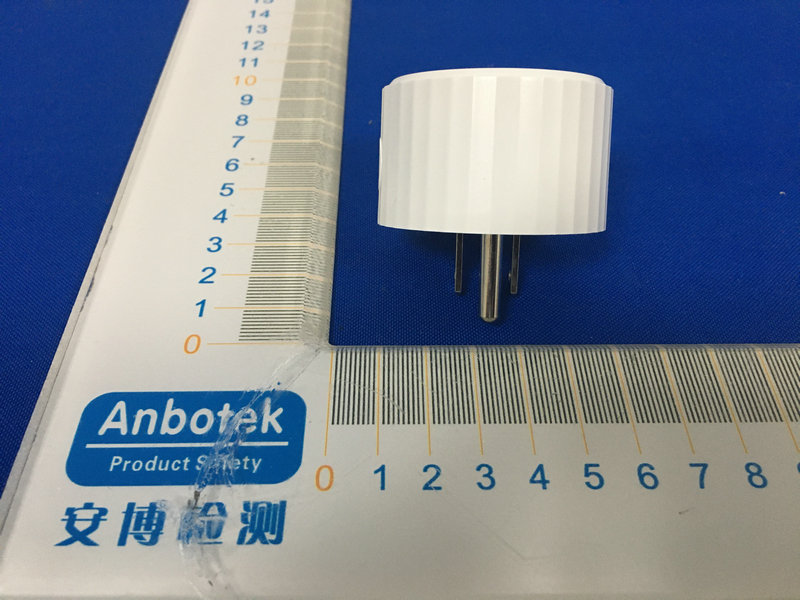

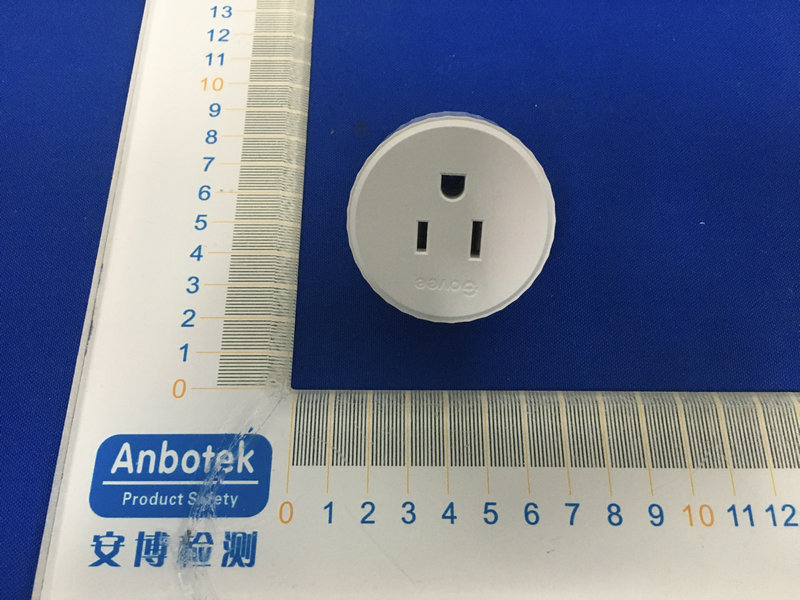

2AQA6-H5081Smart Wi-Fi Plug

FCC ID: 2AQA6-H5081

Label Location On EUT Label Product Name: Smart Wi-Fi Plug Model No.: H5081 FCC ID: 2AQA6-H5081 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2AQA6-H5081 ANT

version01 Shenzhen Intellirocks Tech. Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: H5081 FCC ID : 2AQA6-H5081 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: WIFI: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 2 dBi Frequency range:2412MHz~2462MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Intellirocks Tech. Co., Ltd. Address: Room 502, Building 9, Yungu Phase 2, Pingshan 1st Road, Taoyuan Street, Nanshan, Shenzhen, Guangdong, China City:Nanshan ZIP / Postal code: N.A. Country:China Place:Shenzhen Date: 2020-05-12 Signature:

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2AQA6-H5081 EUT Specification EUTSmart Wi-Fi Plug Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others: BLE: 2402-2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversitySingle antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power16.74 dBm (0.0472W) Antenna gain (Max)2dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 241215.6415.64±116.6420.01451 243715.4615.46±116.4620.01401 246215.3215.32±116.3220.01351 802.11g 241214.6214.62±115.6220.01151 243716.7216.72±117.7220.01871 246216.6716.67±117.6720.01841 802.11n (HT20) 241215.3715.37±116.3720.01371 243716.7416.74±117.7420.01871 246216.2616.26±117.2620.01681

Report No.: 18220WC00031301FCC ID: 2AQA6-H5081Page 1 of 63 Code:AB-RF-05-a FCC TEST REPORT Client Name: Shenzhen Intellirocks Tech. Co., Ltd. Address: Room 502, Building 9, Yungu Phase 2, Pingshan 1st Road, Taoyuan Street, Nanshan, Shenzhen, Guangdong, China Product Name: Smart Wi-Fi Plug Date: Apr. 30, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00031301FCC ID: 2AQA6-H5081Page 2 of 63 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 5 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 17 4.1. Test Standard and Limit .......................................................................................................................... 17 4.2. Test Setup .................................................................................................................................................. 17 4.3. Test Procedure .......................................................................................................................................... 18 4.4. Test Data .................................................................................................................................................... 19 5. Maximum Peak Output Power Test .................................................................................................................. 28 5.1. Test Standard and Limit .......................................................................................................................... 28 5.2. Test Setup .................................................................................................................................................. 28 5.3. Test Procedure .......................................................................................................................................... 28 5.4. Test Data .................................................................................................................................................... 28 6. 6DB Occupy Bandwidth Test ............................................................................................................................. 32 6.1. Test Standard and Limit .......................................................................................................................... 32 6.2. Test Setup .................................................................................................................................................. 32 6.3. Test Procedure ............................................................................................................................... ........... 32 6.4. Test Data .................................................................................................................................................... 32 7. Power Spectral Density Test .............................................................................................................................. 39 7.1. Test Standard and Limit .......................................................................................................................... 39 7.2. Test Setup .................................................................................................................................................. 39 7.3. Test Procedure .......................................................................................................................................... 39 7.4. Test Data ......................................................................................................................…
