2AQA6-H5082Dual Smart Plug

Shenzhen Intellirocks Tech. Co., Ltd. Date: 2021-06-04 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AQA6-H5082 To Whom It May Concern: This letter is to statement that H5082 / Dual Smart Plug. has been tested according to FCC Part 15B by Waltek Testing Group Co., Ltd. (Test Report No.: WTD21D05043710E). And the SDOC file, meetting the requirements of the FCC regulations, would been provided when the device is sold by the responsible party in US. The service will not be sold until the SDOC is provided. If the sale does not have an SDOC, all responsibility is the responsibility of the applicant. Sincerely, Signature [Yuling zhan] [Manager] [Shenzhen Intellirocks Tech. Co., Ltd.]

Shenzhen Intellirocks Tech. Co., Ltd. Date: June 04, 2021 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AQA6-H5082 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics Block Diagram Operational Description Part List Schematics.pdf Block Diagram.pdf Operational Description.pdf Part List.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Shenzhen Intellirocks Tech. Co., Ltd. Signature Yuling zhan / Manager Typed name and Title

Shenzhen Intellirocks Tech. Co., Ltd. FCC ID: 2AQA6-H5082 POWER OF ATTORNEY Date: June 04, 2021 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group Co., Ltd. (Philo Zhong) on our behalf shall have the same effect as acts of our own. This authorization expires on June 03, 2022. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Shenzhen Intellirocks Tech. Co., Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Shenzhen Intellirocks Tech. Co., Ltd. Signature Yuling zhan / Manager Typed name and Title

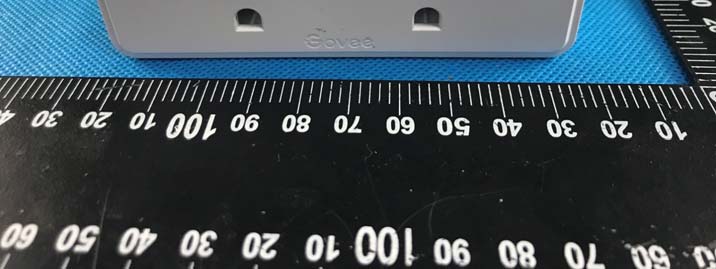

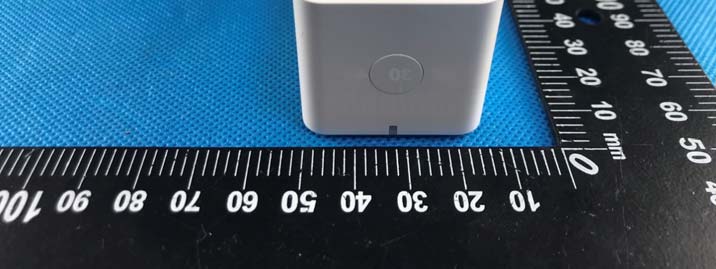

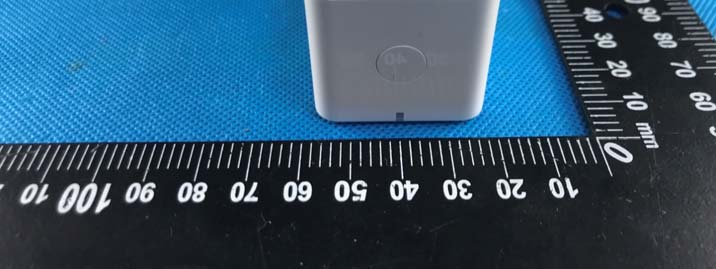

Appendix-H5082-Photos Page 3 of 9 2 Photographs –Constructional Details 2.1 EUT – External View Model: H5082 FCC ID: 2AQA6-H5082 Appendix-H5082-Photos Page 4 of 9 Appendix-H5082-Photos Page 5 of 9

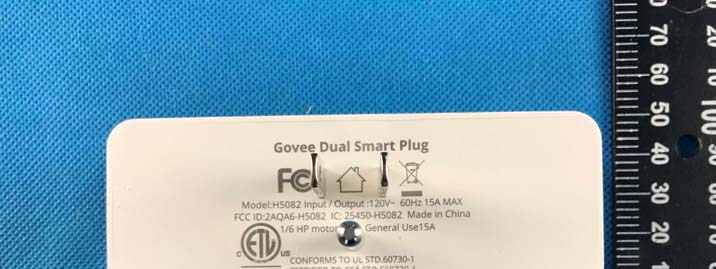

H5082_Label and Location Label Sample: Location

Appendix-H5082-Photos Page 6 of 9 2.2 EUT-Internal View Model: H5082 FCC ID: 2AQA6-H5082 Appendix-H5082-Photos Page 7 of 9 Appendix-H5082-Photos Page 8 of 9 Appendix-H5082-Photos Page 9 of 9 ======End====== Ant.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 7 TEST REPORT Referen ce No. .................... : WTD21D05043716W002 FCC ID ................................ : 2AQA6-H5082 Applicant ............................ : Shenzhen Intellirocks Tech. Co., Ltd Address .............................. : No. 2901-2904, 3002, Block C, Section 1, Chuangzhi Yuncheng Building, Liuxian Avenue, Xili Community, Xili Street, Nanshan District, Shenzhen, Guangdong, China Manufacturer .................... : NanChang Innotech Homesmart Co., Ltd Address .............................. : 1st to 5th floor, 2-1#, Nanchang Small and Medium-sized Enterprises Entrepreneurship Incubation Base (Phase II), Guowei Industrial Park, No. 669 Huangtang E Rd, Linkong Economic Zone, Nanchang, Jiangxi, China Product ............................... : Dual Smart Plug Model(s). ............................ : H5082 Brand Name ....................... : Standards........................... : FCC Part 1.1307 FCC Part 2.1091 Date of Receipt sample .... : 2021-05-10 Date of Test ....................... : 2021-05-10 to 2021-05-19 Date of Issue ...................... : 2021-05-19 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Daniel Liu / Designated Reviewer Reference No.: WTD21D05043716W002 Page 2 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 TEST FACILITY ................................................................................................................................................. 4 5 TEST SUMMARY .................................................................................................................................................. 5 6 RF EXPOSURE ...................................................................................................................................................... 6 6.1 PROCEDURES AND REQUIREMENTS ............................................................................................................... 6 6.2 TEST RESULT .................................................................................................................................................. 7 Reference No.: WTD21D05043716W002 Page 3 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 3 Revision History Test report No. Date of Receipt sample Date of Test Date of Issue Purpose Comment Approved WTD21D05043716 W002 2021-05-10 2021-05-10 to 2021-05-19 2021-05-19Original - Valid Reference No.: WTD21D05043716W002 Page 4 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 4 General Information 4.1 General Description of E.U.T. Product: Dual Smart Plug Model(s): H5082 Model Description: N/A Wi-Fi Specification: 2.4G-802.11b/g/n HT20 Bluetooth Version: 5.0 Hardware Version: 1.2 Software Version: 1.00.09 4.2 Details of E.U.T. Operation Frequency: Wi-Fi: 802.11b/g/n HT20: 2412~2462MHz BLE:2402-2480MHz Max. RF output power: Wi-Fi: 11.42dBm BLE: 7.81dBm Type of Modulation: Wi-Fi:CCK, OFDM BLE: GFSK Antenna installation: Wi-Fi/BLE: PCB printed antenna Antenna Gain: Wi-Fi/BLE: 2.0dBi Ratings: Input/Output: 120V~ 60Hz 15A Max 4.3 Test Facility The test facility has a test site registered with the following organizations: ISED CAB identifier: CN0013. Test Firm Registration No.: 7760A. Waltek Testing Group Co., Ltd. Has been registered and fully described in a report filed with the Industry Canada. The acceptance letter from the Industry Canada is maintained in our files. Registration number 7760A, October 15, 2016. FCC Designation No.: CN1201. Test Firm Registration No.: 523476. Waltek Testing Group Co., Ltd. EMC Laboratory `has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. Registration number 523476, September 10, 2019. Reference No.: WTD21D05043716W002 Page 5 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 5 Test Summary Test Items Test Requirement Result Maximum Permissible Exposure (Exposure of Humans to RF Fields) 47 C.F.R § 1.1307 PASS Reference No.: WTD21D05043716W002 Page 6 of 7 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 6 RF Exposure Test Requirement: FCC Part 1.1307 Test Mode: FCC Part2.1091 6.1 Procedures and Requirements Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In a…

Text truncated - open the document above for the full version.

Waltek Testing Group Co., Ltd. http://www.waltek.com.cn Page 1 of 52 TEST REPORT Referen ce No. .................... : WTD21D05043716W001 FCC ID ................................ : 2AQA6-H5082 Applicant ............................ : Shenzhen Intellirocks Tech. Co., Ltd. Address .............................. : No. 2901-2904, 3002, Block C, Section 1, Chuangzhi Yuncheng Building, Liuxian Avenue, Xili Community, Xili Street, Nanshan District, Shenzhen, Guangdong, China Manufacturer .................... : NanChang Innotech Homesmart Co., Ltd Address .............................. : 1st to 5th floor, 2-1#, Nanchang Small and Medium-sized Enterprises Entrepreneurship Incubation Base (Phase II), Guowei Industrial Park, No. 669 Huangtang E Rd, Linkong Economic Zone, Nanchang, Jiangxi, China Product ............................... : Dual Smart Plug Model(s). ............................ : H5082 Brand Name ....................... : Standards........................... : FCC CFR47 Part 15.247 Date of Receipt sample .... : 2021-05-10 Date of Test ....................... : 2021-05-10 to 2021-05-19 Date of Issue ...................... : 2021-05-20 Test Result ......................... : Pass Remarks: The re sults shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Testing Group Co., Ltd. Address: No. 77, Houjie Section, Guantai Road, Houjie Town, Dongguan City, Guangdong, China Tel: +86-769-2267 6998 Fax: +86-769-2267 6828 Compiled by: Approved by: Estel Qian / Project Engineer Daniel Liu / Designated Reviewer Reference No.: WTD21D05043716W001 Page 2 of 52 Waltek Testing Group Co., Ltd. http://www.waltek.com.cn 2 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 CONTENTS ............................................................................................................................................................ 2 3 REVISION HISTORY ............................................................................................................................................ 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................ 4 4.2 DETAILS OF E.U.T. ......................................................................................................................................... 4 4.3 TEST FACILITY ................................................................................................................................................. 4 4.4 CHANNEL LIST ................................................................................................................................................. 5 4.5 TEST MODE ..................................................................................................................................................... 6 5 TEST SUMMARY .................................................................................................................................................. 7 6 EQUIPMENT USED DURING TEST .................................................................................................................. 8 6.1 EQUIPMENTS LIST ........................................................................................................................................... 8 6.2 DESCRIPTION OF SUPPORT UNITS ................................................................................................................. 9 6.3 MEASUREMENT UNCERTAINTY ....................................................................................................................... 9 6.4 TEST EQUIPMENT CALIBRATION ..................................................................................................................... 9 7 EMC REQUIREMENTS FOR EMISSIONS ...................................................................................................... 10 7.1 CONDUCTED EMISSIONS ............................................................................................................................... 10 7.1.2 E.U.T. Operation .................................................................................................................................... 10 7.1.3 Test Setup ............................................................................................................................................... 10 7.1.4 Measurement Description ..................................................................................................................... 10 7.1.5 Test Results ............................................................................................................................................ 11 8 RADIATED EMISSIONS..................................................................................................................................... 13 8.1 EUT OPERATION ........................................................................................................................................... 13 8.2 TEST SETUP .................................................................................................................................................. 14 8.3 SPECTRUM ANALYZER SETUP ...................................................................................................................... 15 8.4 TEST PROCEDURE ........................................................................................................................................ 16 8.5 CORRECTED A…

Text truncated - open the document above for the full version.

Appendix-H5082-Photos Page 1 of 9 1 Photograph –Test Setup 1.1 Conducted Emission Model: H5082 FCC ID: 2AQA6-H5082 Test Site 1# 1.2 Radiated Spurious Emissions For 30MHz-1000MHz Test Site 2# Appendix-H5082-Photos Page 2 of 9 For Above 1GHz Test Site 1#
