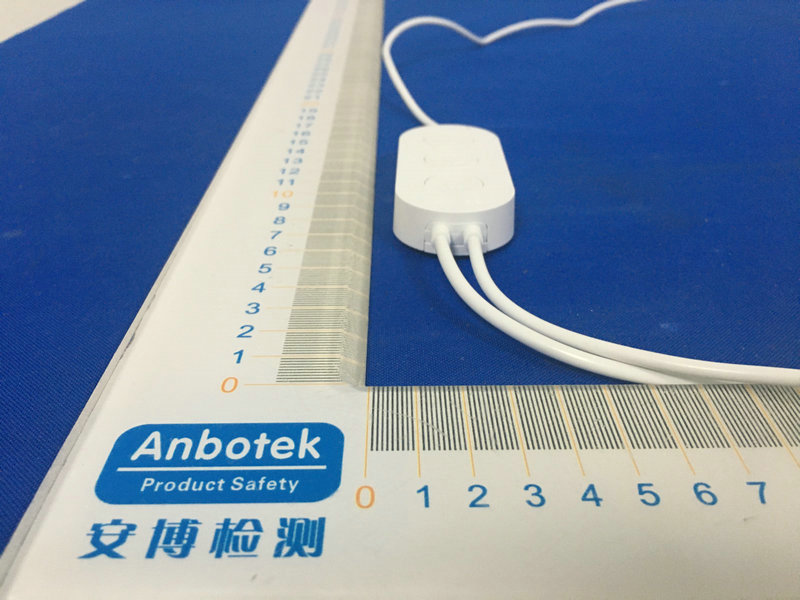

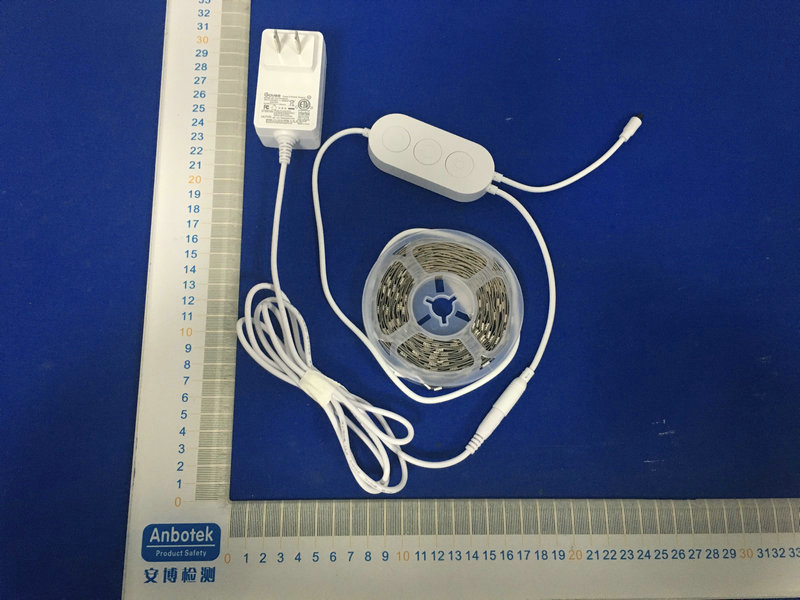

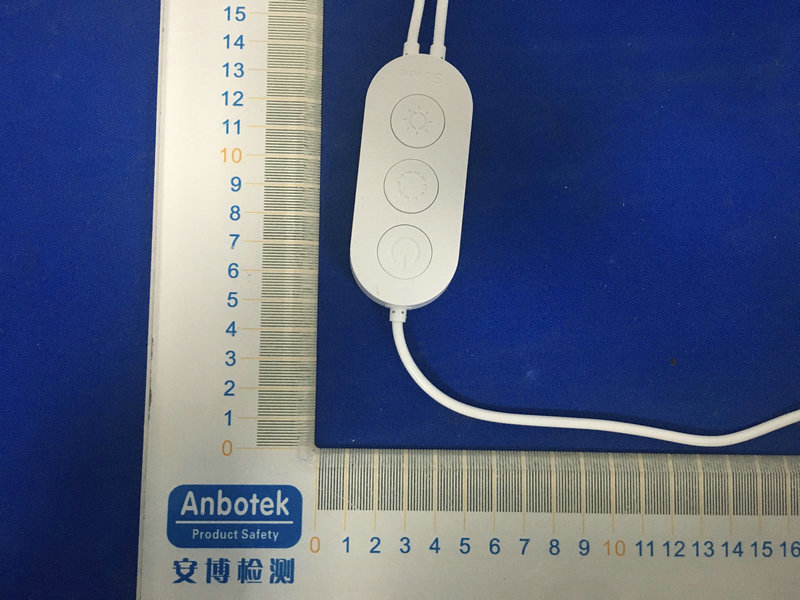

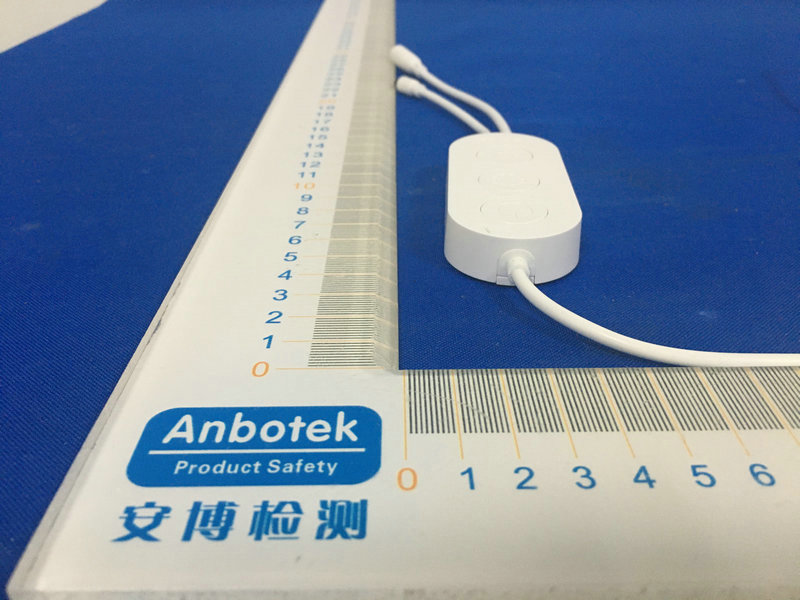

2AQA6-H6141LED Light Strip

FCC ID: 2AQA6-H6141

Label Location On EUT Label Product Name: LED Light Strip Model No.: H6141 FCC ID: 2AQA6-H6141

FCC ID: 2AQA6-H6141 WiFi BLE

Shenzhen Intellirocks Tech. Co., Ltd. Declaration concerning Antenna Specification It is hereby declared that the product Model No.: H6141, H6142, H6195 FCC ID : 2AQA6-H6141 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type(s) described below: BLE: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 2.1 dBi Frequency range: 2402MHz~2480MHz WIFI: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 1.5 dBi Frequency range: 2412MHz~2462MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Intellirocks Tech. Co., Ltd. Address: Room 502, Building 9, Yungu Phase 2, Pingshan 1st Road, Taoyuan Street, City: Nanshan District, Shenzhen, Guangdong ZIP / Postal code: N.A. Country: China Place: Shenzhen Date: 2020-04-04 Signature: version01

RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2AQA6-H6141 EUT Specification EUTLED Light Strip Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others: BLE: 2402-2480MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Exposure classificationOccupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversitySingle antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output powerWiFi: 16.59 dBm (0.0456W) BLE: 0.791 dBm (0.0012W) Antenna gain (Max)WiFi: 1.5 dBi BLE: 2.1 dBi Evaluation appliedMPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500----F/3006 1500-100000----56 (B) Limits for General Population/Uncontrol Exposures 300-1500----F/15006 1500-100000----130 Friis transmission formula: Pd=(Pout*G)\(4*pi*R2) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. Measurement Result Operating Mode Channel Frequency (MHz) Measured Power (dBm) Tune up tolerance (dBm) Max. Tune up Power (dBm) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) 802.11b 241215.4115.41±116.411.50.01231 243715.5615.56±116.561.50.01271 246215.2815.28±116.281.50.01191 802.11g 241214.4214.42±115.421.50.00981 243716.5916.59±117.591.50.01611 246216.5216.52±117.521.50.01591 802.11n (HT20) 241214.2714.27±115.271.50.00951 243716.5316.53±117.531.50.01591 246216.5116.51±117.511.50.01581 BLE 2402-0.181-0.181±10.8192.10.00041 24400.5260.526±11.5262.10.00051 24800.7910.791±11.7912.10.00051

Report No.: 18220WC00024301FCC ID: 2AQA6-H6141Page 1 of 46 Code:AB-RF-05-a FCC TEST REPORT Client Name: Shenzhen Intellirocks Tech. Co., Ltd. Address: Room 502, Building 9, Yungu Phase 2, Pingshan 1st Road, Taoyuan Street, Nanshan, Shenzhen, Guangdong, China Product Name: LED Light Strip Date: Mar. 31, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00024301FCC ID: 2AQA6-H6141Page 2 of 46 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 6 1.6. Description Of Test Setup ......................................................................................................................... 7 1.7. Test Equipment List .................................................................................................................................... 8 1.8. Measurement Uncertainty ......................................................................................................................... 9 1.9. Description of Test Facility ........................................................................................................................ 9 2. Summary of Test Results ................................................................................................................................... 10 3. Conducted Emission Test ................................................................................................................................... 11 3.1. Test Standard and Limit .......................................................................................................................... 11 3.2. Test Setup .................................................................................................................................................. 11 3.3. Test Procedure .......................................................................................................................................... 11 3.4. Test Data .................................................................................................................................................... 11 4. Radiation Spurious Emission and Band Edge ................................................................................................ 14 4.1. Test Standard and Limit .......................................................................................................................... 14 4.2. Test Setup .................................................................................................................................................. 14 4.3. Test Procedure .......................................................................................................................................... 15 4.4. Test Data .................................................................................................................................................... 16 5. Maximum Peak Output Power Test .................................................................................................................. 24 5.1. Test Standard and Limit .......................................................................................................................... 24 5.2. Test Setup .................................................................................................................................................. 24 5.3. Test Procedure .......................................................................................................................................... 24 5.4. Test Data .................................................................................................................................................... 24 6. 6DB Occupy Bandwidth Test ............................................................................................................................. 27 6.1. Test Standard and Limit .......................................................................................................................... 27 6.2. Test Setup ............................................................................................................................... ................... 27 6.3. Test Procedure .......................................................................................................................................... 27 6.4. Test Data .................................................................................................................................................... 27 7. Power Spectral Density Test .............................................................................................................................. 30 7.1. Test Standard and Limit .......................................................................................................................... 30 7.2. Test Setup .................................................................................................................................................. 30 7.3. Test Procedure ...........................................................................................................…

Text truncated - open the document above for the full version.

Report No.: 18220WC00024302FCC ID: 2AQA6-H6141Page 1 of 53 Code:AB-RF-05-a FCC TEST REPORT Client Name: Shenzhen Intellirocks Tech. Co., Ltd. Address: Room 502, Building 9, Yungu Phase 2, Pingshan 1st Road, Taoyuan Street, Nanshan, Shenzhen, Guangdong, China Product Name: LED Light Strip Date: Mar. 31, 2020 Shenzhen Anbotek Compliance Laboratory Limited Report No.: 18220WC00024302FCC ID: 2AQA6-H6141Page 2 of 53 Code:AB-RF-05-a Contents 1. General Information ............................................................................................................................................... 5 1.1. Client Information ....................................................................................................................................... 5 1.2. Description of Device (EUT) ..................................................................................................................... 5 1.3. Auxiliary Equipment Used During Test ................................................................................................... 6 1.4. Description of Test Modes ........................................................................................................................ 6 1.5. List of channels ........................................................................................................................................... 7 1.6. Description Of Test Setup ......................................................................................................................... 8 1.7. Test Equipment List .................................................................................................................................... 9 1.8. Measurement Uncertainty ....................................................................................................................... 10 1.9. Description of Test Facility ...................................................................................................................... 10 2. Summary of Test Results ................................................................................................................................... 11 3. Conducted Emission Test ................................................................................................................................... 12 3.1. Test Standard and Limit .......................................................................................................................... 12 3.2. Test Setup .................................................................................................................................................. 12 3.3. Test Procedure .......................................................................................................................................... 12 4. Radiation Spurious Emission and Band Edge ................................................................................................ 15 4.1. Test Standard and Limit .......................................................................................................................... 15 4.2. Test Setup .................................................................................................................................................. 15 4.3. Test Procedure .......................................................................................................................................... 16 4.4. Test Data .................................................................................................................................................... 17 5. Maximum Peak Output Power Test .................................................................................................................. 26 5.1. Test Standard and Limit .......................................................................................................................... 26 5.2. Test Setup .................................................................................................................................................. 26 5.3. Test Procedure .......................................................................................................................................... 26 5.4. Test Data .................................................................................................................................................... 26 6. 6DB Occupy Bandwidth Test ............................................................................................................................. 30 6.1. Test Standard and Limit .......................................................................................................................... 30 6.2. Test Setup .................................................................................................................................................. 30 6.3. Test Procedure ............................................................................................................................... ........... 30 6.4. Test Data .................................................................................................................................................... 30 7. Power Spectral Density Test .............................................................................................................................. 37 7.1. Test Standard and Limit .......................................................................................................................... 37 7.2. Test Setup .................................................................................................................................................. 37 7.3. Test Procedure .......................................................................................................................................... 37 7.4. Test Data .......................................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AQA6-H6141 Photo of PowerLine Conducted Emission Test Photo of Radiation Emission Test
