Differences Declaration To whom concern, We company Shenzhen Intellirocks Tech. Co., Ltd. hereby declares: The product models H6146, H6145, H6147 are identical in the same PCB layout, interior structure and electrical circuits, The differences are appearance color and model name for commercial purpose. Authorized signature: Date: 2020-10-28

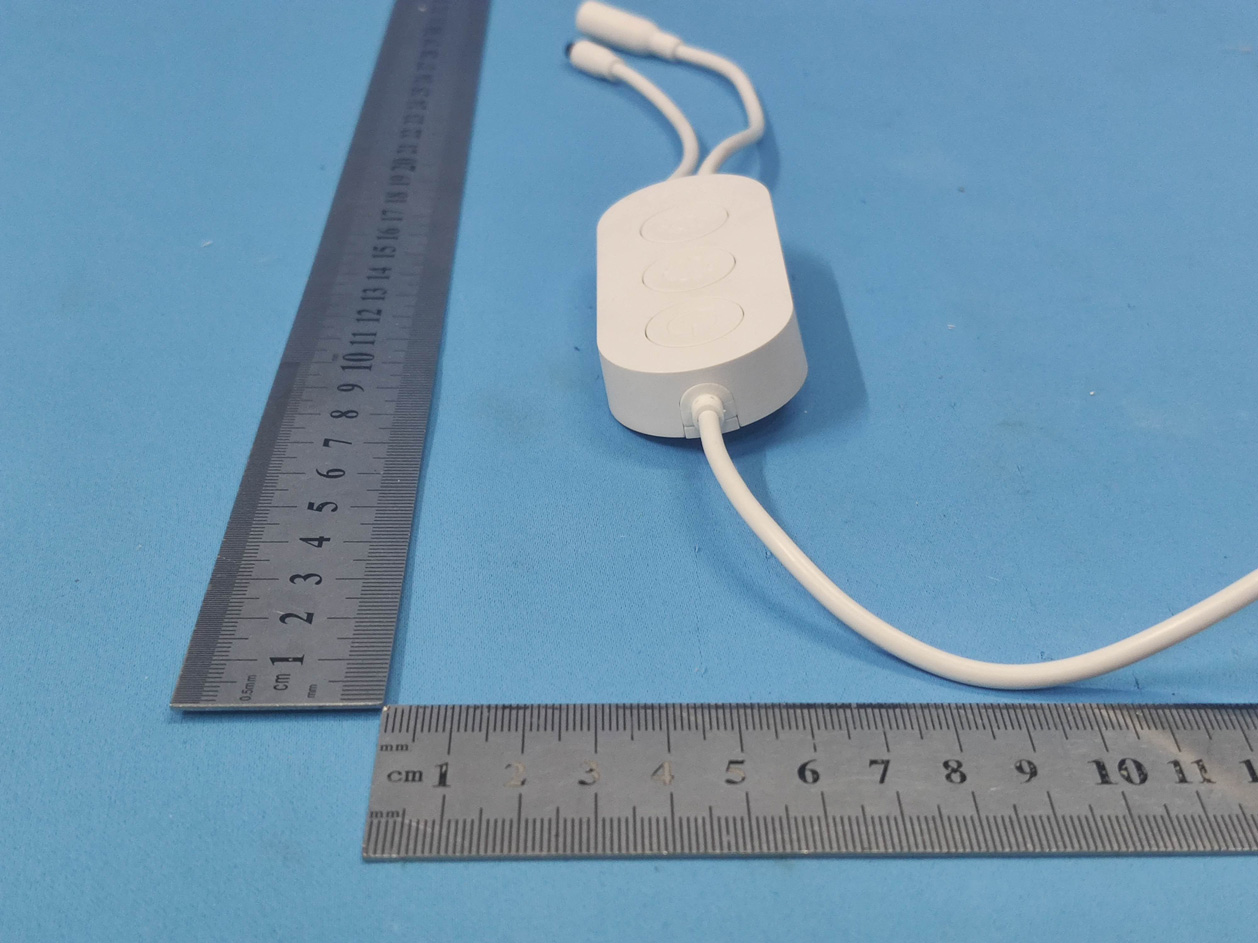

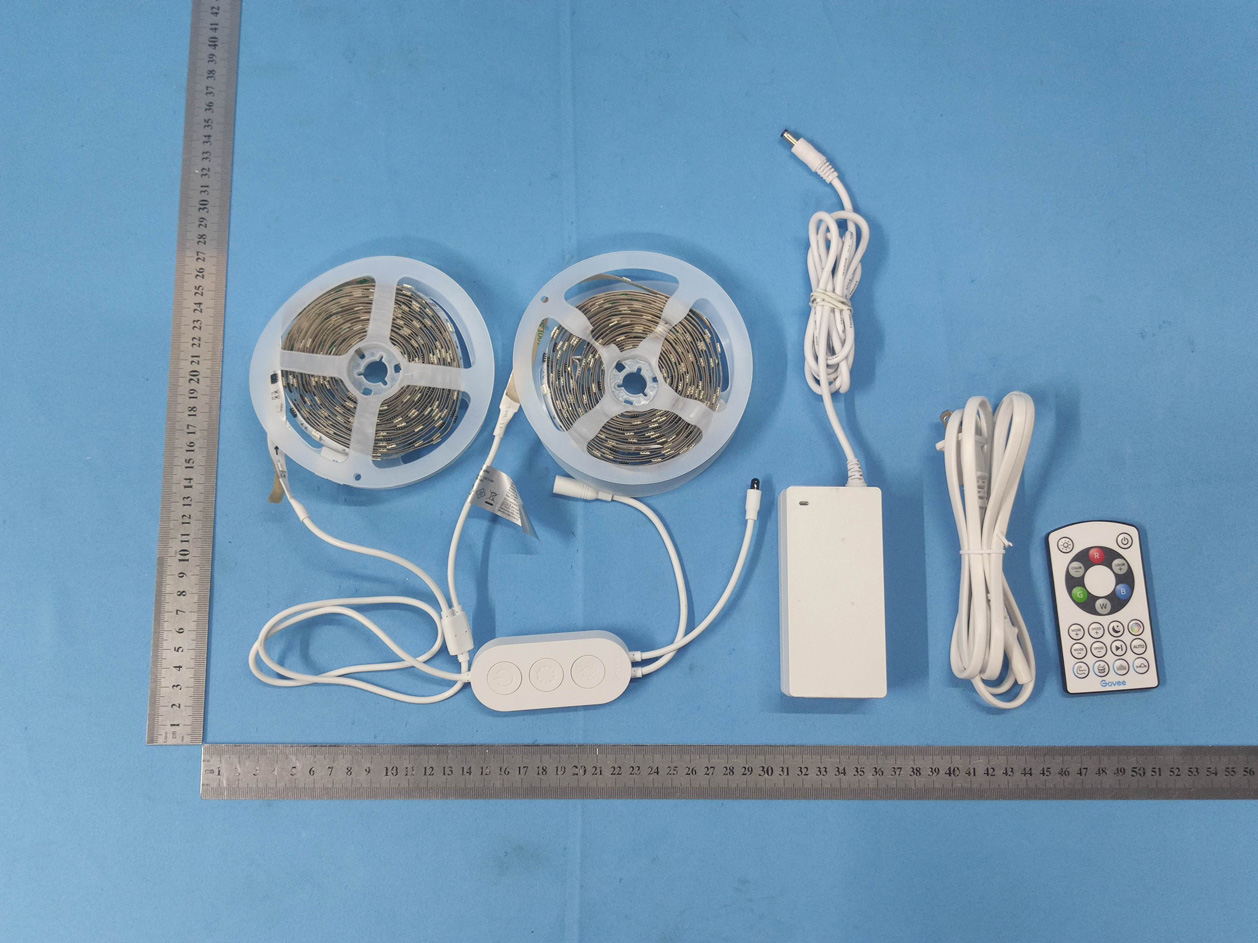

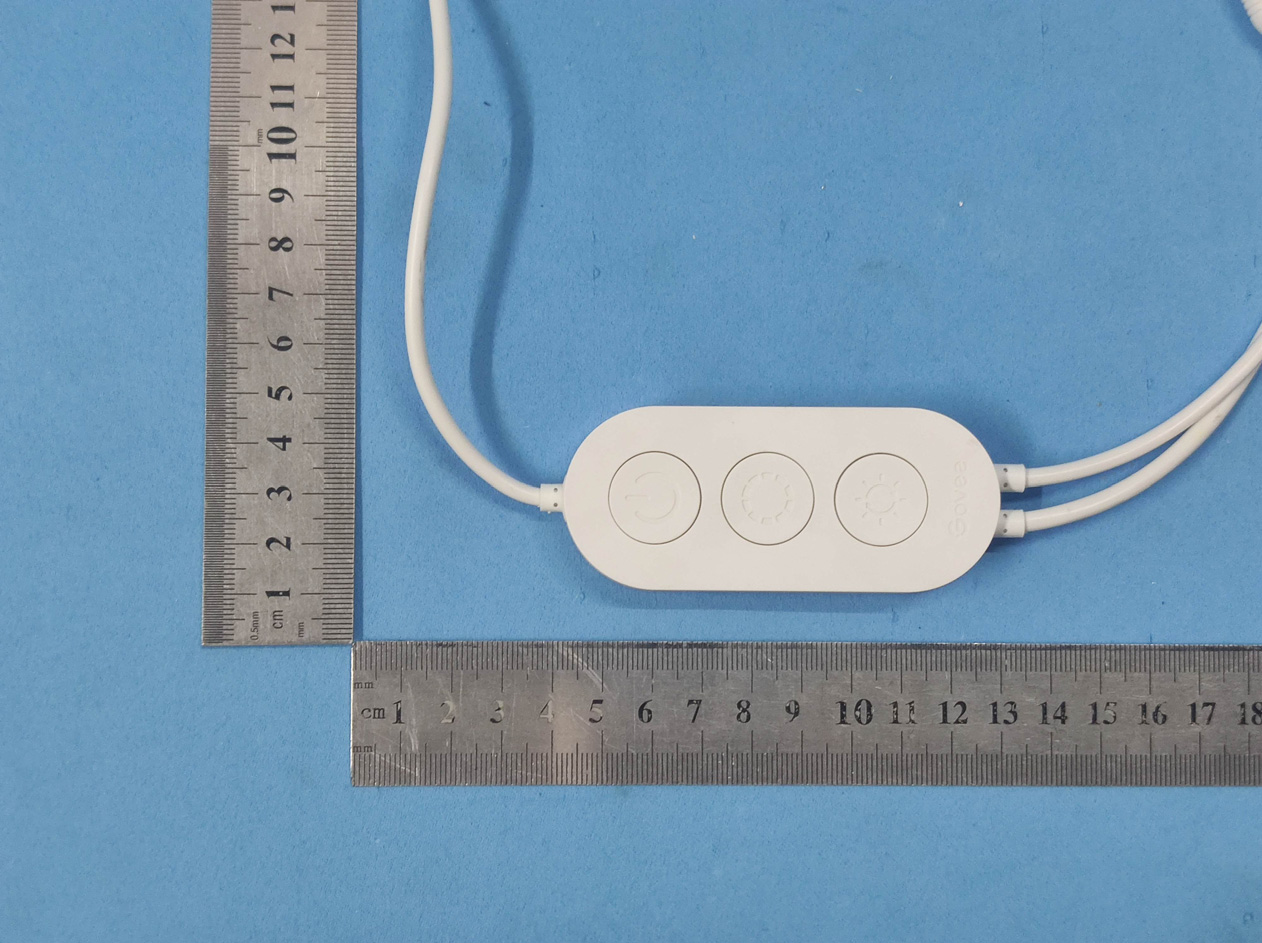

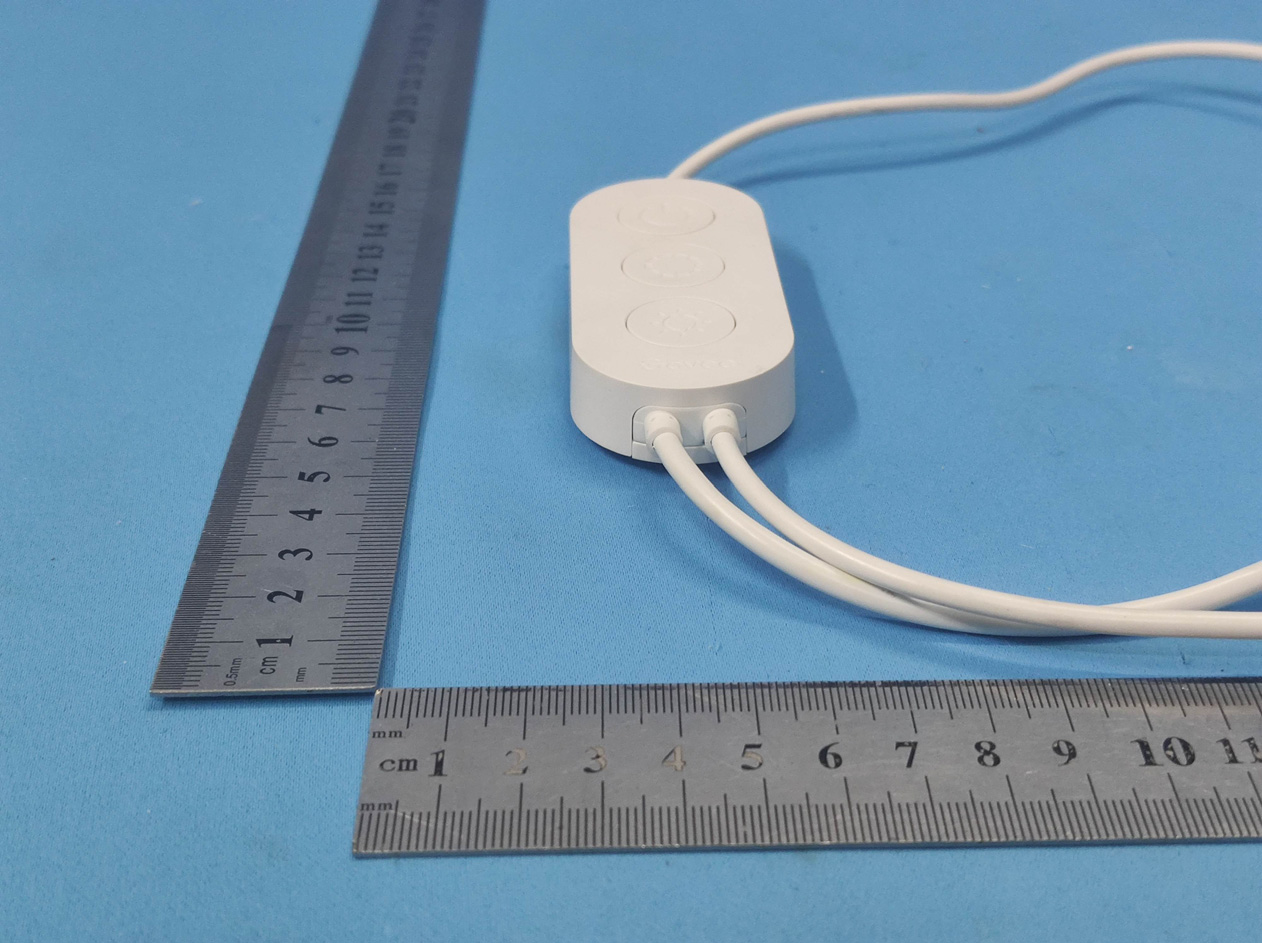

Test Model No.: H6146

Test Model No.: H6146

FCC ID: 2AQA6-H6146 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2440 MHz 4.82dBm（3.03mW）output power] (3.03mW /5mm) ·[√2.440(GHz)]= 0.947 <3.0 for 1-g SAR Then SAR evaluation is not required

Global United Technology Services Co., Ltd. Report No.: GTS202010000034F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 35 TEST REPORT Applicant: Shenzhen Intellirocks Tech. Co., Ltd. Address of Applicant: No.2901-2904, 3002, Block C, Section 1, Chuangzhi Yuncheng Building, Liuxian Avenue,Xili Community, Xili Street, Nanshan District, Shenzhen, Guangdong, China Manufacturer: Shenzhen Intellirocks Tech. Co., Ltd. Address of Manufacturer: No.2901-2904, 3002, Block C, Section 1, Chuangzhi Yuncheng Building, Liuxian Avenue,Xili Community, Xili Street, Nanshan District, Shenzhen, Guangdong, China Equipment Under Test (EUT) Product Name: RGBIC LED Strip Lights Model No.: H6146, H6145, H6147 Trade Mark: Govee, Minger FCC ID: 2AQA6-H6146 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: October 13, 2020 Date of Test: October 14-28, 2020 Date of report issued: October 28, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202010000034F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 35 2 Version Version No. Date Description 00 October 28, 2020 Original Prepared By: Date: October 28, 2020 Project Engineer Check By: Date: October 28, 2020 Reviewer Report No.: GTS202010000034F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 35 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 DUTY CYCLE ..................................................................................................................................... 14 7.4 CONDUCTED OUTPUT POWER ........................................................................................................... 16 7.5 CHANNEL BANDWIDTH ...................................................................................................................... 18 7.6 POWER SPECTRAL DENSITY ............................................................................................................. 20 7.7 BAND EDGES .................................................................................................................................... 22 7.7.1 Conducted Emission Method ..................................................................................................... 22 7.7.2 Radiated Emission Method ........................................................................................................ 23 7.8 SPURIOUS EMISSION ......................................................................................................................... 26 7.8.1 Conducted Emission Method ..................................................................................................... 26 7.8.2 Radiated Emission Method ........................................................................................................ 28 8 T…

Text truncated - open the document above for the full version.

Test Model No.: H6146 Radiated Emission Conducted Emission
