2AQBD-R47Wireless Outdoor Sensor

USER MANUAL R47 Before you start using it Please make sure to read the instruction manual carefully. Following and respecting the instructions in your manual will prevent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use. Please take particular note of the safety advice! Please keep this instruction manual for future reference. 1. RCC received mode: WWVB 2. Temperature range: +70°C to 40°C 3. Humidity range:20%-99% 4. Lowe battery indicator 5. 433.92MHz 6. RF distance: 100 meters 7. Functions: 7.1 One button: TX, press it once to send the signal one time. 7.2 When put the battery into it, it will test the temperature and humidity and sent the data one time. 7.3 When put the battery inside, it goes to receive the RCC, it will exit when receiving successfully. It will be exit automatically after 7 minutes when the RC receiving failed. 7.4 RCC receiving time: every 1:00, 2:O0，3:00，4:OO and 5:00 7.5 When RCC DST, it will send the main unit. Keep this instrument and the batteries out of reach of children. Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately. FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

2020-08-13 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Shenzhen STS Test Services Co., Ltd., 1/F., Building B, Zhuoke Science Park, No.190, Chongqing Road, Fuyong Street, Bao’an District, Shenzhen, Guangdong,China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Fujian Youtong Industries Co.,Ltd. North part of 1st 2nd & 3rd floor Building 1 No.18 Majiang Road Mawei Fuzhou Fujian China 350035 (Applicant Name and address) Sincerely, Name: Dongsheng Huang Title: General Manger Company: Fujian Youtong Industries Co.,Ltd.

2020-08-13 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AQBD-R47 Product Name: Wireless Outdoor Sensor Model name: R47 Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Block diagram Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Sincerely, Name: Dongsheng Huang Title: General Manger Company: Fujian Youtong Industries Co.,Ltd.

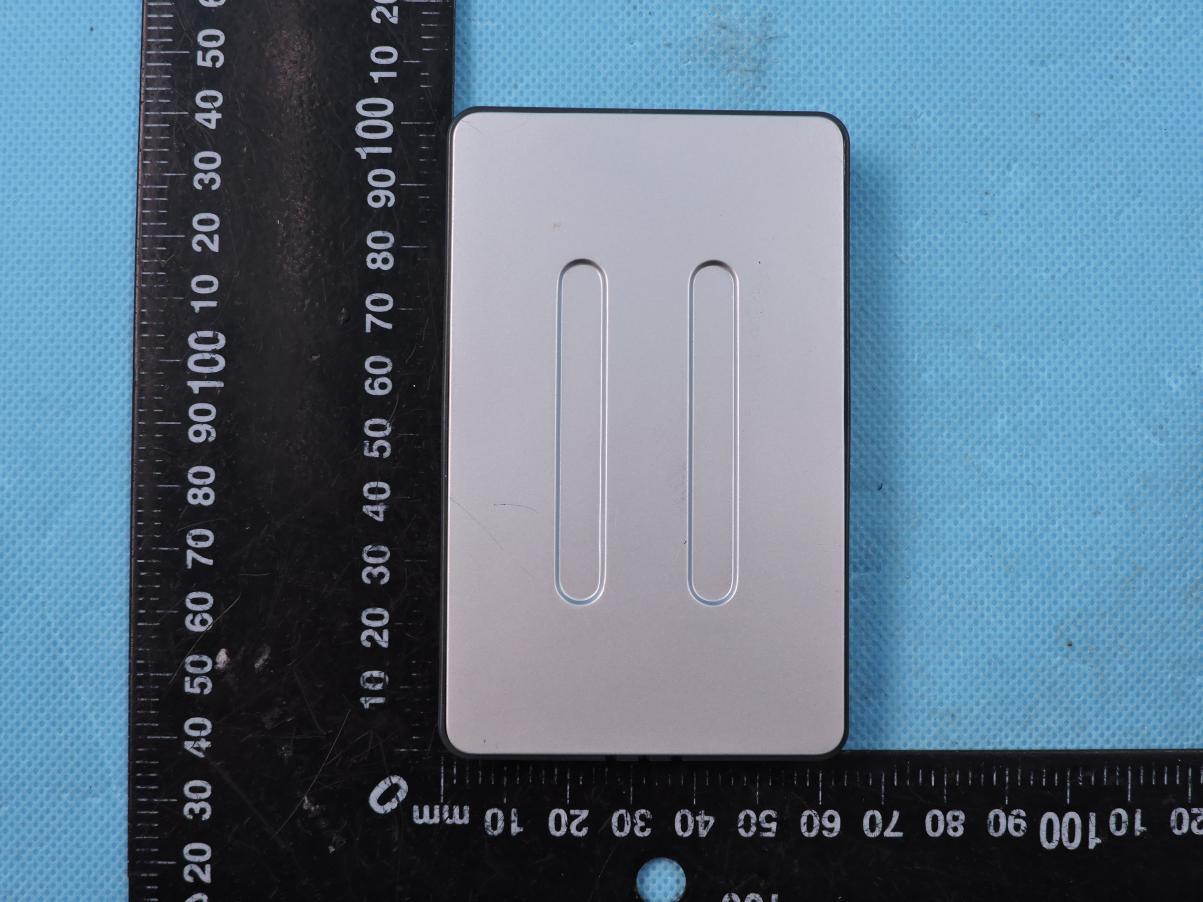

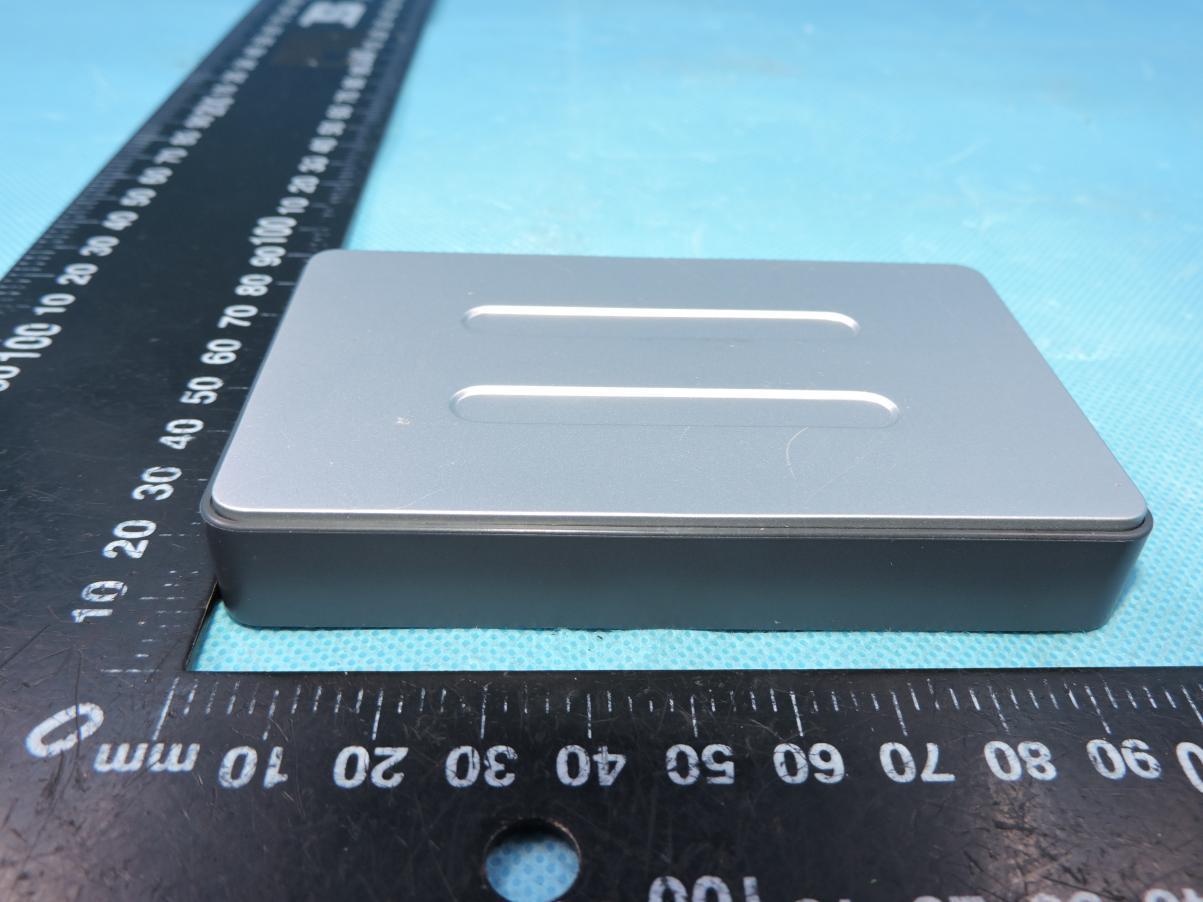

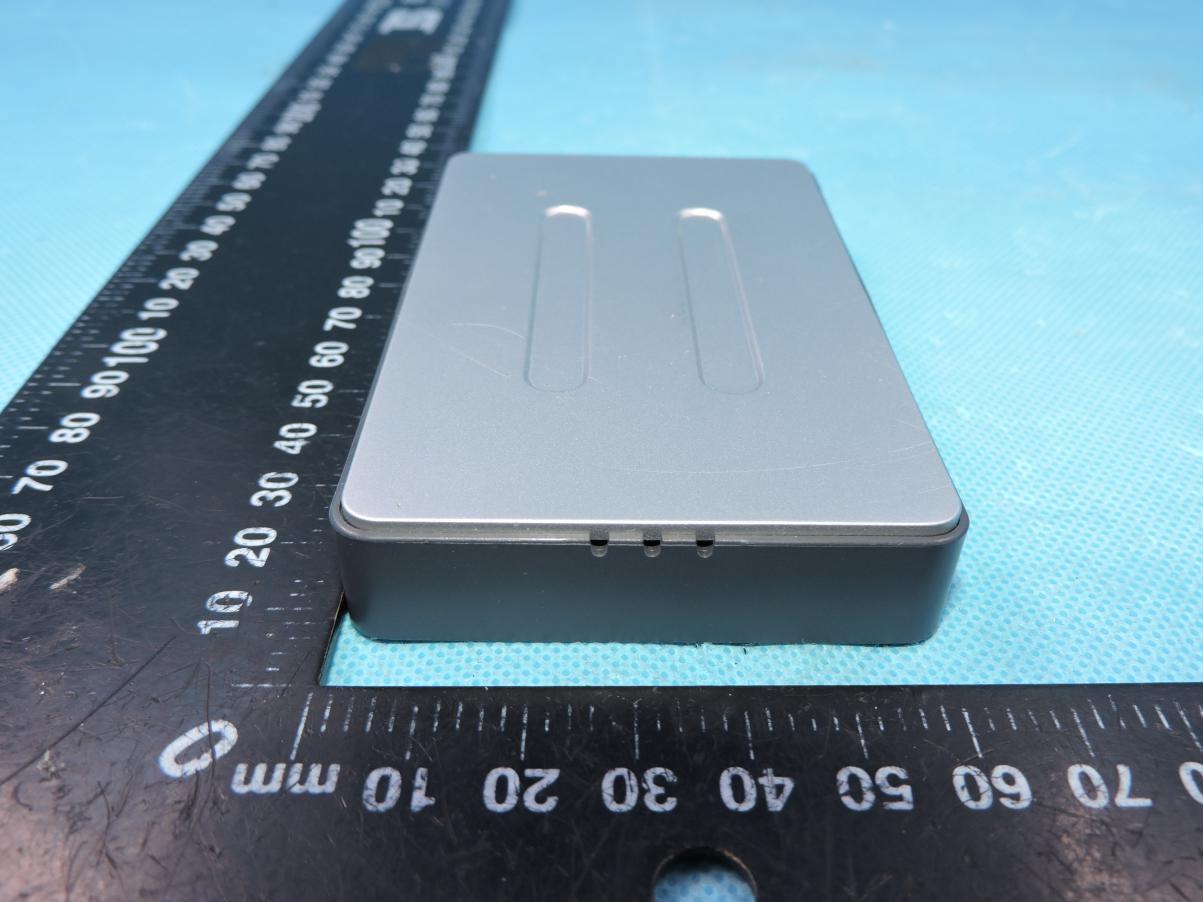

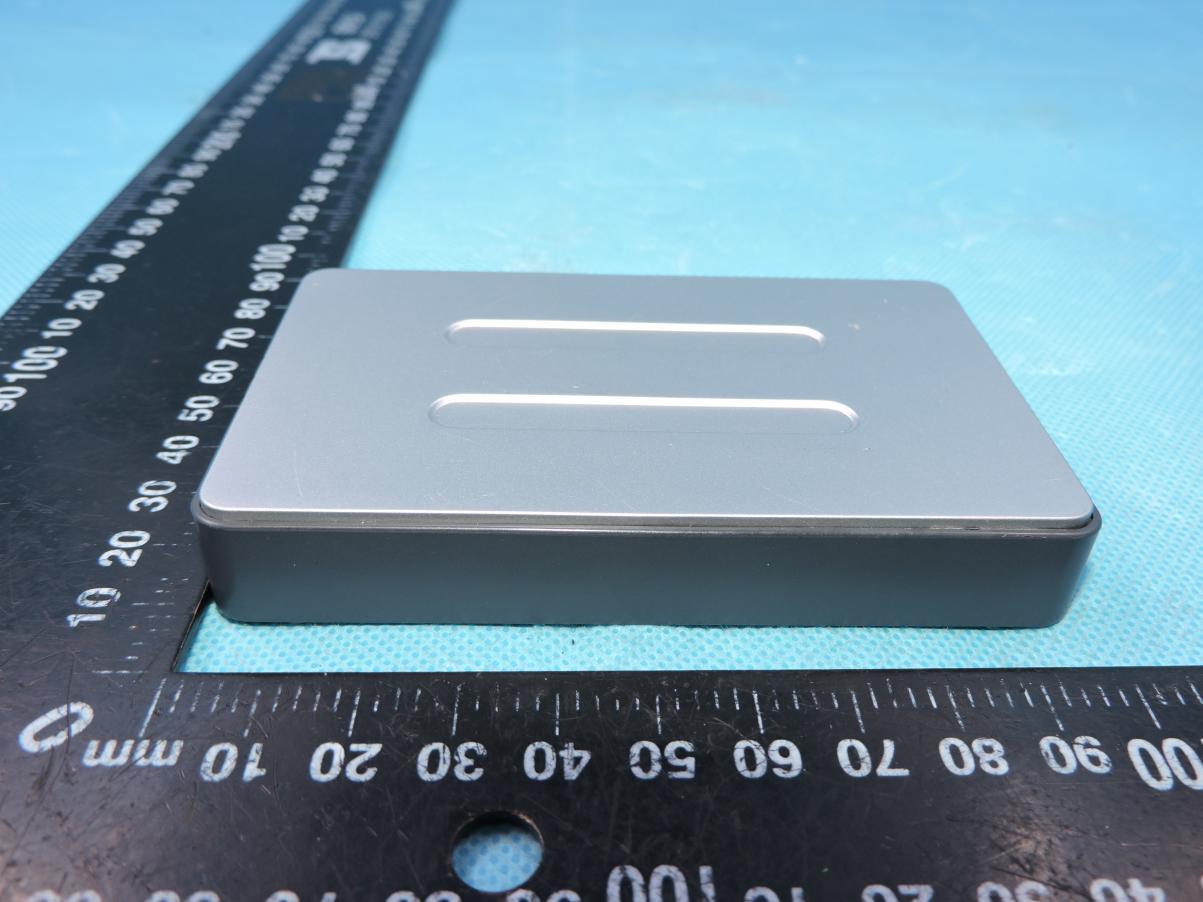

Page 1 of 3 Report No.: STS2007037P01 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: R47 Photo 1 Photo 2 Page 2 of 3 Report No.: STS2007037P01 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2007037P01 Photo 5 Photo 6

FCC Label Note: The label is silk-screen on the sample Wireless Outdoor Sensor Model: R47 FCC ID: 2AQBD-R47 W:20mm W:18m m L:25mm

Page 1 of 3 Report No.: STS2007037P02 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Model: R47 Photo 1 Photo 2 TX Antenna Page 2 of 3 Report No.: STS2007037P02 Photo 3 Photo 4 Page 3 of 3 Report No.: STS2007037P02 Photo 5

RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10- g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Ant gain= 0 dBi ; so Ant numeric gain= 1 Field strength =71.82dBμV/m @3m So Pt={ [10 (71.82/20) /10 6 x3] 2 /30x1 }x1000 mW = 0.00456 mW So (0.00456 mW/5mm)x √0.43392 GHz =0.0006 < 3 Then SAR evaluation is not required

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] RADIO TESTREPORT Report No.:STS2007037W01 Issued for Fujian Youtong Industries Co.,Ltd. North part of 1st 2nd & 3rd floor Building 1 No.18 Majiang Road Mawei Fuzhou Fujian China 350035 Product Name: Wireless Outdoor Sensor Brand Name: N/A Model Name: R47 Series Model: N/A FCC ID: 2AQBD-R47 Test Standard: FCC Part 15.231 S T L A B S S T L A B S Page 2 of 29 Report No.: STS2007037W01 TEST REPORT CERTIFICATION Applicant’s Name ........................ : Fujian Youtong Industries Co.,Ltd. Address ...................................... : North part of 1st 2nd & 3rd floor Building 1 No.18 Majiang Road Mawei Fuzhou Fujian China 350035 Manufacture's Name .................. : Fujian Youtong Industries Co.,Ltd. Address ..................................... : North part of 1st 2nd & 3rd floor Building 1 No.18 Majiang Road Mawei Fuzhou Fujian China 350035 Product Description Product Name ............................. : Wireless Outdoor Sensor Brand Name ............................... : N/A Model Name ............................... : R47 Series Model ............................... : N/A Test Standards .......................... : FCC Part 15.231 Test Procedure ........................... : ANSI C63.10-2013 This device described above has been tested by STS, the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document only be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test .......................................... : 12 July 2020 Date of performance of tests ................. : 12 July 2020 ~ 22 July 2020 Date of Issue ........................................ : 22 July 2020 Test Result ............................................ : Pass Testing Engineer : (Chris Chen) Technical Manager : (Sean she) Authorized Signatory : (Vita Li) Page 3 of 29 Report No.: STS2007037W01 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 6 1.2 MEASUREMENT UNCERTAINTY 6 2. GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF THE EUT 7 2.2 DESCRIPTION OF THE TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 8 2.4 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 9 2.5 EQUIPMENTS LIST 10 3. EMC EMISSION TEST 11 3.1 CONDUCTED EMISSION MEASUREMENT 11 3.2 TEST PROCEDURE 12 3.3 TEST SETUP 12 3.4 TEST RESULTS 12 4. RADIATED EMISSION MEASUREMENT 13 4.1 RADIATED EMISSION LIMITS 13 4.2 TEST PROCEDURE 14 4.3 DEVIATION FROM TEST STANDARD 14 4.4 TEST SETUP 15 4.5 EUT OPERATING CONDITIONS 16 4.6 TEST RESULTS 16 4.7 FIELD STRENGTH CALCULATION 17 5. BANDWIDTH TEST 21 5.1 LIMIT 21 5.2 TEST REQUIREMENTS 21 5.3 TEST PROCEDURE 21 5.4 TEST SETUP 21 5.5 EUT OPERATION CONDITIONS 21 5.6 TEST RESULTS 22 6. DUTY CYCLE 23 6.1 TEST PROCEDURE 23 6.2 TEST SETUP 23 6.3 EUT OPERATION CONDITIONS 23 6.4 TEST RESULTS 24 Page 4 of 29 Report No.: STS2007037W01 TABLE OF CONTENTS Page 7. AUTOMATICALLY DEACTIVATE 26 7.1 STANDARD REQUIREMENT 26 7.2 TEST PROCEDURE 26 8. ANTENNA REQUIREMENT 28 8.1 STANDARD REQUIREMENT 28 8.2 EUT ANTENNA 28 APPENDIX 1-PHOTOS OF TEST SETUP 29 Page 5 of 29 Report No.: STS2007037W01 Revision History Rev. Issue Date Report NO. Effect Page Contents 00 22 July 2020 STS2007037W01 ALL Initial Issue Page 6 of 29 Report No.: STS2007037W01 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15.231,Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission N/A -- 15.205(a)/15.209/ 15.231.(b) Radiated Spurious Emission PASS -- 15.231(a)(1)/ 15.231(b)(2) Transmission requirement PASS -- 15.231(C) 20 dB Bandwidth PASS -- 15.203 Antenna Requirement PASS -- NOTE:(1)”N/A” denotes test is not applicable in this Test Report (2) All tests are according to ANSI C63.10-2013 1.1 TEST FACTORY SHENZHEN STS TEST SERVICES CO., LTD Add. : A 1/F, Building B, Zhuoke Science Park, No.190 Chongqing Road, HepingShequ, Fuyong Sub-District, Bao’an District, Shenzhen, Guang Dong, China FCC test Firm Registration Number: 625569 IC test Firm Registration Number: 12108A A2LA Certificate No.: 4338.01 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ±U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 30-1GHz ±5.6dB 4 All emissions, radiated 1G-6GHz ±5.5dB 5 All emissions, radiated>6G ±5.8dB 6 Conducted Emission (9KHz-150KHz) ±3.37dB 7 Conducted Emission (150KHz-30MHz) ±3.83dB Page 7 of 29 Report No.: STS2007037W01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name Wireless Outdoor Sensor Trade Name N/A Model Name R47 Series Model N/A Model Difference Wireless Outdoor Sensor Frequency band 433.92 MHz Power Rating Input: DC 3V from 2*AAA battery Modulation Type FSK Hardware version number N/A Software version number N/A Connecting I/O Port(s) N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications orthe User's Manual. 2. Table for filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) NOTE 1 N/A R47 Monopole N/A 0 Antenna Page 8 of 29 Report No.: STS2007037W01 2.2 DESCRIPTION OF THE TEST MODES To investigate the…

Text truncated - open the document above for the full version.

Page 1 of 1 FCC ID: 2AQBD-R47 DSC Setup photo Model name: R47 DSC radiation L DSC radiation H
