2AQE4FLY2020ADrone Stunt Glow LED 5inch

Charging Battery Step 1 - Pre-Flight Checklist. 1. Read all warnings and instructions. 2. Install remote batteries, page 4. 3. Charge batteries, page 4. 4. Make sure that the drone and remote are powered o. Step 2 - Choosing a location. • Drone is designed to be flown indoors and outdoors. • Always make sure you have enough space to fly drone. • Always follow warnings, page 2. Step 3 - Pre-Flight • Make sure your remote is o. • Slide drone switch to ON. • Place drone on a flat even surface. For ease of control, the blue lights should be toward you. • Turn on the Remote controller.Push stick up and then down. • The drone’s lights will flicker during the pairing process and then remain on once it has paired. Press the Auto Orientation Button to turn the mode ON and then again to turn o. • In this mode, the drone will always move in the direction you press the Multi Directional Button no matter which way the drone faces. • To stop blades in case of an emergency. When drone is in auto orientation mode, the drone will orient to the user (remote), no matter what direction the drone is facing. • Press the Orientation button. Remote will beep every 6 seconds to indicate it is in Auto Orientation mode. • Push the right stick up will send the drone away from the user, push left will move left, etc. • Press Auto Orientation button to exit mode. Congratulations on your purchase of the LED Stunt Drone. It’s time for some fun. This drone is capable of total controlled flight, fly up/down, left/right, and pitch forward or backward, on 6 axis gyro stabilization with a control range of 150 feet. Includes USB charging cable, replacement blades and for auto orientation, auto take-o and auto landing control. Included, is a 380 mAh Li-po drone battery. The remote controller requires requires 3 AAA 1.5V batteries (not included). Alkaline batteries are recommended. Please read all instructions and warnings in this manual prior to using your LED Stunt Drone, and keep this instruction manual as it contains important information for future reference. Adult assembly and a Phillips screwdriver (included) will be required for battery installation. Table of Contents General Warnings Page 2 Contents Page 3 Remote Battery installation and Charging Battery Page 4 Replacing Propellers Page 5 Remote Overview Page 6 Operating Drone Page 7 Operating Page 8 Other Features Page 9 23 45 67 Sharper Image ® name and logo (including the 77 logo) are trademarks or registered trademarks. Distributed by and © 2020 MerchSource, LLC. Irvine, CA 92618. All rights reserved. For customer support, please visit www.merchsource.com or call 1-800-374-2744. The artwork and design of this manual are protected by US copyright law and may not be reproduced, distributed, displayed, published or used for any purpose without prior written permission. It is not permitted to alter, remove or reproduce any trademarks or copyright notice from this manual. Printed in China INSTRUCTION MANUAL BATTERY WARNING: • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc), or rechargeable batteries. • Insert batteries using the correct polarity. Do not short-circuit the supply terminal. • Remove batteries when not in use. Recycle or dispose of exhausted batteries according to federal, state, and local laws. Do not dispose of batteries in a fire - they may leak or explode. • Only use manufacture specified battery(ies), charger(s) and/or adapter, if applicable, specified by the manufacturer. • Always use, replace, and recharge (if applicable) batteries under adult supervision. KEEP THIS PACKAGING FOR REFERENCE AS IT CONTAINS IMPORTANT INFORMATION. 1. Slide open the remote’s battery compartment. 2. Install 3 “AAA” batteries as shown in the diagram above. 3. Replace and close battery compartment. LED Drone There is a risk of fire and personal injury if Li-Po battery is punctured, damage or misused. • Never expose battery to extreme temperatures or moisture. • Do not subject battery to strong impacts. • Always keep battery away from flammable materials. • Only use manufacture specified battery(ies), charger(s) and/or adapter, if applicable, specified by the manufacturer. • Battery is not serviceable. • Let battery cool to room temperature before charging. • While charging, never leave battery unattended. • Recycle or dispose of battery according to federal, state and local laws. KEEP THIS PACKAGING FOR REFERENCE AS IT CONTAINS IMPORTANT INFORMATION. USB Charger Cable 4 Replacement Propellers. Note: The Battery Charger will light up when it is charging the battery and turn o when the battery is fully charged. 1. Turn o the drone before charging. 2. Connect the battery charger cable to the charging port on the drone. 3. Connect USB connector to the power source. • Only an adult should replace blades. To remove, pull up the blades directly. • Replace propellers by following the diagram. • Each blade spins dierently. Blade B spins counter clockwise and Blade A spins clockwise. 1 Drone Controller Step 4 - Lift O. Step 5 - Operating Drone in Flight. 1. Follow this step if your drone begins to drift during take o or during flight. A. Drone drifts backwards: Press the Forward Trim Button. B. Drone drifts forwards: Press the Backwards Trim Button. C. Drone drift right: Press the Left Trim Button. D. Drone drift left: Press the Right Trim Button. 2. Use the Throttle Joystick to increase or decrease your elevation. 3. Use the Multi Directional Joystick to move forwards, backwards or side to side. Step 6 - Landing Drone Step 7 - Retrieving Drone 1. Lower drone to 20 feet or less then press the Auto Land button. Use the Multi Directional Joystick to maneuver drone. Or Push the left joystick down until the drone landing. 2. In the event the blades will not stop spinning, you can perform an emergency stop. 1. Turn o your remote by pressing the Power Button. This will stop you from accidentally turning the propellers on. 2. Make sure the propeller…

Text truncated - open the document above for the full version.

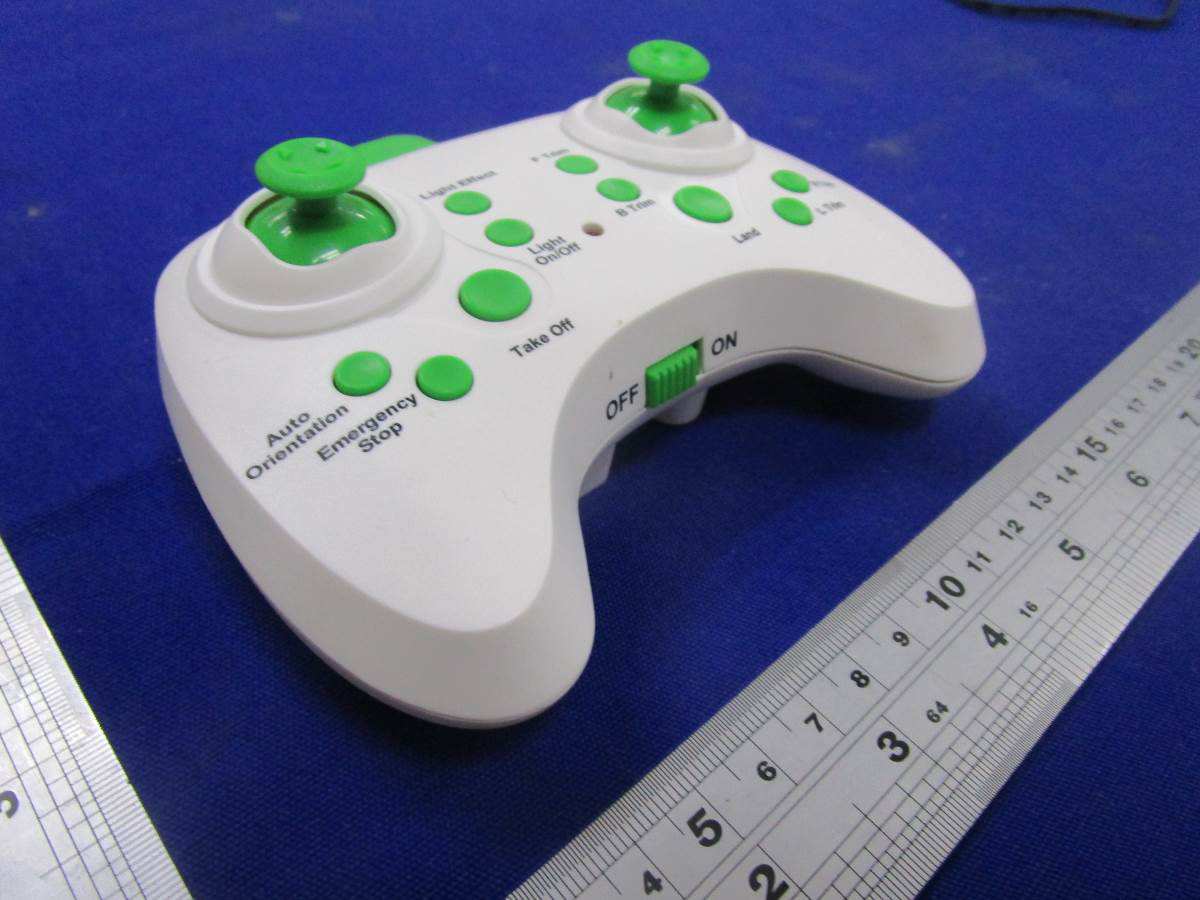

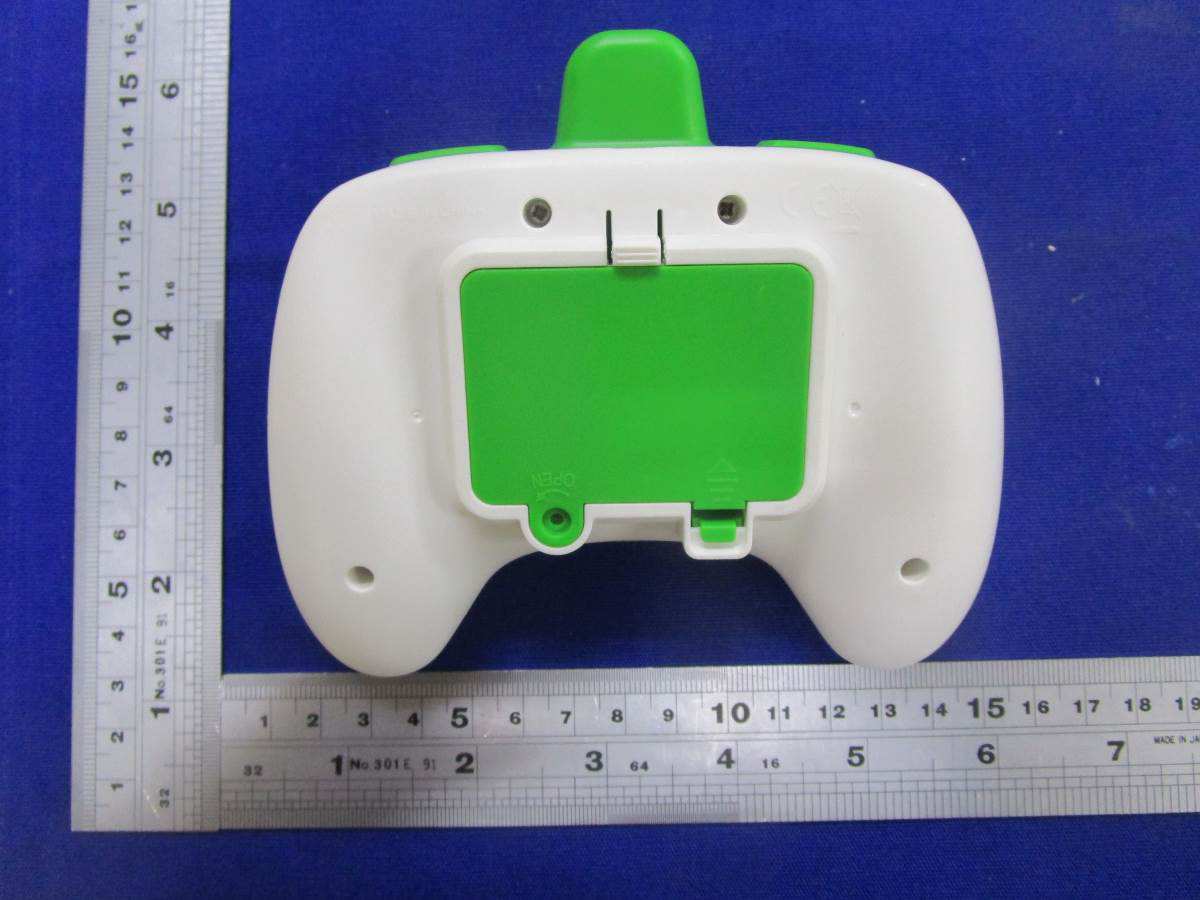

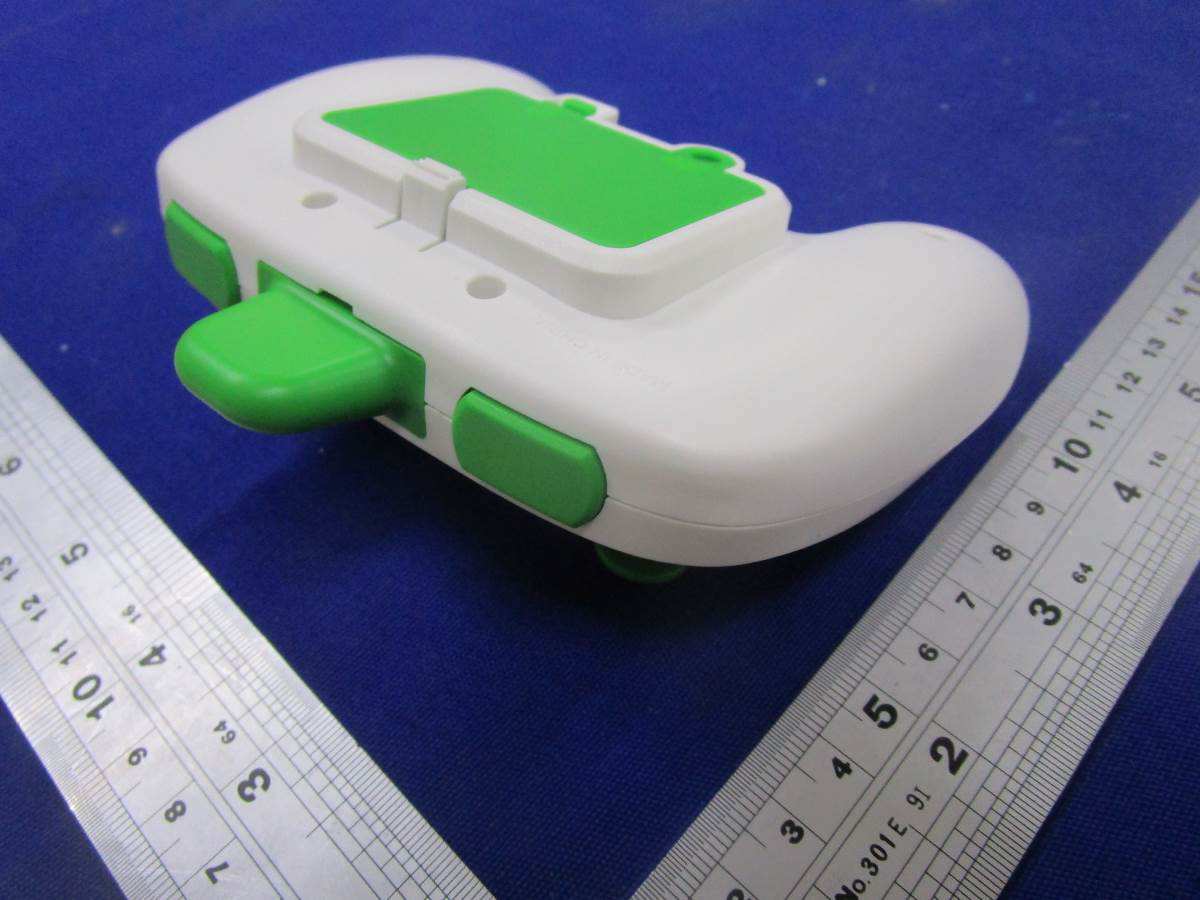

Page 1 of 2 External Photos Page 2 of 2

Label Artwork and Location SIZE: 40mm (W) x 25mm (H)

Page 1 of 2 Internal Photos Page 2 of 2

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Drone Stunt Glow LED 5inch operating at 2.4G Band. The EUT can be powered by DC 4.5V (3 x 1.5V AAA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: -10.0dBm (tolerance: +/- 3dB). The normal conducted output power is -10.0dBm (tolerance: +/- 3dB). Modulation Type: GFSK. According to the KDB 447498: The Maximum peak radiated emission for the EUT is 84.3dBμV/m at 3m in the frequency 2447MHz The EIRP = [(FS*D) ^2 / 30] mW = -10.93dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 83.4 dBμV/m at 3m in the frequency 2477MHz The EIRP = [(FS*D) ^2 / 30] mW = -11.83dBm which is within the production variation. The maximum conducted output power specified is -7dBm= 0.200mW The source- based time-averaging conducted output power =0.200* Duty cycle mW <0.200 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.477) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 11.5942ms Effective period of the cycle = 942.0μs = 0.942ms DC =0.942ms / 11.5942ms =0.0812 or 8.12% FCC ID: 2AQE4FLY2020A

Shantou Flying Technology Inc. TEST REPORT SCOPE OF WORK FCC TESTING– MODEL: 1012182 REPORT NUMBER GZHH00355366-001 ISSUE DATE April 9, 2020 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: GZHH00355366-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 24 FCC ID 249_C Test Report Shantou Flying Technology Inc. Application for Certification FCC ID: 2AQE4FLY2020A Drone Stunt Glow LED 5inch Model: 1012182 2.4GHz Transmitter Report No.: GZHH00355366-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Sign on file Terry Tang Senior Engineer Kidd Yang Technical Supervisor Date: April 9, 2020 Intertek Report No.: GZHH00355366-001 Version: 01-November-2017 Page: 2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator − the new 47 CFR [10-1-18 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-8601 6288/86-755-8601 6751 Intertek Report No.: GZHH00355366-001 Version: 01-November-2017 Page: 3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result .......................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal(s) Grants .................................................................................... 5 2.3 Test Methodology .................................................................................................... 5 2.4 Test Facility ............................................................................................................ 5 3.0 System Test Configuration ...................................................................................... 6 3.1 Justification ............................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................... 6 3.3 Special Accessories ................................................................................................ 6 3.4 Equipment Modification ........................................................................................... 6 3.5 Measurement Uncertainty ....................................................................................... 6 3.6 Support Equipment List and Description .................................................................. 6 4.0 Emission Results ..................................................................................................... 7 4.1 Radiated Test Results ............................................................................................. 7 4.1.1 Field Strength Calculation ..................................................................................... 7 4.1.2 Radiated Emission Configuration Photograph ....................................................... 8 4.1.3 Radiated Emissions .............................................................................................. 8 4.1.4 Transmitter Spurious Emissions ......................................................................... 11 5.0 Equipment Photographs ........................................................................................ 15 6.0 Product Labelling ................................................................................................... 15 7.0 Technical Specifications ........................................................................................ 15 8.0 Instruction Manual ................................................................................................. 15 9.0 Miscellaneous Information .................................................................................... 16 9.1 Bandedge Plot ..........................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 Radiated Photos Up to 1GHz (The EUT placed at the center of the turntable) Page 2 of 2 Above 1GHz (The EUT placed at the center of the turntable)
