2AQE4FLY2020BDrone Thunderbolt Jet X

OPERATING DRONE OVERVIEWGETTING TO KNOW YOUR DRONE OPERATING DRONEOPERATING DRONEADVANCED MODESTIPS & TROUBLESHOOTING CONTENTSWARNINGSGENERAL WARNINGSCHARGING/BATTERY 778899 22113344 661010 DRONE REMOTE STUNTTIPS FINE-TUNING/DIRECTION INSIDE THE BOX TAKE OFF LAND AUTO-ORIENTATION TROUBLE SHOOTING 55 CHARGING PAIRING DIRECTION REMOTE CONTROL OFF ON OFF ON 14+14+ 5 FEET 10 FEET 360 45 mins StuntSpeed Throttle Stick Auto Orientation Land Left Turn Trim Right Turn Trim Switch Forward Trim Directional Stick Left Trim Back Trim Right Trim • Do not crash drone into sand or dirt. Drone gears may become clogged • When first learning to fly, practice lifting o and hovering • Stay several feet from walls and buildings • Always press throttle all the way down after crashing or when something gets stuck in propellers • Never fly drones above or near people, sudden changes in wind or other conditions could lead to unexpected crashes. • Always use caution when flying drone vehicles, obey relevant laws, respect the privacy and property rights of others. • The drone shall never be modified or used for anything except its intended purpose. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Drifts Left and RightHover Up and Down Forward and BackwardDrifts Forwards and BackwardsSideways Turn Left and Right Slowly and carefully press the Throttle stick. Drone will begin to elevate. iiii iii iii iv iv v v i i Slide drone switch to ON. Place drone on a flat even surface. For ease of control, the red lights should be toward you. If the drone begins to drift, you can still control the drone’s direction using the Multi Directional Button. Turn on the Remote controller.Push stick up and then down. Make sure your remote is o. 1. Read all warnings and instructions. 2. Install remote batteries, page 3. 3. Make sure that drone and remote are powered o. 4. Install drone holder. 5. Charge batteries, page 3. Always turn o remote prior to retrieving or picking up drone. This will help you avoid accidently activating propellers. Choose a location Pairing Drone Pre Flight Checklist 11 2 2 3 3 Thunder Jet X DroneDrone Controller Replacement Propellers Open battery cover and install 3 “AA” 1.5V batteries as shown. Battery Cover Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Sharper Image® name and logo are registered trademarks. Distributed by and ©2018 MerchSource, LLC. Irvine, CA 92618. All rights reserved. The artwork and design of this manual are protected by US copyright law and may not be reproduced, distributed, displaced, published or used for any purpose without prior written permission. Altering, removing or reproducing any of the trademark or copyright notices on this package is not permitted. PATENT PENDING Printed in China WARNING: ONLY USE PROVIDED USB CABLE FOR CHARGING Before calling please locate the 10-digit code printed on the back of your remote QUESTIONS OR CONCERNS? PLEASE GIVE US A CALL ... WE«RE HERE TO HELP CUSTOMER SERVICE (800) 374-2744 THUNDER JET X DRONE ii Hover the drone to at least above 10 ft. Press stunt button. iiii Move the Multi Directional Button to the desired direction that you would like the drone to flip iiiiii 10 FEET • Not recommended for children under 14 years of age. As with all electrical products, precautions should be observed during handling and use to reduce the risk of electrical shock. • Adult supervision is required at all times. • Drive drone only on smooth flat surfaces. • Never fly drones above or near people, sudden changes in wind or other conditions could lead to unexpected crashes. • Always use caution when flying drone vehicles, obey relevant laws, respect the privacy and property rights of others. • The drone shall never be modified or used for anything except its intended purpose. • Before each use, an adult should review the product and battery to determine that no damage or hazards exist. • DO NOT TOUCH SPINNING PROPELLERS. • Do not allow anything to intentionally make contact in any way with spinning propellers o Prevent contact with spinning blades by turning o remote prior to handling drone. • Use caution and pay attention to your surroundings while operating drone. • Do not fly drone into animals, people, or inanimate objects. • Keep drone away from power lines, buildings, trees, public areas, and any other potentially hazardous areas. • Do not operate in rain, heavy wind, and or any type of …

Text truncated - open the document above for the full version.

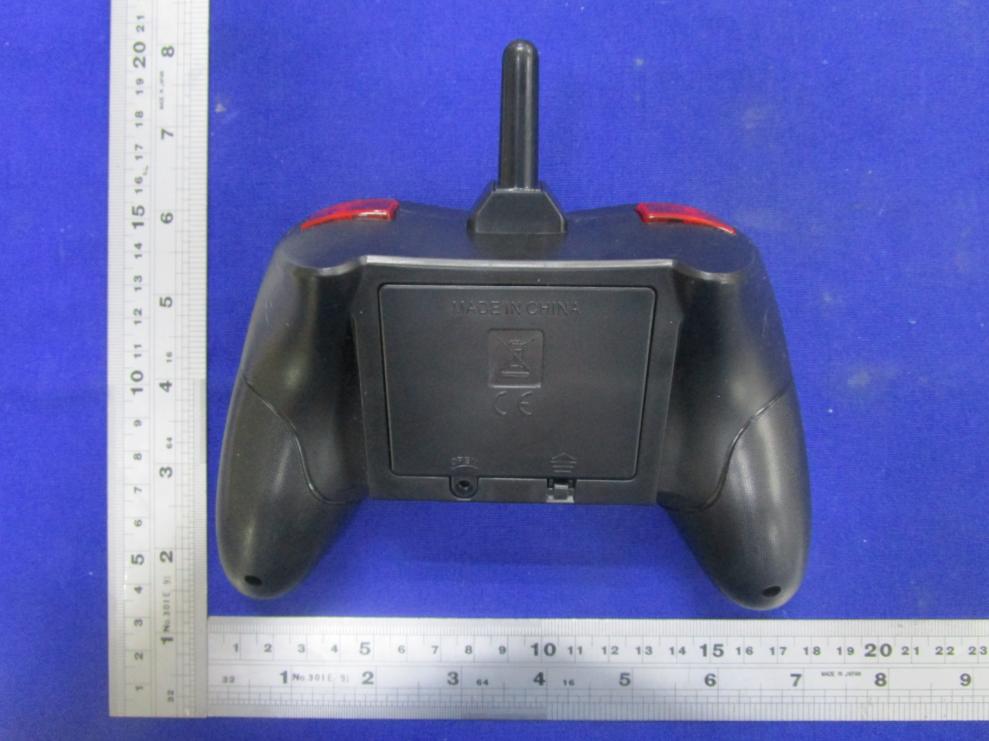

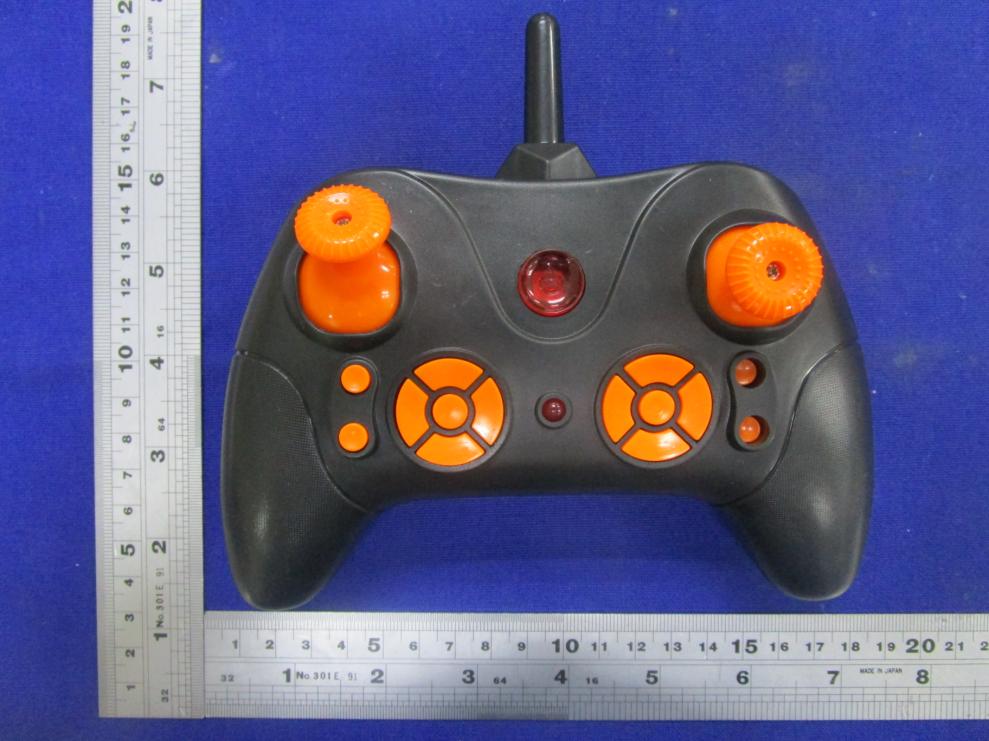

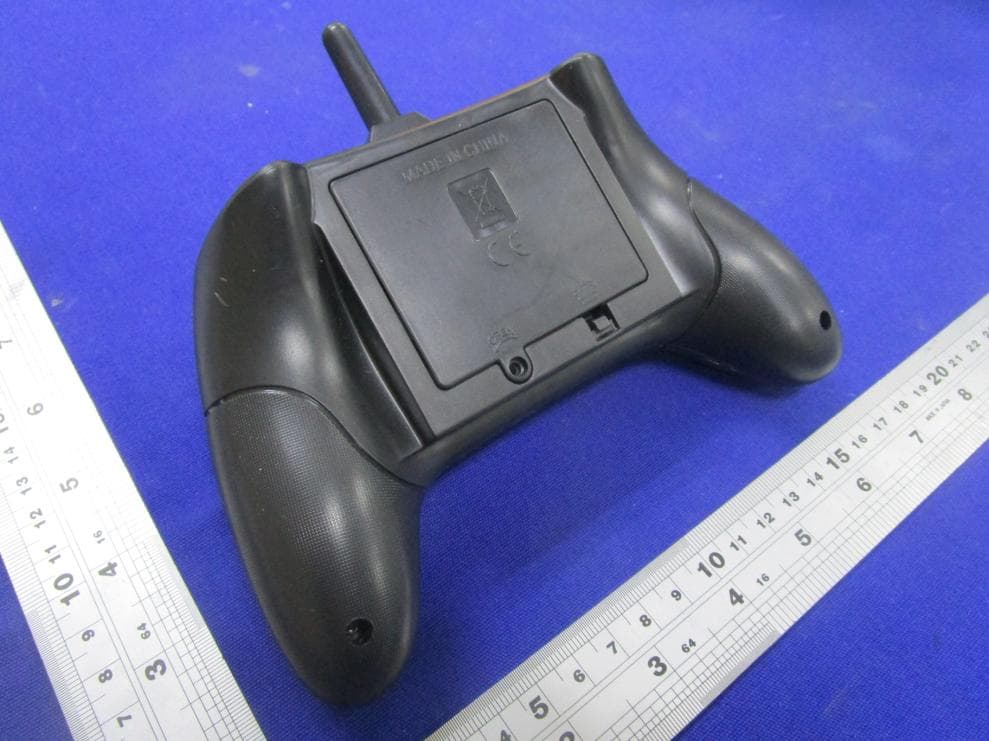

Page 1 of 2 EXTERNAL PHOTOS Page 2 of 2

Page 1 of 1 Label Artwork and Location FCC ID：2AQE4FLY2020B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Size:50mm(W)*15mm(H)

Page 1 of 2 INTERNAL PHOTOS Page 2 of 2

1 INTERTEK TESTING SERVICES RF Exposure The equipment under test (EUT) is a Drone Thunderbolt Jet X operating at 2.4G Band. The EUT can be powered by DC 4.5V (3 x 1.5V AA batteries). For more detail information pls. refer to the user manual. Antenna Type: Integral antenna. Modulation Type: GFSK. Antenna Gain: 0dBi. The normal radiated output power (e.i.r.p) is: 0.0dBm (tolerance: +/- 3dB). The normal conducted output power is 0.0dBm (tolerance: +/- 3dB). According to the KDB 447498: The Maximum peak radiated emission for the EUT is 95.3 dBμV/m at 3m in the frequency 2477MHz The EIRP = [(FS*D) ^2 / 30] mW = 0.07dBm which is within the production variation. The Minimum peak radiated emission for the EUT is 95.0dBμV/m at 3m in the frequency 2447MHz The EIRP = [(FS*D) ^2 / 30] mW = -0.23dBm which is within the production variation. The maximum conducted output power specified is 3dBm= 1.995mW The source- based time-averaging conducted output power =1.995* Duty cycle mW <1.995 mW(Duty cycle <100%) The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.477) mW = 9.53 mW Since the source-based time-averaging conducted output power is well below the SAR low threshold level, so the EUT is considered to comply with SAR requirement without testing. The duty cycle is simply the on-time divided by the period: The duration of one cycle = 12.1739ms Effective period of the cycle = 1666.7μs = 1.6667ms DC =1.6667ms / 12.1739ms =0.1369 or 13.69% FCC ID: 2AQE4FLY2020B

Shantou Flying Technology Inc. TEST REPORT SCOPE OF WORK FCC TESTING– MODEL: 1013005 REPORT NUMBER GZHH00357545-001 ISSUE DATE APR 23, 2020 PAGES 24 DOCUMENT CONTROL NUMBER FCC ID 249_C © 2017 INTERTEK Intertek Report No.: GZHH00357545-001 This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Service Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Version: 01-November-2017 Page: 1 of 24 FCC ID 249_C Test Report Shantou Flying Technology Inc. Application for Certification FCC ID: 2AQE4FLY2020B Drone Thunderbolt Jet X Model: 1013005 2.4GHz Transmitter Report No.: GZHH00357545-001 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-18] Prepared and Checked by: Approved by: Sign on file Terry Tang Senior Engineer Kidd Yang Technical Supervisor Date: Apr 23, 2020 Intertek Report No.: GZHH00357545-001 Version: 01-November-2017 Page: 2 of 24 FCC ID 249_C Test Report MEASUREMENT/TECHNICAL REPORT This report concerns (check one:) Original Grant X Class II Change Equipment Type: DXX - Part 15 Low Power Communication Device Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator  the new 47 CFR [10-1-18 Edition] provision. Report prepared by: Terry Tang Intertek Testing Services Shenzhen Ltd. Longhua Branch 101, 201, Building B, No. 308 Wuhe Avenue, Zhangkengjing Community GuanHu Subdistrict, LongHua District, Shenzhen, People’s Republic of China Tel / Fax: 86-755-8601 6288/86-755-8601 6751 Intertek Report No.: GZHH00357545-001 Version: 01-November-2017 Page: 3 of 24 FCC ID 249_C Test Report Table of Contents 1.0 Summary of Test Result .......................................................................................... 4 2.0 General Description ................................................................................................. 5 2.1 Product Description ................................................................................................. 5 2.2 Related Submittal(s) Grants .................................................................................... 5 2.3 Test Methodology .................................................................................................... 5 2.4 Test Facility ............................................................................................................ 5 3.0 System Test Configuration ...................................................................................... 6 3.1 Justification ............................................................................................................. 6 3.2 EUT Exercising Software ......................................................................................... 6 3.3 Special Accessories ................................................................................................ 6 3.4 Equipment Modification ........................................................................................... 6 3.5 Measurement Uncertainty ....................................................................................... 6 3.6 Support Equipment List and Description .................................................................. 6 4.0 Emission Results ..................................................................................................... 7 4.1 Radiated Test Results ............................................................................................. 7 4.1.1 Field Strength Calculation ..................................................................................... 7 4.1.2 Radiated Emission Configuration Photograph ....................................................... 8 4.1.3 Radiated Emissions .............................................................................................. 8 4.1.4 Transmitter Spurious Emissions ......................................................................... 11 5.0 Equipment Photographs ........................................................................................ 15 6.0 Product Labelling ................................................................................................... 15 7.0 Technical Specifications ........................................................................................ 15 8.0 Instruction Manual ................................................................................................. 15 9.0 Miscellaneous Information .................................................................................... 16 9.1 Bandedge Plot ...............................................................................................…

Text truncated - open the document above for the full version.

Page 1 of 2 RADIATED PHOTOS Up to 1GHz (EUT was placed in the centre of the turntable) Page 2 of 2 Above 1GHz (EUT was placed in the centre of the turntable)
