2AQN2-T30-SMotorcycle 4-Way Conference Intercom

Shenzhen Winnerelec Industrial CO., LTD 411-416 Room Social security building, Honghua Bei Road Gongming Street Guangming New District, Shenzhen, China [May 25, 2020] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Shenzhen Winnerelec Industrial CO., LTD FCC ID: 2AQN2-T30-S To Whom It May Concern: We, Shenzhen Winnerelec Industrial CO., LTD hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number (2AQN2-T30-S) under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is (2020-05-25). The Limited Agency Agreement expires until further notice, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, [Signature] [Frank Zeng] [General Manager]

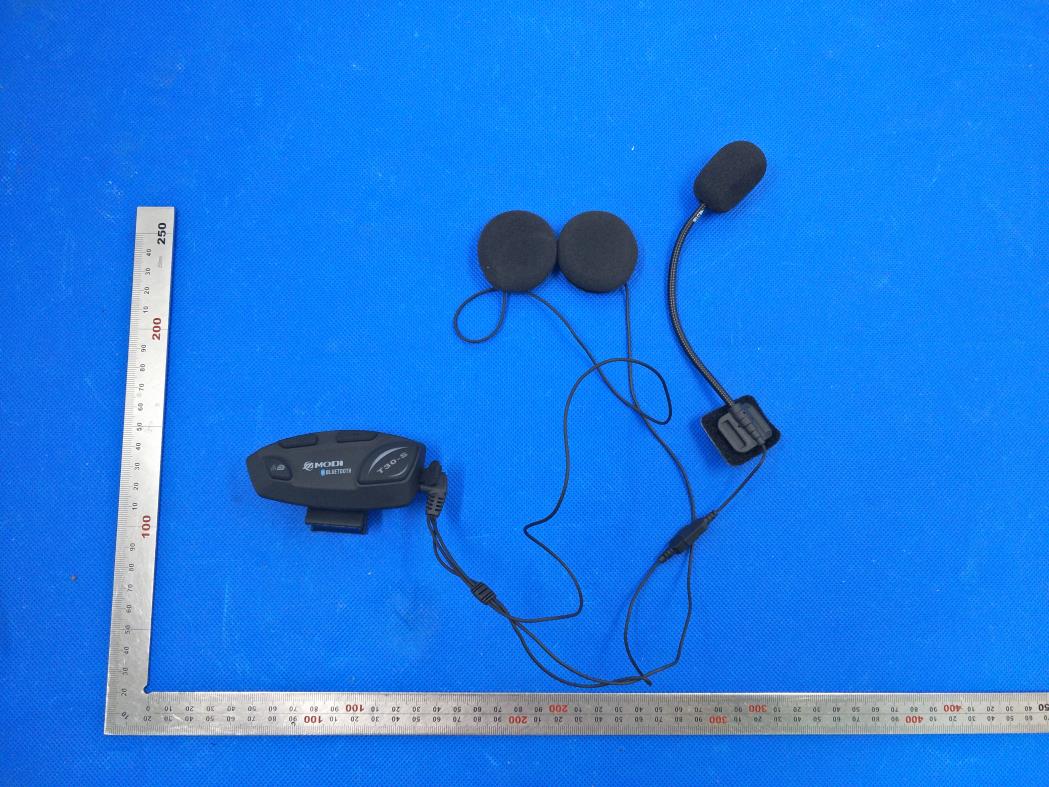

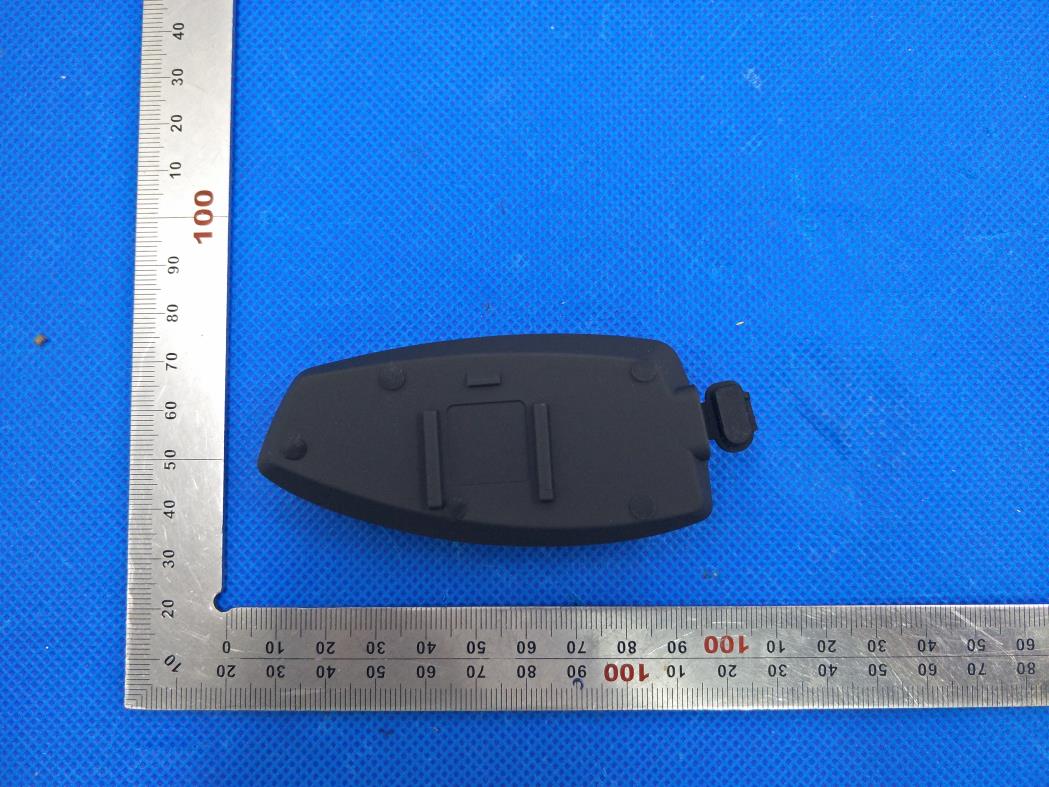

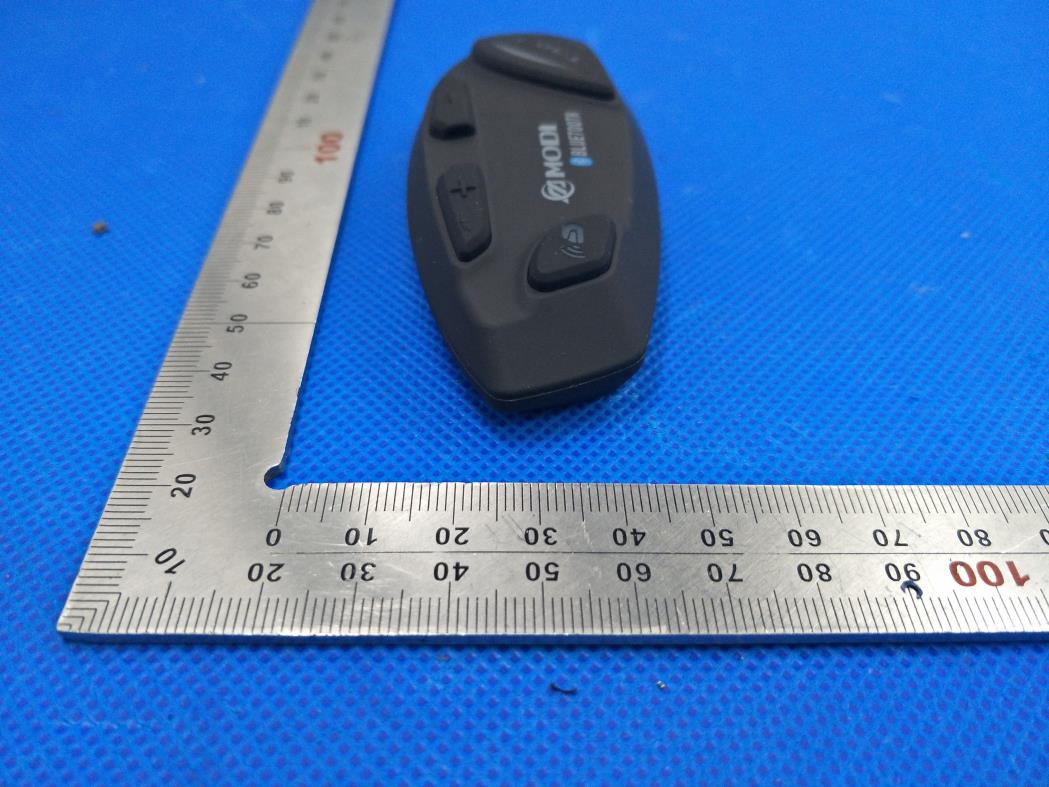

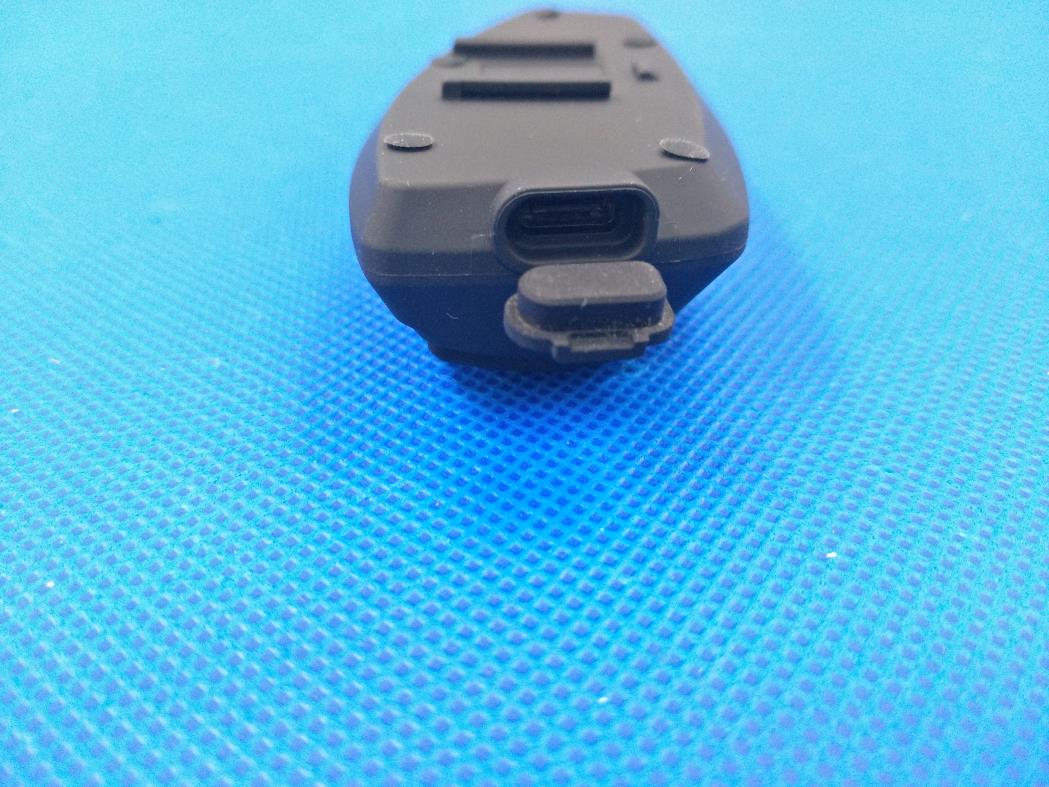

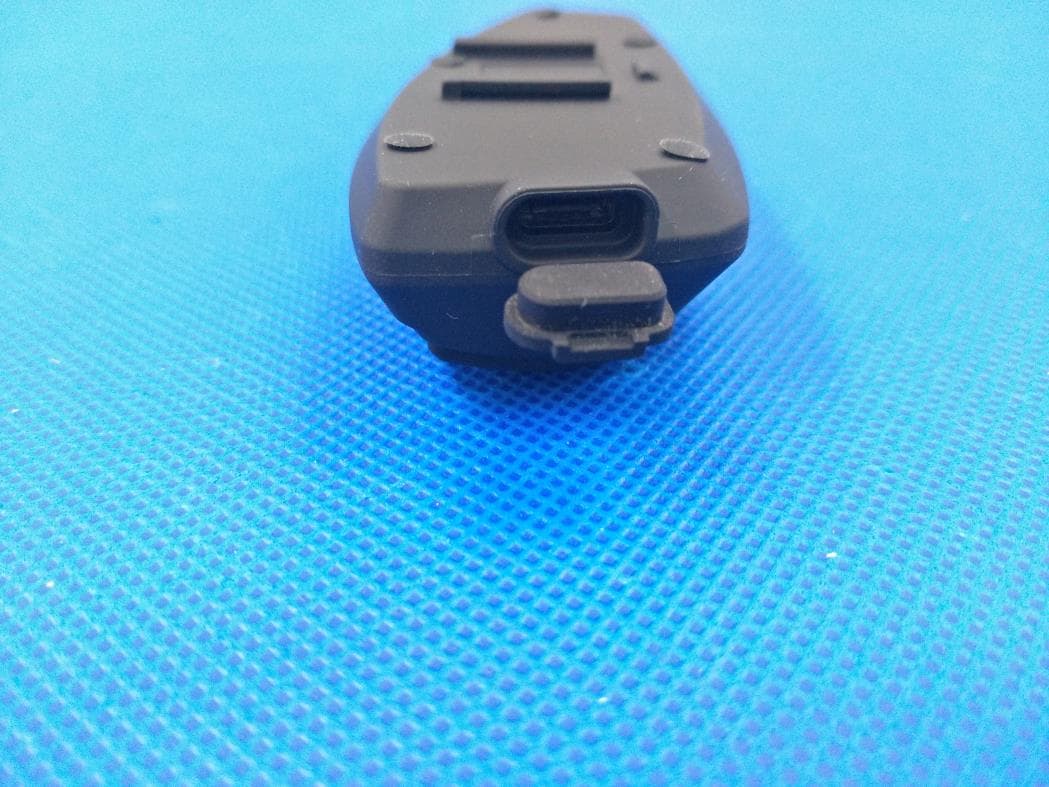

External Photos Test Model: T30-S WHOLE VIEW OF EUT TOP VIEW OF EUT FM Antenna BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT(PORT)

FCC ID Label Location 20mm*20mm FCC ID: 2AQN2-T30-S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos Test Model: T30-S OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Motorcycle 4-Way Conference Intercom Model Name T30-S FCC ID 2AQN2-T30-S 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =8.489dBm=7.06mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(7.06mW /5mm) .[√2.402GHz)]=2.19<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 55 FCC Test Report Report No.: AGC00793200401FE03 FCC ID : 2AQN2-T30-S APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Motorcycle 4-Way Conference Intercom BRAND NAME : N/A MODEL NAME : T30-S APPLICANT : Shenzhen Winnerelec Industrial Co., Ltd. DATE OF ISSUE : May 25, 2020 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC00793200401FE03 Page 2 of 55 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 25, 2020 Valid Initial Release Report No.: AGC00793200401FE03 Page 3 of 55 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RECEIVER INPUT BANDWIDTH .............................................................................................................. 7 2.4. EXAMPLE OF A HOPPING SEQUENCY IN DATA MODE ......................................................................... 7 2.5. EQUALLY AVERAGE USE OF FREQUENCIES AND BEHAVIOUR ......................................................... 7 2.6. RELATED SUBMITTAL(S) / GRANT (S) .................................................................................................... 8 2.7. TEST METHODOLOGY ............................................................................................................................. 8 2.8. SPECIAL ACCESSORIES ......................................................................................................................... 8 2.9. EQUIPMENT MODIFICATIONS ................................................................................................................. 8 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 9 4. DESCRIPTION OF TEST MODES ................................................................................................................. 10 5. SYSTEM TEST CONFIGURATION ................................................................................................................. 11 5.1. CONFIGURATION OF EUT SYSTEM ....................................................................................................... 11 5.2. EQUIPMENT USED IN TESTED SYSTEM ............................................................................................... 11 5.3. SUMMARY OF TEST RESULTS ............................................................................................................... 11 6. TEST FACILITY .............................................................................................................................................. 12 7. PEAK OUTPUT POWER ................................................................................................................................ 13 7.1. MEASUREMENT PROCEDURE ............................................................................................................. 13 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 13 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 14 8. 20DB BANDWIDTH ........................................................................................................................................ 16 8.1. MEASUREMENT PROCEDURE ............................................................................................................. 16 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 16 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 16 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 19 9.1. MEASUREMENT PROCEDURE ............................................................................................................. 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 19 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 19 Report No.: AGC00793200401FE03 Page 4 of 55 10. RADIATED EMISSION ................................................................................................................................. 25 10.1. MEASUREMENT PROCEDURE ........................................................................................................... 25 10.2. TEST SETUP ......................................................................................................................................... 27 10.3. LIMITS AND MEASUREMENT RESULT ............................................................................................... 28 10.4. TEST RESULT........................................................................................................................................ 28 11. NUMBER OF HOPPING FREQUENCY .......................................…

Text truncated - open the document above for the full version.

Report No.: AGC00793200401FE03 Page 31 of 55 RADIATED EMISSION ABOVE 1GHZ EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00055.750.0855.8374-18.17 peak 4804.00044.290.0844.3754-9.63 AVG 7206.00055.062.2157.2774-16.73 peak 7206.00043.582.2145.7954-8.21 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4804.00055.260.0855.3474-18.66 peak 4804.00043.480.0843.5654-10.44 AVG 7206.00054.642.2156.8574-17.15 peak 7206.00042.572.2144.7854-9.22 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00793200401FE03 Page 32 of 55 EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00054.610.1454.7574-19.25 peak 4882.00042.740.1442.8854-11.12 AVG 7323.00054.162.3656.5274-17.48 peak 7323.00041.952.3644.3154-9.69 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 2 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4882.00053.680.1453.8274-20.18 peak 4882.00042.310.1442.4554-11.55 AVG 7323.00052.972.3655.3374-18.67 peak 7323.00041.762.3644.1254-9.88 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type Report No.: AGC00793200401FE03 Page 33 of 55 EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00052.870.2253.0974-20.91 peak 4960.00041.720.2241.9454-12.06 AVG 7440.00051.982.6454.6274-19.38 peak 7440.00041.022.6443.6654-10.34 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical FrequencyMeter ReadingFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 4960.00052.290.2252.5174-21.49 peak 4960.00041.430.2241.6554-12.35 AVG 7440.00051.652.6454.2974-19.71 peak 7440.00040.542.6443.1854-10.82 AVG Remark: Factor = Antenna Factor + Cable Loss – Pre-amplifier. Value Type RESULT: PASS Note: Other emissions from 1G to 25 GHz are considered as ambient noise. No recording in the test report. Factor = Antenna Factor + Cable loss - Amplifier gain, Over=Measure-Limit. The “Factor” value can be calculated automatically by software of measurement system. All test modes had been tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC00793200401FE03 Page 34 of 55 TEST RESULT FOR RESTRICTED BANDS REQUIREMENTS EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00793200401FE03 Page 35 of 55 EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 1 Antenna Vertical PK AV RESULT: PASS Report No.: AGC00793200401FE03 Page 36 of 55 EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Horizontal PK AV RESULT: PASS Report No.: AGC00793200401FE03 Page 37 of 55 EUT Motorcycle 4-Way Conference Intercom Model Name T30-S Temperature 25°C Relative Humidity 55.4% Pressure 960hPa Test Voltage Normal Voltage Test Mode Mode 3 Antenna Vertical PK AV RESULT: PASS Note: The factor had been edited in the “Input Correction” of the Spectrum Analyzer. So the Amplitude of test plots is equal to Reading level plus the Factor in dB. Use the A dB(μV) to represent the Amplitude. Use the F dB(μV/m) to represent the Field Strength. So A=F. All test modes had been pre-tested. The GFSK modulation is the worst case and recorded in the report. Report No.: AGC00793200401FE03 Page 38 of 55 11. NUMBER OF HOPPING FREQUENCY 11.1. MEASUREMENT PROCEDURE The EUT shall have its hopping function enabled. Use the following spectrum analyzer settings: 1. Span: The frequency band of operation. Depending on the number of channels the device supports, it may be necessary to divide the frequency range of operation across multiple spans, to allow the individual channels to be clearly seen. 2. RBW: To identify clearly the individual channels, set the RBW to less than 30% of the channel spacing or the 20 dB bandwidth, whichever is smaller. 3. VBW ≥ RBW. Sweep: Auto. Detector function: Peak. Trace: Max hold. 4. Allow the trace to stabilize. 11.2. TEST SETUP (BLOCK DIAGRAM OF CONFIGURATION) Same as described in section 8.2 11.3. MEASUREMENT EQUIPMENT USED The same as described in section 6 11.4. LIMITS AND MEASUREMENT RESULT TOTAL NO. OF HOPPING CHANNEL LIMIT (NO. OF CH) MEASUREMENT (NO. OF CH) RESULT >=15 79 PASS TEST PLOT FOR NO. OF TOTAL CHANNELS Note: The GFSK modulation is the worst case and recorded in the report. Report No.: AGC00793200401FE03 Page 39 of 55 12. TIME OF OCCUPANCY (DWELL TIME) 12.1. MEASUREMEN…

Text truncated - open the document above for the full version.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED TEST SETUP
