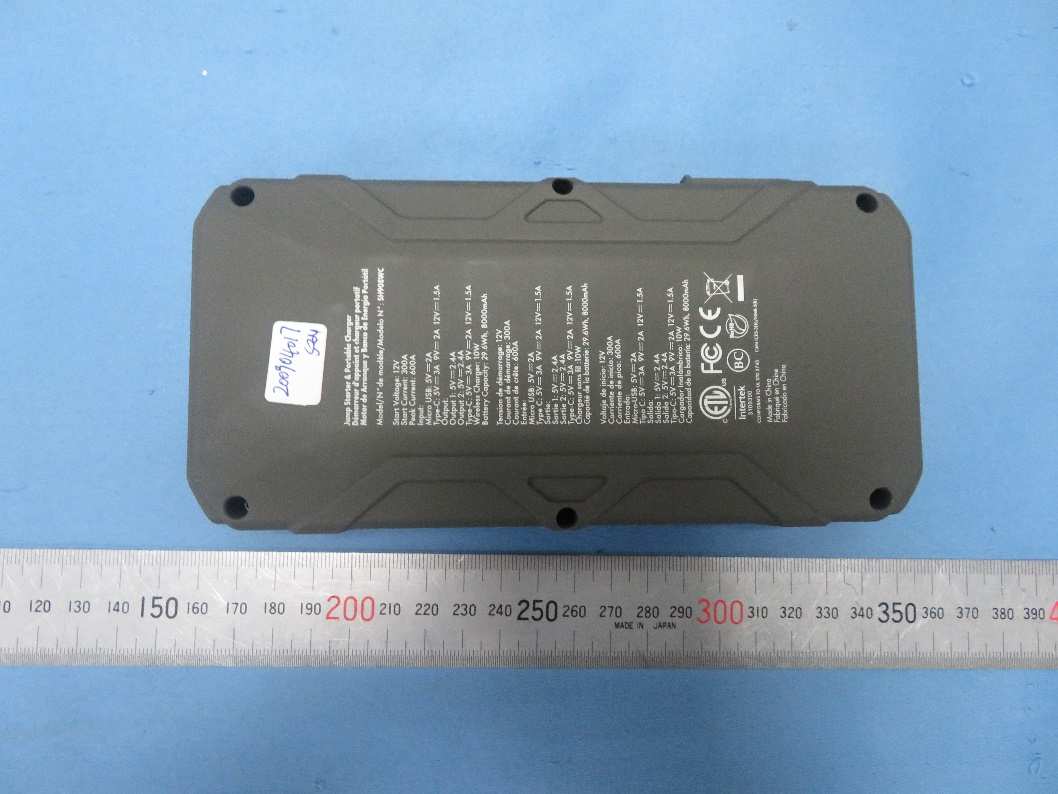

2AQNC-SH908WCJump Starter & Portable Power Bank

Instruction Manual SH908WC Jump Starter & Portable Power Bank 32 - 46 16 - 31 Contents English ---------------------------------------------------------- 1 - 15 Français ----------------------------------------------------- Español ------------------------------------------------------ Thank you for choosing this Shell product. Please read the following instructions and keep them for future reference. This instruction manual contains important information on safe operation and use. To ensure long life and performance reliability, please operate and maintain as per the instructions on this sheet. For Your Safety Product Details LED Battery Level Indicator 12V Jump Start Port Output: USB-A 2 Output: USB-A 1In/Output: Type-C Jump Starter Smart Jumper Cable Positive Battery Clamp (Red) Jump Starter Connector (Blue) Jump Start Status Indicator BOOST Button Negative Battery Clamp (Black) ON/OFF Switch Micro USB Input Port LED Flashlight 1 • Designed for vehicles with 7.0 L gasoline and 3.0 L diesel engines • 10 levels of safety protection • Integrated with dual USB output ports, Type-C fast charging input/output port, and 10W wireless charging • Integrated LED flashlight with 4 light settings: Flashlight, SOS, White Flood Light, Red Alert Strobe Package Includes Product Features • 1 x Jump Starter• 1 x Smart Jumper Cable with Safety Protection • 1 x EVA Case • 1 x Car Charger (2.4A Output) •1 x USB A to Micro USB Cable •1 x Type-C to Type-C USB Cable • 1 x User Guide• 1 x Product Warranty Registration Card 2 IMPORTANT! CHARGE IMMEDIATELY AFTER PURCHASE, AFTER EACH USE AND EVERY THREE MONTHS, OR WHEN THE BATTERY LEVEL FALLS BELOW 50%, TO PROLONG THE INTERNAL BATTERY LIFE. 1. Connect the Type-C cable provided in this package to the Type-C port of the jump starter or connect the Micro USB cable provided in this package to the Micro USB port of the jump starter. Operating Instructions Charging the Jump Starter 2. Connect the other end of the Type-C cable/Micro USB cable to a certified USB power adaptor or the car charger that is provided in this package to begin charging. Note: Use a PD18W adaptor (sold separately) to quickly recharge the jump starter. PD 18W adaptor is 3 times faster than a regular charger (compared with 5W charger). 3 3. The LED will start flashing. The charging level is indicated by the LED battery level indicator. (Please refer to the following table for charging status) 4. When charging is completed, the LED indicator will stop flashing. 5. Disconnect the charger from the outlet and remove the charging cable from the charger and the jump starter. LED Battery Level Indicator LED Status First light flashing Battery Capacity 0% to 25% First light solid, and the second light flashing 25% to 50% First two lights solid, and the third light flashing 50% to 75% First three lights solid, and the forth light flashing 75% to 100% All four lights are solid100% fully charged 4 1. Verify the voltage of the battery. The information can be found in the vehicle's owner's manual. 2. Make sure the power loads such as headlamps, air-conditioning and radio are turned off. 3. Press the switch to check the internal battery level to ensure that there is sufficient battery capacity to jump start a vehicle. (Refer to the following table for more information) LED Battery Level Indicator Battery CapacityIndications Best condition to jump start a vehicle The minimum capacity required to jump start a vehicle Recharge the jump starter before use Jump Starting Vehicle Note: Required capacity to jump start a vehicle Before connecting to the battery The jump starter is intended to jump start vehicle with gasoline/diesel engine using a 12V battery. 75% to 100% 50% to 75% 25% to 50% 0% to 25% 5 1. Connect the blue connector of the jumper cable to the 12V jump start port of the jump starter. 2. Connect the RED battery clamp to the positive (+) and the BLACK battery clamp to the negative (-) terminal on your vehicle’s battery. 3. A) Once connection is made, the green status indicator light in the jumper cable will turn solid. Only then can you attempt to jump start your vehicle. (Do not jump start more than 4 consecutive times) B) If the green light does not turn solid or the red light is on or beeping sound is heard, refer to the troubleshooting table for further actions. 4. After the engine starts, A) Disconnect the battery clamps from the battery terminals and B) Unplug the jumper cable from the jump starter. Connecting to the vehicle battery 6 Jump Start Troubleshooting Green LEDRed LED Troubleshooting: OffJump start the vehicle Beeping continuously 1. Low voltage protection/over discharge protection. Voltage of jump starter is too low. Charge the jump starter 2. Reversed polarity protection. Battery clamps are connected to the wrong polarities of the vehicle battery. Disconnect the clamps from the vehicle’s battery. Unplug the jumper cable from the jump starter. Follow jump starting vehicle instructions to jump start the vehicle. 3. Jumper cable not connected to jump starter Connect jumper cable to the jump starter before connecting the clamps to the vehicle battery. Jumper cable signal CauseSolutions Solid Off Green LED Off Solid Red LED Sound 4. High temperature protection Disconnect the clamps from the vehicle’s battery. Unplug the jumper cable from the jump starter. Let the jump starter cool down by putting it in a cool and ventilated place. 7 *Warning Use “BOOST” with extreme care. Clamps must be tightly connected to the correct polarities of the vehicle’s battery before pressing boost button. Spark proof and other safety protections will be disabled after pressing boost button. This mode generates very high current. Sparks will generate when clamps touch or are connected to each other. It may cause damage to the product and the vehicle’s electrical system if not used properly. Seek professional assistance if you are not sure about using this mode. 1. Connect your portable device with one end of the cor…
