2AQNC-SH916WCJump Starter & Protable Power Bank

User Guide ▪ Guide de l'utilisateur ▪ Guía de Usuario SH916WC Jump Starter Démarreur D’Appoint Arrancador para Automóvil Portable Power ▪ Chargeur Portatif ▪ Batería Portátil Contents English ---------------------------------------------------------- 1 - 15 Français ----------------------------------------------------- 16 - 30 Español ------------------------------------------------------ 31 - 45 Thank you for choosing this Shell product. Please read the following instructions and keep them for future reference. This instruction manual contains important information on safe operation and use. To ensure long life and performance reliability, please operate and maintain as per the instructions on this sheet. For Your Saf ety Product Details LED Batter y L evel Indicator 12V Jump Star t P or t Output: USB-A 2 Output: USB-A 1In/Output: Type-C Jump Starter Smart Jumper Cable Positive Batter y Clamp (Red) Jump Star ter Connector (Blue) Jump Star t S tatus Indicator BOOST Button Negative Batter y Clamp (Black) ON/OFF Swit ch Micro USB Input Por t LED Fla shlight 1 • Designed for vehicles with 7.0 L gasoline and 3.0 L diesel engines • 10 levels of safety protection • Integrated with dual USB output ports, Type-C fast charging input/output port, and 10W wireless charging • Integrated LED flashlight with 4 light settings: Flashlight, SOS, White Flood Light, Red Alert Strobe Package Includes Pr oduct Featur es • 1 x Jump Star ter• 1 x Smart Jumper Cable with Safety Protection • 1 x EVA Case • 1 x Car Charger (2.4A Output) •1 x USB A to Micro USB Cable •1 x Type-C to Type-C USB Cable • 1 x User Guide• 1 x Product Warranty Registration Card 2 IMPORTANT! CHARGE IMMEDIATELY AFTER PURCHASE, AFTER EACH USE AND EVERY THREE MONTHS, OR WHEN THE BATTERY LEVEL FALLS BELOW 50%, TO PROLONG THE INTERNAL BATTERY LIFE. 1. Connect the Type-C cable provided in this package to the Type-C port of the jump starter or connect the Micro USB cable provided in this package to the Micro USB port of the jump starter. Operatin g Instruc tions Charging the Jump Starter 2. Connect the other end of the Type-C cable/Micro USB cable to a certified USB power adaptor or the car charger that is provided in this package to begin charging. Note: Use a PD18W adaptor (sold separately) to quickly recharge the jump starter. PD 18W adaptor is 3 times faster than a regular charger (compared with 5W charger). 3 3. The LED will start flashing. The charging level is indicated by the LED battery level indicator. (Please refer to the following table for charging status) 4. When charging is completed, the LED indicator will stop flashing. 5. Disconnect the charger from the outlet and remove the charging cable from the charger and the jump starter. LED Batter y Level Indicator LED Status First light flashing Battery Capacity 0% to 25% First light solid, and the second light flashing 25% to 50% First two lights solid, and the third light flashing 50% to 75% First three lights solid, and the forth light flashing 75% to 100% All four lights are solid100% full y charged 4 1. Verify the voltage of the battery. The information can be found in the vehicle's owner's manual. 2. Make sure the power loads such as headlamps, air-conditioning and radio are turned off. 3. Press the switch to check the internal battery level to ensure that there is sufficient battery capacity to jump start a vehicle. (Refer to the following table for more information) LED Battery Level Indicator Battery CapacityIndications Best condition to jump start a vehicle The minimum capacity required to jump start a vehicle Recharge the jump starter before use Jump Starting Vehicle Note: Required capacity to jump start a vehicle Befor e connectin g to the batter y The jump star ter is intended to jump star t v ehicle wit h gasoline/diese l en gine using a 12V batter y. 75% to 100% 50% to 75% 25% to 50% 0% to 25% 5 1. Connect the blue connector of the jumper cable to the 12V jump start port of the jump starter. 2. Connect the RED battery clamp to the positive (+) and the BLACK battery clamp to the negative (-) terminal on your vehicle’s battery. 3. A) Once connection is made, the green status indicator light in the jumper cable will turn solid. Only then can you attempt to jump start your vehicle. (Do not jump start more than 4 consecutive times) B) If the green light does not turn solid or the red light is on or beeping sound is heard, refer to the troubleshooting table for further actions. 4. After the engine starts, A) Disconnect the battery clamps from the battery terminals and B) Unplug the jumper cable from the jump starter. Connecting to the vehicle battery 6 Jump Start Troubleshooting Gr een LEDRed LED Troubleshooting: OffJump star t t he vehicle Beeping continuously 1. Low voltage protection/over discharge protection. Voltage of jump starter is too low. Charge the jump star ter 2. Reversed polarity protection. Battery clamps are connected to the wrong polarities of the vehicle battery. Disconnect the clamps from the vehicle’s battery. Unplug the jumper cable from the jump starter. Follow jump starting vehicle instructions to jump start the vehicle. 3. Jumper cable not connected to jump starter Connect jumper cable to the jump starter before connecting the clamps to the vehicle battery. Jumper cable signal CauseSolutions Solid Off Green LED Off Solid Red LED Sound 4. High temperature protection Disconnect the clamps from the vehicle’s battery. Unplug the jumper cable from the jump starter. Let the jump starter cool down by putting it in a cool and ventilated place. 7 *Warning Use “BOOST” with extreme care. Clamps must be tightly connected to the correct polarities of the vehicle’s battery before pressing boost button. Spark proof and other safety protections will be disabled after pressing boost button. This mode generates very high current. Sparks will generate when clamps touch or are connected to each other. It may cause damage to the product and the vehicle’s electrical system i…

Text truncated - open the document above for the full version.

Camelion Battery Co., Ltd. [2020.11.05] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement Camelion Battery Co., Ltd. FCC ID: 2AQNC-SH916WC To Whom It May Concern: We, Camelion Battery Co., Ltd., hereby authorized Intertek Testing Services to act as our Agent for the purpose of preparing application for FCC ID number 2AQNC-SH916WC under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 2020.11.05. The Limited Agency Agreement expires on 2021.11.05, unless sooner terminated or extended by written notice to Intertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely,

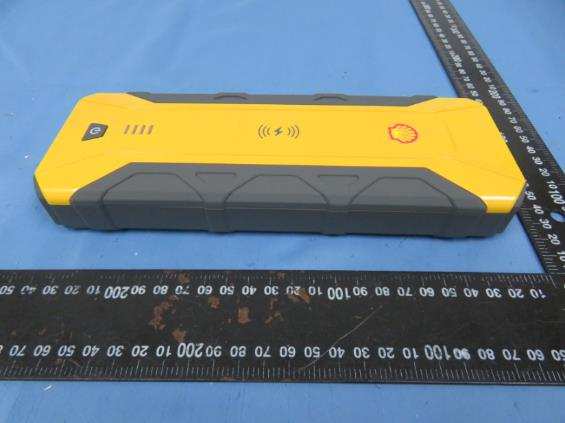

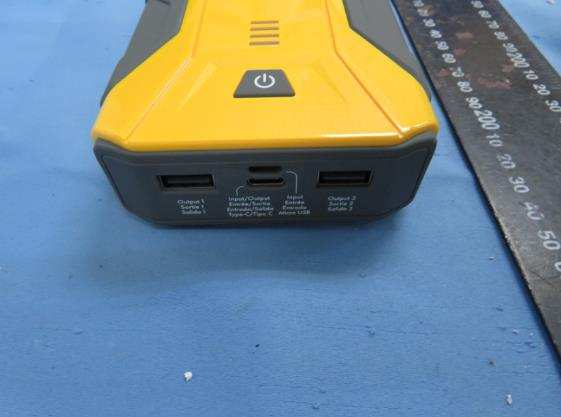

Overall view of SH916WC Overall view of SH916WC Overall view of SH916WC

Internal view of SH916WC PCB view PCB view PCB and coil view PCB and coil view

Camelion Battery Co., Ltd. TEST REPORT SCOPE OF WORK EMC TESTING– SH916WC REPORT NUMBER 200708178GZU-006 ISSUE DATE [REVISED DATE] 12 November 2020 [---------------------] PAGES 9 DOCUMENT CONTROL NUMBER © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 21 August 2017 Page 2 of 9 Applicant Name & Address : Camelion Battery Co., Ltd. Unit 705, Cyber Times Tower A, Tian'an Cyber Park, Shenzhen, China. 518041 Manufacturing Site : Cametronics Industrial Co., Ltd. 201, Bldg. 8, Shiguan Industrial Zone, Shangcun Community, GongmingStreet, Guangming District, Shenzhen Intertek Report No: FCC ID: 200708178GZU-006 2AQNC-SH916WC Test standards 47 CFR PART 1, Subpart I, Section 1.1310 KDB 680106 D01 RF Exposure Wireless Charging Apps v03 Sample Description Product : Jump Starter & Protable Power Bank Model No. : SH916WC Electrical Rating : Input: Micro USB: 5Vdc, 2A; Type-C: 5Vdc, 3A; 9Vdc, 2A; 12Vdc, 1.5A Output: Type-C: 5Vdc, 3A; 9Vdc, 2A; 12Vdc, 1.5A; USB-A 1: 5Vdc, 2.4A; USB-A 2: 5Vdc, 2.4A; Wireless charger: 10W Serial No. Not Labeled Date Received : 29 May 2020 Date Test Conducted : 29 May 2020 to 22 October 2020 Prepared and Checked By Jed Guo Engineer Approved By: Helen Ma Team Leader TEST REPORT Intertek Report: No: 200708178GZU-006 Version: 21 August 2017 Page 3 of 9 FCC Part 15.225-a CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION ............................................................................................. 5 2.1 P RODUCT DESCRIPTION ........................................................................................................ 5 2.2 T EST FACILITY ..................................................................................................................... 5 2.3 EUT EXERCISING SOFTWARE ................................................................................................. 5 2.4 S PECIAL ACCESSORIES .......................................................................................................... 5 2.5 E QUIPMENT MODIFICATION ................................................................................................. 5 2.6 S UPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 6 3.0 EMF TEST ................................................................................................................. 7 3.1 STANDARD REQUIREMENT .......................................................................................................... 7 3.2 TEST DATA ............................................................................................................................... 8 4.0 TEST EQUIPMENT LIST ............................................................................................... 9 TEST REPORT Intertek Report: No: 200708178GZU-006 Version: 21 August 2017 Page 4 of 9 FCC Part 15.225-a 1.0 TEST RESULT SUMMARY Classification of EUT: Class B Test ItemStandardResult EMF 47 CFR PART 1, Subpart I, Section 1.1310 PASS Remark: When determining the test results, measurement uncertainty of tests has been considered. TEST REPORT Intertek Report: No: 200708178GZU-006 Version: 21 August 2017 Page 5 of 9 FCC Part 15.225-a 2.0 General Description 2.1 Product Description Operating Frequency 112-146KHz Type of Modulation: ASK Antenna Type Inductive loop coil antenna Antenna gain: 0 dBi Power Supply: Internal battery Power cord: N/A 2.2 Test Facility Room102/104, No 203, KeZhu Road, Science City, GETDD Guangzhou, China A2LA Certificate Number 0078.10 Intertek Testing Services Shenzhen Ltd. Guangzhou Branch is accredited by A2LA and Listed in FCC website. FCC accredited test labs may perform both Certification testing under Parts 15 and 18 and Declaration of Conformity testing. 2.3 EUT Exercising Software N/A 2.4 Special Accessories N/A 2.5 Equipment Modification Any modifications installed previous to testing by Camelion Battery Co., Ltd. will be incorporated in each production model sold / leased in the United States. No modifications were installed by Intertek Testing Services Shenzhen Ltd. Guangzhou Branch. TEST REPORT Intertek Report: No: 200708178GZU-006 Version: 21 August 2017 Page 6 of 9 FCC Part 15.225-a 2.6 Support Equipment List and Description This product was tested with corresponding support equipment as below:…

Text truncated - open the document above for the full version.

Camelion Battery Co., Ltd. TEST REPORT SCOPE OF WORK EMC TESTING–SH916WC REPORT NUMBER 200708178GZU-005 ISSUE DATE [REVISED DATE] 12 November 2020 [---------------------] PAGES 20 DOCUMENT CONTROL NUMBER FCC Part 15C -b © 2017 INTERTEK TEST REPORT Room 02, & 101/E201/E301/ E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Telephone: +86 20 8213 9688 Facsimile: +86 20 3205 7538 www.intertek.com.cn This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Shenzhen Ltd. Guangzhou Branch Room 02, & 101/E201/E301/E401/E501/E601/E701/E801 of Room 01 1-8/F., No. 7-2. Caipin Road, Science City, GETDD, Guangzhou, Guangdong, China Version: 10 June 2019 Page 2 of 20 FCC Part 15C-b Applicant Name & Address : Camelion Battery Co., Ltd. Unit 705, Cyber Times Tower A, Tian'an Cyber Park, Shenzhen, China. 518041 Manufacturing Site : Cametronics Industrial Co., Ltd. 201, Bldg. 8, Shiguan Industrial Zone, Shangcun Community, GongmingStreet, Guangming District, Shenzhen Intertek Report No: FCC ID: 200708178GZU-005 2AQNC-SH916WC Test standards 47 CFR PART 15 Subpart C:2019 Sample Description Product : Jump Starter & Protable Power Bank Model No. : SH916WC Electrical Rating : Input: Micro USB: 5Vdc, 2A; Type-C: 5Vdc, 3A; 9Vdc, 2A; 12Vdc, 1.5A Output: Type-C: 5Vdc, 3A; 9Vdc, 2A; 12Vdc, 1.5A; USB-A 1: 5Vdc, 2.4A; USB-A 2: 5Vdc, 2.4A; Wireless charger: 10W Serial No. : Not Labeled Date Received : 29 May 2020 Date Test Conducted : 29 May 2020 to 22 October 2020 Prepared and Checked By Jed Guo Engineer Approved By: Helen Ma Team Leader TEST REPORT Intertek Report No.: 200708178GZU-005 Version: 10 June 2019 Page 3 of 20 FCC Part 15C-b CONTENT TEST REPORT ........................................................................................................................... 1 CONTENT ............................................................................................................................. 3 1.0 TEST RESULT SUMMARY ............................................................................................ 4 2.0 GENERAL DESCRIPTION ............................................................................................. 5 2.1 P RODUCT DESCRIPTION ........................................................................................................ 5 2.2 R ELATED SUBMITTAL(S) GRANTS ........................................................................................... 5 2.3 T EST METHODOLOGY .......................................................................................................... 5 2.4 T EST FACILITY ..................................................................................................................... 5 3.0 SYSTEM TEST CONFIGURATION ................................................................................. 6 3.1 J USTIFICATION .................................................................................................................... 6 3.2 EUT EXERCISING SOFTWARE ................................................................................................. 7 3.3 S PECIAL ACCESSORIES .......................................................................................................... 7 3.4 M EASUREMENT UNCERTAINTY .............................................................................................. 7 3.5 E QUIPMENT MODIFICATION ................................................................................................. 8 3.6 S UPPORT EQUIPMENT LIST AND DESCRIPTION .......................................................................... 8 4.0 RADIATED EMISSION ................................................................................................. 9 5.0 OCCUPIED BANDWIDTH .......................................................................................... 18 6.0 TEST EQUIPMENT LIST ............................................................................................. 20 TEST REPORT Intertek Report No.: 200708178GZU-005 Version: 10 June 2019 Page 4 of 20 FCC Part 15C-b 1.0 TEST RESULT SUMMARY Test ItemTest RequirementTest MethodResult Conducted disturbance voltage at mains ports FCC PART 15 C section 15.207 ANSI C63.10: Clause 6.2 N/A Radiated Emission FCC PART 15 C section 15.209 ANSI C63.10: Clause 6.4 & 6.5 PASS 20dB Bandwidth FCC PART 15 C section 15.215 FCC PART 15 C section 15.215 PASS Remark: When determining the test results, measurement uncertainty of tests has been considered. TEST REPORT Intertek Report No.: 200708178GZU-005 Version: 10 June 2019 Page 5 of 20 FCC Part 15C-b 2.0 General Description 2.1 Product Description Operating Frequency 112-146KHz Type of Modulation: Load modulation Antenna Type Inductive loop coil antenna Antenna gain: 0 dBi Power Supply: Internal battery Power cord: N/A 2.2 Related Submittal(s) Grants This is an application for certification of: DCD-Part 15 Low Power Transmitter below 1705kHz Remaining portions are subject to the following procedures: The USB Charging function: FCC SDOC requirement (Refer to report 200708178GZU-002). 2.3 T…

Text truncated - open the document above for the full version.

1. Radiated Emissions in Restricted Bands: 9kHz to 30MHz: 30MHz to 1GHz:

Side 1: Side 2: Side 3: Side 4: Top:
