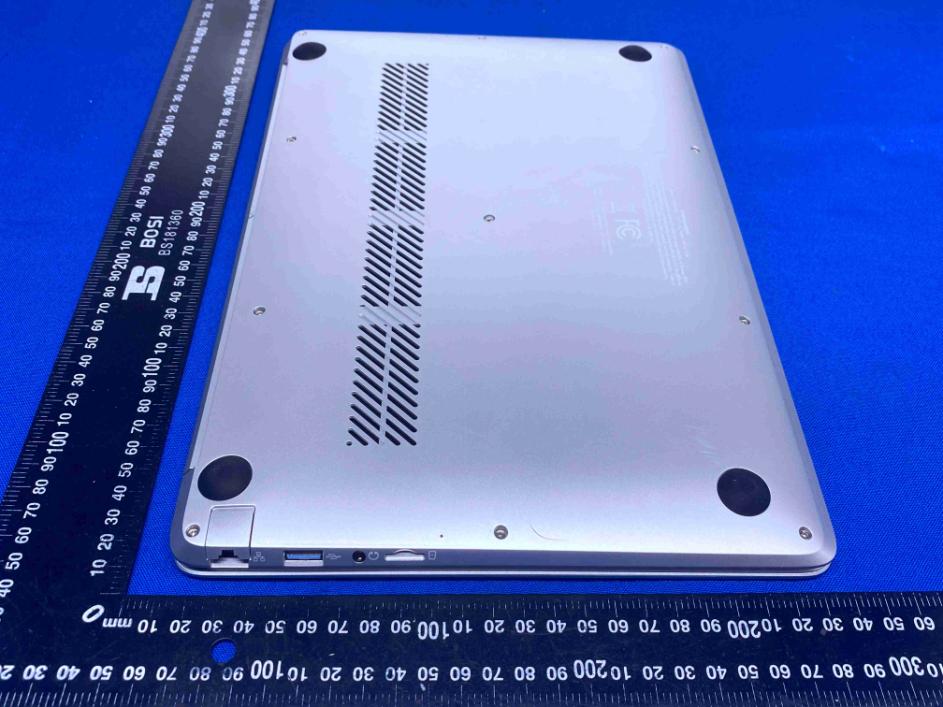

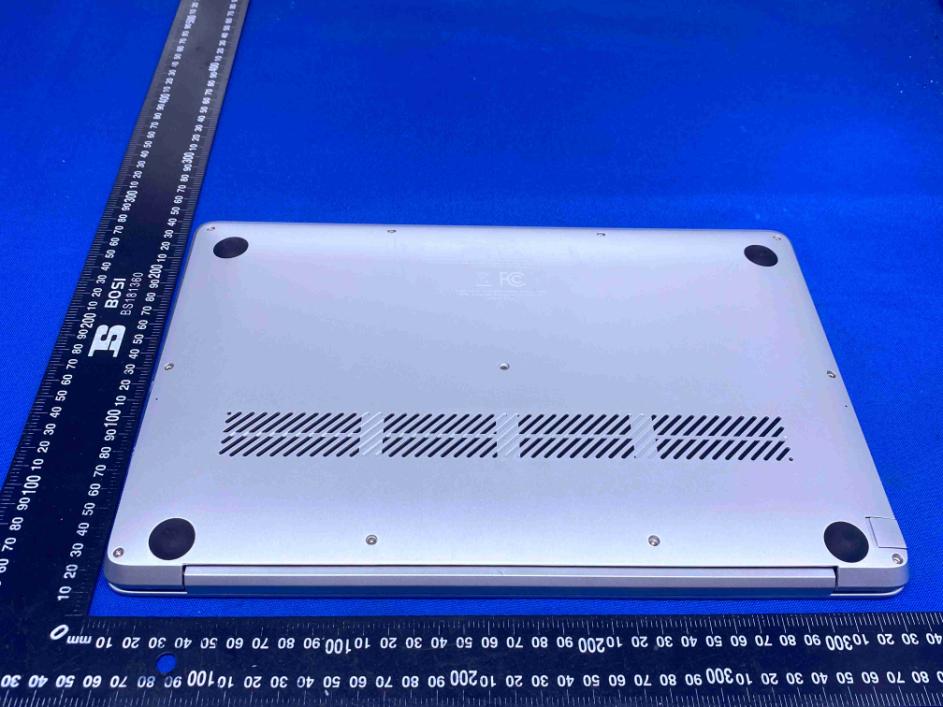

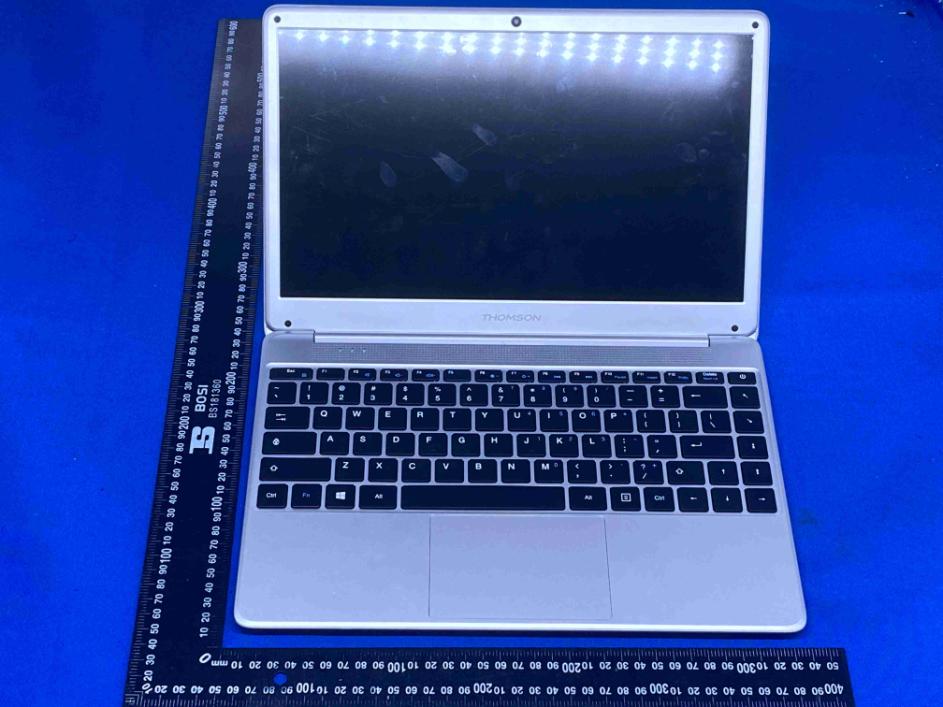

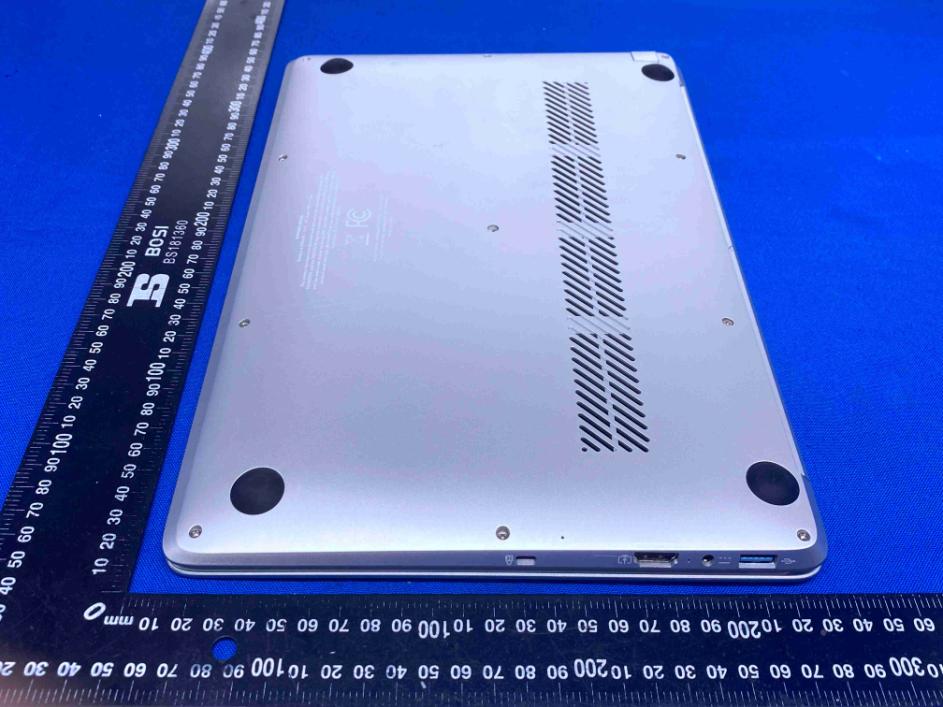

Page 1 of 5 Appendix B: Photographs of EUT Product: Notebook Model: WWN14I3-4SL128 External Photos Page 2 of 5 Page 3 of 5 Page 4 of 5 Page 5 of 5

Page 1 of 11 Appendix B: Photographs of EUT Product: Notebook Model: WWN14I3-4SL128 Internal Photos BT/2.4GWIFI/ 5GWIFI ANT0 2.4GWIFI/5G WIFI ANT1 Page 2 of 11 Page 3 of 11 Page 4 of 11 Page 5 of 11 Page 6 of 11 Page 7 of 11 Page 8 of 11 Page 9 of 11 Page 10 of 11 Page 11 of 11

RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  For EDR+BDR: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 39 2.441 7.04 6.5±1 7.5 5.62 5 1.76 3.0  For BLE: Channel Frequency (GHz) Max. Power (dBm) Tune up Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR CH 19 2.440 4.70 4±1 5 3.16 5 0.99 3.0 Result: Base on the calculation value, No SAR measurement is required.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SAR TEST REPORT FCC ID: 2AQOO-N14I34128 Product: Notebook Model No.: WWN14I3-4SL128 Additional Model: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Report No.: TCT200928E014 Issued Date: Dec. 18, 2020 Issued for: GROUPSFIT 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab.. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200928E014 Page 2 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification .............................................................................................................................. 3 2. Facilities and Accreditations ........................................................................................................... 4 2.1. Facilities .................................................................................................................................... 4 2.2. Location .................................................................................................................................... 4 2.3. Environment Condition: .......................................................................................................... 4 3. Test Result Summary ....................................................................................................................... 5 4. EUT Description ............................................................................................................................... 6 5. RF Exposure Limit............................................................................................................................ 7 6. SAR Measurement System Configuration ..................................................................................... 8 6.1. SAR Measurement Set-up ....................................................................................................... 8 6.2. E-field Probe ............................................................................................................................. 9 6.3. Phantom .................................................................................................................................... 9 6.4. Device Holder ......................................................................................................................... 10 6.5. Data Storage and Evaluation ................................................................................................ 11 6.6. Position of the wireless device in relation to the phantom ................................................ 12 6.7. Tissue Dielectric Parameters ................................................................................................ 15 6.8. Tissue-equivalent Liquid Properties .................................................................................... 16 6.9. System Check ........................................................................................................................ 17 7. Measurement Procedure ............................................................................................................... 18 8. Conducted Output Power .............................................................................................................. 21 9. Exposure Position Consideration ................................................................................................. 24 9.1. EUT Antenna Location ........................................................................................................... 24 9.2. Test Position Consideration ................................................................................................. 24 10. SAR Test Results Summary .......................................................................................................... 25 10.1. Body-Worn 1g SAR Data ....................................................................................................... 25 10.2. Hotspot 1g SAR Data ............................................................................................................. 26 10.3. Measurement Uncertainty (450MHz-3GHz) .......................................................................... 27 10.4. Test Equipment List ............................................................................................................... 29 11. System Check Results ................................................................................................................... 30 12. SAR Test Data ................................................................................................................................ 34 Appendix A: EUT Photos ....................................................................................................................... 48 Appendix B: Test Setup Photos ............................................................................................................ 50 Appendix C: Probe Calibration Certificate ........................................................................................... 51 Appendix D: Dipole Calibration Report ......................................................................................... ....... 68 Appendix E: SAR SYSTEM VALIDATION ............................................................................................. 92 Appendix F: The …

Text truncated - open the document above for the full version.

Report No.: TCT200928E014 Page 71 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 72 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 73 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 74 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 75 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 76 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 77 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 78 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 79 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SID5000-6000 Report No.: TCT200928E014 Page 80 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 81 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 82 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 83 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 84 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 85 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 86 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 87 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 88 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 89 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 90 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 91 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT200928E014 Page 92 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix E: SAR SYSTEM VALIDATION Per FCC KDB 865664 D02v01, SAR system validation status should be documented to confirm measurement accuracy. The SAR systems (including SAR probes, system components and software versions) used for this device were validated against its performance specifications prior to the SAR measurements. Reference dipoles were used with the required tissue- equivalent media for system validation, according to the procedures outlined in FCC KDB 865664 D01 v01 and IEEE 1528-2013. Since SAR probe calibrations are frequency dependent, each probe calibration point was validated at a frequency within the valid frequency range of the probe calibration point, using the system that normally operates with the probe for routine SAR measurements and according to the required tissue-equivalent media. A tabulated summary of the system validation status including the validation date(s), measurement frequencies, SAR probes and tissue dielectric parameters has been included. SAR System Validation Summary Date Freq. [MHz] Probe S/N Tissu e type COND. PERM. COND. PERM. CW Validation Mod. Validation (σ) (εr) sensitivity Probe linearity Probe isotropy Mod. type Duty factor Peak to average power ratio 12/03/2020 835 SN 07/15 EP248 Head 42.3 0.89 PASS PASS PASS GMSK PASS N/A 12/06/2020 835 SN 07/15E P248 Body 55.13 0.95 PASS PASS PASS GMSK PASS N/A 12/03/2020 1800 SN 07/15E P248 Head 40.57 1.36 PASS PASS PASS GMSK PASS N/A 12/06/2020 1800 SN 07/15E P248 Body 53.60 1.50 PASS PASS PASS GMSK PASS N/A 12/03/2020 1900 SN 07/15E P248 Head 40.31 1.38 PASS PASS PASS GMSK PASS N/A 12/06/2020 1900 SN 07/15E P248 Body 53.11 1.56 PASS PASS PASS GMSK PASS N/A 12/03/2020 2450 SN 07/15E P248 Head 38.99 1.88 PASS PASS PASS OFDM PASS N/A 12/06/2020 2450 SN 07/15E P248 Body 52.10 2.01 PASS PASS PASS OFDM PASS N/A 12/03/2020 2600 SN 07/15E P248 Head 39.00 1.96 PASS PASS PASS OFDM PASS N/A 12/06/2020 2600 SN 07/15E P248 Body 52.50 2.16 PASS PASS PASS OFDM PASS N/A NOTE: While the probes have been calibrated for both a CW and modulated signals, all measurements were performed using communication systems calibrated for CW signals only. Modulations in the table above represent test configurations for which the measurement system has been validated per FCC KDB Publication 865664 D01v01 for scenarios when CW probe calibrations are used with other signal types. SAR systems were validated for modulated signals with a periodic duty cycle, such as OFDM according to KDB 865664. Report No.: TCT200928E014 Page 93 of 94 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix F: The Check Data of Impedance and Return Loss The information are included in the SAR report to qualify for the three-year extended calibration interval; Impedance in head liquid Date: 12/03/2020 Freq. (MHz) Te m p (°C) Dipole Impedance Re(z) Dipole Impedance Im(z) measured Target △（±5Ω） measured Target △（±5Ω） 835 22 52.30 51.60 0.7 2.30 1.70 0.6 1800 22 46.50 48.60 -2.1 0.60 -0.50 1.1 1900 22 50.30 51.70 -1.4 4.20 4.90 -0.7 2450 22 45.90 46.50 -0.6 -0.36 -0.20 -0.1 2600 22 54.7 55.1 -0.4 5.00 5.10 -0.1 Impedance in body liquid Date: 12/06/2020 Freq. (MHz)…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AQOO-N14I34128 Product: Notebook Model No.: WWN14I3-4SL128 Additional Model No.: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Report No.: TCT200928E025 Issued Date: Oct. 27, 2020 Issued for: GROUPSFIT 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200928E025 Page 2 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 6 4.1. Test environment and mode ................................................................................. 6 4.2. Description of Support Units ................................................................................ 6 5. Facilities and Accreditations .................................................................. 7 5.1. Facilities ................................................................................................................. 7 5.2. Location ................................................................................................................. 7 5.3. Measurement Uncertainty ..................................................................................... 7 6. Test Results and Measurement Data ..................................................... 8 6.1. Antenna requirement ............................................................................................ 8 6.2. Conducted Emission ............................................................................................. 9 6.3. Conducted Output Power ................................................................................... 13 6.4. Emission Bandwidth ........................................................................................... 16 6.5. Power Spectral Density ....................................................................................... 19 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 22 6.7. Radiated Spurious Emission Measurement ...................................................... 25 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT200928E025 Page 3 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Notebook Model No.: WWN14I3-4SL128 Additional Model No.: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Applicant: GROUPSFIT Address: 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Manufacturer: GROUPSFIT Address: 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Date of Test: Sep. 29, 2020 – Oct. 26, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Oct. 26, 2020 Kevin Huang Reviewed By: Date: Oct. 27, 2020 Beryl Zhao Approved By: Date: Oct. 27, 2020 Tomsin Report No.: TCT200928E025 Page 4 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 5. After pre-testing the two earphones, the two earphones are left and right ears respectively; we found that the left earphone is the worst case, so the results are recorded in this report. Report No.: TCT200928E025 Page 5 of 36 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Notebook Model No.: WWN14I3-4SL128 Additional Model No.: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Bluetooth Version: V4.2 (This report is for BLE) Operation Frequency: 2402MHz~2480MHz Channel Separation: 2MHz Number of Channel: 40 Modulation Type: GFSK Antenna Type: Internal Antenna Antenna Gain: 2.2dBi Power Supply: Rechargeable Li-polymer Battery DC 7.6V AC adapter: Adapter Information: Model: JHD-AD065B-190250BA-A Input: AC 100-240V, 50/60Hz, 1.5A Output: DC 19.0V, 2.5A, 47.5W Remark: Al…

Text truncated - open the document above for the full version.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID: 2AQOO-N14I34128 Product: Notebook Model No.: WWN14I3-4SL128 Additional Model No.: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Report No.: TCT200928E026 Issued Date: Oct. 27, 2020 Issued for: GROUPSFIT 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Issued By: Shenzhen Tongce Testing Lab. 1B/F., Building 1, Yibaolai Industrial Park, Qiaotou, Fuyong, Baoan District, Shenzhen, Guangdong, China TEL: +86-755-27673339 FAX: +86-755-27673332 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen Tongce Testing Lab. This document may be altered or revised by Shenzhen Tongce Testing Lab. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT200928E026 Page 2 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. Test Certification ..................................................................................... 3 2. Test Result Summary .............................................................................. 4 3. EUT Description ....................................................................................... 5 4. General Information ................................................................................. 7 4.1. Test environment and mode ................................................................................. 7 4.2. Description of Support Units ................................................................................ 8 5. Facilities and Accreditations .................................................................. 9 5.1. Facilities ................................................................................................................. 9 5.2. Location ................................................................................................................. 9 5.3. Measurement Uncertainty ..................................................................................... 9 6. Test Results and Measurement Data ................................................... 10 6.1. Antenna requirement .......................................................................................... 10 6.2. Conducted Emission ........................................................................................... 11 6.3. Maximum Conducted (Average) Output Power ................................................ 15 6.4. Emission Bandwidth ........................................................................................... 17 6.5. Power Spectral Density ....................................................................................... 18 6.6. Conducted Band Edge and Spurious Emission Measurement ....................... 20 6.7. Radiated Spurious Emission Measurement ...................................................... 22 Appendix A: Test Result of Conducted Test Appendix B: Photographs of Test Setup Appendix C: Photographs of EUT Report No.: TCT200928E026 Page 3 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. Test Certification Product: Notebook Model No.: WWN14I3-4SL128 Additional Model No.: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Applicant: GROUPSFIT Address: 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Manufacturer: GROUPSFIT Address: 80/84 route de la Liberation, PONTAULT COMBAULT 77340, France Date of Test: Sep. 29, 2020 – Oct. 26, 2020 Applicable Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 FCC KDB 662911 D01 Multiple Transmitter Output v02r01 ANSI C63.10:2013 The above equipment has been tested by Shenzhen Tongce Testing Lab. and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date: Oct. 26, 2020 Kevin Huang Reviewed By: Date: Oct. 27, 2020 Beryl Zhao Approved By: Date: Oct. 27, 2020 Tomsin Report No.: TCT200928E026 Page 4 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: TCT200928E026 Page 5 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 3. EUT Description Product: Notebook Model No.: WWN14I3-4SL128 Additional Model No.: WWN14I3-4BK128, WWN14I3-4WH128, WWN14I3-4PK128, WWN14I3-4BL128, WWN14I3-4T128, WWN14I3-4GO128 Trade Mark: THOMSON Operation Frequency: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20)) 2422MHz~2452MHz (802.11n(HT40)) Channel Separation: 5MHz Number of Channel: 11 for 802.11b/802.11g/802.11n(HT20) 7 for 802.11n(HT40) Modulation Technology: (IEEE 802.11b) Direct Sequence Spread Spectrum (DSSS) Modulation Technology: (IEEE 802.11g/802.11n) Orthogonal Frequency Division Multiplexing(OFDM) Data speed (IEEE 802.11b): 1Mbps, 2Mbps, 5.5Mbps, 11Mbps Data speed (IEEE 802.11g): 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mb…

Text truncated - open the document above for the full version.

Report No.: TCT200928E026 Page 81 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 Report No.: TCT200928E026 Page 82 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2452 Report No.: TCT200928E026 Page 83 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Occupied Channel Bandwidth Test Result Test Mode Channel OCB [MHz] FL [MHz] FH [MHz] Limit[MHz] Verdict 11B 2412 14.998 2404.487 2419.485 --- PASS 2437 15.006 2429.445 2444.451 --- PASS 2462 15.014 2454.432 2469.446 --- PASS 11G 2412 16.953 2403.464 2420.417 --- PASS 2437 16.972 2428.415 2445.387 --- PASS 2462 16.956 2453.430 2470.386 --- PASS 11N20SISO 2412 17.906 2403.023 2420.929 --- PASS 2437 17.912 2428.007 2445.919 --- PASS 2462 17.899 2453.012 2470.911 --- PASS 11N40SISO 2422 36.340 2403.856 2440.196 --- PASS 2437 36.383 2418.770 2455.153 --- PASS 2452 36.377 2433.798 2470.175 --- PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Report No.: TCT200928E026 Page 84 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 Report No.: TCT200928E026 Page 85 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 Report No.: TCT200928E026 Page 86 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 Report No.: TCT200928E026 Page 87 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11N40SISO_Ant1_2452 Report No.: TCT200928E026 Page 88 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Maximum conducted output power Test Result Test Mode Channel Result [dBm] Limit [dBm] Verdict 11B 2412 12.78 <=30 PASS 2437 13.36 <=30 PASS 2462 12.73 <=30 PASS 11G 2412 12.70 <=30 PASS 2437 13.06 <=30 PASS 2462 12.53 <=30 PASS 11N20SISO 2412 10.85 <=30 PASS 2437 12.94 <=30 PASS 2462 11.54 <=30 PASS 11N40SISO 2422 11.03 <=30 PASS 2437 13.12 <=30 PASS 2452 11.10 <=30 PASS Test Graphs 11B_Ant1_2412 11B_Ant1_2437 Report No.: TCT200928E026 Page 89 of 120 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 11B_Ant1_2462 11G_Ant1_2412 11G_Ant1_2437 Report No.: TCT200928E026 Page 90 of…
