GROUPSFIT Agent Authorization C ompany: GROUPSFIT A ddress: 80/84 route de la Liberation, PONTAULT COMBAULT, 77340 France P roduct Name: 14.1 INCH NEO Notebook M odel Number(s):WWX14C4BL64-P, WWX14C4PK64-P, WWX14C4BK64-P, WWX14C4WH64-P, WWX14C4SL64-P, WWX14C4T64-P, WWX14C4GO64-P P roduct Description: 14.1 INCH NEO Notebook We author ize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov. 27, 2020 Name: Victoria Charreyron Title: Manager Company: GROUPSFIT

GROUPSFIT Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Nov. 27, 2020 Subject; Request for Confidentiality FCC ID: 2AQOO-X14C464P To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure software security requirement It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Victoria Charreyron Title: Manager

Model Difference Declaration To Whom It May Concern, We, GROUPSFIT(14.1 INCH NEO Notebook) Trademark:THOMSON; Model Number: WWX14C4BL64-P, WWX14C4PK64-P, WWX14C4BK64-P, WWX14C4WH64-P, WWX14C4SL64-P, WWX14C4T64-P, WWX14C4GO64-P; All model’s the function, software and electric c ircuit are the same, only with a product color and model named different. Test sample model:WWX14C4BL64-P Please contact me if you have any question. Name: Victoria Charreyron Date: Nov. 27, 2020 Title: Manager Signature of applicant:

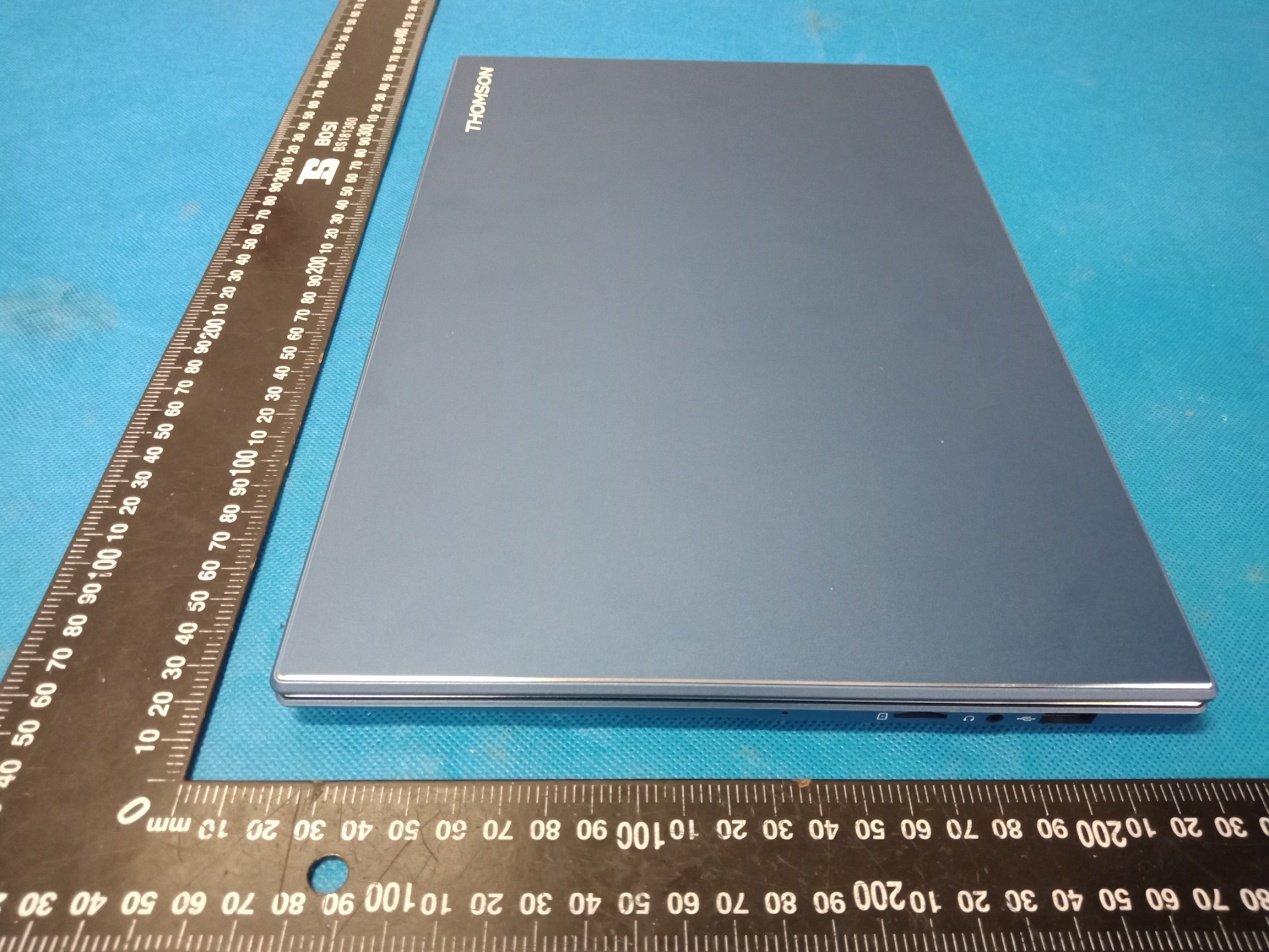

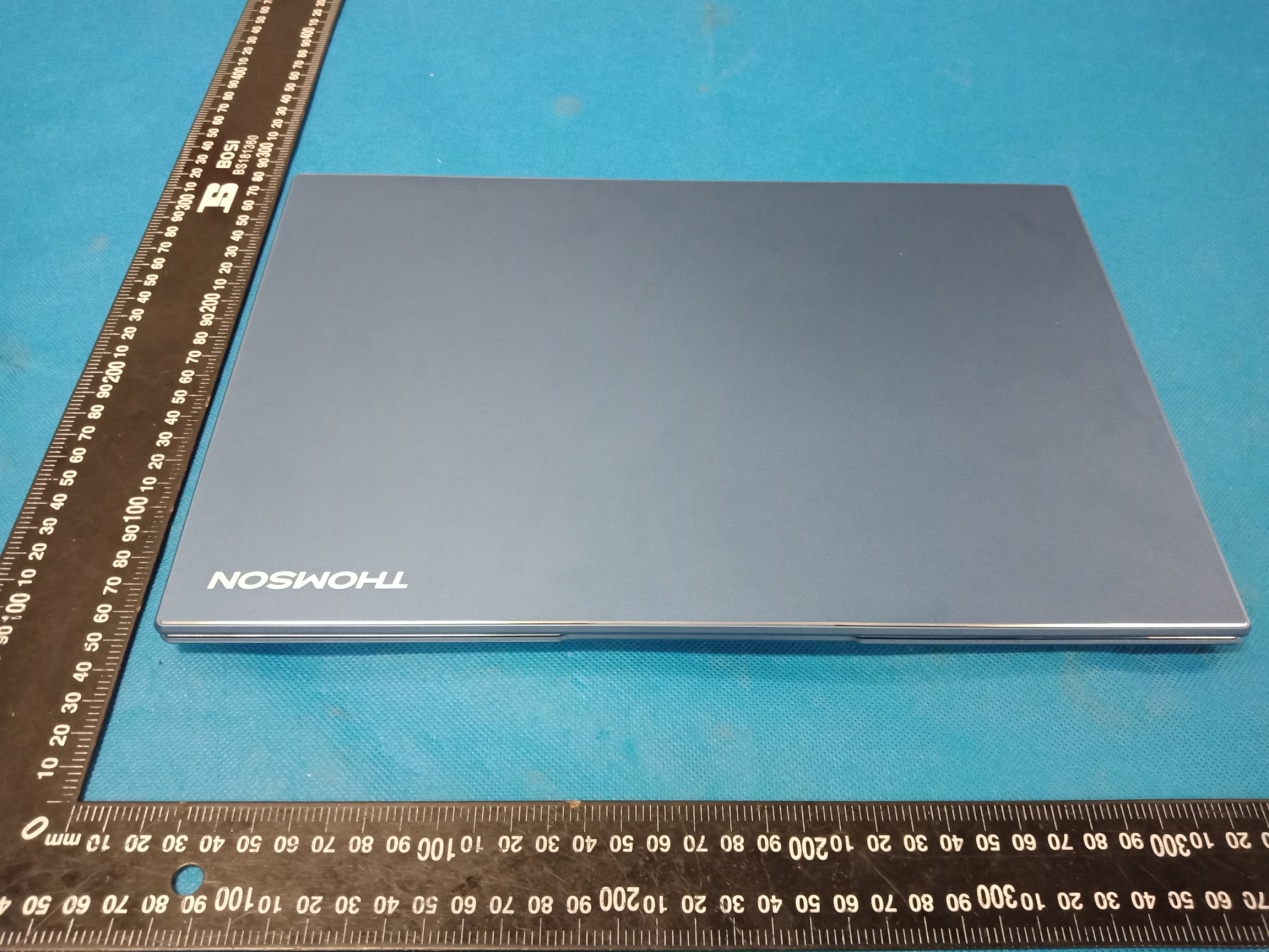

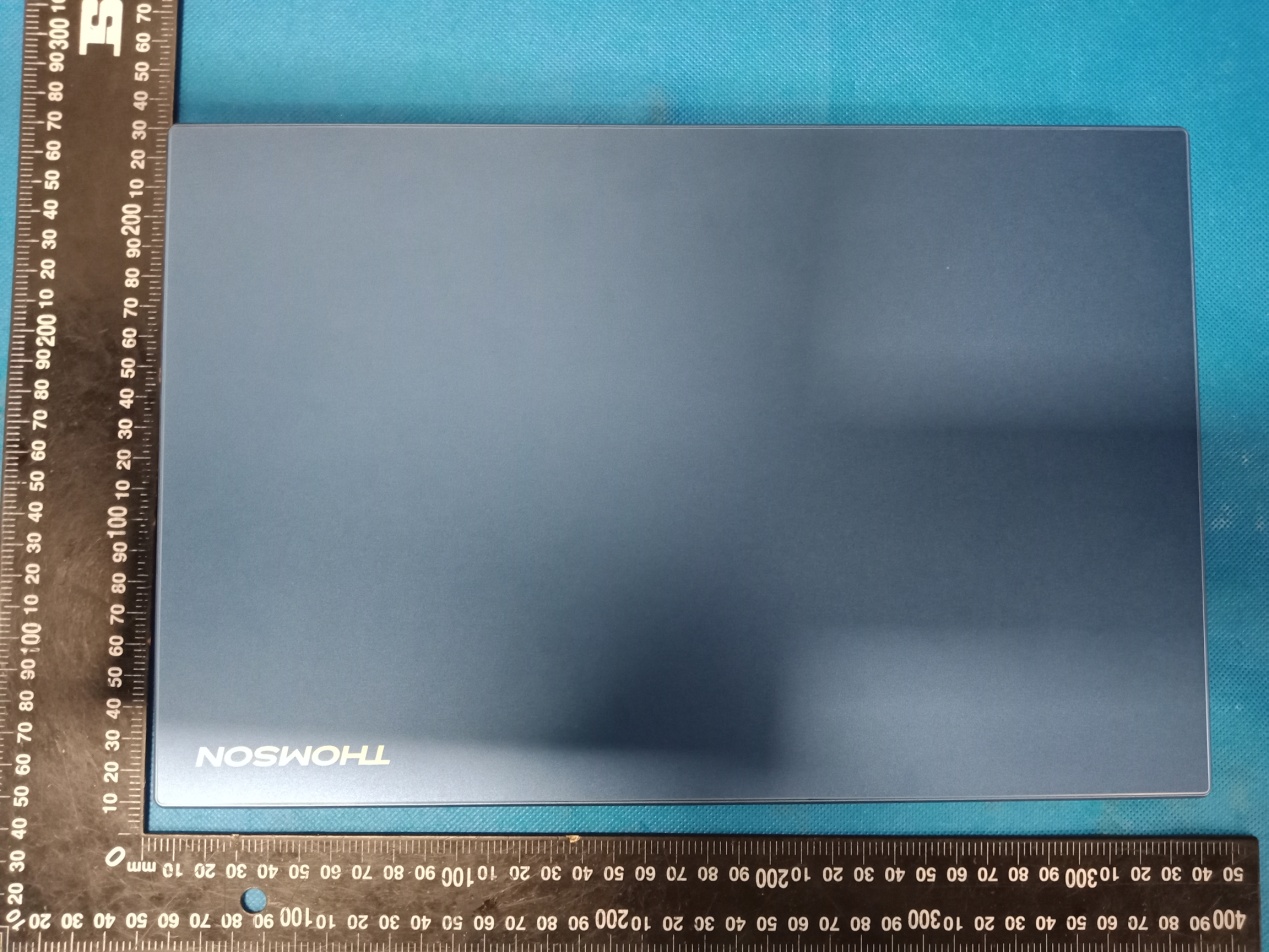

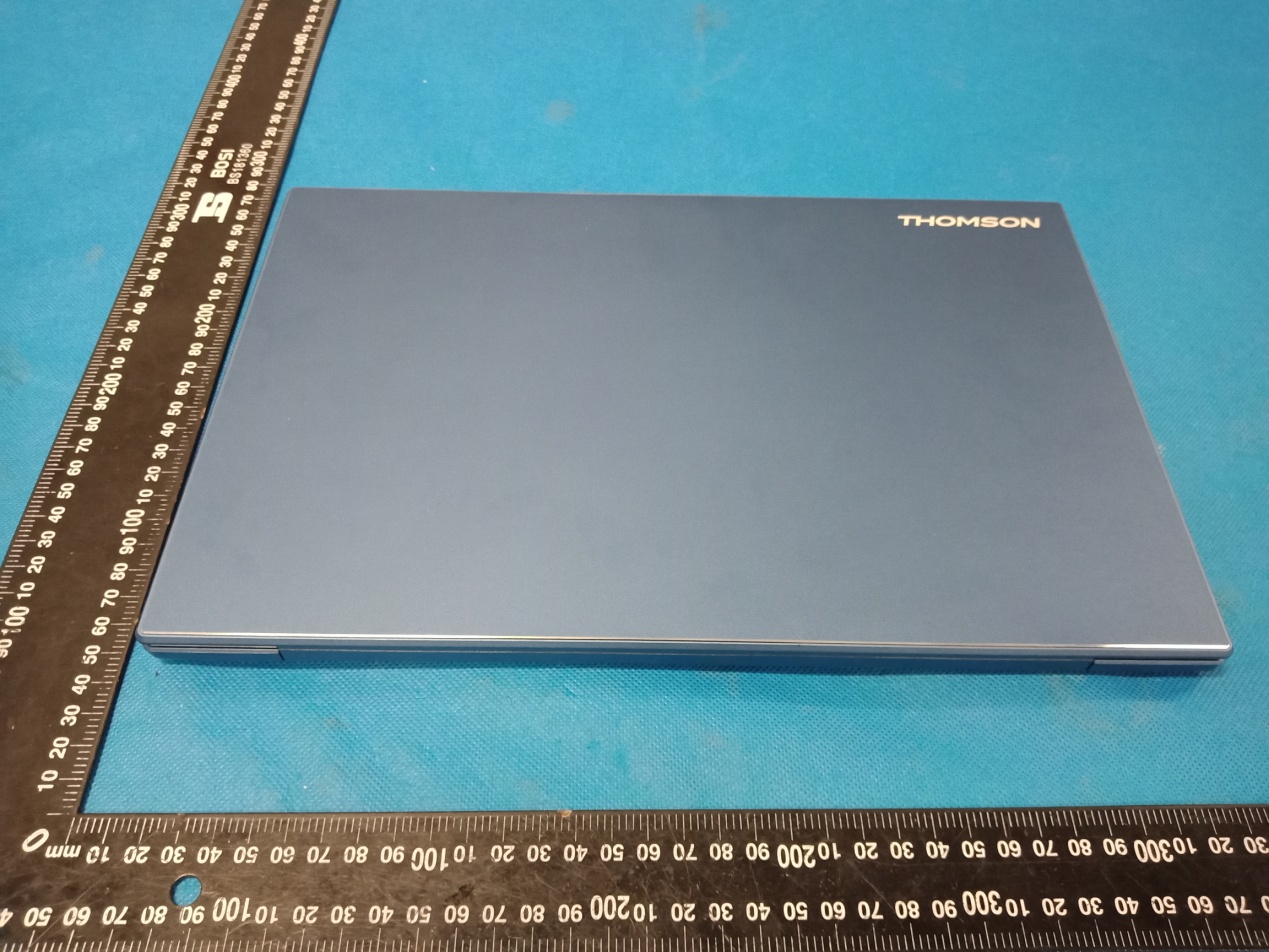

Annex A External Photos Report No.: HK2011123482-1E/2E/3E Page 1 of 4 Report No.: HK2011123482-1E/2E/3E Page 2 of 4 Report No.: HK2011123482-1E/2E/3E Page 3 of 4 Report No.: HK2011123482-1E/2E/3E Page 4 of 4

FCC ID LABEL: Width:2cm Long: 4cm Label Location FCC ID: 2AQOO-X14C464P Product name: 14.1 INCH NEO Notebook Model No: WWX14C4BL64-P This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions (1) This device may ont cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Annex B Internal Photos Report No.: HK2011123482-1E/2E/3E Page 1 of 7 Report No.: HK2011123482-1E/2E/3E Page 2 of 7 2.4GWIFI/5.2GWIFI/BT Antenna 2.4GWIFI/5.2GWIFI Antenna Report No.: HK2011123482-1E/2E/3E Page 3 of 7 Report No.: HK2011123482-1E/2E/3E Page 4 of 7 Report No.: HK2011123482-1E/2E/3E Page 5 of 7 Report No.: HK2011123482-1E/2E/3E Page 6 of 7 Report No.: HK2011123482-1E/2E/3E Page 7 of 7

FCC RF Exposure EUT Description: 14.1 INCH NEO Notebook Model No.: WWX14C4BL64-P FCC ID: 2AQOO-X14C464P 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation BT/WIFI Frequency (MHz) Output power （dBm） Tune Up Power （dBm ） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) S A R Te s t Exclusion BT:2480 -2.124 -2±1 -1 /0.61 5 0.192 3.0 Pass 2.4G WIFI Ant. 1 2412 8.23 8±1 9/7.94 5 2.466 3.0 Pass 2.4G WIFI Ant. 2 2412 8.12 8±1 9/7.94 5 2.466 3.0 Pass 5.2G WIFI Ant. 1 5812 7.69 7±1 8/6.31 5 2.872 3.0 Pass 5.2G WIFI Ant. 2 5200 7.17 7±1 8/6.31 5 2.877 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2011123482-1E/ 2E/3E, BT: antenna gain=1.72dBi, 2.4G WIFI antenna gain=1.5dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 2.877 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Report No.: HK2011123482-1E FCC TEST REPORT Test report On Behalf of GROUPSFIT For 14.1 INCH NEO Notebook Model No.: WWX14C4BL64-P, WWX14C4PK64-P, WWX14C4BK64-P, WWX14C4WH64-P, WWX14C4SL64-P, WWX14C4T64-P, WWX14C4GO64-P FCC ID: 2AQOO-X14C464P Prepared for : GROUPSFIT 80/84 route de la Liberation, PONTAULT COMBAULT, 77340 France Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Shenzhen City, China Date of Test: Nov. 12, 2020 ~ Nov. 19, 2020 Date of Report: Nov. 19, 2020 Report Number: HK2011123482-1E Report No.: HK2011123482-1E Page 2 of 88 TEST RESULT CERTIFICATION Applicant’s name ................. : GROUPSFIT Address .................................. : 80/84 route de la Liberation, PONTAULT COMBAULT, 77340 France Manufacture's Name ............ : Shenzhen Orango Technology Co.,Ltd Address .................................. : 5th-6th floor, Building B6, Hengfeng Industrial Park, Hezhou, Bao’an, Shenzhen, China Product description Trade Mark: THOMSON Product name ........................... : 14.1 INCH NEO Notebook Model and/or type reference : WWX14C4BL64-P, WWX14C4PK64-P, WWX14C4BK64-P, WWX14C4WH64-P, WWX14C4SL64-P, WWX14C4T64-P, WWX14C4GO64-P Standards ............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of performance of tests ............. : Nov. 12, 2020 ~ Nov. 19, 2020 Date of Issue ........................................... : Nov. 19, 2020 Test Result ............................................... : Pass Testing Engineer : (Gary Qian) Technical Manager : (Eden Hu) Authorized Signatory : (Jason Zhou) Report No.: HK2011123482-1E Page 3 of 88 TABLE OF CONTENTS 1. Test Result Summary ............................................................................... 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. TEST FACILITY .................................................................................................................................. 5 1.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. EUT Description ........................................................................................ 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS ..................................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .................................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. Genera Information ................................................................................. 10 3.1. TEST ENVIRONMENT AND MODE ............................................................................................................ 10 3.2. DESCRIPTION OF SUPPORT UNITS ........................................................................................................ 11 4. Test Results and Measurement Data .................................................... 12 4.1. CONDUCTED EMISSION ........................................................................................................................ 12 4.2. MAXIMUM CONDUCTED OUTPUT POWER .............................................................................................. 14 4.3. EMISSION BANDWIDTH ......................................................................................................................... 18 4.4. POWER SPECTRAL DENSITY ................................................................................................................ 29 4.5. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 41 4.6. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 59 4.7. ANTENNA REQUIREMENT ............................................................................................................. 85 4.8. PHOTOS OF THE EUT ..................................................................................................................... 88 Report No.: HK2011123482-1E Page 4 of 88 ** Modifited History ** Revison Description Issued Data Remark Revsion 1.0 Initial Test Report Release 2020/11/19 Jason Zhou Report No.: HK2011123482-1E Page 5 of 88 1. Test Result Summary 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247 (b)(3) PASS 6dB Emission Bandwidth §15.247 (a)(2) PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2. TEST FACILITY Test Firm : Shenzhen HUAK Testing Technology Co., Ltd. Address 1F, B2 Building, Junfeng Zhongcheng Zhizao Innovation Park, Fuhai Street, Bao'an District, Sh…

Text truncated - open the document above for the full version.

Test Model：WWX14C4BL64-P Radiated Emission
