2AQRM-C1Smart Phone

FOXX Development Inc.

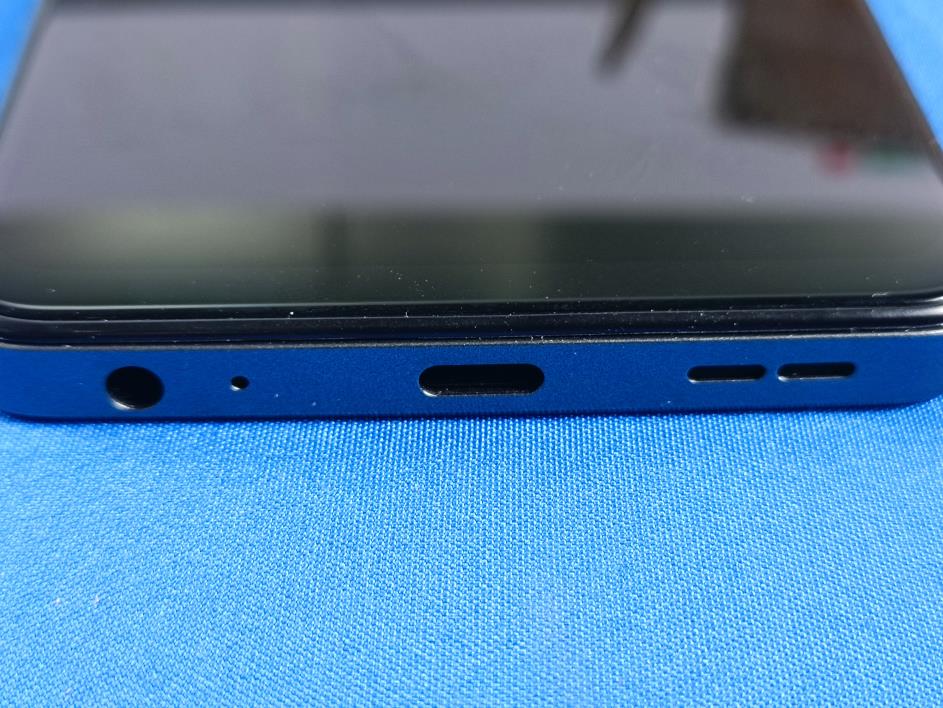

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Jan 15, 2025
Application Purpose: Original Equipment
Equipment Note: Smart Phone
Frequency Range: 5180.00000000 - 5240.00000000
Company: FOXX Development Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Display Brightness Brightness level: Adjust the screen brightness. Lockdisplay Screentimeout:Adjustthetimeallowedbeforethe Lock screen: Customized what to showon lock screen. screen goes to sleep after inactively. Appearance Dark theme: turn on/off the dark background. Font size: Set thefont sizeof thesystem. Display size: Set the display size of the screen. Other display controls Auto-rotated screen: Swipeto turn on oroff. Screen saver: Choosethe screen saverand whento start. System Languages and input phone. keyboard. 1) Youcansetupallthelanguagessupportedbythe 2) Keyboards:Youcanseton-screenkeyboardorphysical 1.Settimeautomatically:Swiperighttousedateand time providedbynetwork. 2.Timezone:Youcanchoosetousethetimezone zone. providedbynetworkorusethelocationtosettime 3.Timeformat:Youcanchoosetouselocaldefaulttime format orto use 24-hourformat. Dateandtime Manufacturer: Foxx Development Inc. 3480 PrestonRidge Road, Suite500, Alpharetta,GA 30005 CAUTION:RISKOFEXPLOSIONIFBATTERYISREPLACED BYANINCORRECTTYPE.DISPOSEOFUSEDBATTERIES ACCORDING TO THE INSTRUCTIONS. SAR InformationStatement TheSARlimitofUSA(FCC)is1.6W/kgaveragedoverone gramoftissue.Devicetypes:smartphone(FCCID: ThehighestSARvalueforthismobilephonetestedis 2AQRM-C1)hasalsobeentestedagainstthisSARlimit. 1.01W/kgagainsttheheadand1.09W/kgat10mmfrom the body. • •Display: 6.56" •Memory: 4GB RAM+128GB ROM •Camera: 50MP+50MP •FM / MP3 / MP4 / GPS/ G-sensor •Battery Capacity: 5000mAh Li-ion Technical Specifications Network: 2G: 850/900/1800/1900 3G: B2/4/5 4G: B2/4/5/7/12/17/25/28AB/41/66/71 the spaceactuallyavailableonyourcomputer. and/orotherpre-installedorconfiguredapplications.Check memorymaybelessduetothepreloadedoperatingsystem (*):Thestoragecapacityactuallyavailableintheunit’sinternal FCC Declarationof Conformity Thisdevicecomplieswithpart15oftheFCCRules. Operationissubjecttothefollowingtwoconditions:(1) Thisdevicemaynotcauseharmfulinterference,and(2) thisdevicemustacceptanyinterferencereceived interferencethatmaycauseundesired operation. including Anychangesormodificationsnotexpresslyapprovedby thepartyresponsibleforcompliancecouldvoidtheuser’s authority to operate the equipment. Usethesmartphoneinanenvironmentwiththe Usetheearphonecarefully.Excessivesoundpressure temperature bet ween -10°C~+45°C/ +14°F~+113°F. from earphones and headphones can cause hearing loss. The product shall onlybe connected toa USB interface of version USB2.0 Thisproductshouldnotbetreatedashouseholdwaste insteaditshouldbehandedovertotheapplicable collectionpointfortherecyclingofelectricaland electronic equipment. WEEE Recycling Informationfor auxiliary equipment Hunan GaoYuan Battery Co., Ltd. 19.35Wh C1 Capacity Manufacturer Model Address of Manufacturer Battery WCDMA Operation Frequency Band 2:TX:1850-1910MHz; RX:1930-1990MHz Band 4:TX:1710-1755MHz; RX:2110-2155MHz Band 5:TX:824-849MHz; RX:869-894MHz GSM GSM 850 TX:824-849MHz; RX:869-894MHz GSM 900 TX:890-915MHz; RX:935-960MHz DCS 1800 TX:1710-1785 MHz;RX:1805-1880MHz PCS 1900 TX:1850-1910MHz;RX:1930-1990MHz Operation Frequency Amicro-SDcardwilloccupySIM2location.Therefore,only SIM1issupportedwhenamicro-SDisinstalled.Please down on theSIM tray. PushtheSIMtraybackinuntilitclicksintoplaceandis insertthemicro-SDcardwiththegoldcontactfacing flush with the sideof the device. Basic Settings Yourserviceprovidermaydefaultsomedevicesettings,so you may notbe able to change these settings. NOTE:SomeapplicationsmayrequireamicroSDcardto workno rmallyormaystorecertaindataonit.Therefore,it isrecommendedthatyoukeepamicroSDcardinstalled andnot remove or replace it randomly. Caution:Pleaseusestandardnano-SIMcardonly. Alwaysturnoffthephonebeforeinstallingorreplacing SIM tray or phone and causes SIM rejection situation. Non-standardSIMorhand-cutSIMcardmaydamagethe SIM cards or a micro-SD card. Installing a microSDCard (NotIncluded) Product Safety Information Do not usewhile re-charging. Do not dispose of the phonein a fire. Avoid contact with magnetic media. Avoid extremetemperatures. Donotattempttodisassembleyour phone. Do not use hand-held while driving. Thisdevicemayproduceabrightorflash light. Forbody-wornoperation,maintain aspiration of 5 mm. Small parts maycausea choking hazard. This device may producealoud sound. personal medical devices. Keepawayfrompacemakersandother Avoid any contactwith liquid. Keep it dry. Switchoffwheninstructedinhospitals and medical facilities. Switchoffwheninstructedinaircrafts and airports. Donotrelyonthisdeviceforemergency communications. Switch off in explosive environments. Only use approved accessories. Topreventpossiblehearingdamagedo notlistenathighvolumelevelsforlong periods. What are in the Box Thephonepackagingboxshouldcontainthefollowing items and accessories: Phone,Charger,USBType-Ccable,Protectivefilm (applied), SIM card tool, QuickStart Guide. Notices for theUse of YourPhone Yourphoneshouldbetreatedwithcare.Thefollowing suggestionscanhelpyouextendthelifeofyourmobile phone. out of reach of young children. liquidswhichcontainmineralswillcorrodeelectronic circuits. itwillcause an electric shock or damagethe phone. environments.Hightemperaturescanshortenthelife ofelectronicdevices, damagebatteries,andwarpor meltcertain plastics. willproducewatervaporthatmaydamageelectronic environment.Whenthetemperaturerises,thephone circuits. otherwiseparts may be damaged. orany heat source. handling can damageinternal circuitboards. headphones,microphonesorotherremovablep arts, and causethem nottowork. sensorlenses.Prohibittheuseofharmfulchemicals and cleaning agents to clean the phone. manufacturersrecommendthata minimumseparationof5mmbemaintainedbetween amobilephoneandapacemakertoavoidapotential interferencewiththepacemaker(whenthedeviceis usedintheUSA,theseparationdistancecanbe maintainedat10mmbetweenuser’sbodyand handset). To achieve this use thephone on the opposite 1) Placethemobilephoneanditspartsandcomponents 2) Keepthephonedry.Rain,humidityandalltypesof 3) Don’ttouchthephonewithwethandsw…

Text truncated - open the document above for the full version.

RF Exposure Info

Report No.: TCT241204E029 Page 231 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Hotspo Front (10mm) Hotspo Back (10mm) Hotspot Top (10mm) Hotspot Right (10mm) Hotspot Bottom (10mm) Hotspot Left (10mm) Report No.: TCT241204E029 Page 232 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix C: Probe Calibration Certificate COMOSAR E-FIELD Probe Report No.: TCT241204E029 Page 233 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 234 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 235 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 236 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 237 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 238 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 239 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 240 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 241 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 242 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 243 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Dielectric Probe Calibration Report No.: TCT241204E029 Page 244 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 245 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 246 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 247 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 248 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 249 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 250 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix D: Dipole Calibration Report SID 750 Report No.: TCT241204E029 Page 251 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 252 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 253 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 254 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 255 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 256 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 257 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 258 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 259 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 260 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 261 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SID 835 Report No.: TCT241204E029 Page 262 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 263 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 264 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 265 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 266 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 267 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 268 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 269 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 270 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 271 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 272 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com SID1800 Report No.: TCT241204E029 Page 273 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 274 of 330 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Report No.: TCT241204E029 Page 275 of 330 Hotlin…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: TCT241204E022-A Page 1 of 3 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Appendix- Photographs of Test Setup Product: Smart Phone Model: C1 BT/WIFI Radiated Emission Report No.: TCT241204E022-A Page 2 of 3 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Conducted Emission DFS Report No.: TCT241204E022-A Page 3 of 3 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Product: Smart Phone Model: C1 GSM/WCDMA/LTE Radiated Emission

Test Report

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2AQRM-C1 Test Report No. ............... : TCT241204E026 Date of issue ................... : Dec. 30, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : FOXX Development Inc. Address ........................... : 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA Manufacturer's name ... : FOXX Development Inc. Address ........................... : 3480 Preston Ridge Road, Suite500, Alpharetta, GA 30005, USA Standard(s) ..................... : 47 CFR FCC Part 15.407 RSS-247 Issue 2 KDB905462 D02 UNII DFS Compliance Procedures New Rules v02 KDB 905462 D03 UNII Clients Without Radar Detection New Rules v01r02 Product Name ................. : Smart Phone Trade Mark ...................... : MIRO, FOXXD, FOXX Model/Type reference..... : C1 Rating(s).......................... : Rechargeable Li-ion Battery DC 3.87V Power Adapter: Model: UT-681A-5200MY Input: AC 100-240V, 50/60Hz, 0.35A Output: DC 5V, 2000mA Date of receipt of test item ......................................... : Dec. 04, 2024 Date (s) of performance of test ................................... : Dec. 05, 2024 ~ Dec. 29, 2024 Tested by (+signature) ... : Brews XU Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT241204E026 Page 2 of 19 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TABLE OF CONTENTS 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. RF General information ......................................................................................... 5 3.2. Description of Support Units ................................................................................ 5 3.3. Test Instruments List ............................................................................................ 5 4. Facilities and Accreditations .................................................................. 5 4.1. Facilities ................................................................................................................. 6 4.2. Location ................................................................................................................. 6 4.3. Measurement Uncertainty ..................................................................................... 6 5. Dynamic Frequency Selection (DFS) Test Result ................................. 7 5.1. General DFS Information ...................................................................................... 7 5.2. Radar Test Waveform Calibration ...................................................................... 10 5.3. UNII Detection Bandwidth ................................................................................... 14 5.4. Channel Availability Check (CAC) ...................................................................... 15 5.5. In-service Monitoring .......................................................................................... 16 Appendix A: Photographs of Test Setup ................................................... 19 Report No.: TCT241204E026 Page 3 of 19 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Smart Phone Model/Type reference........... : C1 Sample Number....................: TCT241204E022-0101 EUT type................................ : Client only device, no radar detection Capability Operation Frequency ........... : Band 2A: 5260 MHz~5320 MHz Band 2C: 5500 MHz~5700 MHz Channel Separation ............. : 802.11a: 20MHz 802.11n: 20MHz, 40MHz 802.11ac: 20MHz, 40MHz, 80MHz Modulation Technology ....... : Orthogonal Frequency Division Multiplexing (OFDM) Antenna Type ........................ : Inside Antenna Antenna Gain ........................ : Band 2A: 0.4dBi Band 2C: 0.2dBi TPC Function ........................ : Unsupported Rating(s)................................ : Rechargeable Li-ion Battery DC 3.87V Power Adapter: Model: UT-681A-5200MY Input: AC 100-240V, 50/60Hz, 0.35A Output: DC 5V, 2000mA Remark .................................. : This device selects the operating frequency with randomly in the DFS operation frequency. Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list None. Report No.: TCT241204E026 Page 4 of 19 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. Test Result Summary Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result UNII Detection Bandwidth 7.8.1 DFS: UNII Detection Bandwidth Measurement N/A 100% of the 99% BW N/A Channel Availability Check 7.8.2.1 DFS: Initial Channel Availability Check Time N/A CAC ≥ …

Text truncated - open the document above for the full version.

Test Report

Report No.: TCT241204E025 Page 190 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV Report No.: TCT241204E025 Page 191 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV Report No.: TCT241204E025 Page 192 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT80)_MCH_5775MHz_Ant1_NTNV Report No.: TCT241204E025 Page 193 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 5. Frequency Stability 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Temperature (°C) Voltage (VAC) Measured Frequency (MHz) Limit (MHz) Verdict 802.11a SISO 5180 20 102 5180.020 5150 to 5250 Pass 120 5180.000 5150 to 5250 Pass 138 5180.020 5150 to 5250 Pass -30 120 5179.980 5150 to 5250 Pass -20 120 5179.980 5150 to 5250 Pass -10 120 5179.960 5150 to 5250 Pass 0 120 5180.000 5150 to 5250 Pass 10 120 5180.020 5150 to 5250 Pass 30 120 5180.040 5150 to 5250 Pass 40 120 5180.040 5150 to 5250 Pass 50 120 5179.960 5150 to 5250 Pass 5200 20 102 5200.020 5150 to 5250 Pass 120 5200.020 5150 to 5250 Pass 138 5200.020 5150 to 5250 Pass -30 120 5199.980 5150 to 5250 Pass -20 120 5200.000 5150 to 5250 Pass -10 120 5200.000 5150 to 5250 Pass 0 120 5200.000 5150 to 5250 Pass 10 120 5199.960 5150 to 5250 Pass 30 120 5199.980 5150 to 5250 Pass 40 120 5200.000 5150 to 5250 Pass 50 120 5200.040 5150 to 5250 Pass 5240 20 102 5239.960 5150 to 5250 Pass 120 5240.020 5150 to 5250 Pass 138 5239.980 5150 to 5250 Pass -30 120 5240.000 5150 to 5250 Pass -20 120 5239.960 5150 to 5250 Pass -10 120 5239.960 5150 to 5250 Pass 0 120 5239.960 5150 to 5250 Pass 10 120 5239.900 5150 to 5250 Pass 30 120 5240.000 5150 to 5250 Pass 40 120 5239.980 5150 to 5250 Pass 50 120 5240.020 5150 to 5250 Pass 5260 20 102 5260.000 5250 to 5350 Pass 120 5260.000 5250 to 5350 Pass 138 5259.980 5250 to 5350 Pass -30 120 5259.960 5250 to 5350 Pass -20 120 5259.960 5250 to 5350 Pass -10 120 5259.980 5250 to 5350 Pass 0 120 5259.920 5250 to 5350 Pass 10 120 5259.940 5250 to 5350 Pass 30 120 5260.000 5250 to 5350 Pass 40 120 5259.980 5250 to 5350 Pass 50 120 5259.960 5250 to 5350 Pass 5300 20 102 5299.940 5250 to 5350 Pass 120 5299.920 5250 to 5350 Pass 138 5300.040 5250 to 5350 Pass -30 120 5300.000 5250 to 5350 Pass -20 120 5300.020 5250 to 5350 Pass -10 120 5300.020 5250 to 5350 Pass 0 120 5299.980 5250 to 5350 Pass Report No.: TCT241204E025 Page 194 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 10 120 5300.020 5250 to 5350 Pass 30 120 5299.980 5250 to 5350 Pass 40 120 5300.000 5250 to 5350 Pass 50 120 5300.040 5250 to 5350 Pass 5320 20 102 5319.980 5250 to 5350 Pass 120 5320.060 5250 to 5350 Pass 138 5319.980 5250 to 5350 Pass -30 120 5320.020 5250 to 5350 Pass -20 120 5319.980 5250 to 5350 Pass -10 120 5320.020 5250 to 5350 Pass 0 120 5319.980 5250 to 5350 Pass 10 120 5320.000 5250 to 5350 Pass 30 120 5320.000 5250 to 5350 Pass 40 120 5320.000 5250 to 5350 Pass 50 120 5319.980 5250 to 5350 Pass 5500 20 102 5499.980 5470 to 5725 Pass 120 5499.980 5470 to 5725 Pass 138 5500.000 5470 to 5725 Pass -30 120 5500.000 5470 to 5725 Pass -20 120 5499.960 5470 to 5725 Pass -10 120 5499.960 5470 to 5725 Pass 0 120 5499.940 5470 to 5725 Pass 10 120 5499.960 5470 to 5725 Pass 30 120 5499.980 5470 to 5725 Pass 40 120 5499.960 5470 to 5725 Pass 50 120 5499.960 5470 to 5725 Pass 5580 20 102 5580.000 5470 to 5725 Pass 120 5580.020 5470 to 5725 Pass 138 5579.960 5470 to 5725 Pass -30 120 5579.960 5470 to 5725 Pass -20 120 5579.980 5470 to 5725 Pass -10 120 5579.980 5470 to 5725 Pass 0 120 5579.940 5470 to 5725 Pass 10 120 5579.980 5470 to 5725 Pass 30 120 5580.020 5470 to 5725 Pass 40 120 5579.980 5470 to 5725 Pass 50 120 5580.000 5470 to 5725 Pass 5700 20 102 5699.940 5470 to 5725 Pass 120 5700.000 5470 to 5725 Pass 138 5699.980 5470 to 5725 Pass -30 120 5700.000 5470 to 5725 Pass -20 120 5699.960 5470 to 5725 Pass -10 120 5699.940 5470 to 5725 Pass 0 120 5699.940 5470 to 5725 Pass 10 120 5699.940 5470 to 5725 Pass 30 120 5699.940 5470 to 5725 Pass 40 120 5700.000 5470 to 5725 Pass 50 120 5699.960 5470 to 5725 Pass 5745 20 102 5745.040 5725 to 5850 Pass 120 5744.960 5725 to 5850 Pass 138 5745.060 5725 to 5850 Pass -30 120 5745.000 5725 to 5850 Pass -20 120 5745.000 5725 to 5850 Pass -10 120 5744.960 5725 to 5850 Pass 0 120 5745.000 5725 to 5850 Pass 10 120 5745.020 5725 to 5850 Pass 30 120 5745.040 5725 to 5850 Pass 40 120 5745.020 5725 to 5850 Pass 50 120 5744.980 5725 to 5850 Pass 5785 20 102 5784.960 5725 to 5850 Pass 120 5784.980 5725 to 5850 Pass 138 5785.080 5725 to 5850 Pass -30 120 5785.020 5725 to 5850 Pass -20 120 5784.980 5725 to 5850 Pass Report No.: TCT241204E025 Page 195 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com -10 120 5785.000 5725 to 5850 Pass 0 120 5784.980 5725 to 5850 Pass 10 120 5785.000 5725 to 5850 Pass 30 120 5785.000 5725 to 5850 Pass 40 120 5785.020 5725 to 5850 Pass 50 120 5785.020 5725 to 5850 Pass 5825 20 102 5825.000 5725 to 5850 Pass 120 5824.920 5725 to 5850 Pass 138 5825.020 5725 to 5850 Pass -30 120 5824.960 5725 to 5850 Pass -20 120 5824.980 5725 to 5850 Pass -10 120 5825.040 5725 to 5850 Pass 0 120 5825.000 5725 to 5850 Pass 10 120 5825.020 5725 to 5850 Pass 30 120 5825.040 5725 to 5850 Pass 40 120 5825.020 5725 to 5850 Pass 50 120 5825.060 5725 to 5850 Pass 802.11n (HT20) SISO 5180 20 102 5180.020 5150 to 5250 Pass 120 5179.980 5150 to 5250 Pass 138 5179.960 5150 to 5250 Pass -30 120 5179.980 5150 to 5250 Pass -20 120 5180.000 5150 to 5250 Pass -10 120 5180.040 5150 to 5250 Pass 0 120 5179.980 5150 to 5250 Pass 10 120 5180.020 5150 to 5250 Pass 30 120 5179.980 5150 to 5250 Pas…

Text truncated - open the document above for the full version.

Test Report

Report No.: TCT241204E025 Page 142 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11n(HT20)_MCH_5785MHz_Ant1_NTNV 802.11n(HT20)_HCH_5825MHz_Ant1_NTNV Report No.: TCT241204E025 Page 143 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11n(HT40)_LCH_5190MHz_Ant1_NTNV 802.11n(HT40)_HCH_5230MHz_Ant1_NTNV Report No.: TCT241204E025 Page 144 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11n(HT40)_LCH_5270MHz_Ant1_NTNV 802.11n(HT40)_HCH_5310MHz_Ant1_NTNV Report No.: TCT241204E025 Page 145 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11n(HT40)_LCH_5510MHz_Ant1_NTNV 802.11n(HT40)_MCH_5550MHz_Ant1_NTNV Report No.: TCT241204E025 Page 146 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11n(HT40)_HCH_5670MHz_Ant1_NTNV 802.11n(HT40)_LCH_5755MHz_Ant1_NTNV Report No.: TCT241204E025 Page 147 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11n(HT40)_HCH_5795MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5180MHz_Ant1_NTNV Report No.: TCT241204E025 Page 148 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_MCH_5200MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5240MHz_Ant1_NTNV Report No.: TCT241204E025 Page 149 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_LCH_5260MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5300MHz_Ant1_NTNV Report No.: TCT241204E025 Page 150 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_HCH_5320MHz_Ant1_NTNV 802.11ac(VHT20)_LCH_5500MHz_Ant1_NTNV Report No.: TCT241204E025 Page 151 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_MCH_5580MHz_Ant1_NTNV 802.11ac(VHT20)_HCH_5700MHz_Ant1_NTNV Report No.: TCT241204E025 Page 152 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_LCH_5745MHz_Ant1_NTNV 802.11ac(VHT20)_MCH_5785MHz_Ant1_NTNV Report No.: TCT241204E025 Page 153 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT20)_HCH_5825MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5190MHz_Ant1_NTNV Report No.: TCT241204E025 Page 154 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT40)_HCH_5230MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5270MHz_Ant1_NTNV Report No.: TCT241204E025 Page 155 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT40)_HCH_5310MHz_Ant1_NTNV 802.11ac(VHT40)_LCH_5510MHz_Ant1_NTNV Report No.: TCT241204E025 Page 156 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT40)_MCH_5550MHz_Ant1_NTNV 802.11ac(VHT40)_HCH_5670MHz_Ant1_NTNV Report No.: TCT241204E025 Page 157 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT40)_LCH_5755MHz_Ant1_NTNV 802.11ac(VHT40)_HCH_5795MHz_Ant1_NTNV Report No.: TCT241204E025 Page 158 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT80)_MCH_5210MHz_Ant1_NTNV 802.11ac(VHT80)_MCH_5290MHz_Ant1_NTNV Report No.: TCT241204E025 Page 159 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT80)_LCH_5530MHz_Ant1_NTNV 802.11ac(VHT80)_HCH_5610MHz_Ant1_NTNV Report No.: TCT241204E025 Page 160 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11ac(VHT80)_MCH_5775MHz_Ant1_NTNV Report No.: TCT241204E025 Page 161 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm/MHz) Verdict ANT1 Limit 802.11a SISO 5180 -0.16 <=11 Pass 5200 -1.09 <=11 Pass 5240 1.64 <=11 Pass 5260 2.33 <=11 Pass 5300 1.23 <=11 Pass 5320 0.92 <=11 Pass 5500 2.19 <=11 Pass 5580 1.65 <=11 Pass 5700 2.56 <=11 Pass 802.11n (HT20) SISO 5180 -0.33 <=11 Pass 5200 -2.19 <=11 Pass 5240 1.14 <=11 Pass 5260 1.96 <=11 Pass 5300 0.86 <=11 Pass 5320 0.79 <=11 Pass 5500 1.90 <=11 Pass 5580 1.44 <=11 Pass 5700 2.02 <=11 Pass 802.11n (HT40) SISO 5190 -3.39 <=11 Pass 5230 -1.97 <=11 Pass 5270 -0.93 <=11 Pass 5310 -1.75 <=11 Pass 5510 -0.68 <=11 Pass 5550 -1.55 <=11 Pass 5670 -0.11 <=11 Pass 802.11ac (VHT20) SISO 5180 -0.73 <=11 Pass 5200 -1.26 <=11 Pass 5240 0.96 <=11 Pass 5260 1.55 <=11 Pass 5300 0.58 <=11 Pass 5320 0.20 <=11 Pass 5500 1.68 <=11 Pass 5580 1.16 <=11 Pass 5700 1.61 <=11 Pass 802.11ac (VHT40) SISO 5190 -3.54 <=11 Pass 5230 -2.33 <=11 Pass 5270 -1.70 <=11 Pass 5310 -2.03 <=11 Pass 5510 -0.89 <=11 Pass 5550 -1.80 <=11 Pass 5670 -0.47 <=11 Pass 802.11ac (VHT80) SISO 5210 -6.85 <=11 Pass 5290 -4.19 <=11 Pass 5530 -3.97 <=11 Pass 5610 -3.74 <=11 Pass Note1: Antenna Gain: Ant1: 0.30dBi; 4.1.2 PSD-Band3 Mode TX Type Frequency (MHz) Maximum PSD (dBm/500kHz) Verdict ANT1 Limit Report No.: TCT241204E025 Page 162 of 204 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 802.11a SISO 5745 -0.90 <=30 Pass 5785 -0.54 <=30 …

Text truncated - open the document above for the full version.

Contact Information

Applicant

James Liao(CTO)

[email protected]Fax: 8555153699

Test Firm

SHENZHEN TONGCE TESTING LABBeryl Zhao

[email protected]

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15E	5.18 GHz - 5.24 GHz	26.40 mW
2	15E	5.26 GHz - 5.32 GHz	26.80 mW
3	15E	5.50 GHz - 5.70 GHz	31.00 mW
4	15E	5.75 GHz - 5.83 GHz	29.00 mW

Confidentiality

Long Term

Grant Notes

Output power listed is conducted power. This device contains 20, 40 and 80 MHz signal bandwidth. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.0 cm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn accessory, product specific (wireless router), and simultaneous transmission use conditions is 0.36W/kg, 0.41W/kg, 0.40W/kg and 1.50W/kg respectively.
