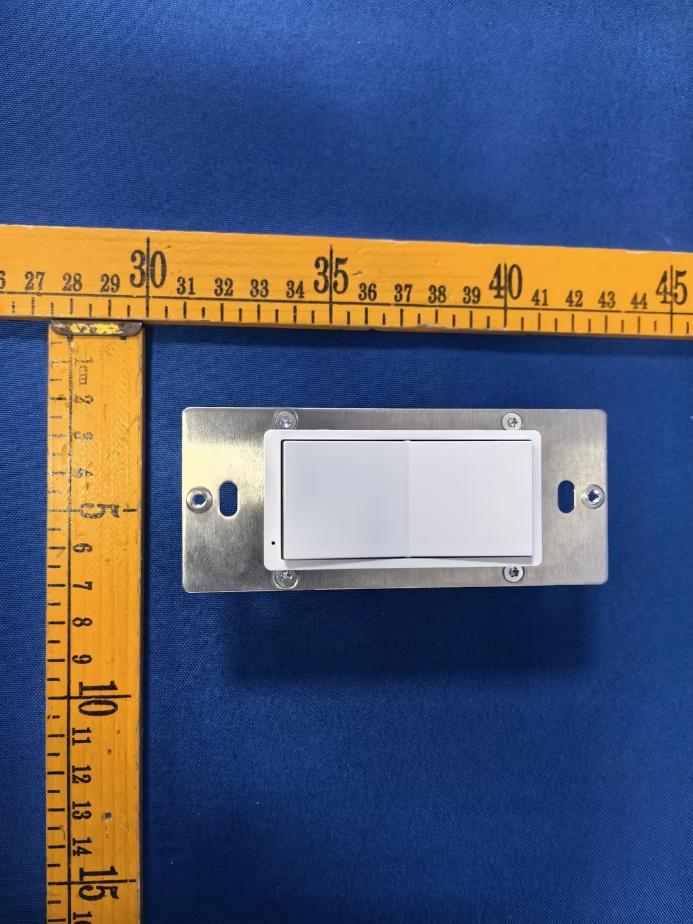

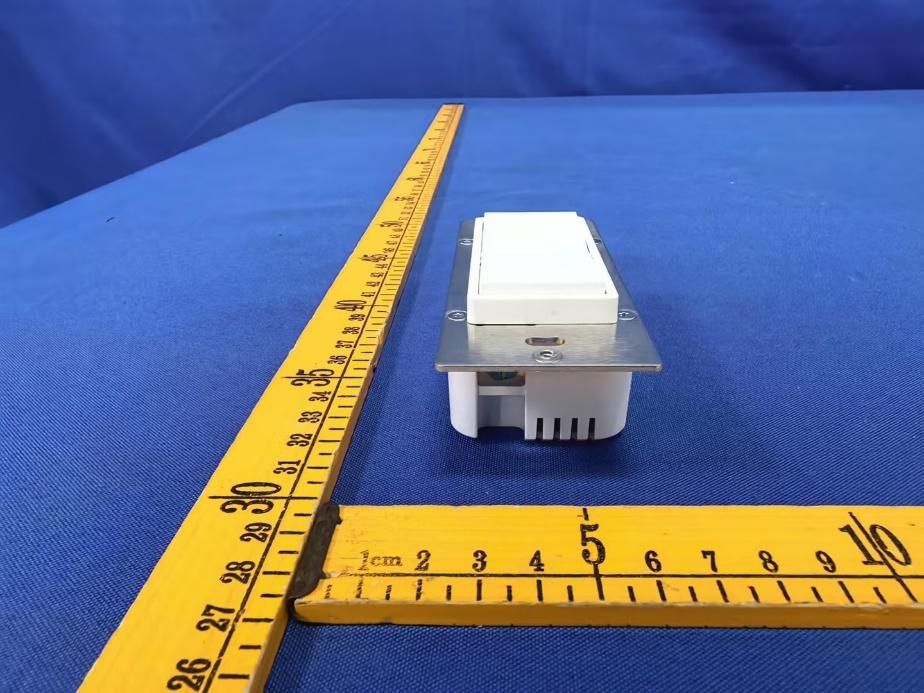

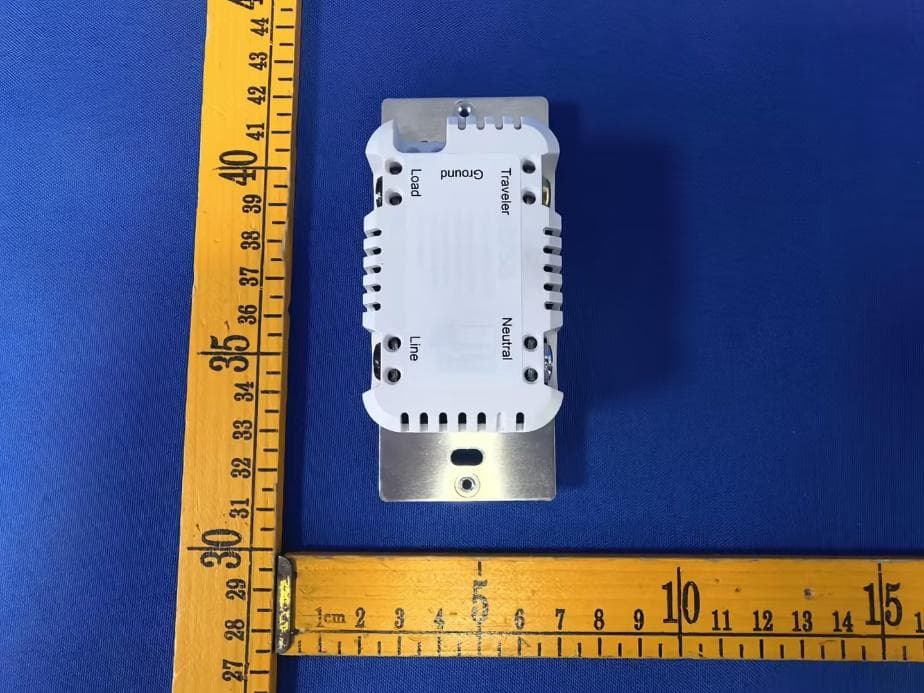

2AQUR-ZW305ZON/OFF SWITCH 800

SPECIFICATIONS USER MANUAL ON/OFF SWITCH 800 ZEN71 FEATURES ŸManual or Z-Wave on/off control with instant status updates Ÿ800 series Z-Wave chip for better range and faster control ŸDirect 3-Way: works with regular on/off switches in a 3-way ŸScene control: trigger actions with multi-tap (select hubs only) ŸSmart bulb mode: disable relay and control the light via Z-Wave ŸZ-Wave Long Range for ultra reliable no-mesh communication ŸRemembers and restores on/off status aer power failure ŸAdjustable LED indicator in 4 colors and 3 brightness levels ŸWorks with LED and incandescent bulbs (don’t use with tubes) 1800W (15A) Resistive, 1/2 hp motor (DON’T use with receptacles) ŸRange: Up to 500 feet line of sight ŸOperating Temperatur ŸModel Number: ZEN71 ŸZ-Wave Region: US/CA/MX ŸPower: 120 VAC, 60 Hz ŸMaximum Load: 150W LED or CFL bulbs, 960W Incandescent, e: 32-104° F (0-40° C) ŸInstallation and Use: Indoor only CAUTION This is an electrical device - please use caution when installing and operating the on/off switch. Remote control of appliances may result in unintentional or automated activation of power. Do not use this Z-Wave device to control electric heaters or other appliances which produce the risk of fire, burns, or electrical shock when unattended. To reduce risk of overheating and possible damage to other equipment, do not install this unit to control a receptacle; a motor-operated appliance; a fluorescent lighting fixture; or a transformer-supplied fixture. WIRING: READ IT! This switch is intended for installation in accordance with the National Electric Code and local regulations. It is recommen- ded that a licensed electrician perform this installation. BEFORE YOU INSTALL 1. CHECK THE LOAD: lights only (150W for LED’s, 600W for incande-scent), DON’T CONNECT THIS SWITCH TO OUTLETS OR TUBE LIGHTS. 2. POWER OFF: turn the circuit power off in the breaker panel before you start. If installing in a multi-switch box with multiple circuits, turn power off at all of the circuits. 3. CHECK THE WIRES: mark load (most oen black), line (most oen black), neutral (most oen white), and ground (most oen bare). 14 AWG wires only! Don’t rely exclusively on your multimeter to identify the wires! 4. REMOVE THE OLD SWITCH: disconnect the wires and label them with the included label stickers. 5. CONNECT THE Z-WAVE SWITCH: follow all installation steps carefully. Wire the switch EXACTLY like in the diagram. 1 Insert the ground (bare) wire into the Ground terminal (not shown in the diagram) ZEN71 WIRING DIAGRAM FOR SINGLE POLE INSTALLATION Secure your Z-Wave switch in the box with mounting screws, handling the wires with care. Isolate all bare wires and screws with electrical tape. Install the wall plate and restore power to circuit. COMPLETE INSTALLATION The LED indicator should light up as soon as you turn the power back on if the switch (light) is OFF. Tap the upper paddle for ON and lower paddle for OFF. If the test fails, please check that: Ÿpower is fully restored to the circuit Ÿwiring matches the instructions exactly Ÿthe load isn’t too large and overheating the switch causing it to shut off TEST THE SWITCH ŸThis product should be installed indoors upon completion of any building renovations. ŸPrior to installation, the device should be stored in a dry, dust-and-mold-proof place. ŸDo not install the switch in a place with direct sun exposure, high temperature, or humidity. ŸKeep away from chemicals, water, and dust. ŸEnsure the device is never close to any heat source or open flame to prevent fire. ŸEnsure the device is connected to an electric power source that does not exceed the maximum load power. ŸNo part of the device may be replaced or repaired by the user. WARNING PAGE 1PAGE 2PAGE 3 ADVANCED SETTINGS Please refer to your controller's user guide for advanced programming instructions as they are a little different for every soware. Not sure where to start? Go to www.support.getzooz.com for detailed instructions on how to change the settings on SmartThings, Vera, and more. Or just email us: [email protected] ASSOCIATION This on/off switch supports Group 1 with up to 1 devices for lifeline communication and Group 2 with up to 5 devices. This device will send BASIC REPORT to Group 1 and BASIC SET command to group 2 when operated manually. You can set direct association to have the switch control another Z-Wave device independently of the hub by using Group 2. Not every hub exposes direct association settings in the interface so please go to www.support.getzooz.com to see if your system allows for direct association. WARRANTY This product is covered under a 1-year limited warranty and extended 5-year warranty if registered within 30 days of purchase. To read the full warranty policy or file a warranty claim, please go to www.getzooz.com/warranty IN NO EVENT SHALL ZOOZ OR ITS SUBSIDIARIES AND AFFILIATES BE LIABLE FOR ANY INDIRECT, INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES, OR DAMAGES FOR LOSS OF PROFITS, REVENUE, OR USE INCURRED BY CUSTOMER OR ANY THIRD PARTY, WHETHER IN AN ACTION IN CONTRACT, OR OTHERWISE EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DA-MAGES. ZOOZ'S LIABILITY AND CUSTOMER'S EXCLUSIVE REMEDY FOR ANY CAUSE OF ACTION ARISING IN CON-NECTION WITH THIS AGREEMENT OR THE SALE OR USE OF THE PRODUCTS, WHETHER BASED ON NEGLIGENCE, STRICT LIABILITY, BREACH OF WARRANTY, BREACH OF AGREEMENT, OR EQUITABLE PRINCIPLES, IS EXPRESSLY LIMITED TO, AT ZOOZ'S OPTION, REPLACEMENT OF, OR REPAYMENT OF THE PURCHASE PRICE FOR THAT PORTION OF PRODUCTS WITH RESPECT TO WHICH DA-MAGES ARE CLAIMED. ALL CLAIMS OF ANY KIND ARISING IN CONNECTION WITH THIS AGREEMENT OR THE SALE OR USE OF PRODUCTS SHALL BE DEEMED WAIVED UNLESS MADE IN WRITING WITHIN THIRTY (30) DAYS FROM ZOOZ'S DELIVERY, OR THE DATE FIXED FOR DELI-VERY IN THE EVENT OF NONDELIVERY. FCC NOTE All brand names displayed are trademarks of their respective holders. © Zooz 202 This device complies with part 15 of the FCC Rules. Operation is…
