Owner's Manual Infrared Forehead Thermometer Model DET-3012b ContentsIntroduction 12 Please read all instructions carefully and thoroughly before using this product. The DET-3012b infrared forehead thermometer is specifically designed for safe use on the forehead. The Infrared Forehead Thermometer is a device capable of measuring people's body temperature by detecting the intensity of infrared light emitted from the forehead.It converts the measured heat into a temperature reading displayed on the LCD. The infrared forehead thermometer is intended for the intermittent measurement of human body temperature from the skin surface of forehead by people of all ages. When properly used, it will quickly assess your temperature in an accurate manner. forehead thermometer. 2. Do not touch the temperature probe with hands. 3. Use of this Forehead thermometer is not intended as a substitute for consultation with your physician. 4. some parts are small enough to be swallowed. 5. Never immerse this device in water or other liquids(not waterproof). 6. Do not modify this equipment without authorization of manufacturer. 7. Do not expose the thermometer to temperature extremes (below -25°C/-13°F or over 55°C/131°F) nor excessive humidity (>95%RH). 8. Keep the battery away from children. 1. There is no gender or age limitation for using infrared Do not allow children to take their temperatures unsupervised, 9.Remove battery from the device when not in operation for a long time. Warning: Introduction ......................................................02 Product Description LCD Display Introduction Basic Functions Forehead Thermometer Advantages Real Time Clock Setting ................................. . 07 Temperature Taking Hints Memory Mode Care And Cleaning Battery Replacement Specifications Troubleshooting Calibration Service Warranty Electromagnetic Compatibility Information .. ............................................... 03 ....................................... 04 ................................................... 05 ......................... 06 .. ...................................09 Illustration For Use ..............................................12 ........................................................16 ...............................................17 ............................................18 .....................................................19 ...................................................20 .............................................................22 ...............................................................23 ...............................................................24 ...............27 FCC ...............................................................25Information Document No.: JDET-1204-005 Article No.: 003 Version: Date of Issue: 2020- Z 12 Vital Organs Product Description 1. Probe 2. Test Button 3. Memory Button 4. Setting Button 5. Battery Cover Forehead Thermometer Advantages Infrared Forehead Thermometer measures core body temperature, which is the temperature of a body's vital organs. (See Figure 1) This thermometer is designed to measure the temperature of the skin surface over the temporal artery, a major artery of the head. The temporal artery is connected to the heart via the carotid artery, directly leading from the aorta, the main trunk of the arterial system. It offers constant blood flow. Therefore, body temperature changes are reflected sooner in the forehead than they are in other parts of the body such as oral, rectal and underarm. 3 6 Figure 1 1 2 3 5 4 Real Time Clock Forehead Mode Object Mode The object mode shows the actual, unadjusted surface temperatures, which is different from the body temperature. It can help you to monitor if the object temperature is suitable for the baby or patient, for example the baby's milk. → Please see the section to learn how to measure the object temperature. Illustration For Use The real time clock will be recorded with the memory function and help you to recognize each measurement result. → Please see the Real time clock setting section to learn how to setup the time in the first use. The thermometer has been designed for practical use. It's not meant to replace a visit to the doctor. Please also remember to compare the measurement result to your regular body temperature. → Please see the section to learn how to measure the body temperature. Illustration For Use Memory Mode There are each 30 sets memories for forehead and object measurements. Each memory also records the measurement date/time/mode icon. Please see the Selecting A Temperature Scale section to learn how to change between Celsius and Fahrenheit. Basic Functions LCD Display Introduction 4 5 / Switch°C°F Distance Detection If the object is too far away from the probe, the temperature will not be measured until the probe is moved within the measured range. Voice The thermometer will broadcast the result after finishing measurement. Object mode Voice sign AM and PM Low voltage sign Forehead mode Unit sign: °C or °F Temperature result Time and Date sign in Time mode Memory mode Status indicators Bluetooth sign Bluetooth sign If the APP is successfully connected to the machine,the Bluetooth sign will always be on, otherwise it will keep flashing. ①Set the unit Press Memory Button to select the unit you want. After the unit is set,press Setting Button ,the time format figure will appear . 7 8 To ensure that the reading always reflects the body temperature accurately, you need to take account of the following factors which may affect an accurate reading. 1. It is important to know each individual's normal temperature when they are well. This is the only way to accurately diagnose a fever. To determine normal temperature, take multiple readings when healthy. Re-measure with a standard digital thermometer for confirmation. 2. Users 3. . Oils or cosmetics on the forehead may give a lower temperature reading than the actual one. must be inside …

Text truncated - open the document above for the full version.

Rev11/20/07 JOYTECHHEALTHCARECO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision ConfidentialityRequestregardingapplicationforcertificationofFCCID:2AQVU0011 PursuanttoSections0.457and0.459oftheCommission’sRules,weherebyrequestconfidential treatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName (BlockDiagram,Schematics,Operational Description) (BlockDiagram.pdf,Schematics.pdf, OperationalDescription.pdf) Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedto thepublic.Thepublicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovide unjustifiedbenefitstoitscompetitors. TheapplicantunderstandsthatpursuanttoSection0.457oftheRules,disclosureofthis applicationandallaccompanyingdocumentationwillnotbemadebeforethedateoftheGrant forthisapplication. PursuanttoDA04-1705June15,2004oftheCommission’spublicnotice,wealsorequest temporaryconfidentialtreatmentofinformationaccompanyingthisapplicationasoutlinedbelow: ExhibitTypeFileName Sincerely, Signature: printedname:LanYingting

M:\MasterDocuments\TEMPLATES\POA_Letter.doc JOYTECHHEALTHCARECO.,LTD. FederalCommunicationsCommission AuthorizationandEvaluationDivision 1435OaklandMillsRoad Columbia,MD21046 Date:February23,2021 SUBJECT:FCCApplicationfor(FCCID:2AQVU0011) ToWhomItMayConcern: We,theundersigned,herebyauthorizeMinaXuatCentreTestingInternationalGroupCo., Ltd/BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,Chinaon ourbehalf,toapplytotheFederalCommunicationsCommissiononourequipment.Any andallactscarriedoutbyMinaXuatCentreTestingInternationalGroupCo.,Ltd/ BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,Chinaonour behalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,the applicant,arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301ofthe Anti-DrugActof1988,21USC853a,andnopartytotheapplicationissubjecttoadenial offederalbenefitspursuanttothatsection. Regards, Signature: printedname:LanYingting

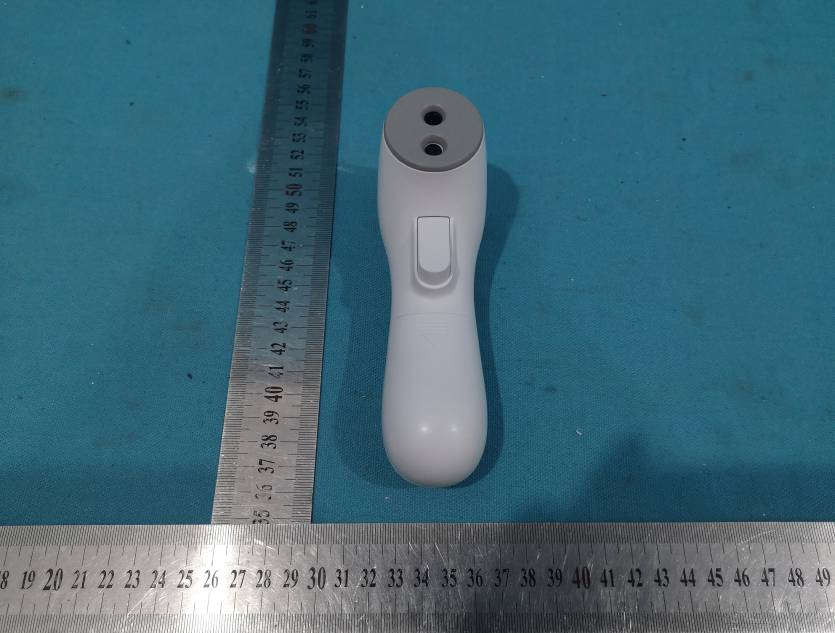

ReportNo.:EED32M00348901Page 34 of 39 10PHOTOGRAPHSOFEUTConstructionalDetails TestmodelNo.:DET-3012b ViewofProduct-1 ViewofProduct-2 ReportNo.:EED32M00348901Page 35 of 39 ViewofProduct-3 ViewofProduct-4 ReportNo.:EED32M00348901Page 36 of 39 ViewofProduct-5 ViewofProduct-6

size:23*17mm DET-3012b Measuring site: Forehead Reference body site: Oral JOYTECH HEALTHCARE CO., LTD No.365,Wuzhou Road,Yuhang Economic Development Zone,311100,Hangzhou,China Battery: DC3.0V, 2×AAA Manufacture Date: XXXXXX FCC ID:2AQVU0011 Labellocation:

Report No. : EED32M00348901Page 37 of 40 View of Product-7 View of Product-8 Report No. : EED32M00348901Page 38 of 40 View of Product-9 View of Product-10 Report No. : EED32M00348901Page 39 of 40 View of Product-11 View of Product-12 View of Product-13 Report No. : EED32M00348901Page 40 of 40 View of Product-14 View of Product-15 The test report is effective only with both signature and specialized stamp, The result(s) shown in this report refer only to the sample(s) tested. Without written approval of CTI, this report can’t be reproduced except in full. *** End of Report ***

ReportNo.:EED32M00348902Page1of8 1COVERPAGE RFExposureEvaluationReport Product:InfraredForeheadThermometer Trademark:Joytech Model/Typereference:DET-3012b SerialNumber:N/A ReportNumber:EED32M00348902 FCCID: 2AQVU0011 DateofIssue:Feb.24,2021 TestStandards: 47CFRPart1.1307 47CFRPart1.1310 KDB447498D01GeneralRFExposure Guidancev06 Testresult:PASS Preparedfor: JOYTECHHEALTHCARECO.,LTD No.365,WuzhouRoad,YuhangEconomic DevelopmentZone,Hangzhou,China Preparedby : CentreTestingInternationalGroupCo.,Ltd. HongweiIndustrialZone,Bao’an70District, Shenzhen,Guangdong,China TEL:+86-755-33683668 FAX:+86-755-33683385 Compiledby:Reviewedby: KenCaiAaronMa Approvedby:Date:Feb.24,2021 DavidWang CheckNo.:4538095992 ReportNo.:EED32M00348902Page2of8 2Version VersionNo.DateDescription 00Feb.24,2021Original ReportNo.:EED32M00348902Page3of8 3Contents Page 1COVERPAGE......................................................................................................................................................................1 2VERSION..............................................................................................................................................................................1 3CONTENTS..........................................................................................................................................................................3 4GENERALINFORMATION...............................................................................................................................................4 4.1C LIENT I NFORMATION ....................................................................................................................................................4 4.2G ENERAL D ESCRIPTIONOF EUT..................................................................................................................................4 4.3P RODUCT S PECIFICATIONSUBJECTIVETOTHISSTANDARD ........................................................................................4 4.4T EST L OCATION .............................................................................................................................................................5 4.5D EVIATIONFROM S TANDARDS ......................................................................................................................................5 4.6A BNORMALITIESFROM S TANDARD C ONDITIONS ..........................................................................................................5 4.7O THER I NFORMATION R EQUESTEDBYTHE C USTOMER ..............................................................................................5 5SAREVALUATION.............................................................................................................................................................6 5.1RFE XPOSURE C OMPLIANCE R EQUIREMENT ...............................................................................................................6 5.1.1StandardRequirement........................................................................................................................................6 5.1.2EUTRFExposure...............................................................................................................................................7 PHOTOGRAPHSOFEUTCONSTRUCTIONALDETAILS............................................................................................8 ReportNo.:EED32M00348902Page4of8 4GeneralInformation 4.1ClientInformation Applicant: JOYTECHHEALTHCARECO.,LTD AddressofApplicant: No.365,WuzhouRoad,YuhangEconomicDevelopmentZone, Hangzhou,China Manufacturer: JOYTECHHEALTHCARECO.,LTD AddressofManufacturer: No.365,WuzhouRoad,YuhangEconomicDevelopmentZone, Hangzhou,China Factory: JOYTECHHEALTHCARECO.,LTD AddressofFactory: No.365,WuzhouRoad,YuhangEconomicDevelopmentZone, Hangzhou,China 4.2GeneralDescriptionofEUT ProductName:InfraredForeheadThermometer ModelNo.(EUT): DET-3012b TradeMark: Joytech EUTSupportsRadios application: 5.0(BLE) 4.3 ProductSpecificationsubjectivetothisstandard FrequencyRange:2402MHz~2480MHz ModulationType:GFSK TestPowerGrade: Default TestSoftwareofEUT: PhyPlusKit AntennaType:integralantenna AntennaGain:0dBi PowerSupply:DC3.0V MaxConductedPeak OutputPower: BT4.0:-4.68dBm TheMaxConductedPeakOutputPowerdatarefertothereport EED32M00348901 SampleReceivedDate: Dec.29,2020 SampletestedDate: Dec.29,2020toJan.15,2021 CompanyNameandAddressshownonReport,thesample(s)andsampleInformationwas/were providedbytheapplicantwhoshouldberesponsiblefortheauthenticitywhichCTIhasn’tverified. ReportNo.:EED32M00348902Page5of8 4.4TestLocation Alltestswereperformedat: CentreTestingInternationalGroupCo.,Ltd BuildingC,HongweiIndustrialParkBlock70,Bao'anDistrict,Shenzhen,China Telephone:+86(0)75533683668Fax:+86(0)75533683385 Notestsweresub-contracted. FCCDesignationNo.:CN1164 4.5DeviationfromStandards None. 4.6AbnormalitiesfromStandardConditions None. 4.7OtherInformationRequestedbytheCustomer None. ReportNo.:EED32M00348902Page6of8 5SAREvaluation 5.1RFExposureComplianceRequirement 5.1.1StandardRequirement AccordingtoKDB447498D01GeneralRFExposureGuidancev06 StandaloneSARtestexclusionconsiderations UnlessspecificallyrequiredbythepublishedRFexposureKDBprocedures,standalone1-gheadorbody and10-gextremitySARevaluationforgeneralpopulationexposureconditions,bymeasurementor numericalsimulation,isnotrequiredwhenthecorrespondingSARExclusionThresholdcondition,listed below,issatisfied. Limits The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparationdistances ≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance,mm)]· [√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation 17 Theresultisroundedtoonedecimalplaceforcomparison Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mmand fortransmissionfre…

Text truncated - open the document above for the full version.

ReportNo.:EED32M00348901 Appendix:BluetoothLE ReportNo.:EED32M00348901 Contents AppendixA:DTSBandwidth ....................................................................................................... 3 TestResult ................................................................................................................................................ 3 TestGraphs .............................................................................................................................................. 4 AppendixB:OccupiedChannelBandwidth ................................................................................ 6 TestResult ................................................................................................................................................ 6 TestGraphs .............................................................................................................................................. 7 AppendixC:Maximumconductedoutputpower ...................................................................... 9 TestResult ................................................................................................................................................ 9 TestGraphs ............................................................................................................................................ 10 AppendixD:Maximumpowerspectraldensity ....................................................................... 12 TestResult .............................................................................................................................................. 12 TestGraphs ............................................................................................................................................ 13 AppendixE:Bandedgemeasurements ..................................................................................... 15 TestResult .............................................................................................................................................. 15 TestGraphs ............................................................................................................................................ 16 AppendixF:ConductedSpuriousEmission ............................................................................... 17 TestResult .............................................................................................................................................. 17 TestGraphs ............................................................................................................................................ 18 AppendixG:DutyCycle .............................................................................................................. 22 TestResult .............................................................................................................................................. 22 TestGraphs ............................................................................................................................................ 23 ReportNo.:EED32M00348901 AppendixA:DTSBandwidth TestResult Test Mode AntennaChannel DTSBW [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLEAnt1 24020.6722401.7522402.4240.5PASS 24400.6802439.7562440.4360.5PASS 24800.7202479.7282480.4480.5PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 ReportNo.:EED32M00348901 BLE_Ant1_2480 ReportNo.:EED32M00348901 AppendixB:OccupiedChannelBandwidth TestResult Test Mode AntennaChannel OCB [MHz] FL[MHz]FH[MHz]Limit[MHz]Verdict BLEAnt1 24021.05312401.5642402.617---PASS 24401.06372439.5642440.627---PASS 24801.06092479.5642480.625---PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 ReportNo.:EED32M00348901 BLE_Ant1_2480 ReportNo.:EED32M00348901 AppendixC:Maximumconductedoutputpower TestResult TestModeAntennaChannelResult[dBm]Limit[dBm]Verdict BLEAnt1 2402-5.84<=30PASS 2440-5.5<=30PASS 2480-4.68<=30PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 ReportNo.:EED32M00348901 BLE_Ant1_2480 ReportNo.:EED32M00348901 AppendixD:Maximumpowerspectraldensity TestResult TestModeAntennaChannelResult[dBm/3-100kHz]Limit[dBm/3kHz]Verdict BLEAnt1 2402-16<=8PASS 2440-15.83<=8PASS 2480-14.39<=8PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 ReportNo.:EED32M00348901 BLE_Ant1_2480 ReportNo.:EED32M00348901 AppendixE:Bandedgemeasurements TestResult Test Mode Antenna Ch Name ChannelRefLevel[dBm]Result[dBm]Limit[dBm]Verdict BLEAnt1 Low2402-7.25-46.12<=-27.25PASS High2480-5.78-45.57<=-25.78PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_Low_2402 BLE_Ant1_High_2480 ReportNo.:EED32M00348901 AppendixF:ConductedSpuriousEmission TestResult Test Mode AntennaChannel FreqRange [MHz] RefLevel [dBm] Result[dBm]Limit[dBm]Verdict BLEAnt1 2402 Reference-7.11-7.11---PASS 30~100030~1000-57.728<=-27.111PASS 1000~265001000~26500-41.203<=-27.111PASS 2440 Reference-6.66-6.66---PASS 30~100030~1000-58.093<=-26.663PASS 1000~265001000~26500-38.192<=-26.663PASS 2480 Reference-5.66-5.66---PASS 30~100030~1000-57.109<=-25.664PASS 1000~265001000~26500-41.94<=-25.664PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_2402_0~Reference BLE_Ant1_2402_30~1000 ReportNo.:EED32M00348901 BLE_Ant1_2402_1000~26500 BLE_Ant1_2440_0~Reference ReportNo.:EED32M00348901 BLE_Ant1_2440_30~1000 BLE_Ant1_2440_1000~26500 BLE_Ant1_2480_0~Reference ReportNo.:EED32M00348901 BLE_Ant1_2480_30~1000 BLE_Ant1_2480_1000~26500 ReportNo.:EED32M00348901 AppendixG:DutyCycle TestResult TestModeAntennaChannel Transmission Duration[ms] Transmission Period[ms] Duty Cycle [%] LimitVerdict BLEAnt1 24020.611.2549.20---PASS 24400.611.2549.20---PASS 24800.611.2549.20---PASS ReportNo.:EED32M00348901 TestGraphs BLE_Ant1_2402 BLE_Ant1_2440 ReportNo.:EED32M00348901 BLE_Ant1_2480 ***EndofReport***

Report No. : EED32M00348901Page 1 of 40 1 COVER PAGE TEST REPORT Product:Infrared Forehead Thermometer Trade mark:Joytech Model/Type reference :DET-3012b Serial Number:N/A Report Number:EED32M00348901 FCC ID:2AQVU0011 Date of Issue:Feb. 24, 2021 Test Standards: 47 CFR Part 15 Subpart C Test result:PASS Prepared for: JOYTECH HEALTHCARE CO., LTD No.365,Wuzhou Road,Yuhang Economic Development Zone, Hangzhou ,China Prepared by : Centre Testing International Group Co., Ltd. Hongwei Industrial Zone, Bao’an 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Compiled by:Reviewed by: Ken CaiAaron Ma Approved by:Date:Feb. 24, 2021 David Wang Check No.::4538095992 Report No. : EED32M00348901Page 2 of 40 2 Content 1 COVER PAGE..................................................................................................................................................................... 1 2CONTENT.............................................................................................................................................................................2 3 VERSION..............................................................................................................................................................................3 4 TEST SUMMARY................................................................................................................................................................4 5 GENERAL INFORMATION...............................................................................................................................................5 5.1 C LIENT I NFORMATION .................................................................................................................................................... 5 5.2 G ENERAL D ESCRIPTION OF EUT .................................................................................................................................. 5 5.3 T EST C ONFIGURATION .................................................................................................................................................. 6 5.4 T EST E NVIRONMENT ...................................................................................................................................................... 7 5.5 D ESCRIPTION OF S UPPORT U NITS ............................................................................................................................... 7 5.6 T EST L OCATION ............................................................................................................................................................. 7 5.7 M EASUREMENT U NCERTAINTY (95% CONFIDENCE LEVELS , K =2) ............................................................................. 8 6EQUIPMENTLIST.............................................................................................................................................................. 9 7 TEST RESULTS AND MEASUREMENT DATA..........................................................................................................11 7.1 A NTENNA R EQUIREMENT ............................................................................................................................................ 11 7.2 M AXIMUM C ONDUCTED O UTPUT P OWER ................................................................................................................... 12 7.3 DTS B ANDWIDTH ........................................................................................................................................................ 13 7.4 M AXIMUM P OWER S PECTRAL D ENSITY ..................................................................................................................... 14 7.5 B AND E DGE MEASUREMENTS AND C ONDUCTED S PURIOUS E MISSION ................................................................... 15 7.6 R ADIATED S PURIOUS E MISSION &R ESTRICTED BANDS ........................................................................................... 16 8 APPENDIX A......................................................................................................................................................................31 9 PHOTOGRAPHS OF TEST SETUP.............................................................................................................................. 32 10 PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS....................................................................................34 Report No. : EED32M00348901Page 3 of 40 3Version Version No.DateDescription 00Feb. 24, 2021Original Report No. : EED32M00348901Page 4 of 40 4TestSummary Test ItemTest RequirementResult Antenna Requirement 47 CFR Part 15 Subpart C Section 15.203/15.247 (c) PASS AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 N/A DTS Bandwidth 47 CFR Part 15 Subpart C Section 15.247 (a)(2) PASS Maximum Conducted Output Power 47 CFR Part 15 Subpart C Section 15.247 (b)(3) PASS Maximum Power Spectral Density 47 CFR Part 15 Subpart C Section 15.247 (e)PASS Band Edge Measurements 47 CFR Part 15 Subpart C Section 15.247(d) PASS Conducted Spurious Emissions 47 CFR Part 15 Subpart C Section 15.247(d) PASS Radiated Spurious Emission & Restricted bands 47 CFR Part 15 Subpart C Section 15.205/15.209 PASS Remark: Company Name and Address shown on Report, the sample(s) and sample Information were provided by the applicant who should be responsible for the authenticity which CTI hasn’t verified. Report No. : EED32M00348901Page 5 of 40 5 General Information 5.1 Client Information Applicant:JOYTECH HEALTHCARE CO., LTD Address of Applicant:No.365,Wuzhou Road, Yuhang Economic Development Zone, Hangzhou , China Manufacturer:JOYTECH HEALTHCARE CO., LTD Address of Manufacturer: No.365,Wuzhou Road, Yuhang Economic Development Zone, Hangzhou , China Factory:JOYTECH HEALTHCARE CO., LTD Address of Factory:No.365,Wuzhou Road, Yuhang Economic Dev…

Text truncated - open the document above for the full version.

ReportNo.:EED32M00348901Page 32 of 39 9PHOTOGRAPHSOFTESTSETUP TestmodelNo.:DET-3012b RadiatedspuriousemissionTestSetup-1 (Below30MHz) RadiatedspuriousemissionTestSetup-2 (Below1GHz) ReportNo.:EED32M00348901Page 33 of 39 RadiatedspuriousemissionTestSetup-3( Above1GHz)
