2AQY4-VE008Smart Door Knob

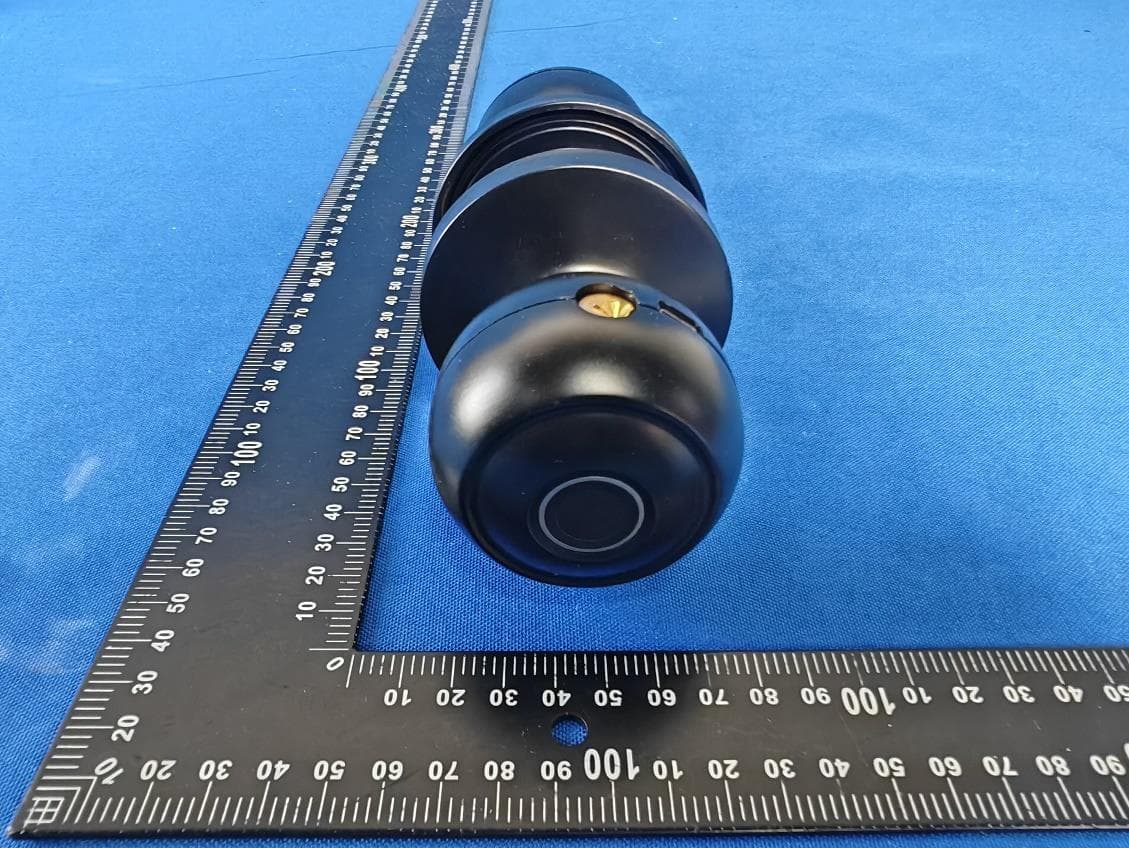

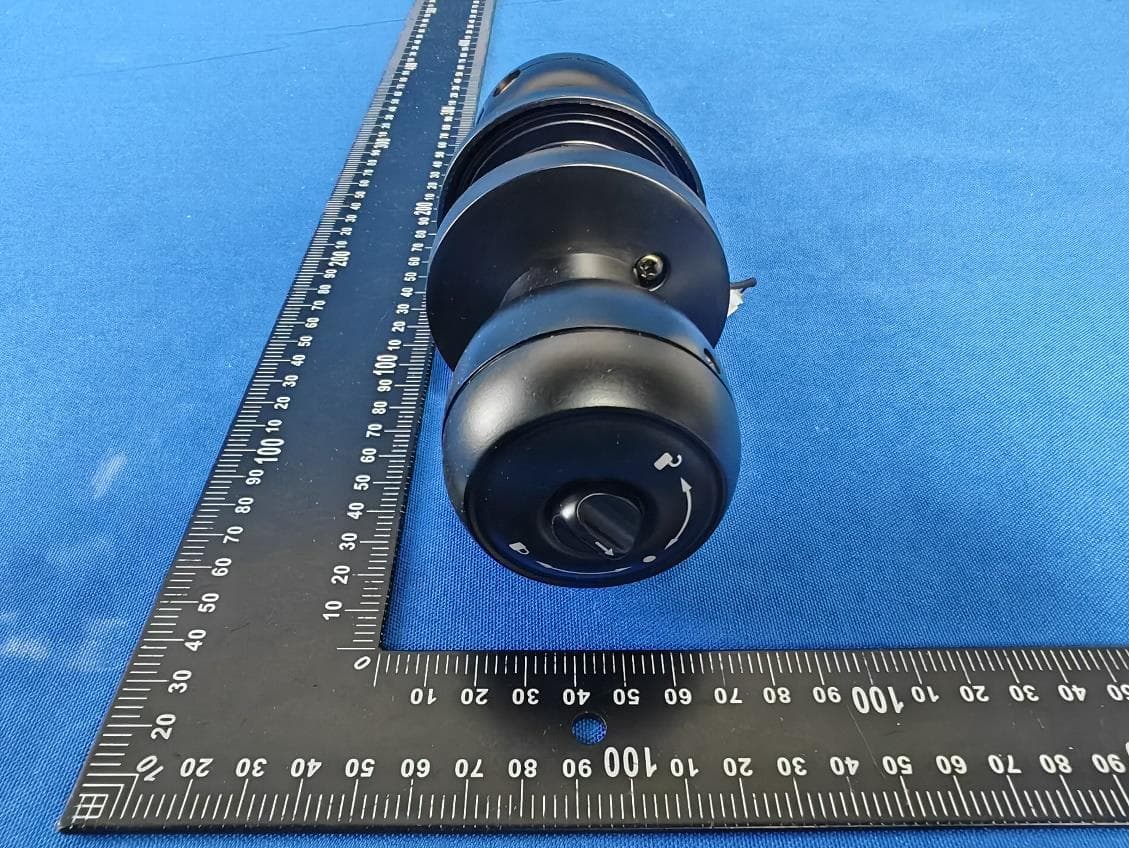

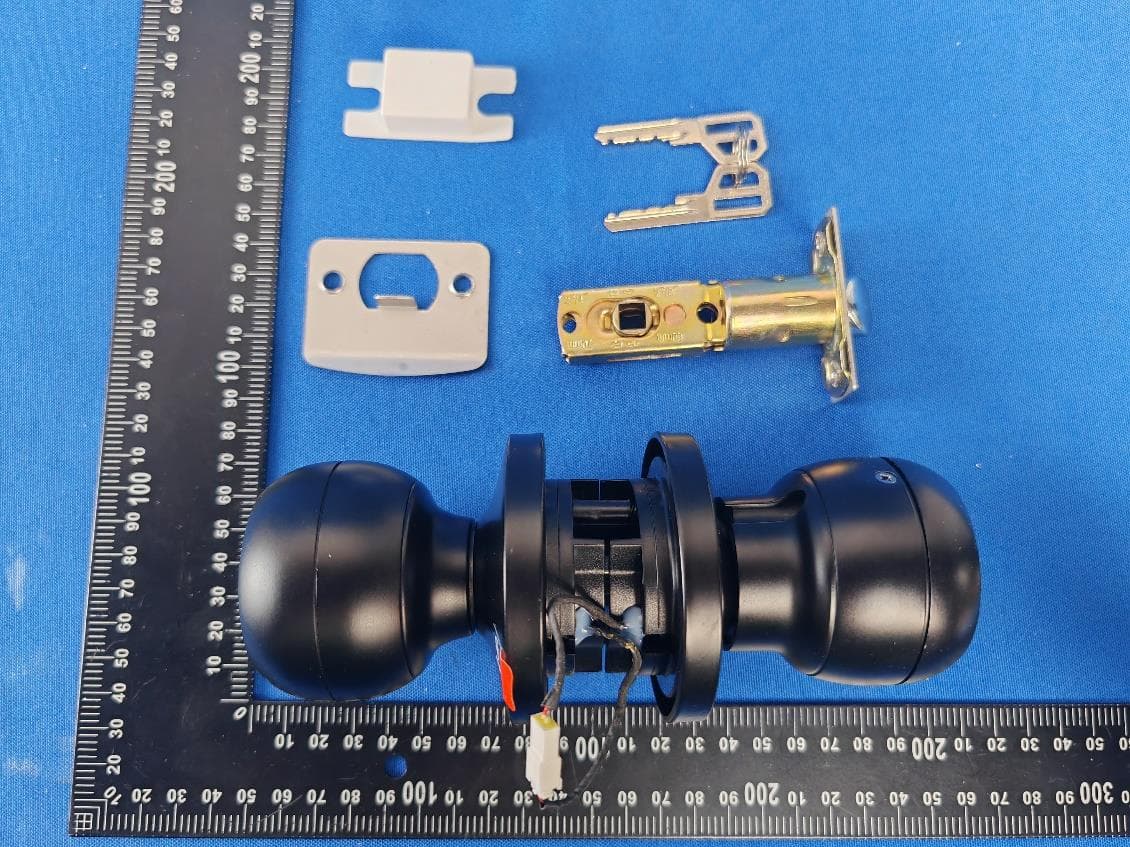

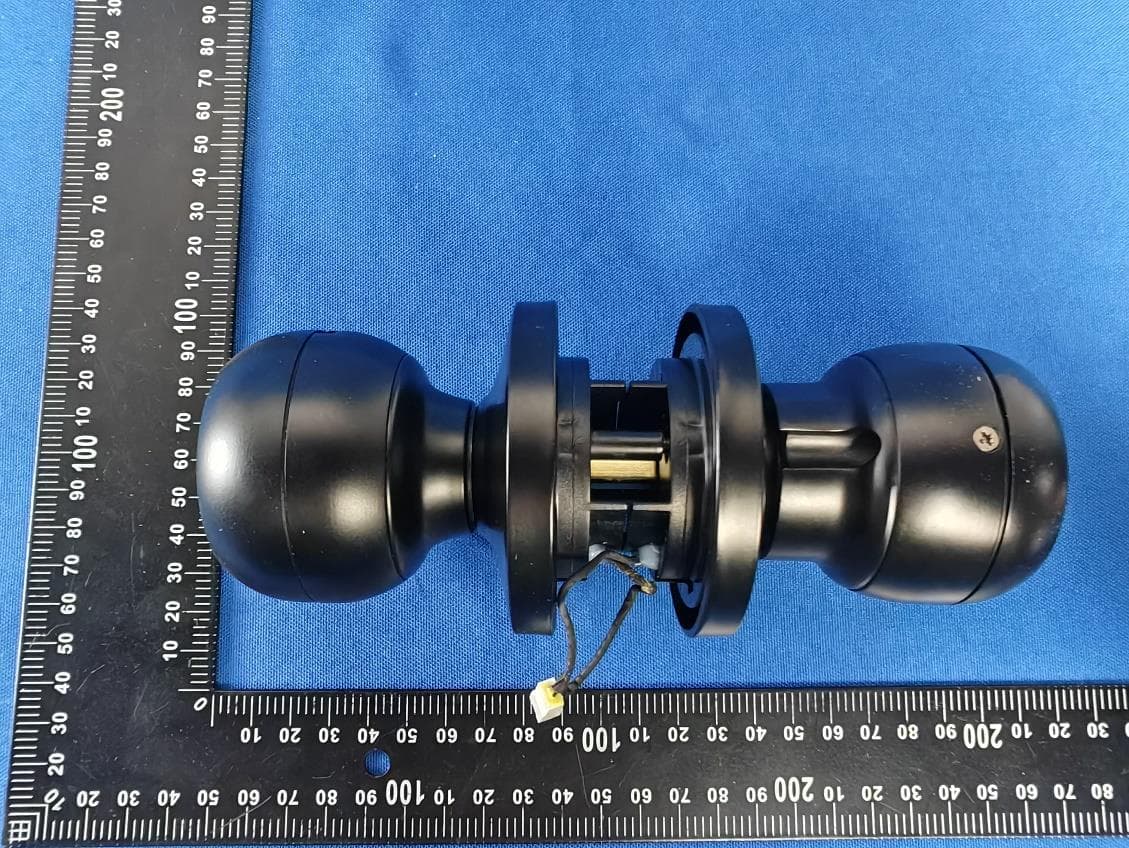

VE008 Smart Lock User Guide Please fully read and understand this manual before using and keep this manual for future reference. 6FDQWKH45FRGH WRGRZQORDGWKH 6PDUW/LIH$SS 6 Please watch this video first and use this manual as a guide. INSTALLATION VIDEO Go to www.iveise.com/videos to watch installation video. If you have any questions, contact us at +1(855)400-3853 (Monday-Friday 9:00-5:00pm PST) SCAN ME USER GUIDE 03 How to Lock / Unlock How to change lock mode 05 STEP 2: Install the latch and strike 09 12 STEP 3: Install exterior assembly 13 STEP 4: Install interior assembly 15 STEP 5: Install battery 18 APP Guide 08 STEP 1: Prepare the door and check dimensions 01 Exterior Assembly Fingerprint Light Keyhole Type-C Interface Interior Assembly Thumb Turn AT A GLANCE 02 In the Normal & Privacy mode, after unlocking with the fingerprint, the door knob automatically locks in 5 seconds. • Auto-lock Insert the key into the keyhole located at the edge of the Exterior Knob and turn the key 120° to unlock and turn the Exterior Knob to open the door. • Key To Unlock Keyhole Type-C Interface HOW TO LOCK / UNLOCK Put finger on the sensor to unlock the knob. Note: Fingerprint only use to unlock the Knob, it can’t be used to lock the Knob. • Fingerprint unlock 03 Settings Auto Lock Silent Mode Fingerprint Capacity Lock Mode Factory Defaut 5 seconds Disabled 20 Passage Mode FACTORY DEFAULT SETTINGS Rotate the thumb turn from the circular mark to the unlock sign on the left and then return the thumb turn to the circular mark, after repeating this operation 5 times, perform the same opera- tion to the right for 5 times. After that, you will hear the long beep and the fingerprint identification area will flash green. After reset, any fingerprint can unlock the lock. Please add a phone administer ASAP. Restore the Factory Setting IMPORTANT:Resetting the lock will delete all stored fingerprints. 04 5 t i m e s 5 t i m e s HOW TO CHANGE LOCK MODE 05 As the figures shows, rotate the thumb turn to circular mark above the thumb turn to switch to normal mode. In normal mode, the door knob will automatically lock in 5 seconds after fingerprint unlocking. Both members and administrators can unlock with their fingerprints. • Normal Mode As shown at right, rotate the thumb turn to unlock sign on the left to activate passage mode. After activating passage mode, the door knob is always unlocked. • Passage Mode As shown in the figures, rotate the thumb turn to lock sign on the right to activate privacy mode. Both members and administrators can unlock via the App. Only the administrators’ fingerprints can unlock. • Privacy Mode PARTS LIST Latch x1 B Strike x1 C Dust Cover x1 (optional) D A Exterior Knob x1 Interior Knob x1 F Backup Key x2 I E Latch&Strike screws x4 Long Screws x2 G User Manual x1 H If any parts are missing or damaged, please contact us at +1(855)400-3853. 06 07 E F G B A C D STEP 1: PREPARE THE DOOR AND CHECK DIMENSIONS 08 Measure to confirm that the hole in the door is 2-1/8" (54mm) Measure to confirm that the hole in the door edge is 1"(25mm). A 1" 25mm 2-1/8" (54mm) Measure to confirm that the backset is either 2-3/8" or 2-3/4" (60 or 70mm) B Backset 2-3/8" or 2-3/4" (60 or 70mm) Measure to confirm that the door is 1-1/5" to 2-1/8" (30mm to 55mm) thick. C 1-1/5" to 2-1/8" (30mm to 55mm) Make sure the hole in the door frame is drilled a minimum of 1" (25mm) deep, to leave enough space for the latch to extend into the door frame when the door is closed. D Depth: 1" (25mm) STEP 2: INSTALL THE LATCH AND STRIKE Backset is the distance from the door edge to the center of the hole in the door. The latch is provided with adjustable design which can fit either 2-3/8’’(60mm) or 2-3/4’’(70mm) backset. If the backset of your door is 2-3/8"(60mm), no need to adjust the latch. A Latch backset adjustment Backset 2-3/8" (60mm) 09 If the backset of your door is 2-3/4"(70mm), please adjust the latch as shown in below images. 2-3/4" (70mm) B Install the latch STEP 2: INSTALL THE LATCH AND STRIKE 10 Opening outwardsOpening inwards 2 Chiseled 1 B Latch Screws (E) Dust Cover(D) (optional) Strike Screws (E) STEP 2: INSTALL THE LATCH AND STRIKE Install strike on the door frame. C Strike screws(E) (Actual Size) Make sure the hole in door frame is drilled a minimum of 1" (25mm) deep. IMPORTANT: 11 STEP 3: INSTALL EXTERIOR ASSEMBLY 12 Route the cable over the latch, the 2 rod bolts going through the round holes on the latch, and insert the torque blade going through the square holt. Note: The "UP" label mark on the rosette facing up, and the keyhole facing down. Rotate and keep the torque equalizer vertical. UP (Actual Size) STEP 4: INSTALL INTERIOR ASSEMBLY Screws built-in battery cover Insert the cable connector to the socket. Push the connector in firmly until it is completely attached. B 13 Loosen the screws on the interior Knob and remove the battery cover. A STEP 4: INSTALL INTERIOR ASSEMBLY 14 (Actual Size) Long Screws(G) x 2 Insert the Long Screws into the circular holes and tighten them to secure the rosette. D The tailpiece going through the square hole on the interior assembly; Note: The "up" mark on the rosette facing up. C STEP 5: INSTALL BATTERY Please install the battery correctly according to the positive and negative poles as shows. 15 Insert 4 AAA alkaline batteries and put on the battery cover (the battery cover pillar should be inserted into the corresponding hole), secure the battery cover with two screws. Keep the thumb vertical, facing up and towards the circular mark. E (Actual Size) Screws built-in battery cover BuzzerIndicator Power on Action Beep once Inactive Fingerprint added successfullyLong Beep Stay green for a while Unlocking successfulBeeps once Blinks green once Unlocking failure Low battery warning Resetting successful Beeps twice Blinks red once Long BeepBlinks green once DEFINITIONS Beeps once (after using fingerprint or App to unlock) Blinks green then blinks red (after using fing…
