2AQZN-SA970-1Multimedia player

Enjoyit. MULTIMEDIA AUTOMOTRIZ San Andres970 Manual de usuario ① Activar / desactivar el modo de espera ② Activar el control vocal ③ Retornar al menu principal ④ Volumen+ ⑤ Volumen- ⑥ Mudo ① ② ③ ④ ⑤ ⑥ Contenido Información de seguridad .............................. 1 Consejos de seguridad .......................... 1 Declaración de seguridad ...................... 1 Advertencia ............................................... 1 Instrucciones de instalación ......................... 2 Notas de uso .................................................... 3 Declaraciones ................................................... 4 Menú de inicio ................................................... 5 Radio ................................................................... 7 Cambio de FM/AM ................................... 7 Búsqueda automática y almacenamiento de estaciones ........... 7 Reproducir estación en el listado ......... 7 Reproducir estación memorizada ........ 7 Búsqueda manual de estaciones ........ 8 Reuniendo estaciones ............................ 8 Reproductor de medios ................................. 8 Insertando USB con archivos de medios. ....................................................... 8 Formatos Compatibles ........................... 8 Reproduciendo Musics ........................... 8 Reproduciendo Video .............................. 9 Ver imágenes ......................................... 10 Reproduciendo contenido de la carpeta ..................................................... 11 Búsqueda por primera letra ................. 11 Modos de reproducción ....................... 12 Bluetooth ......................................................... 12 Búsqueda por dispositivo Bluetooth . 13 Emparejamiento Bluetooth .................. 14 Conexión Automatica ........................... 14 Descarga de Catalogo Telefonico .... 14 Marcando numero de telefono ........... 15 Modo manos libres y modo privado . 16 Desconexion ........................................... 17 Transmisión de Audio Bluetooth ................ 18 Cambiando pistas ................................. 18 Reproduz / Pausa ................................. 19 Apple CarPlay (Alámbrico y Inalámbrico) . 18 Conexión ................................................. 18 Llamando / Recibiendo llamadas ...... 19 Reproduciendo Musica ......................... 19 Usando Mapas ....................................... 19 Siri ............................................................. 19 Android Auto (Alámbrico y Inalámbrico) ... 20 AUX ................................................................... 20 iPod ................................................................... 20 Ajustes ............................................................ 21 Ajustes Generales ................................ 21 Ajustes Avanzados .............................. 22 Mandos al volante ................................. 23 Ajustes de Audio .................................. 23 Ajustes de Display ................................ 24 Ajustes de Bluetooth y Dispositivo .. 25 Dispositivo Apple CarPlay ................... 25 Dispositivo Android Auto ..................... 26 Resetear Clave WiFi ............................. 26 Cambiar nombre de dispositivo ......... 26 Ajustes de Radio ................................... 26 Problemas y Soluciones comunes ............ 27 1 Información de seguridad Consejos de seguridad  Conduzca de acuerdo con las normas de manejo y obedezca las leyes de tránsito;  Preste atención a la advertencia en el manual y evite las operaciones que se mencionaron durante la instalación y el uso. Ignorar cualquier advertencia conduciría a un peligro;  No utilice ninguna función que pueda dispersar su atención al conducir. Estas funciones deben usarse en el estado de estacionamiento. Si necesita la función, estacione el vehículo en la zona de seguridad y use el freno de mano para evitar accidentes de seguridad;  Durante la conducción, mantenga el volumen de la música en un estado que no afecte a ninguna alerta de seguridad y asegúrese de que el conductor pueda escuchar el ruido por la ventana. Es posible que el conductor no escuche la alerta de emergencia o la señal de advertencia de la carretera debido al alto volumen en el vehículo y puede provocar un accidente de tráfico;  Por cuestiones de seguridad, el conductor del vehículo no debe mirar el video, habilite la función "freno de estacionamiento" en la configuración del sistema;  No inserte su dedo, una materia extraña o material conductor en el espacio o ranura;  No use auriculares al conducir;  No utilice el producto para ninguna otra función, excepto para navegación y multimedia.;  Cualquier accesorio debe coincidir con los parámetros del producto durante el reemplazo; Los accesorios inadecuados pueden dañar el producto y causar graves accidentes de seguridad, lo que provocará lesiones personales.; Declaración de seguridad  Este producto es el equipo auxiliar para aumentar la experiencia de manejo, por favor mantenga la seguridad en primer lugar y nunca sea descuidado o falta de juicio. Evite utilizar cualquier función que pueda afectar su seguridad durante la conducción, de lo contrario, los accidentes de seguridad causados por un funcionamiento incorrecto no tienen nada que ver con nuestra empresa; Tome la situación real como base para el procesamiento; Como la navegación del mapa, funciona solo como referencia, tenga en cuenta las condiciones reales del camino;  El proveedor del mapa de navegación es responsable de los datos del mapa de navegación;  Por favor, siga los pasos del manual. Cualquier lesión grave, muerte o daños a los bienes causados por la operación que no se menciona en el manual no tiene nada que ver con nuestra empresa; Advertencia  No desmonte, instale ni repare el producto usted mismo. Póngase en contacto con el personal de servicio especificado por el fabricante primero si es necesario. La operación que realiza la persona que n…

Text truncated - open the document above for the full version.

GUANGZHOULIUHUANINFORMATIONTECHNOLOGYCO.,LTD. C5266091_X8_Ed.1 1/1 LetterofAuthorization Company:GUANGZHOULIUHUANINFORMATIONTECHNOLOGYCO.,LTD. Address:ROOM1101OFBUILDING2,ROOM802OFBUILDING1,NO.6,YUNPU FOURROAD,HUANGPUDISTRICT,Guangzhou,China ProductName:Multimediaplayer ModelNumber:SanAndres970 FCCIdentifier:2AQZN-SA970-1 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:LinkinNiDate:2021.2.7 Title:DQAEngineer Signatureofapplicant:

GUANGZHOULIUHUANINFORMATIONTECHNOLOGYCO.,LTD. C5266091_X10_Ed.1 1/1 ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:LinkinNi Title:DQAEngineer Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills RoadColumbia, MD 21046 Date: 2021.2.7 Subject: Request for Confidentiality FCC ID: 2AQZN-SA970-1 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure.

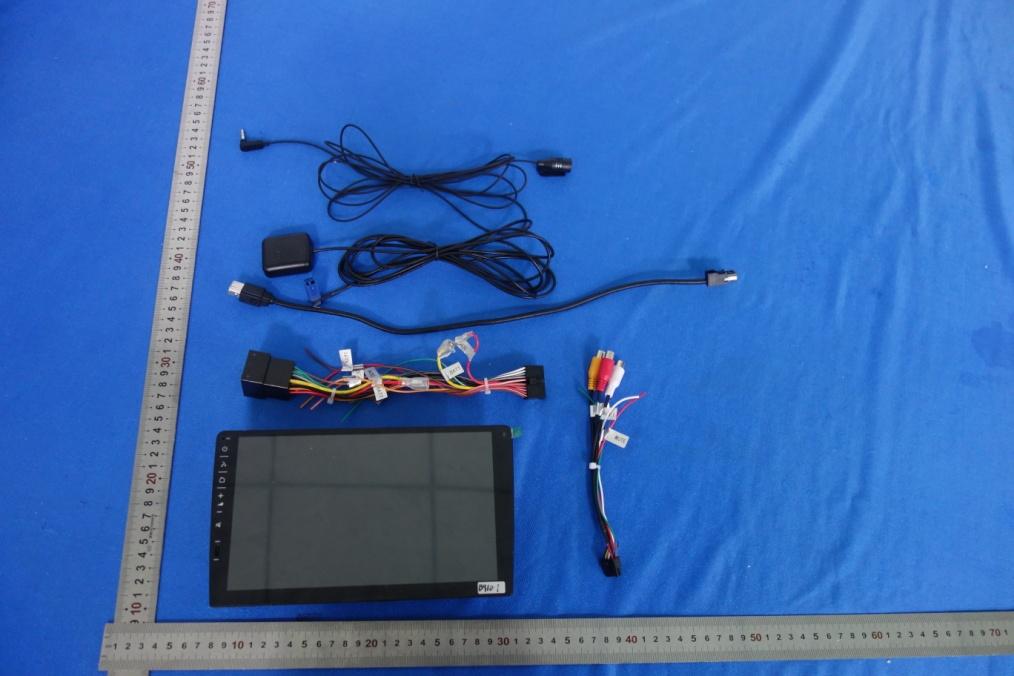

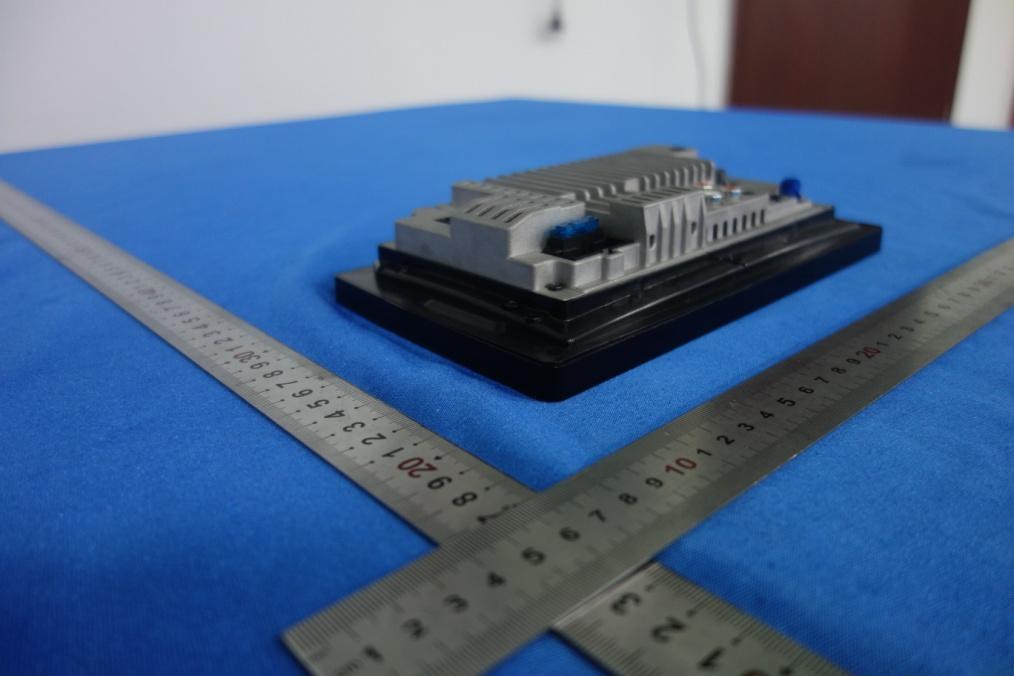

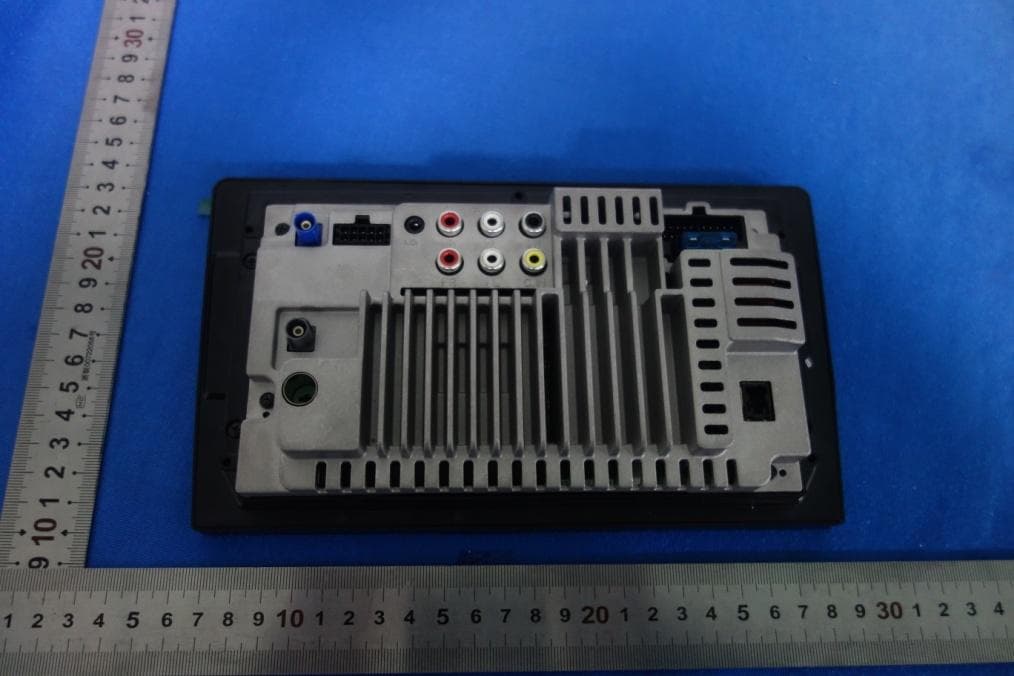

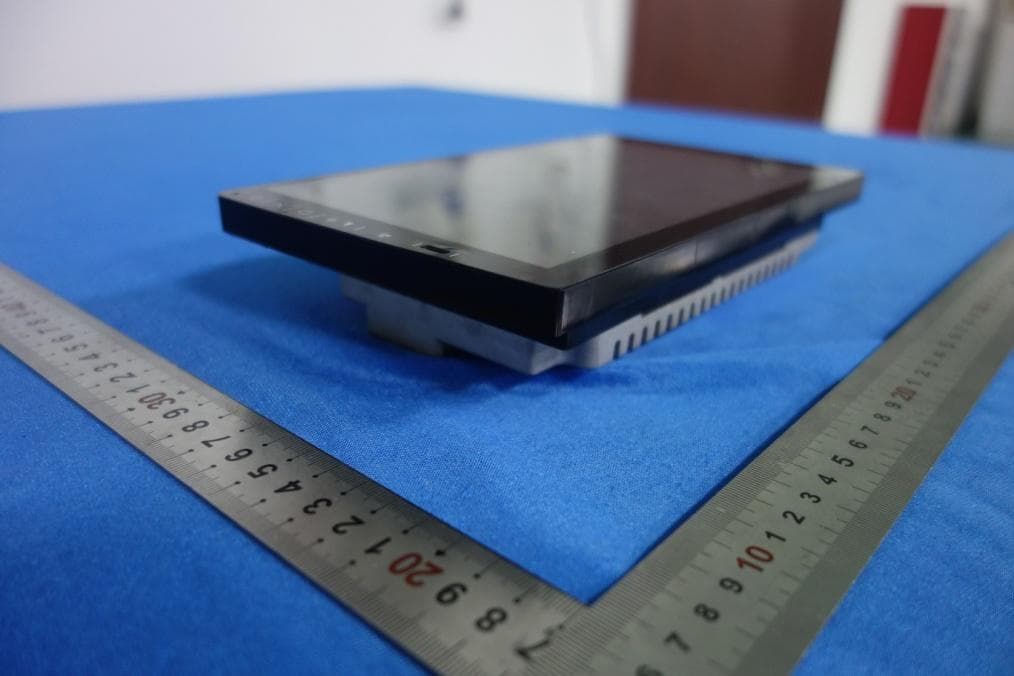

Page 1 of 10 External Photos of EUT EUT and Auxiliary EUT-1 Page 2 of 10 EUT-2 EUT-3 Page 3 of 10 EUT-4 EUT-5 Page 4 of 10 EUT-6 EUT-7 Page 5 of 10 EUT-8 EUT-9

Page 6 of 10 Internal Photos of EUT EUT-1 EUT-2 BT Antenna BT RF IC WIFI RF IC Page 7 of 10 EUT-3 EUT-4 Page 8 of 10 EUT-5 EUT-6 Page 9 of 10 EUT-7 EUT-10 Page 10 of 10 EUT-8 EUT-10 --------------------This is the last page of the report. ------------------ Wifi Antenna

Guangzhou GRG Metrology & Test Co., Ltd. Address:No.163 Pingyun Road, West of Huangpu Avenue, Guangzhou GuangdongChina Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com TEST REPORT Verified Code: Report No.: E202101126468-4 Application No.: E202101126468 Client: GUANGZHOU LIUHUAN INFORMATION TECHNOLOGY CO., LTD. Address: ROOM 1101 OF BUILDING 2, ROOM 802 OF BUILDING 1, NO.6, YUNPU FOUR ROAD, HUANGPU DISTRICT, GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA Sample Description: Multimedia player Model: San Andres 970 Test Specification: CFR 47, FCC Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices. Receipt Date: 2021-01-20 Test Date: 2021-01-28 to 2021-03-12 Issue Date: 2021-04-01 Test Result: Pass Prepared By: Test Engineer Reviewed By: Technical Manager Approved By: Manager Other Aspects: Note: Note Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable; The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. Report: E202101126468-4 Page 1 of 8 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report: E202101126468-4 Page 2 of 8 TABLE OF CONTENTS 1. GENERAL DESCRIPTION OF EUT .................................................................................................................. 3 1.1. APPLICANT ................................................................................................................. 3 1.2. MANUFACTURER ...................................................................................................... 3 1.3. FACTORY .................................................................................................................... 3 1.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ......................................... 3 2. LABORATORY AND ACCREDITATIONS ......................................................................................................... 5 2.1. LABORATORY ............................................................................................................ 5 2.2. ACCREDITATIONS .................................................................................................... 5 3. EVALUATION METHOD ............................................................................................................................... 6 4. LIMITS FOR GENERAL POPULATION/UNCONTROLLEDEXPOSURE ................................................................. 6 5. CALCULATION METHOD ............................................................................................................................. 7 6. ESTIMATION RESULT .................................................................................................................................. 7 4.1 CONDUCTED POWER RESULTS................................................................................. 7 4.2 MANUFACTURING TOLERANCE ............................................................................... 8 4.3 MEASUREMENT RESULTS .......................................................................................... 8 4.3.1 STANDALONE MPE ........................................................................................... 8 7. CONCLUSION .............................................................................................................................................. 8 Report: E202101126468-4 Page 3 of 8 1. GENERAL DESCRIPTION OF EUT 1.1. APPLICANT Name: GUANGZHOU LIUHUAN INFORMATION TECHNOLOGY CO., LTD. Address: ROOM 1101 OF BUILDING 2, ROOM 802 OF BUILDING 1, NO.6, YUNPU FOUR ROAD, HUANGPU DISTRICT, GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA 1.2. MANUFACTURER Name: GUANGZHOU LIUHUAN INFORMATION TECHNOLOGY CO., LTD. Address: ROOM 1101 OF BUILDING 2, ROOM 802 OF BUILDING 1, NO.6, YUNPU FOUR ROAD, HUANGPU DISTRICT, GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA 1.3. FACTORY Name: GUANGZHOU LIUHUAN INFORMATION TECHNOLOGY CO., LTD. Address: ROOM 1101 OF BUILDING 2, ROOM 802 OF BUILDING 1, NO.6, YUNPU FOUR ROAD, HUANGPU DISTRICT, GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA 1.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Equipment: Multimedia player Model No.: San Andres 970 Adding Model: / Trade Name: / FCC ID: 2AQZN-SA970-1 Power supply: DC12V power supplied by DC source Frequency Range: 2402 ~ 2480MHz Transmit Power: BT: DH5: 0.45dBm 2DH5: 0.87dBm 3DH5: 1.59dBm WIFI: 13.19dBm for IEEE 802.11a 13.11dBm for IEEE 802.11n HT20 13.29dBm for IEEE 802.11ac VHT20 Modulation type: OFDM Channel space: IEEE 802.11a: 20MHz IEEE 802.11n HT20: 20MHz IEEE 802.11ac VHT20: 20MHz Antenna Specification: BT: Internal antenna 2dBi gain (Max.) Report: E202101126468-4 Page 4 of 8 WIFI: Internal antenna with 4.2dBi gain (Max.) Temperature Range: -20°C ~ +70°C Hardware Version: V1.0.5 Software Version: C78_V1.0.1.0_T Sample No: E202101126468-0002 Note: / Report: E202101126468-4 Page 5 of 8 2. LABORATORY AND ACCREDITATIONS 2.1. LABORATORY The tests & measurements refer to this report were performed by Shenzhen EMC Laboratory of Guangzhou GRG Metrology & Test Co,. Ltd. Add.: No.1301 Guanguang Road Xinlan Community, Guanlan Street, Longhua District Shenzhen, 518110, People’s Republic of China. P.C.: 518000 Tel : 0755-61180008 Fax: 0755-61180008 2.2. ACCREDITATIONS Our laboratories are accredited and approved by the following approval agencies according to GB/T 27025(ISO/IEC 17025:2017) USA A2LA(Certificate #:2861.01) The measuring facility of laboratories has bee…

Text truncated - open the document above for the full version.

Guangzhou GRG Metrology & Test Co., Ltd. Address:No.163 Pingyun Road, West of Huangpu Avenue, Guangzhou GuangdongChina Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com TEST REPORT Verified Code: Report No.: E202101126468-2 Application No.: E202101126468 Client: GUANGZHOU LIUHUAN INFORMATION TECHNOLOGY CO., LTD. Address: ROOM 1101 OF BUILDING 2, ROOM 802 OF BUILDING 1, NO.6, YUNPU FOUR ROAD, HUANGPU DISTRICT, GUANGZHOU CITY, GUANGDONG PROVINCE, CHINA Sample Description: Multimedia player Model: San Andres 970 Test Specification: CFR 47, FCC Part 15 Subpart C RADIO FREQUENCY DEVICES: Subpart C—Intentional Radiators Receipt Date: 2021-01-20 Test Date: 2021-02-25 to 2021-03-12 Issue Date: Test Result: Pass Prepared By: Test Engineer Reviewed By: Technical Manager Approved By: Manager Other Aspects: Note: Note Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable; The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. 852737 2021-04-14 Report No.: E202101126468-2 Application No.: E202101126468 Page 1 of 69 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.: E202101126468-2 Application No.: E202101126468 Page 2 of 69 TABLE OF CONTENTS 1. TEST RESULT SUMMARY ............................................................................................................................ 4 2. GENERAL DESCRIPTION OF EUT ................................................................................................................. 5 2.1. APPLICANT .............................................................................................................................................. 5 2.2. MANUFACTURER ................................................................................................................................... 5 2.3. FACTORY ................................................................................................................................................. 5 2.4. BASIC DESCRIPTION OF EQUIPMENT UNDER TEST ....................................................................... 5 2.5. TEST OPERATION MODE ....................................................................................................................... 6 2.6. LOCAL SUPPORTIVE .............................................................................................................................. 6 3. LABORATORY AND ACCREDITATIONS ........................................................................................................ 7 3.1. LABORATORY ......................................................................................................................................... 7 3.2. ACCREDITATIONS ................................................................................................................................. 7 3.3. MEASUREMENT UNCERTAINTY ......................................................................................................... 7 4. LIST OF USED TEST EQUIPMENT AT GRGT .................................................................................................. 8 5. TEST RESULTS ........................................................................................................................................... 10 5.1. E.U.T. TEST CONDITIONS .................................................................................................................... 10 5.2. 20DB BANDWIDTH ................................................................................................................................ 11 5.2.1. LIMITS ................................................................................................................................................. 11 5.2.2. TEST PROCEDURES .......................................................................................................................... 11 5.2.3. TEST SETUP ....................................................................................................................................... 11 5.2.4. TEST RESULTS ................................................................................................................................... 11 5.3. CARRIER FREQUENCIES SEPARATED ............................................................................................. 17 5.3.1. LIMITS ................................................................................................................................................. 17 5.3.2. TEST PROCEDURES .......................................................................................................................... 17 5.3.3. TEST SETUP ....................................................................................................................................... 17 5.3.4. TEST RESULTS ................................................................................................................................... 17 5.4. HOPPING CHANNEL NUMBER ........................................................................................................... 21 5.4.1. LIMITS ................................................................................................................................................. 21 5.4.2. TEST PROCEDURES .......................................................................................................................... 21 5.4.3. TEST SETUP…

Text truncated - open the document above for the full version.

Report No.: E202101126468-2 Application No.: E202101126468 Page 30 of 69 3DH5 Test Channel Fundamental Frequency (GHz) Max Output Power(dBm) Limit (dBm) Peak/ Average Pass/Fail Lowest 2.402 0.45 20.97 Peak Pass Middle 2.441 0.87 Pass Highest 2.480 1.59 Pass Test result: The unit does meet the FCC requirements. Report No.: E202101126468-2 Application No.: E202101126468 Page 31 of 69 5.7. CONDUCTED BAND EDGES AND SPURIOUS EMISSIONS 5.7.1. LIMITS (d) In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. 5.7.2. TEST PROCEDURES 1) Remove the antenna from the EUT and then connect a low attenuation cable from the antenna port to the spectrum. 2) Set the spectrum analyzer: RBW =100KHz; VBW =300KHz, Span = 30MHz to 26GHz; Sweep = auto; Detector Function = Peak. Trace = Max, hold. 3) Measure and record the results in the test report. 4) The RF fundamental frequency should be excluded against the limit line in the operating frequency band. 5) Measurements are made over the 9 kHz to 26GHz range with the transmitter set to the lowest, middle, and highest channels. No emission found between lowest internal used/generated frequency to 10MHz，it is only recorded 10MHz to 26GHz. 5.7.3. TEST SETUP 5.7.4. TEST RESULTS The unit does meet the FCC requirements. Test result plot as follows: EUT Attenuator Spectrum analyzer Report No.: E202101126468-2 Application No.: E202101126468 Page 32 of 69 Hopping Off DH5 CH Low (30MHz ~26.5GHz ) CH Low (2.31GHz ~2.41GHz ) Report No.: E202101126468-2 Application No.: E202101126468 Page 33 of 69 CH Mid (30MHz ~26.5GHz) Report No.: E202101126468-2 Application No.: E202101126468 Page 34 of 69 CH High (30MHz ~26.5GHz) CH High (2.475GHz ~ 2.5GHz) Report No.: E202101126468-2 Application No.: E202101126468 Page 35 of 69 2DH5 CH Low (30MHz ~26.5GHz ) CH Low (2.31GHz ~2.41GHz ) Report No.: E202101126468-2 Application No.: E202101126468 Page 36 of 69 CH Mid (30MHz ~26.5GHz) Report No.: E202101126468-2 Application No.: E202101126468 Page 37 of 69 CH High (30MHz ~26.5GHz) CH High (2.475GHz ~ 2.5GHz) Report No.: E202101126468-2 Application No.: E202101126468 Page 38 of 69 3DH5 CH Low (30MHz ~26.5GHz ) CH Low (2.31GHz ~2.41GHz ) Report No.: E202101126468-2 Application No.: E202101126468 Page 39 of 69 CH Mid (30MHz ~26.5GHz) Report No.: E202101126468-2 Application No.: E202101126468 Page 40 of 69 CH High (30MHz ~26.5GHz) CH High (2.475GHz ~ 2.5GHz) Report No.: E202101126468-2 Application No.: E202101126468 Page 41 of 69 Hopping On GFSK CH Low (2.31GHz ~2.5GHz) /4-DQPSK CH Low (2.31GHz ~2.5GHz ) Report No.: E202101126468-2 Application No.: E202101126468 Page 42 of 69 8DPSK CH Low (2.31GHz ~2.5GHz ) Report No.: E202101126468-2 Application No.: E202101126468 Page 43 of 69 5.8. RADIATED SPURIOUS EMISSIONS 5.8.1. LIMITS In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. Frequency (MHz) Quasi-peak(μV/m) Measurement distance(m) Quasi-peak(dBμV/m)@distance 3m 0.009-0.490 2400/F(kHz) 300 53.8~88.5 0.490-1.705 24000/F(kHz) 30 43~53.8 1.705-30.0 30 30 49.5 30 ~ 88 100 3 40 88~216 150 3 43.5 216 ~ 960 200 3 46 Above 960 500 3 54 NOTE: (1) The lower limit shall apply at the transition frequencies. NOTE: (2) Above 18G Limit=74+20log(3/1)=83.54 (dBμV/m). 5.8.2. TEST PROCEDURES 1) The EUT was placed on the top of a rotating table 0.8 meters (for below 1GHz) / 1.5 meters (for above 1GHz) above the ground at a 3 meters semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. 2) The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. 3) Height of receiving antenna is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. 4) The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 5) The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. 6) If the emission level of the EUT in peak mode was lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions would be re-tested one by one using peak, quasi-peak or average method as specified and then reported in a data sheet. Report No.: E202101126468-2 Application No.: E202101126468 Page 44 of 69 5.8.3. TEST SETUP Figure 1. 9 KHz to 30MHz radiated emissions test configuration Figure 2. 30MHz to 1GHz radiated emi…

Text truncated - open the document above for the full version.

Radiated Spurious Emission Test（Below 1GHz） Radiated Spurious Emission Test（Above 1GHz） Radiated Spurious Emission Test（Above 18GHz） -------------------------------This is the last page of the report. -----------------------
