2AR2STAA3206Wireless sports earbuds

User manual Register your product and get support at www.philips.com/support Headphones 3000 Series TA A 3206 1 Important safety instructions 2 Hearing Safety 2 General information 2 2 Your Bluetooth in-ear headphones 3 What's in the box 3 Other devices 3 Overview of your Bluetooth wireless headphone 4 3 Get started 5 Charge the battery 5 Pair the headphones with your mobile phone 5 4 Use your headphones 6 Connect the headphones to a Bluetooth device 6 Manage your calls and music 6 5 Technical data 8 6 Notice 9 Declaration of conformity 9 Disposal of your old product and battery 9 Remove the integrated battery 9 Compliance with EMF 9 Environmental information 10 Notice of compliance 10 7 Trademarks 11 8 Frequently asked questions 12 Contents 1 Important safety instructions Hearing Safety  To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. Be sure to observe the following guide- lines when using your earpieces. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what's around you. • You should use caution or tempo- rarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earphones and headphones can cause hearing loss. • Using headphones with both ears covered while driving is not recom- mended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in trac or other potentially dangerous environments. General information To avoid damage or malfunction:  Do not expose headphones to excessive heat  Do not drop your headphones.  Headphones shall not be exposed to dripping or splashing.  Do not allow your headphones to be submerged in water.  Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.  If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or diluted mild soap, to clean the product.  The integrated battery shall not be exposed to excessive heat such as sunshine, re or the like.  Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Danger Caution About operating and storage temperatures and humidity • Store in a place where temperature is between -20°C (-4°F) and 50°C (122 °F) (up to 90% relative humidity. • Operate in a place where temperature is between 0°C (32°F) and 45°C (113 °F) (up to 90% relative humidity. • Battery life may be shorter in high or low temperature conditions. • Replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); • Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, can result in an explosion; • Leaving a battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of ammable liquid or gas; • A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas. 2 Your Bluetooth in-ear headphones What's in the box Philips Bluetooth in-ear headphones Philips TAA3206 ear caps, ear hooks, ear ns Quick start guide Other devices A mobile phone or device (e.g. note- book, PDA, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the headphone (see 'Technical data' on page 8). Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/welcome. With this Philips in-ear headphones, you can: • enjoy convenient wireless handsfree calls; • enjoy and control wireless music; • switch between calls and music. Type-C charging cable (for charging only) shirt clip Global WarrantySafety leaet Overview of your Bluetooth wireless headphone  Volume +  Power button  Volume -  LED indicator  Microphone  Type C charging slot 1 2 3 4 5 6 3 Get started Charge the battery Note  Before you use your headphone for the rst time, place the headphones in the charging case and charge the battery for 2 hours for optimum battery capacity and lifetime.  Use only the original USB charging cable to avoid any damage.  Finish your call before charging the headphone, as connecting the headphone for charging will power the headphone o. Connect the supplied Type C charging cable to: • Type C charging slot on the head- phones and; • The charger/USB port of a computer. Tip  Normally, a full charge takes 2 hours. Pair the headphones with your mobile phone Make sure that the headphones are fully charged and turned o. The headphone remain in pairing mode for 5 minutes. Before you use the headphones with your mobile phone for the rst time, pair it with a mobile phone. A successful pairing establishes a unique encrypted link between the headphones and mobile phone. The headphones store the last 8 devices in the memory. If you try to pair more than 8 devices, the earliest paired device is replaced by the new one. LED turns white during charging and turns o when the headphones in fully charged. Press and hold for 5 seconds until the blue and white LED ashes alternately. Philips TAA3206 Make sure that the mobile phone is turned on and its Bluetooth feature is activated. The following example shows you how to pair the headphones with your mobile phone. Pair the headphones with the mobile phone. For detailed infor- mation, refer to the user manual of your mobile phone. Activate the Bluetooth feature of your mobile phone, select Philips TAA3206 Enter the headphone password “0000” (4 zeros) if prompted. For those mobile phones featuring Bluetooth 3.0 or higher, no need to enter a password. 4 Use your headphone Connect the headphone to your Bluetooth device Turn on your mo…

Text truncated - open the document above for the full version.

Authority to Act as Agent [Feb. 23, 2021] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (MMD Hong Kong Holding Limited) FCC ID: (2AR2STAA3206) To Whom It May Concern: We, (MMD Hong Kong Holding Limited), hereby authorized Shenzhen UnionTrust Quality and Technology Co., Ltd. to act as our Agent for the purpose of preparing application for FCC ID number (2AR2STAA3206) under all applicable parts of the FCC rules and regulations. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 36 months By: __________________________ Tomas Guan (Signature 1 ) (Print name) Title: Manager On behalf of: (MMD Hong Kong Holding Limited) Telephone: 86-755-36358341 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1(1) [MMD Hong Kong Holding Limited] [Feb. 23, 2021] Attention: Application Examiner RE: Request for Confidentiality Applicant: [MMD Hong Kong Holding Limited] FCC ID: [2AR2STAA3206] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [MMD Hong Kong Holding Limited] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: [MMD Hong Kong Holding Limited] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Tomas Guan] [ Manager] [MMD Hong Kong Holding Limited]

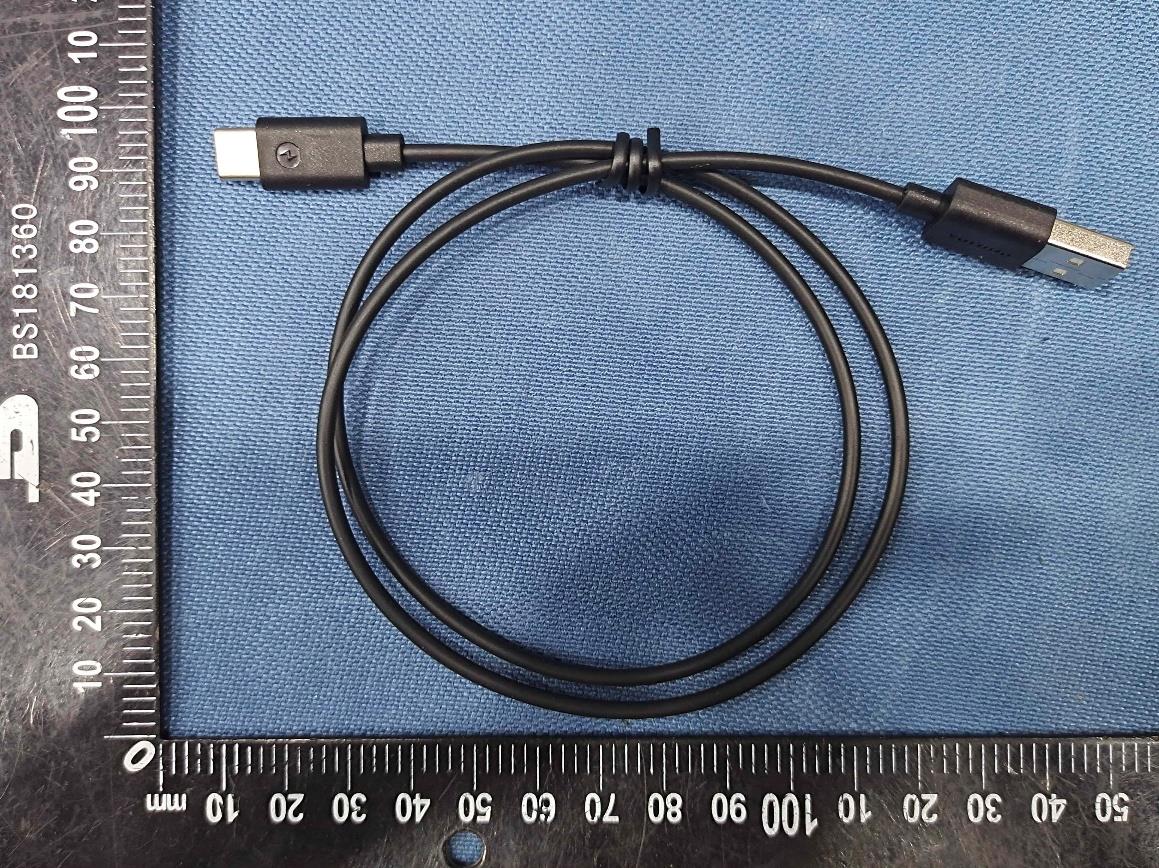

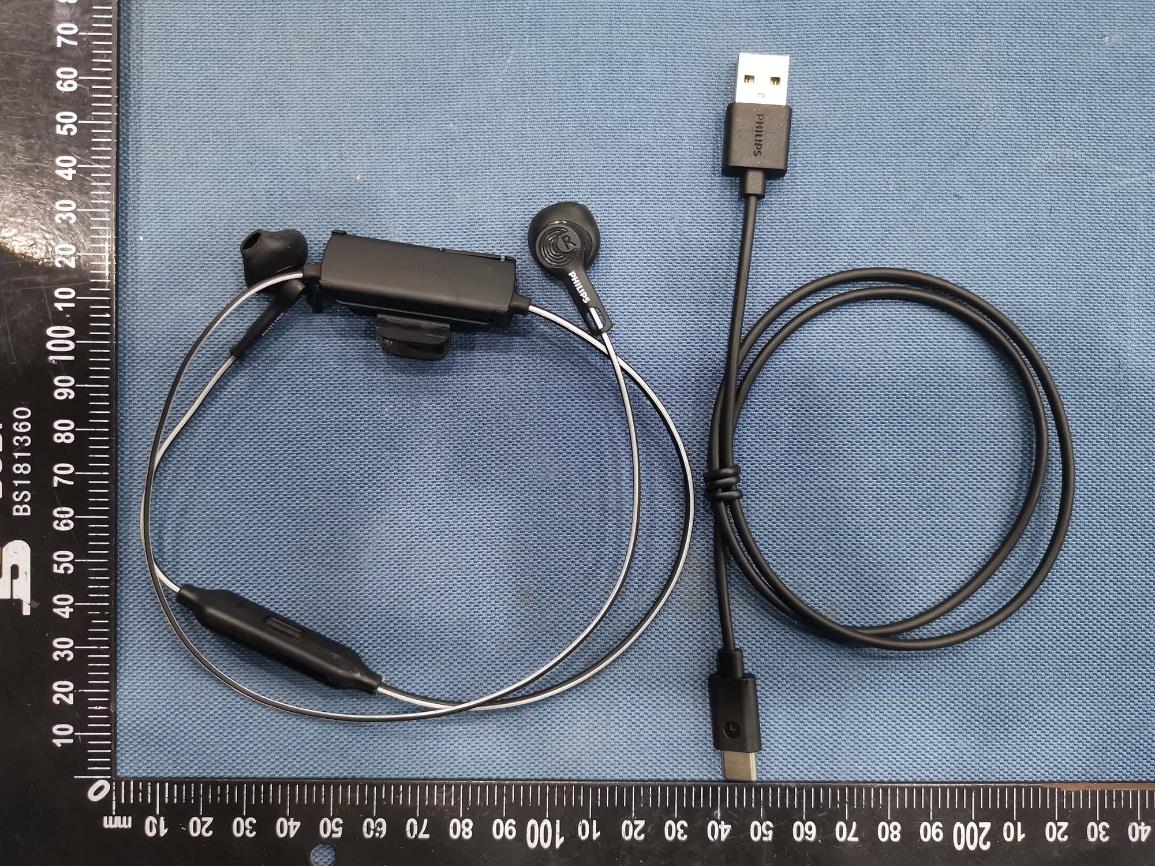

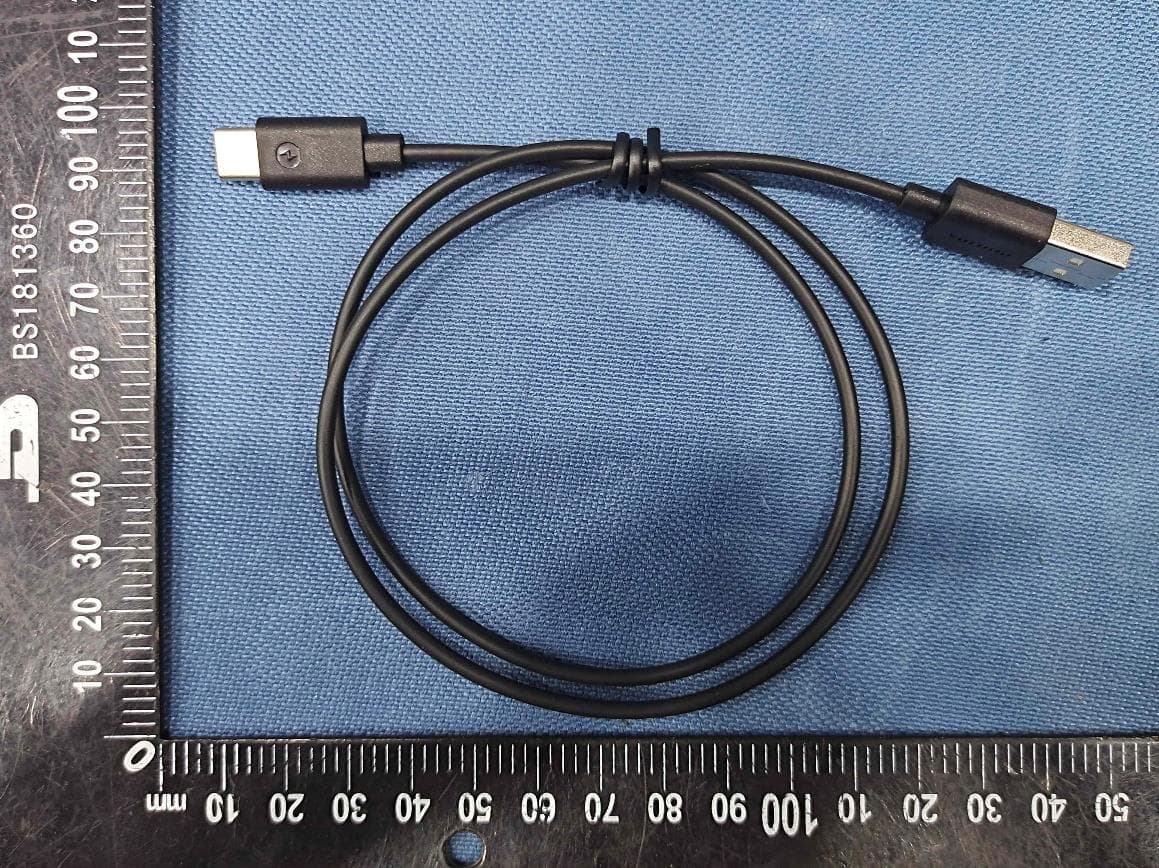

Page 1 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

TAA3206BK Approbation label MB-8018A-N00 17mm 72mm 1A Made in China 上海市闵行区东川路555号乙楼5060A室 飞生(上海)电子科技有限公司 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 ANATEL: xxxxx-xx-xxxxx CAN ICES-3(B)/NMB-3(B) CNC ID: xxxxxx Refer no.:TAA3206BK/00 Model No: TAA3206 CMIIT ID: XXXXXXXXXX IP57 MMD Hong Kong Holding Limited Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong T T

Page 1 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com APPENDIX 2 PHOTOS OF EUT CONSTRUCTIONAL DETAILS EUT INTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo BT Antenna Page 4 of 4 FCC ID: 2AR2STAA3206 IC: 24589-TAA3206 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] Http://www.uttlab.com EUT Photo

Page 2 of 9 Report No.: 201222012RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 Version Version No. Date Description V1.0 January 26, 2021 Original Page 3 of 9 Report No.: 201222012RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 2. EQUIPMENT LIST .................................................................................................................................................... 6 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 6 3.1 REFERENCE DOCUMENTS FOR EVALUATION ........................................................................................................ 6 3.2 EXEMPTION LIMITS FOR ROUTINE EVALUATION – SAR EVALUATION .................................................................... 6 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 6 3.2.2 TEST PROCEDURE ................................................................................................................................. 8 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 8 3.3.1 FOR BT ................................................................................................................................................. 8 APPENDIX 1 PHOTOS OF TEST SETUP ....................................................................................................................... 9 APPENDIX 1 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................... 9 Page 4 of 9 Report No.: 201222012RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: MMD Hong Kong Holding Limited Address of Applicant: Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address of Manufacturer: Unit 1006 , 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong 1.2 EUT INFORMATION Product Name: Wireless sports earbuds Model No. / HVIN: TAA3206 Add. Model No. : TAA3206xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) Trade Mark: or PHILIPS DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band: Bluetooth 5.0 (Only support BR+EDR) Software Version: V 1.0 Hardware Version: V 0.3 Sample Received Date: December 22, 2020 Sample Tested Date: December 30, 2020 to January 4, 2021 Note: The additional model TAA3206xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different country destination) is identical with the test model TAA3206 except the model number for marketing purpose. 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For BT_EDR Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth BR + EDR Modulation Technique: Frequency Hopping Spread Spectrum(FHSS) Type of Modulation: GFSK, π/4DQPSK, 8DPSK Number of Channels: 79 Channel Separation: 1 MHz Antenna Type: Ceramic antenna Antenna Gain: 2.5 dBi Maximum Peak Power: 5.3 dBm Page 5 of 9 Report No.: 201222012RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.1 1.4 OTHER INFORMATION Test channels for BT_EDR Mode Tx/Rx Frequency Test RF Channel Lists Lowest(L) Middle(M) Highest(H) GFSK (DH1, DH3, DH5) 2402 MHz to 2480 MHz Channel 0 Channel 39 Channel 78 2402 MHz 2441 MHz 2480 MHz π/4DQPSK (DH1, DH3, DH5) …

Text truncated - open the document above for the full version.

Page 2 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Version Version No. Date Description V1.0 February 5, 2021 Original Page 3 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.2.1 GENERAL DESCRIPTION OF EUT ............................................................................................................ 4 1.2.2 DESCRIPTION OF ACCESSORIES .............................................................................................................. 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 5 1.5 DESCRIPTION OF SUPPORT UNITS ...................................................................................................................... 5 1.6 TEST LOCATION ................................................................................................................................................. 5 1.7 TEST FACILITY ................................................................................................................................................... 6 1.8 DEVIATION FROM STANDARDS ............................................................................................................................ 6 1.9 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 6 1.10 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 6 1.11 MEASUREMENT UNCERTAINTY ........................................................................................................................... 6 2. TEST SUMMARY ...................................................................................................................................................... 7 3. EQUIPMENT LIST .................................................................................................................................................... 8 4. TEST CONFIGURATION .......................................................................................................................................... 9 4.1 ENVIRONMENTAL CONDITIONS FOR TESTING ........................................................................................................ 9 4.1.1 NORMAL OR EXTREME TEST CONDITIONS ............................................................................................... 9 4.1.2 RECORD OF NORMAL ENVIRONMENT....................................................................................................... 9 4.2 TEST CHANNELS ............................................................................................................................................... 9 4.3 EUT TEST STATUS .......................................................................................................................................... 10 4.4 PRE-SCAN .................................................................................................................................................... 10 4.4.1 PRE-SCAN UNDER ALL PACKETS AT MIDDLE CHANNEL .............................................................................. 10 4.4.2 WORST-CASE DATA PACKETS ................................................................................................................ 10 4.4.3 TESTED CHANNEL DETAIL ...................................................................................................................... 11 4.5 TEST SETUP .................................................................................................................................................... 12 4.5.1 FOR RADIATED EMISSIONS TEST SETUP ................................................................................................ 12 4.5.2 FOR CONDUCTED EMISSIONS TEST SETUP ............................................................................................ 13 4.5.3 FOR CONDUCTED RF TEST SETUP ........................................................................................................ 14 4.6 SYSTEM TEST CONFIGURATION ........................................................................................................................ 14 4.7 DUTY CYCLE ................................................................................................................................................... 15 5. RADIO TECHNICAL REQUIREMENTS SPECIFICATION .................................................................................... 16 5.1 REFERENCE DOCUMENTS FOR TESTING ............................................................................................................ 16 5.2 ANTENNA REQUIREMENT .............................................…

Text truncated - open the document above for the full version.

Page 32 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Pulse Width Number of Pulses in 3.16 Seconds 8DPSK_3-DH1 8DPSK_3-DH3 8DPSK_3-DH5 Page 33 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 5.8 CONDUCTED OUT OF BAND EMISSION Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.247(d) RSS-247 Issue 2, Section 5.5 Test Method: ANSI C63.10-2013 Section 6.10.4 & Section 7.8.8 Limit: In any 100kHz bandwidth outside the frequency bands in which the spread spectrum intentional radiator in operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of the desired power. Test Procedure: Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer. Use the following spectrum analyzer settings: Step 1:Measurement Procedure REF a) Set instrument center frequency to 2400 MHz or 2483.5 MHz. b) Wide enough to capture the peak level of the emission operating on the channel closest to the band edge, as well as any modulation products that fall outside of the authorized band of operation. c) Set the RBW = 100 kHz. d) Set the VBW ≥ 3 x RBW. e) Detector = peak. f) Sweep time = auto couple. g) Sweep points ≥ 2 x Span/RBW h) Trace mode = max hold. i) Allow the trace to stabilize. j) Set the marker on the emission at the band edge, or on the highest modulation product outside of the band, if this level is greater than that at the band edge. Enable the marker-delta function, and then use the marker-to-peak function to move the marker to the peak of the in-band emission. Step 2:Measurement Procedure OOBE a) Set RBW = 100 kHz. b) Set VBW ≥ 300 kHz. c) Detector = peak. d) Sweep = auto couple. e) Trace Mode = max hold. f) Allow trace to fully stabilize. g) Use the peak marker function to determine the maximum amplitude level. Note: The cable loss and attenuator loss were offset into measure device as an amplitude offset. Test Setup: Refer to section 4.5.3 for details. Instruments Used: Refer to section 3 for details Test Mode: Hopping Frequencies Transmitter mode Test Results: Pass Test Data: Page 34 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 The test plots as follows: GFSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 35 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 π/4DQPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 36 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 8DPSK In-Band Reference Level Out of Band Emission Lowest Channel Middle Channel Highest Channel Page 37 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 Hopping Lowest Channel Hopping Highest Channel GFSK π/4DQPSK 8DPSK Page 38 of 45 Report No.: 201222012RFC-1 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: Unit D/E of 9/F and 16/F, Block A, Building 6, Baoneng Science and Technology Park, Longhua District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS247-V1.1 5.9 RADIATED SPURIOUS EMISSIONS Test Requirement: FCC 47 CFR Part 15 Subpart C Section 15.205/15.209 RSS-Gen Issue 5, Section 6.13/8.9/8.10 Test Method: ANSI C63.10-2013 Section 6.3 & 6.5 & 6.6 Receiver Setup: Frequency RBW 0.009 MHz-0.150 MHz 200/300 kHz 0.150 MHz -30 MHz 9/10 kHz 30 MHz-1 GHz 100/120 kHz Above 1 GHz 1 MHz Limits: Spurious Emissions Frequency Field strength (microvolt/meter) Limit (dBμV/m ) Remark Measurement distance (m) 0.009 MHz-0.490 MHz 2400/F(kHz) -- -- 300 0.490 MHz-1.705 MHz 24000/F(kHz) -- -- 30 1.705 MHz-30 MHz 30 -- -- 30 30 MHz-88 MHz 100 40.0 Quasi-peak 3 88 MHz-216 MHz 150 43.5 Quasi-peak 3 216 MHz-960 MHz 200 46.0 Quasi-peak 3 960MHz-1GHz 500 54.0 Quasi-peak 3 Above 1 GHz 500 54.0 Average 3 Remark: 1. The lower limit shall apply at the transition frequencies. 2. Emission level (dBuV/m) = 20 log Emission level (uV/m). 3. For frequencies above 1000 MHz, the field strength limits are based on aver…

Text truncated - open the document above for the full version.
