2AR2STAB5305SWSoundbar Speaker

MMD Hong Kong Holding Limited
Soundbar Speaker - FCC ID 2AR2STAB5305SW - MMD Hong Kong Holding Limited
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Nov 11, 2020
Application Purpose
Original Equipment
Date of Application
Nov 10, 2020
Equipment Note
Soundbar Speaker
Frequency Range
2402.00000000 - 2480.00000000
Company
MMD Hong Kong Holding Limited
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

DATE : 2020-11-04 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AR2STAB5305SW Product Name: Soundbar Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. <Signature> Name:Tomas Guan Title:Safety & Approbation Manager Company:MMD Hong Kong Holding Limited

Cover Letter(s)

DATE : 2020/11/4 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address:Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with MMD Hong Kong Holding Limited Address: Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong <Signature> Name:Tomas Guan Title:Safety & Approbation Manager Applicant Company:MMD Hong Kong Holding Limited

External Photos

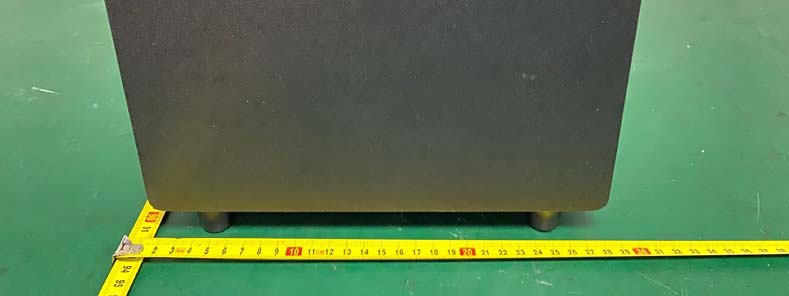

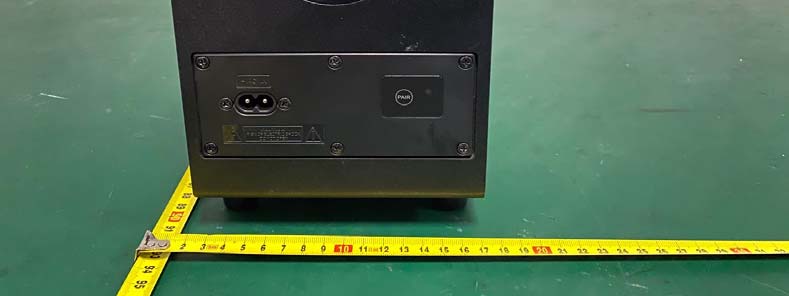

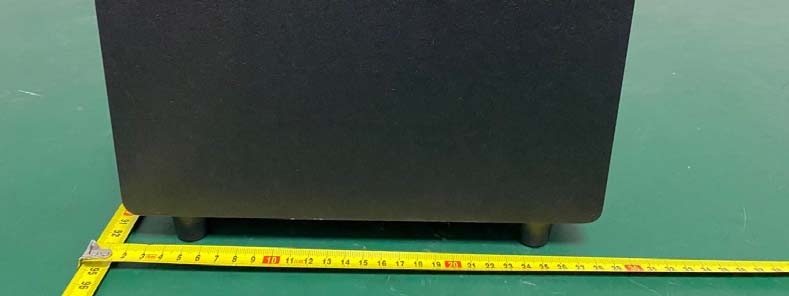

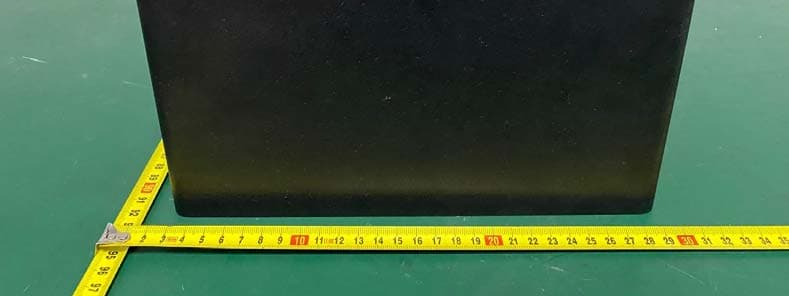

External Photos M/N: TAB5305/37 External Photos M/N: TAB5305/37 External Photos M/N: TAB5305/37

ID Label/Location Info

41.50 mm 35.50 mm TAB5305/37 TAB5305/37 FCC ID:2AR2STAB5305SWIC:24589-TAB5305SW FCC ID:2AR2STAB5305SWIC:24589-TAB5305SW E506295 Envision Peripherals, Inc. 490 N McCarthy Blvd, Suite #120 Milpitas, CA 95035 AC , HVIN : TAB5305SW E506295 Envision Peripherals, Inc.490 N M cCarthy Blvd, Suite #120 Milpitas, CA 95035 AC , HVIN : TAB5305SW TAB5305/37 FCC ID:2AR2STAB5305SWIC:24589-TAB5305SW E506295 Envision Peripherals, Inc. 490 N M cCarthy Blvd, Suite #120 Milpitas, CA 95035 AC , HVIN : TAB5305SW

Internal Photos

Internal Photos M/N: TAB5305/37 Internal Photos M/N: TAB5305/37 Internal Photos M/N: TAB5305/37 Bluetooth Antenna

RF Exposure Info

FCC ID: 2AR2STAB5305SW EST Technology Co. ,Ltd Report No. ESTE-R2011015 Page 1 of 4 FCC 47 CFR MPE REPORT MMD Hong Kong Holding Limited Soundbar Speaker Model Number: TAB5305/37 Additional Model: TAB5305/xx, (xx=00-99 for country code) FCC ID: 2AR2STAB5305SW Prepared for: MMD Hong Kong Holding Limited Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2011015 Date of Test: Oct. 10~31, 2020 Date of Report: Nov. 02, 2020 FCC ID: 2AR2STAB5305SW EST Technology Co. ,Ltd Report No. ESTE-R2011015 Page 2 of 4 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2AR2STAB5305SW EST Technology Co. ,Ltd Report No. ESTE-R2011015 Page 3 of 4 1.2. MPE Calculation Method E (V/m) = d G×P×30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2AR2STAB5305SW EST Technology Co. ,Ltd Report No. ESTE-R2011015 Page 4 of 4 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) Target power (dBm) Antenna gain (dBi) (Linear) GFSK 2402 -1.67 0.681 -1 ±1 0 1 2441 -1.35 0.733 -1±1 0 1 2480 -0.83 0.826 0±1 0 1 8-DPSK 2402 0.97 1.250 0 ±1 0 1 2441 1.42 1.387 1±1 0 1 2480 2.32 1.706 2±1 0 1 3. Calculated Result and Limit Mode Target power (dBm) Antenna gain Power Density (S) (mW/cm 2 ) Limited of Power Density (S) (mW/cm 2 ) Test Result (dBi) (Linear) 2.4G Band GFSK 1 0 1 0.00025 1 Compiles 8-DPSK 3 0 1 0.00040 1 Compiles End of Test Report

Test Report

FCC ID: 2AR2STAB5305SW EST Technology Co., Ltd Report No. ESTE-R2011014 Page 1 of 74 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of MMD Hong Kong Holding Limited Soundbar Speaker Model Number: TAB5305/37 Additional Model: TAB5305/xx, (xx=00-99 for country code) FCC ID: 2AR2STAB5305SW Prepared for: MMD Hong Kong Holding Limited Unit 1006, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2011014 Date of Test: Oct. 10~31, 2020 Date of Report: Nov. 02, 2020 FCC ID: 2AR2STAB5305SW EST Technology Co., Ltd Report No. ESTE-R2011014 Page 2 of 74 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipmen ................................................................................................................................ 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 12 3.1. Limit ............................................................................................................................................... 12 3.2. Test Setup ....................................................................................................................................... 12 3.3. Spectrum Analyzer Setting ............................................................................................................. 12 3.4. Test Procedure ................................................................................................................................ 12 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 18 4.1. Limit ............................................................................................................................................... 18 4.2. Test Setup ....................................................................................................................................... 18 4.3. Spectrum Analyzer Setting ............................................................................................................. 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ...................................................................................................................................... 19 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 24 5.1. Limit ............................................................................................................................................... 24 5.2. Test Setup ....................................................................................................................................... 24 5.3. Spectrum Analyzer Setting ............................................................................................................. 24 5.4. Test Procedure ................................................................................................................................ 24 5.5. Test Result ...................................................................................................................................... 25 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 30 6.1. Limit ............................................................................................................................................... 30 6.2. Test Setup ....................................................................................................................................... 30 6.3. Spectrum An…

Text truncated - open the document above for the full version.

Test Setup Photos

Conducted Test Radiated Test (30-1000 MHz) Radiated Test (Above 1GHz)

Contact Information

Applicant

Tomas Guan(Safety & Approbation Manager)
[email protected]86-755-36358341Fax: 86-755-26634642

Test Firm

EST Technology Co., Ltd.Iceman Hu
[email protected]+86 0769-83081888

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.71 mW
Confidentiality
Long Term
Grant Notes
Power output listed is conducted
