2AR2STAE1205Wireless in-ear headphones

TAE1205 Usermanual Registeryourproductandgetsupportat www.philips.com/support 1 Important safetyinstructions Hearing Safety Generalinformation 2 2 2 3 2 YourBluetoothin-earheadphones3 What's in the box3 Other devices3 Overview of your Bluetooth in-ear headphones 3 Getstarted Charge yourheadphones Pair the headphones with your mobile phone 4 4 4 4 Use your headphones Connect the headphones to a Bluetoothdevice Manage your calls andmusic 5 5 5 5 Technicaldata7 6Notice Notice ofcompliance 8 8 Disposal of your old product and battery 8 Trademarks9 7 Frequentlyaskedquestions10 Contents EN1 2EN 1Important safety instructions HearingSafety Danger To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level.The louder the volume, the shorter the safe lis tening time is. Be sure to observe the following guidelines when using your headset. •Listen at reasonable volumes for reason- able periods of time. •Be careful not to adjust the volume continuously upwards as your hearing adapts. •Do not turn up the volume so high that you can't hear what's aroundyou. •You should use caution or temporarily discontinue use in potential ly hazardous situations. •Excessi ve sound pressure from earphones and headphones can cause hearinglos s. •Using headphones with both ears covered while driving is not recommended and may be ille gal in some areas whiledriving. •For your safety, avoid distractions from music or phone calls while in traffi c or other potentiall y dangerousenvironments. Generalinf ormation To avoid damage or malfunction: Caution Do not expose headphones to excessi ve heat Do not drop yourheadphones. Headphones shall not be exposed to dripping or splashing. Do not allo w your headphones to be submerged in water. Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives. If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or dilu ted mild soap, to clean the product. The integrated battery shall not be exposed to excessive heat such as sunshine, fire or the lik e. Danger of explosion if batter y is incorre ctly replaced. Repl ace only with the same or equivalenttype. About operating and storage temperatures and humidit y •Operate or store in a place where temperature is between -20°C (4°F) and 60°C (140 °F) (up to 90% relative humidity. •Batte ry lif e may be shorter in high or low temperature conditions. 2Your Bluetooth in-ear headphones Congratulations on your purchase, and welcome to Phili ps! To full y benefit from the support that Phili ps offers, register your product at www.phili ps.com/welcome. With this Phili ps wireless in-ear headphones, you can: enjoy convenient wireless handsfree call s; enjoy and control wireless music; switch between call s and music. What's in the box Phili ps Blueto oth in-e ar headphones TAE1205 Other devices A mobile phone or device (e.g. notebook, PDA, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the headphones (see 'Technical data' on page 7). Overview of your Bluetooth in-ear headphones EN3 Next / Volume up On/off, mus ic/c al l c on tr ol bu tto n MIC LED indicator Prev iou s/V ol ume down Cha rgi ng s lot USB charging cable (for charging only) Quick start guide Earfins Caps ( S / L) *Caps (M size) are installed on TAE1205 3Getstarted Charge your headphones Note Before you use your headphones for the first time, charge the battery for 2hours for optimum battery capacity and lifetime. Use only the original USB charging cable to avoid any damage. Finish your call before charging the headphones, as connecting the headphones for charging will power the headphones off. Connect the supplied USB charging cable tothe charging slot on the headphones andthe charger/USB port of a computer. LED turns whiteduring charging and turns offwhen the headphones is fully charged. Tip Normally, a full charge takes 2hours. Pair the headphones with your mobile phone Before you use the headphones with your mobile phone for the first time, pair it with a mobile phone. A successful pairing establishes a unique encrypted link between the headphones and mobile phone.The headphones store the last 8 devices in the memory . If you try to pair more than 8 devices , the earliest pained device is replaced by the new one. 4EN Make sure that the headphones are fully charged and turned off. Press and hold the on/off button(>4s), blue andwhites LED flashes alternatelywhich means the headphones enter Bluetooth pairing mode. The headphones remain in pairing mode for 5 minutes. Make sure that the mobile phone is turned on and its Bluetooth feature is activated. Pair the headphones with the mobile phone. For detailed information, refer to the user manual of your mobile phone. Enter the headset password "0000" (4 zeros) if prompted. For those mobile phones featuring Bluetooth 3.0 or higher, no need to enter a password. Tip •If you turn on the mobile phoneor activate the Bl uetooth feature after turning on the headphones, you have to reconnect the headphones and mobile phonemanually. •If the headphones fail to connect to any Bluetooth devic e wit hin range in 5 minutes, it wil l swit ch off automatic all y to save the battery li fe. Connect the headphones to a Bluetooth device Turn o n your mobile phone. Press and hold (>2s) th e on/off button to tu rn t he headphones on. The headphones are re connecte d to th e last connected device auto mat ical ly. If th e last one is not available, t he headphones try t o reconnect to th e second last connecte d device. 4Use your headphones Manage your calls and mus ic Music control EN5 Tip TaskButt onOpera tion Turn o n TAE1205 On/Off, music/c all control Pr ess and hold (> 2s) Turn off TAE1205 On/Off, music/c all control Pr ess and hold (> 4s) Power on/off TaskButt onOperati on Play o r pause music On/Off, music/c all control Press once Adjust volume + / -Press once Next track+ Press twice Previous track - Press twice …

Text truncated - open the document above for the full version.

Authority to Act as Agent [June 4, 2020] Federal Communications Commission 445 12 th Street SW Washington, DC 20554 Subject: Limited Agency Agreement (MMD Hong Kong Holding Limited) To Whom It May Concern: Shenzhen UnionTrust Quality and Technology Co., Ltd. is authorized to act on our behalf, until otherwise notified, for applications to Intertek Testing Services. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: 36 months By: __________________________ Tomas.Guan (Print name) (Signature 1 ) Title: Manager On behalf of: (MMD Hong Kong Holding Limited) Telephone: 86-755-36358722 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

1(1) [MMD Hong Kong Holding Limited] [June 4, 2020] Attention: Application Examiner RE: Request for Confidentiality Applicant: [MMD Hong Kong Holding Limited] FCC ID: [2AR2STAE1205] To Whom It May Concern: Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [MMD Hong Kong Holding Limited] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential:  Schematics  Detailed Block Diagrams  Detailed Operational/Functional Description Rationale for request for confidentiality: [MMD Hong Kong Holding Limited] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] [Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in research and development.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] [Tomas Guan] [Manager] [MMD Hong Kong Holding Limited]

Declaration on model difference Page 1 of 1 page We the undersigned hereby confirm that any of our production units bearing the following model numbers are identical in circuitry and electrical, mechanical and physical construction; the only differences is model no. for trading purpose. Production nameTrade nameModel no. Wireless in-ear headphones or PHILIPS TAE1205xx/yy (xx=AA-ZZ or blank denoted different color; yy=00-99 denoted different county destination) Please provide at least 1 sample with difference except specified as above for further evaluation. Production nameTrade nameModel no.Description -------- Confirmed by Authorized Signature: Company Stamp:Date:June 10, 2020

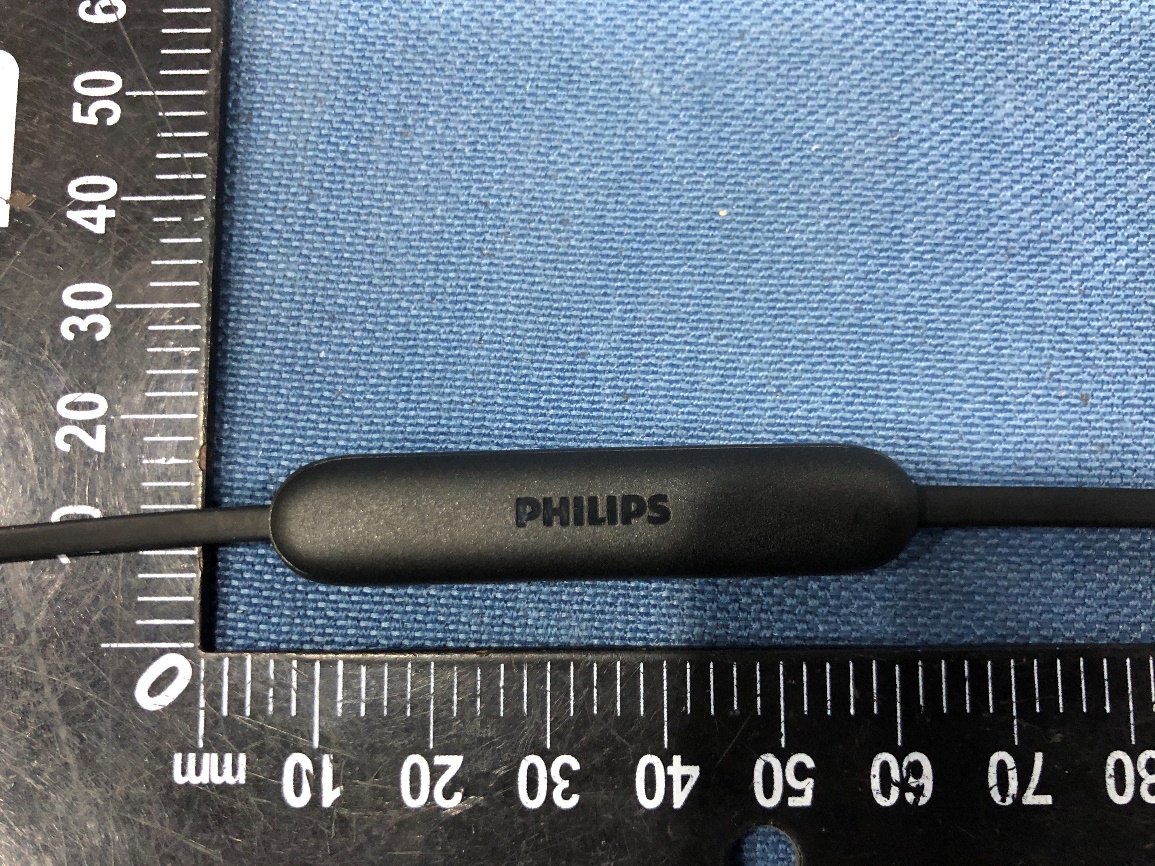

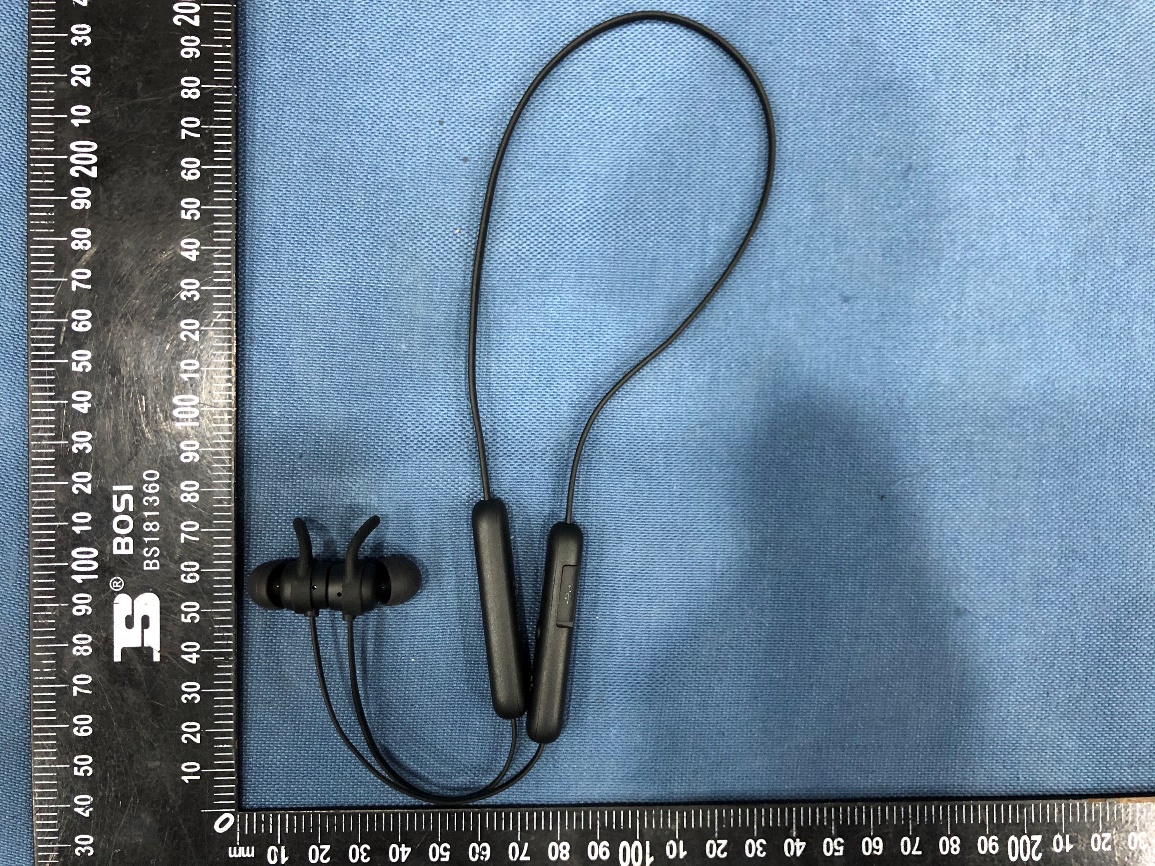

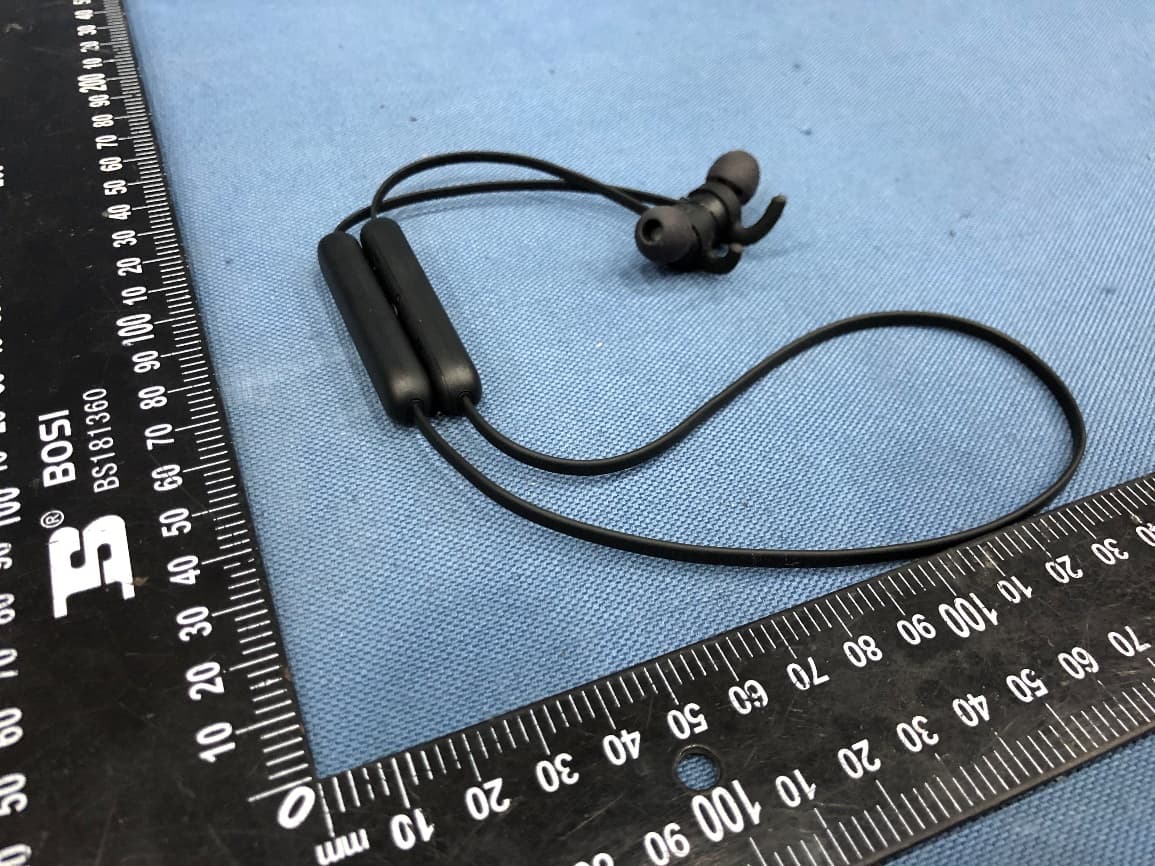

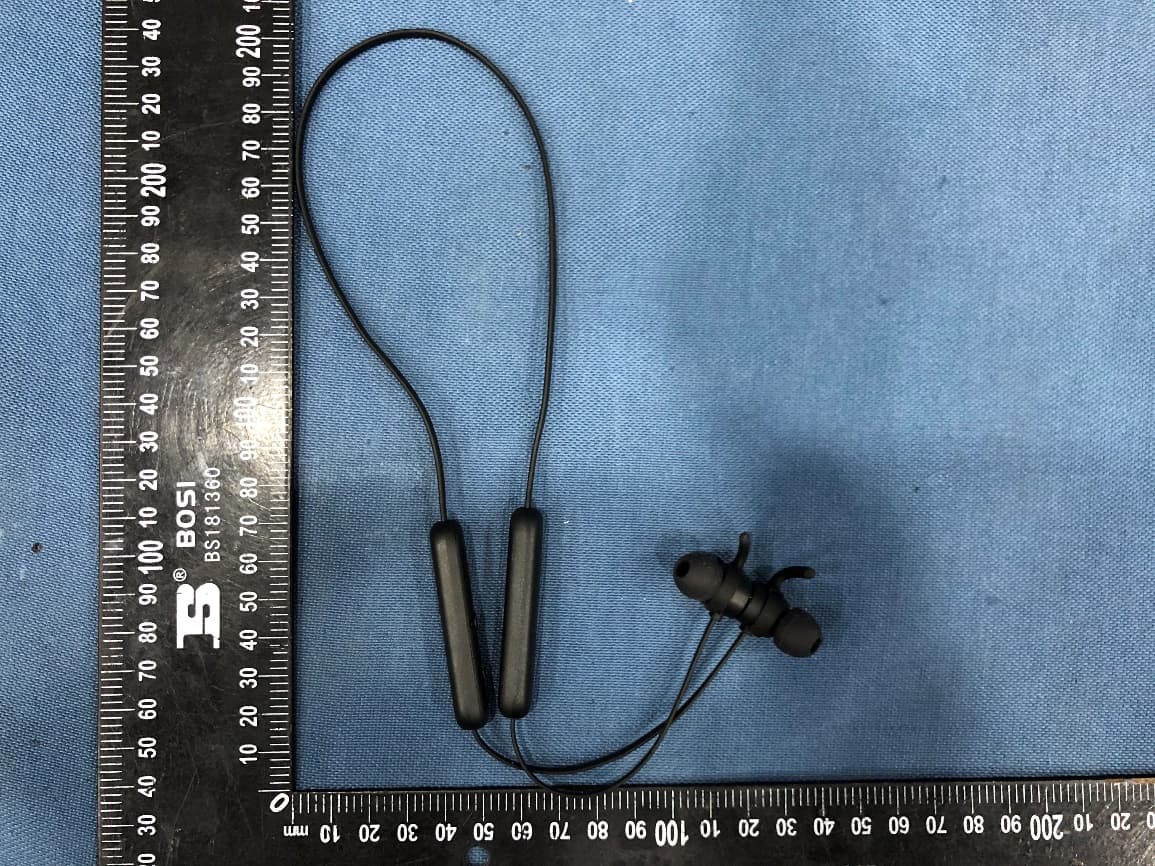

Page 1 of 5 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Te l : +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT EXTERNAL PHOTOS EUT Photo EUT Photo Page 2 of 5 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Te l : +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 5 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Te l : +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 5 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Te l : +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 5 of 5 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Te l : +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo

30mm 30mm 9mm 10mm DC Input : 5V 0.5A BC Model No: TAE1205 Refer no: TAE1205BK/00 CANICES-3(B)/NMB-3(B) FCC ID:2AR2STAE1205 S/N.: IC:24589-TAE1205 CMIIT ID:XXXXXXXXXX MMD Hong Kong Holding Limited Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Made in china ()

Page 1 of 4 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT INTERNAL PHOTOS EUT Photo EUT Photo Antenna Page 2 of 4 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 3 of 4 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo Page 4 of 4 FCC ID: 2AR2STAE1205 IC: 24589-TAE1205 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-2823088 6 E-mail: [email protected] Http://www.uttlab.com EUT Photo EUT Photo

Page 2 of 8 Report No.: 200430001RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 Version Version No. Date Description V1.0 June 5, 2020 Original Page 3 of 8 Report No.: 200430001RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 CONTENTS 1. GENERAL INFORMATION ....................................................................................................................................... 4 1.1 CLIENT INFORMATION ........................................................................................................................................ 4 1.2 EUT INFORMATION ............................................................................................................................................ 4 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD ................................................................................. 4 1.4 OTHER INFORMATION ......................................................................................................................................... 4 1.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................................................... 5 1.6 DEVIATION FROM STANDARDS ............................................................................................................................ 5 1.7 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................. 5 1.8 OTHER INFORMATION REQUESTED BY THE CUSTOMER ........................................................................................ 5 2. EQUIPMENT LIST .................................................................................................................................................... 5 3. SAR TEST EXCLUSION EVALUATION ................................................................................................................... 6 3.1 REFERENCE DOCUMENTS FOR EVAL U AT I O N ........................................................................................................ 6 3.2 EXEMPTION LIMITS FOR ROUTINE EVAL U AT I O N – SAR EVAL U AT I O N .................................................................... 6 3.2.1 SAR TEST EXCLUSION THRESHOLD ........................................................................................................ 6 3.2.2 TEST PROCEDURE ................................................................................................................................. 7 3.3 MPE CALCULATION RESULTS ............................................................................................................................ 7 3.3.1 FOR BT ................................................................................................................................................. 7 APPENDIX 1 PHOTOS OF TEST SETUP ....................................................................................................................... 8 APPENDIX 1 PHOTOS OF EUT CONSTRUCTIONAL DETAILS ................................................................................... 8 Page 4 of 8 Report No.: 200430001RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-28230888 Fax: +86-755-28230886 E-mail: [email protected] http://www.uttlab.com UTTR-RF-RSS102-V1.0 1. GENERAL INFORMATION 1.1 CLIENT INFORMATION Applicant: MMD Hong Kong Holding Limited Address of Applicant: Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Manufacturer: MMD Hong Kong Holding Limited Address of Manufacturer: Units 1006-1007, 10th Floor, C-Bons International Center, 108 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong 1.2 EUT INFORMATION Product Name: Wireless in-ear headphones Model No.: TAE1205 Add. Model No.: TAE1205xx/yy (xx=AA-ZZ or blank denoted differenct color; yy=00-99 denoted different country destination) Trade Mark: PHILIPS DUT Stage: Production Unit EUT Supports Function: 2.4 GHz ISM Band: Bluetooth 5.1 Software Version: 0.1.9 Hardware Version: E1205_AC6956A_V1.0 Sample Received Date: April 30, 2020 Sample Tested Date: April 30, 2020 to May 28, 2020 Note: The additional model TAE1205xx/yy (xx=AA-ZZ or blank denoted differenct color; yy=00-99 denoted different country destination) is identical with the test model TAE1205 except the model number for marketing purpose. 1.3 PRODUCT SPECIFICATION SUBJECTIVE TO THIS STANDARD For BT_EDR Frequency Band: 2400 MHz to 2483.5 MHz Frequency Range: 2402 MHz to 2480 MHz Bluetooth Version: Bluetooth BR + EDR Modulation Technique: Frequency Hopping Spread Spectrum(FHSS) Type of Modulation: GFSK, π/4DQPSK, Number of Channels: 79 Channel Separation: 1 MHz Antenna Type: Ceramic Chip Antenna Antenna Gain: 0.8 dBi Maximum Peak Power: 3.78dBm 1.4 OTHER INFORMATION Test channels for BT_EDR Mode Tx/Rx Frequency Test RF Channel Lists Lowest(L) Middle(M) Highest(H) GFSK (DH1, DH3, DH5) 2402 MHz to 2480 MHz Channel 0 Channel 39 Channel 78 2402 MHz 2441 MHz 2480 MHz π/4DQPSK (DH1, DH3, DH5) 2402 MHz to 2480 MHz Channel 0 Channel 39 Channel 78 2402 MHz 2441 MHz 2480 MHz Page 5 of 8 Report No.: 200430001RFC-2 Shenzhen UnionTrust Quality and Technology Co., Ltd. Address: 16/F, Block A, Building 6, Baoneng Science and Technology Park, Qingxiang Road No.1, Longhua New District, Shenzhen, China Tel: +86-755-2…
