2AR2STAH8506Wireless headphones with Noise Canceling Pro

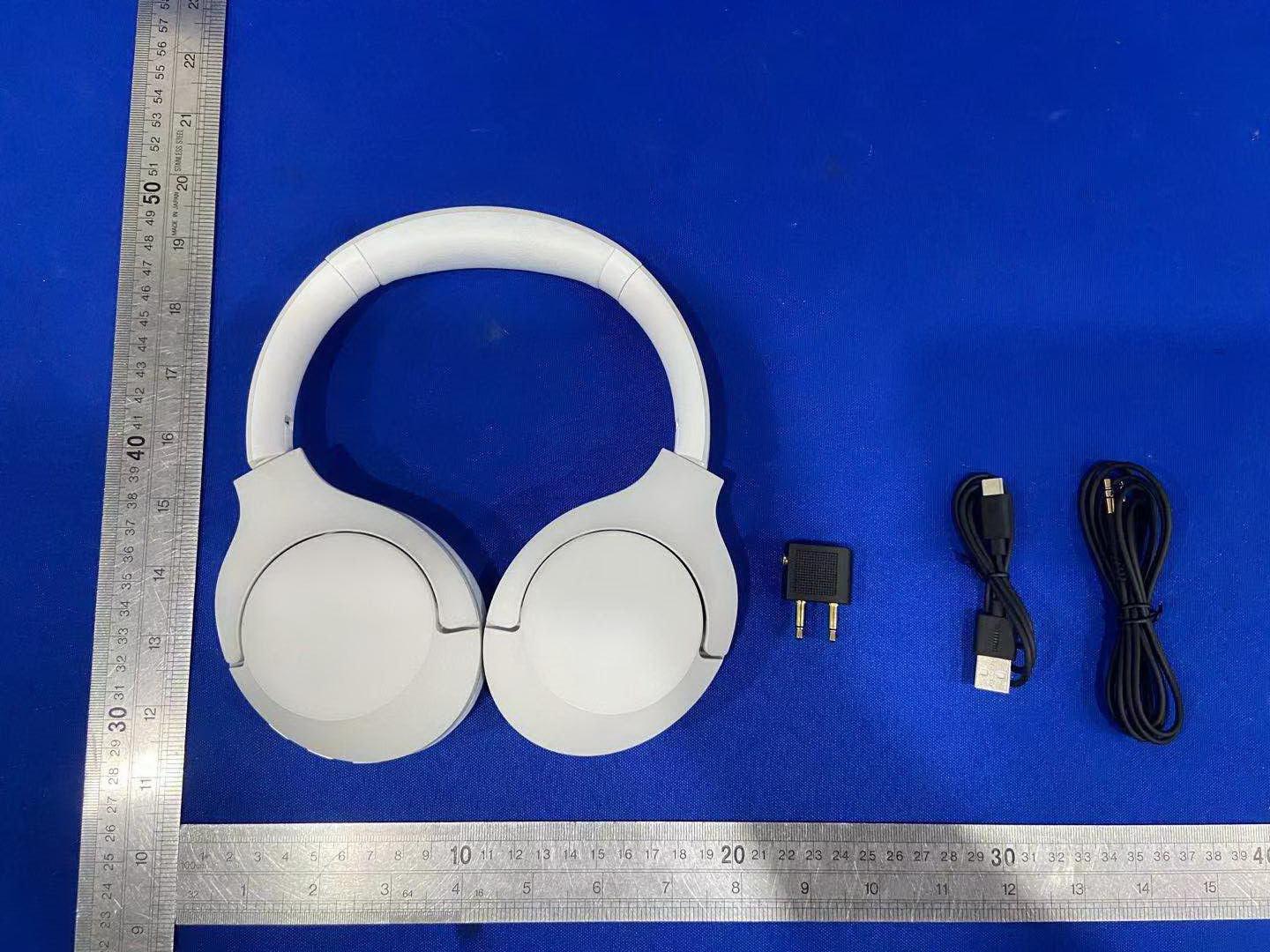

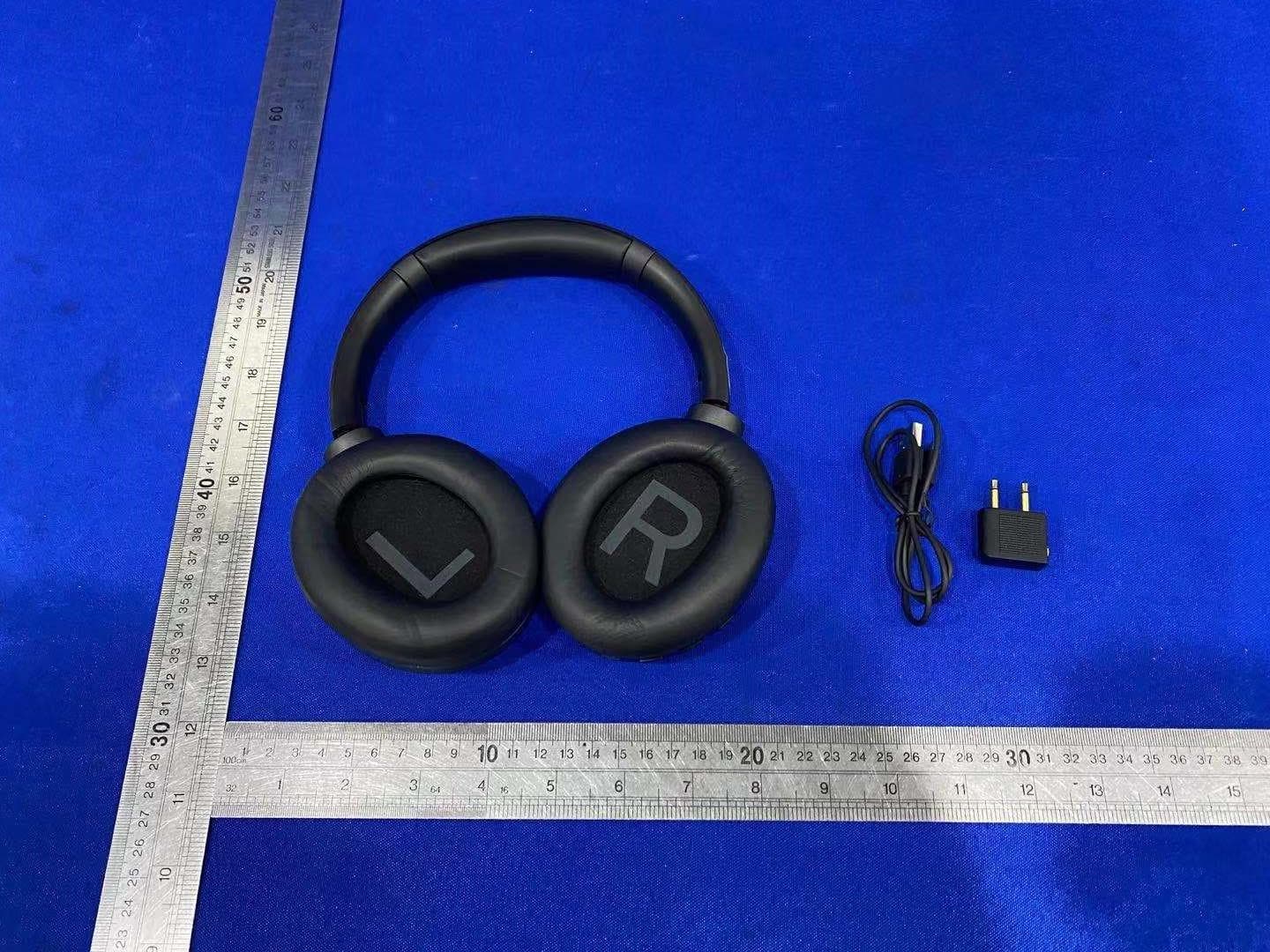

User manual Register your product and get support at www.philips.com/support Headphones 8000 Series TAH8506 1 Important safety instructions 2 Hearing Safety 2 General information 2 2 Your Bluetooth over-ear headphones 3 What's in the box 3 Other devices 3 Overview of your Bluetooth wireless headphone 4 3 Get started 5 Charge the battery 5 Pair the headphones with your mobile phone 5 4 Use your headphones 6 Connect the headphone to your Bluetooth device 6 Manage your calls and music 6 5 Technical data 8 6 Notice 9 Declaration of conformity 9 Disposal of your old product and battery 9 Remove the integrated battery 9 Compliance with EMF 9 Environmental information 10 Notice of compliance 10 7 Trademarks 11 8 Frequently asked questions 12 Contents 1 Important safety instructions Hearing Safety  To avoid hearing damage, limit the time you use headphones at high volume and set the volume to a safe level. The louder the volume, the shorter the safe listening time is. Be sure to observe the following guide- lines when using your headphone. • Listen at reasonable volumes for reasonable periods of time. • Be careful not to adjust the volume continuously upwards as your hearing adapts. • Do not turn up the volume so high that you can't hear what's around you. • You should use caution or tempo- rarily discontinue use in potentially hazardous situations. • Excessive sound pressure from earphones and headphones can cause hearing loss. • Using headphones with both ears covered while driving is not recom- mended and may be illegal in some areas while driving. • For your safety, avoid distractions from music or phone calls while in trac or other potentially dangerous environments. General information To avoid damage or malfunction: Danger  Do not expose headphones to excessive heat  Do not drop your headphones.  Headphones shall not be exposed to dripping or splashing.  Do not allow your headphones to be submerged in water.  Do not use any cleaning agents containing alcohol, ammonia, benzene, or abrasives.  If cleaning is required use a soft doth, if necessary dampened with a minimum amount of water or diluted mild soap, to clean the product.  The integrated battery shall not be exposed to excessive heat such as sunshine, re or the like.  Replacement of a battery with an incorrect type that can defeat a safeguard;  Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;  Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of ammable liquid or gas;  A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas.  Never use your headphones when you are operating a motor vehicle, riding a bicycl e, running or walking in trac areas. It is dangerous and illegal in many places. About operating and storage temperatures and humidity • Operating temperature: 0°C (32°F) to 40°C (104°F) • Storage temperature: -10°C (14°F) to 45°C (113°F) • Operating humidity: 8% - 90% RH (No condensation) • Storage humidity: 5% - 90% RH (No condensation) • Maximum operating altitude: 3000m • Battery life may be shorter in high or low temperature conditions. Caution 2 Your Bluetooth over-ear headphones What's in the box Philips Bluetooth headphones Philips TAH8506 Quick start guide Other devices A mobile phone or device (e.g. note- book, PAD, Bluetooth adapters, MP3 players etc) which supports Bluetooth and is compatible to the headphone (see 'Technical data' on page 8). Congratulations on your purchase, and welcome to Philips! To fully benet from the support that Philips oers, register your product at www.philips.com/support. With this Philips over-ear headphones, you can: • enjoy convenient wireless handsfree calls; • enjoy and control wireless music; • switch between calls and music; • enjoy noise cancelation. Plane Adaptor Carrying case USB charging cable (for charging only) Audio cable Global Warranty Safety leaet Overview of your Bluetooth wireless headphone Voice Assistant Button Power Button Indicator LED(White/Blue) USB-C Touch Pad ANC Mode Button Voice Mic 1 2 3 4 5 6 7 2.5mm Audio jack 8 1 2 4 3 5 6 8 7 3 Get started Charge the battery Note  Before you use your headphone for the rst time, charge the battery for 4 hours for optimum battery capacity and lifetime.  Use only the original USB charging cable to avoid any damage.  Finish your call before charging the headphone, as connecting the headphone for charging will power the headphone o. Connect the supplied USB charging cable to: • The USB type C charging slot on the headphones and; • The charger/USB port of a computer. Tip  Normally, a full charge takes 4 hours. Pair the headphones with your mobile phone Make sure that the headphones are fully charged and turned o. Make sure that the mobile phone is turned on and its Bluetooth feature is activated. The headphone remain in pairing mode for 5 minutes. Before you use the headphones with your mobile phone for the rst time, pair it with a mobile phone. A successful pairing establishes a unique encrypted link between the headphones and mobile phone. The headphones store the last 8 devices in the memory. If you try to pair more than 8 devices, the earliest paired device is replaced by the new one. The following example shows you how to pair the headphones with your mobile phone. LED turns white during charging and turns o when the headphones in fully charged. Press and hold for 5 seconds until the blue and white LED ashes alternately. Philips TAH8506 Pair the headphones with the mobile phone. For detailed infor- mation, refer to the user manual of your mobile phone. Activate the Bluetooth feature of your mobile phone, select Philips TAH8506 Wired Connection Note  When streaming audio from Device 1, receiving a call from Device 2 will automatically pause Device 1 playback. And the call will be rou…
